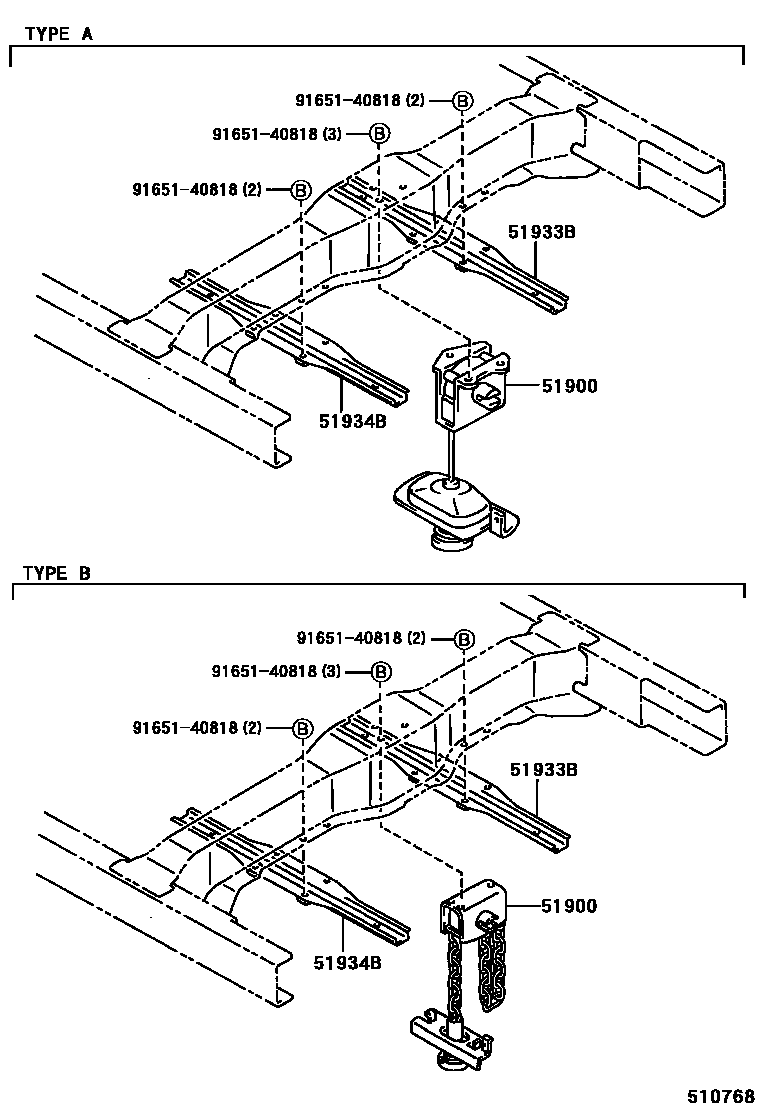

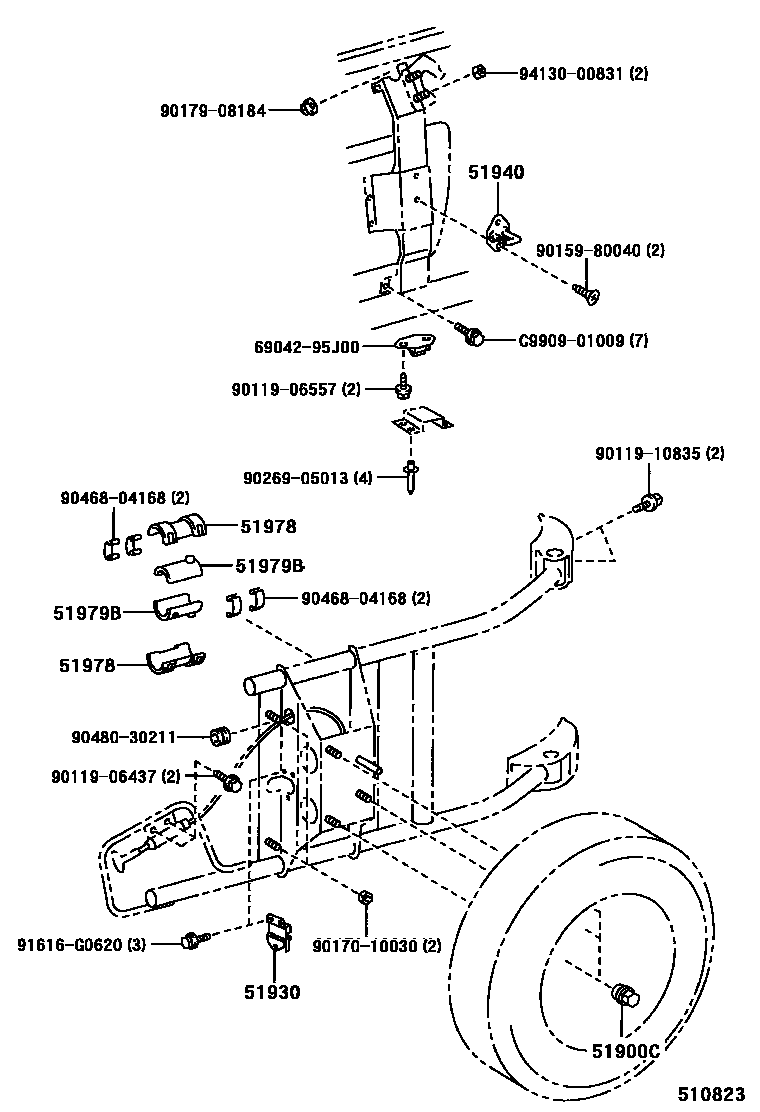

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-04050 · 51900-04060 · 51900-26110 · 51900-35101 · 51900-35310 · 51900-35311 · 51900-35312 · 51900-35330 · 51900-35331 · 51900-35332 · 51900-35333 · 51900-35360 · 51900-35361 · 51900-35362 · 51900-35370 · 51900-35371 |
| 51900C | Spare wheel hub nut | 90942-01062 |
| 51930 | Spare tire rack lock assembly | 51930-89101 |
| 51933B | Spare tire rack right block | 51933-04010 · 51933-34010 |
| 51934B | Spare tire rack left block | 51933-04010 · 51933-34010 |
| 51940 | Spare tire rack lock assembly | 51940-89101 |
| 51978 | Spare tire rack protective cover | 51978-35010 |
| 51979B | Spare tire carrier protective cover cushion | 51979-35010 |
