Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

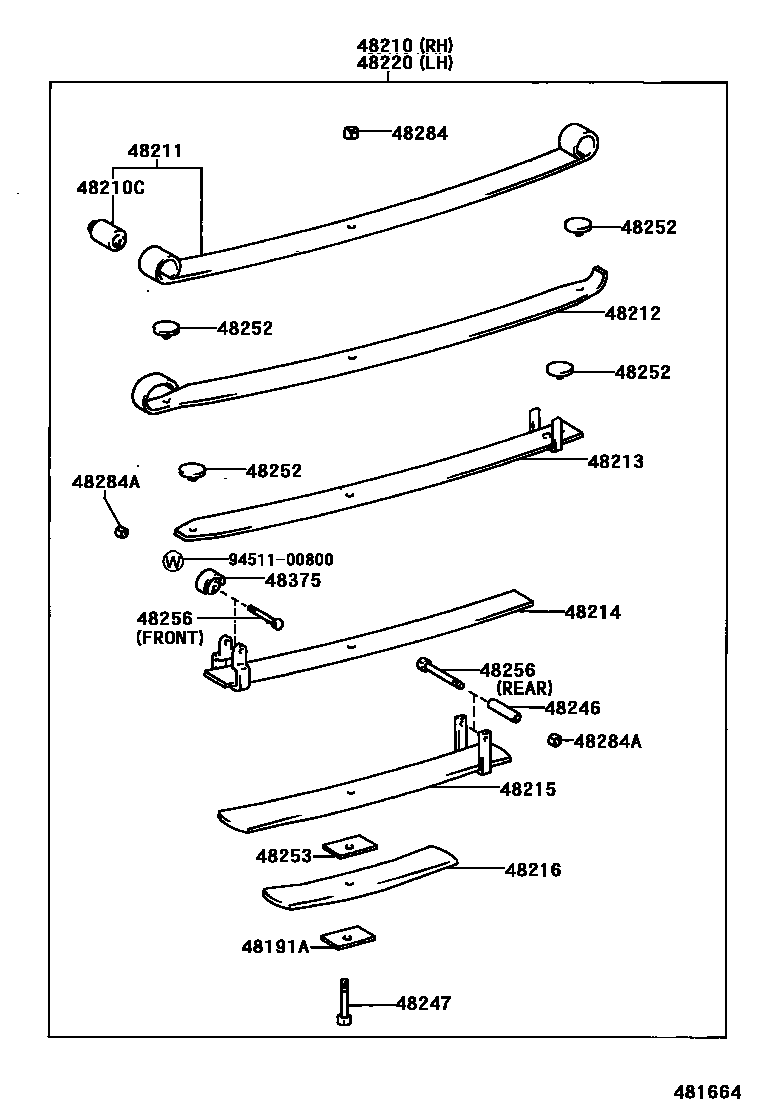

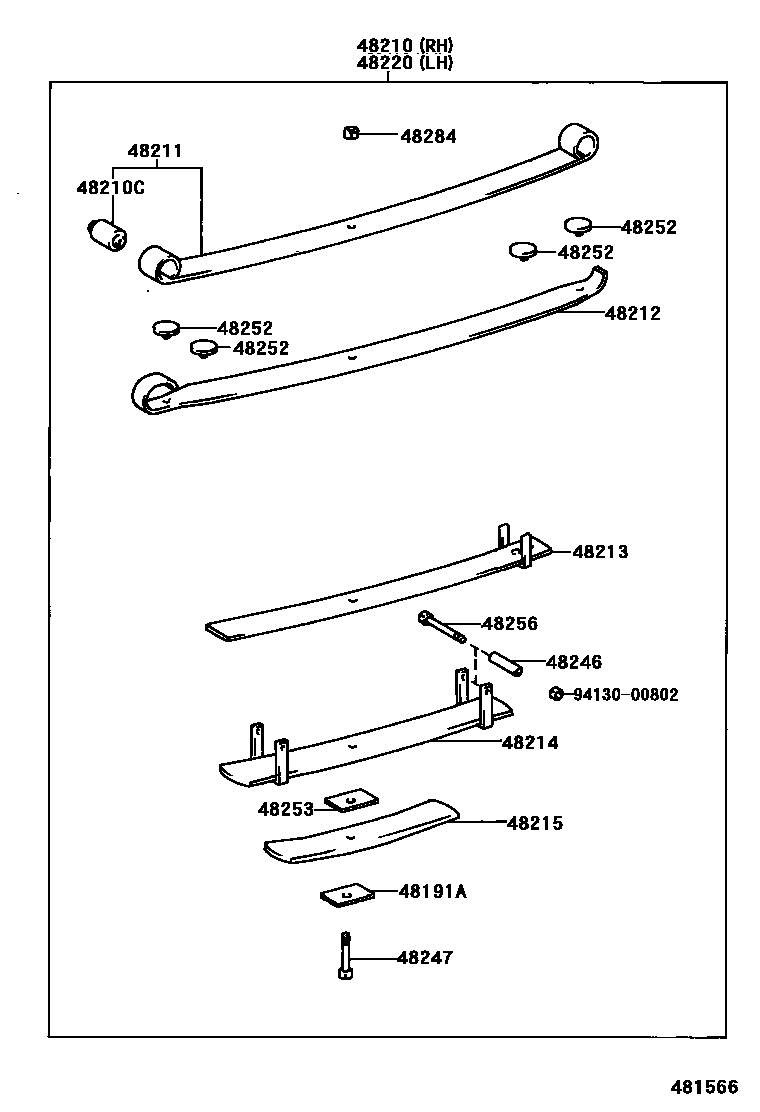

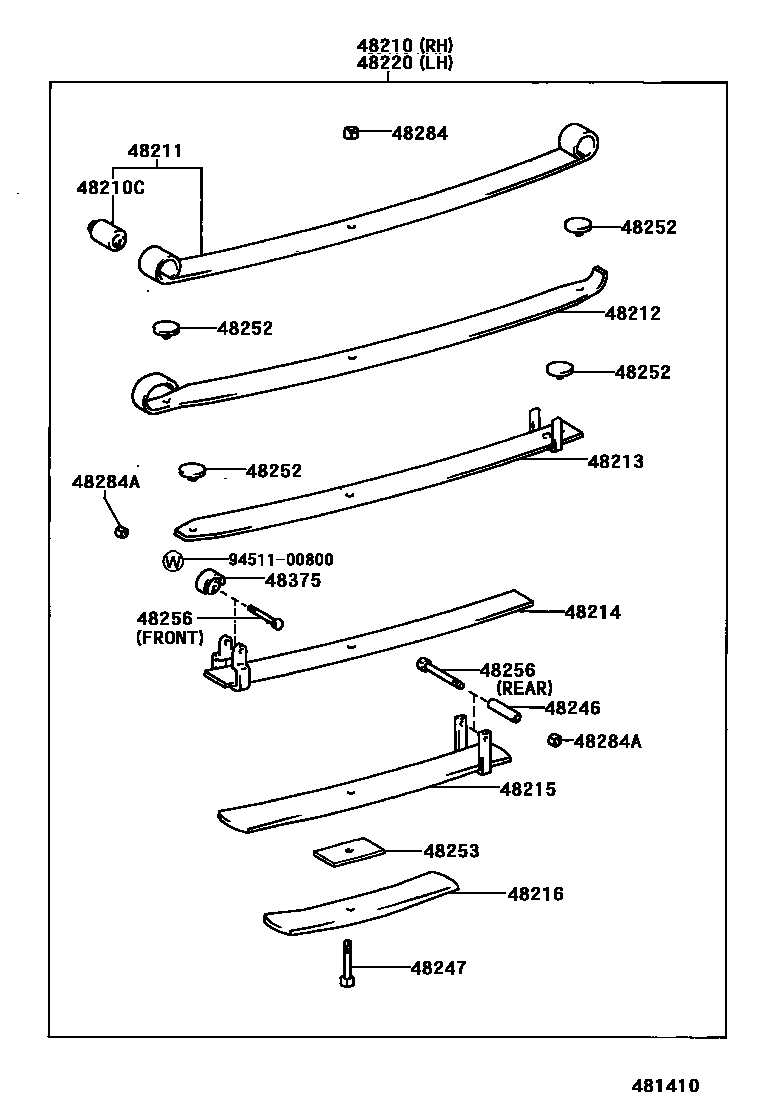

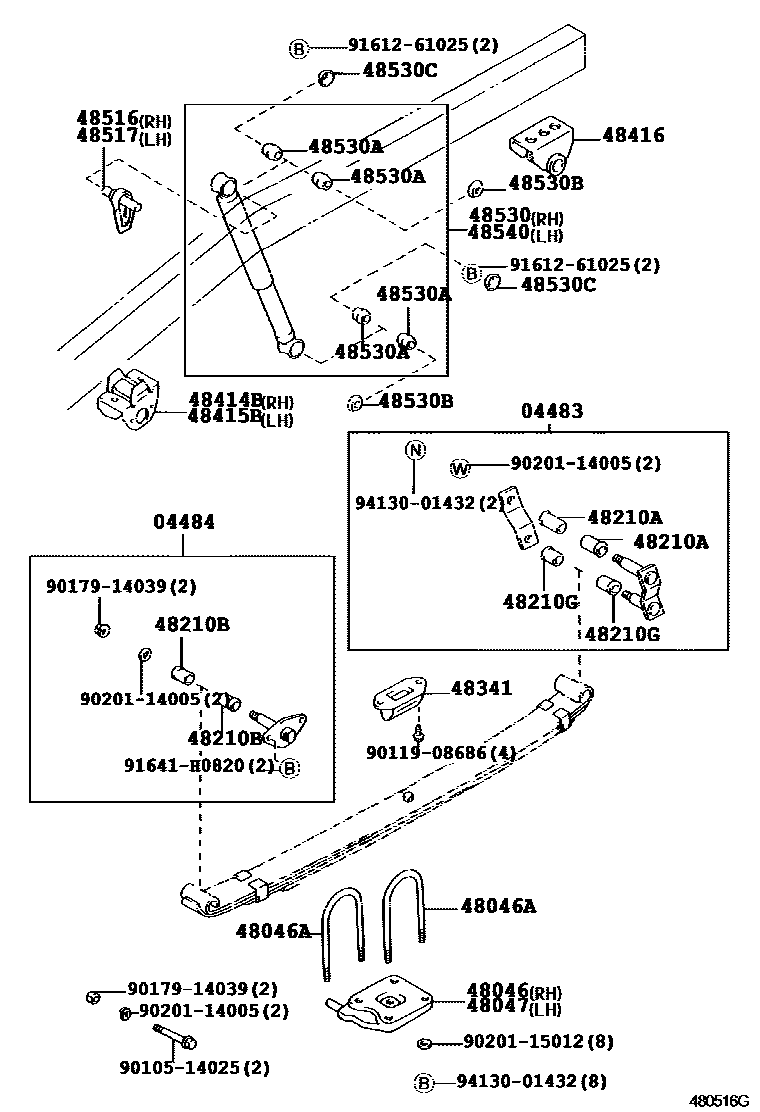

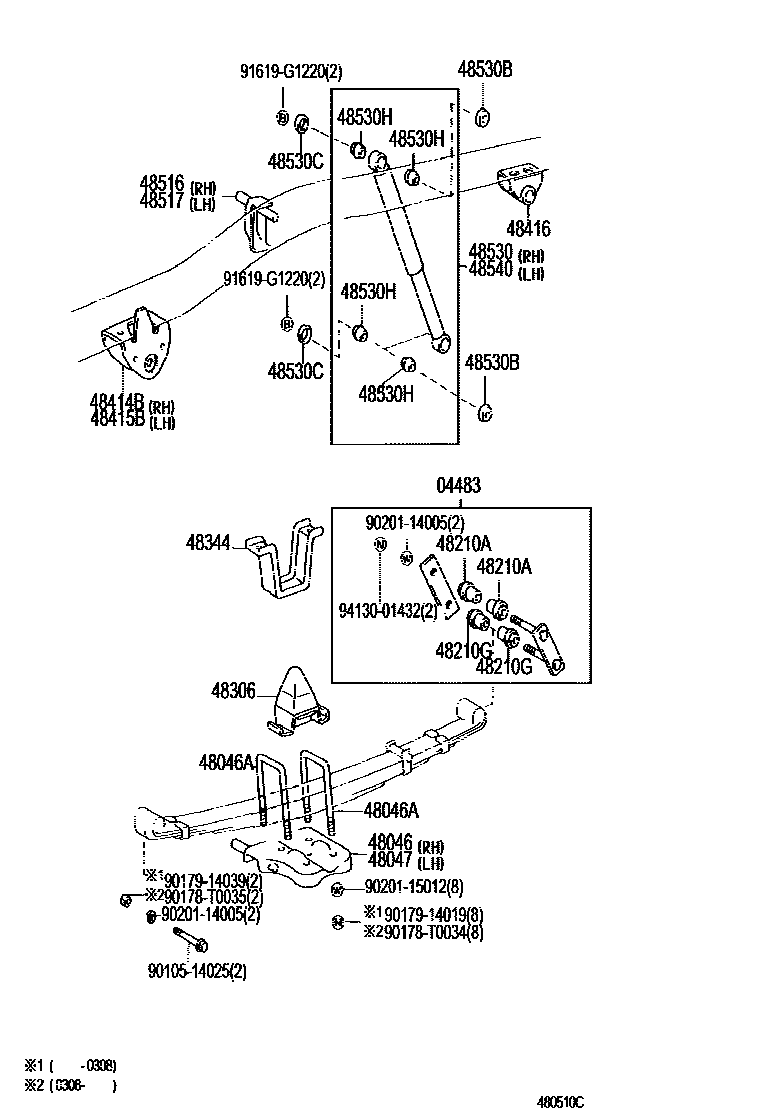

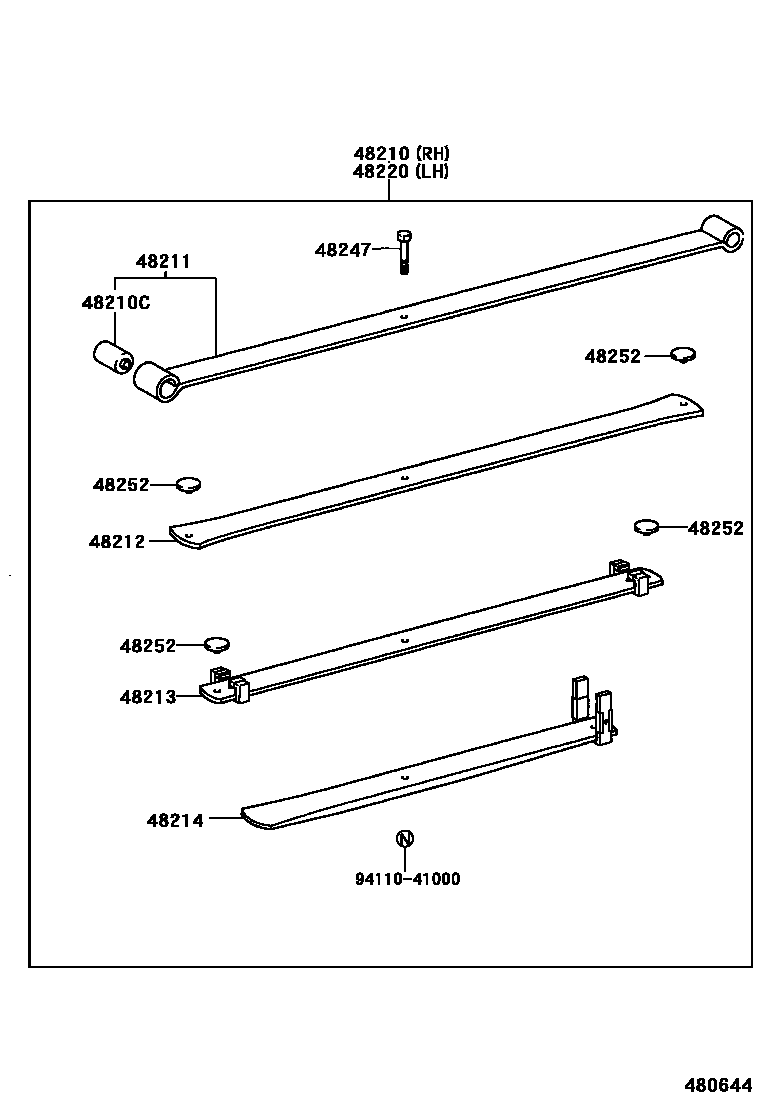

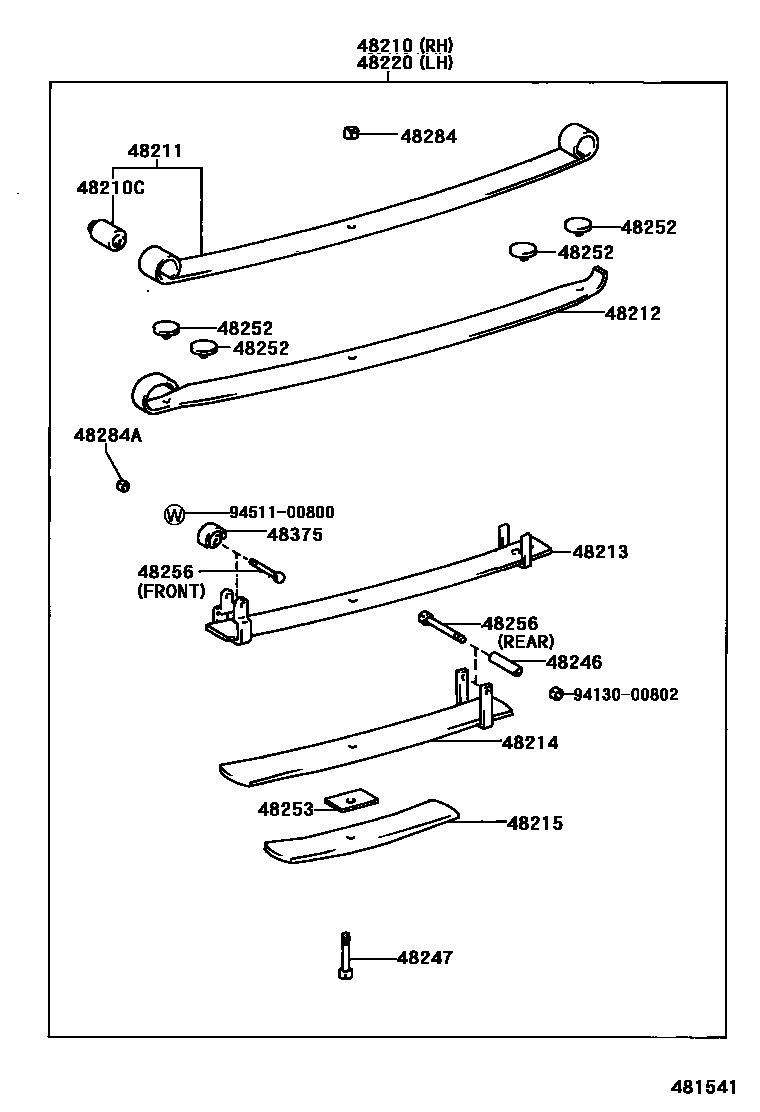

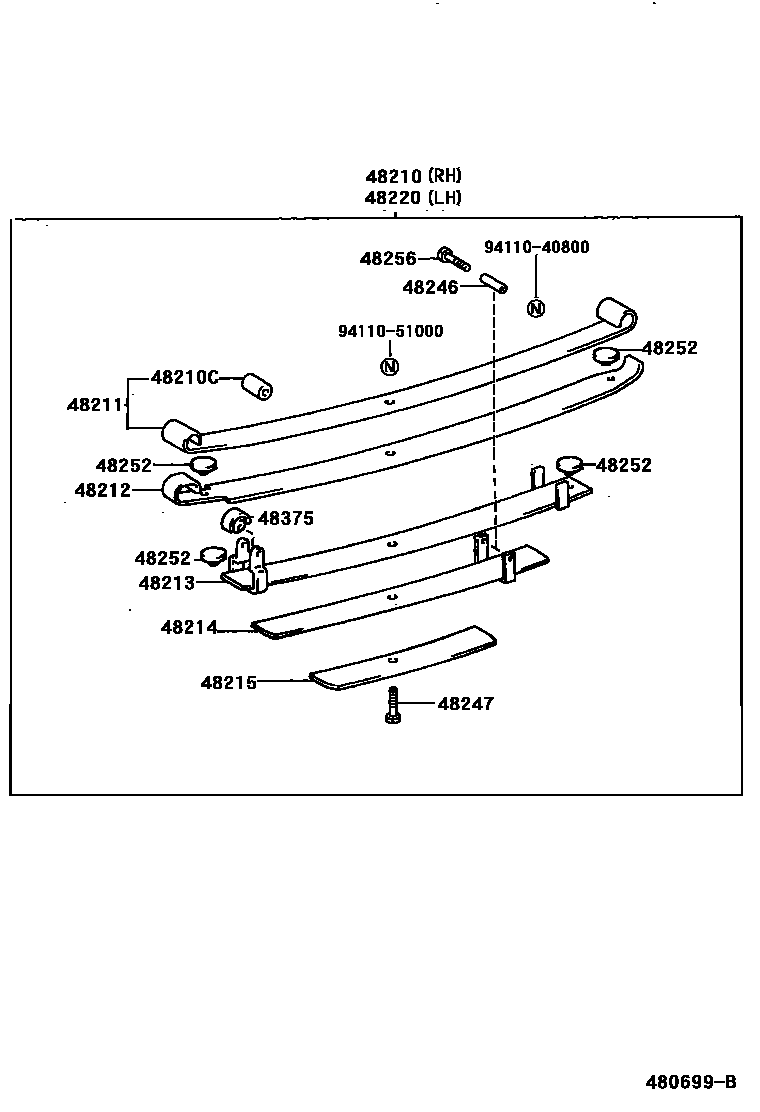

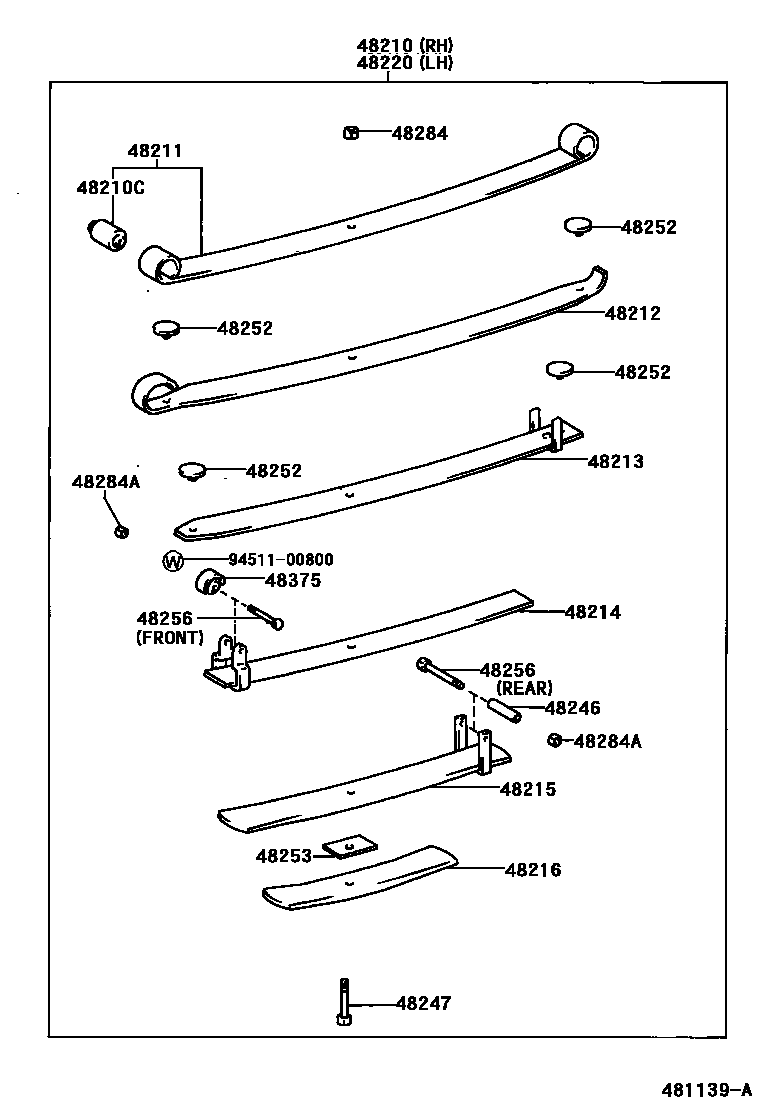

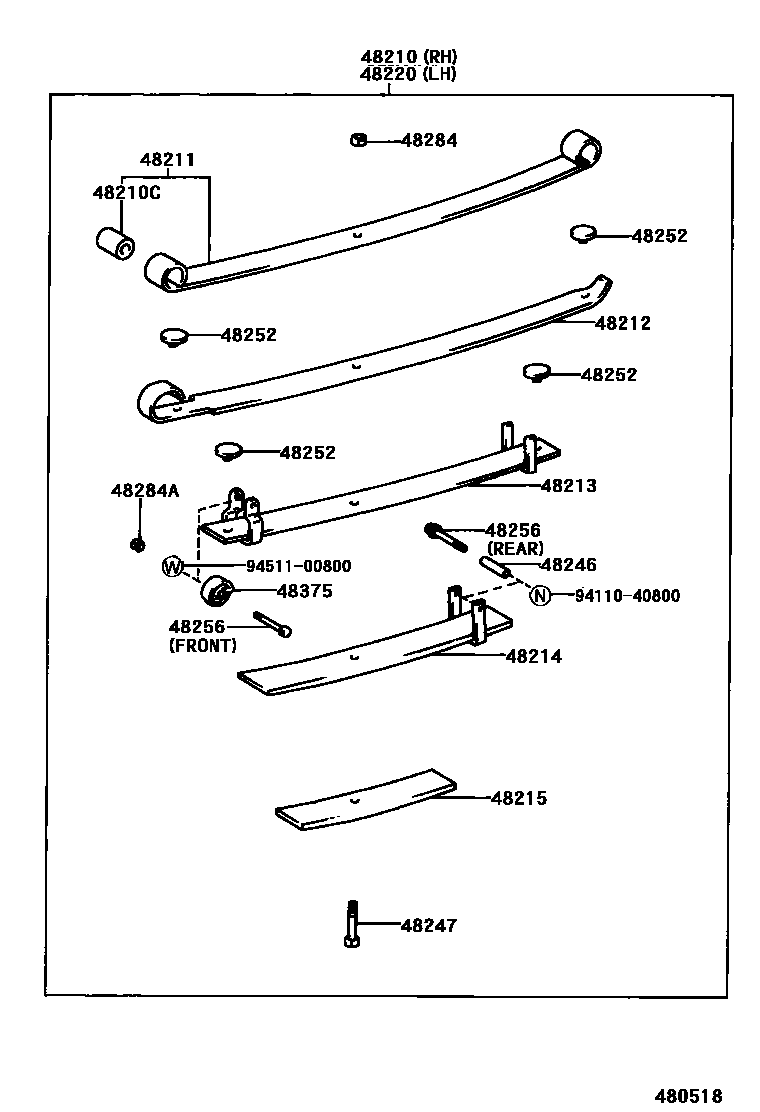

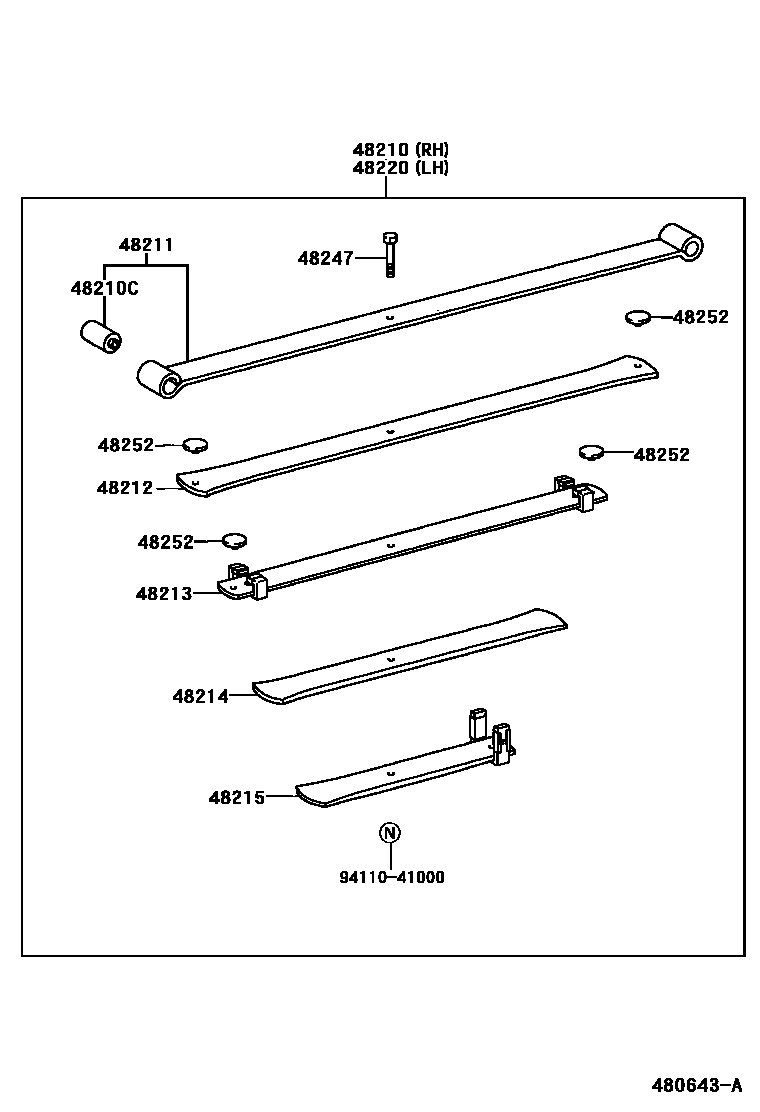

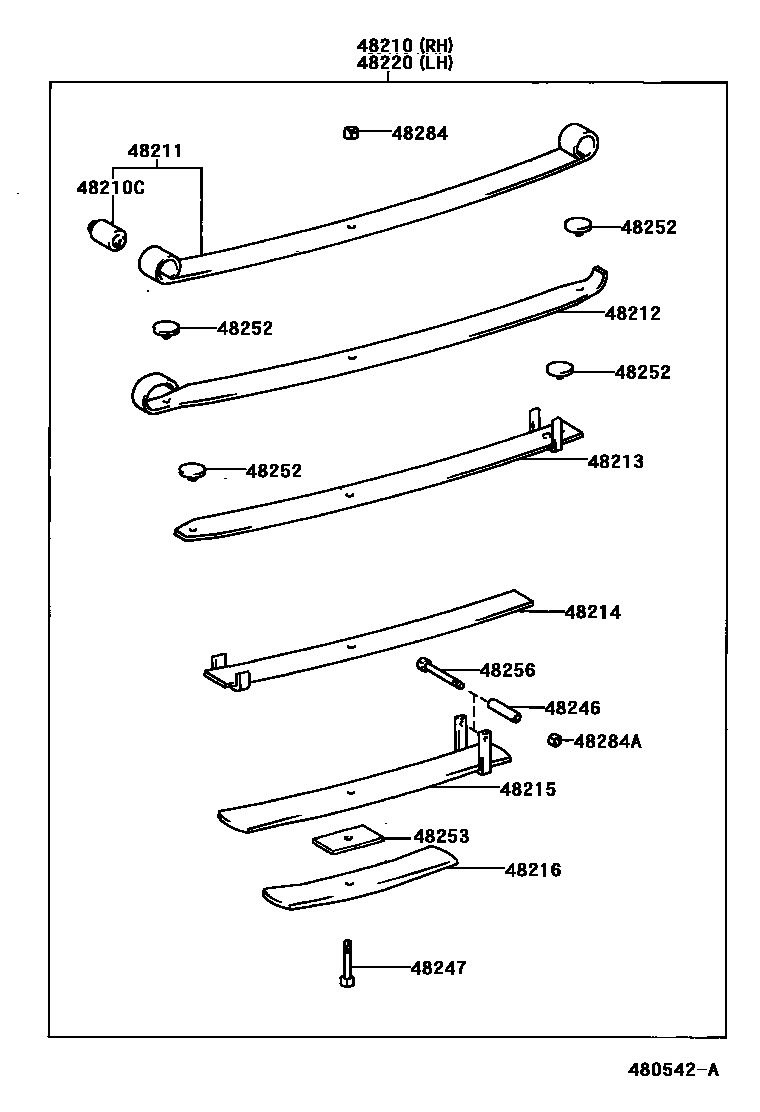

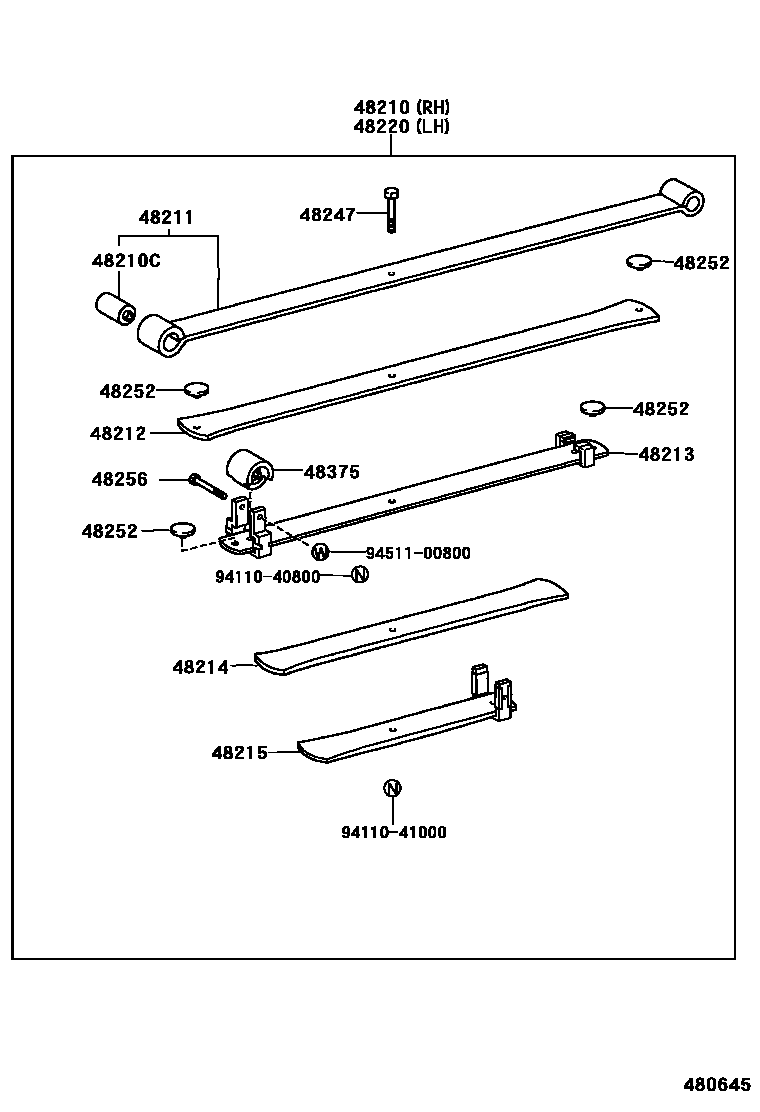

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 14 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483 | Rear spring lifting lug assembly | 04483-35120 · 04483-35130 |
| 04484 | Rear spring pin assembly | 04484-04010 · 04484-35070 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-04010 · 48046-04020 · 48046-35170 · 48046-35230 |
| 48046A | U-bolt (for rear spring) | 90117-14039 · 90117-14040 · 90117-14044 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-04010 · 48046-04020 · 48046-35170 · 48046-35230 |
| 48191A | Caster adjustment wedge (for rear leaf spring) | 48191-34010 · 48191-35070 |
| 48210 | Right rear spring assembly | 48210-04160 · 48210-04250 · 48210-04260 · 48210-04270 · 48210-04271 · 48210-04280 · 48210-04281 · 48210-04290 · 48210-04291 · 48210-04300 · 48210-04301 · 48210-04460 · 48210-35830 · 48210-35880 · 48210-35881 · 48210-35890 · 48210-35891 · 48210-35892 · 48210-3D030 · 48210-3D050 · 48210-3D060 · 48210-3D090 · 48210-3D110 · 48210-3D111 · 48210-3D180 · 48210-3D200 · 48210-3D210 · 48210-3D220 · 48210-3D240 · 48210-3D250 · 48210-3D260 |
| 48210A | Upper bushing (for rear spring lug) | 90385-18013 · 90385-18019 |
| 48210B | Bushing (for rear spring pin) | 90385-18046 |
| 48210C | Bushing (for rear leaf spring) | 90385-18046 · 90389-14004 |
| 48210G | Lower bushing (for rear spring lug) | 90385-18020 · 90385-18046 |
| 48211 | No. 1 rear leaf spring | 48201-35830 · 48201-35880 · 48201-35881 · 48201-35890 · 48201-35891 · 48201-35892 · 48201-3D050 · 48201-3D090 · 48201-3D110 · 48201-3D111 · 48201-3D180 · 48201-3D200 · 48201-3D210 · 48201-3D220 · 48201-3D240 · 48201-3D250 · 48201-3D260 · 48211-3D030 · 48211-3D060 |
| 48212 | No. 2 rear leaf spring | 48212-35830 · 48212-35880 · 48212-35881 · 48212-35890 · 48212-35891 · 48212-35892 · 48212-3D030 · 48212-3D050 · 48212-3D060 · 48212-3D090 · 48212-3D110 · 48212-3D111 · 48212-3D180 · 48212-3D200 · 48212-3D210 · 48212-3D220 · 48212-3D240 · 48212-3D250 · 48212-3D260 |
| 48213 | No. 3 rear leaf spring | 48202-35830 · 48202-35880 · 48202-35881 · 48202-35890 · 48202-35891 · 48202-35892 · 48202-3D030 · 48202-3D050 · 48202-3D060 · 48202-3D090 · 48202-3D110 · 48202-3D111 · 48202-3D180 · 48202-3D200 · 48202-3D210 · 48202-3D220 · 48202-3D240 · 48202-3D250 · 48202-3D260 |
| 48214 | No. 4 rear leaf spring | 48203-35830 · 48203-35880 · 48203-35881 · 48203-35890 · 48203-35891 · 48203-35892 · 48203-3D050 · 48203-3D110 · 48203-3D111 · 48203-3D180 · 48203-3D200 · 48203-3D210 · 48203-3D220 · 48203-3D240 · 48203-3D250 · 48203-3D260 · 48214-3D030 · 48214-3D060 · 48214-3D090 |
| 48215 | No. 5 rear leaf spring | 48203-3D030 · 48203-3D060 · 48203-3D090 · 48204-35880 · 48204-35881 · 48204-35890 · 48204-35891 · 48204-35892 · 48204-3D200 · 48204-3D220 · 48204-3D240 · 48215-35830 · 48215-3D110 · 48215-3D111 · 48215-3D180 · 48215-3D210 · 48215-3D250 · 48215-3D260 |
| 48216 | No. 6 rear leaf spring | 48216-35880 · 48216-35881 · 48216-35890 · 48216-35891 · 48216-35892 · 48216-3D200 · 48216-3D220 · 48216-3D240 |
| 48220 | Left rear spring assembly | 48210-04160 · 48210-04250 · 48210-04260 · 48210-04270 · 48210-04271 · 48210-04280 · 48210-04281 · 48210-04290 · 48210-04291 · 48210-04300 · 48210-04301 · 48210-04460 · 48210-35830 · 48210-35880 · 48210-35881 · 48210-35890 · 48210-35891 · 48210-35892 · 48210-3D030 · 48210-3D050 · 48210-3D060 · 48210-3D090 · 48210-3D110 · 48210-3D111 · 48210-3D180 · 48210-3D200 · 48210-3D210 · 48210-3D220 · 48210-3D240 · 48210-3D250 · 48210-3D260 |
| 48246 | rear spring clamp bolt housing | 48146-60070 |
| 48247 | rear spring center bolt | 48147-27020 · 48247-36052 · 48247-36450 · 48247-36530 · 48247-3D030 · 48247-3D050 |
| 48252 | rear spring muffler | 48252-26070 · 48252-35630 |
| 48253 | No. 1 rear spring spacer | 48253-3D180 |
| 48256 | Hex bolt (for rear spring clamp assembly) | 48256-35360 · 48256-36570 · 48256-3D090 |
| 48284 | Rear spring center bolt nut | 48284-37130 |
| 48284A | rear spring clamp nut | 48284-20440 |
| 48306 | Rear spring buffer block sub-assembly | 48306-04020 · 48306-04030 · 48306-35110 · 48306-35190 |
| 48341 | Rear spring buffer block | 48341-04030 · 48341-04040 · 48341-35080 · 48341-35090 · 48341-35100 |
| 48344 | Rear buffer block | 48344-35020 |
| 48375 | Leaf spring dynamic damper | 48375-35011 · 48375-35020 |
| 48414B | Right No. 3 spring bracket | 48404-35050 · 48404-35060 · 48404-35070 · 48414-35130 |
| 48415B | No. 3 spring bracket on the left | 48407-35040 · 48407-35050 · 48407-35060 · 48415-35060 |
| 48416 | No. 4 spring bracket | 48416-35080 · 48416-35120 |
| 48516 | Right rear shock absorber upper bracket | 48505-35030 · 48505-35070 |
| 48517 | Left rear shock absorber upper bracket | 48505-35030 · 48506-35010 |
| 48530 | Right rear shock absorber assembly | 48531-09150 · 48531-09160 · 48531-09230 · 48531-09280 · 48531-80637 · 48531-80638 · 48531-80641 · 48531-80644 · 48531-80648 · 48531-80669 · 48531-80704 |
| 48530A | Bushing (for rear shock absorber) | 90385-16007 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 · 90948-03011 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03012 · 90948-03020 |
| 48530H | Rear shock absorber bushing | 90385-19007 |
| 48540 | Left rear shock absorber assembly | 48531-09150 · 48531-09230 · 48531-80637 · 48531-80638 · 48531-80641 · 48541-09040 · 48541-09080 · 48541-09090 · 48541-39295 · 48541-39315 · 48541-39316 · 48541-39355 |
