Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705

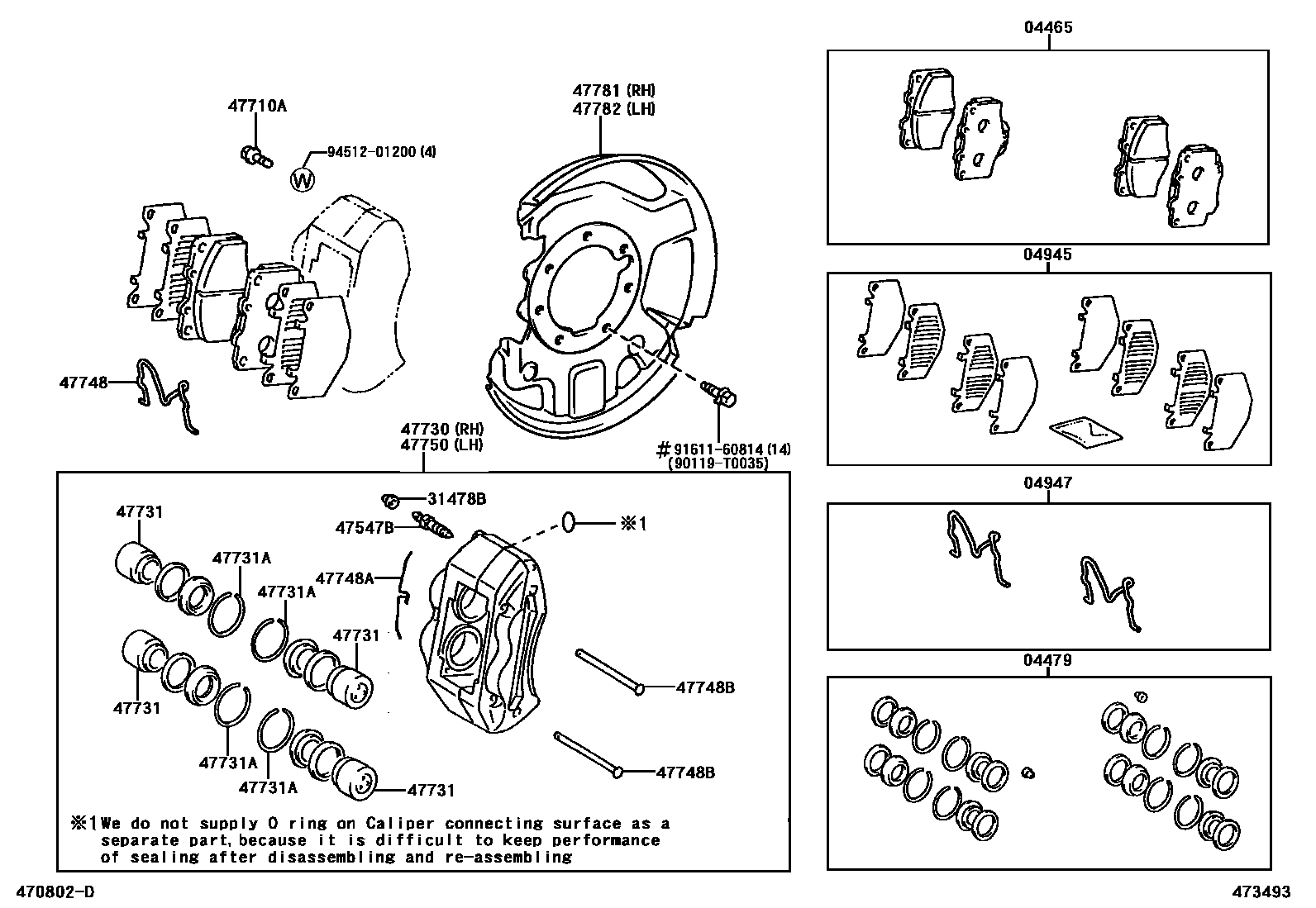

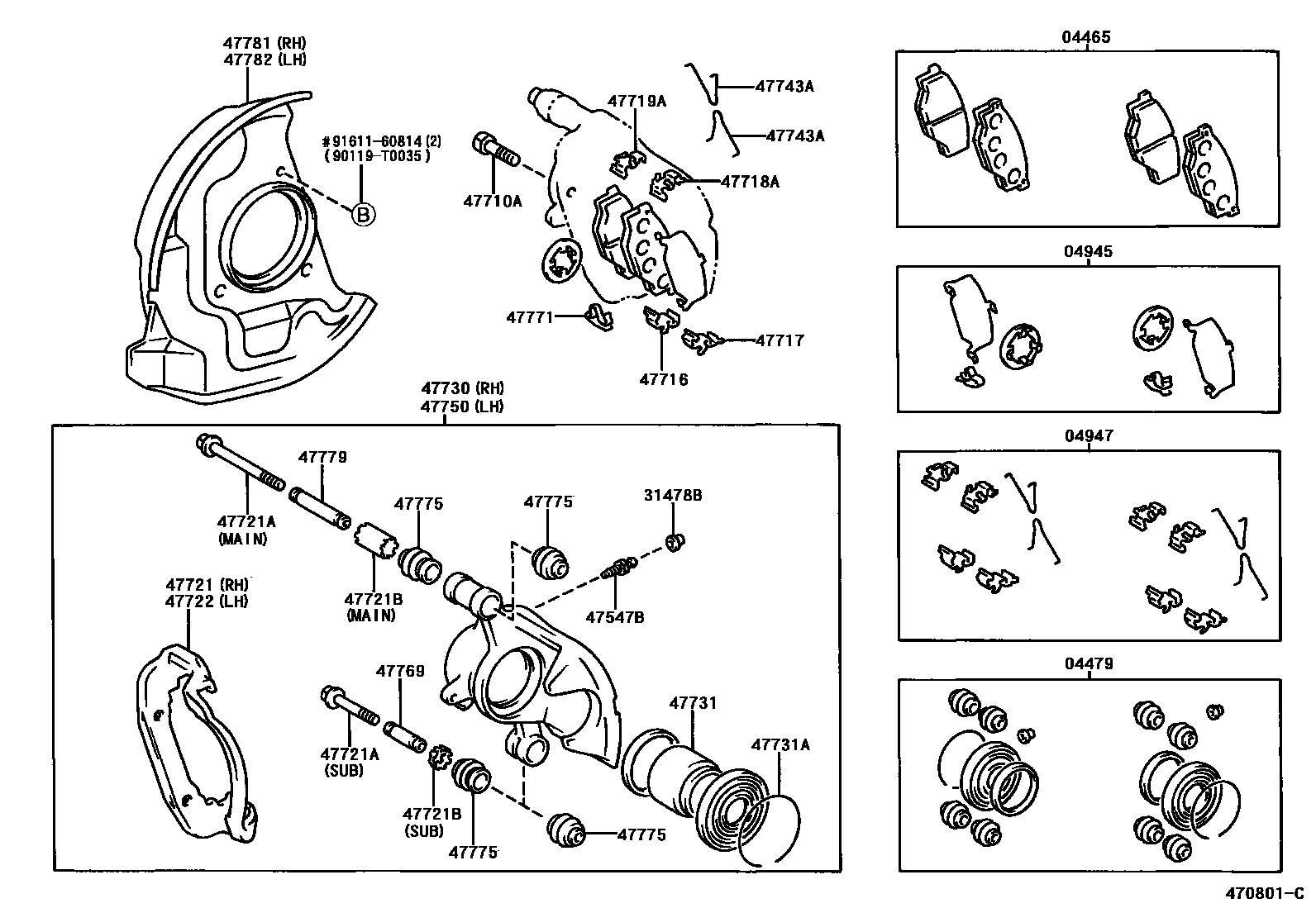

Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-04060 · 04465-35020 · 04465-35260 · 04465-35320 |
| 04479 | Front disc brake cylinder assembly | 04479-04030 · 04479-35010 · 04479-35050 |
| 04945 | Front silencer gasket assembly | 04945-04020 · 04945-26070 · 04945-26071 · 04945-35040 |
| 04947 | Front disc brake mounting kit | 04947-04030 · 04947-26030 · 04947-60050 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-12010 · 47547-20030 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90101-12144 · 90101-T0002 · 90119-12058 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-26040 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-26040 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47717-26010 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47717-26010 |
| 47721 | Right front disc brake cylinder retainer | 47721-26050 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90080-11308 · 90080-11309 · 90119-10014 · 90119-10249 |
| 47721B | Collar (for front disc brake cylinder retainer) | 90387-16004 · 90387-16005 |
| 47722 | Left front disc brake cylinder retainer | 47721-26050 |
| 47730 | Right front disc brake cylinder assembly | 47730-04050 · 47730-35130 · 47730-35140 |
| 47731 | Front disc brake piston | 47731-04050 · 47731-35050 · 47731-40010 |
| 47731A | retaining ring (for front disc brake piston) | 90520-86005 · 90522-48044 |
| 47743A | Silencer spring (for front disc brake) | 47743-04010 · 47743-40020 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-60010 |
| 47748A | Clamp (for front disc brake vibration isolator) | 90468-12015 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90240-06158 |
| 47750 | Left disc brake cylinder assembly | 47750-04050 · 47750-35130 · 47750-35140 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-04010 · 47769-35020 |
| 47771 | No. 1 pad wear indicator plate | 47771-35010 |
| 47775 | Bushing boot (for front disc brake) | 47775-04010 · 47775-40010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-04010 · 47779-40010 |
| 47781 | Right front disc brake dust cover | 47703-35062 · 47703-35110 · 47781-35140 |
| 47782 | Left front disc brake dust cover | 47704-35062 · 47704-35110 · 47782-35140 |
