Toyota HILUX 制动总泵 — Figure 4702

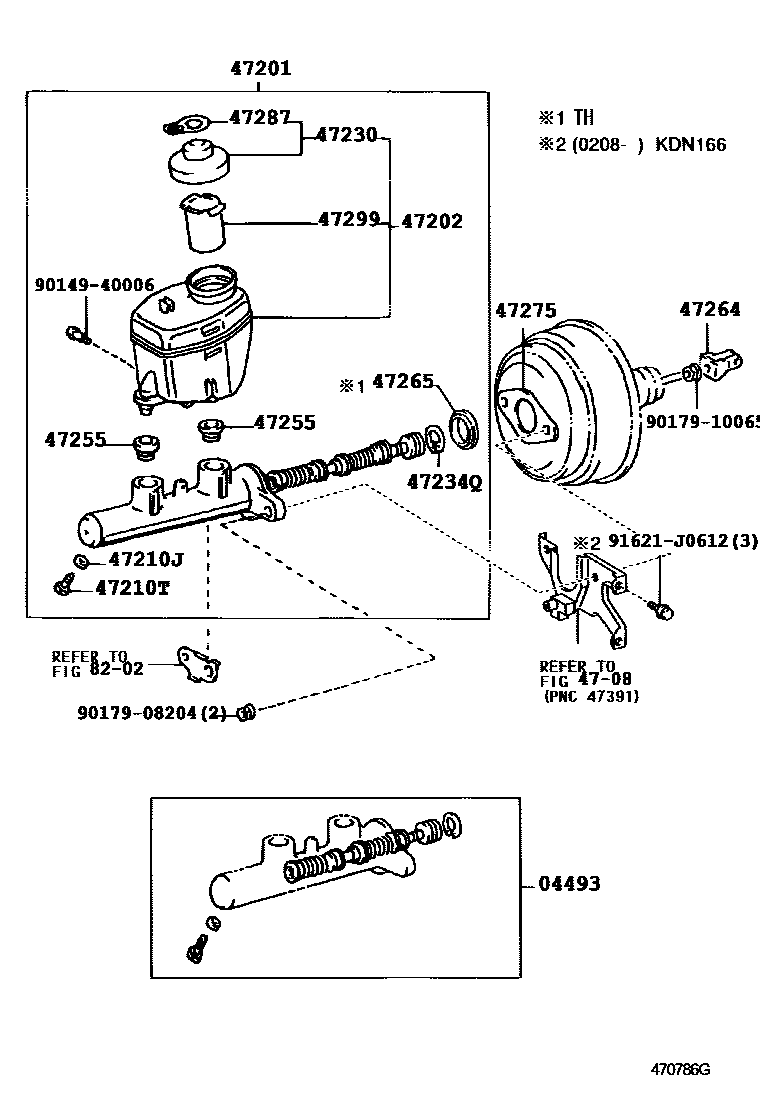

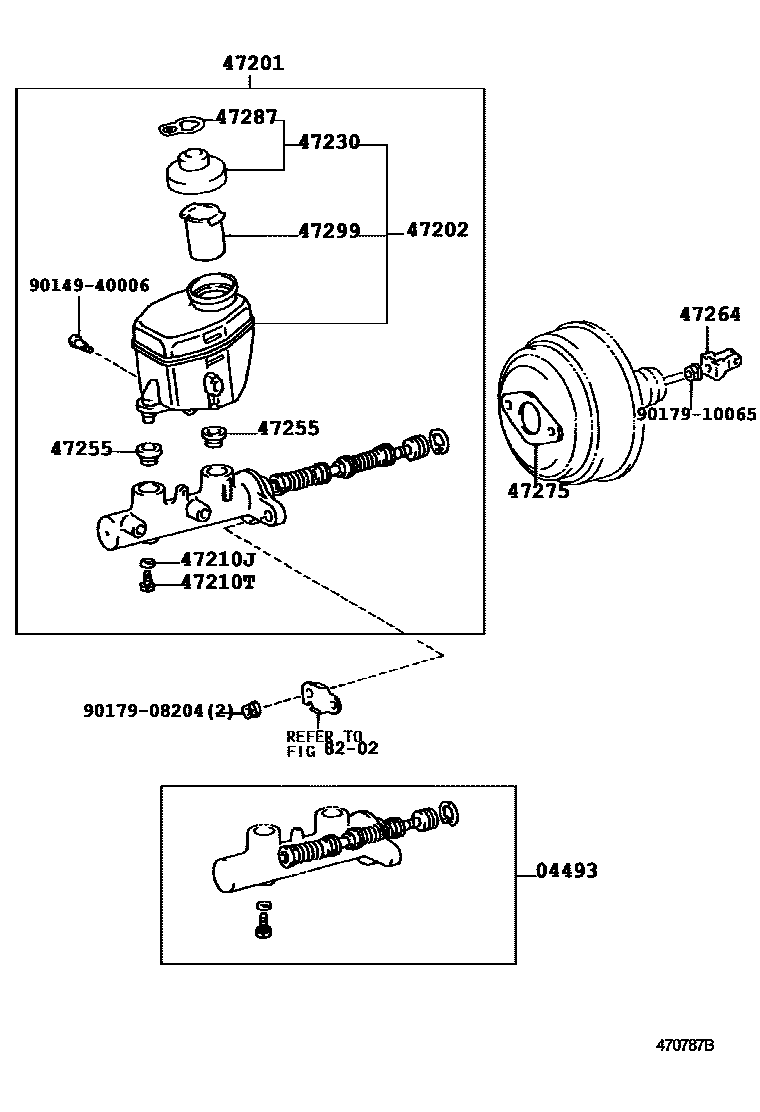

Toyota HILUX EPC diagram 4702, 制动总泵, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-3D010 · 04493-60280 · 04493-60290 · 04493-60300 |
| 47201 | Brake master cylinder sub-assembly | 47201-04040 · 47201-3D320 · 47201-3D340 · 47201-3D350 · 47201-3D390 · 47201-3D410 · 47201-3D420 · 47201-3D430 · 47201-3D460 · 47201-3D470 · 47201-3D520 · 47201-3D530 · 47201-60650 · 47201-60660 · 47201-60680 · 47201-60690 · 47201-60700 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-35010 · 47220-35040 · 47220-60080 · 47220-60090 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-04040 · 47230-12040 · 47230-20140 |
| 47234Q | Snap ring (for reservoir tube) | 96151-02800 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-04010 · 47264-28010 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-12020 · 47275-26010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-24010 |
