Toyota HILUX Parking Brake & Cable — Figure 4601

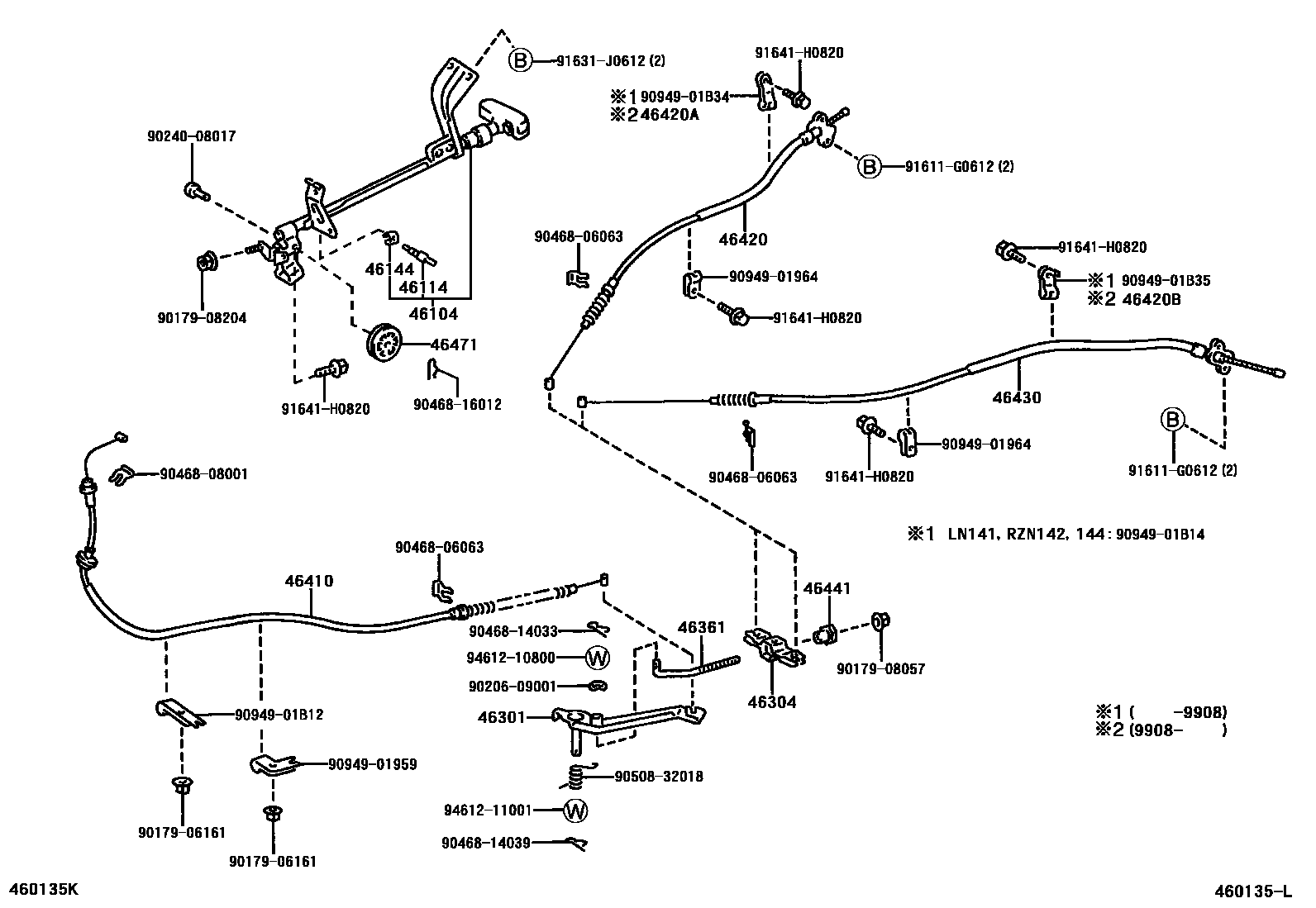

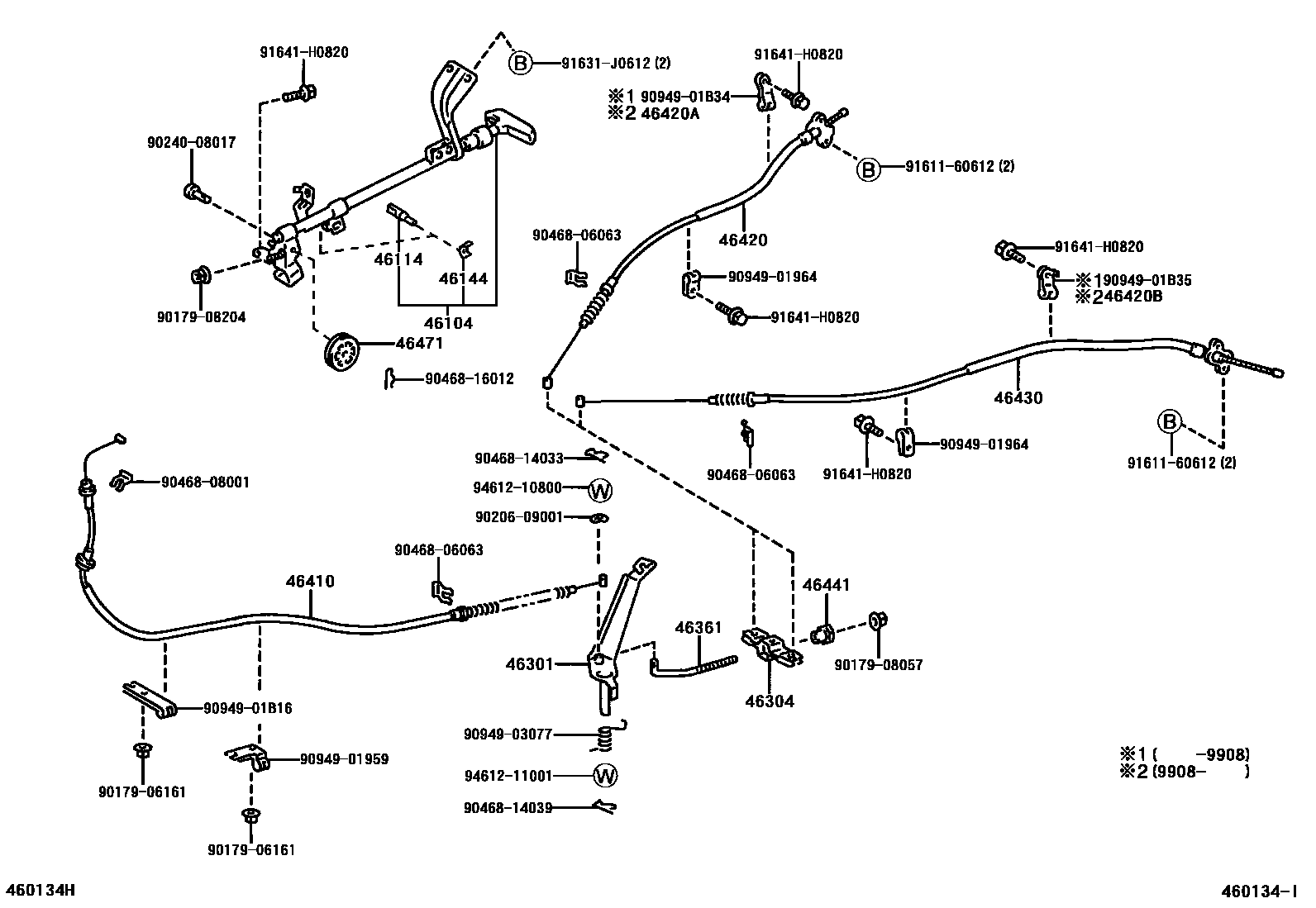

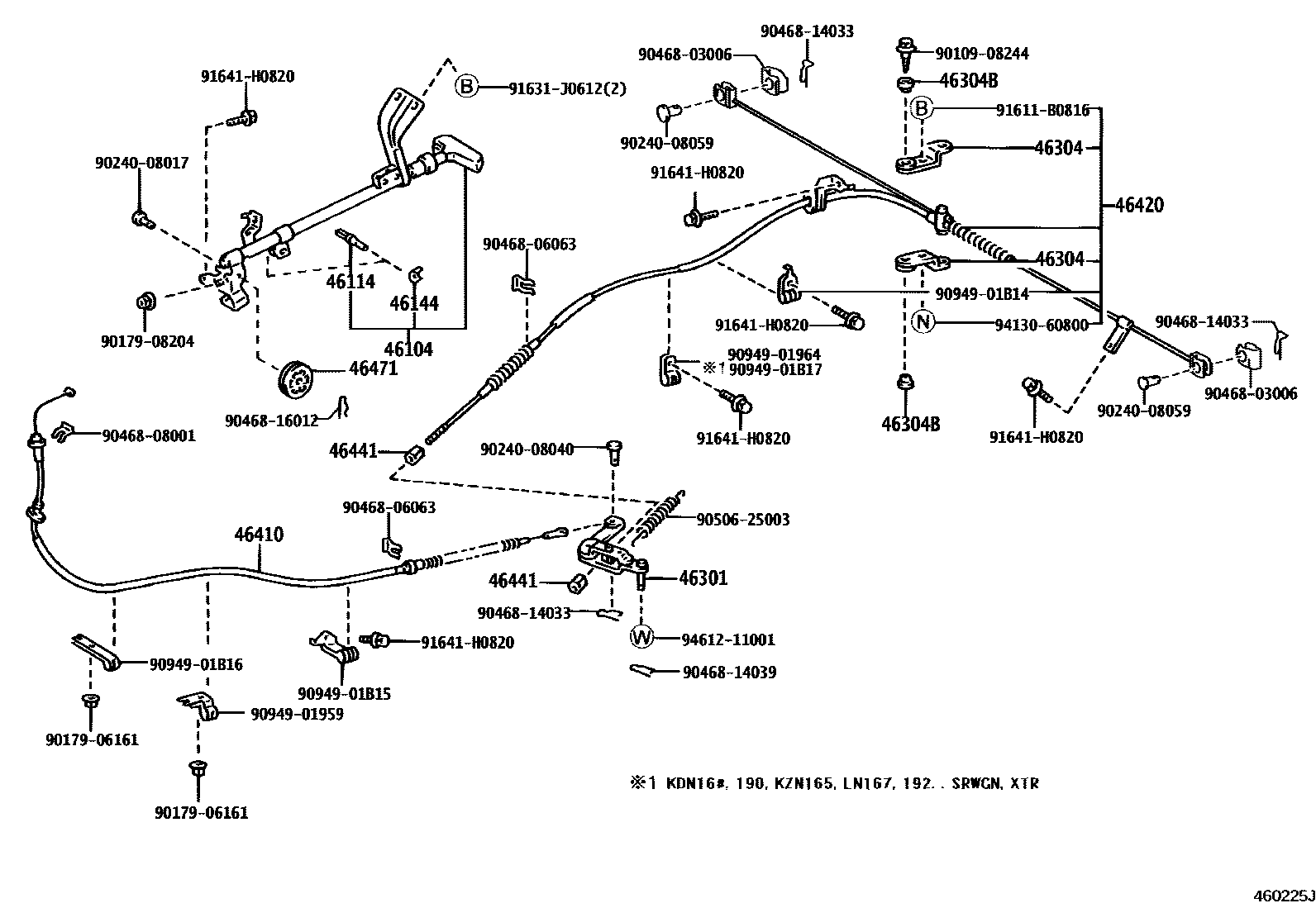

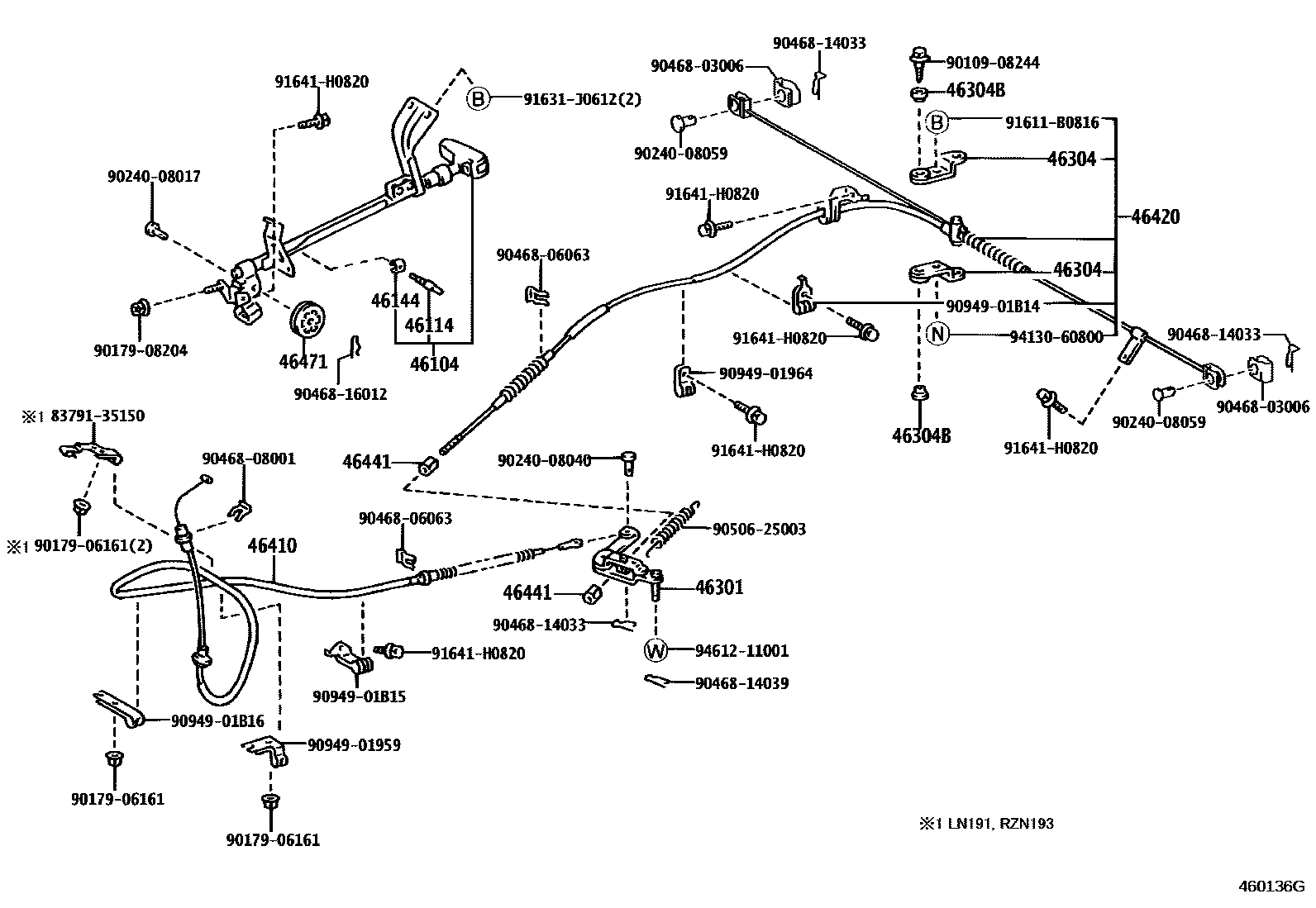

Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46104 | Parking brake control handle sub-assembly | 46104-35040 · 46104-35050 |
| 46114 | Parking brake plunger pin | 46114-20010 |
| 46144 | Parking brake plunger vibration isolator | 46144-30020 |
| 46301 | Parking brake intermediate lever sub-assembly | 46301-04010 · 46301-04020 · 46301-35160 · 46301-35180 · 46301-35200 |
| 46304 | Parking brake balancer sub-assembly | 46304-28010 · 46341-35030 |
| 46304B | Bushing (for parking brake balancer) | 90385-12012 |
| 46361 | Parking brake lever | 46361-35110 |
| 46410 | Parking brake cable assembly No. 1 | 46410-35810 · 46410-35820 · 46410-35830 · 46410-35840 · 46410-35850 · 46410-35860 |
| 46420 | Parking brake No. 2 cable assembly | 46420-04050 · 46420-35620 · 46420-35630 · 46420-35640 · 46420-35650 · 46420-35680 · 46420-35690 · 46420-35691 · 46420-35700 · 46420-35701 · 46420-35710 · 46420-35750 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46421-35010 |
| 46420B | Clamp No. 2 (for parking brake cable) | 46431-35010 |
| 46430 | Parking brake No. 3 cable assembly | 46430-35480 · 46430-35490 · 46430-35500 · 46430-35520 · 46430-35530 · 46430-35531 · 46430-35540 · 46430-35541 |
| 46441 | No. 1 cable adjustment nut | 46441-30030 · 46441-35020 |
| 46471 | Wiring harness pulley | 46471-30010 |
