Toyota HILUX Steering Wheel — Figure 4504

Toyota HILUX EPC diagram 4504, Steering Wheel, with 4 images and 4 PNC and OE references.

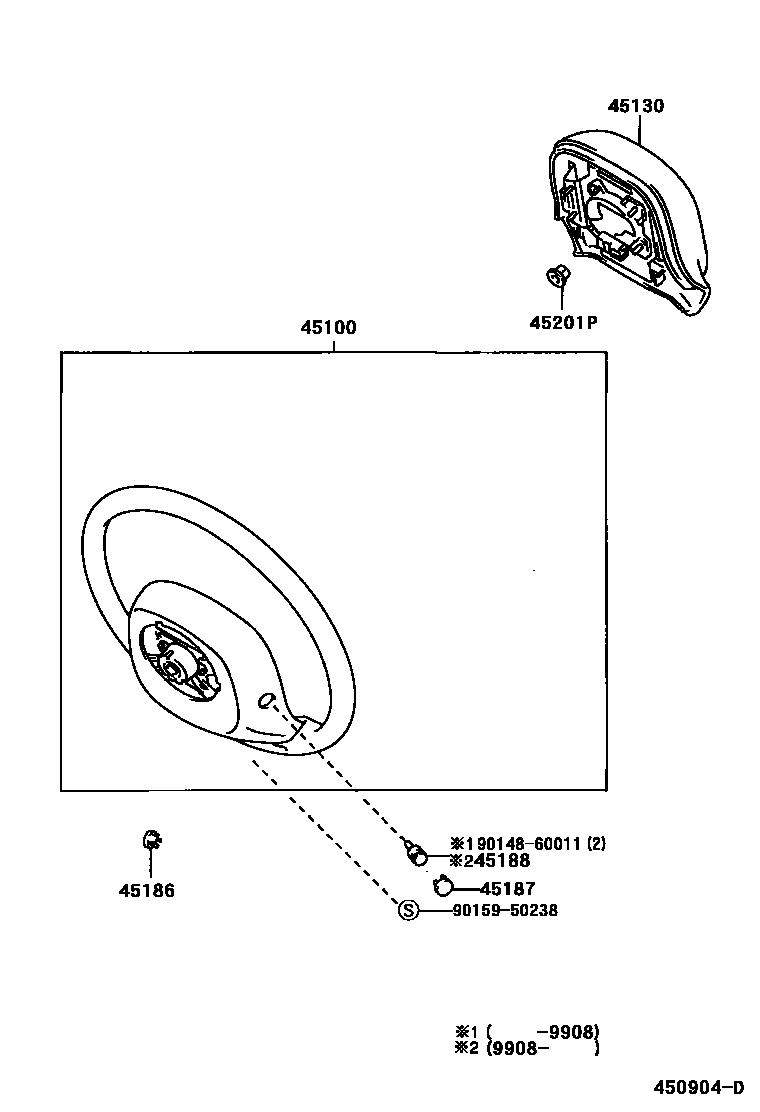

Toyota HILUX Steering Wheel EPC diagram — 450904D
Steering Wheel — 450904D (199708 – 999999)

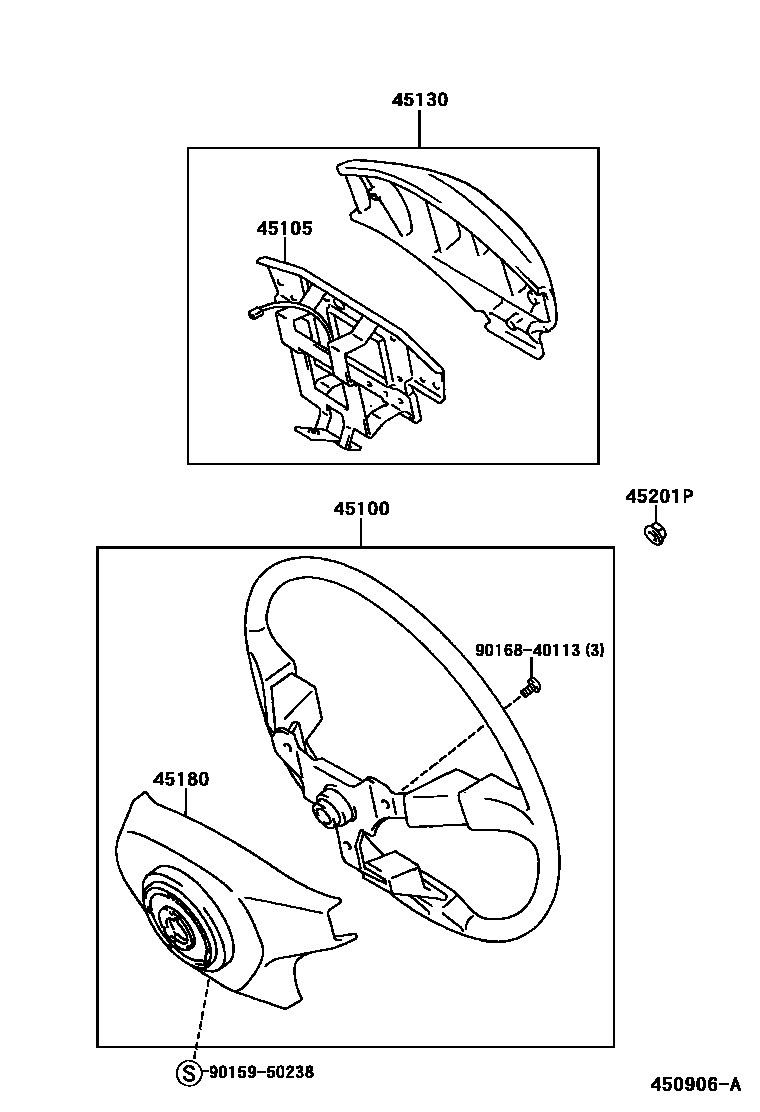

Toyota HILUX Steering Wheel EPC diagram — 450906A
Steering Wheel — 450906A (199708 – 999999)

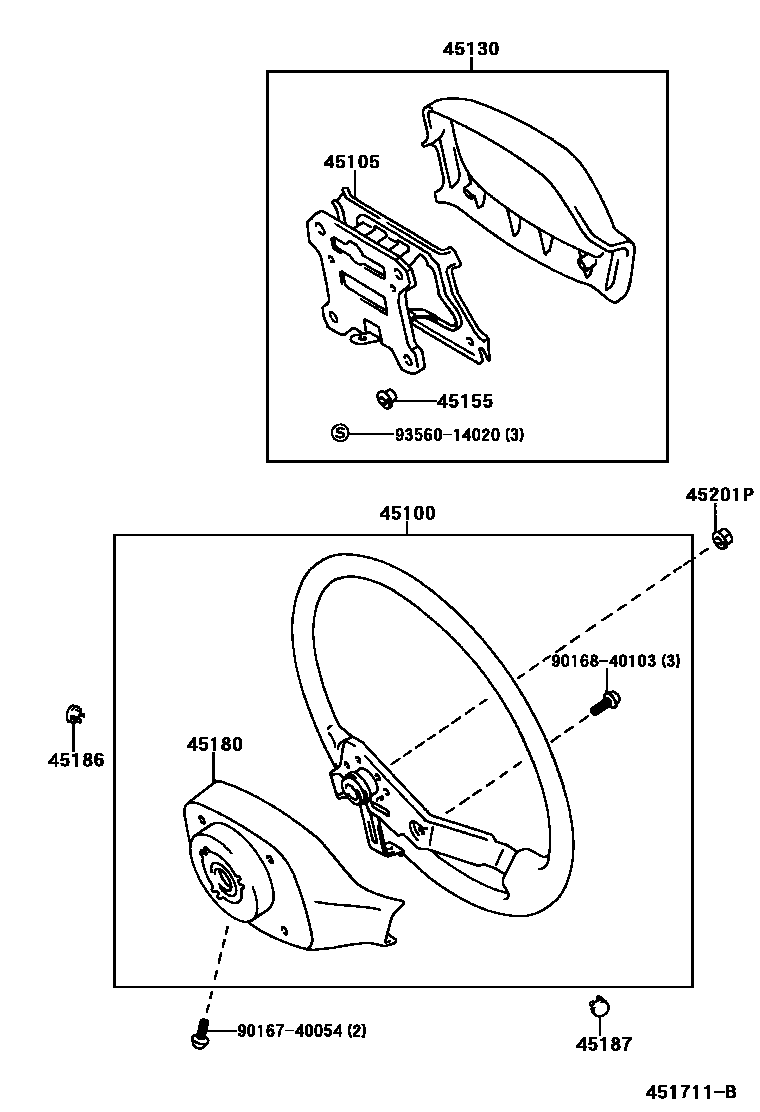

Toyota HILUX Steering Wheel EPC diagram — 451711B
Steering Wheel — 451711B (199708 – 999999)

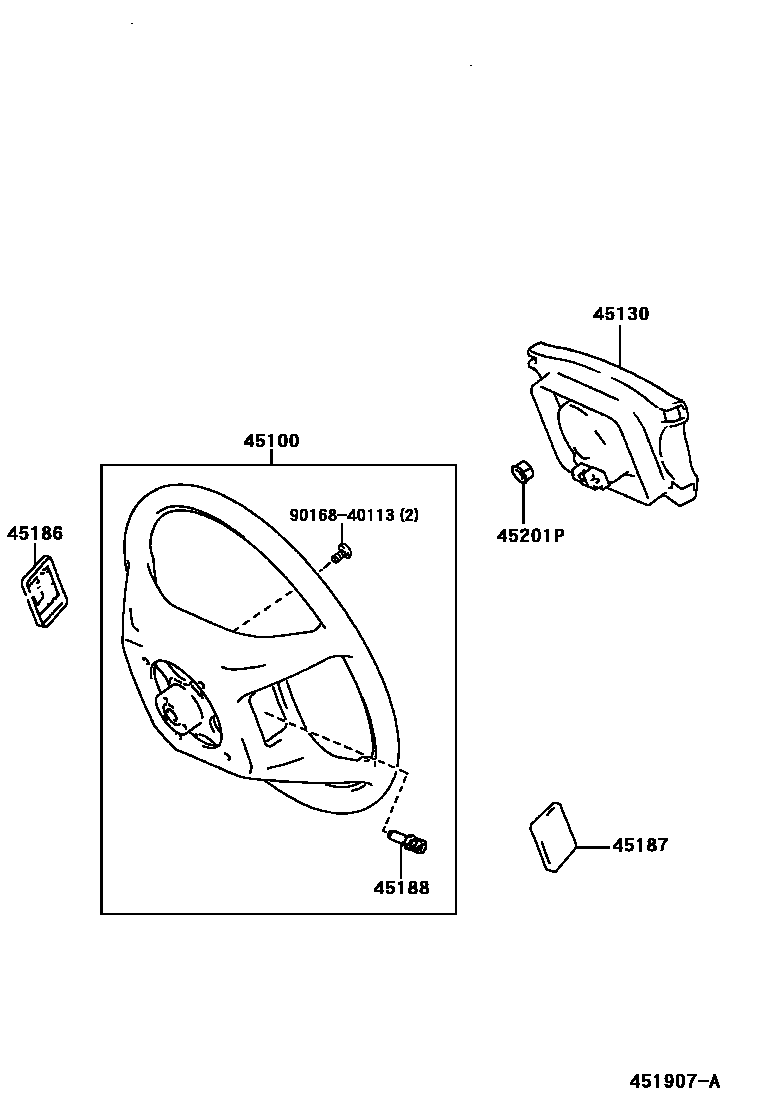

Toyota HILUX Steering Wheel EPC diagram — 451907A
Steering Wheel — 451907A (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-04040 · 45105-12200 · 45105-26100 · 45105-30220
45155Horn button contact piece spacer45155-12050
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90179-12071
