Toyota HILUX 动力转向配管 — Figure 4503

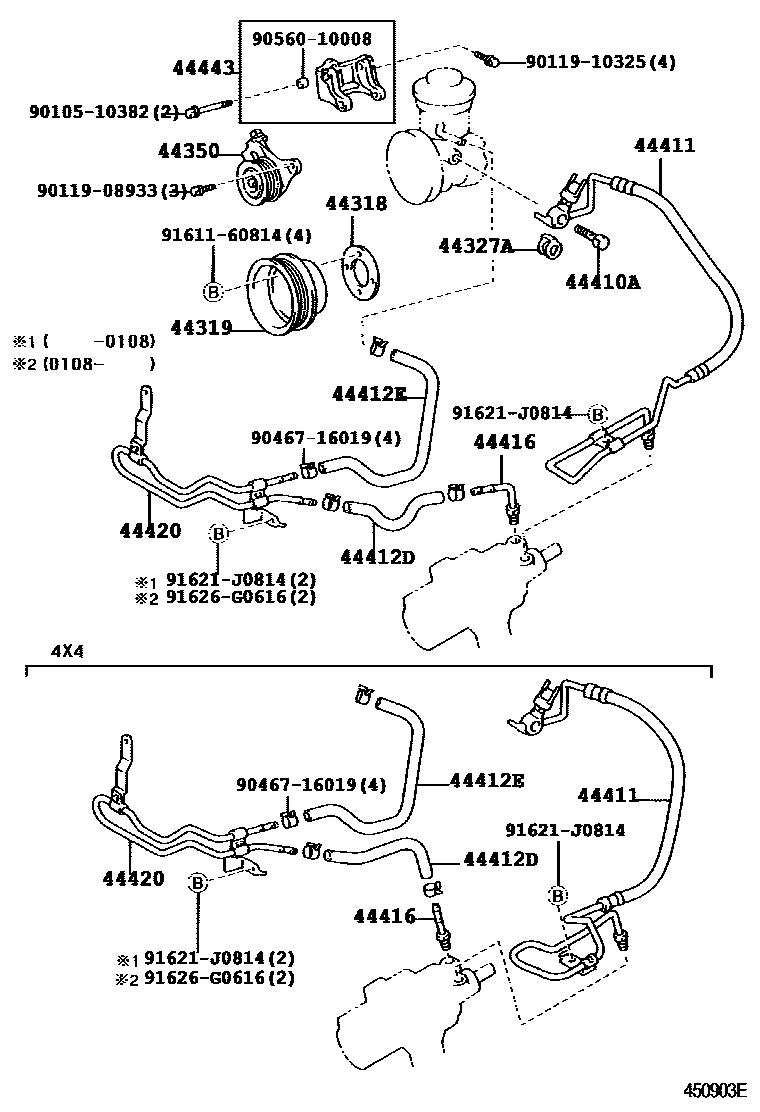

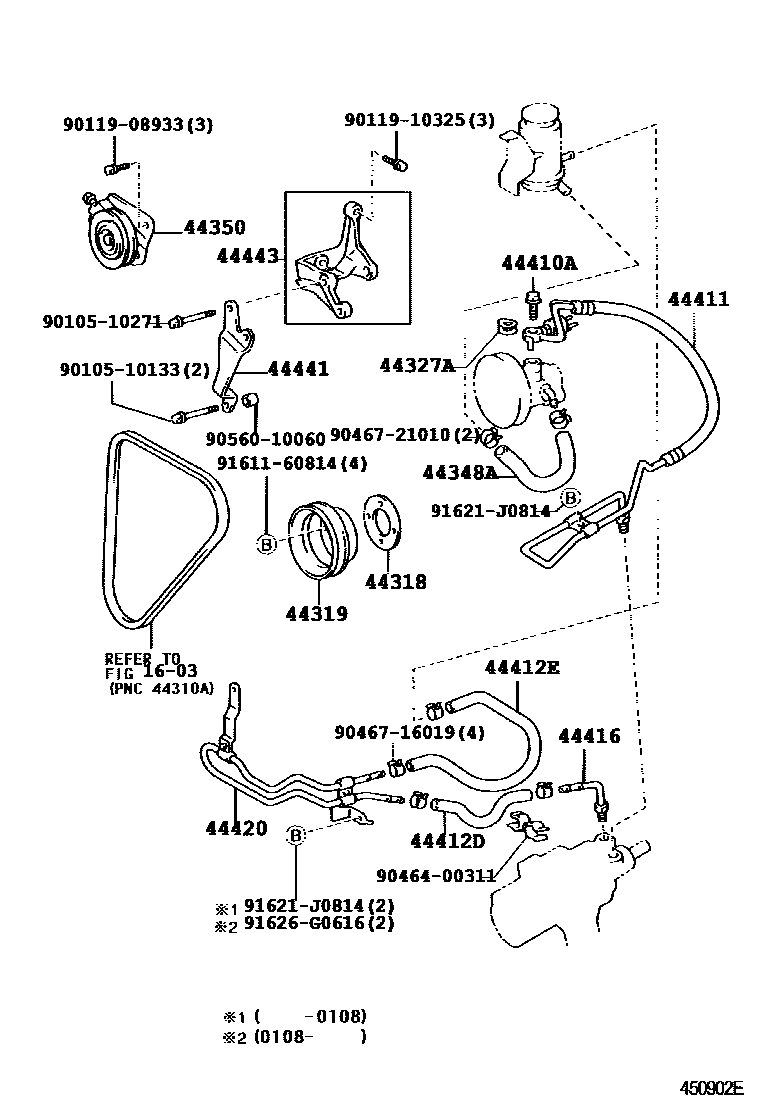

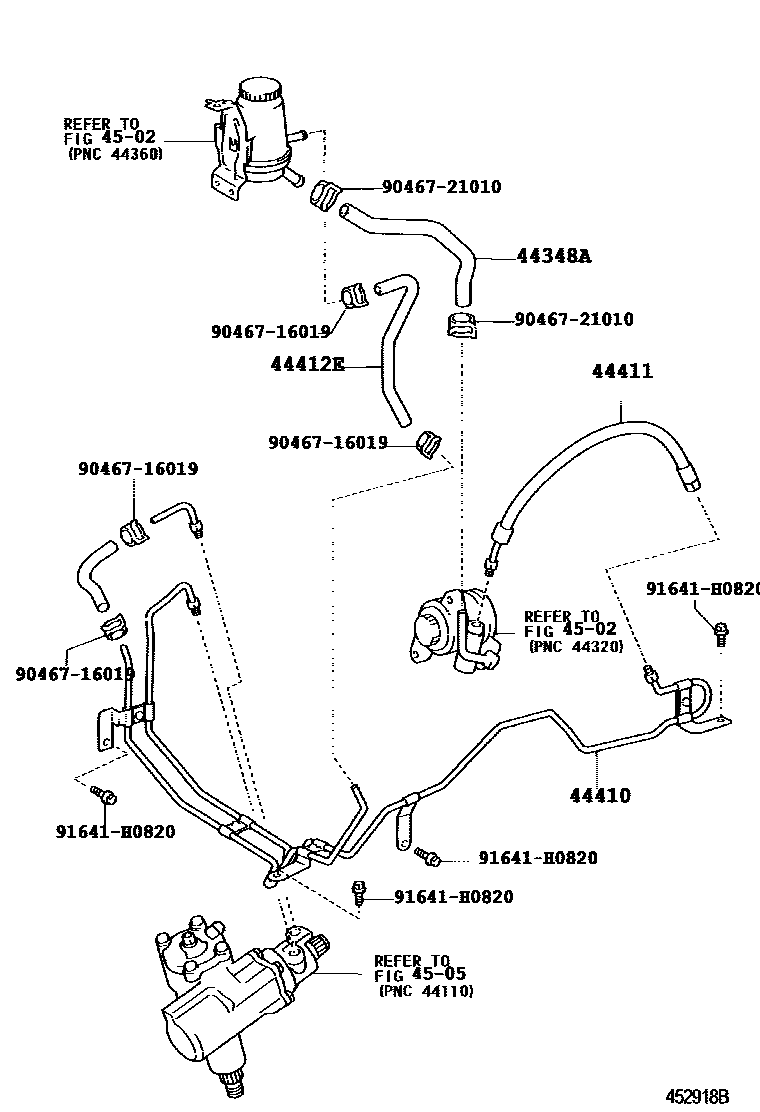

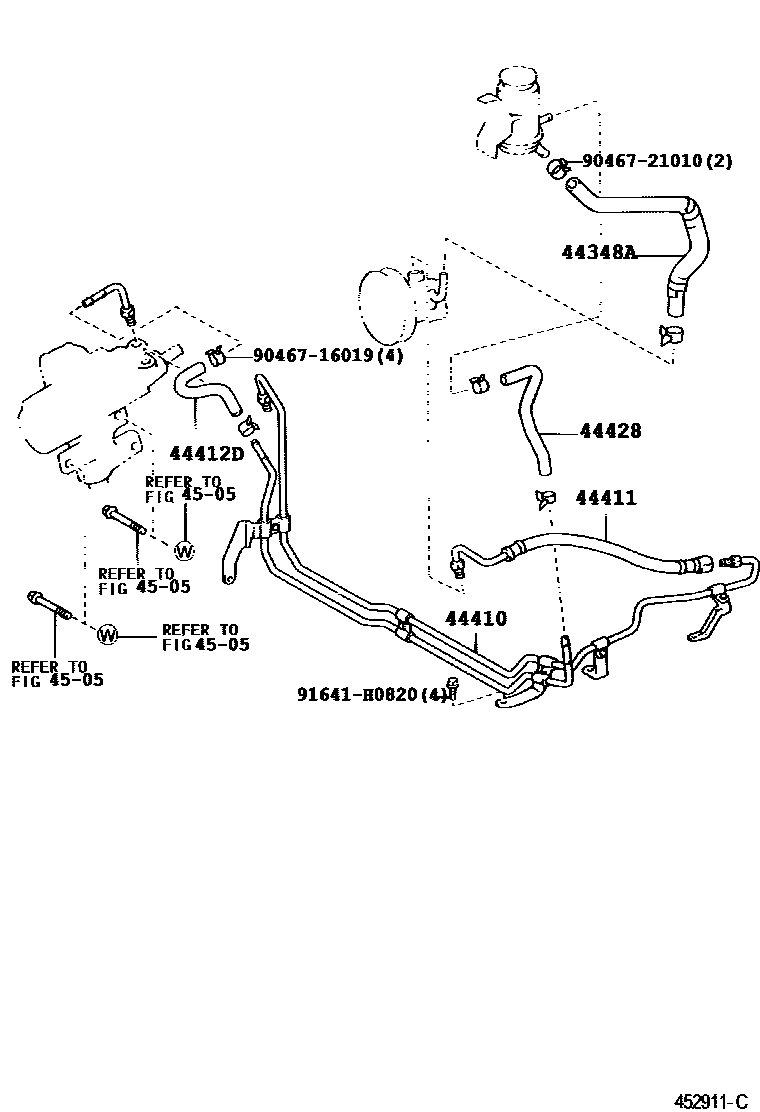

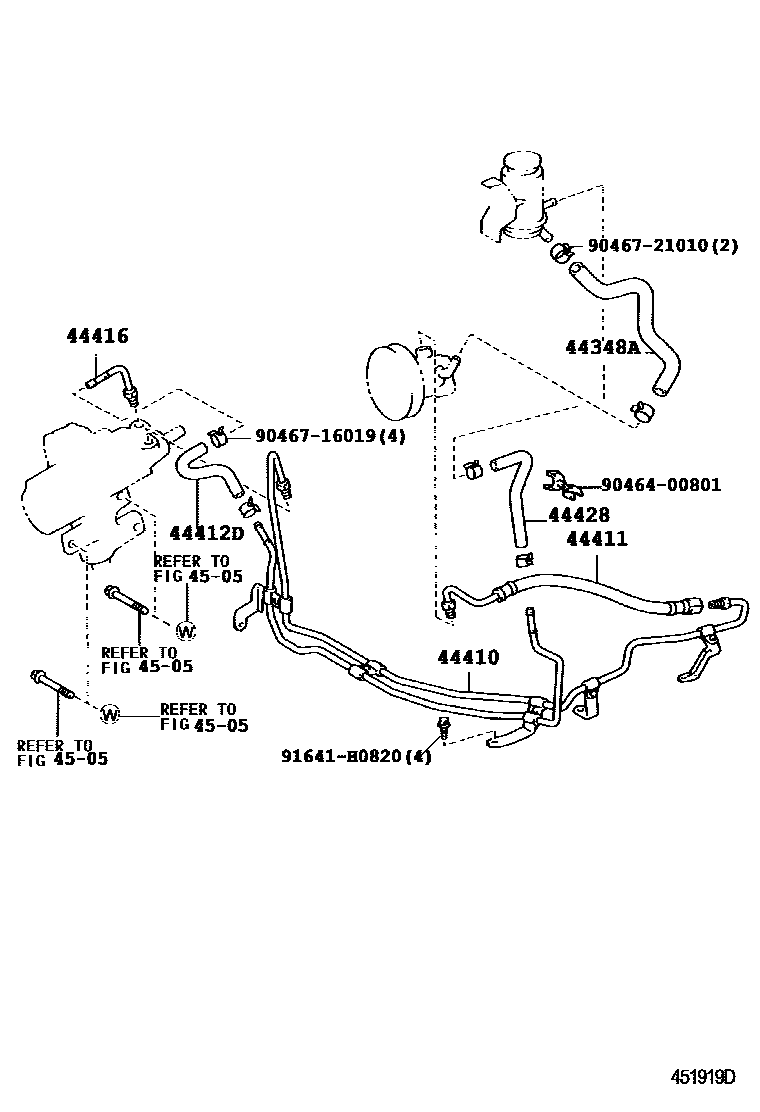

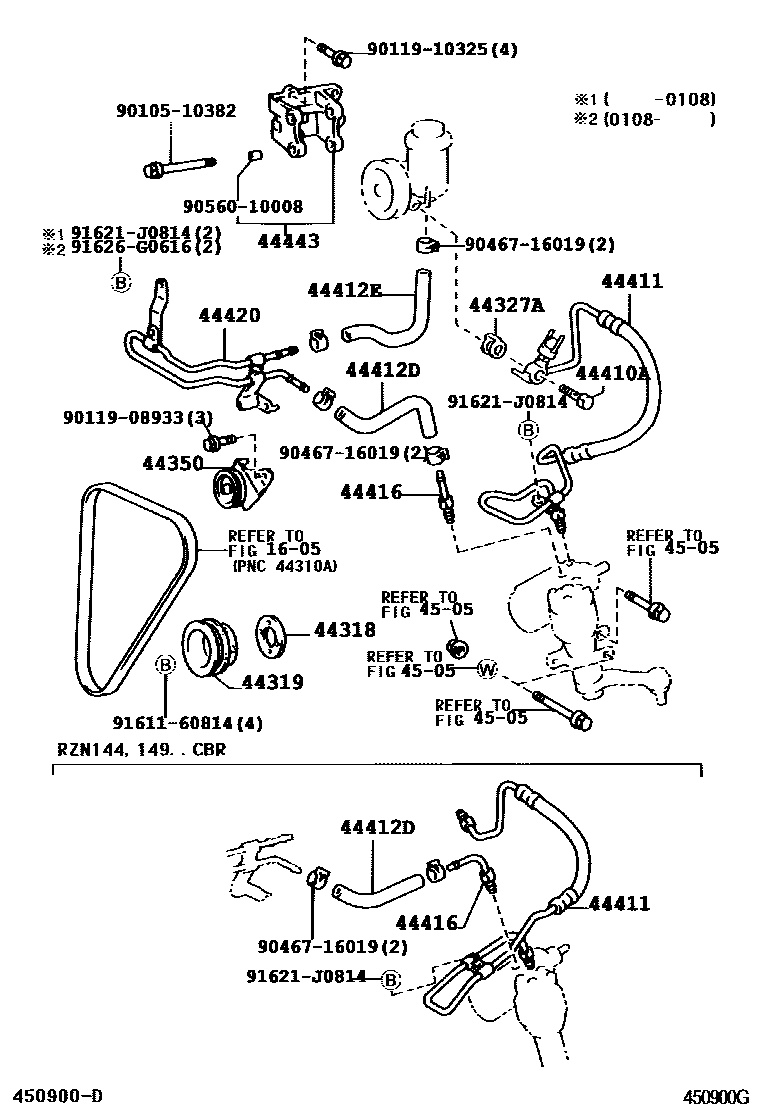

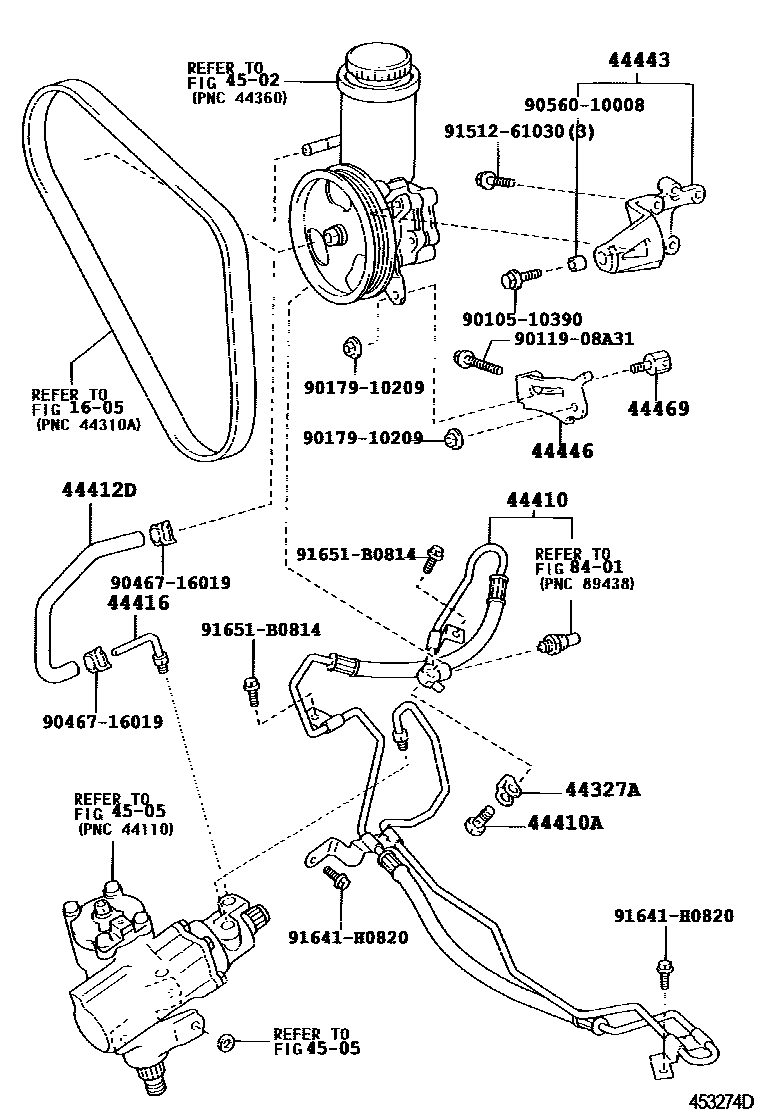

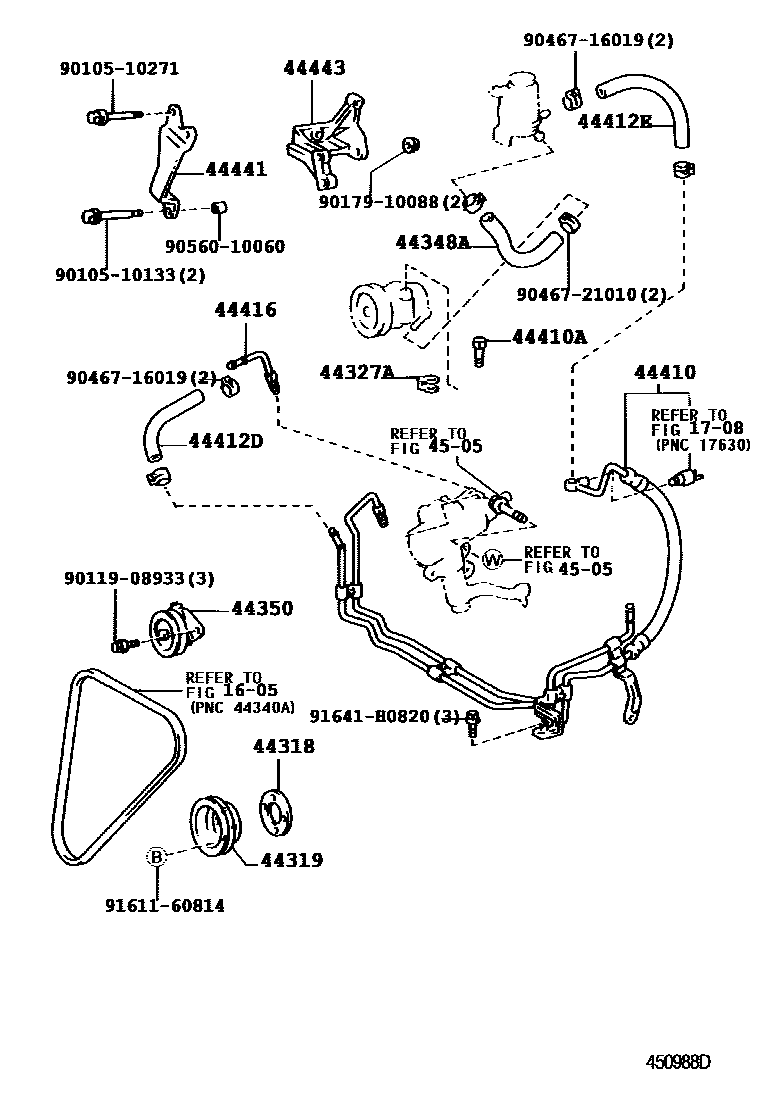

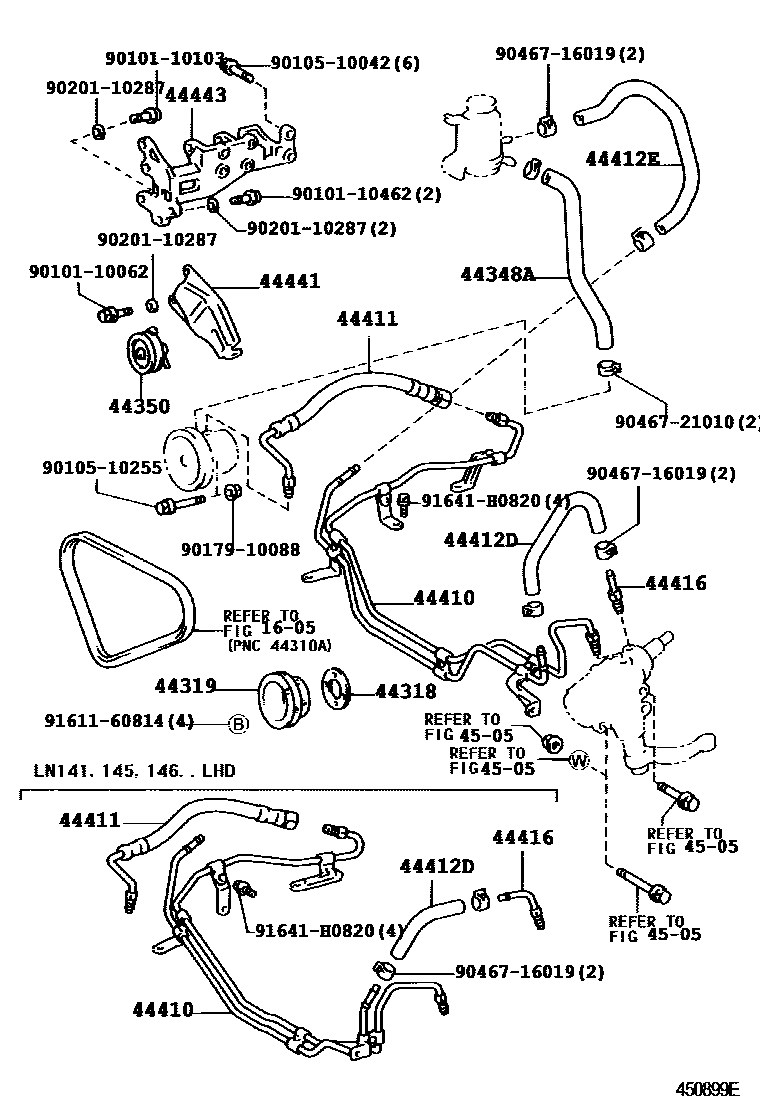

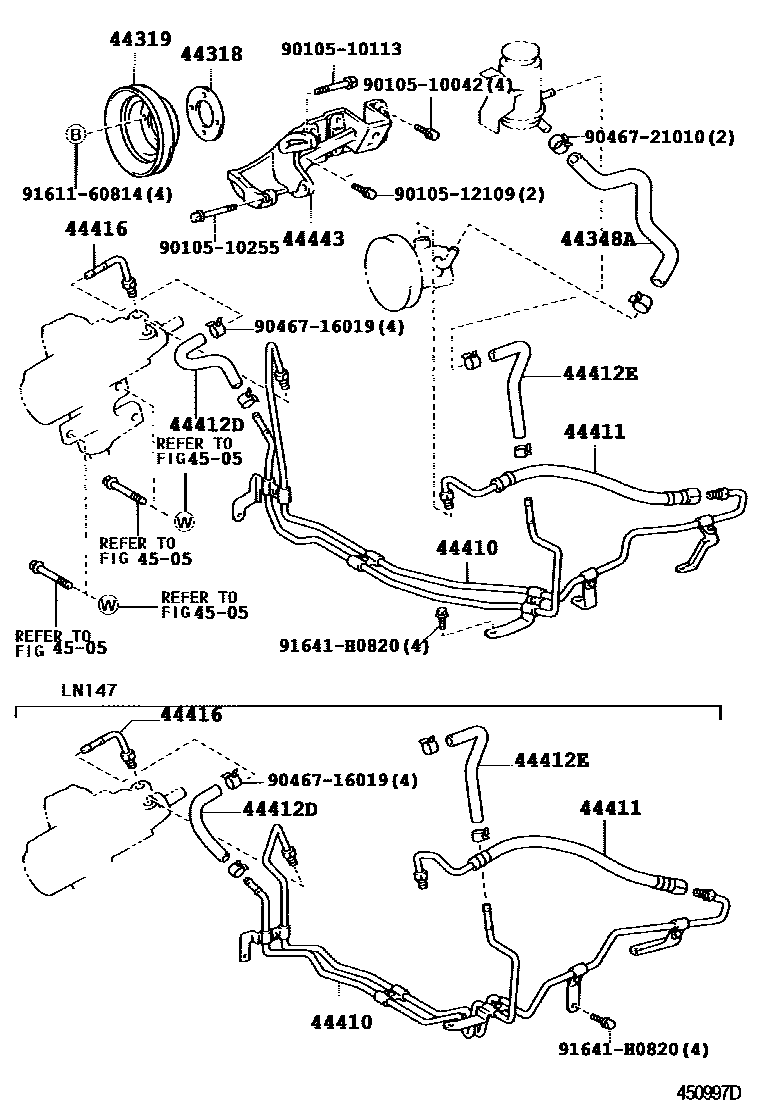

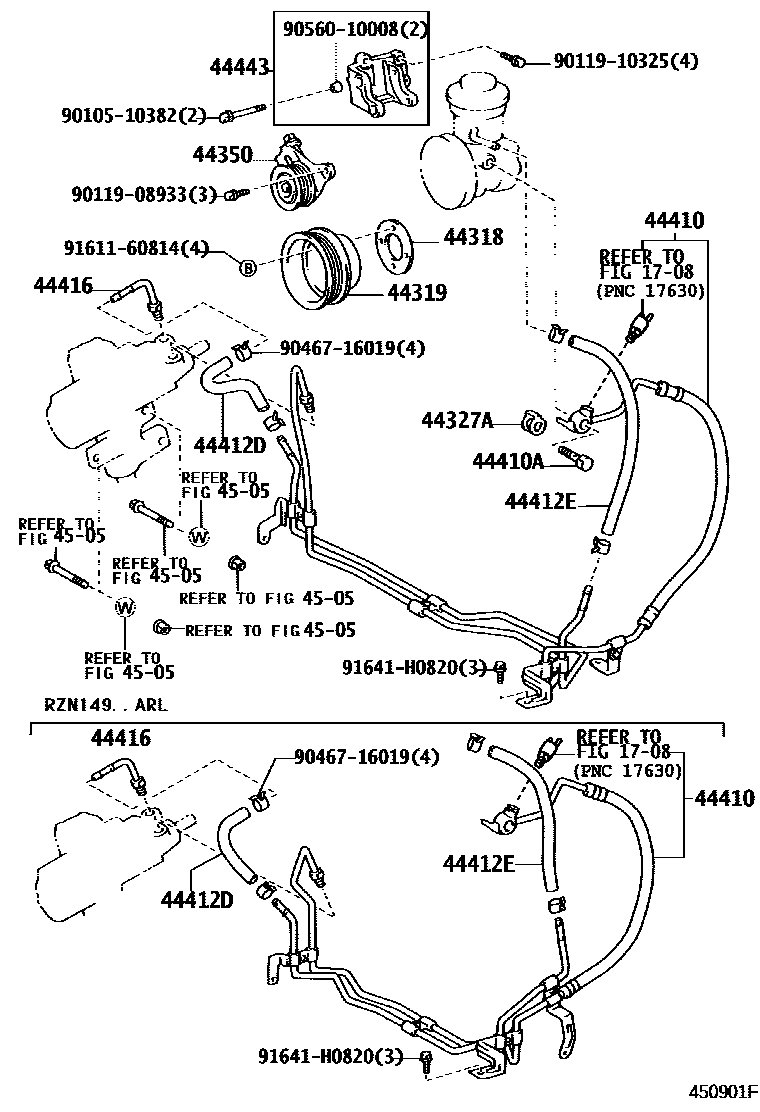

Toyota HILUX EPC diagram 4503, 动力转向配管, with 11 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44318 | Vane pump drive pulley spacer | 44318-26010 · 44318-26020 · 44318-35010 |
| 44319 | Vane pump drive pulley | 44319-22010 · 44319-26020 · 44319-34010 · 44319-35030 |
| 44327A | No. 1 pressure hole gasket | 44327-26020 · 44327-30040 |
| 44348A | No. 1 hose (tank to pump) | 44348-04010 · 44348-35190 · 44348-35200 · 44348-35210 · 44348-35211 · 44348-35240 · 44348-35260 |
| 44350 | Power steering idler assembly | 44350-26010 · 44350-34010 · 44350-60020 · 44350-60021 |
| 44410 | Pressure supply pipe assembly | 44410-04060 · 44410-04070 · 44410-04080 · 44410-04090 · 44410-04150 · 44410-04160 · 44410-35450 · 44410-35460 · 44410-35470 · 44410-35480 · 44410-35490 · 44410-35500 · 44410-35510 · 44410-35511 · 44410-35530 · 44410-35531 · 44410-35540 · 44410-35580 · 44410-35610 · 44410-35630 · 44410-35670 · 44410-35680 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16034 |
| 44411 | pressure supply hose | 44411-04070 · 44411-04080 · 44411-35480 · 44411-35481 · 44411-35490 · 44411-35500 · 44411-35510 · 44411-35511 · 44411-35520 · 44411-35521 · 44411-35530 · 44411-35540 · 44411-35541 · 44411-35550 · 44411-35551 · 44411-35560 · 44411-35561 · 44411-35580 · 44411-35620 · 44411-35630 · 44411-35640 · 44411-35650 |
| 44412D | No. 1 oil return hose | 44412-04030 · 44412-35100 · 44412-35110 · 44412-35300 · 44412-35310 · 44412-35330 · 90080-44100 · 90445-18147 · 90445-18156 |
| 44412E | No. 2 oil return hose | 44412-04040 · 44412-35180 · 44412-35190 · 44412-35200 · 44412-35320 · 44412-35340 · 44412-35350 · 90445-18089 · 90445-18153 · 90445-18154 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-04040 · 44416-04050 · 44416-35020 · 44416-35070 · 44416-35100 · 44416-35150 · 44416-35160 |
| 44420 | Oil cooler assembly | 44420-35170 · 44420-35190 · 44420-35220 · 44420-35250 |
| 44428 | No. 2 oil return hose | 44428-35070 · 44428-35100 |
| 44441 | Pump front bracket | 44441-26010 · 44441-35040 |
| 44443 | pump bracket | 44443-26031 · 44443-26041 · 44443-26090 · 44443-26091 · 44443-34010 · 44443-34020 · 44443-35040 · 44443-35050 · 44443-35051 · 44443-35070 · 44443-35080 |
| 44446 | Adjust the stand | 44446-35010 |
| 44469 | Power steering belt adjustment slider | 44469-35010 |
