Toyota HILUX Front Drive Shaft — Figure 4302

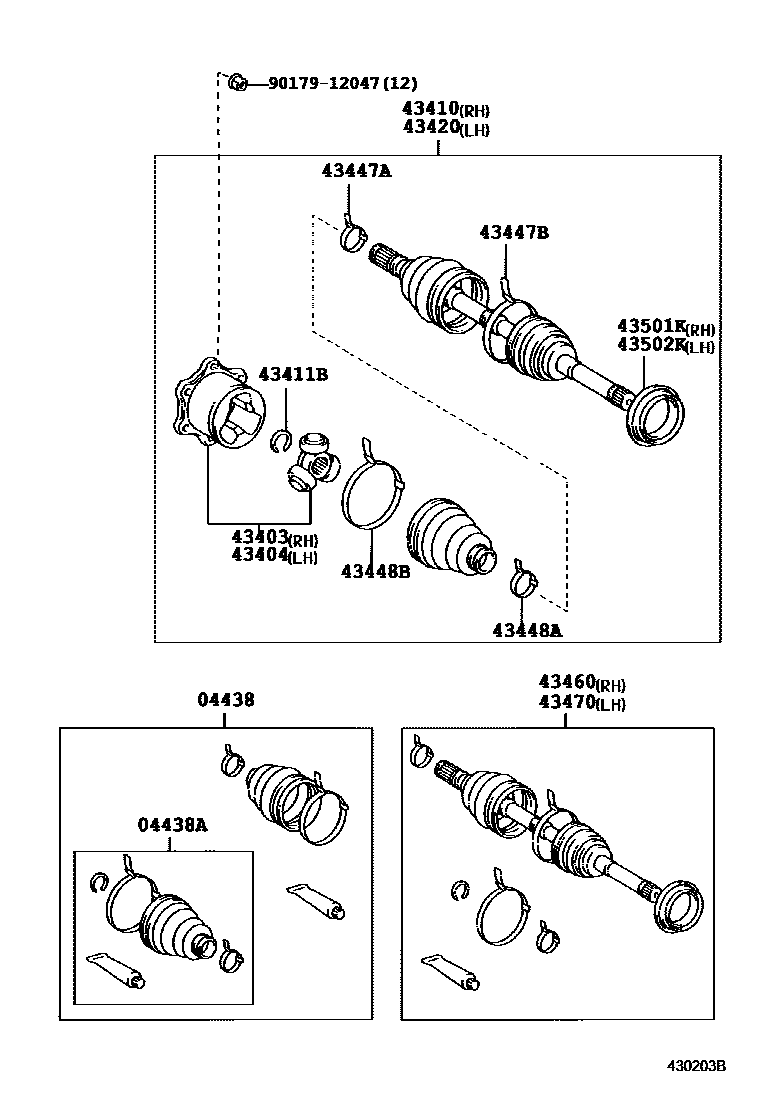

Toyota HILUX EPC diagram 4302, Front Drive Shaft, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438 | Front drive shaft dust boot assembly | 04428-35010 · 04438-04040 · 04438-35022 |
| 04438A | Front drive shaft inner universal joint dust boot assembly | 04438-04030 · 04438-35012 · 04438-35070 |
| 43403 | Right front axle inner universal joint assembly | 43403-35020 |
| 43404 | Left front axle inner universal joint assembly | 43403-35020 |
| 43410 | Right front driveshaft assembly | 43430-04051 · 43430-35012 · 43430-35021 · 43430-35022 |
| 43411B | Inner shaft snap ring (for front axle inner shaft) | 90520-29028 |
| 43420 | Left front drive shaft assembly | 43430-04051 · 43430-35012 · 43430-35021 · 43430-35022 |
| 43447A | Clamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle) | 90949-01221 |
| 43447B | Clamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle) | 90949-01135 |
| 43448A | Clamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle) | 90949-01221 |
| 43448B | No. 2 clip (used to fix the universal joint dust cover on the inside of the front axle) | 90949-01222 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09A50 · 43460-39027 · 43460-39046 · 43460-39175 · 43460-39275 |
| 43470 | Left front outer drive universal joint shaft assembly | 43460-09A50 · 43460-39027 · 43460-39046 · 43460-39175 · 43460-39275 |
| 43501K | Dust seal (for right front axle hub) | 90304-76002 · 90304-76003 · 90304-76005 |
| 43502K | Dust seal (for left front axle hub) | 90304-76002 · 90304-76003 · 90304-76005 |
