Toyota HILUX 后桥壳和差速器 — Figure 4101

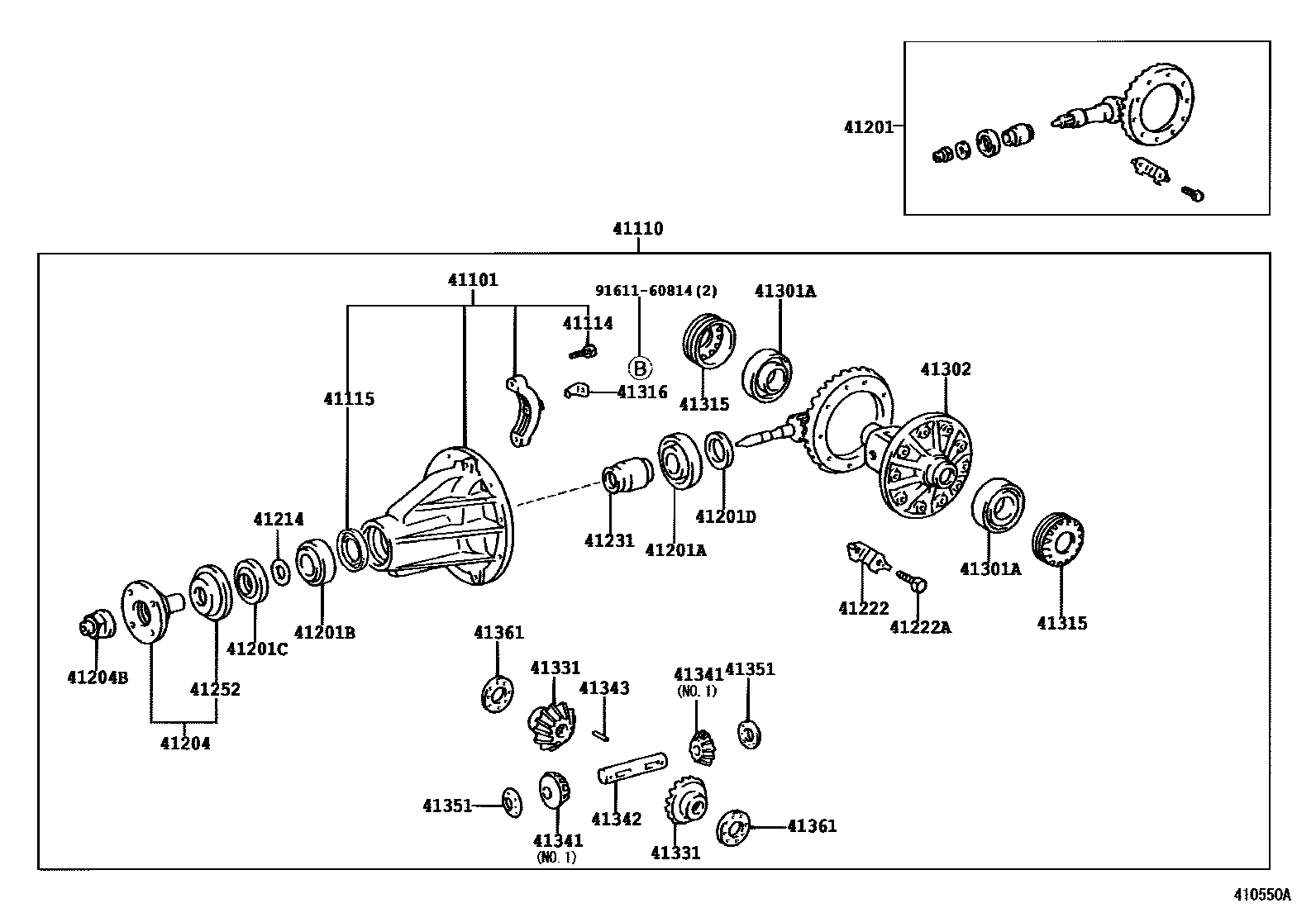

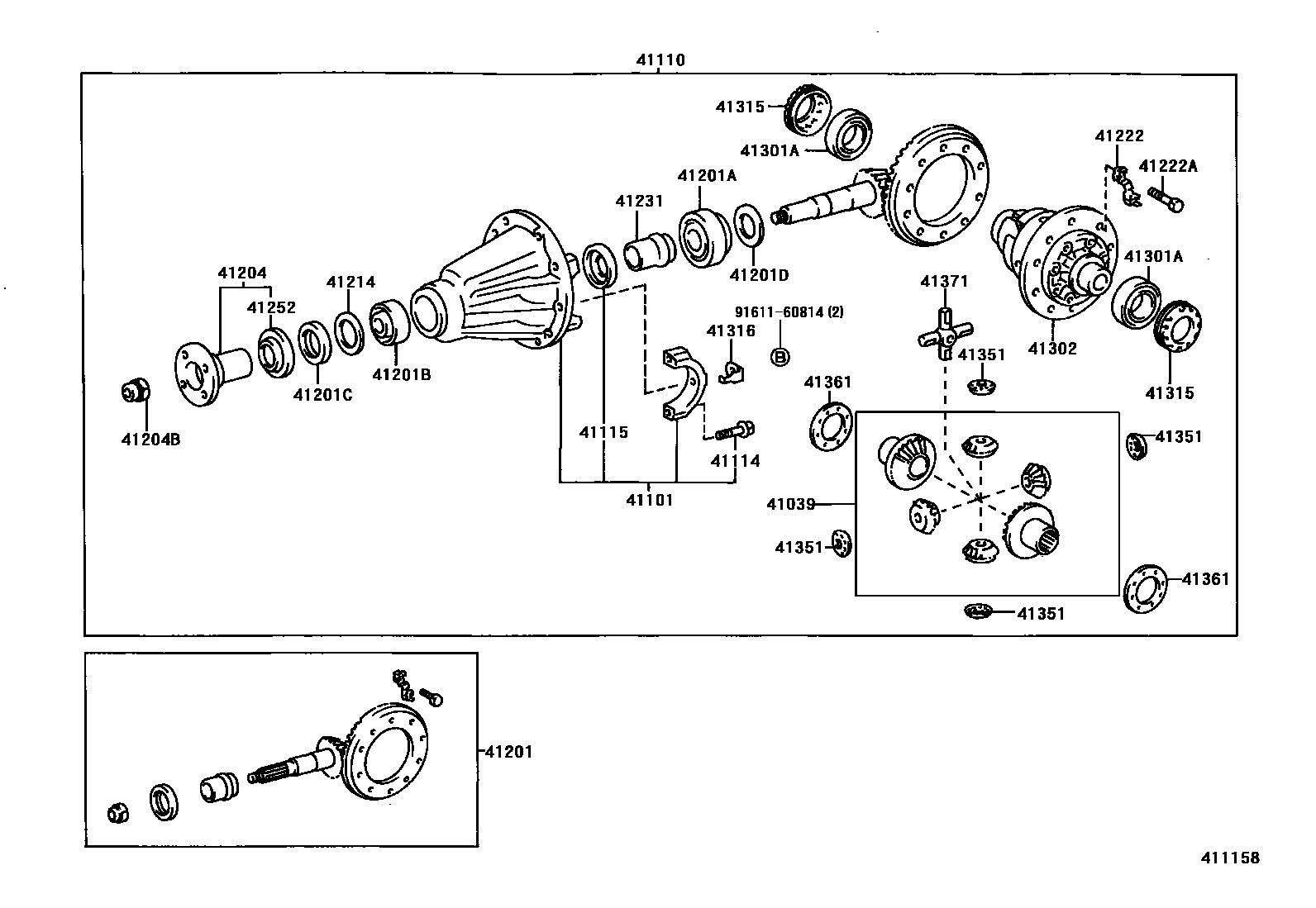

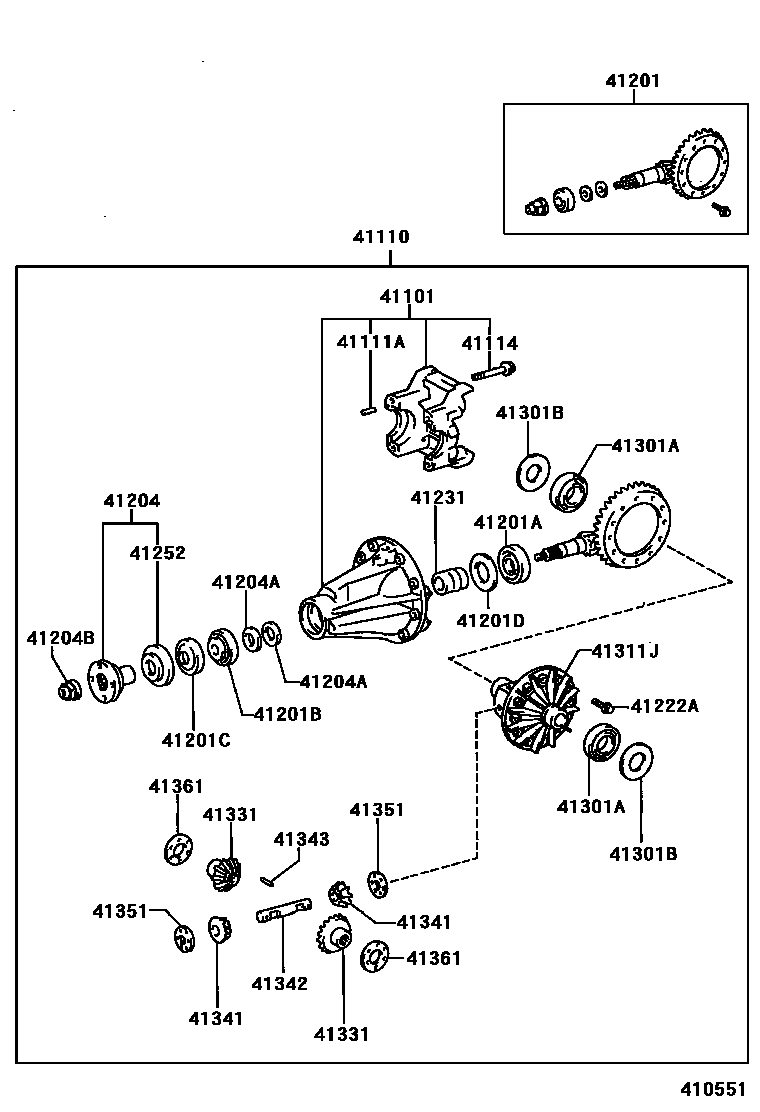

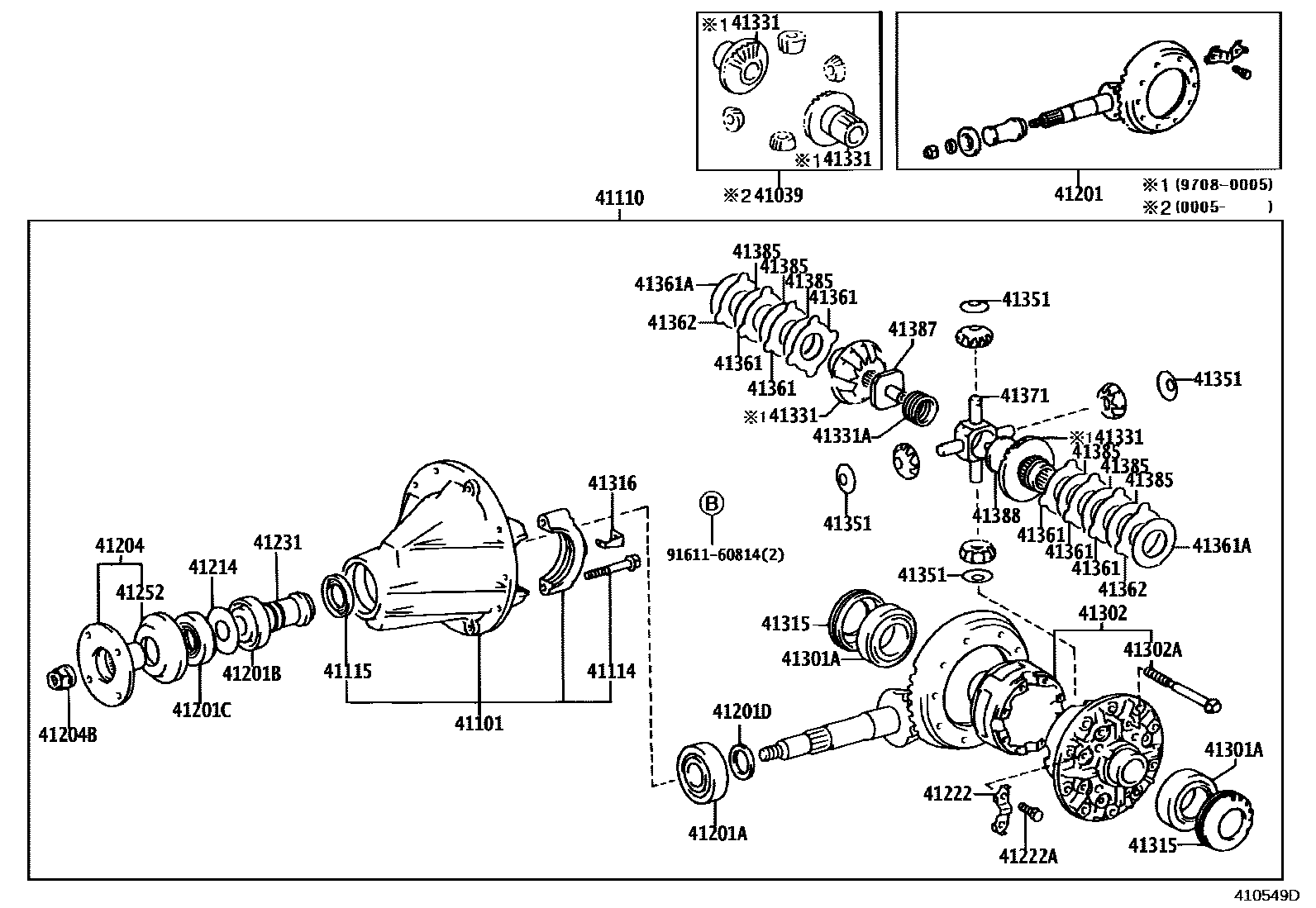

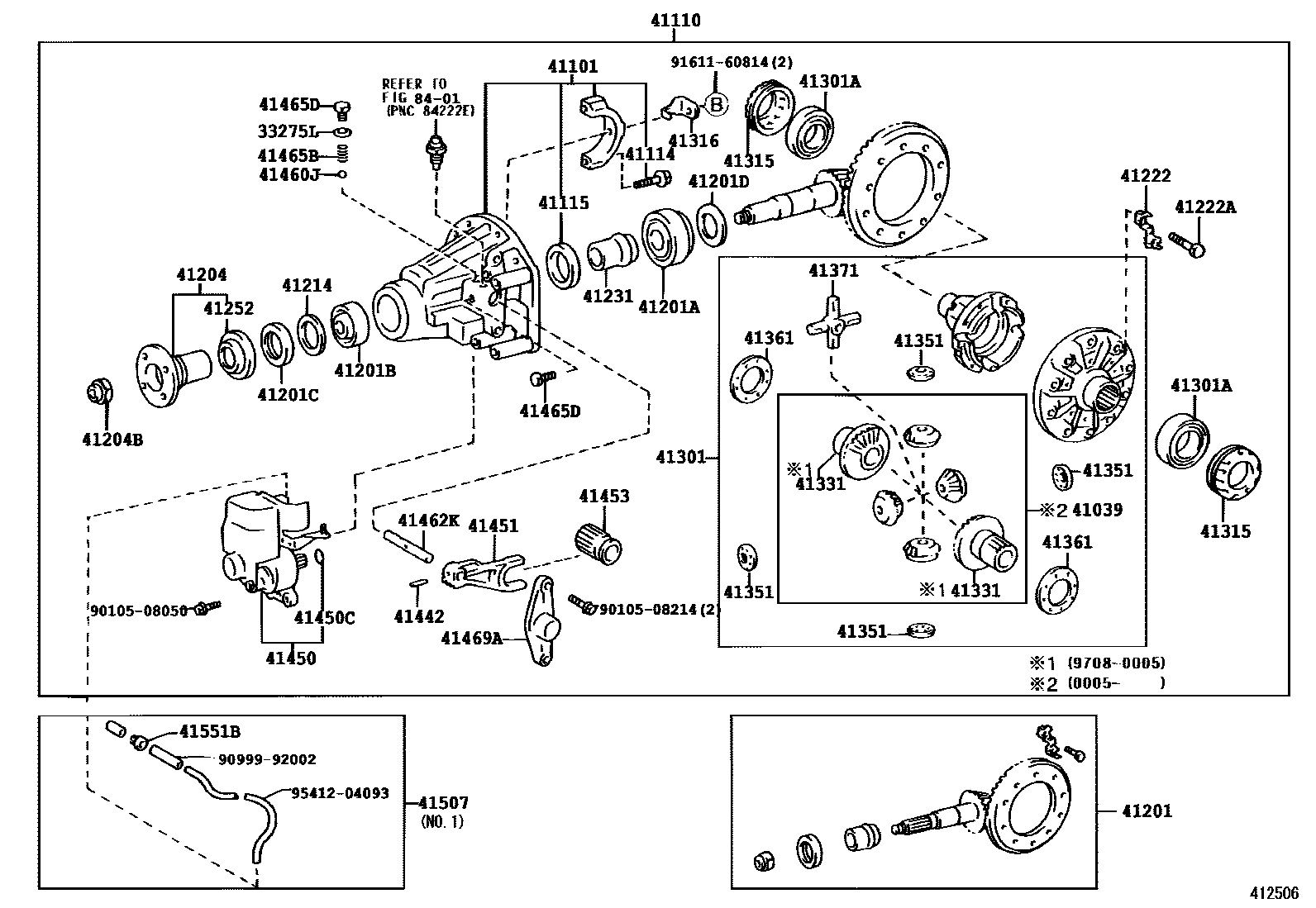

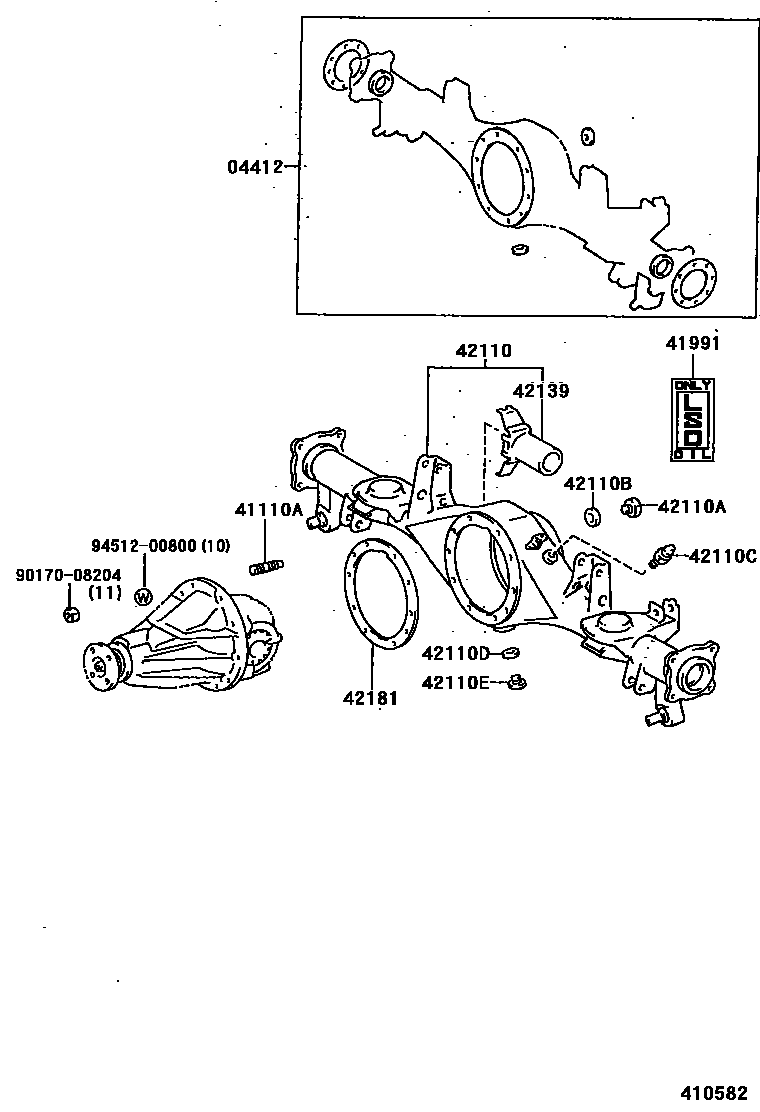

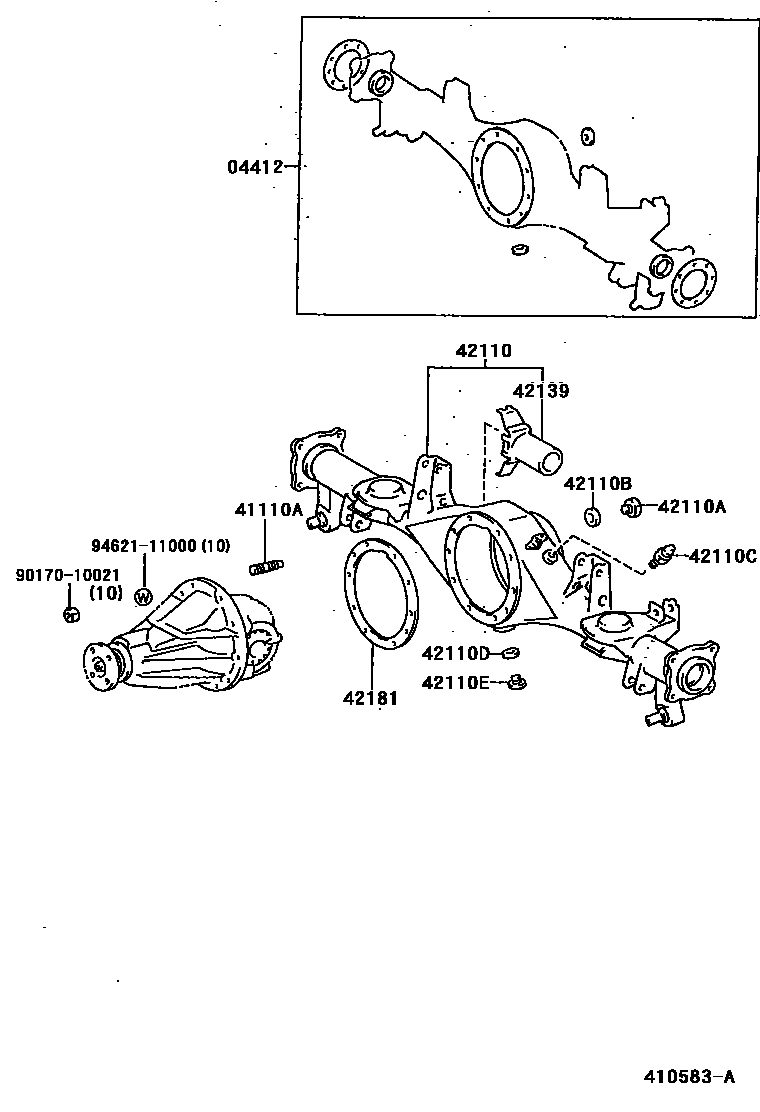

Toyota HILUX EPC diagram 4101, 后桥壳和差速器, with 7 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-35120 · 04412-35140 · 04412-35141 · 04412-35150 · 04412-35180 · 04412-35181 · 04412-35200 · 04412-35210 |
| 33275L | Rear differential lock shift lock steel ball spring seat | 33275-16010 |
| 41039 | rear differential gear assembly | 41039-34060 · 41039-34070 · 41039-34080 |
| 41101 | Rear differential bracket sub-assembly | 41101-34030 · 41101-35031 · 41101-35150 · 41101-35170 |
| 41110 | Rear differential bracket assembly | 41110-25240 · 41110-26440 · 41110-34030 · 41110-34031 · 41110-34070 · 41110-34200 · 41110-35202 · 41110-35212 · 41110-35222 · 41110-35312 · 41110-35431 · 41110-35481 · 41110-35870 · 41110-3D010 · 41110-3D040 · 41110-3D050 · 41110-3D060 · 41110-3D240 · 41110-3D250 · 41110-3D260 · 41110-3D270 · 41110-3D290 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08233 · 90116-08329 · 90116-08330 · 90116-08354 · 90116-10185 |
| 41111A | Direct sales (for rear differential case) | 90250-04091 |
| 41114 | Rear differential bearing cap bolts | 90105-12053 · 90901-05003 |
| 41115 | Differential oil reservoir ring | 41115-35010 |
| 41201 | Rear differential final drive gear assembly | 41201-29526 · 41201-29537 · 41201-29655 · 41201-29656 · 41201-29675 · 41201-29796 · 41201-29805 · 41201-29856 · 41201-39676 · 41201-39677 · 41201-69425 · 41201-69455 · 41201-69456 · 41201-80004 · 41201-80015 · 41201-80032 · 41201-80034 · 41201-80064 · 41201-80099 · 41201-80100 · 41201-80104 · 41201-80105 · 41201-80109 · 41201-80143 · 41201-80160 · 41201-80174 · 41201-80176 · 41201-80177 · 41201-80179 · 41201-80181 · 41201-80189 · 41201-80348 · 41201-80396 · 41201-80484 |
| 41201A | Rear bearing (for rear drive pinion) | 90366-35044 · 90366-35087 · 90366-40068 |
| 41201B | Front bearing (for rear drive pinion) | 90366-30022 · 90366-30067 · 90366-30078 · 90368-34007 |
| 41201C | Oil seal (for rear differential case) | 90311-38047 · 90311-41009 · 90311-44006 · 90311-44007 |
| 41201D | Flat washer (for rear differential drive pinion) | 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 · 90201-70001 · 90201-70002 · 90201-70003 · 90201-70004 · 90201-70005 · 90201-70006 · 90201-70007 · 90201-70008 · 90201-70009 · 90201-70010 · 90201-70011 · 90201-70012 · 90201-70013 · 90201-70014 · 90201-70015 · 90201-70016 · 90201-70017 · 90201-70018 · 90201-70019 · 90201-70020 · 90201-70021 · 90201-70022 · 90201-70023 · 90201-70024 · 90201-70025 · 90201-70026 · 90201-70027 · 90201-70028 · 90201-70029 · 90201-70030 · 90201-70031 · 90201-70032 · 90201-70033 · 90201-70034 · 90201-70035 · 90201-70036 · 90201-70037 · 90201-70038 · 90201-70039 · 90201-70040 · 90201-70041 · 90201-70042 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-34010 · 41204-35040 · 41204-35080 · 41204-35081 · 41204-35082 |
| 41204A | Flat washer (for rear drive pinion) | 90201-35006 |
| 41204B | Nut (for rear driving pinion) | 90177-22003 · 90179-20018 · 90179-24012 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-26010 · 41214-26011 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-35020 · 41222-60010 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11353 · 90901-05002 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-24010 · 41231-34010 · 41231-40011 |
| 41252 | Dust cover (for rear differential) | 41252-34010 · 41252-35020 · 41252-35040 · 41252-35041 |
| 41301 | Rear differential housing sub-assembly | 41301-60060 |
| 41301A | Bearings (for rear differential housing) | 90366-50007 · 90366-51001 · 90366-75001 · 90368-45066 · 90368-50024 |
| 41301B | Washer (for rear differential roller bearing) | 90201-70064 · 90201-70065 · 90201-70066 · 90201-70067 · 90201-70068 · 90201-70069 · 90201-70070 · 90201-70071 · 90201-70072 · 90201-70073 · 90201-70074 · 90201-70075 · 90201-70076 · 90201-70077 · 90201-70078 · 90201-70079 · 90201-70080 · 90201-70081 · 90201-70082 · 90201-70083 · 90201-70084 · 90201-70085 · 90201-70086 · 90201-70087 · 90201-70088 · 90201-70089 · 90201-70090 · 90201-70091 · 90201-70092 · 90201-70093 · 90201-70094 · 90201-70095 · 90201-70096 · 90201-70097 · 90201-70098 · 90201-70099 · 90201-70100 · 90201-70101 · 90201-70102 · 90201-70103 · 90201-70104 · 90201-70105 · 90201-70106 · 90201-70107 · 90201-70108 · 90201-70109 |
| 41302 | Rear differential housing sub-assembly | 41302-35020 · 41302-35040 · 41311-40020 · 41311-60060 |
| 41302A | Bolt (for rear differential case) | 90105-10084 |
| 41311J | rear differential case | 41311-34010 |
| 41315 | Rear differential bearing adjusting nut | 41315-35010 · 41315-35020 · 41315-60010 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-35010 |
| 41331 | rear differential side gear | 41039-34060 · 41039-34070 · 41331-34010 · 41331-34011 · 41331-34012 · 41331-35011 |
| 41331A | compression spring | 90501-07112 · 90501-65003 |
| 41341 | rear differential pinion | 41341-34010 · 41341-34011 · 41341-34012 · 41341-35020 |
| 41342 | Rear differential planetary gear shaft | 41342-34010 · 41342-34011 · 41342-39610 |
| 41343 | Rear differential planetary gear pin | 90250-06058 · 90250-06085 |
| 41351 | Rear differential planetary gear thrust washer | 41351-30052 · 41351-30060 · 41351-34010 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-14200 · 41361-14210 · 41361-34010 · 41361-34020 · 41361-34030 · 41361-34040 · 41361-34050 · 41361-34060 · 41361-34070 · 41361-34080 · 41361-34090 · 41361-35160 · 41361-35161 · 41361-35310 · 41361-35320 · 41361-35330 · 41361-35340 · 41361-35350 · 41361-40021 · 41361-60290 · 41361-60300 · 41361-60310 · 41361-60320 · 41361-60330 · 41362-40021 · 41363-40021 |
| 41361A | Thrust washers (for rear differential side gears) | 90564-50001 · 90564-50002 · 90564-50003 · 90564-50004 · 90564-50005 |
| 41362 | No. 2 rear differential half gear thrust washer | 41361-35290 · 41361-35291 |
| 41371 | Rear differential cross shaft | 41306-35040 · 41371-35020 |
| 41385 | clutch plate | 41385-35010 |
| 41387 | Right spring seat | 41308-35010 |
| 41388 | Left spring seat | 41388-35020 |
| 41442 | Shift fork locking bolt or locking pin | 90254-05016 |
| 41450 | Differential lock shift actuator | 41450-35030 |
| 41450C | O-ring (for rear differential lock shift actuator) | 90301-20005 |
| 41451 | Rear differential lock shift fork | 41451-60020 |
| 41453 | Rear differential lock sleeve | 41453-60020 |
| 41460J | Steel ball (for rear differential lock cylinder) | 90360-08009 |
| 41462K | Rear differential lock shift fork shaft | 41462-60020 |
| 41465B | Compression spring (for rear differential lock retainer) | 90501-12110 |
| 41465D | Plug (for rear differential lock cylinder) | 90341-10065 |
| 41469A | Rear differential lock shaft retainer | 41469-60010 |
| 41507 | Rear differential lock actuator vent pipe | 41507-35050 |
| 41551B | Rear differential breather seal | 41551-35030 |
| 41991 | Rear differential warning plate | 41991-22010 |
| 42110 | Rear axle housing assembly | 42110-04110 · 42110-35640 · 42110-35650 · 42110-35651 · 42110-35780 · 42110-35790 · 42110-35791 · 42110-35800 · 42110-35810 · 42110-35811 · 42110-35820 · 42110-35830 · 42110-35831 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42139 | Rear axle housing oil baffle | 42139-35050 · 42139-40010 |
| 42181 | Rear differential case gasket | 42181-34011 · 42181-60020 · 42181-60050 |
