Toyota HILUX Transfer Lever & Shift Fork Shaft — Figure 3611

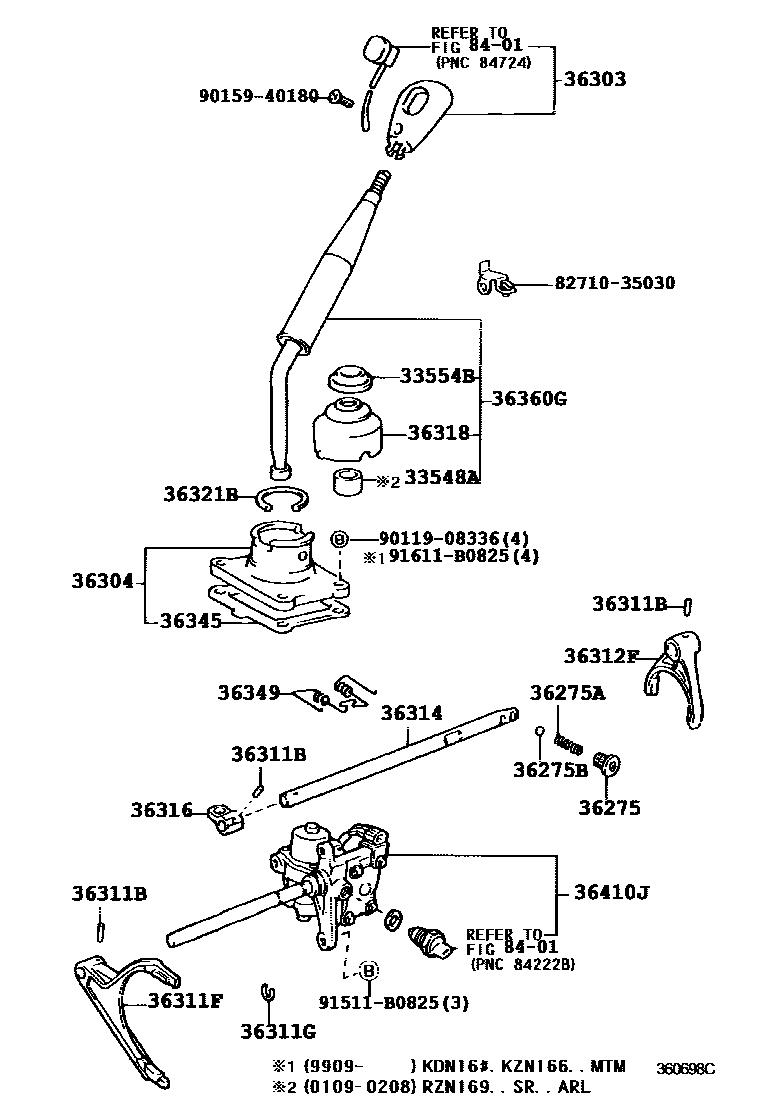

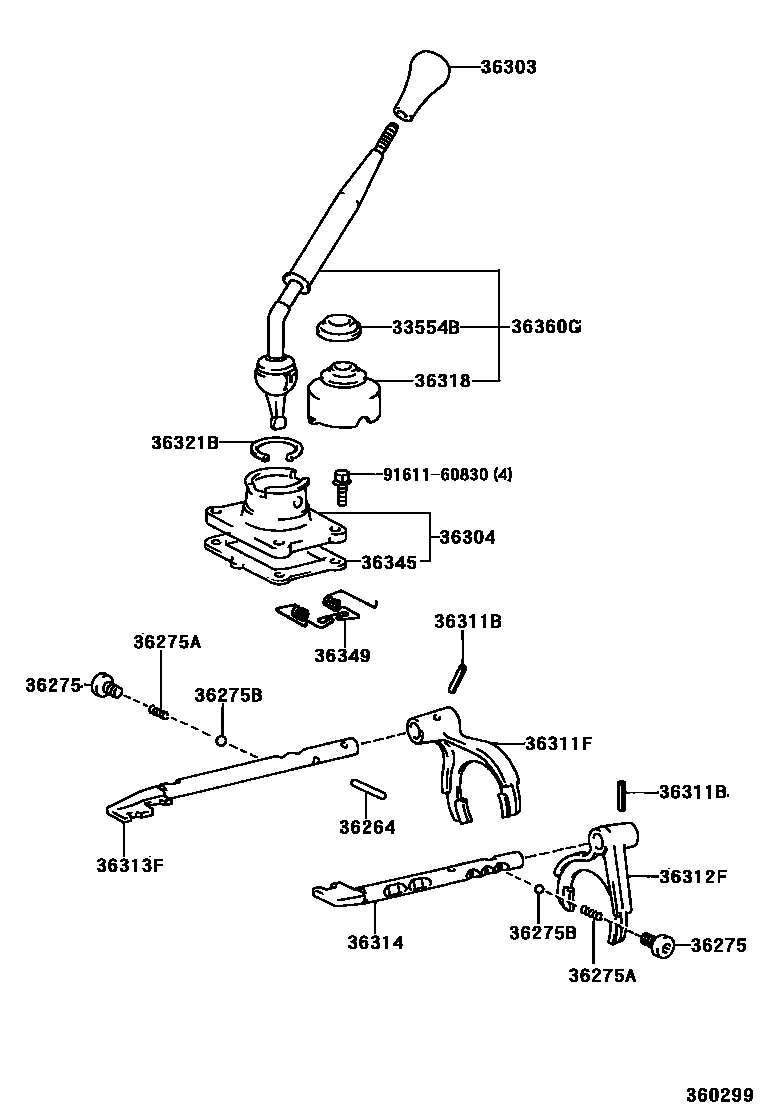

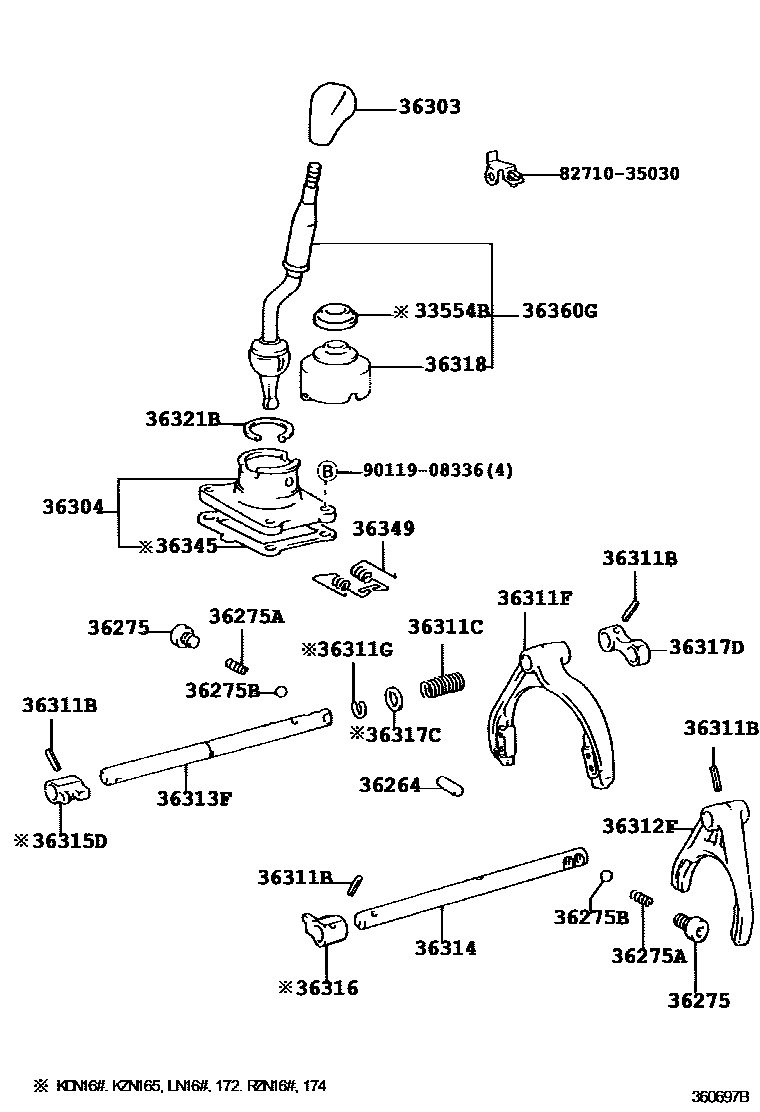

Toyota HILUX EPC diagram 3611, Transfer Lever & Shift Fork Shaft, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33548A | Transfer case shift lever bushing | 33548-30010 |
| 33554B | Transfer case shift lever cover | 33554-20010 |
| 36264 | Shift interlock pin or roller | 90250-06005 · 90250-10020 |
| 36275 | Gear shift lock steel ball spring plug | 90341-10064 · 90341-12014 · 90931-12014 |
| 36275A | Compression spring (for shift lock steel ball) | 90501-13001 · 90501-16116 |
| 36275B | Gear shift lock steel ball | 90360-08009 · 90360-10003 |
| 36303 | Shift lever handle sub-assembly | 36303-04010 |
| 36304 | Transfer case shift control lever stopper sub-assembly | 36304-35032 · 36304-35041 · 36304-35051 · 36304-60120 |
| 36311B | Slotted spring pin (for transfer case shift fork) | 90254-05001 |
| 36311C | Compression spring (for shift fork) | 90501-20088 |
| 36311F | No. 1 transfer case shift fork | 36311-35010 · 36311-35020 · 36311-35030 · 36311-35041 |
| 36311G | Shaft snap ring (for transfer case shift fork) | 90520-13002 |
| 36312F | No. 2 transfer case shift fork | 36312-35020 · 36312-35040 |
| 36313F | Transfer case front wheel drive shift fork shaft | 36313-35020 · 36313-35080 · 36313-35120 |
| 36314 | Transfer case high and low gear shift fork shaft | 36314-35020 · 36314-35110 · 36314-35120 · 36314-35130 · 36314-35140 · 36314-35150 |
| 36315D | No. 1 transmission guide block of transfer case | 36315-35010 |
| 36316 | No. 2 transmission guide block of transfer case | 36316-35020 · 36316-35040 |
| 36317C | Transfer case shift shaft limiter | 36317-35020 |
| 36317D | Transfer case shift shaft No. 2 stopper | 36317-35030 |
| 36318 | Transfer case front wheel drive shift dust cover | 33555-35190 · 33555-35200 |
| 36321B | Hole snap ring (for transfer case front wheel drive shift lever) | 90521-49003 |
| 36345 | Transfer case shift lever stopper gasket | 36345-35021 · 36345-35040 |
| 36349 | Transfer case selector return spring | 36349-35010 · 36349-35020 · 36349-35031 |
| 36360G | Transfer case high gear and low gear shift lever assembly | 36360-35330 · 36360-35340 · 36360-35360 · 36360-35390 · 36360-35400 · 36360-35410 · 36360-35420 · 36360-35430 · 36360-35490 · 36360-35500 · 36360-35530 · 36360-35540 · 36360-35550 · 36360-35560 · 36360-35570 |
| 36410J | Transfer case shift actuator assembly | 36410-35060 |
