Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

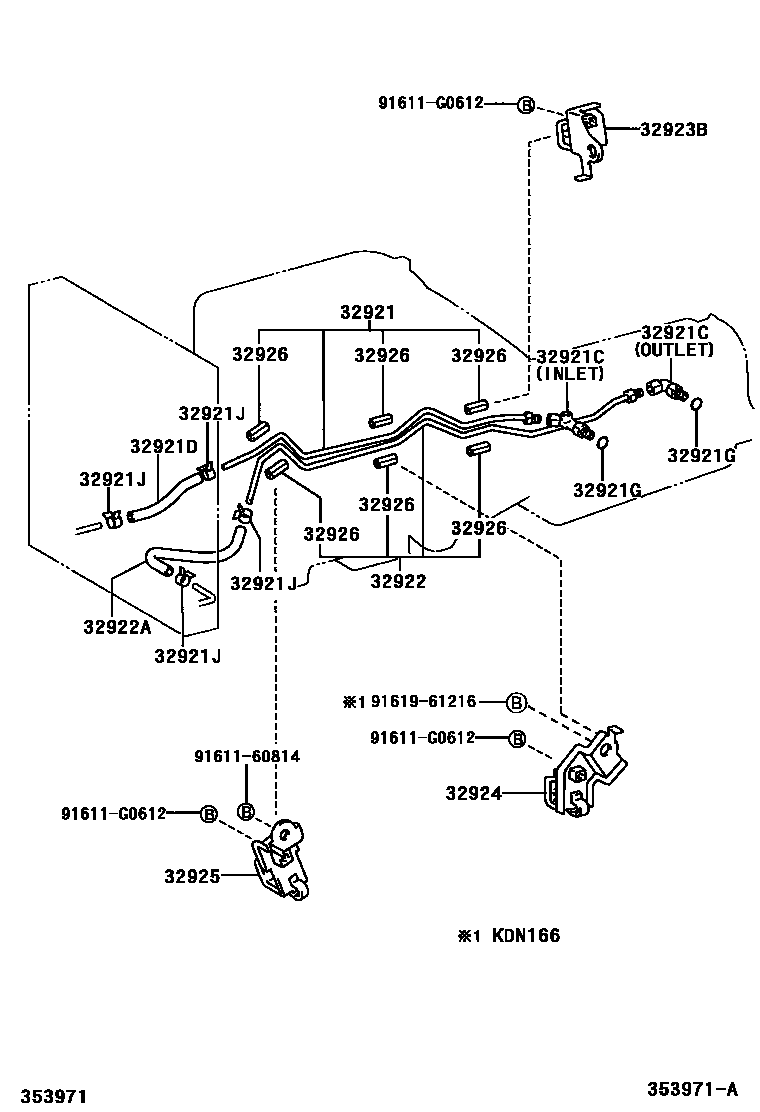

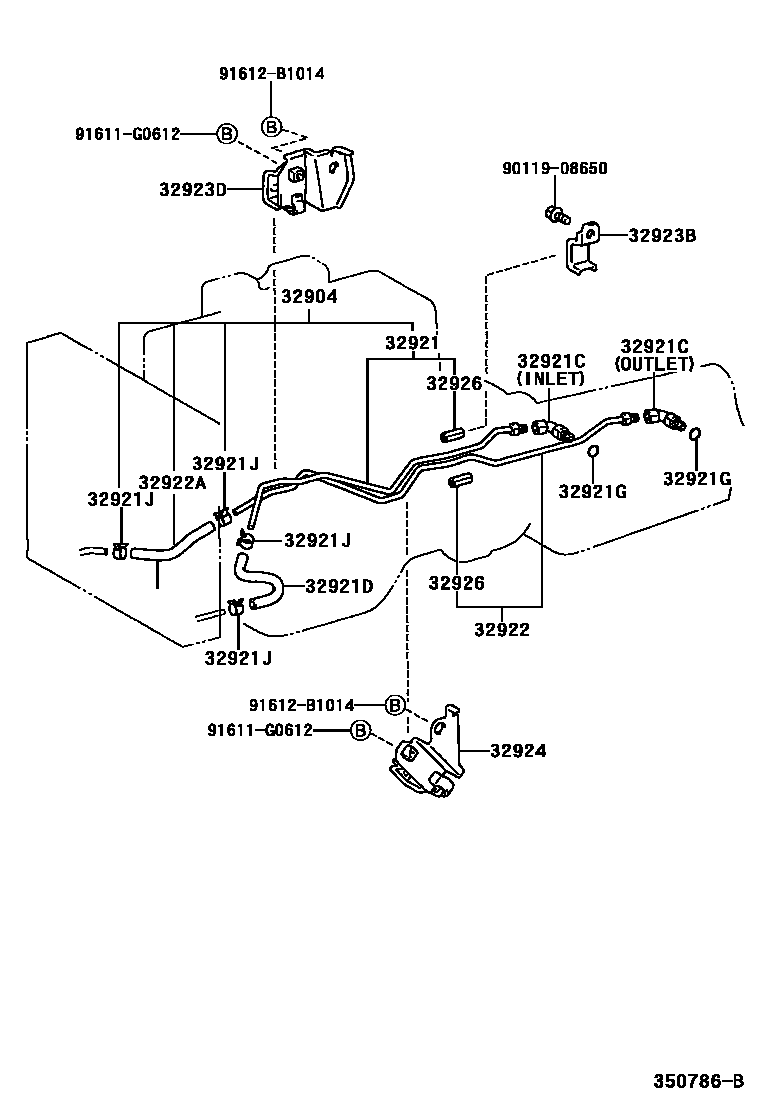

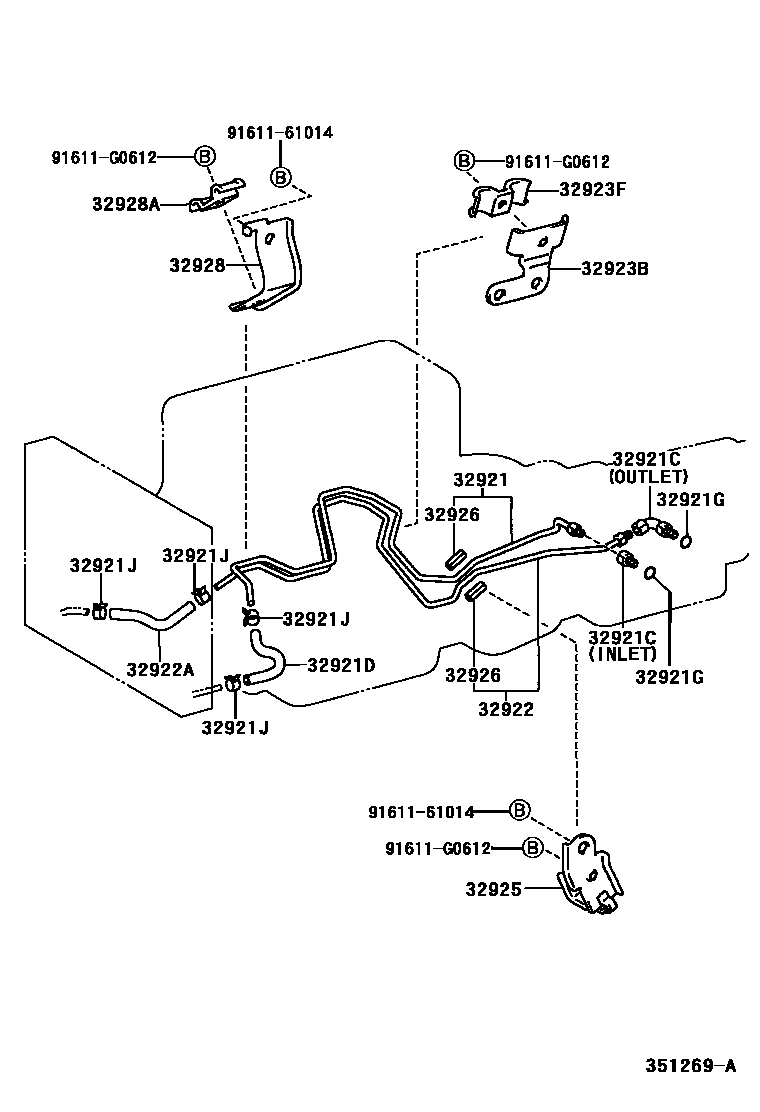

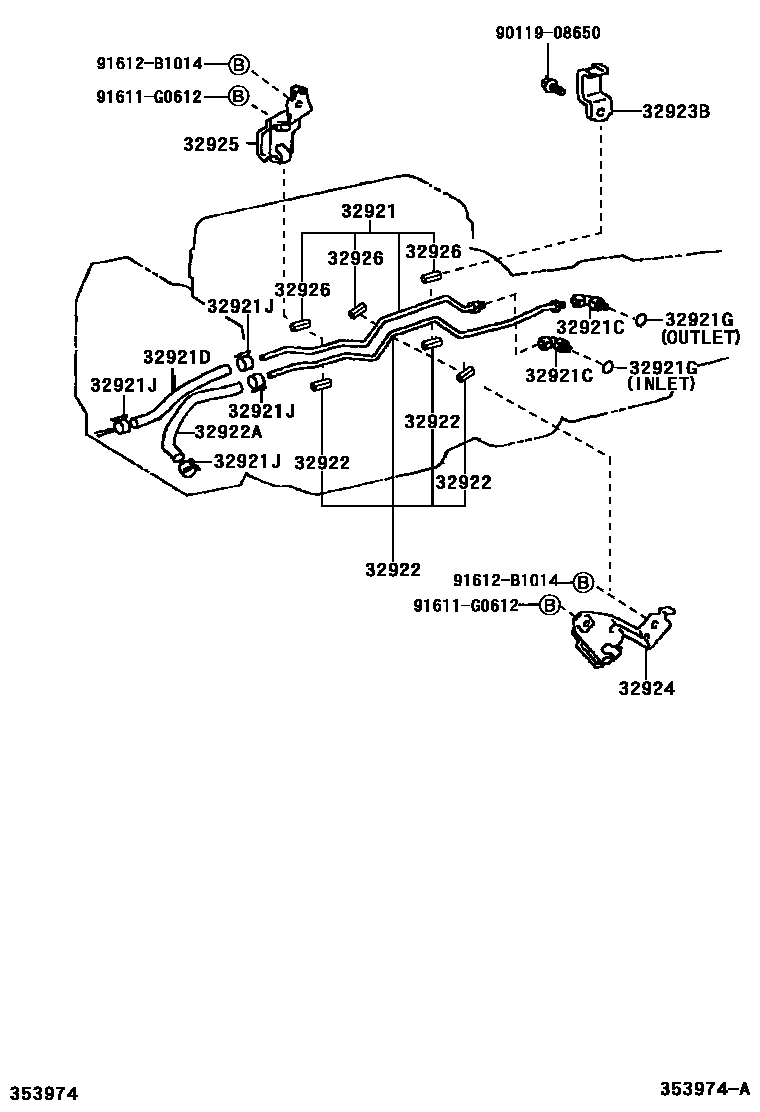

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32904 | No. 1 transmission oil cooler oil inlet pipe sub-assembly | 32904-04080 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-04080 · 32921-35300 · 32921-35331 · 32921-35400 · 32921-35410 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-16021 · 90407-14024 · 90407-16009 · 90407-16010 · 90407-16012 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-35290 · 90445-17097 · 90445-17124 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16022 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-04080 · 32922-35330 · 32922-35360 · 32922-35430 · 32922-35440 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17100 · 90445-17102 · 90445-17112 · 90445-17137 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32909-35210 · 32923-35040 · 32929-24060 |
| 32923D | No. 5 automatic transmission oil cooler pipe clamp | 32909-34040 |
| 32923F | No. 7 automatic transmission oil cooler pipe clamp | 90462-12044 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32909-34030 · 32909-34050 · 32909-35220 · 32909-60080 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 32909-26080 · 32909-35110 · 32909-35120 · 32909-60060 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-35060 |
| 32928A | Clamp (for flexible hose clamp) | 90462-12044 |
