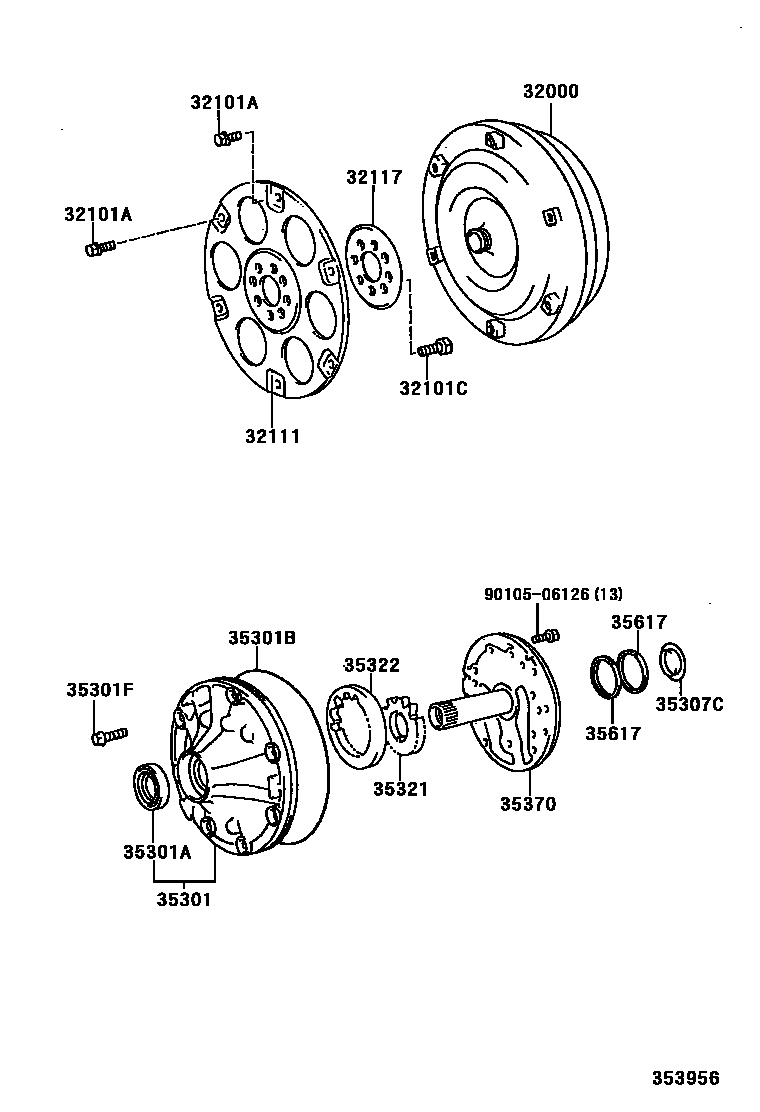

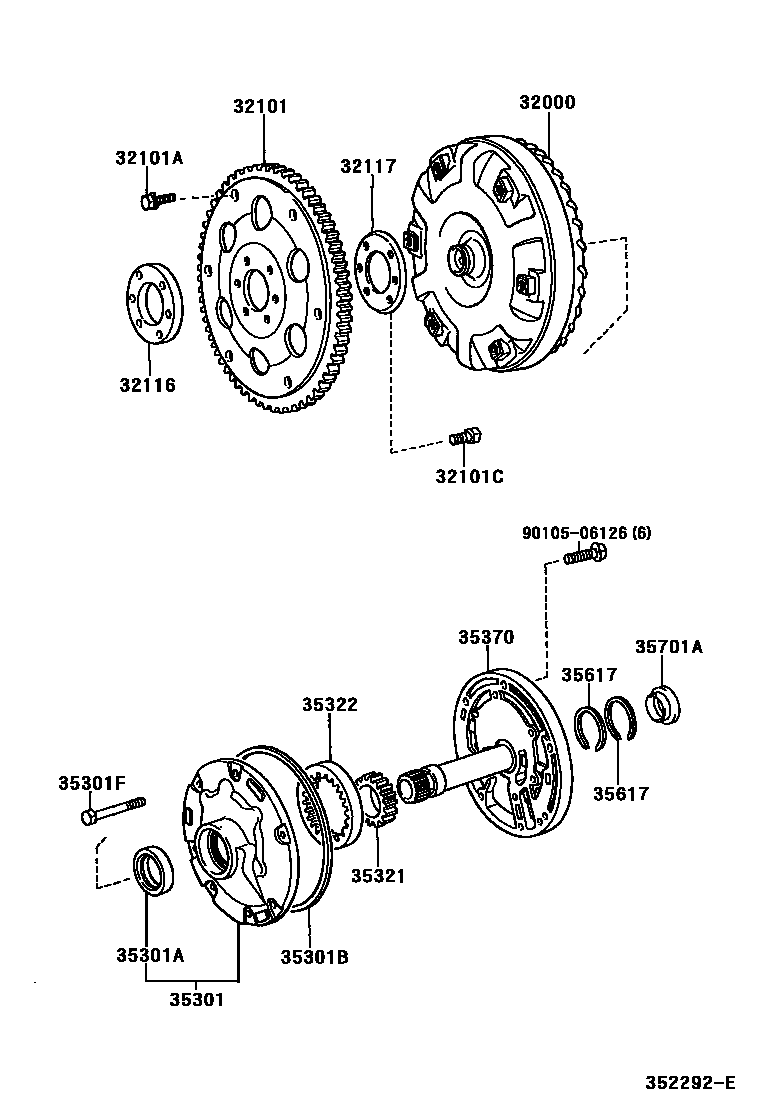

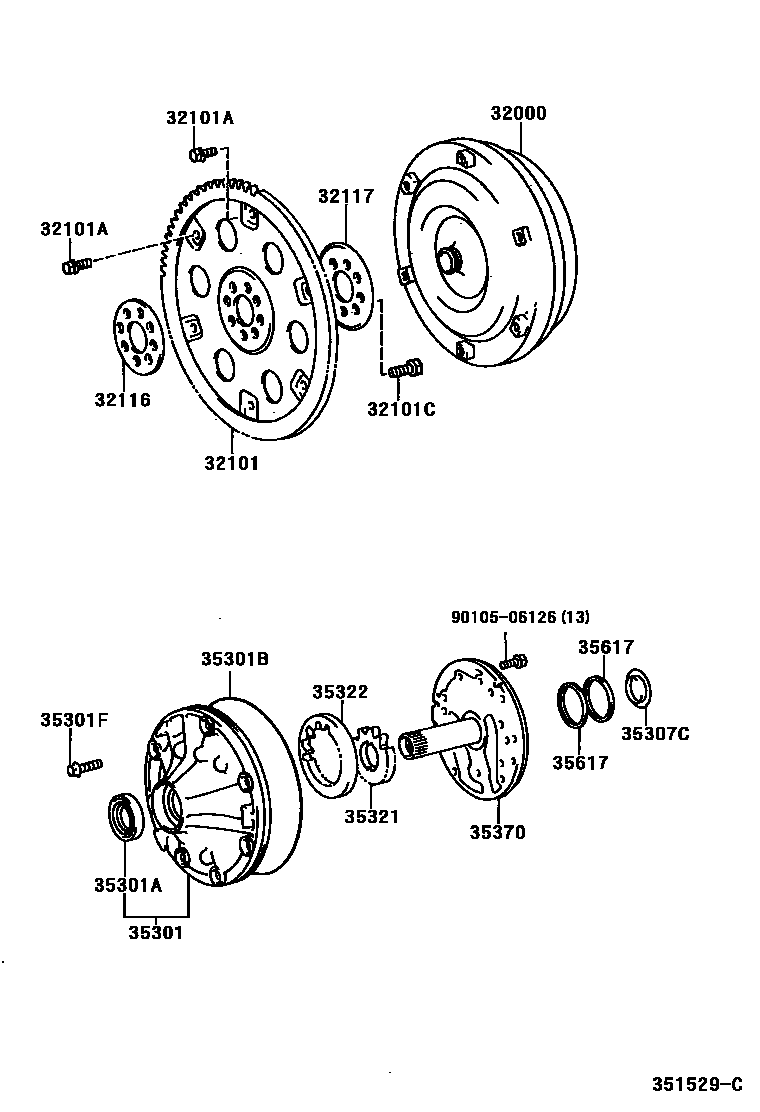

Toyota HILUX 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota HILUX EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-35070 · 32000-35160 · 32000-35170 · 32000-35210 · 32000-35240 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-26010 · 32101-35010 · 32101-35020 · 32111-60050 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90105-10413 · 90105-10414 · 90119-09009 · 90119-09010 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-10276 · 90105-12014 · 90105-13010 |
| 32111 | Pump impeller drive plate | 32111-35030 |
| 32116 | Front transmission plate spacer | 32116-26010 · 32116-32020 · 32116-35010 |
| 32117 | Rear transmission plate spacer | 32117-26010 · 32117-32020 · 32117-35010 · 32117-60050 |
| 35301 | Front oil pump body sub-assembly | 35301-30030 · 35301-30040 · 35301-35010 · 35301-35020 |
| 35301A | Oil seal (for front oil pump) | 90311-38020 · 90311-38029 · 90311-38064 · 90311-38087 |
| 35301B | O-ring (for front oil pump body) | 90301-99010 · 90301-99033 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08091 · 90105-08137 |
| 35307C | Thrust bearing race (for stator shaft) | 35789-30020 · 35789-30340 |
| 35321 | Front oil pump driving gear | 35321-12020 · 35321-12030 · 35321-12040 · 35321-12050 · 35321-12060 · 35321-12070 · 35321-12080 · 35321-12090 · 35321-12100 · 35321-12110 · 35321-22020 · 35321-22030 · 35321-22040 · 35321-22050 · 35321-22060 · 35321-22070 · 35321-22080 · 35321-22090 · 35321-22100 · 35321-22110 |
| 35322 | Front oil pump driven gear | 35322-12010 · 35322-12020 · 35322-12030 · 35322-12040 · 35322-12050 · 35322-12060 · 35322-12070 · 35322-12080 · 35322-12090 · 35322-12100 · 35322-22020 · 35322-22030 · 35322-22040 · 35322-22050 · 35322-22060 · 35322-22070 · 35322-22080 · 35322-22090 · 35322-22100 · 35322-22110 |
| 35370 | stator shaft assembly | 35370-30023 · 35370-30031 |
| 35617 | Clutch drum oil ring | 35617-30020 · 35617-32010 |
| 35701A | Front thrust bearing (for input shaft) | 90374-25003 |
