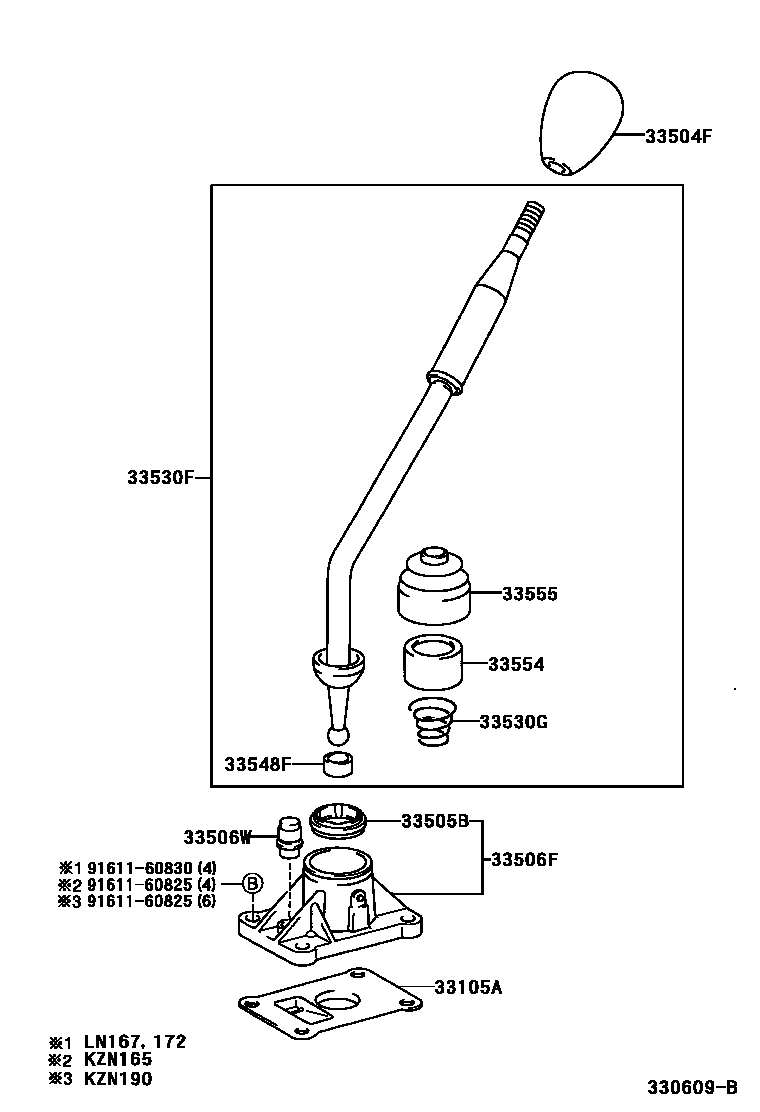

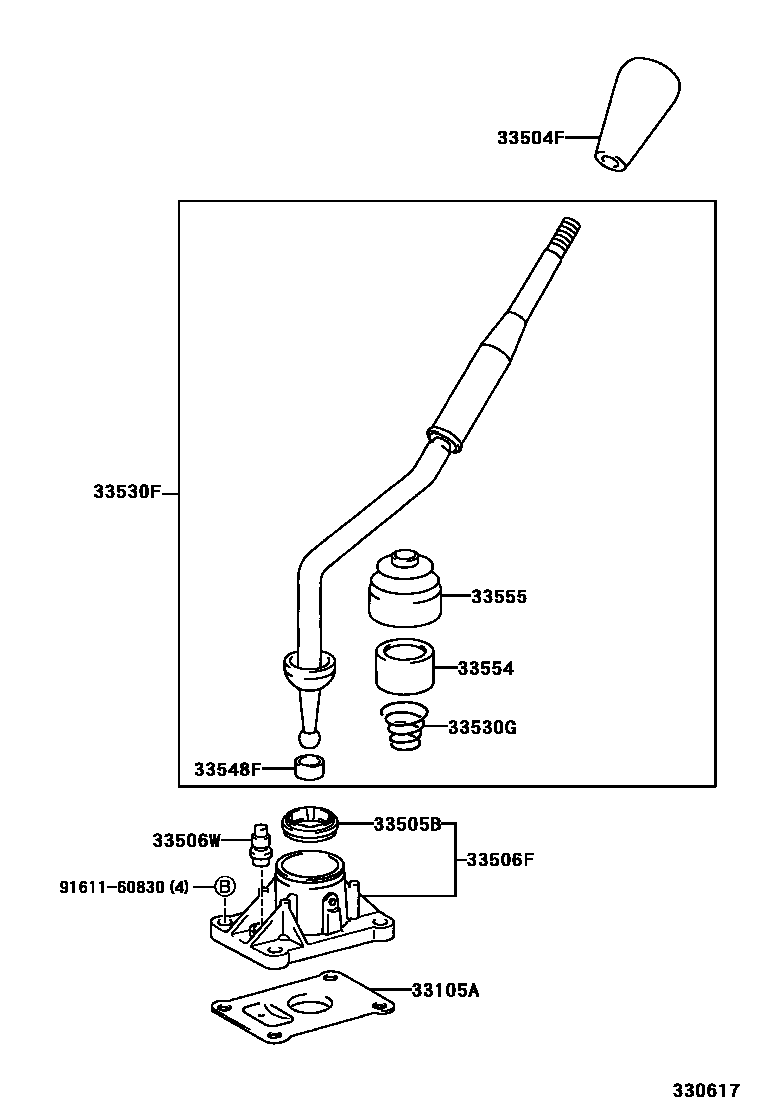

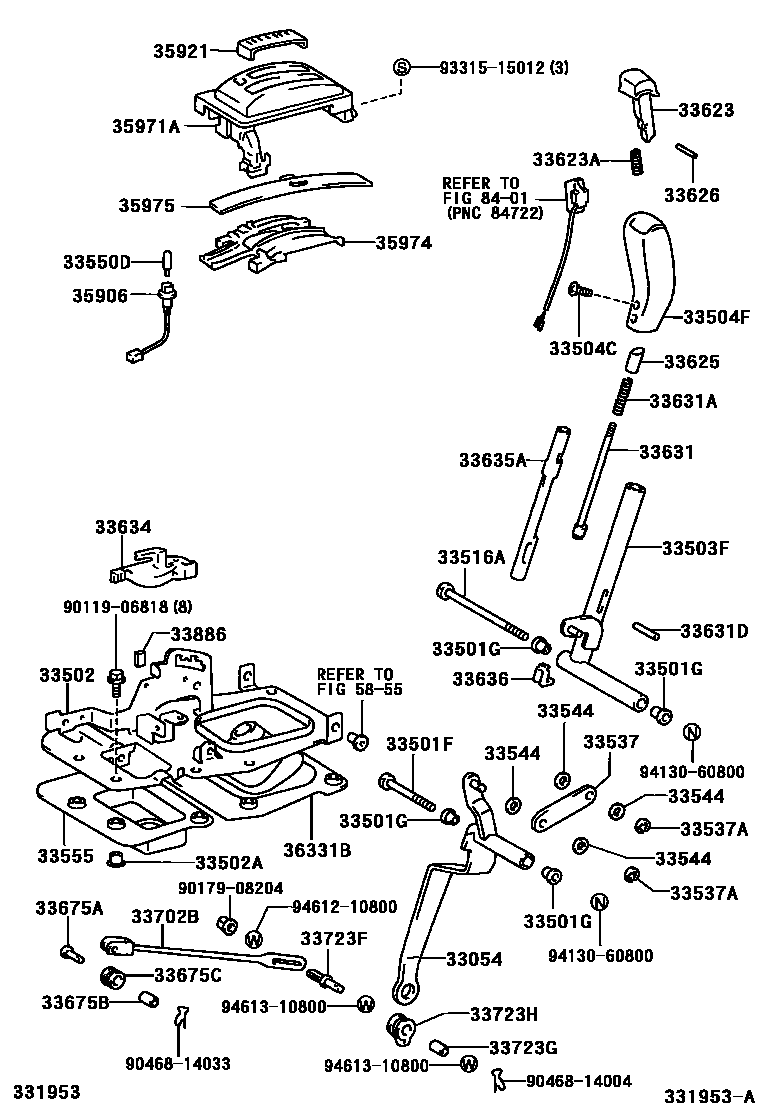

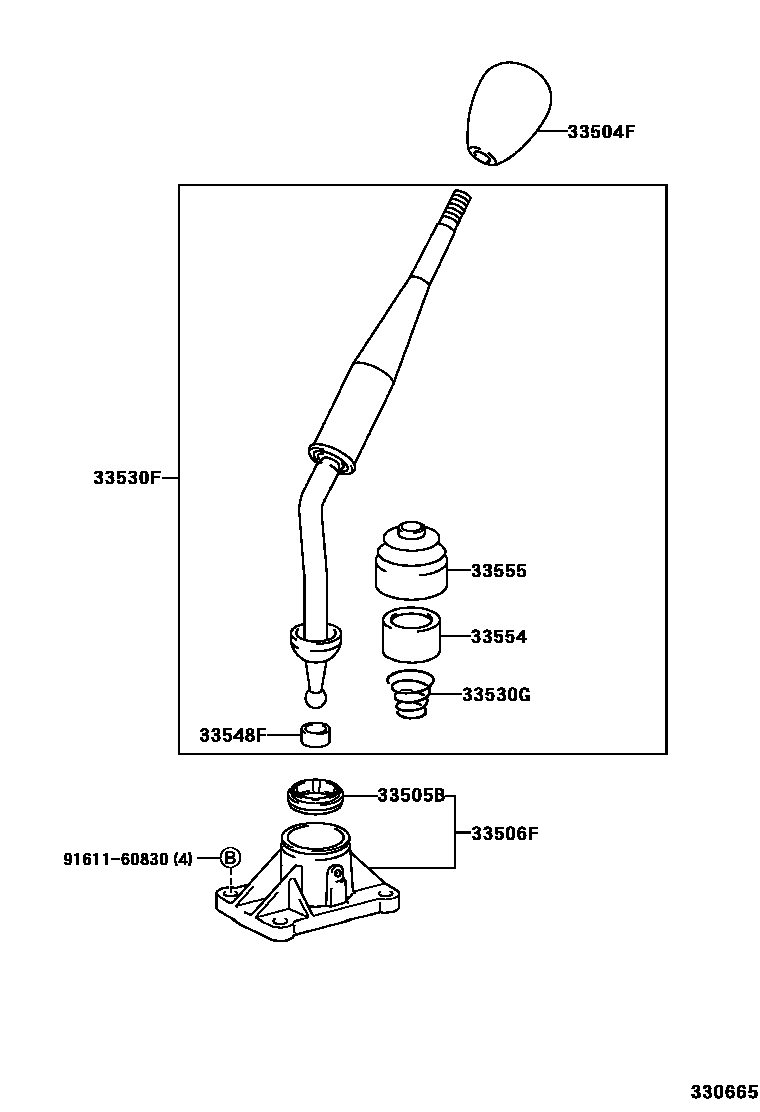

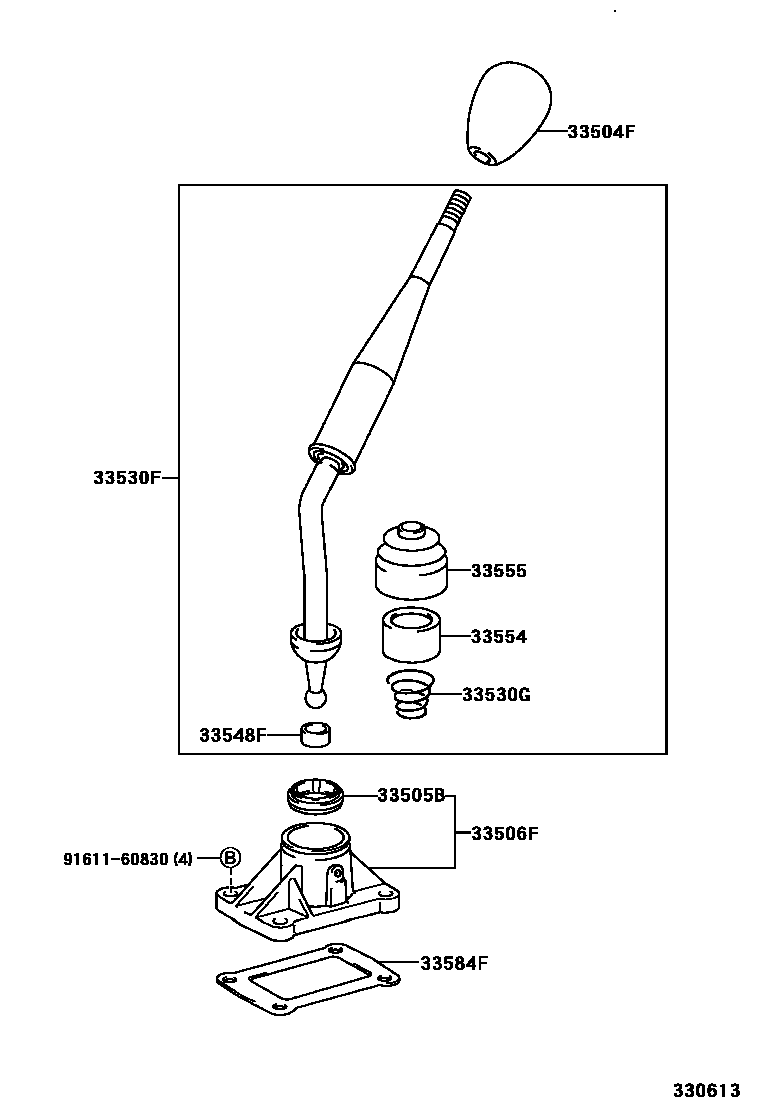

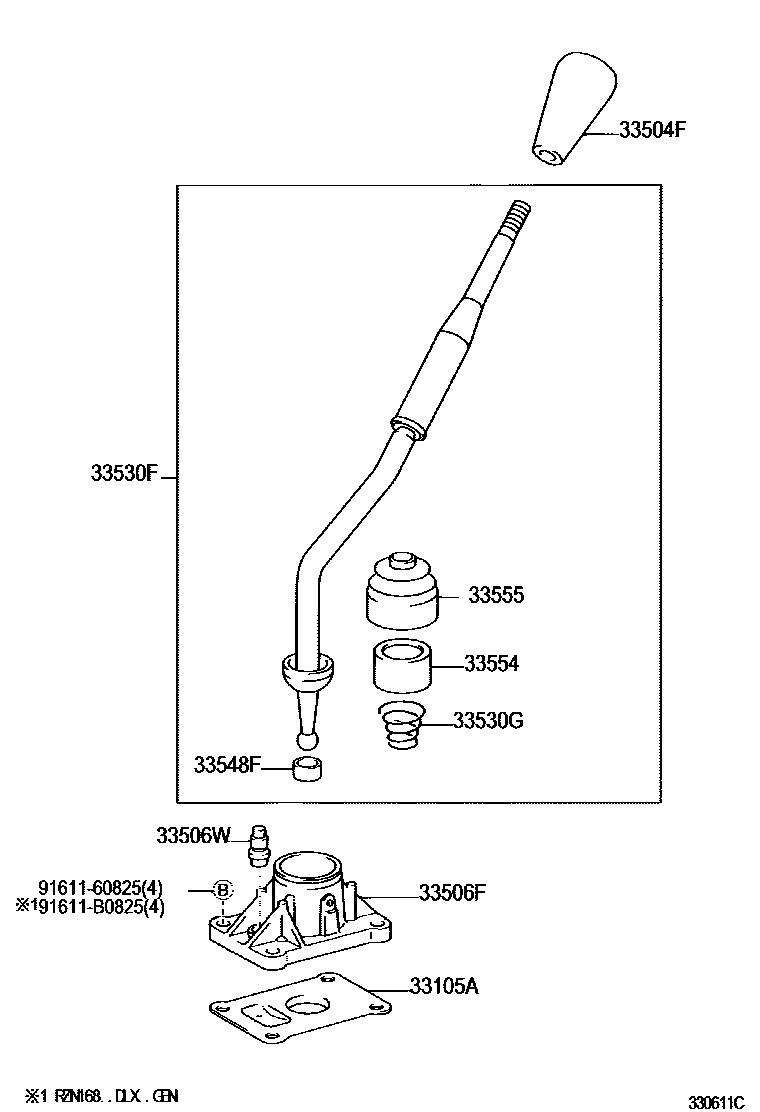

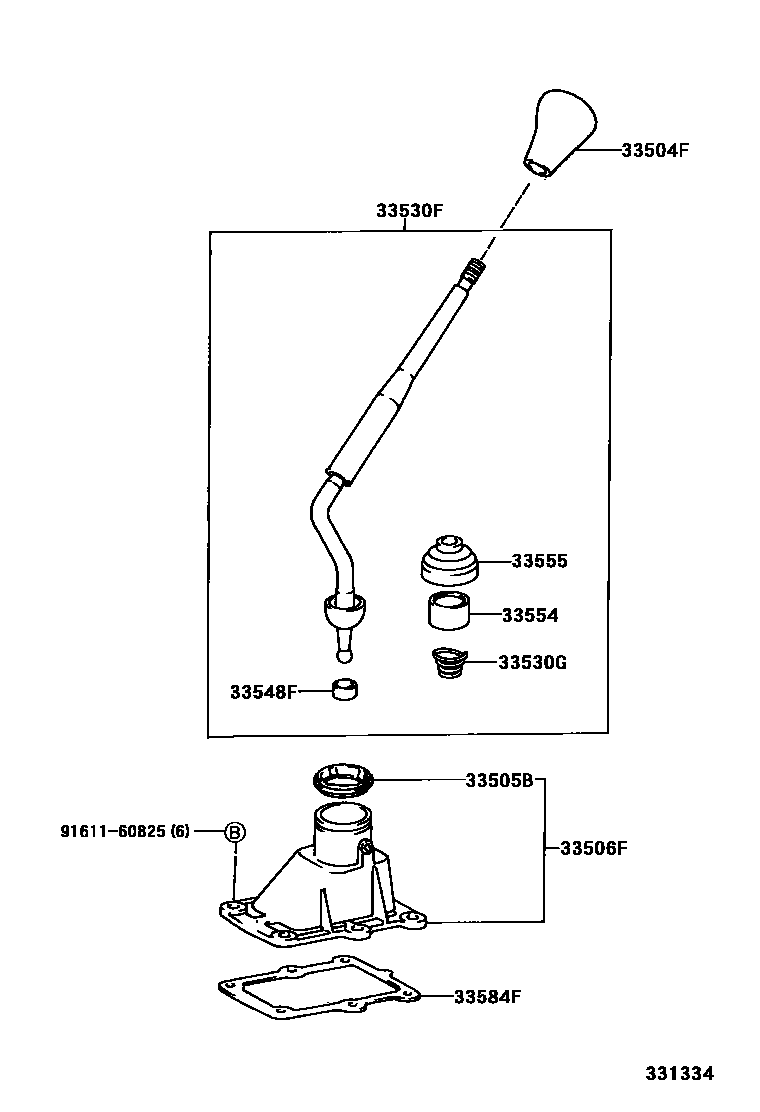

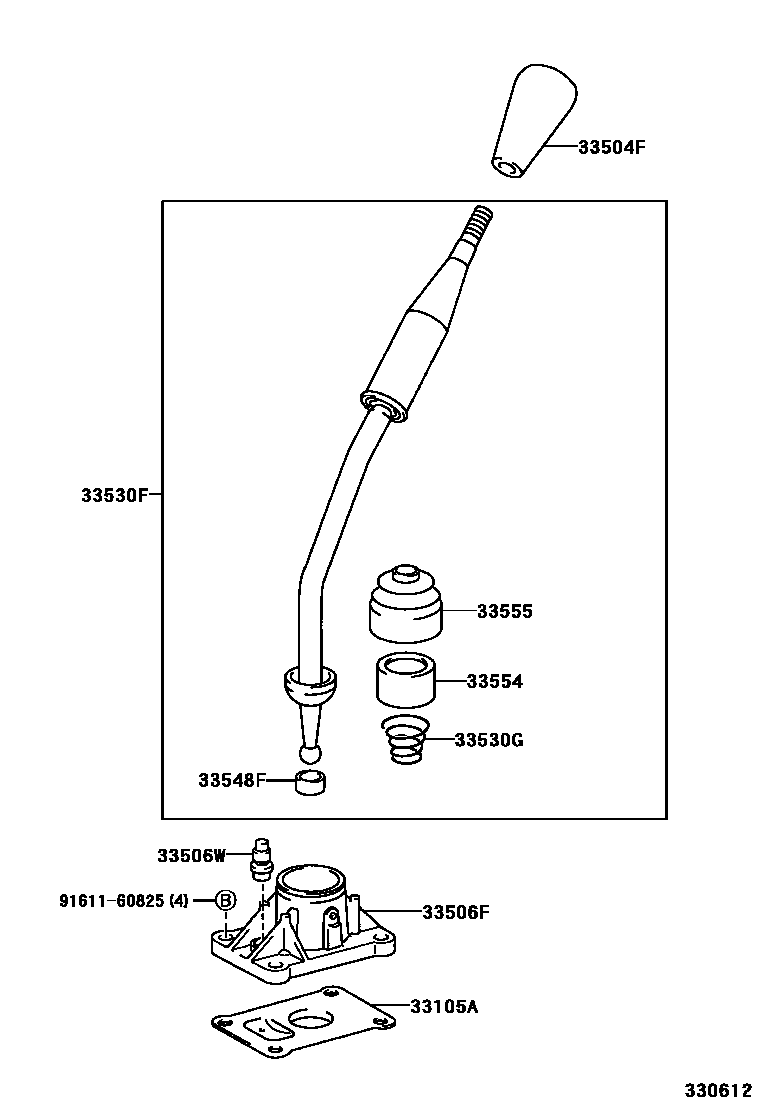

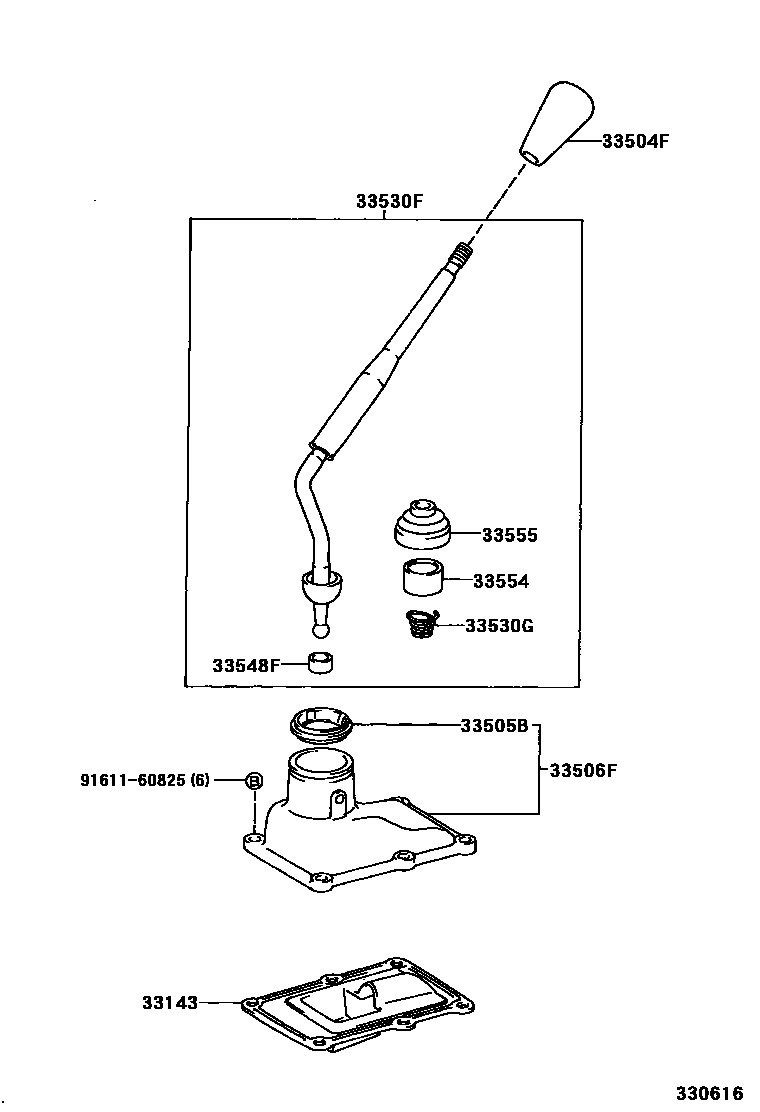

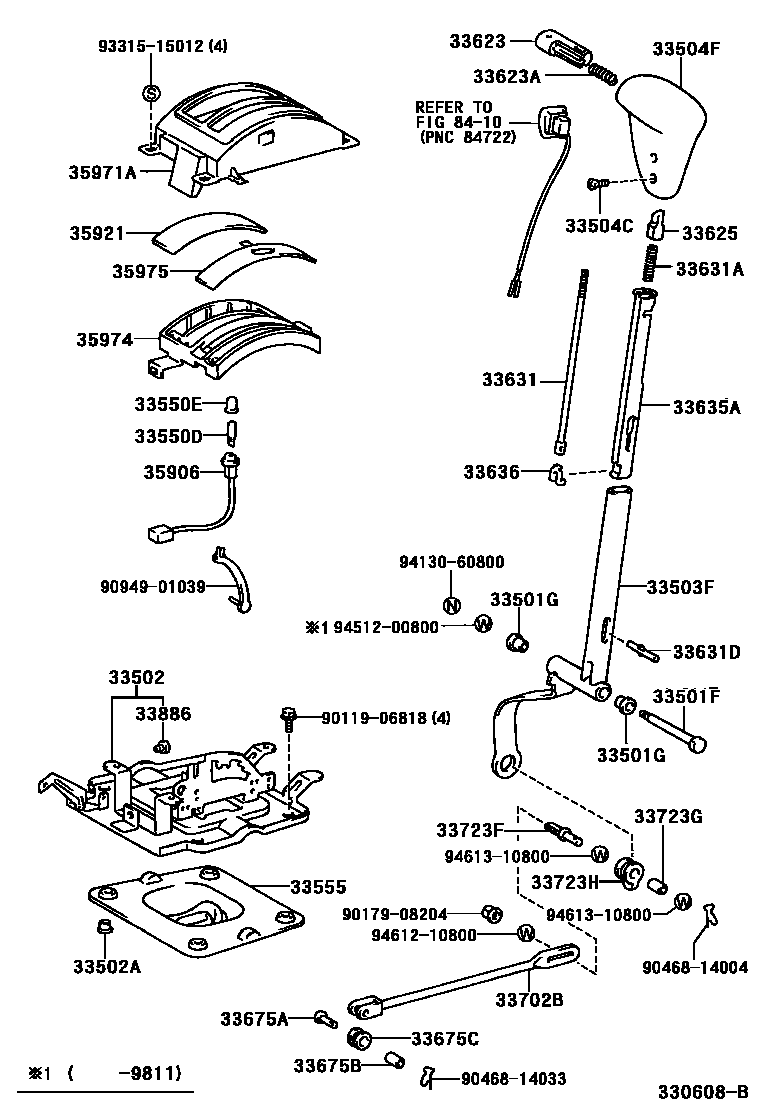

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 10 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-35030 |
| 33105A | Extension housing oil baffle sub-assembly (MTM) | 33105-35040 · 33144-35030 · 33144-35060 |
| 33143 | Extended shell oil baffle | 33143-35050 |
| 33501F | Control shaft sub-assembly (for floor shift) | 33511-22160 · 33511-35180 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-11003 |
| 33502 | Shift lever base plate sub-assembly | 33502-35420 · 33502-35430 · 33502-35460 |
| 33502A | Collar (for securing floor shift) | 90387-06065 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-35080 · 33055-35170 · 33055-35190 · 33055-35230 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33504F | Shift lever handle sub-assembly | 33504-04010 |
| 33505B | Shift lever seat sub-assembly | 33505-35020 · 33505-35030 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-0W040 · 33506-35070 · 33506-35100 · 33506-35140 · 33506-35160 · 33570-34010 · 33570-35080 |
| 33506W | Breather plug (for shift lever stop) | 90930-03075 · 90930-03114 |
| 33516A | No. 3 control axis | 33516-35010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-04050 · 33530-04070 · 33530-04090 · 33530-35330 · 33530-35340 · 33530-35350 · 33530-35360 · 33530-35370 · 33530-35380 · 33530-35390 · 33530-35420 · 33530-35430 · 33530-35440 · 33530-35450 · 33530-35460 · 33530-35470 · 33530-35480 · 33530-35500 · 33530-35520 · 33530-35530 · 33530-35570 · 33530-35620 |
| 33530G | Conical spring (for gear selector) | 90502-26007 · 90502-26008 · 90502-T0001 |
| 33537 | Control lever base plate | 33537-35030 |
| 33537A | E-ring (for control lever base plate) | 90523-06019 |
| 33544 | Shift lever insert No. 1 | 33544-27010 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-04010 · 33548-31010 |
| 33550D | position indicator light bulb | 90981-11018 · 99132-12034 |
| 33550E | position indicator cover | 90339-09001 |
| 33554 | shift lever cover | 33554-04030 · 33554-30012 |
| 33555 | Gear shift lever dust cover | 33555-04010 · 33555-04020 · 33555-35040 · 33555-35100 · 33555-35210 · 33555-35240 · 33555-60030 |
| 33584F | Shift lever stop pad (for floor shift) | 33182-35020 · 33584-60010 |
| 33623A | Compression spring (for shift lever knob button) | 90501-06074 · 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-24010 · 33625-35050 |
| 33626 | Shift lever button stop | 90256-02002 |
| 33631 | Locking lever | 33631-16020 · 33631-35050 |
| 33631A | Compression spring (for locking lever) | 90501-07074 |
| 33631D | Grooved pin (for locking lever) | 90256-04001 · 90256-04003 |
| 33634 | Harness protection device | 33634-35040 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-16020 · 33635-35050 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33675A | Pin with hole (for transmission control lever) | 90240-08054 |
| 33675B | Bushing (for transmission control lever) | 90389-08005 |
| 33675C | retaining ring (for transmission control lever) | 90480-17177 |
| 33702B | No. 1 shift rod sub-assembly (for floor shift) | 33702-35250 · 33702-35270 · 33702-35280 · 33702-35310 · 33702-35330 · 33702-35340 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90389-08005 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 33572-22010 |
| 33886 | shift lever block | 33886-16010 · 33886-22010 · 33886-22020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-35080 · 35906-35090 |
| 35921 | control position indicator board | 35921-35080 · 35921-35181 · 35921-38020 |
| 35971A | Position indicator light upper shell | 35971-35020 · 35971-35150 |
| 35974 | Position indicator light lower shell | 35974-35050 · 35974-35141 |
| 35975 | Slide cover (for position indicator light) | 35975-35040 · 35975-35131 |
| 36331B | Transfer case shift lever dust cover | 36331-35010 |
