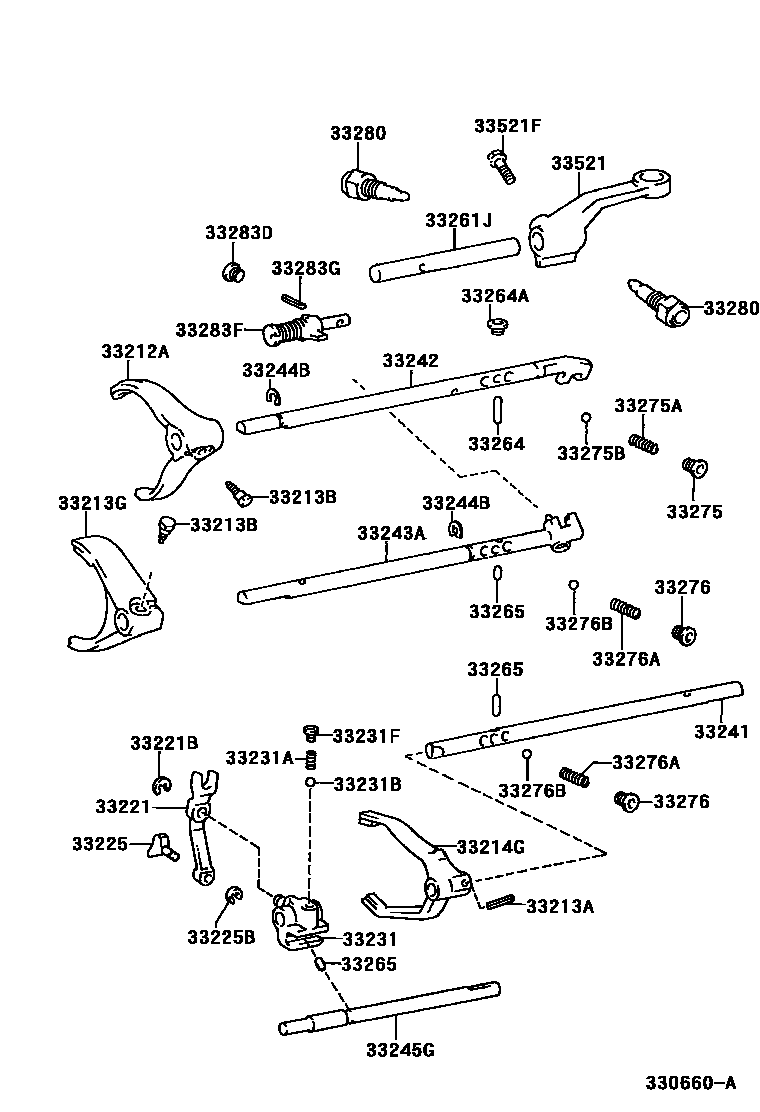

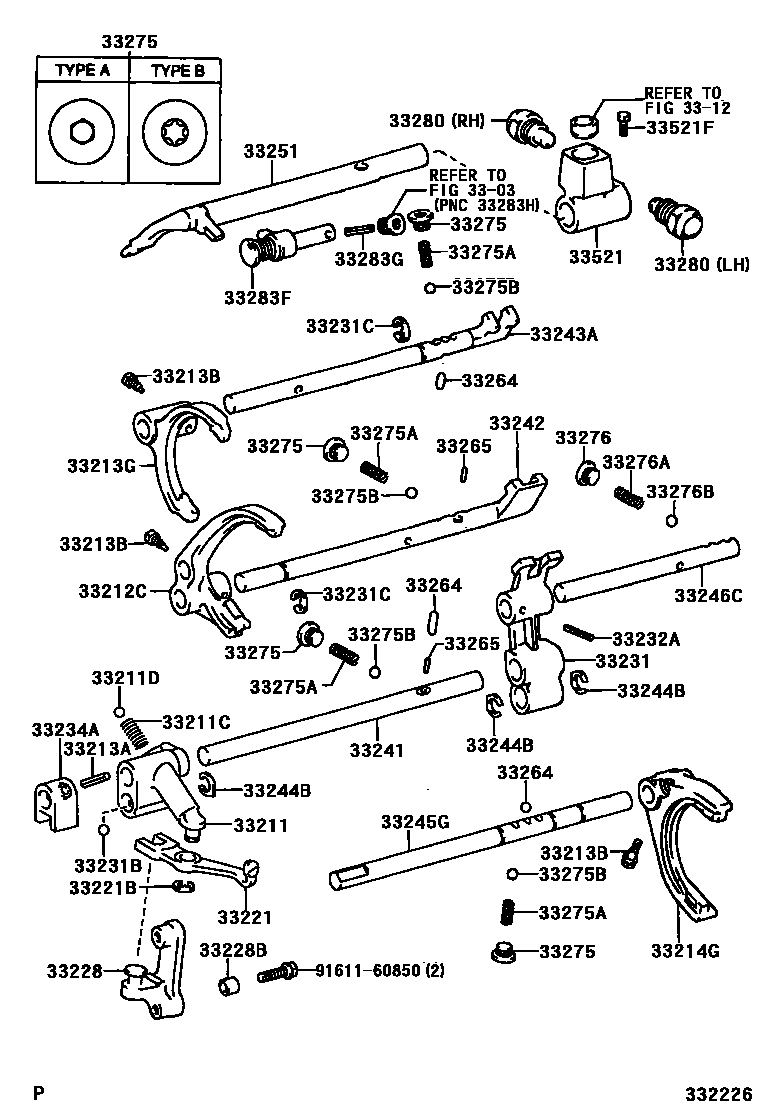

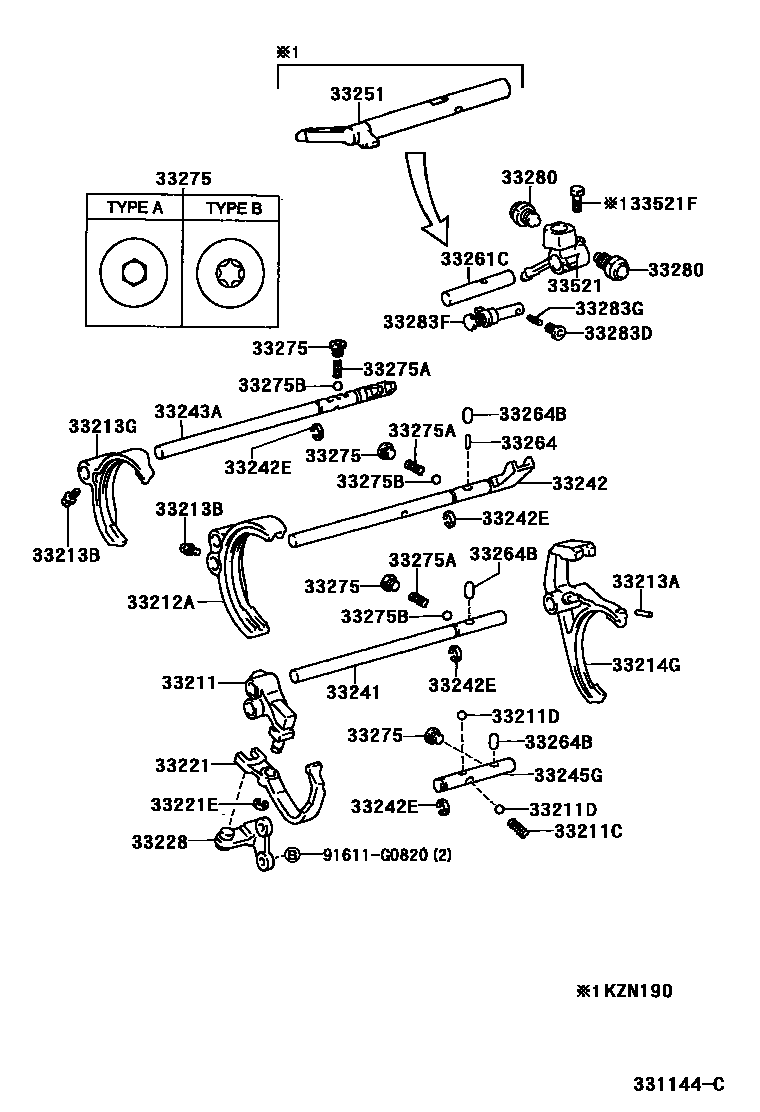

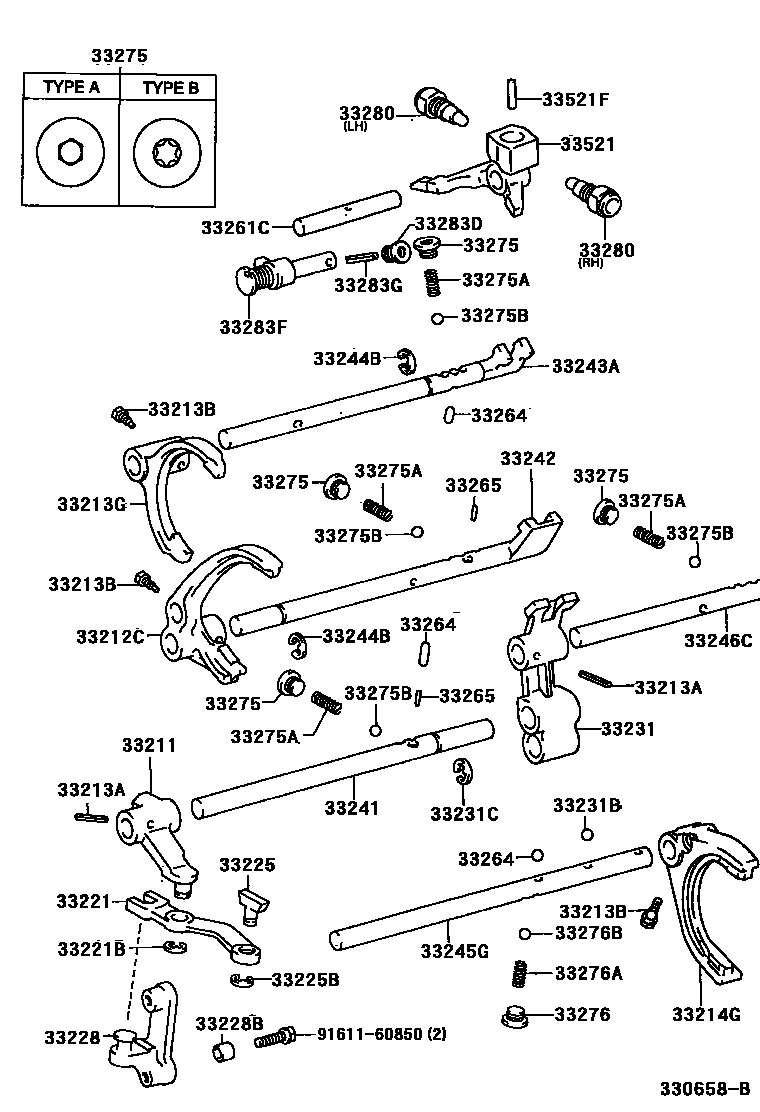

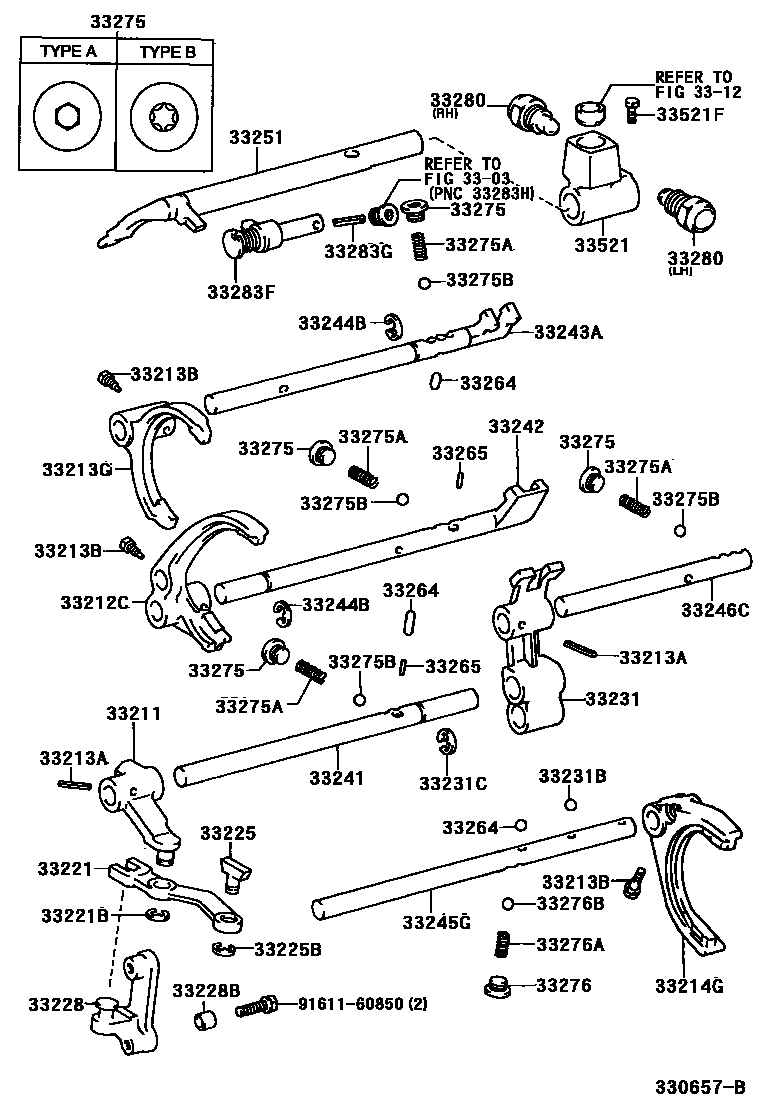

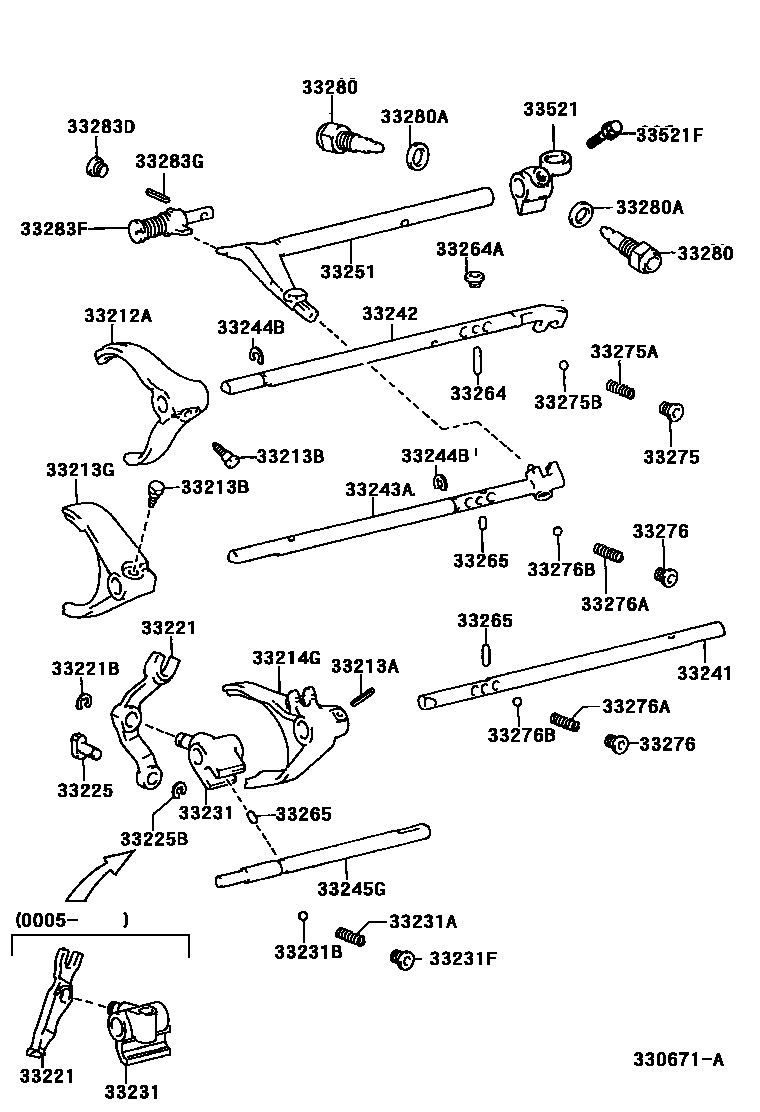

Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 6 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33211 | Reverse Shift Fork | 33211-0K020 · 33211-28010 · 33211-35050 |
| 33211C | Compression spring (for reverse shift fork return) | 90501-12166 |
| 33211D | Steel ball (for reverse shift fork) | 90360-10003 |
| 33212A | No. 1 shift fork | 33212-30050 · 33212-35032 |
| 33212C | No. 1 shift fork | 33212-35023 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 · 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06077 · 90105-06143 |
| 33213G | No. 2 shift fork | 33213-30060 · 33213-35033 · 33213-35040 |
| 33214G | No. 3 shift fork | 33214-35040 · 33230-30011 · 33230-35010 · 33230-35011 |
| 33221 | Reverse shift arm | 33221-0K020 · 33221-22020 · 33221-22021 · 33221-28010 · 33221-35050 |
| 33221B | E-ring (for reverse shift arm) | 96160-00800 · 96160-01000 |
| 33221E | Ring (for reverse shift arm end shaft) | 96160-01000 |
| 33225 | shift arm shoe | 33225-22020 · 33225-35030 |
| 33225B | E-ring (for shift arm shoe) | 96160-00600 · 96160-00800 |
| 33228 | Reverse shift arm bracket | 33228-0K020 · 33228-28010 · 33228-35030 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33231 | Reverse gear shift guide block | 33231-22040 · 33231-22041 · 33231-35070 |
| 33231A | Reverse shift positioning spring | 90501-10052 |
| 33231B | Reverse gear shift positioning steel ball | 90360-08009 · 90360-10003 |
| 33231C | Ring (for reverse shift guide block) | 90520-12006 |
| 33231F | Screw plug (for reverse gear shift guide block) | 90341-10016 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33234A | No. 3 speed change guide block | 33234-0K010 |
| 33241 | Reverse shift fork shaft | 33244-04010 · 33244-04020 · 33244-30050 · 33244-35050 · 33244-35060 · 33244-53020 |
| 33242 | No. 1 shift fork shaft | 33242-04010 · 33242-30070 · 33242-35022 · 33242-35050 · 33242-53020 · 33242-60090 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-04010 · 33243-30130 · 33243-35042 · 33243-53020 · 33243-60120 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-12006 |
| 33245G | No. 4 shift fork shaft | 33245-04010 · 33245-04020 · 33245-22011 · 33245-35080 · 33245-35090 |
| 33246C | No. 5 shift fork shaft | 33246-04010 · 33246-35020 |
| 33251 | shift lever | 33251-24010 · 33251-24011 · 33251-24012 · 33251-30100 · 33251-30101 · 33251-35060 · 33251-35061 · 33251-35150 · 33251-35151 · 33251-35152 |
| 33261C | shift lever shaft | 33261-35080 · 33261-35081 · 33261-35120 · 33261-35121 · 33261-35130 · 33261-35131 |
| 33261J | shift lever shaft | 33261-35140 · 33261-35141 |
| 33264 | No. 1 shift interlock pin or steel ball | 33264-22010 · 90250-05029 · 90360-10003 · 90361-10002 · 90361-10003 |
| 33264A | interlocking hole plug | 90341-10065 |
| 33264B | Roller No. 1 (for shift interlock) | 90361-10003 |
| 33265 | No. 2 shift interlock pin | 33265-22010 · 33266-22010 · 90250-05020 · 90250-06007 · 90250-12002 |
| 33275 | No. 1 shift lock steel ball spring seat | 90341-12008 · 90341-12014 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-14123 · 90501-14132 · 90501-14183 · 90501-15040 · 90501-16143 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33276 | No. 2 shift lock steel ball spring seat | 90341-12008 · 90341-12018 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-10061 · 90501-14123 · 90501-15040 |
| 33276B | No. 2 shift lock steel ball | 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-27011 · 33280-30041 · 33280-30051 · 33280-35021 · 33280-35031 · 33280-35072 · 33280-35091 |
| 33280A | Reverse gear positioning pin gasket | 90430-18008 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 · 90341-12008 · 90341-12014 |
| 33283F | Reverse gear positioning pin | 33280-30061 · 33280-35040 · 33280-35100 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 · 90254-05016 |
| 33521 | shift lever housing | 33521-35070 · 33521-35071 · 33521-35090 · 33521-35221 · 33521-35250 · 33521-35260 · 33521-35330 · 33521-35331 · 33521-35340 |
| 33521F | Pin or bolt (for shifter housing) | 90105-08079 · 90109-08305 |
