Toyota HILUX Extended shell (MTM) — Figure 3303

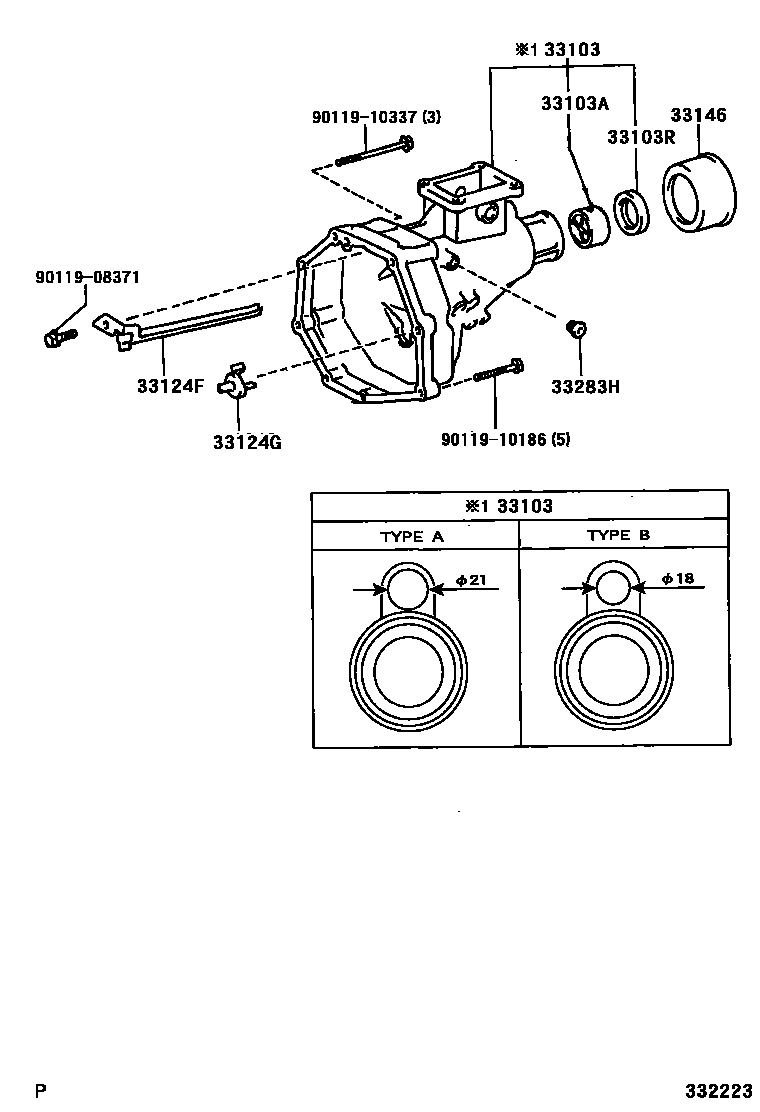

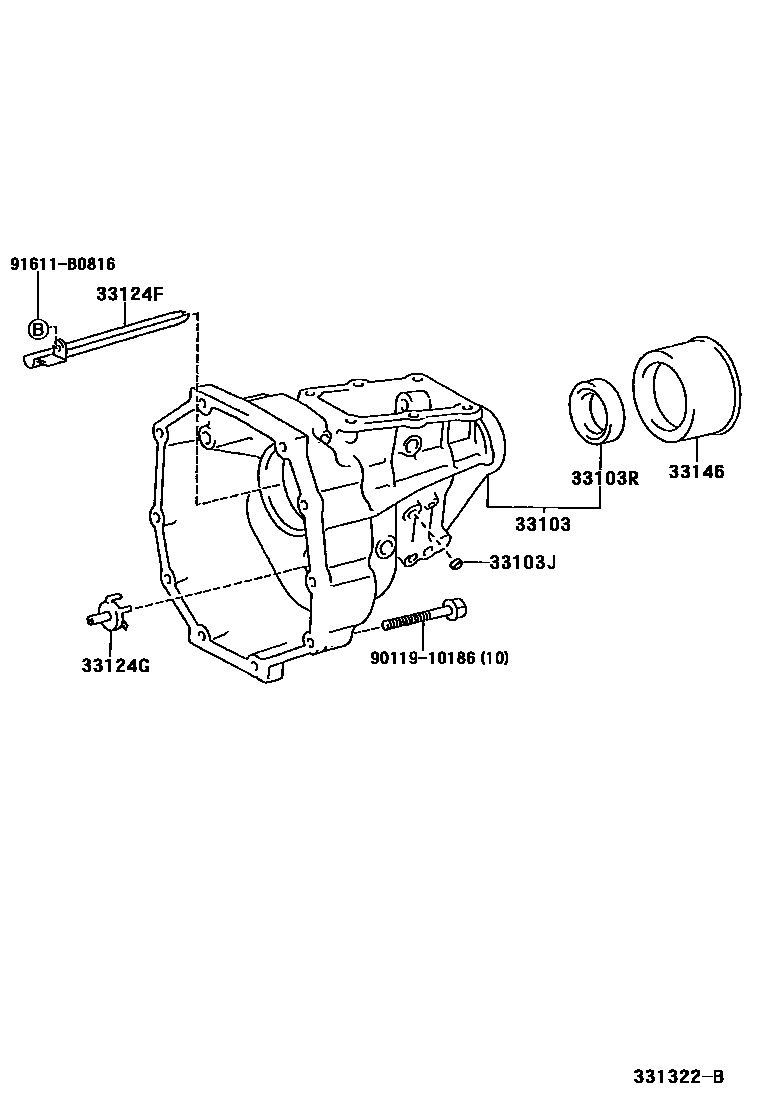

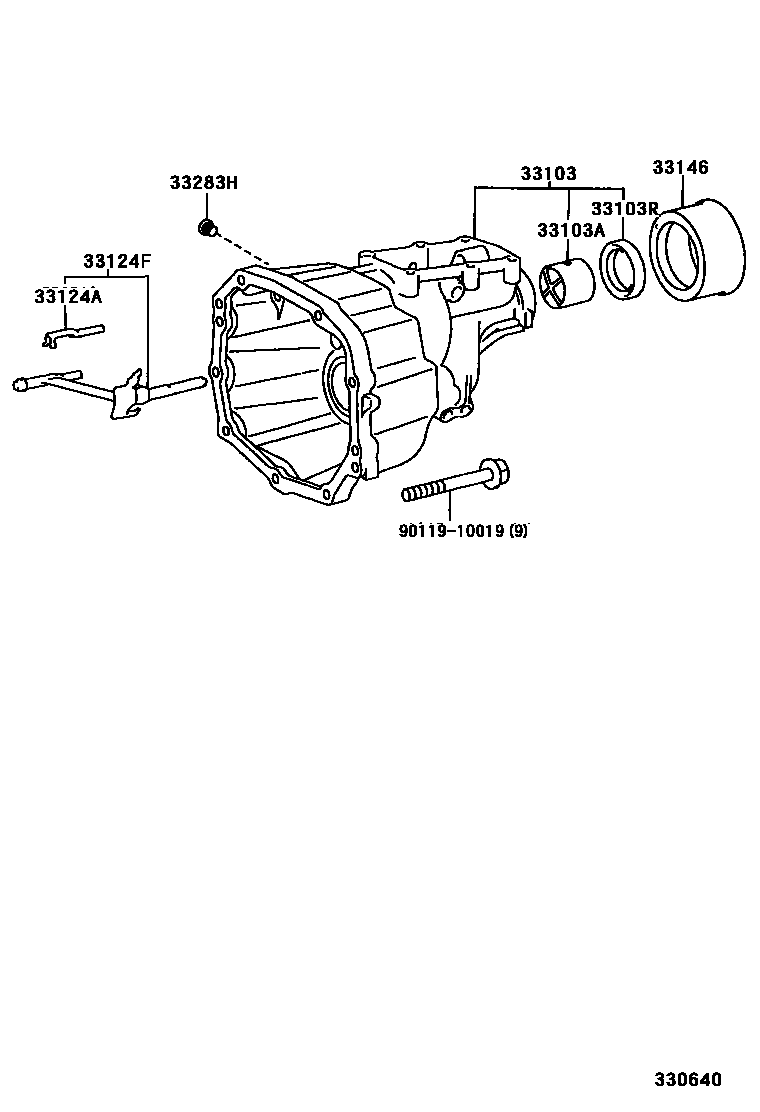

Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-0K020 · 33103-0W020 · 33103-30201 · 33103-35141 · 33103-35180 |
| 33103A | Bushing (for manual transmission extension housing) | 90999-73105 · 90999-73120 |
| 33103J | Sealing plug (for extension housing) | 90341-10065 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-38032 · 90311-40001 · 90311-T0020 |
| 33124A | Clamp (for transmission oil collection pipe) | 90463-08260 |
| 33124F | No. 1 oil collection pipe (for extension housing) | 33106-30040 · 33124-0K030 · 33124-35010 · 33124-35011 · 33124-35100 |
| 33124G | No. 2 oil collection pipe (for extension housing) | 33124-35090 · 33124-36010 |
| 33146 | Extension housing dust cover (MTM) | 33146-30010 · 33146-30020 |
| 33283H | Headed straight thread plug | 90341-10065 · 90341-12008 |
