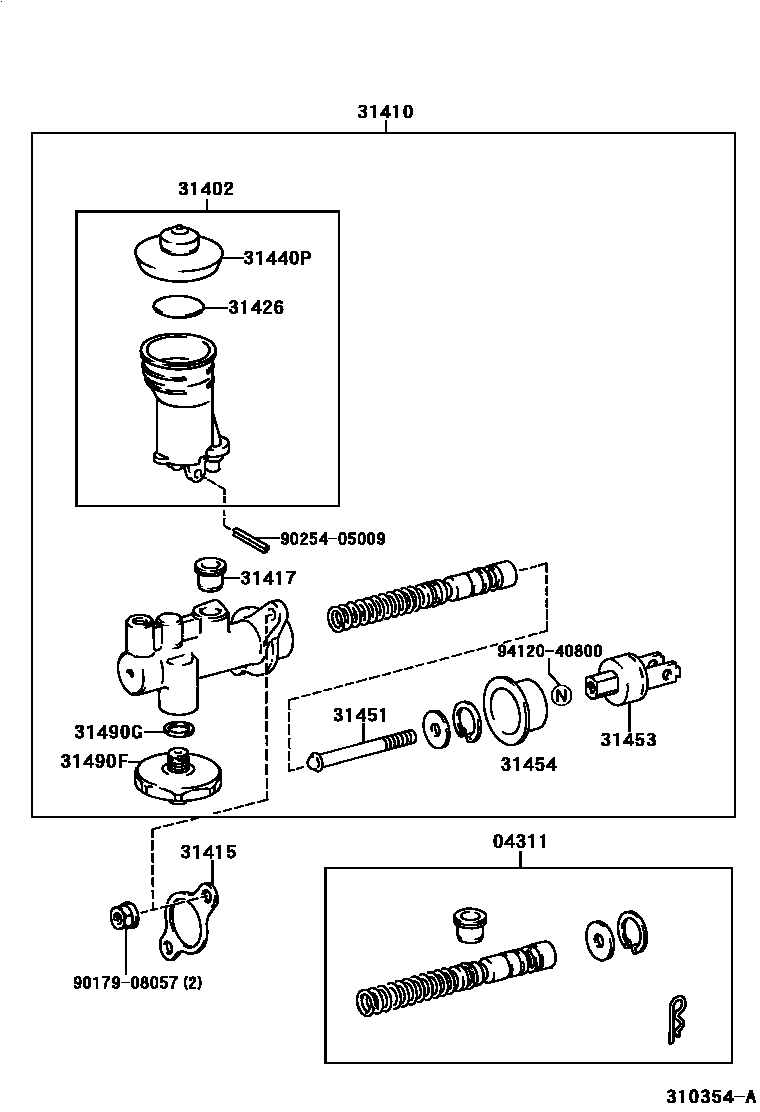

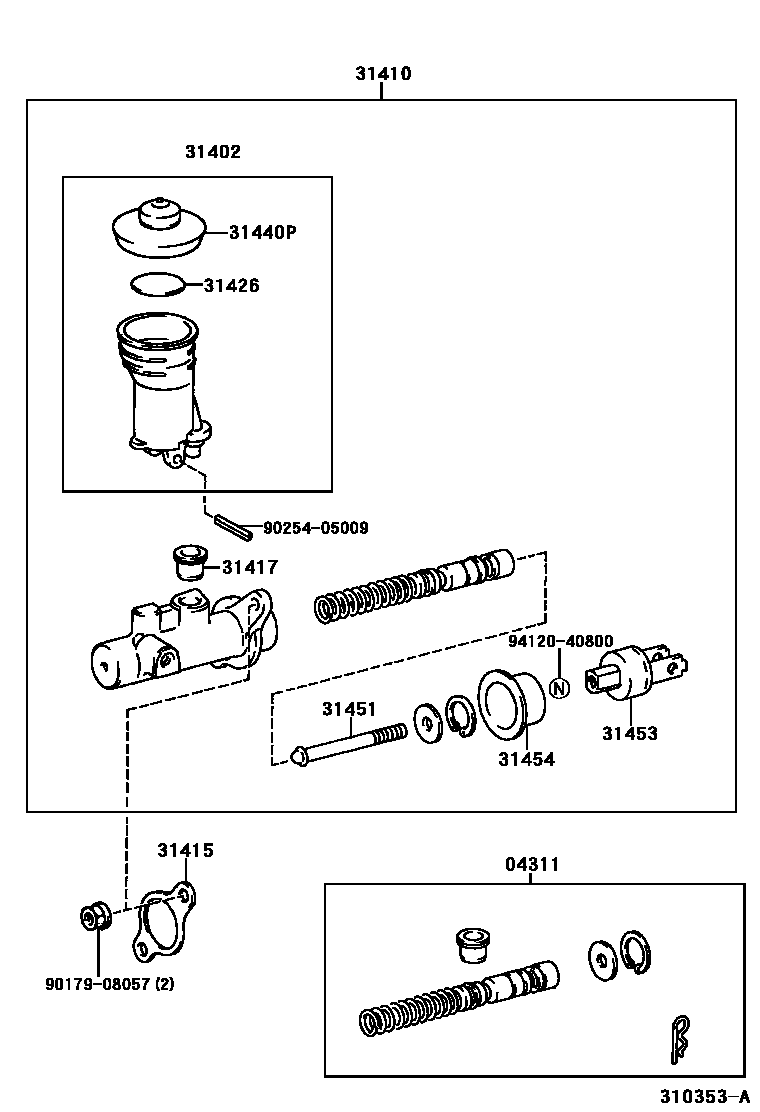

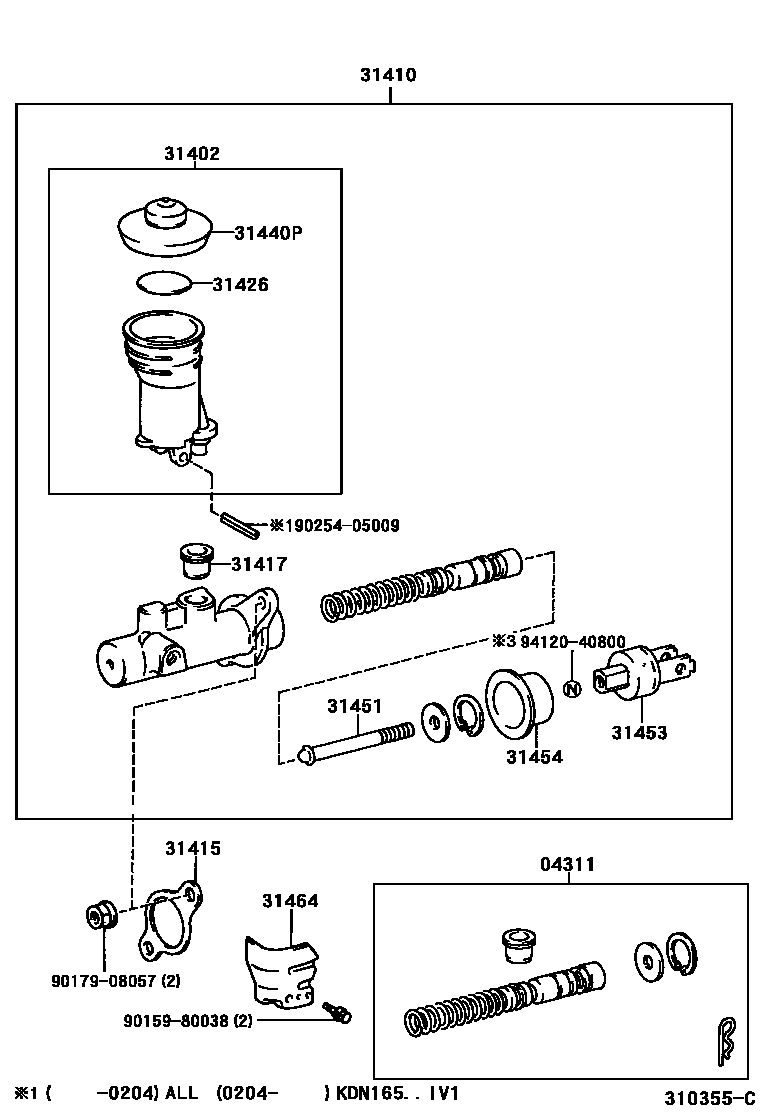

Toyota HILUX 离合器总泵 — Figure 3103
Toyota HILUX EPC diagram 3103, 离合器总泵, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-04010 · 04311-12110 · 04311-26070 · 04311-34020 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-35120 · 31402-35130 · 31402-35140 · 31402-60070 |
| 31410 | Clutch master cylinder assembly | 31410-34012 · 31410-35360 · 31410-60560 · 31410-60571 · 31410-60580 |
| 31415 | Clutch master cylinder gasket | 31415-10010 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 31405-35020 |
| 31451 | Clutch master cylinder push rod | 31451-0A010 · 31451-35070 · 31451-35080 · 31451-36040 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-28020 · 31404-35011 · 31404-35013 · 31453-35010 |
| 31454 | Clutch master cylinder dust boot | 31454-0A010 · 31454-16010 |
| 31464 | Clutch master cylinder insulation pad | 31464-35020 |
| 31490F | Master pump accumulator assembly | 31490-60090 · 31490-60091 · 31490-60100 · 31490-60101 |
| 31490G | Gasket (for clutch master cylinder accumulator) | 90430-16005 |
