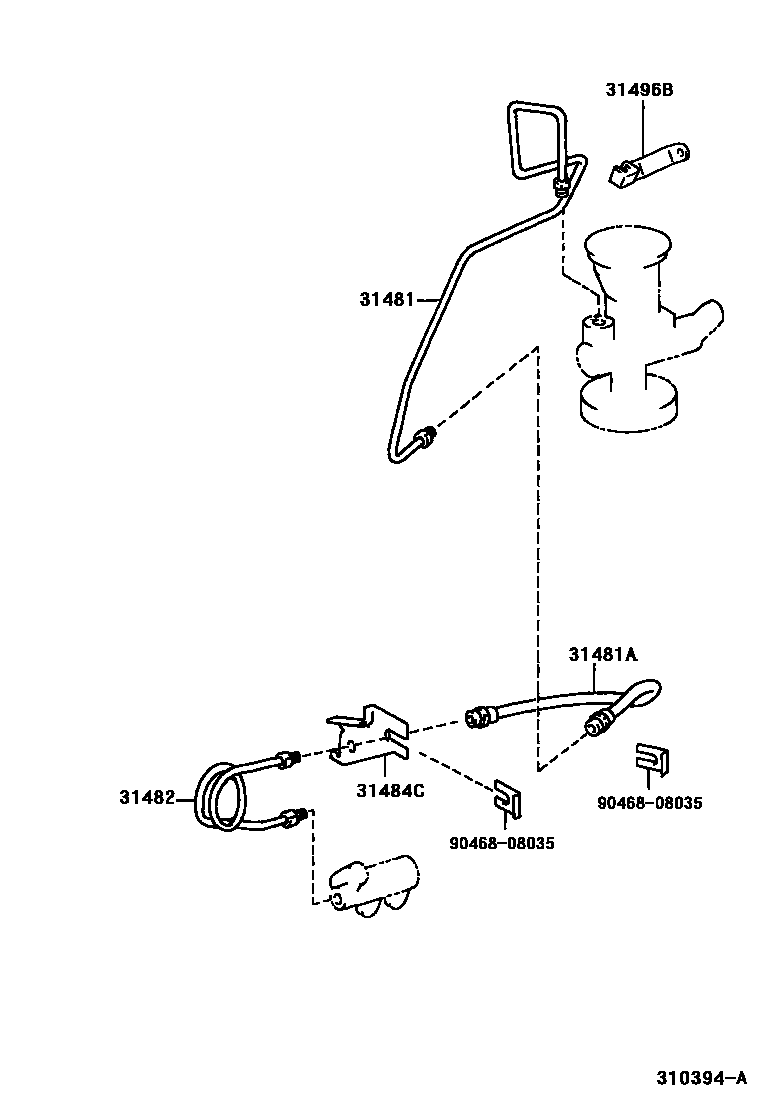

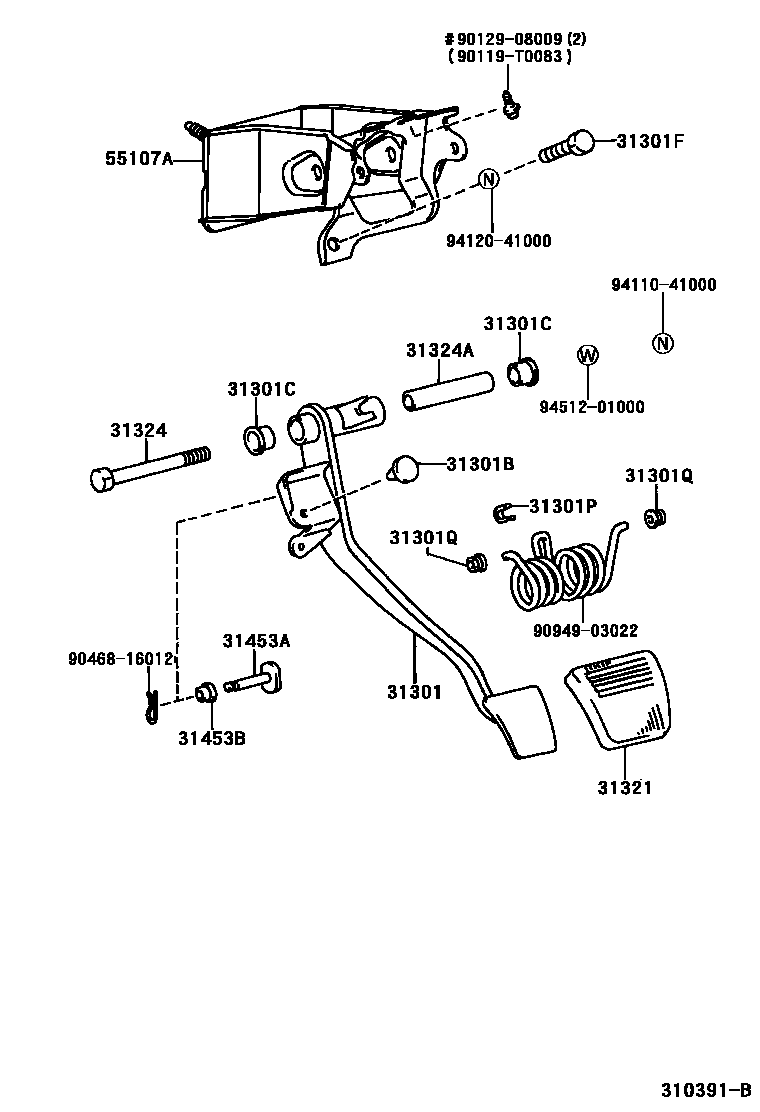

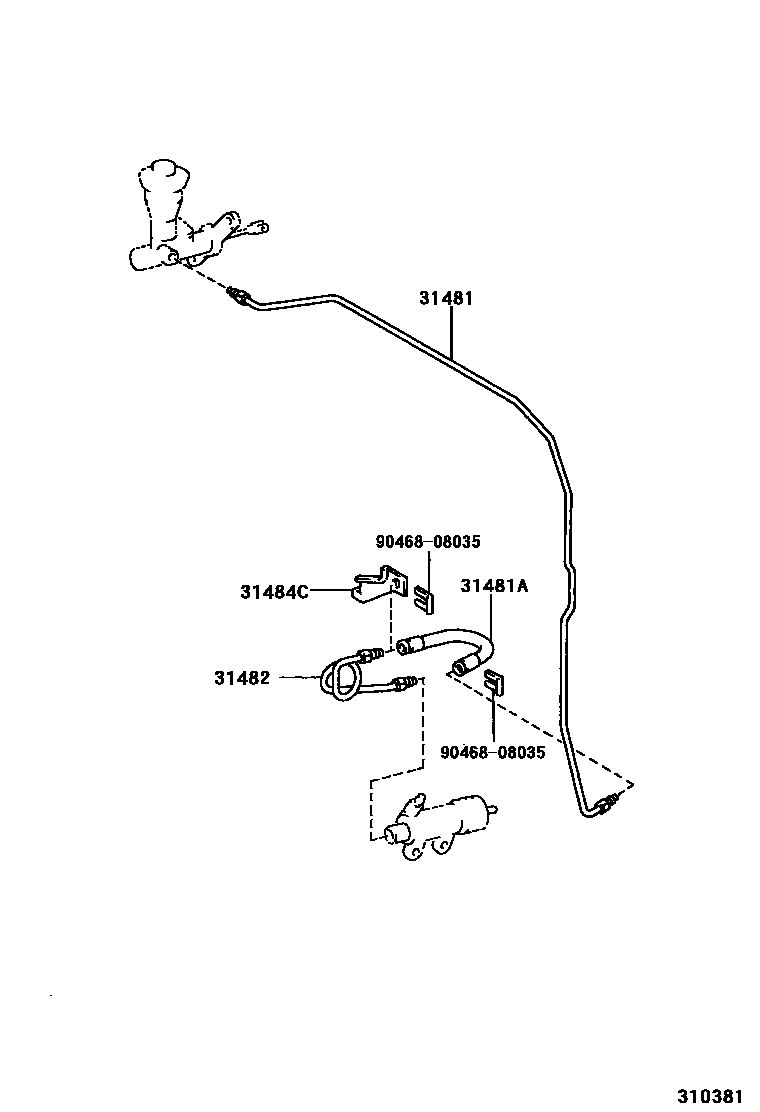

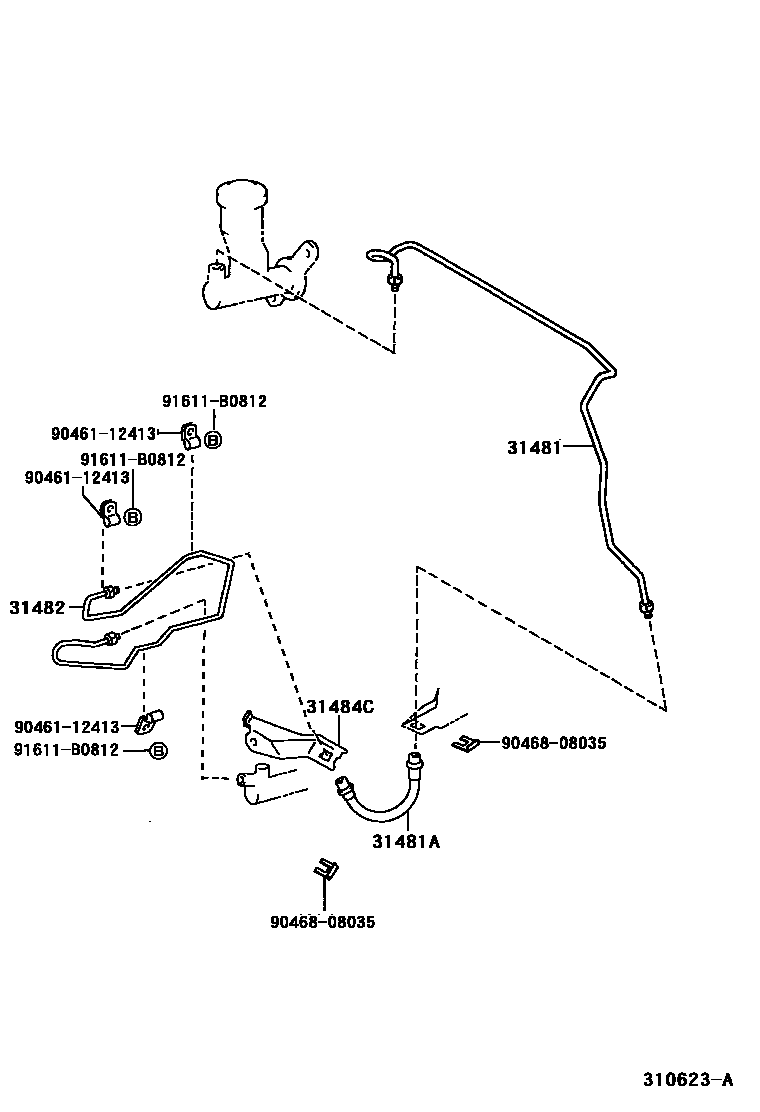

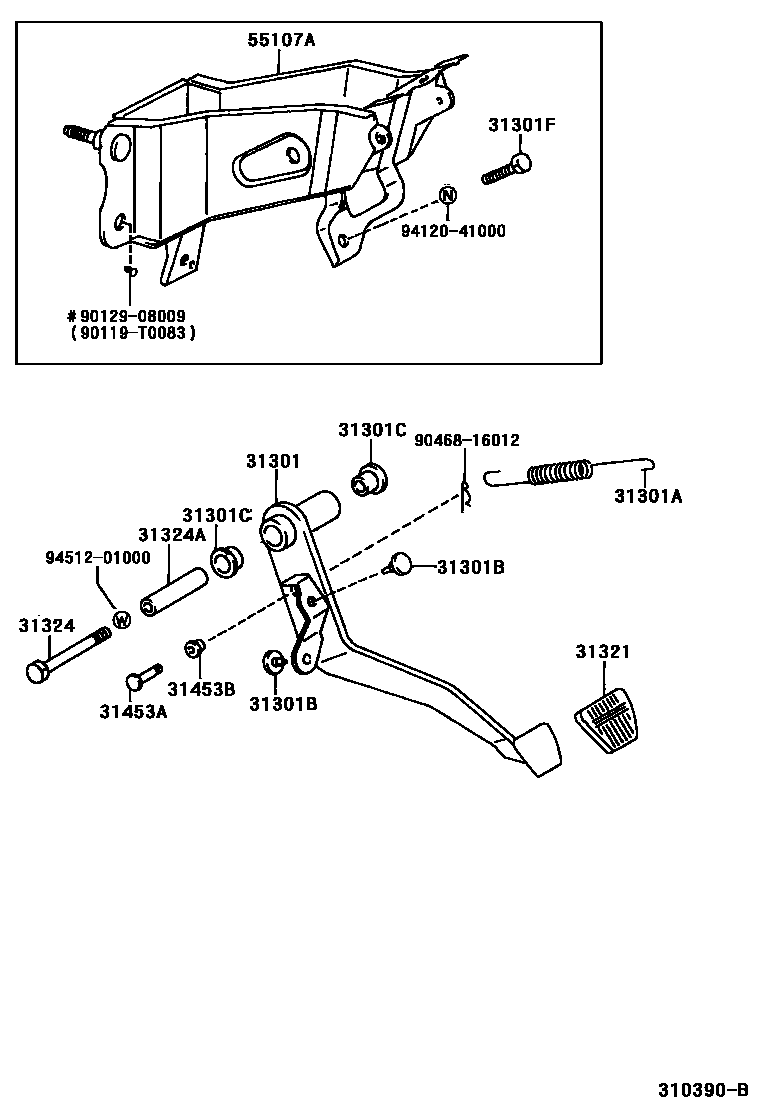

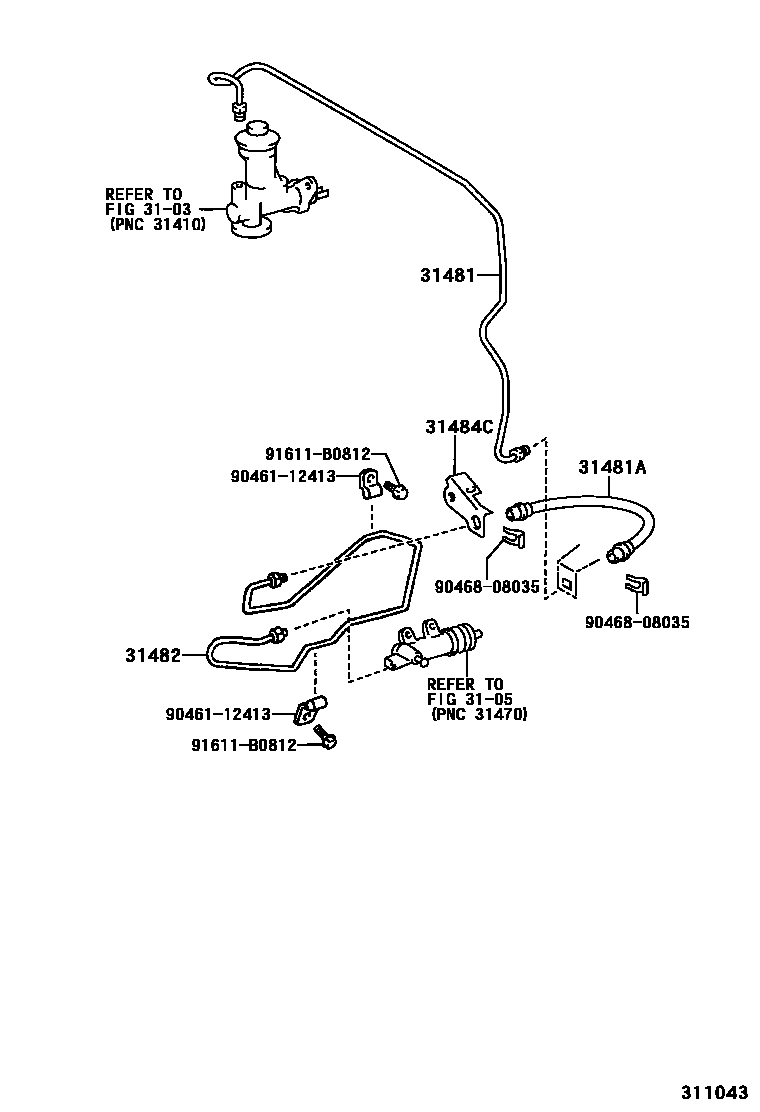

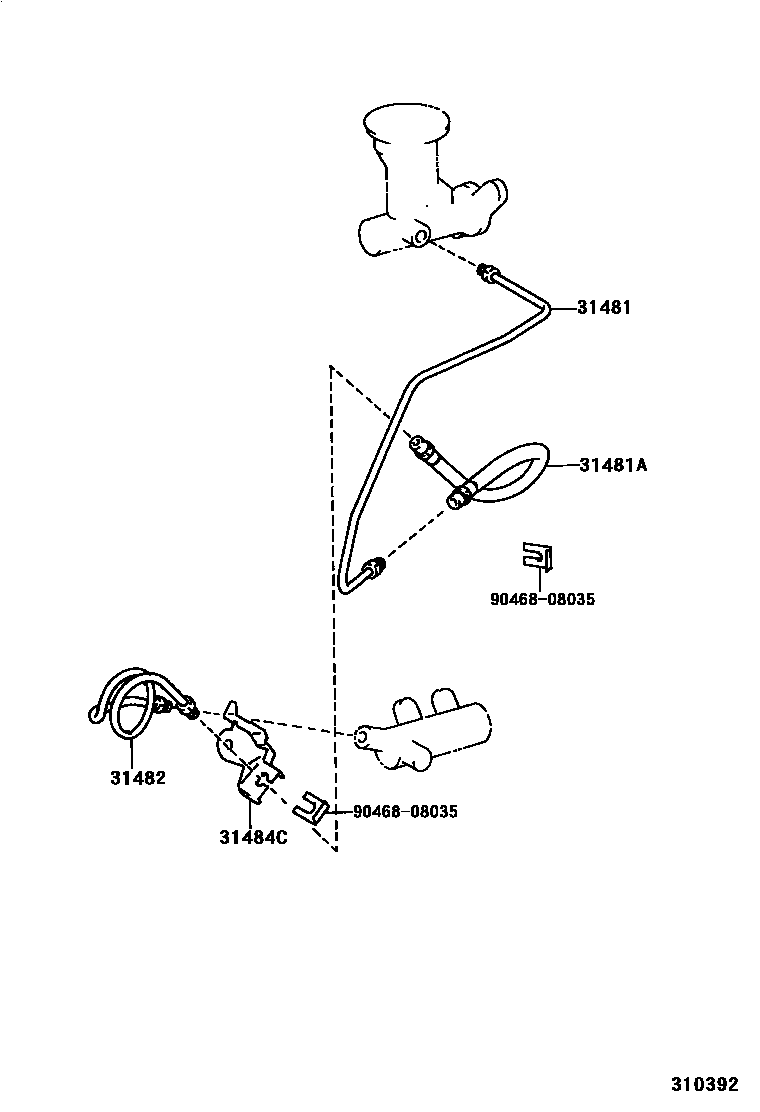

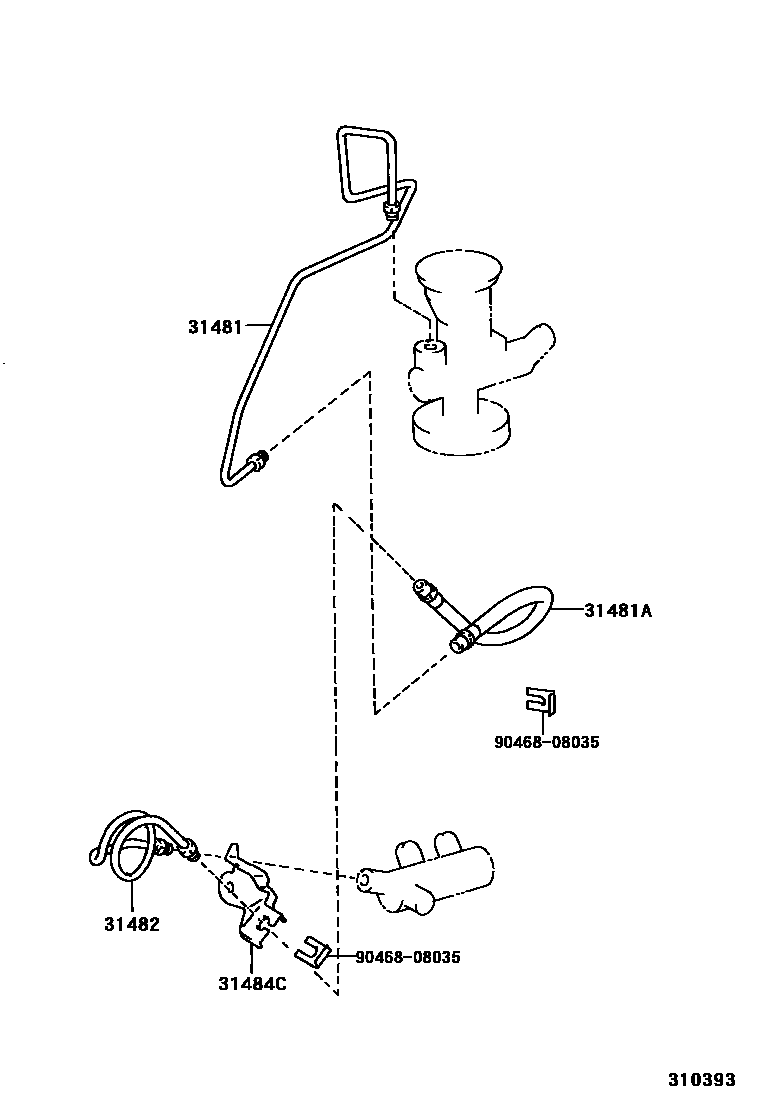

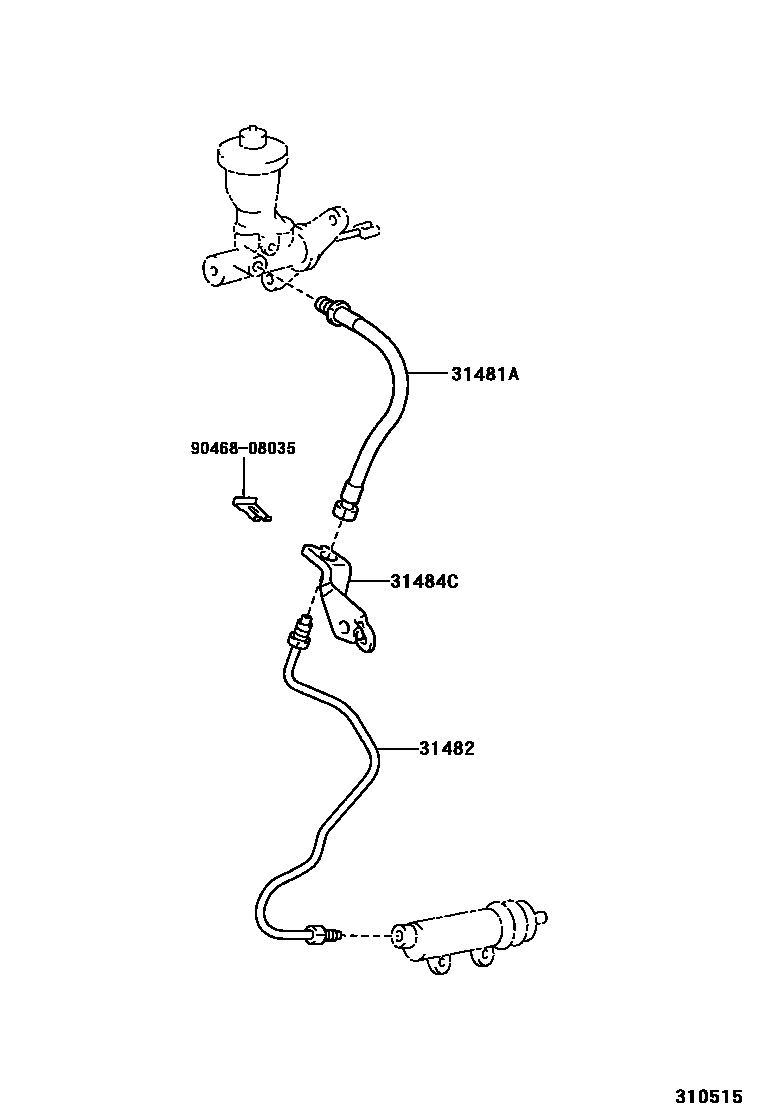

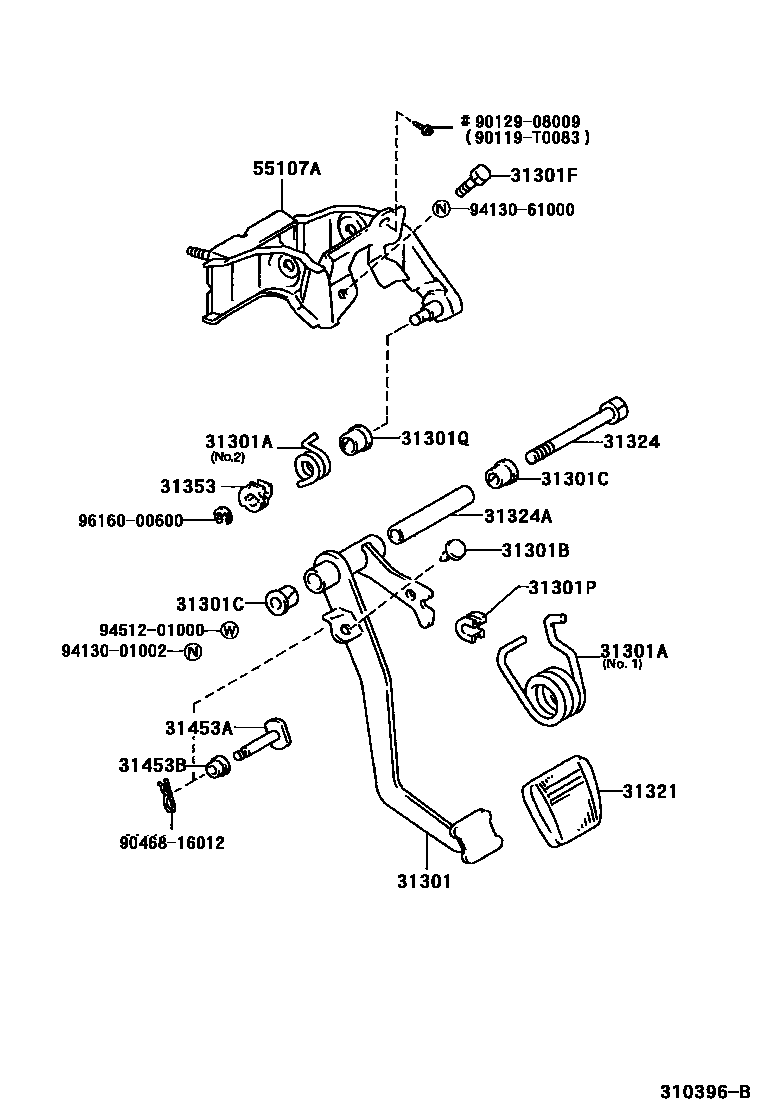

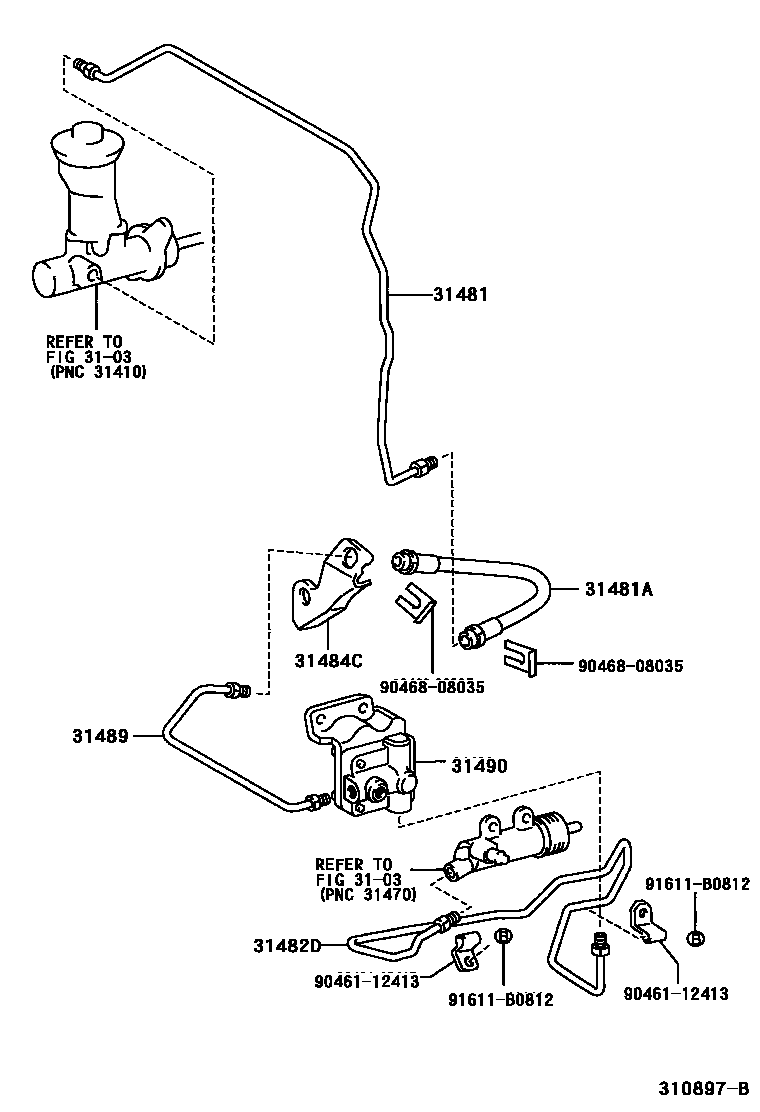

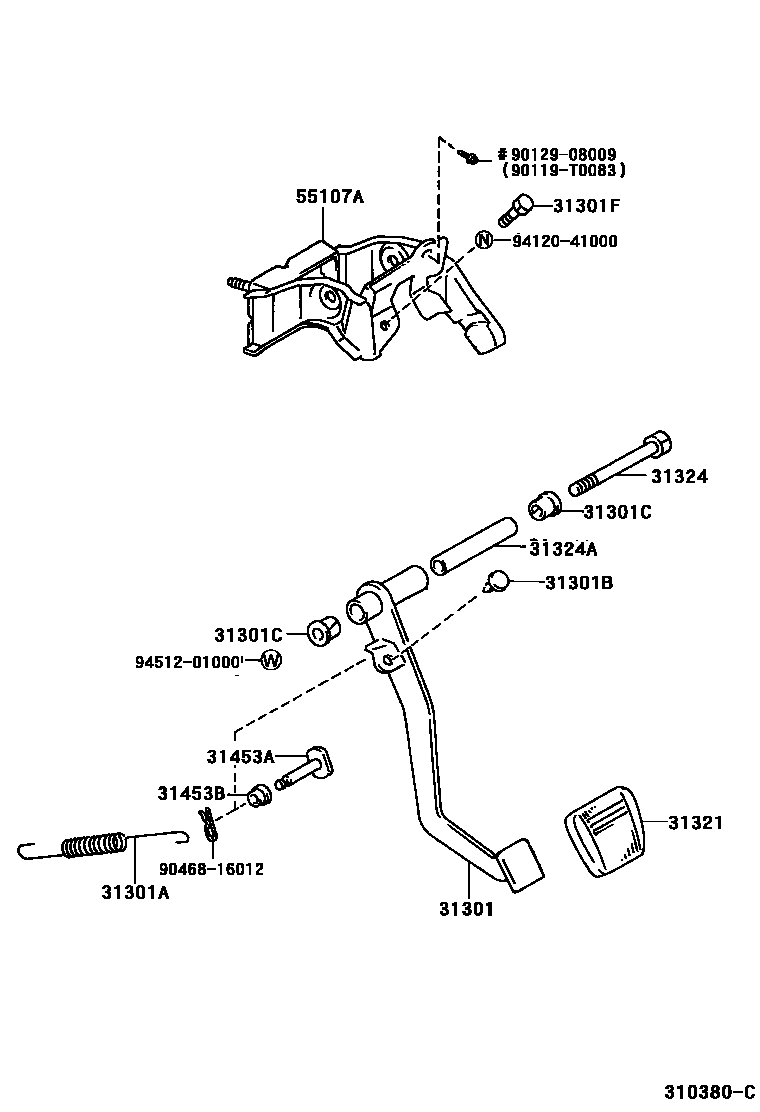

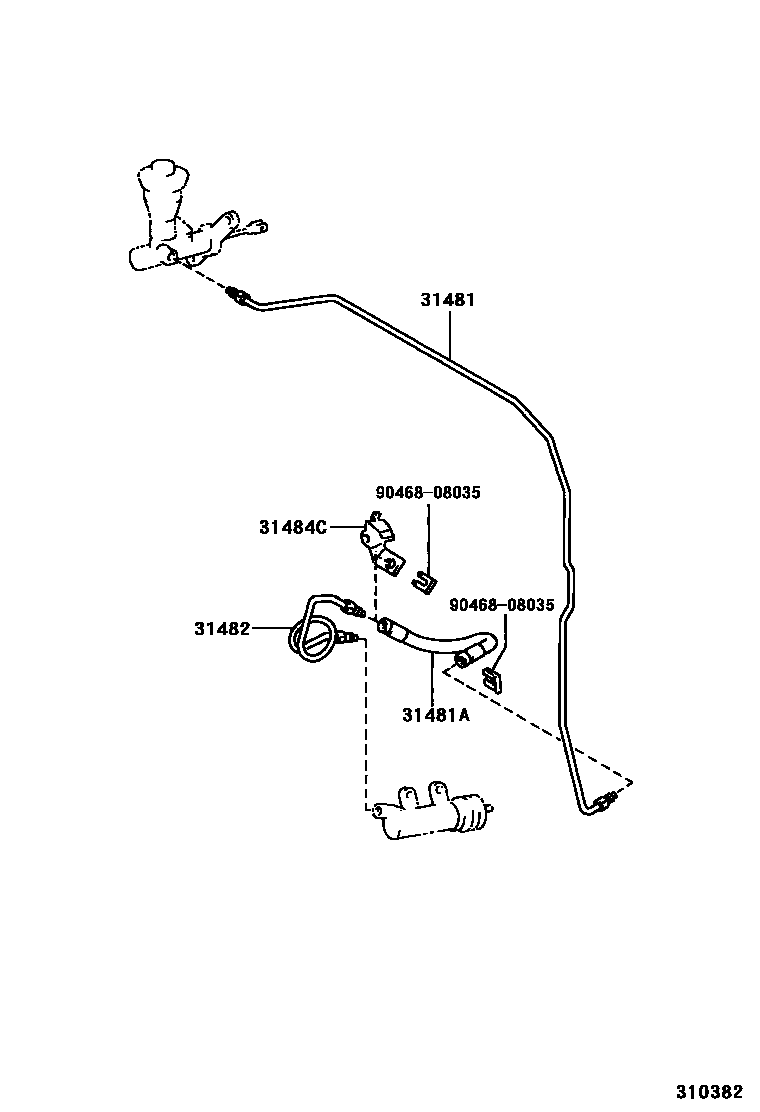

Toyota HILUX 离合器踏板和挠性软管 — Figure 3102
Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 13 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-35240 · 31301-35250 · 31301-35251 · 31310-35050 · 31310-35051 · 31310-35060 |
| 31301A | Spring (for clutch pedal) | 90507-14030 · 90949-03017 · 90949-03035 · 90949-03036 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13007 · 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-05017 · 90389-06055 |
| 31301Q | Bushing (for clutch pedal spring) | 90386-05018 · 90386-13015 |
| 31321 | clutch pedal pad | 31321-14020 · 31321-52010 |
| 31324 | clutch pedal shaft | 90101-10177 · 91121-51090 · 91121-61070 |
| 31324A | clutch pedal collar | 90387-10027 · 90387-10082 · 90387-10121 |
| 31353 | Clutch pedal spring retainer | 31353-35010 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 47148-34010 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 · 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-04060 · 31481-35440 · 31481-35450 · 31481-35460 · 31481-35470 · 31481-35480 · 31481-35490 |
| 31481A | No. 1 clutch hose | 90080-94128 · 90080-94160 · 90947-02953 · 90947-02954 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-04070 · 31482-04080 · 31482-35170 · 31482-35380 · 31482-35400 · 31482-35410 · 31482-60030 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-35430 |
| 31484C | No. 1 clutch tube bracket | 31484-35300 · 31484-35310 · 31484-35340 · 31484-35360 · 31484-35361 |
| 31489 | Pipe connector to flexible hose pipe | 31489-35070 |
| 31490 | Clutch pressure accumulator assembly | 31490-35080 |
| 31496B | Clutch tube clamp | 31496-35030 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-35070 · 55107-35080 · 55107-35090 · 55107-35100 · 55107-35110 · 55107-60110 · 55107-60170 |
