Toyota HILUX 文氏管 — Figure 2606

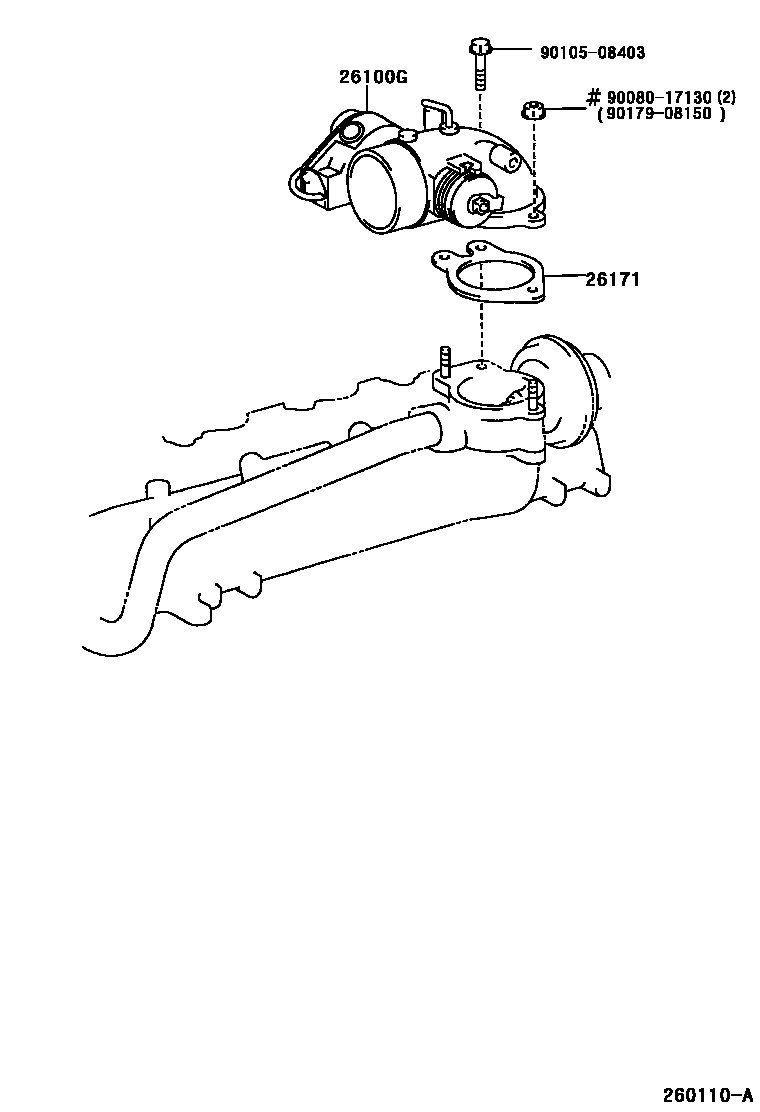

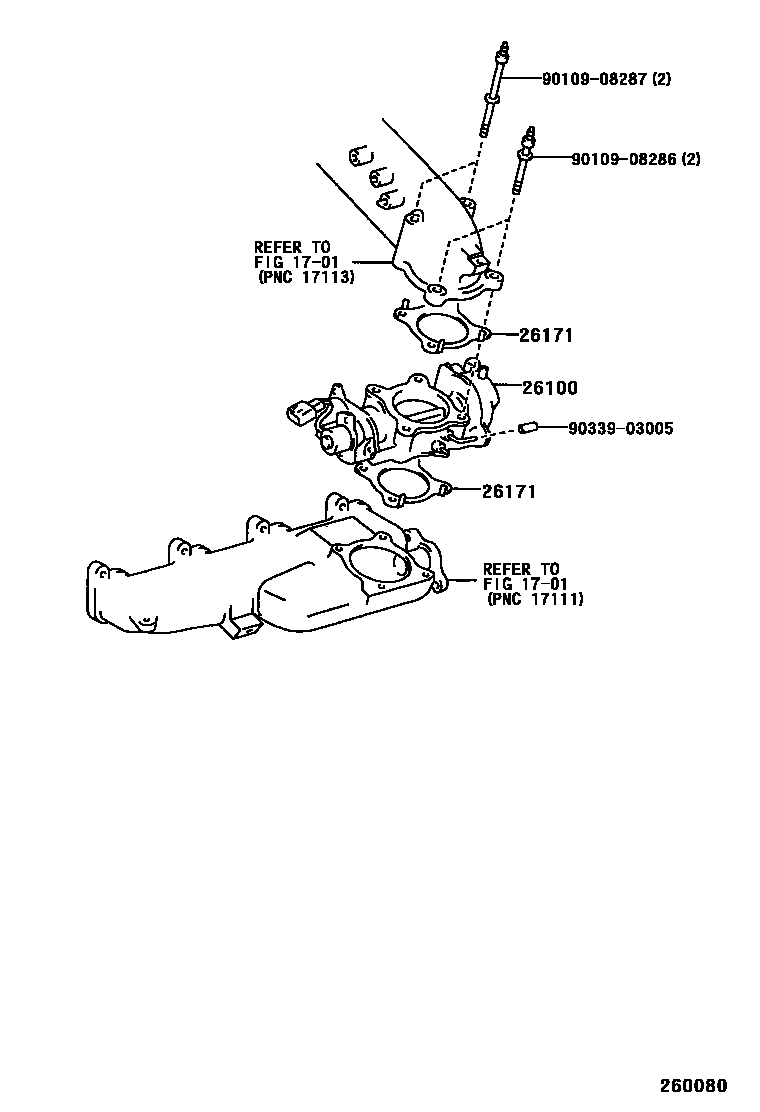

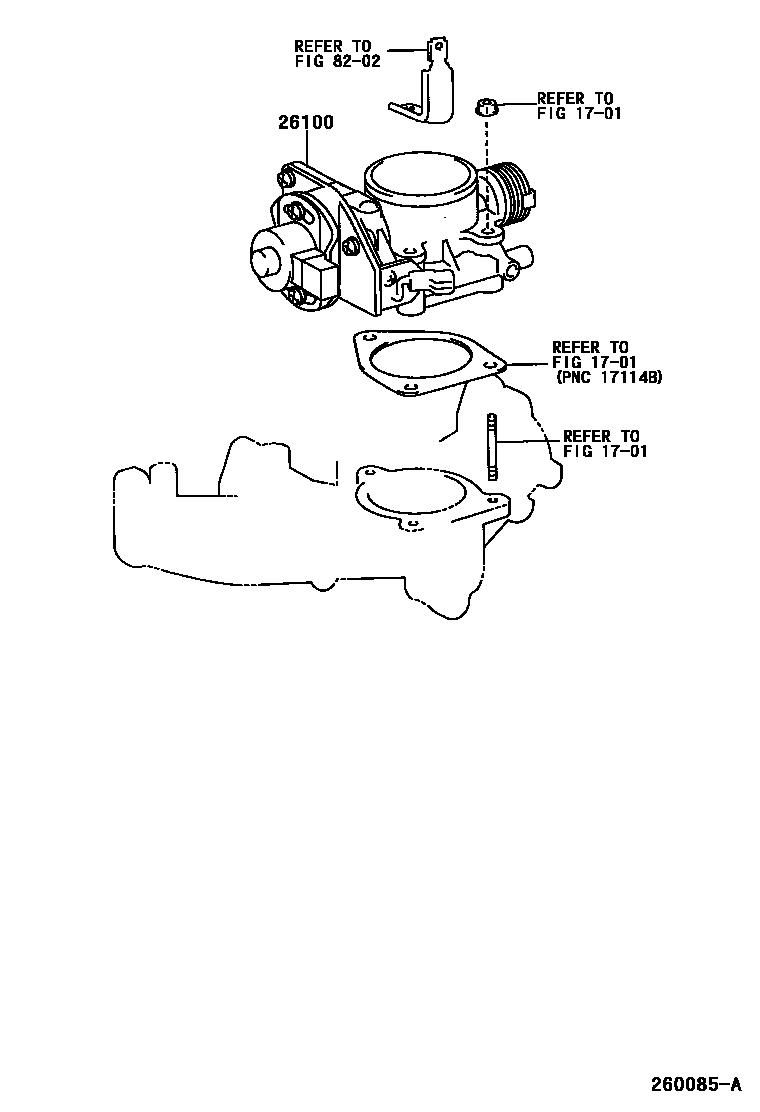

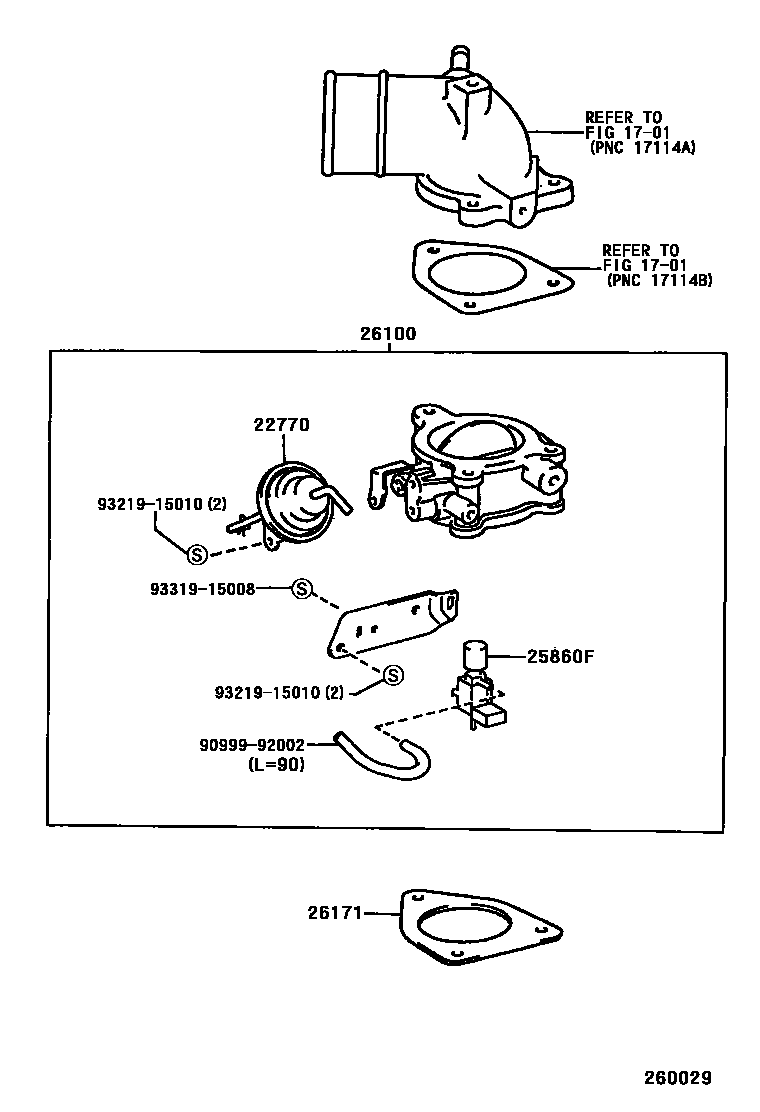

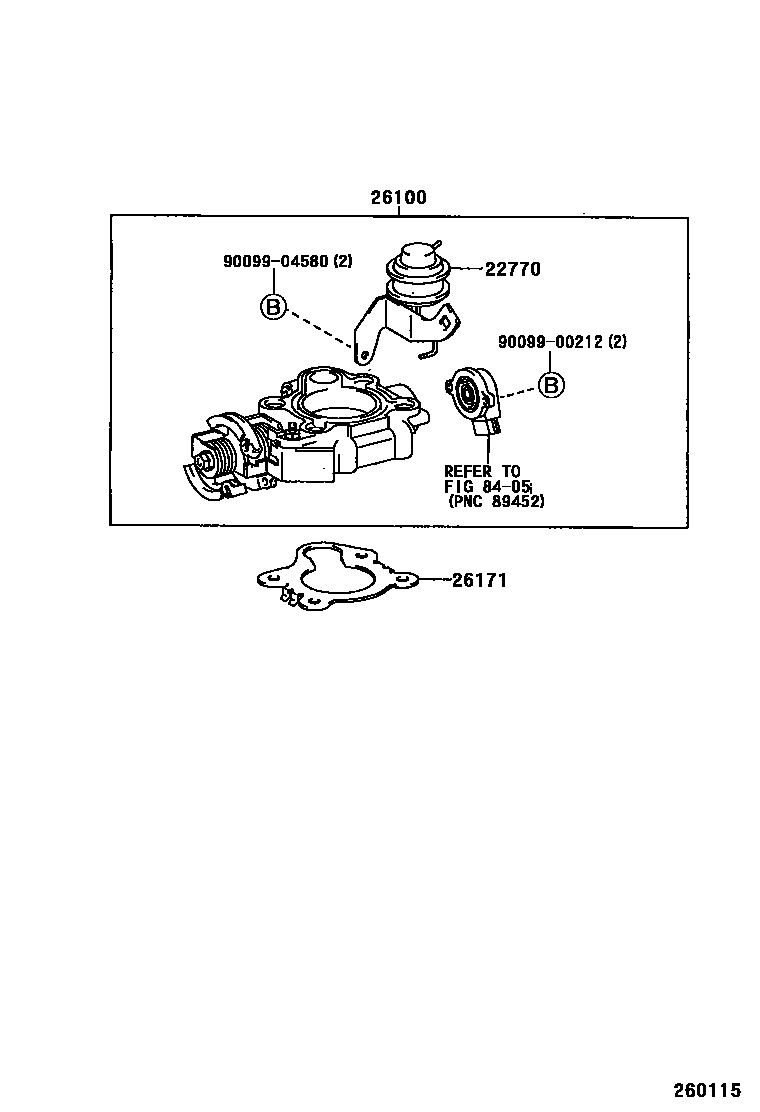

Toyota HILUX EPC diagram 2606, 文氏管, with 5 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22770 | Idle speed boost actuator | 26133-54260 · 26133-67010 |
| 25860F | Vacuum switch valve assembly | 25860-54020 |
| 26100 | Venturi assembly | 26100-54240 · 26100-54250 · 26100-67040 · 26100-67110 |
| 26100G | Diesel engine throttle body assembly | 26100-30030 · 26100-30040 |
| 26171 | Venturi gasket | 17116-54021 · 26171-0L010 · 26171-30011 · 26171-30012 · 26171-30013 · 26171-67010 · 26171-67030 |
