Toyota HILUX 废气再循环系统 — Figure 2501

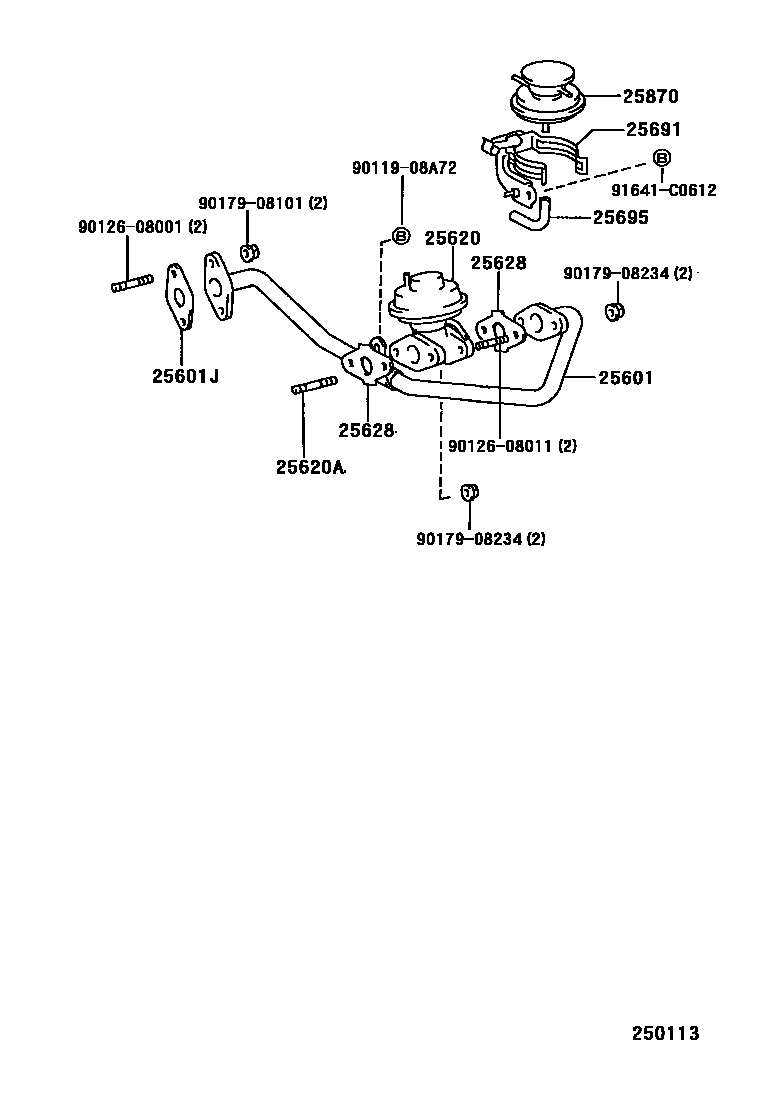

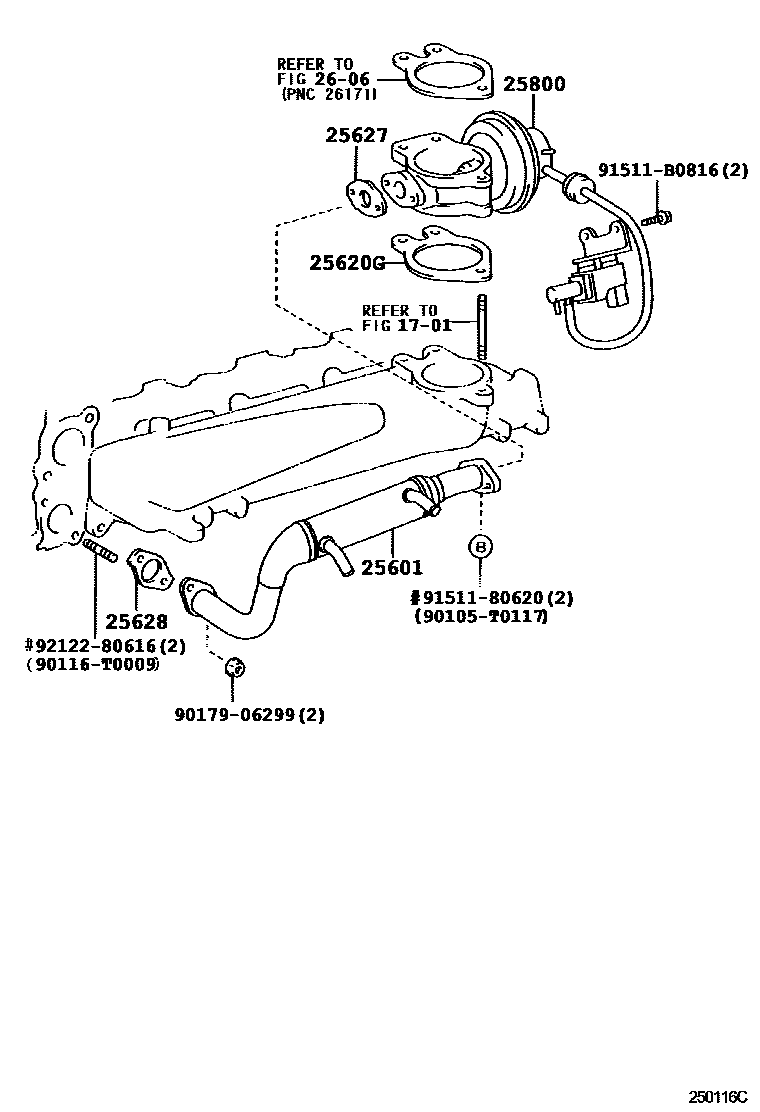

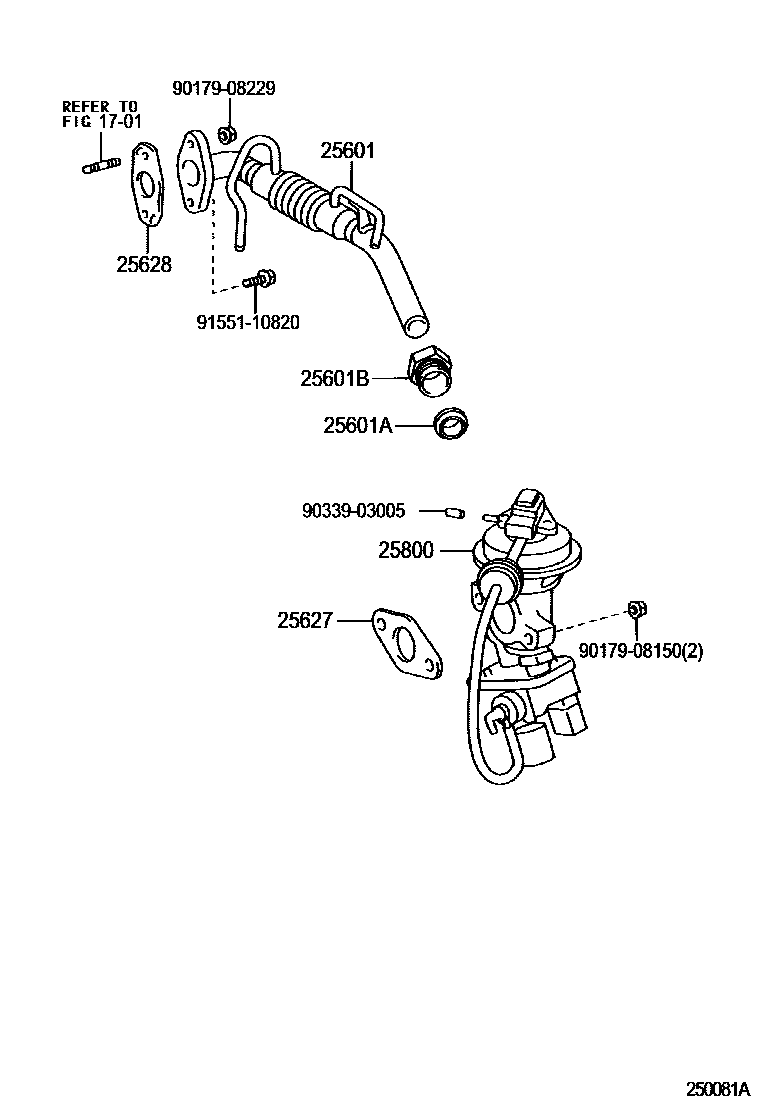

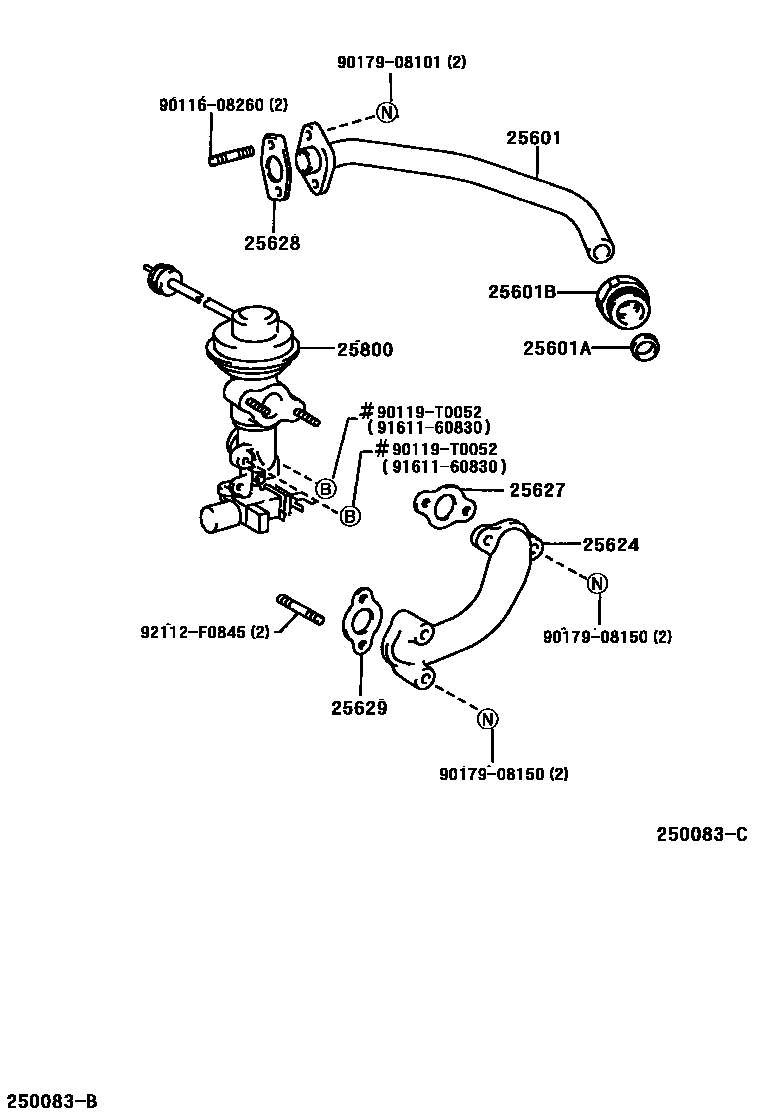

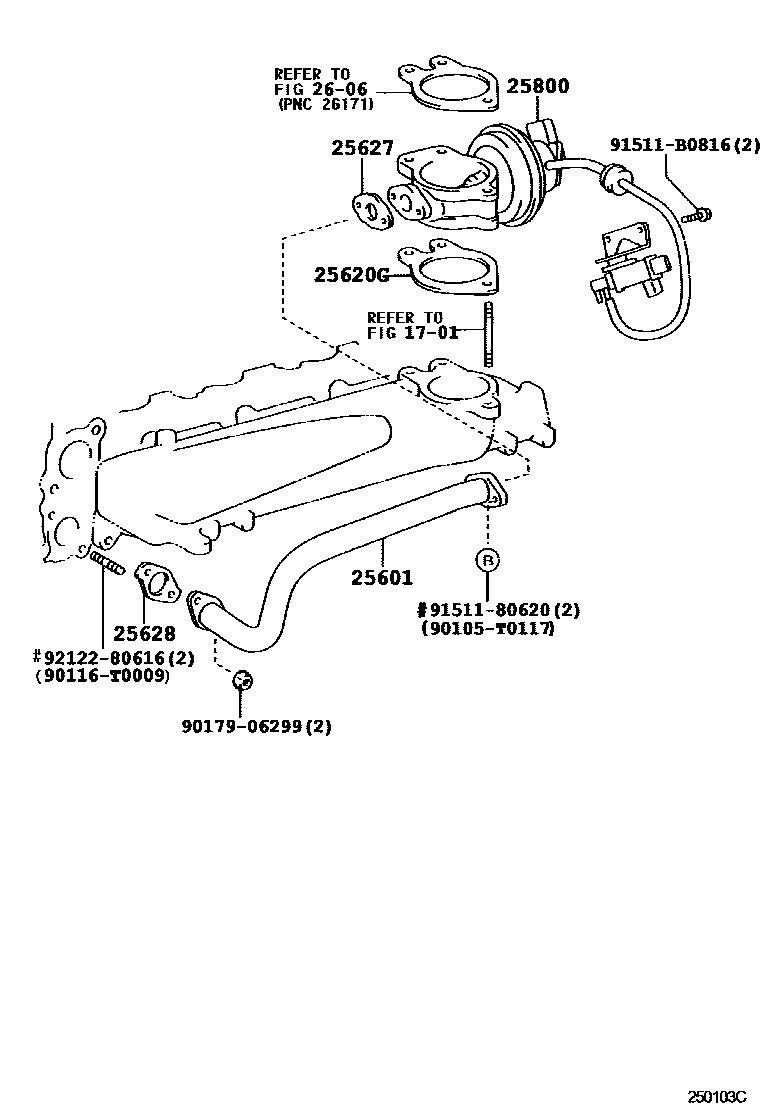

Toyota HILUX EPC diagram 2501, 废气再循环系统, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-30010 · 25601-30030 · 25601-54090 · 25601-67021 · 25611-75020 · 25611-75021 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-25001 · 90410-26001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-33001 · 90402-33002 |
| 25601J | Gasket (for No. 1 EGR tube) | 25634-75010 |
| 25620 | EGR valve assembly | 25620-75030 |
| 25620A | Stud bolts (for EGR valve) | 92112-B0818 |
| 25620G | Diesel engine throttle gasket | 26171-0L010 · 26171-30011 · 26171-30012 · 26171-30013 |
| 25624 | EGR valve adapter | 25624-54060 |
| 25627 | EGR valve gasket | 25627-30010 · 25627-54011 · 25627-67010 · 25627-67030 |
| 25628 | EGR air intake gasket | 25628-30010 · 25628-54012 · 25628-67010 · 25628-75010 |
| 25629 | EGR valve adapter gasket | 25629-54011 |
| 25691 | EGR vacuum regulator bracket | 25691-75031 |
| 25695 | EGR vacuum regulator hose | 25695-75020 |
| 25800 | Electronic EGR control valve assembly | 25800-30040 · 25800-30050 · 25800-54200 · 25800-54220 · 25800-54251 · 25800-67060 |
| 25870 | EGR vacuum regulator valve assembly | 25870-75040 |
