Toyota HILUX fuel filter — Figure 2302

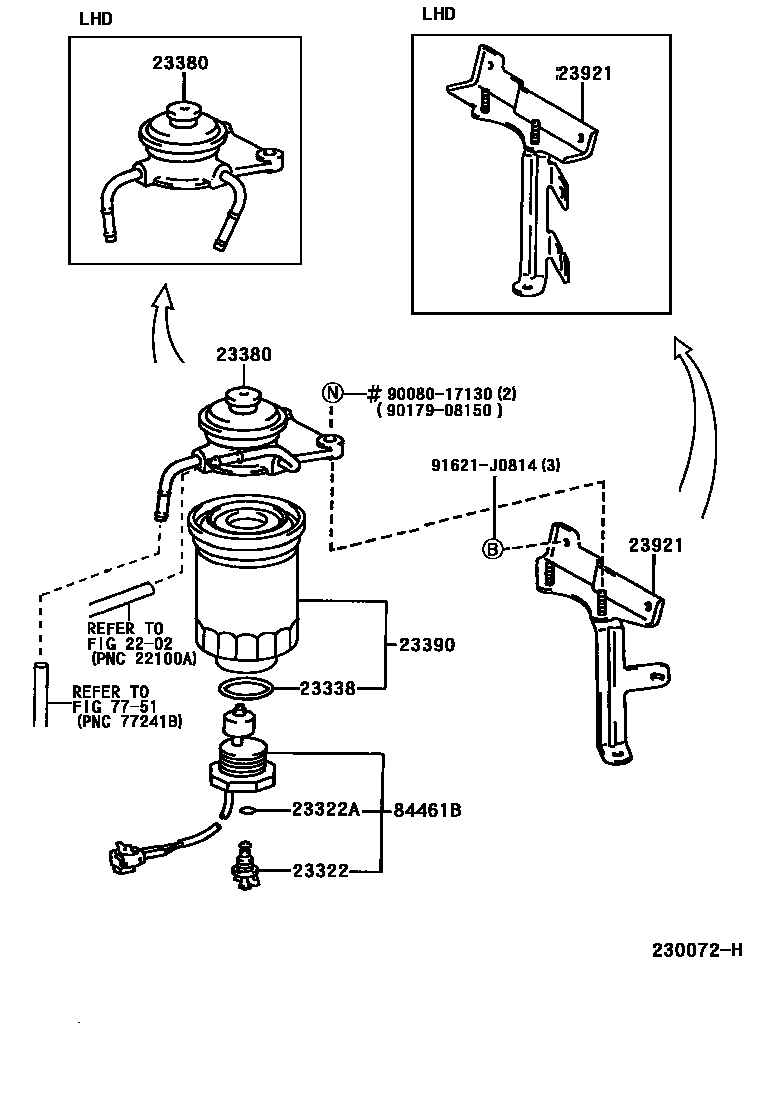

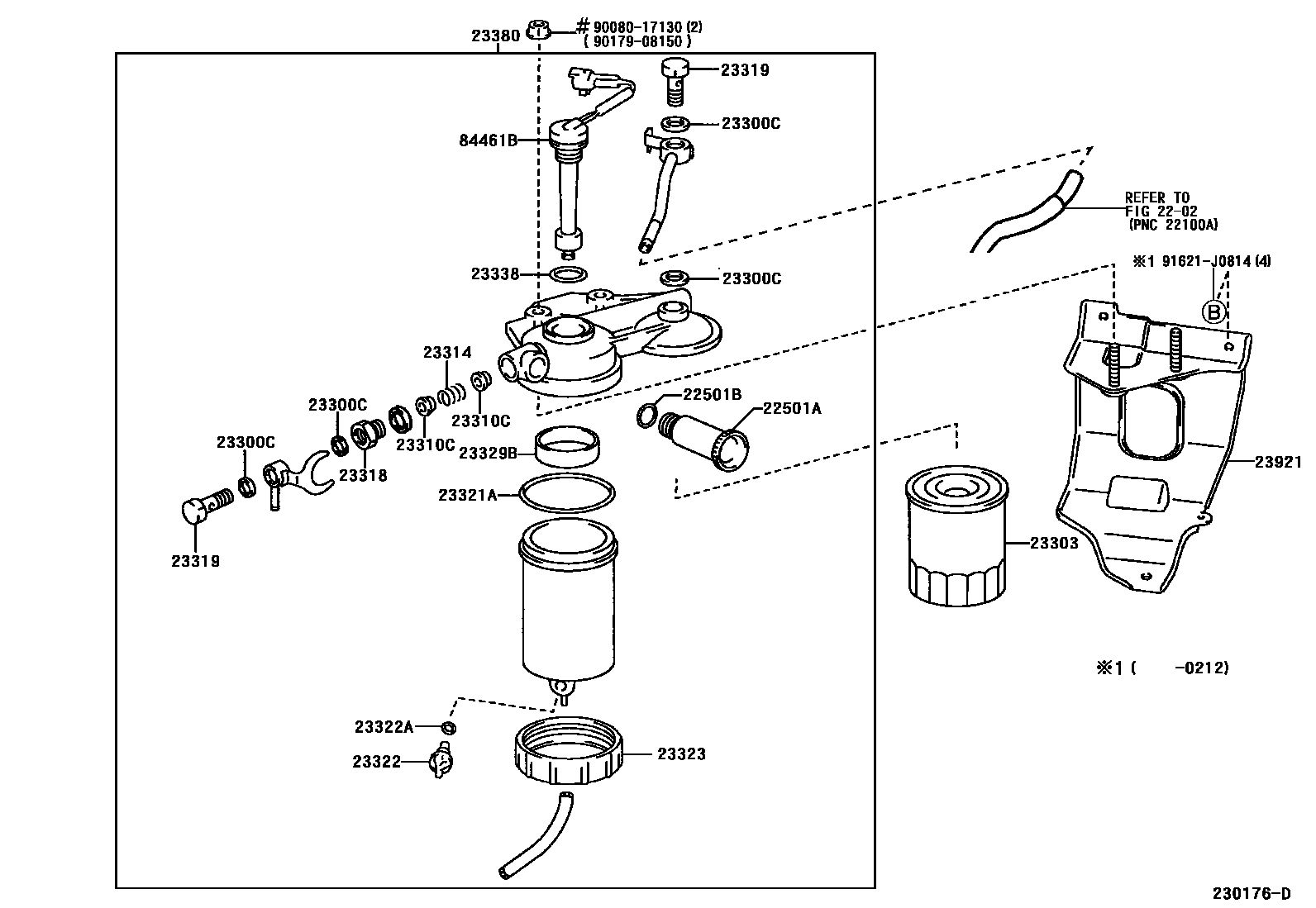

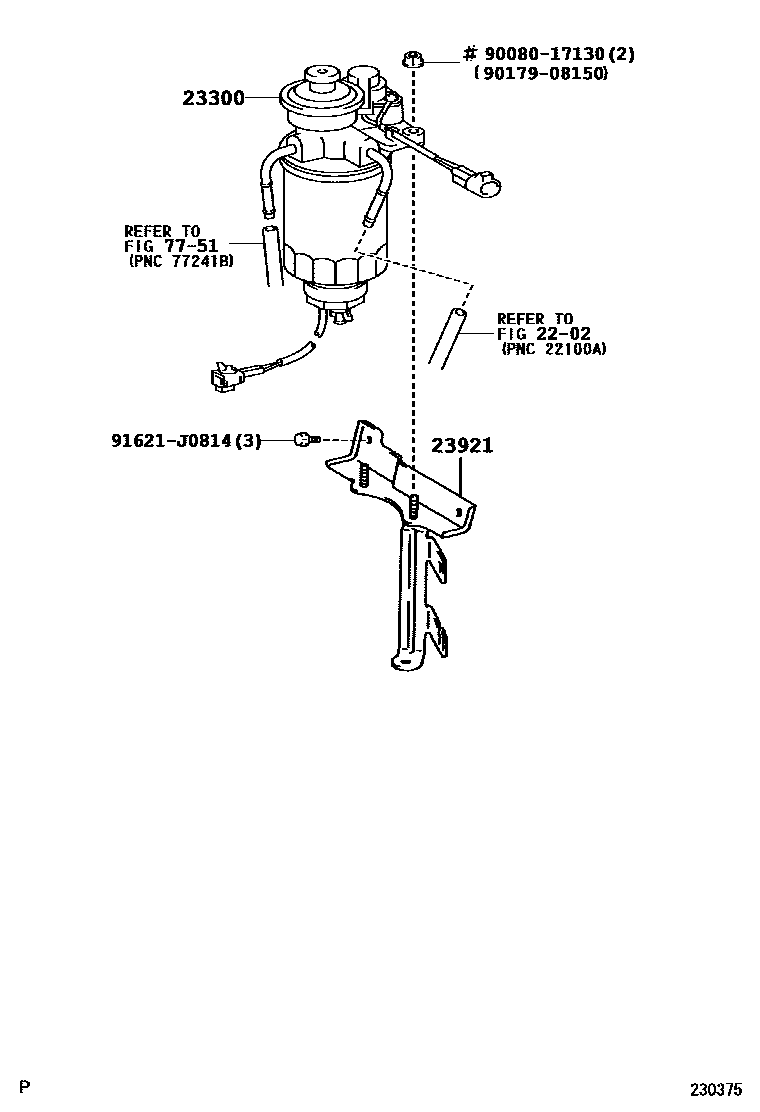

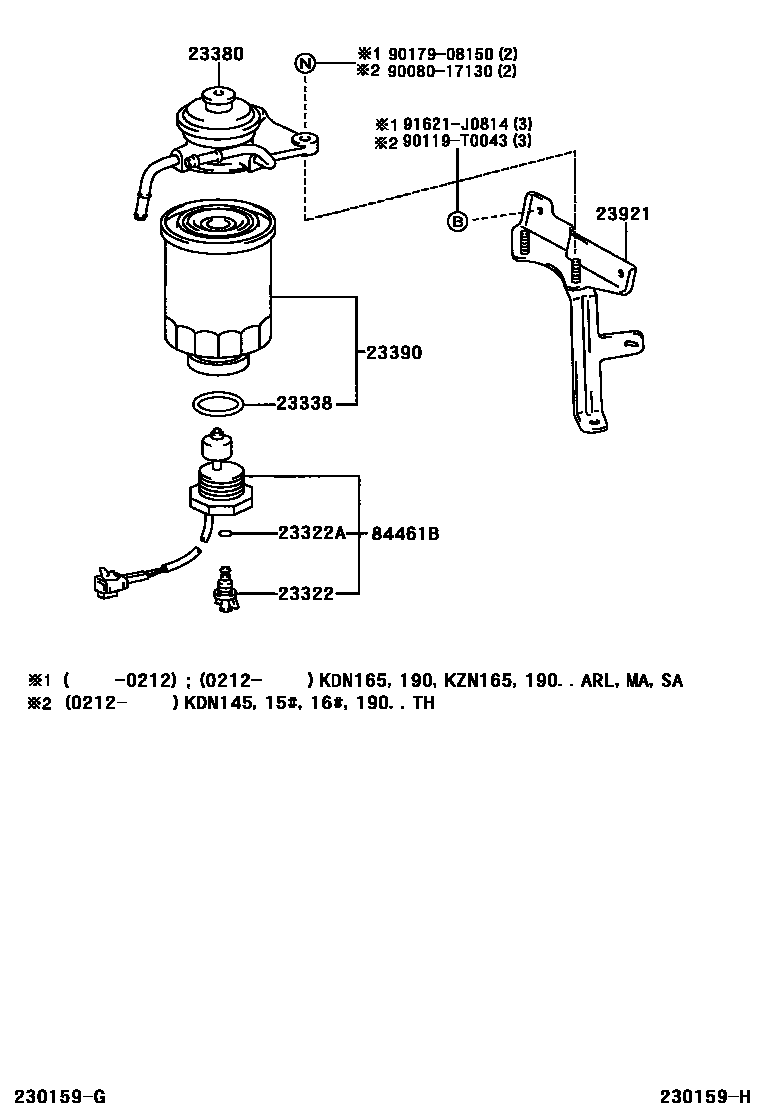

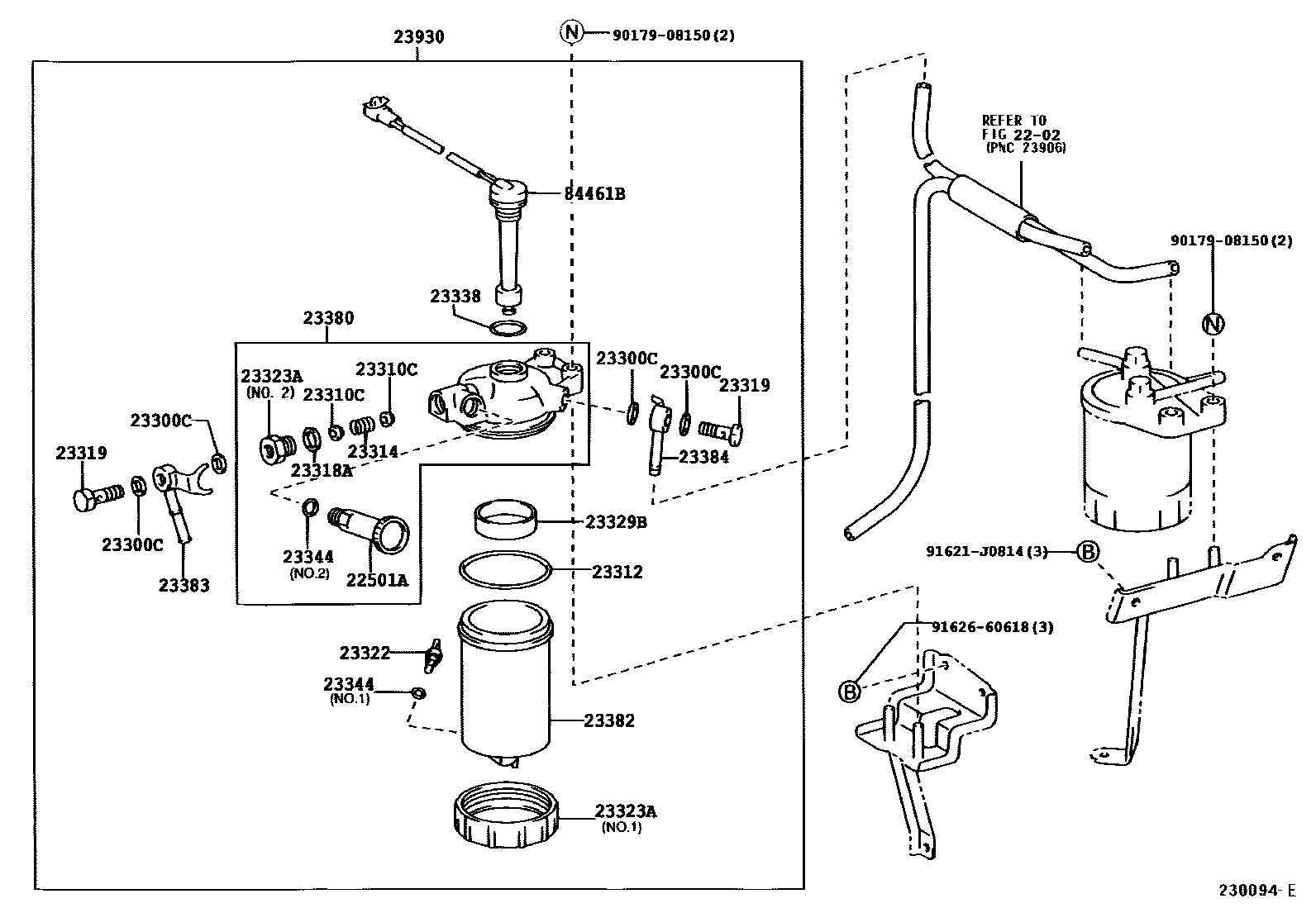

Toyota HILUX EPC diagram 2302, fuel filter, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22501A | Starting oil injection pump sub-assembly | 22501-54010 |
| 22501B | Gasket (for priming pump) | 23344-54020 |
| 23300 | fuel filter assembly | 23300-34100 · 23300-5B260 · 23300-75090 |
| 23300C | Gasket (for fuel pipe joint) | 22447-47030 |
| 23303 | Fuel filter element sub-assembly | 23303-54072 |
| 23310C | Fuel filter valve sub-assembly | 23316-54010 |
| 23312 | filter housing gasket | 23312-54010 |
| 23314 | fuel filter spring | 23314-54010 |
| 23318 | Joint bolts | 23323-54020 |
| 23318A | Gasket (for joint bolts) | 15318-44010 |
| 23319 | Fuel pipe hollow screw | 90099-18011 |
| 23321A | fuel filter cover gasket | 23312-54010 |
| 23322 | Drain plug (for fuel filter) | 23322-54010 · 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23323 | Nut (for fuel filter housing bracket) | 23323-54010 |
| 23323A | Connector | 23323-54010 · 23323-54020 |
| 23329B | Liquid level warning float | 23329-54010 |
| 23338 | Gasket (for warning switch) | 23338-54010 · 23344-64010 |
| 23344 | Clamp nut gasket (for fuel filter) | 23344-54010 · 23344-54020 |
| 23380 | Fuel filter cover assembly | 23380-30150 · 23380-54061 · 23380-5B090 · 23380-5B140 · 23380-5B150 |
| 23382 | fuel filter housing | 23382-54061 · 23382-54062 |
| 23383 | fuel filter connector | 23383-54060 |
| 23384 | No. 2 fuel filter connector | 23384-54060 · 23384-54061 |
| 23390 | Fuel filter element assembly | 23303-64010 · 23390-30150 · 23390-30180 · 23390-64480 |
| 23921 | Fuel filter support | 23921-54440 · 23921-54451 · 23921-54462 · 23921-72020 · 23921-75030 |
| 23930 | Fuel precipitator assembly | 23930-54061 · 23930-54062 |
| 84461B | Liquid level warning switch | 84461-28040 · 84461-35080 · 84461-35120 |
