Toyota HILUX 燃油泵和燃油管 — Figure 2301

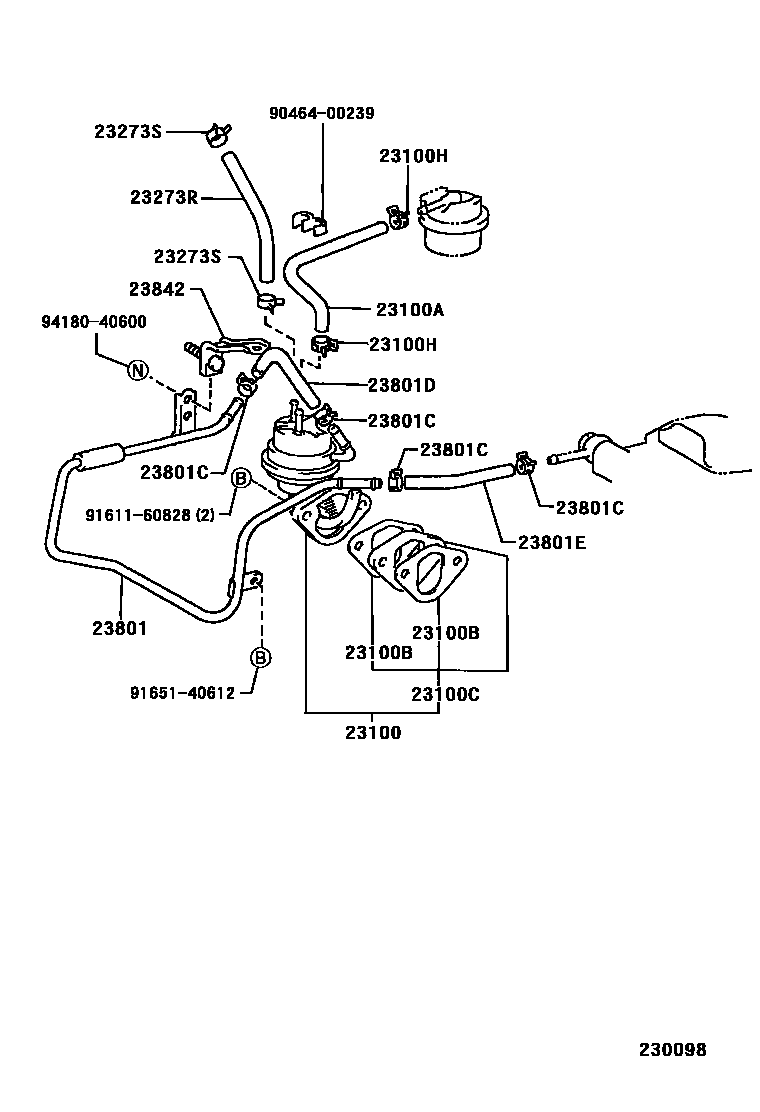

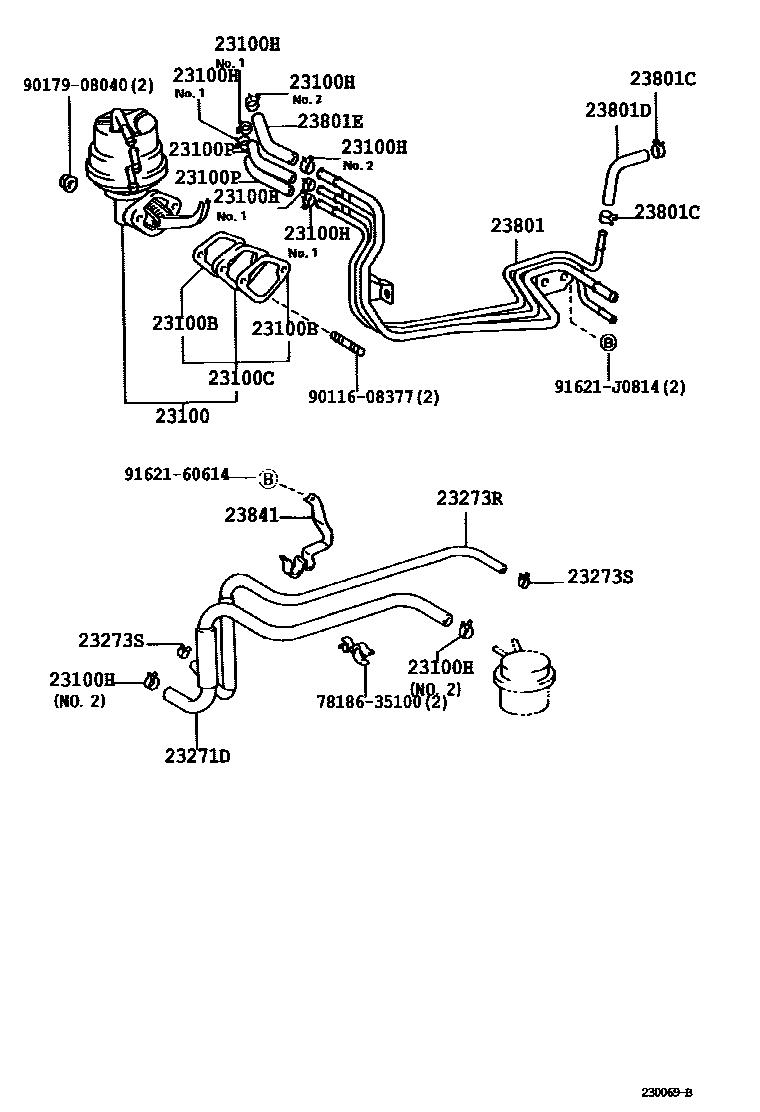

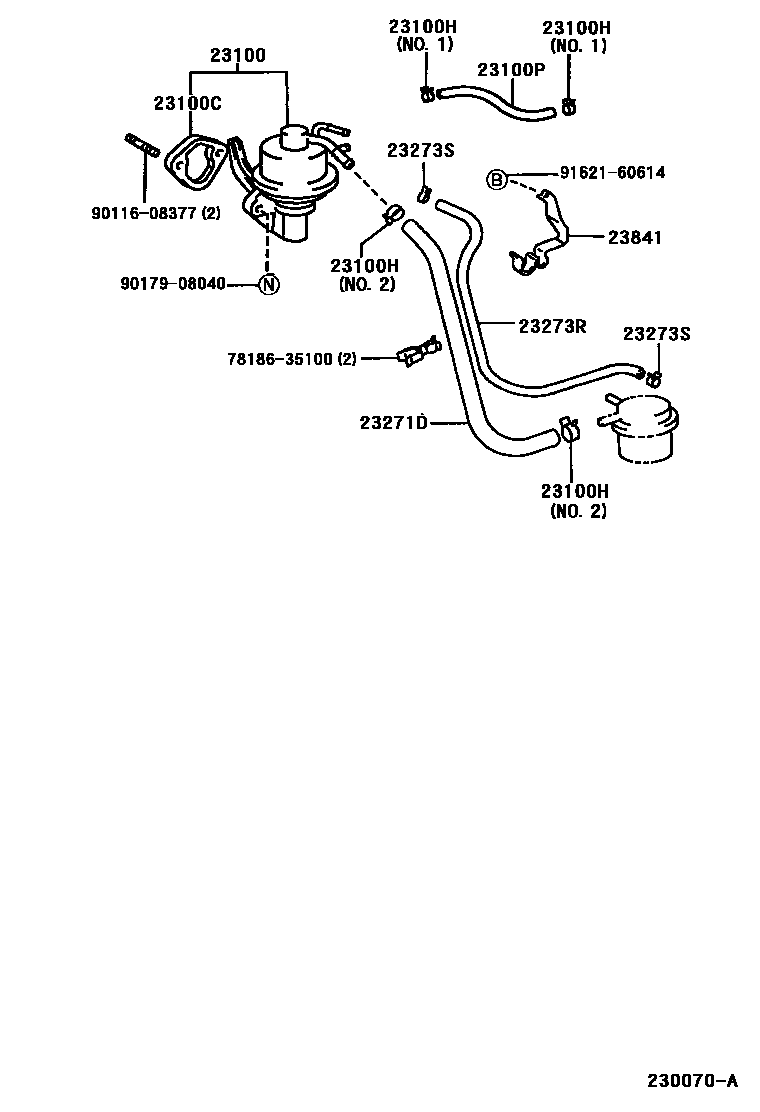

Toyota HILUX EPC diagram 2301, 燃油泵和燃油管, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-79027 · 23100-79076 · 23100-79096 |
| 23100A | fuel hose | 95334-06040 |
| 23100B | fuel pump gasket | 90923-05019 · 90923-05022 |
| 23100C | Fuel pump vibration isolation pad | 90923-06010 · 90923-06014 · 90923-06017 |
| 23100H | Clamp (for fuel hose) | 96132-41100 · 96132-41500 · 96132-51100 · 96133-41300 |
| 23100P | Hose (for fuel pump to fuel line) | 95333-06020 |
| 23271D | No. 1 fuel hose | 23271-75080 · 23271-75090 · 23271-75220 |
| 23273R | No. 2 fuel hose (for fuel return pipe) | 23273-75100 · 23273-75110 · 95334-06040 |
| 23273S | Hose clip (for No. 2 fuel hose) | 96133-41300 · 96135-41100 · 96135-51100 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23811-72010 · 23811-75011 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 · 96132-41100 · 96132-51100 |
| 23801D | No. 1 fuel line hose | 90910-05225 · 95333-06010 · 95334-06012 |
| 23801E | No. 2 fuel line hose | 23271-75070 · 95333-06020 |
| 23841 | No. 1 fuel pipe (hose) clamp | 23841-75020 |
| 23842 | No. 2 fuel pipe (hose) clamp | 23841-71012 |
