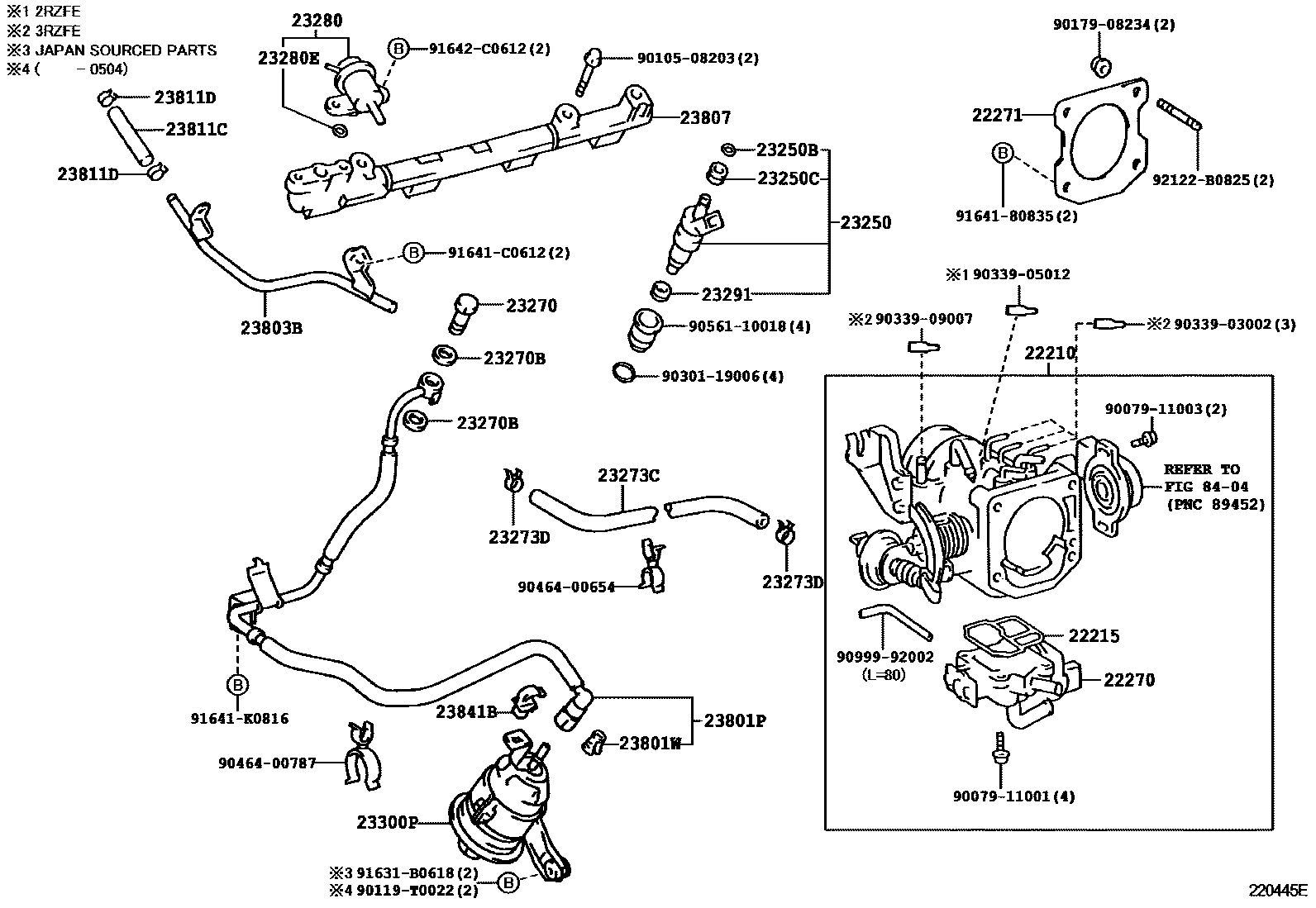

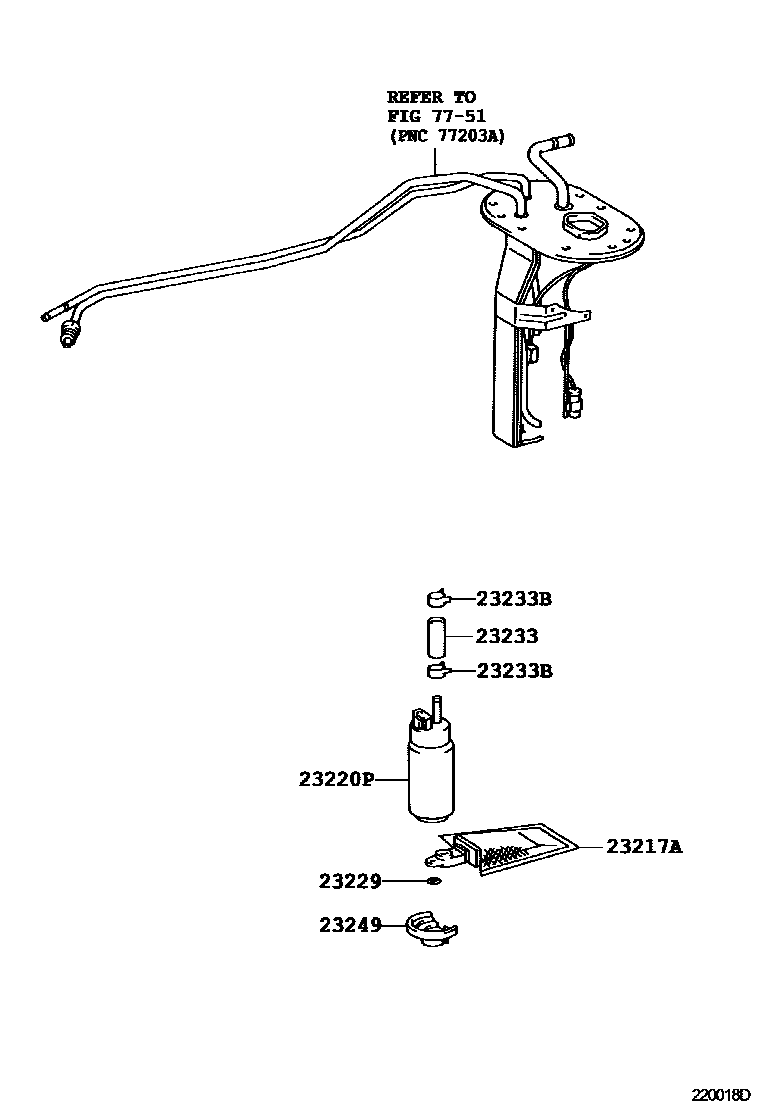

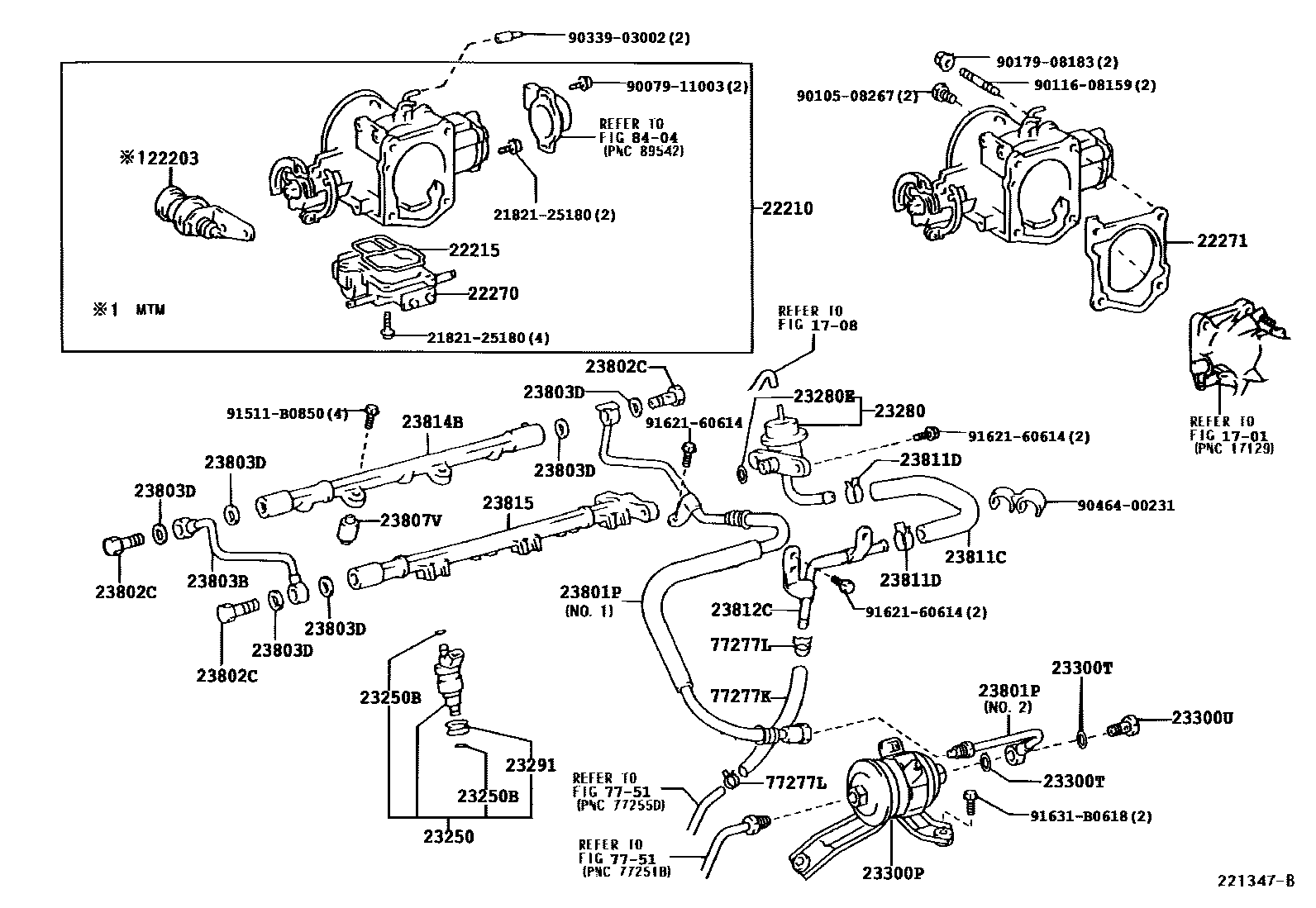

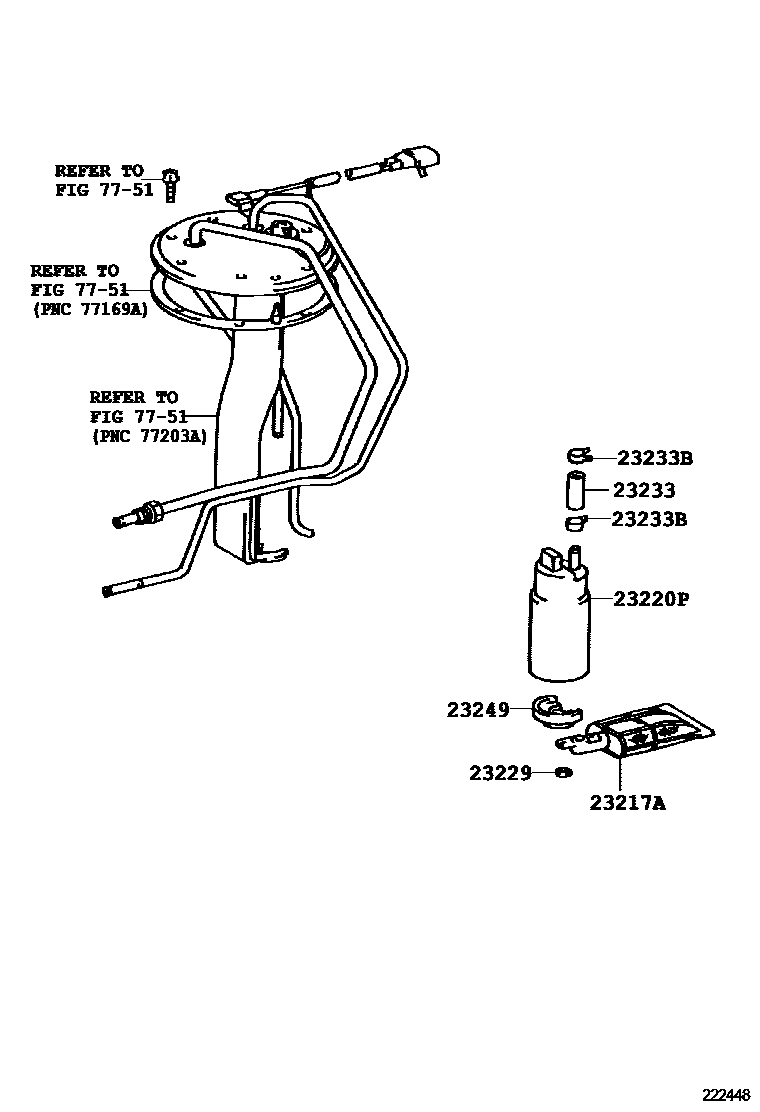

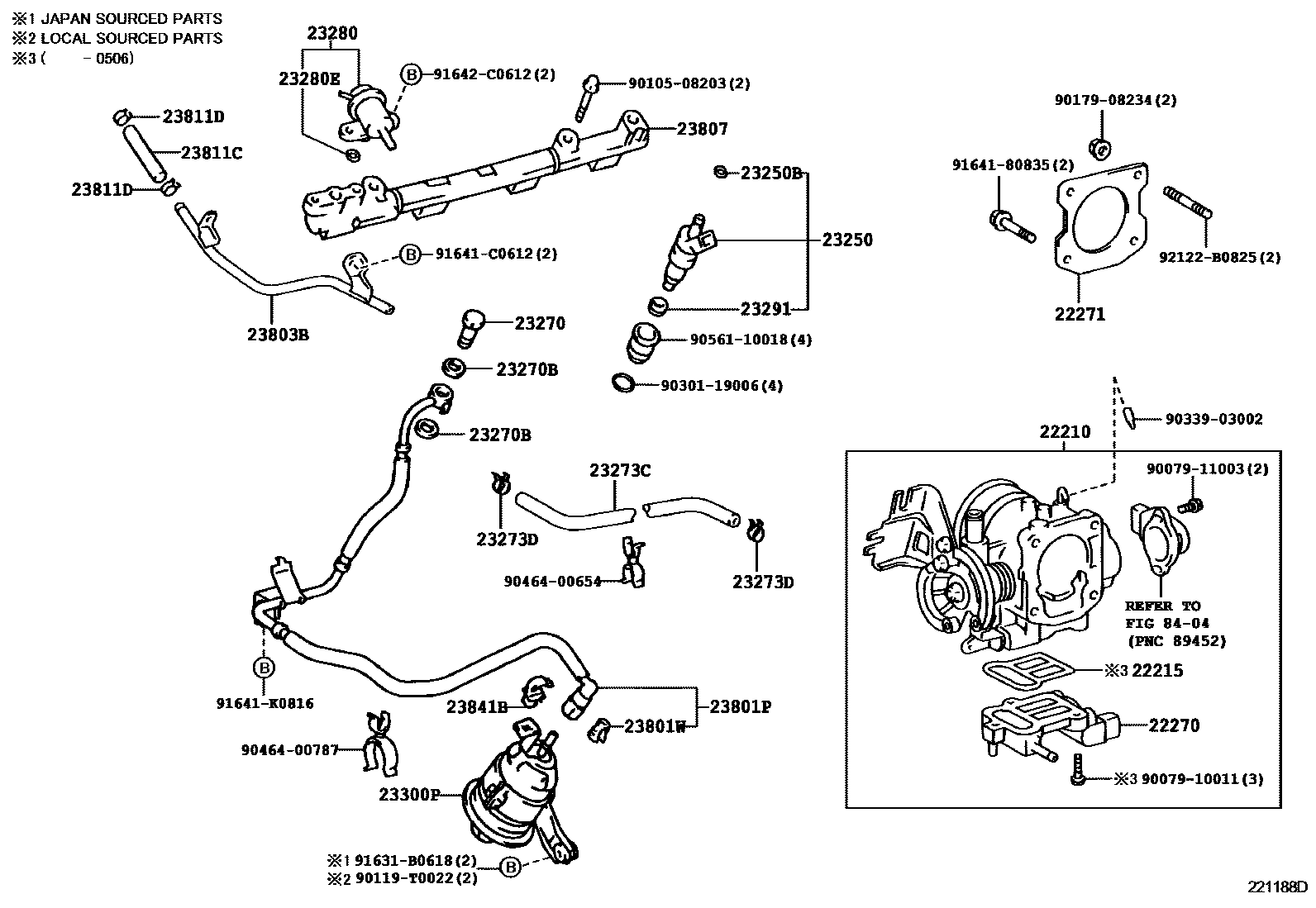

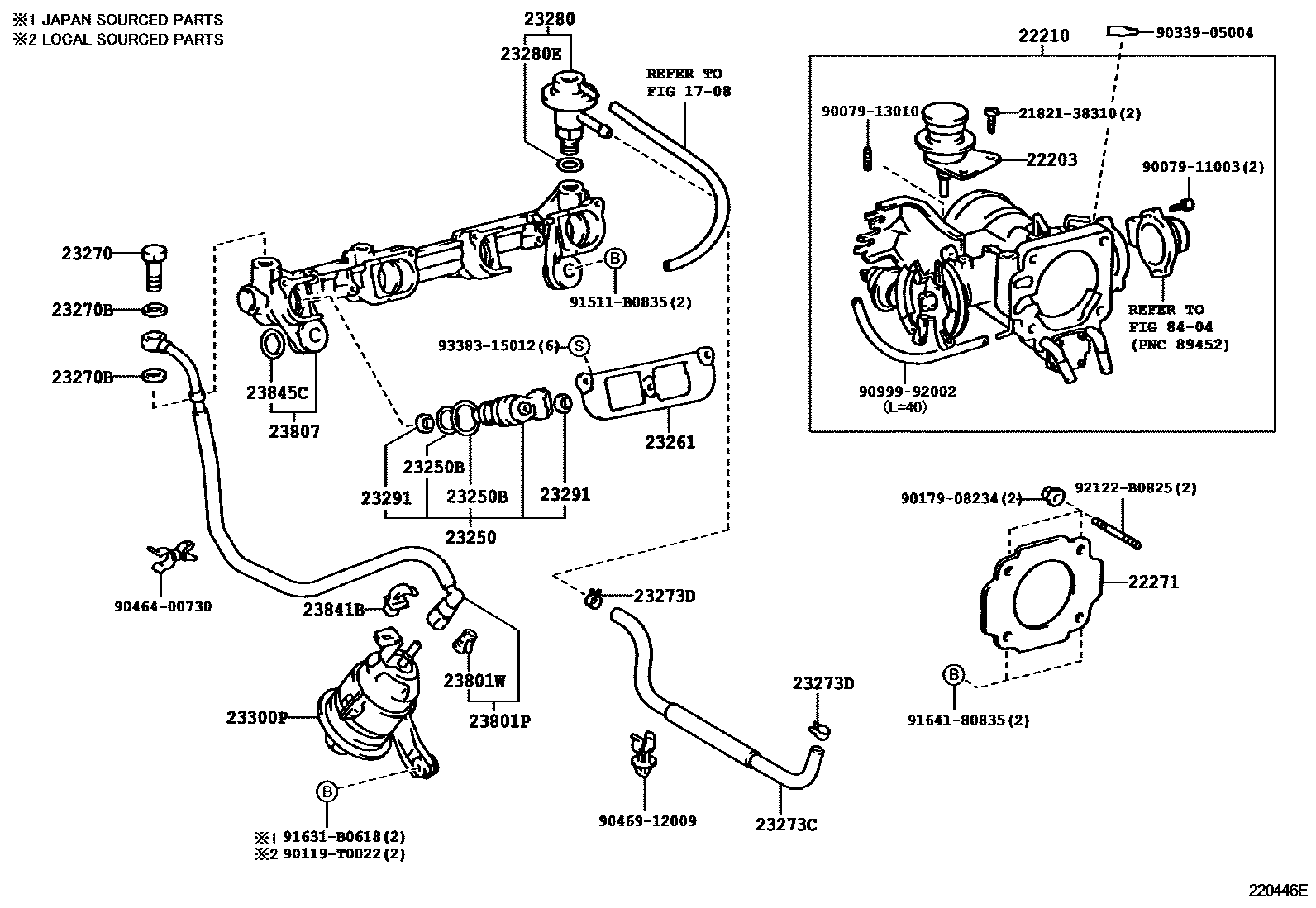

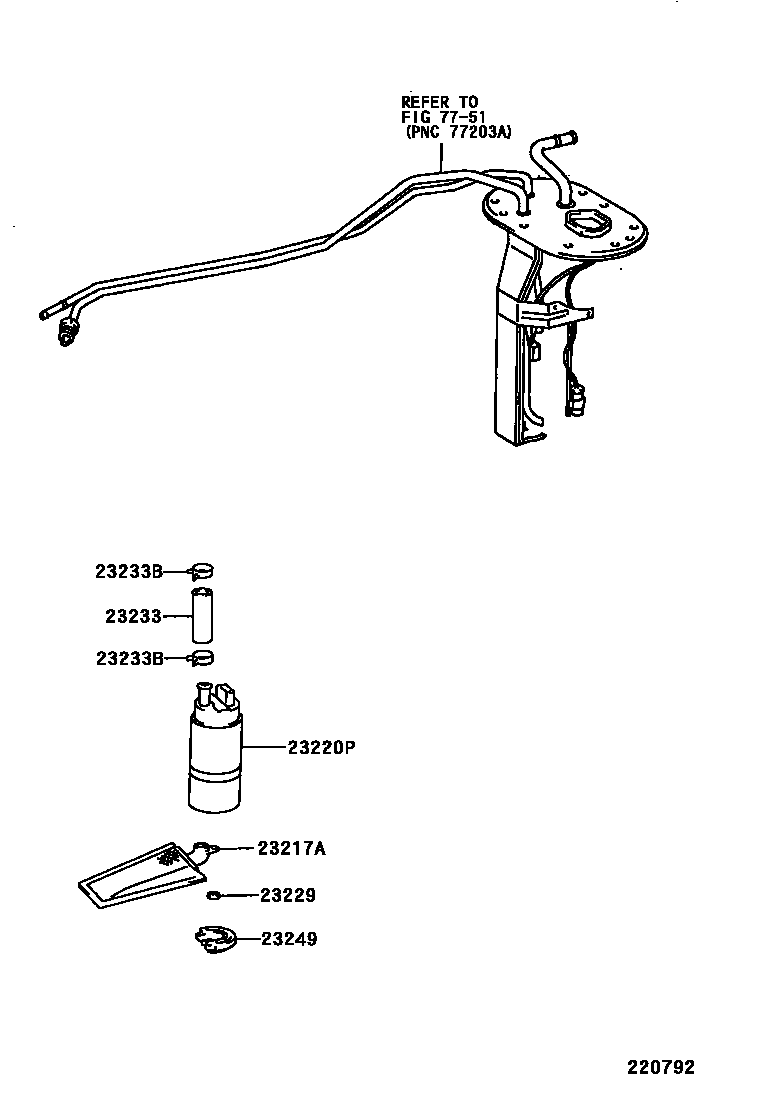

Toyota HILUX 燃油喷射系统 — Figure 2211
Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 7 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-62190 · 22202-75121 |
| 22210 | Throttle body assembly | 22210-62230 · 22210-62250 · 22210-75121 · 22210-75210 · 22210-75220 · 22210-75260 |
| 22215 | Throttle body cover gasket | 22215-62180 · 22215-75050 · 22215-7A680 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-62050 · 22270-75030 · 22270-75040 · 22270-75050 · 22270-75051 |
| 22271 | Throttle body gasket | 22271-62040 · 22271-75010 · 22271-75020 |
| 23217A | fuel pump filter | 23217-46090 · 23217-46100 |
| 23220P | fuel pump assembly | 23221-13010 · 23221-46010 · 23221-76030 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23239-11010 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-62040 · 23209-79085 · 23209-79095 · 23209-79115 · 23209-79145 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 · 90301-14006 · 90301-17007 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23261 | Injector cover | 23261-75020 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 |
| 23270B | Gasket (for pulsation damper hose) | 23279-74010 |
| 23273C | No. 2 fuel hose | 23273-75080 · 23273-75090 |
| 23273D | Clamp (for No. 2 fuel hose) | 96135-41100 · 96135-51100 |
| 23280 | Fuel pressure regulator assembly | 23280-62030 · 23280-75010 · 23280-75020 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 · 90301-07024 · 90301-09002 |
| 23291 | Injector vibration isolation pad | 23291-20010 · 23291-73010 · 23291-75020 |
| 23300P | Fuel filter (for EFI) | 23300-62060 · 23300-75100 · 23300-75110 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-62110 · 23801-62120 · 23801-75060 · 23801-75070 · 23801-75080 |
| 23801W | Fuel pipe connector clip | 90923-07010 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12036 |
| 23803B | No. 3 fuel pipe sub-assembly | 23803-62010 · 23803-75040 |
| 23803D | Joint bolt (for No. 3 injector overflow pipe) | 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23807-75021 · 23807-75022 · 23807-75030 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08020 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 90445-12290 |
| 23811D | Hose clip (for fuel hose) | 90467-11065 · 96135-41100 · 96135-51100 |
| 23812C | No. 2 fuel pipe | 23812-62041 |
| 23814B | oil pipeline | 23814-62050 · 23814-62051 |
| 23815 | No. 2 oil pipeline | 23815-62050 · 23815-62051 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 90469-12012 |
| 23845C | Fuel pipe vibration isolation pad | 23845-75010 |
| 77277K | Fuel hose (for oil return hose) | 90445-12302 |
| 77277L | Hose clip (for oil return hose) | 96135-51100 |
