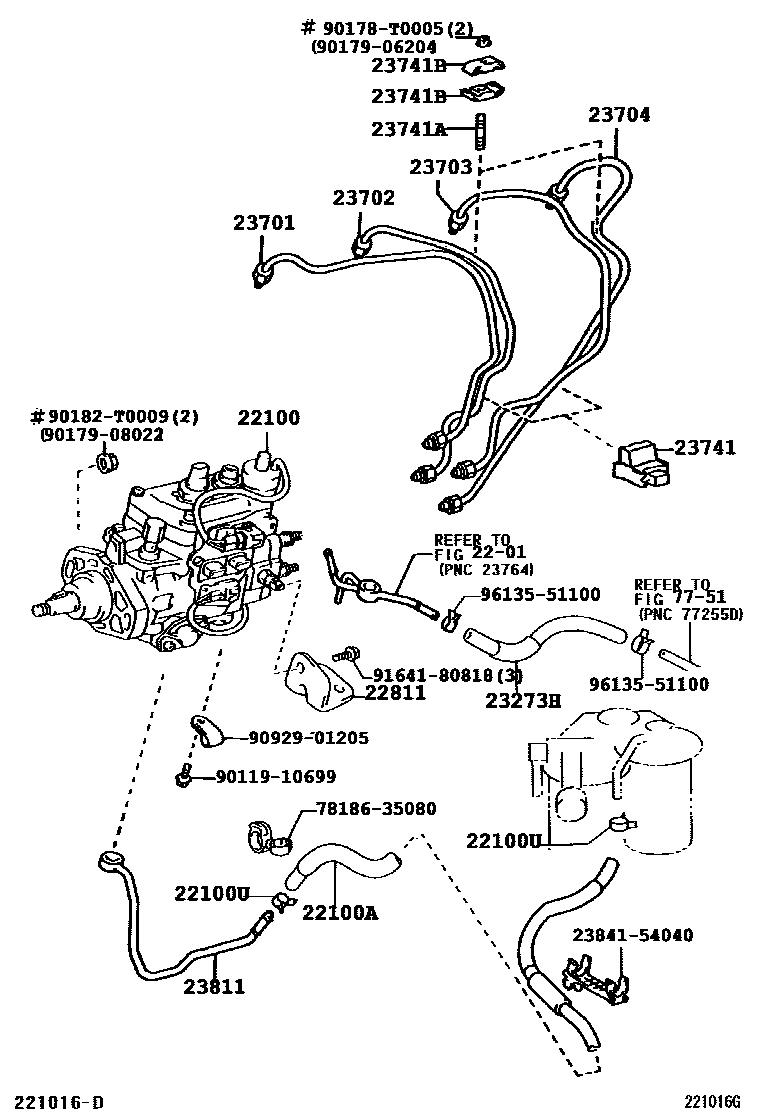

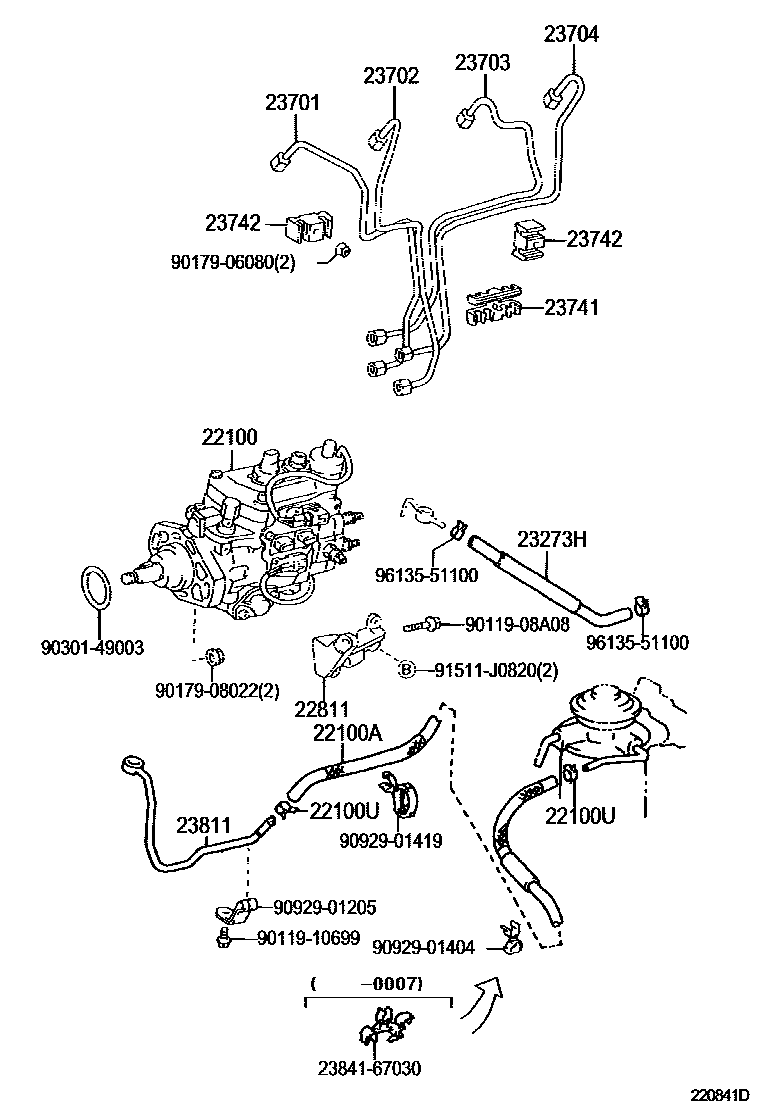

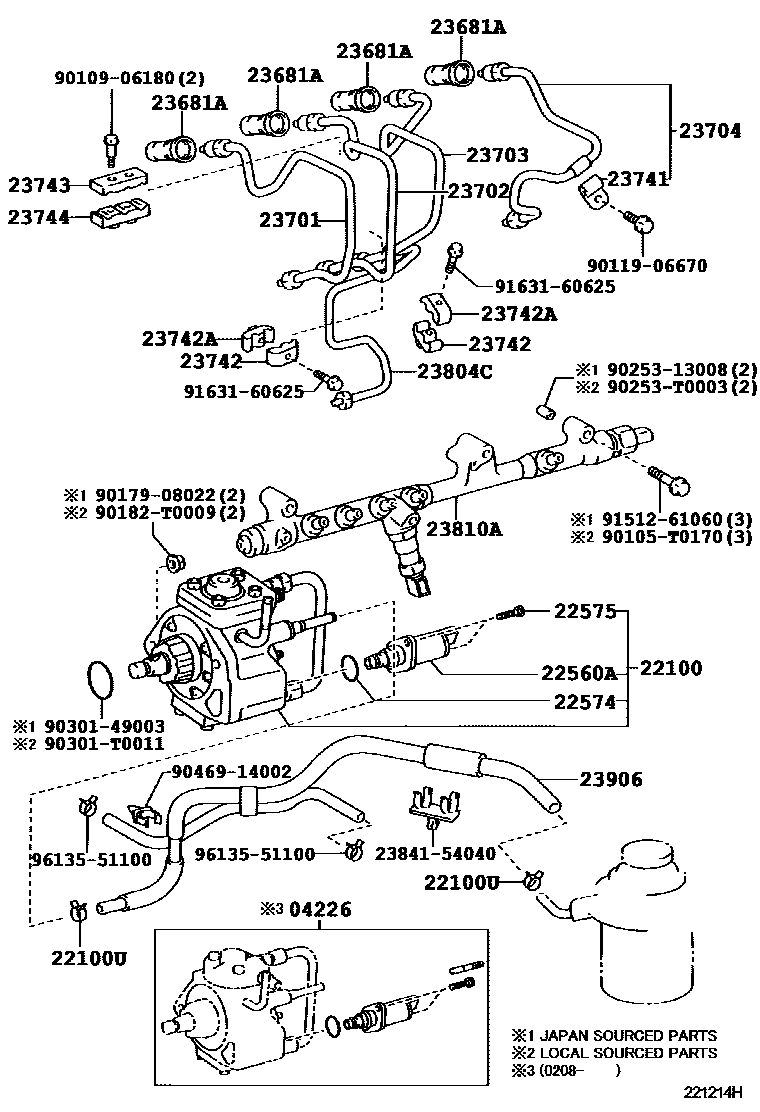

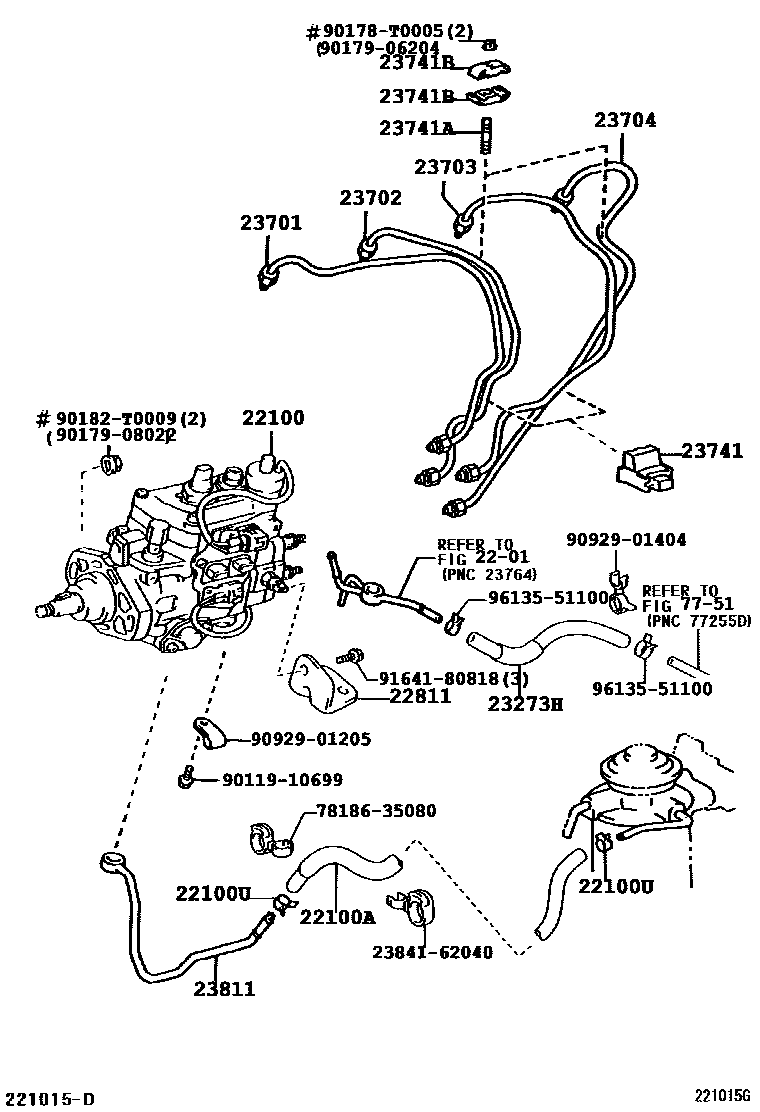

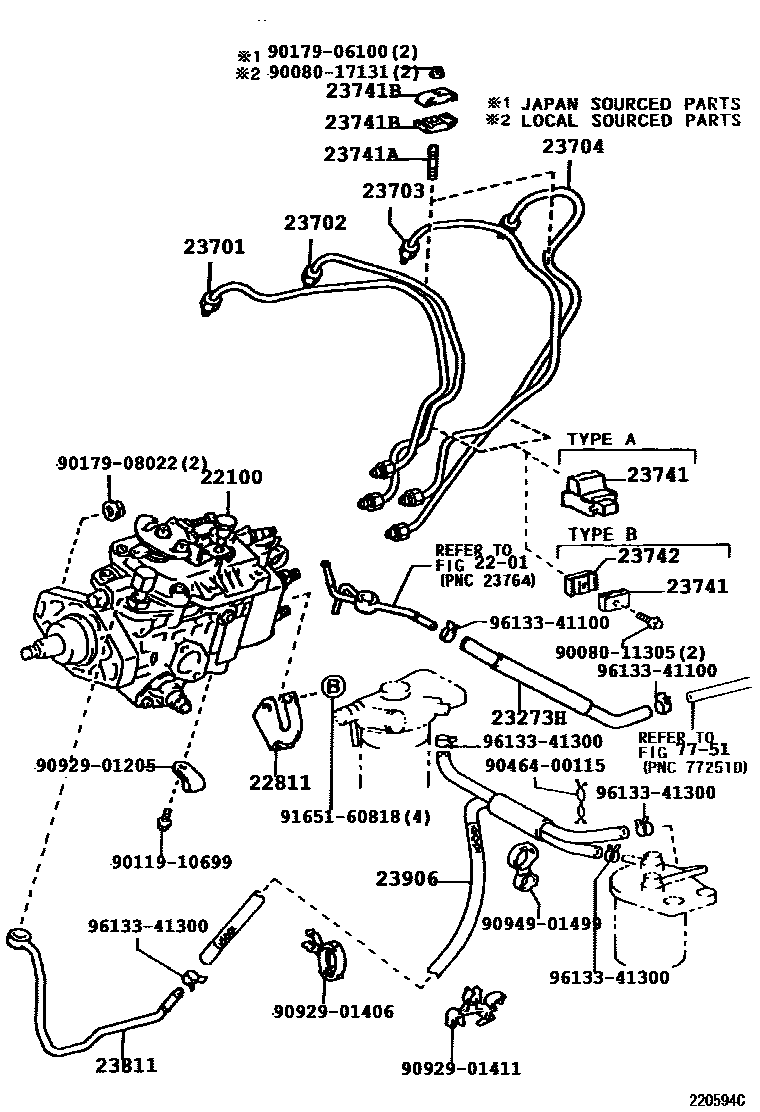

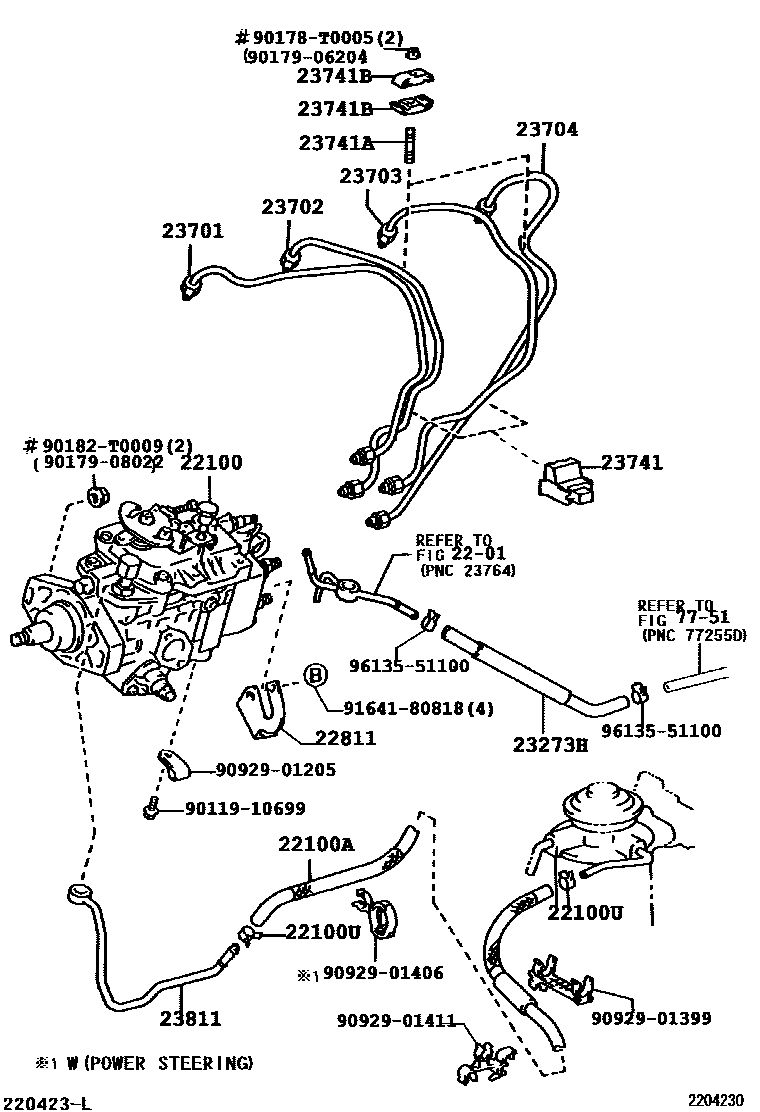

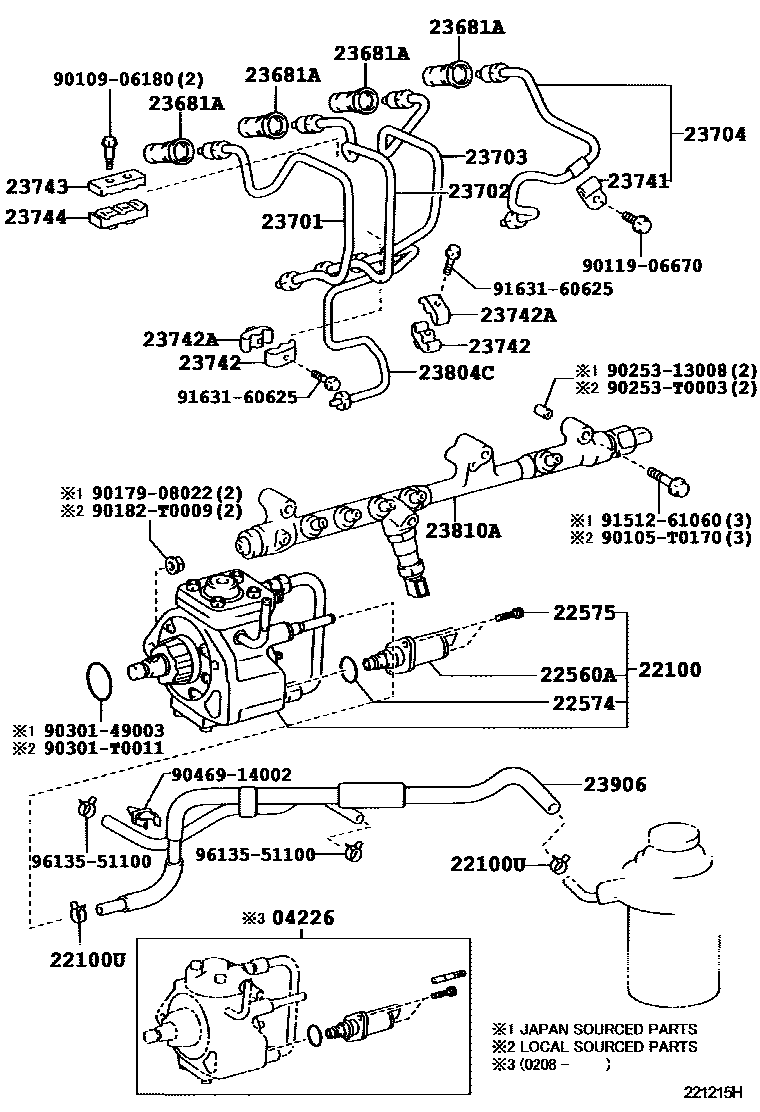

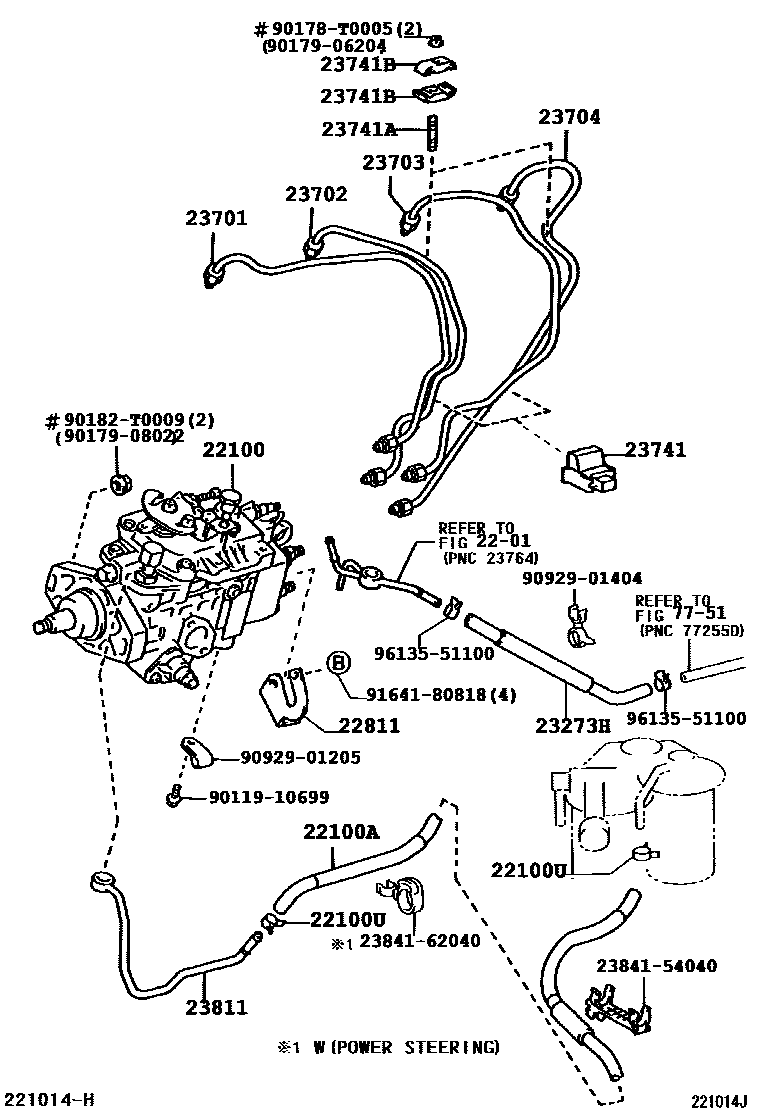

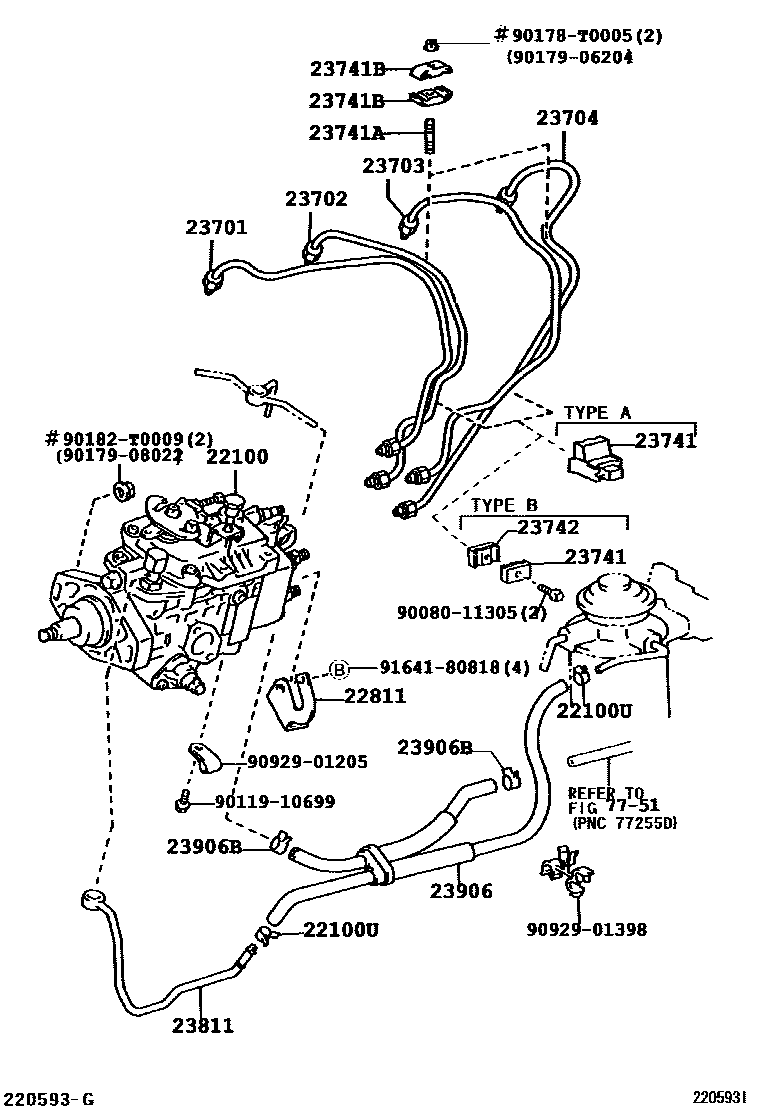

Toyota HILUX 喷油泵总成 — Figure 2202
Toyota HILUX EPC diagram 2202, 喷油泵总成, with 9 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04226 | Oil suction control valve assembly | 04226-0L020 · 04226-30020 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0L010 · 22100-30020 · 22100-30021 · 22100-54710 · 22100-54770 · 22100-54780 · 22100-54860 · 22100-5B510 · 22100-5B530 · 22100-5B590 · 22100-5B700 · 22100-5B710 · 22100-5B720 · 22100-5B740 · 22100-5B750 · 22100-5B770 · 22100-5B800 · 22100-5B820 · 22100-5D140 · 22100-5D150 · 22100-5D180 · 22100-67070 · 22100-67120 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-54100 · 23271-54140 · 23271-54150 · 23271-54160 · 23271-54180 · 23271-67120 |
| 22100U | Fuel hose clamp (for fuel injection pump) | 90467-13050 · 96135-51300 |
| 22560A | Oil suction control valve assembly | 22560-30020 |
| 22574 | Oil suction control solenoid valve gasket | 22574-30040 |
| 22575 | Oil suction control valve bolt | 22395-54270 |
| 22811 | No. 1 fuel injection pump bracket | 22811-05010 · 22811-05020 · 22811-54041 · 22811-54042 · 22811-67010 |
| 23273H | No. 2 fuel hose | 23273-54050 · 23273-54060 · 23273-54080 · 23273-67100 |
| 23681A | Injector body seal | 23681-0L010 · 23681-30010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-05010 · 23701-30010 · 23701-54140 · 23701-67021 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-05010 · 23702-30010 · 23702-54140 · 23702-67021 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-05011 · 23703-30010 · 23703-54100 · 23703-67031 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-05010 · 23704-09020 · 23704-39015 · 23704-54100 · 23704-67020 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-05010 · 23741-0L010 · 23741-30010 · 23741-54030 · 23741-64030 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90080-11036 · 90116-06095 |
| 23741B | Fuel injection pipe clamp | 23741-05020 · 23741-56010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-05010 · 23742-0L010 · 23742-0L011 · 23742-27010 · 23742-67010 |
| 23742A | No. 3 fuel injection pipe clamp | 23742-0L020 · 23742-0L021 · 23742-58020 |
| 23743 | No. 3 fuel injection pipe clamp | 23743-0L010 · 23743-0L011 · 23743-0L012 · 23743-30010 · 23743-30011 |
| 23744 | No. 4 fuel injection pipe clamp | 23743-0L020 · 23743-0L021 · 23743-30020 · 23743-30021 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-30020 |
| 23810A | Common rail assembly | 23810-30070 · 23810-30071 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-05022 · 23811-54151 · 23811-67050 |
| 23906 | Fuel hose sub-assembly | 23906-30030 · 23906-30040 · 23906-30050 · 23906-30060 · 23906-54090 · 23906-54101 · 23906-54102 |
| 23906B | Hose clip (for fuel hose) | 96135-41100 · 96135-51100 |
