Toyota HILUX 喷油嘴 — Figure 2201

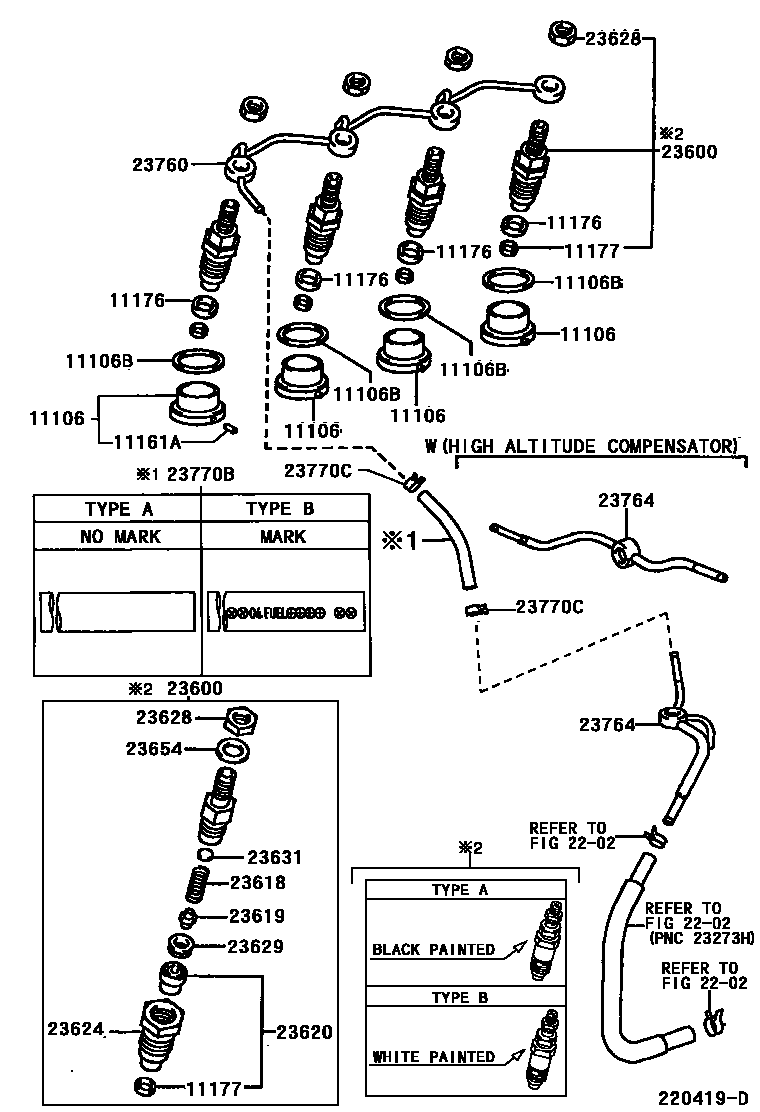

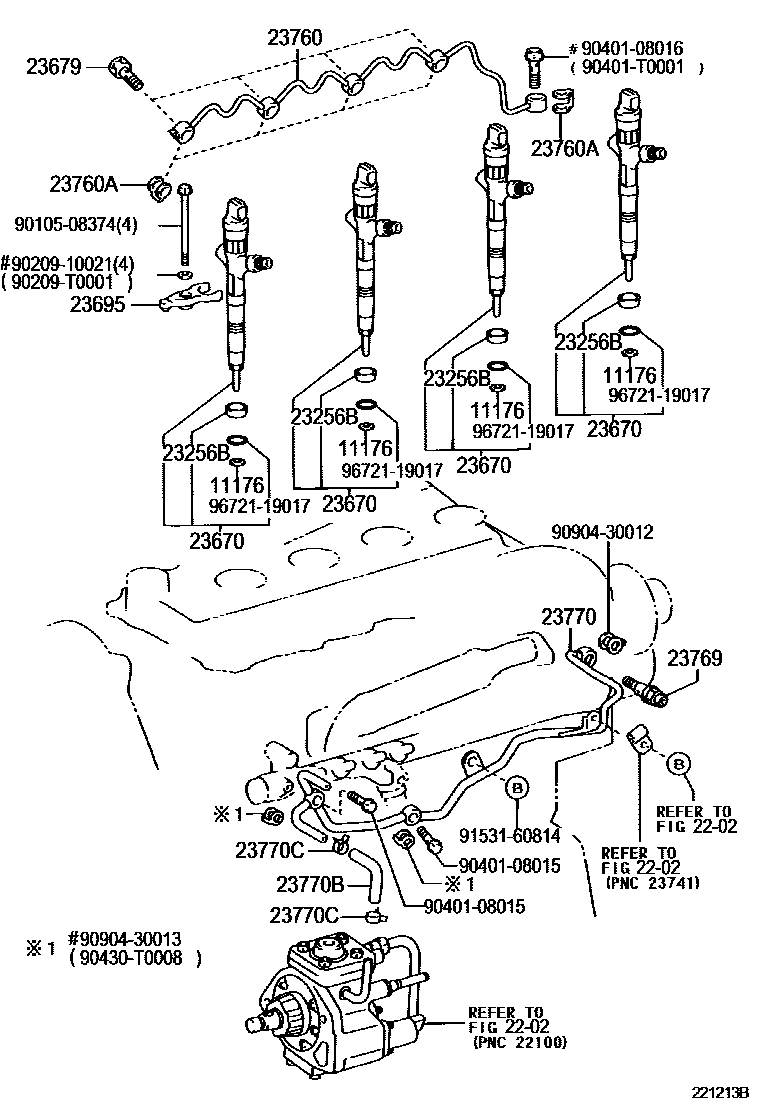

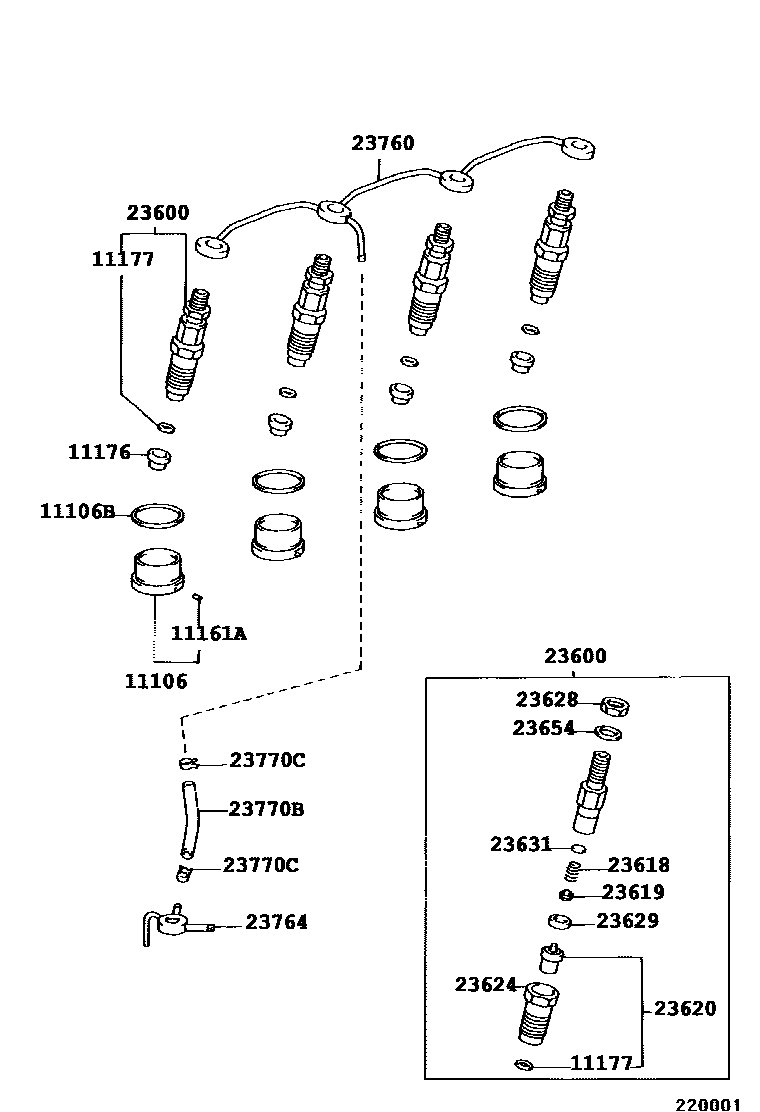

Toyota HILUX EPC diagram 2201, 喷油嘴, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11106 | Combustion chamber sub-assembly | 11106-05010 · 11106-05020 · 11106-54060 · 11106-54100 · 11106-54120 · 11106-54150 · 11106-54170 · 11106-54171 · 11106-67021 · 11106-67052 |
| 11106B | Gasket (for combustion chamber) | 11165-54030 · 11165-67030 · 11166-67030 |
| 11161A | Direct sales (for combustion chamber) | 90250-02046 |
| 11176 | Injector seat | 11176-05010 · 11176-0L010 · 11176-30010 · 11176-64010 · 11176-67011 |
| 11177 | Injector seat gasket | 11177-54020 · 11177-64010 |
| 23256B | No. 1 injector retaining ring | 23256-30010 |
| 23600 | Injector body and injector assembly | 23600-59105 · 23600-59255 · 23600-59265 · 23600-59266 · 23600-59275 · 23600-59315 · 23600-59325 · 23600-69105 · 23600-69165 |
| 23618 | Injector body pressure adjustment spring | 23618-54080 · 23618-54730 · 23618-64080 |
| 23619 | Injector body compression pin | 23619-64010 |
| 23620 | Fuel injector assembly | 23620-59045 · 23620-59095 · 23620-59115 · 23620-59125 · 23620-69075 · 23620-69105 · 23620-69115 |
| 23624 | Fuel injector fixing nut | 23624-64040 · 23624-64041 |
| 23628 | Nut (for fixing the sealing ring) | 23628-64010 |
| 23629 | Spacer (for fuel injector) | 23629-54080 |
| 23631 | Washer (for injector body pressure adjustment spring) | 23631-64010 · 23631-64012 · 23631-64014 · 23631-64016 · 23631-64018 · 23632-64010 · 23632-64012 · 23632-64014 · 23632-64016 · 23632-64018 · 23633-64010 · 23633-64012 · 23633-64014 · 23633-64016 · 23633-64018 · 23634-64010 · 23634-64012 · 23634-64014 · 23634-64016 · 23634-64018 · 23635-64010 · 23635-64012 |
| 23654 | Gasket (for sealing ring) | 23654-64010 |
| 23670 | Fuel injector assembly | 23670-39035 · 23670-39065 |
| 23679 | Fuel injector hollow screw | 23679-27020 |
| 23695 | No. 1 injector body clamp | 23695-0L010 · 23695-30010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-05010 · 23760-0L010 · 23760-30020 · 23760-54030 · 23760-67030 |
| 23760A | padding | 90430-T0008 · 90904-30013 |
| 23764 | No. 4 fuel injector overflow pipe | 23764-05010 · 23764-05011 · 23764-54080 · 23764-54090 · 23764-54110 · 23764-54130 · 23764-67010 |
| 23769 | fuel check valve | 23769-30010 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-0L010 · 23770-30030 · 23770-30031 |
| 23770B | fuel hose | 90082-53003 |
| 23770C | Clip or clip (for fuel hose assembly) | 90466-T0043 · 90467-10049 · 90467-10149 · 96132-51000 · 96133-41000 · 96135-51100 |
