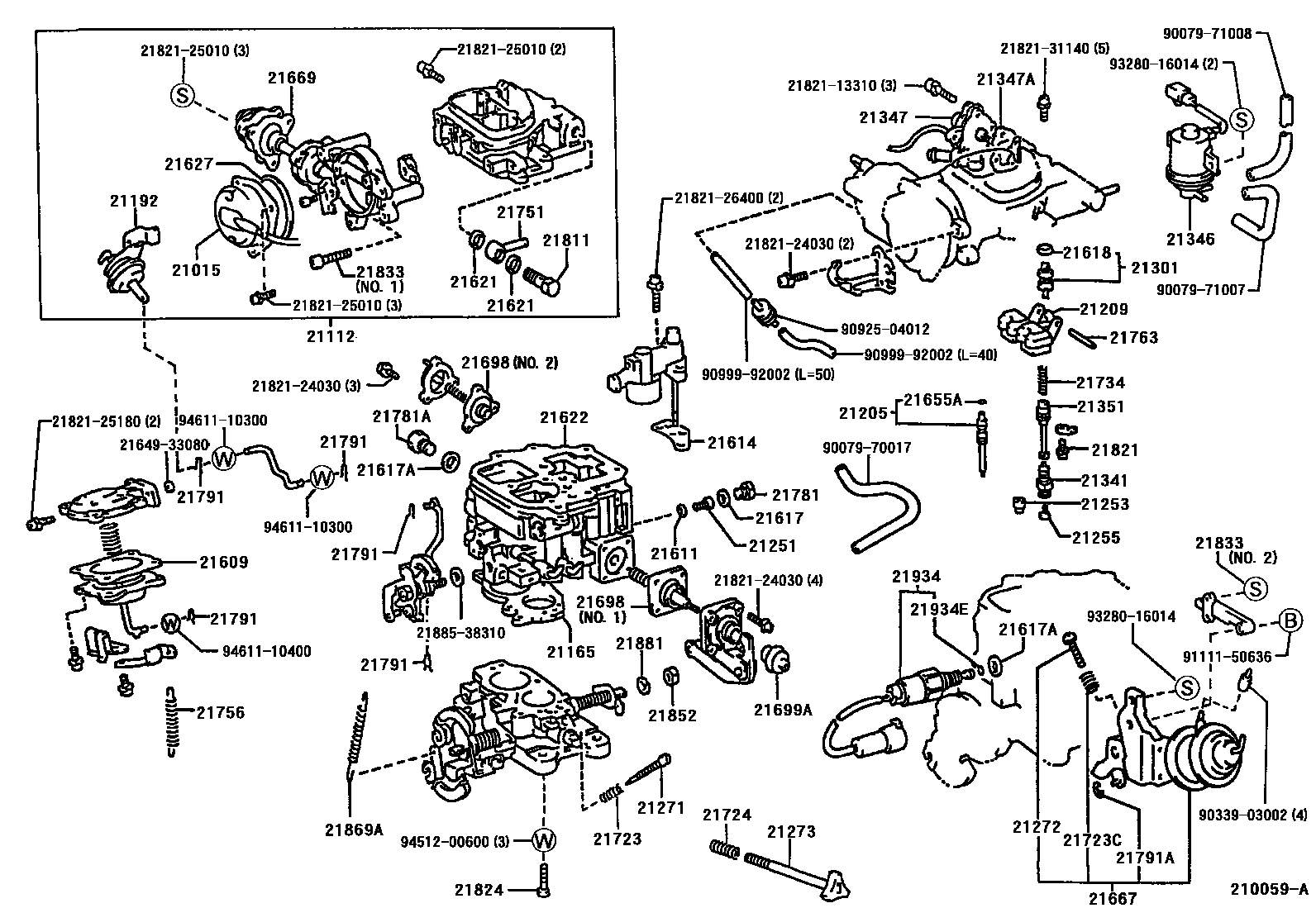

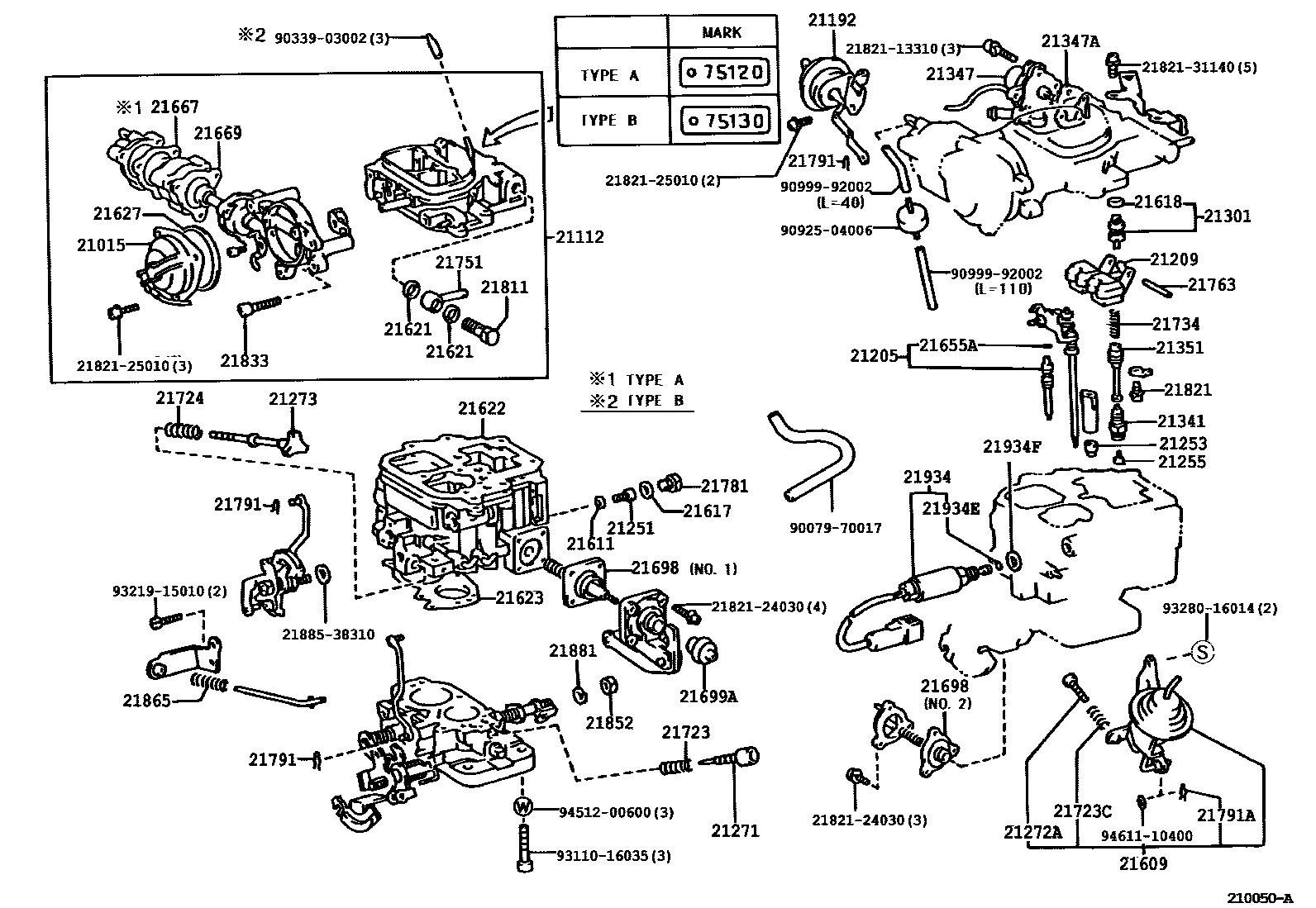

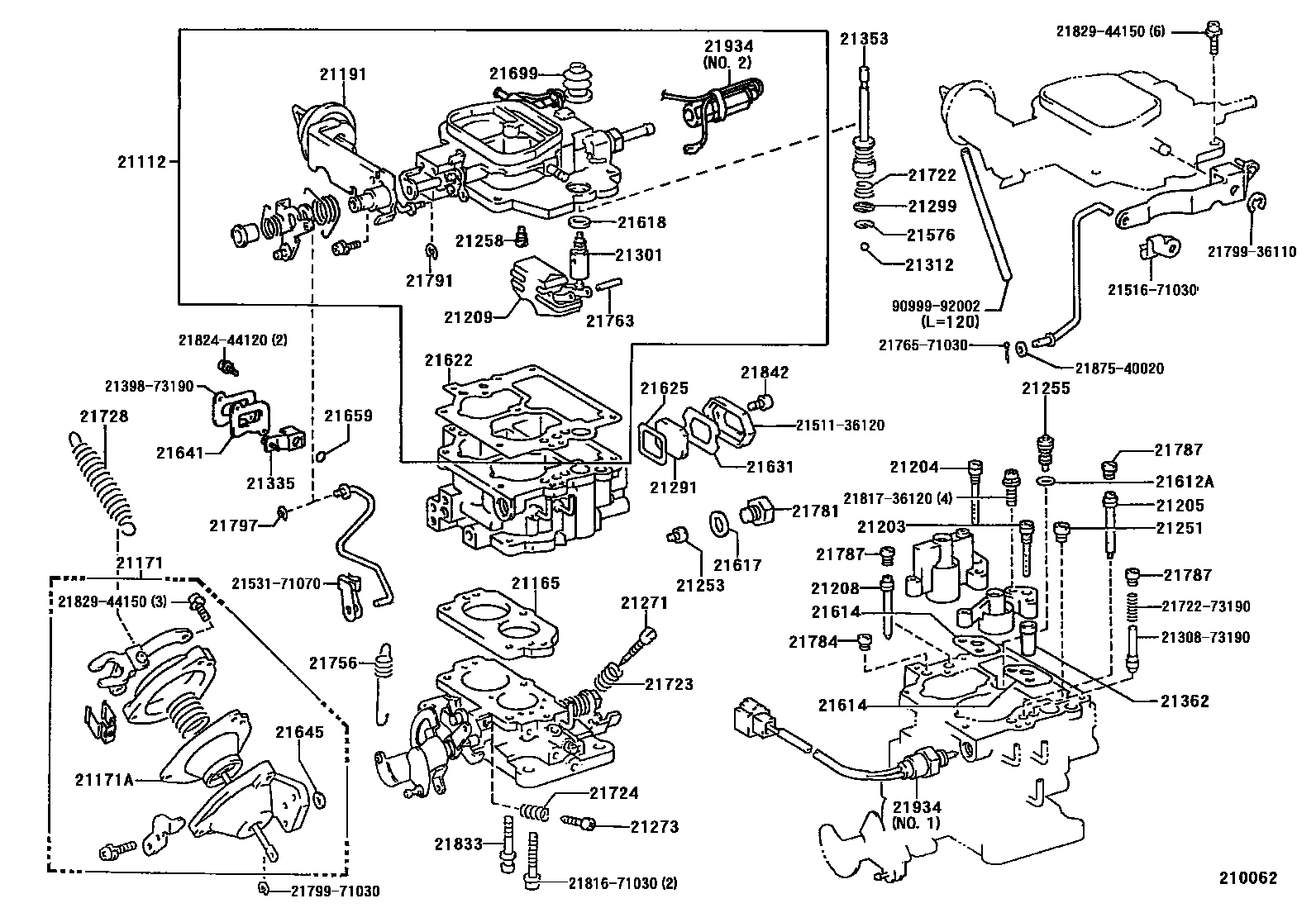

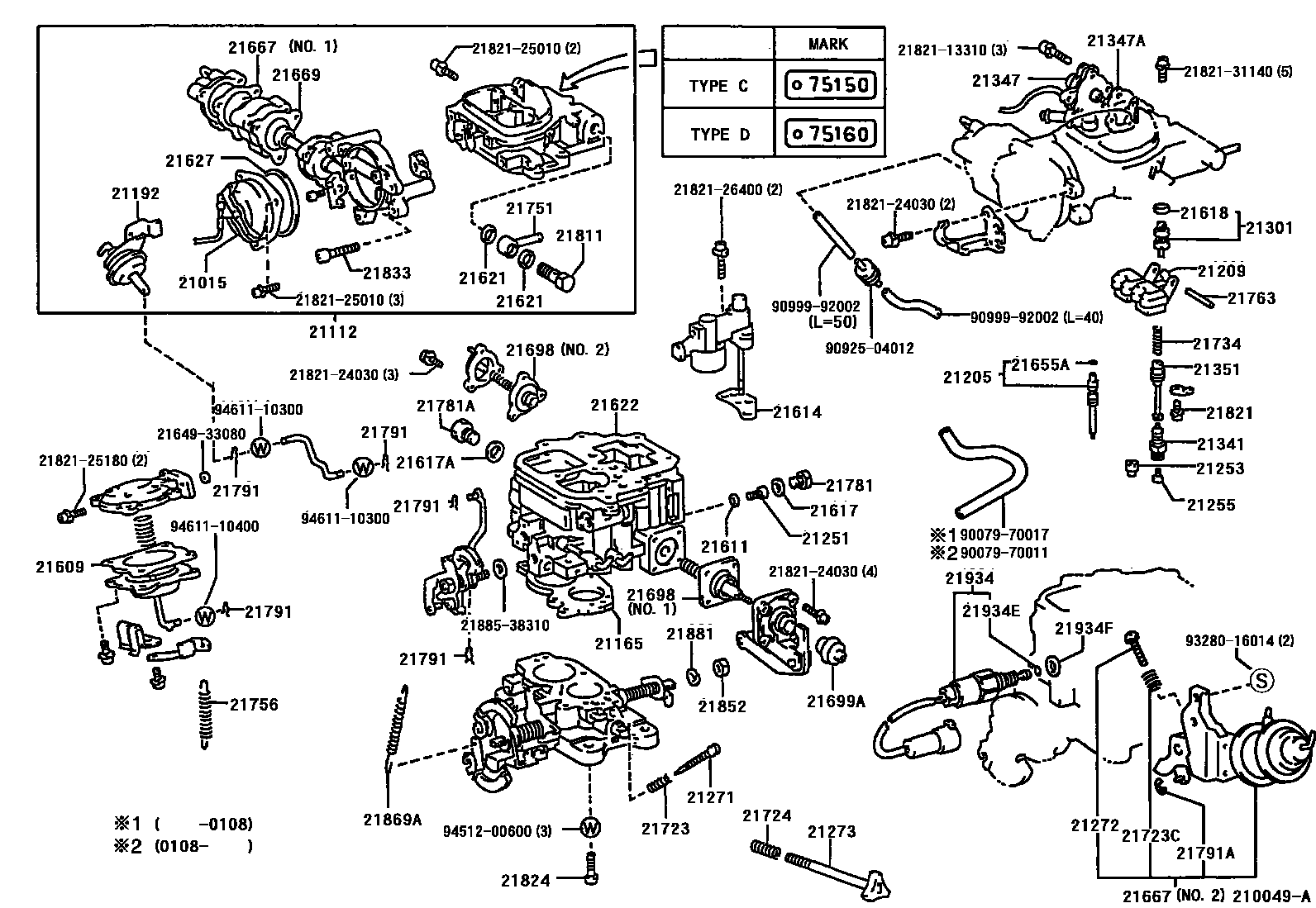

Toyota HILUX 化油器 — Figure 2103
Toyota HILUX EPC diagram 2103, 化油器, with 4 images and 83 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-75110 · 21015-75150 |
| 21112 | Air intake bell mouth | 21012-72440 · 21112-75120 · 21112-75130 · 21112-75150 · 21112-75160 · 21112-75170 |
| 21165 | Vibration isolation pad | 21106-72250 · 21165-72200 |
| 21171 | diaphragm chamber | 21171-72440 |
| 21171A | Diaphragm (for diaphragm chamber) | 21173-71030 |
| 21191 | opener | 21039-72280 |
| 21192 | breaker | 21192-73300 · 21192-75080 |
| 21203 | First main bleed device sub-assembly | 21203-72340 |
| 21204 | Second main bleed device sub-assembly | 21204-72390 |
| 21205 | Idle speed measuring hole assembly | 21205-72210 · 21205-75111 · 21205-75150 |
| 21208 | Stepped fuel volume hole sub-assembly | 21205-73400 |
| 21209 | Float sub-assembly | 21209-37041 · 21209-72160 · 21209-73110 |
| 21251 | first main measuring hole | 21244-73260 · 90999-41105 · 90999-41135 |
| 21253 | Deputy main measuring hole | 21253-37040 · 21253-73110 · 21253-73230 |
| 21255 | Power measuring hole | 21302-73190 · 90999-43060 |
| 21258 | Idle speed measuring hole | 21249-72210 |
| 21271 | Idle speed adjustment screw | 21271-15230 · 21271-26440 · 21271-71030 |
| 21272 | First gear idle speed adjustment screw | 21272-71010 |
| 21272A | Adjustment screw | 21272-71010 |
| 21273 | Throttle adjustment screw | 21272-72250 · 21273-74090 · 21273-75010 |
| 21291 | oil level gauge glass | 21291-36120 |
| 21299 | pump filter strainer | 21299-31030 |
| 21301 | Needle valve sub-assembly | 21301-37040 · 21301-71030 · 21301-75080 |
| 21312 | steel ball | 21312-40020 |
| 21335 | thermostat valve | 21038-71030 |
| 21341 | enrichment valve | 21304-30010 · 21304-61060 |
| 21346 | Auxiliary idle speed shut-off valve | 21346-75170 |
| 21347 | Solenoid valve | 21347-75080 · 21347-75150 · 21347-75170 |
| 21347A | Gasket (for solenoid valve) | 21641-35510 |
| 21351 | enrichment piston | 21351-37040 · 21351-73390 |
| 21353 | pump plunger | 21305-72390 |
| 21362 | First gear main slot sleeve | 21362-71030 |
| 21576 | Pump filter clip | 21576-31030 |
| 21609 | Diaphragm sub-assembly | 21609-75120 · 21609-75150 |
| 21611 | Main gage hole gasket | 21611-22010 · 21611-30010 |
| 21612A | Power gauge hole gasket | 21612-31100 |
| 21614 | Venturi gasket | 21614-72200 · 21614-72331 |
| 21617 | Main oil gallery plug gasket | 21617-30010 · 21633-44150 |
| 21617A | No. 2 main oil gallery plug gasket | 21617-10010 · 21649-38010 |
| 21618 | Needle seat gasket | 21618-14010 · 21637-71030 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-72200 · 21622-72250 · 21622-75080 |
| 21623 | Body hem pads | 21623-75080 |
| 21625 | oil level gauge gasket | 21625-36120 |
| 21627 | Coil housing gasket | 21627-28150 |
| 21631 | main duct gasket | 21631-36120 |
| 21641 | Gasket (for thermostat valve cover) | 21626-73190 |
| 21645 | Diaphragm cover gasket | 21638-71030 |
| 21655A | O-ring (for idle speed measuring hole) | 21655-11040 |
| 21659 | O-ring (for thermostat valve) | 21655-31100 |
| 21667 | Diaphragm | 21667-72301 · 21667-75120 · 21667-75151 |
| 21669 | Diaphragm | 21669-75100 |
| 21698 | Diaphragm | 21667-35510 · 21667-73330 · 21675-35510 |
| 21699 | Dust boot (for pump plunger) | 21656-71030 |
| 21699A | Dust boot (for accelerator pump) | 21699-37040 |
| 21722 | Pump damping spring | 21735-71030 |
| 21723 | Idle speed adjustment spring | 21723-21030 · 21723-30030 |
| 21723C | Idle speed adjustment spring | 21723-11041 |
| 21724 | Throttle valve adjustment spring | 21723-38330 · 21723-71030 |
| 21728 | Throttle return spring | 21728-73190 |
| 21734 | Thickening piston spring | 21734-18010 · 21734-33081 |
| 21751 | Oil pipe joint | 21894-71010 |
| 21756 | Return spring (for throttle shaft) | 21727-73190 · 21756-75010 |
| 21763 | floating lever pin | 21763-34320 · 21763-73390 · 21768-73110 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21776-72390 · 21781-15230 · 21781-16510 |
| 21781A | No. 2 main oil gallery plug (for carburetor measuring hole) | 21781-72151 |
| 21784 | Idle oil passage plug | 21249-72390 |
| 21787 | Acceleration nozzle plug | 21776-73190 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 · 21797-44050 |
| 21791A | snap ring | 21791-13010 |
| 21797 | No. 4 snap ring (for carburetor connecting rod) | 21797-44050 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21821 | Second throttle fixing screw | 21821-15060 |
| 21824 | Set screw (for first idle cam lifter assembly) | 21844-26400 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21804-71030 · 21833-33010 · 21833-60012 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21832-36120 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21865 | spring | 21864-31400 |
| 21869A | Spring (for throttle) | 21869-71110 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-75110 · 21391-72440 · 21392-72440 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21649-38010 |
