Toyota HILUX carburetor assembly — Figure 2102

Toyota HILUX EPC diagram 2102, carburetor assembly, with 2 images and 4 PNC and OE references.

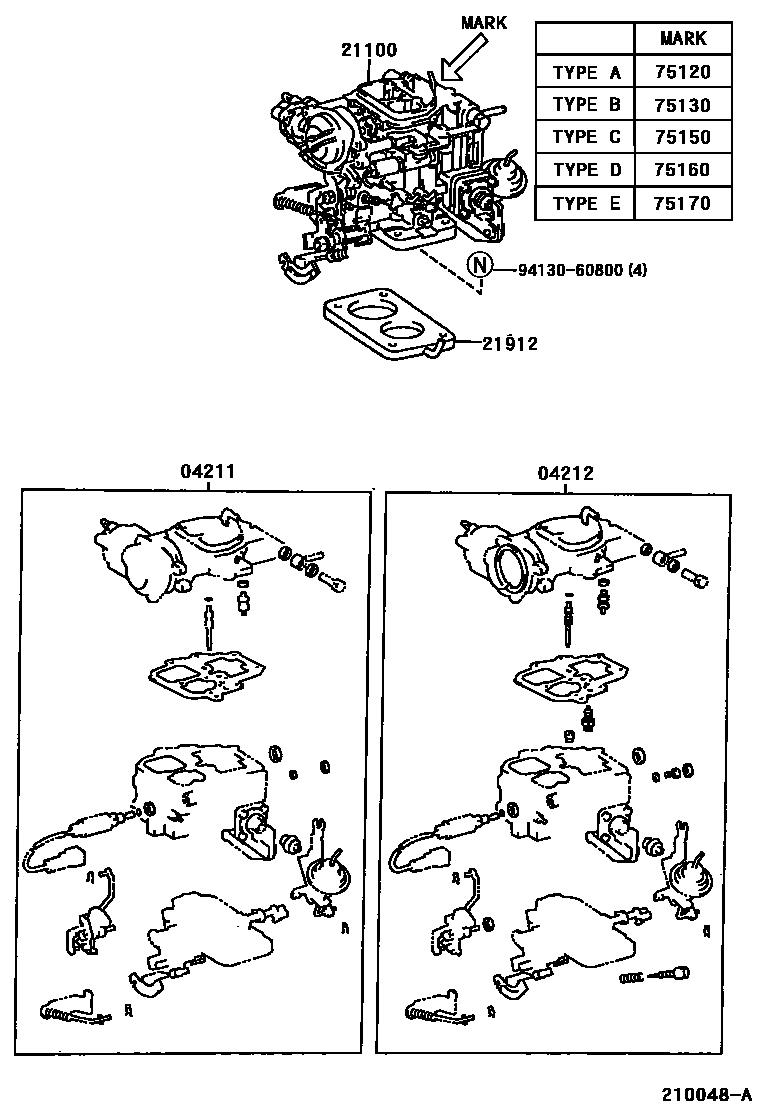

Toyota HILUX carburetor assembly EPC diagram — 210048A
carburetor assembly — 210048A (199708 – 999999)

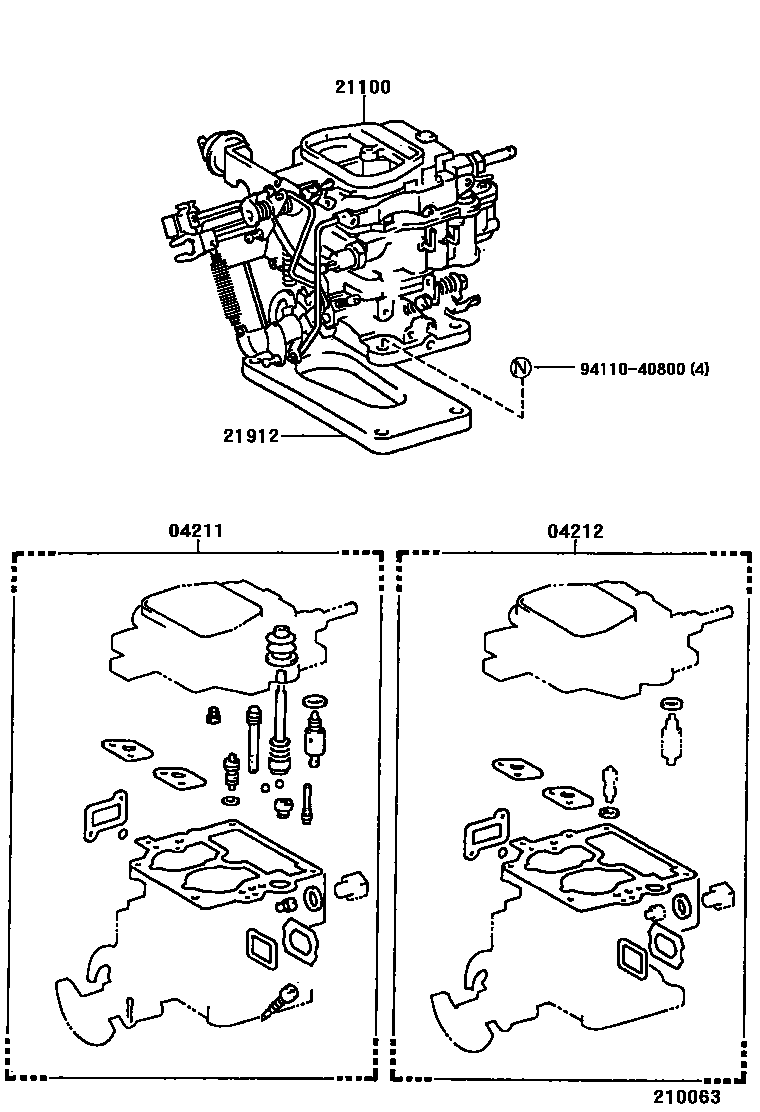

Toyota HILUX carburetor assembly EPC diagram — 210063
carburetor assembly — 210063 (199808 – 999999)

PNC and OE references

PNCPart nameOE numbers
04211carburetor components04211-72390 · 04211-75120 · 04211-75130 · 04211-75150 · 04211-75160 · 04211-75170
04212carburetor gasket assembly04212-73110 · 04212-73130 · 04212-75011 · 04212-75080
21100carburetor assembly21100-72440 · 21100-75120 · 21100-75130 · 21100-75150 · 21100-75160 · 21100-75170
21912Carburetor insulation pad21912-73020 · 21912-75010 · 21912-75020
