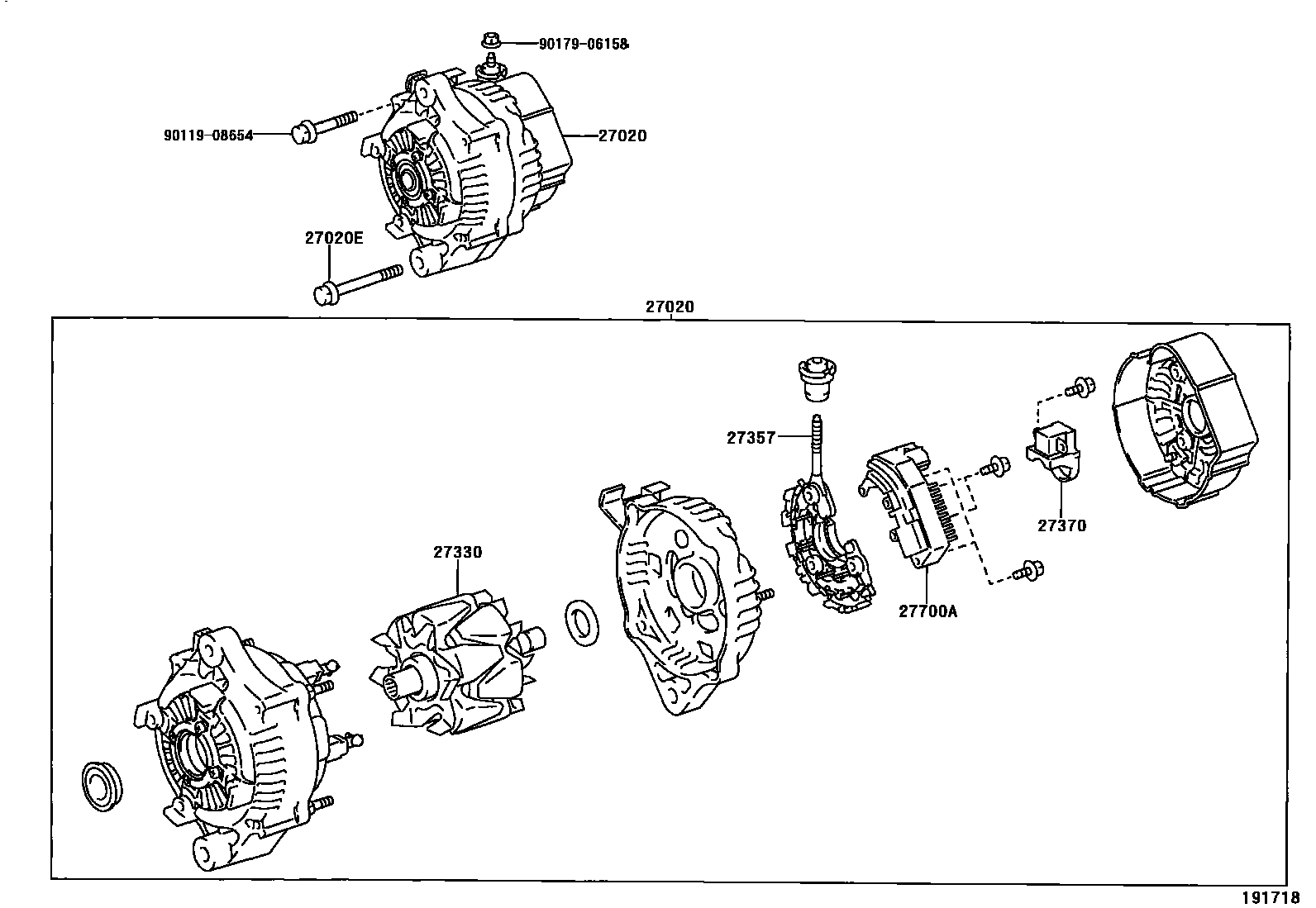

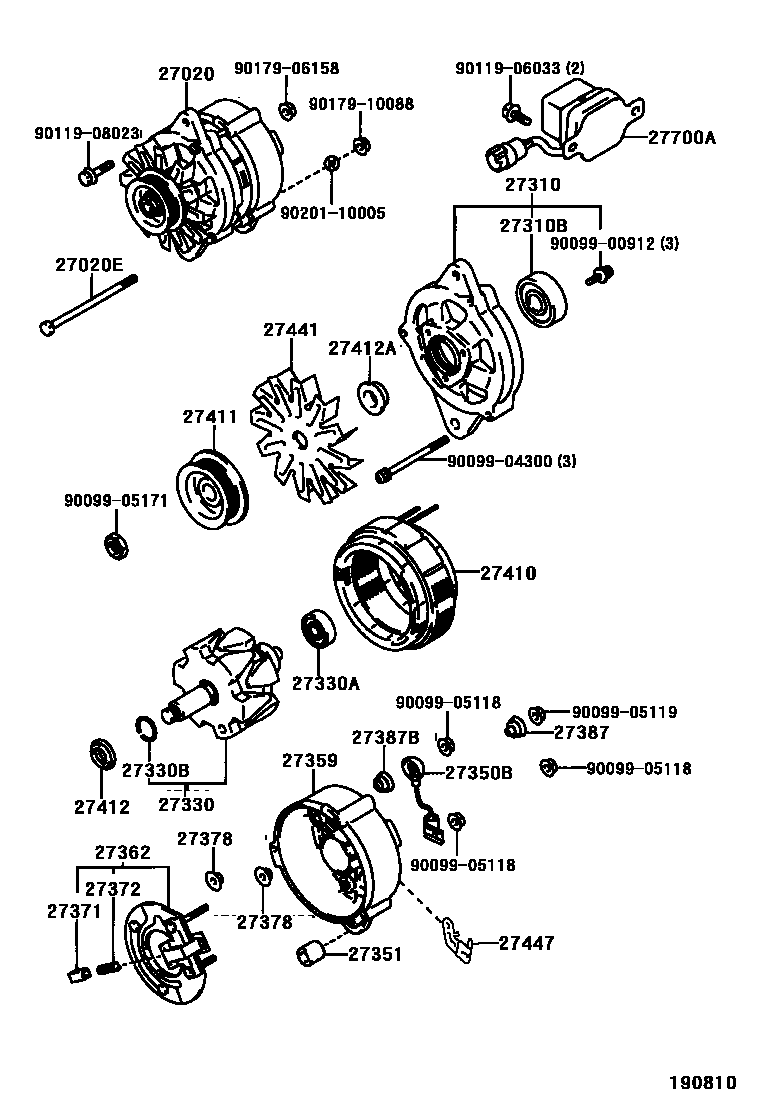

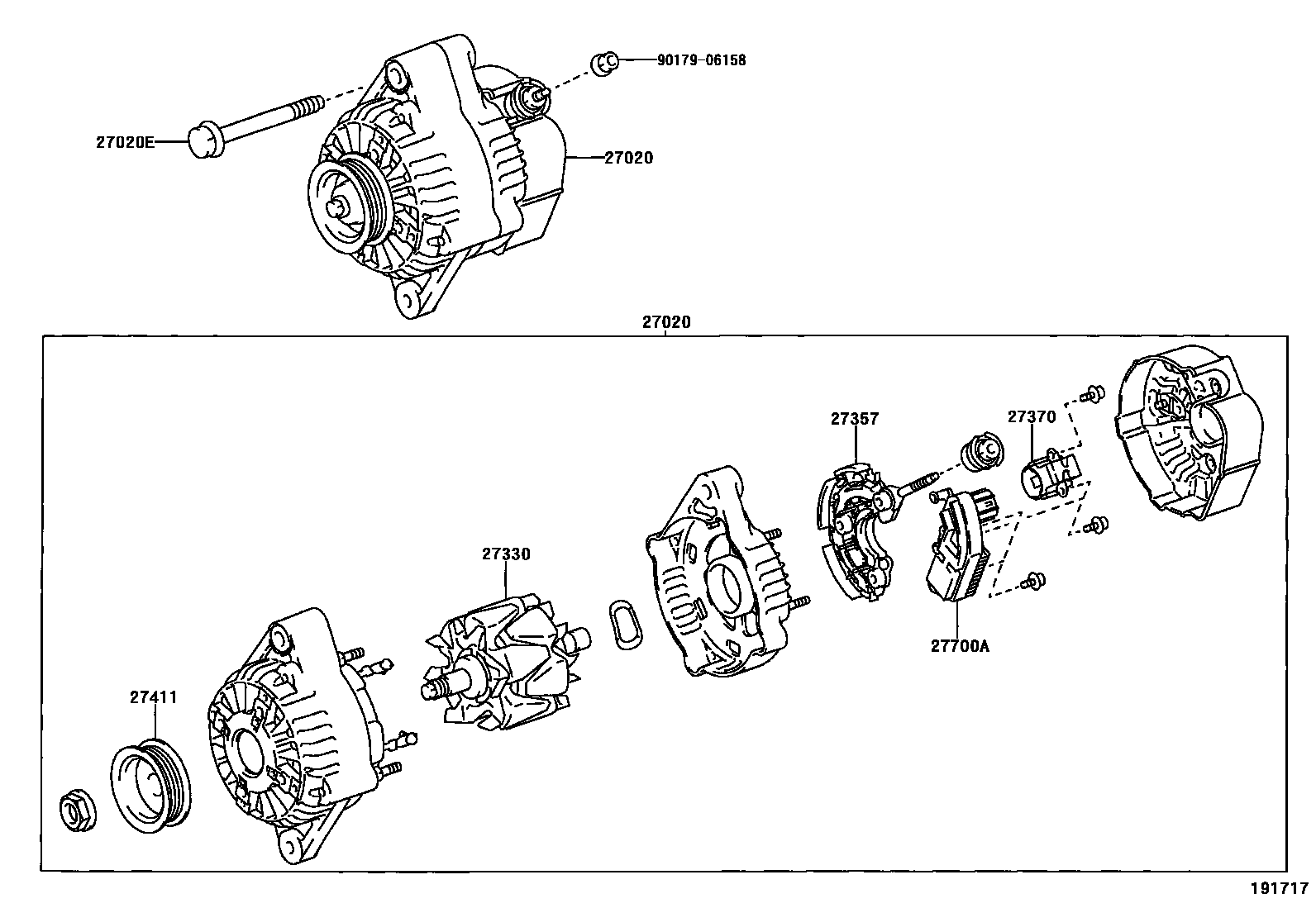

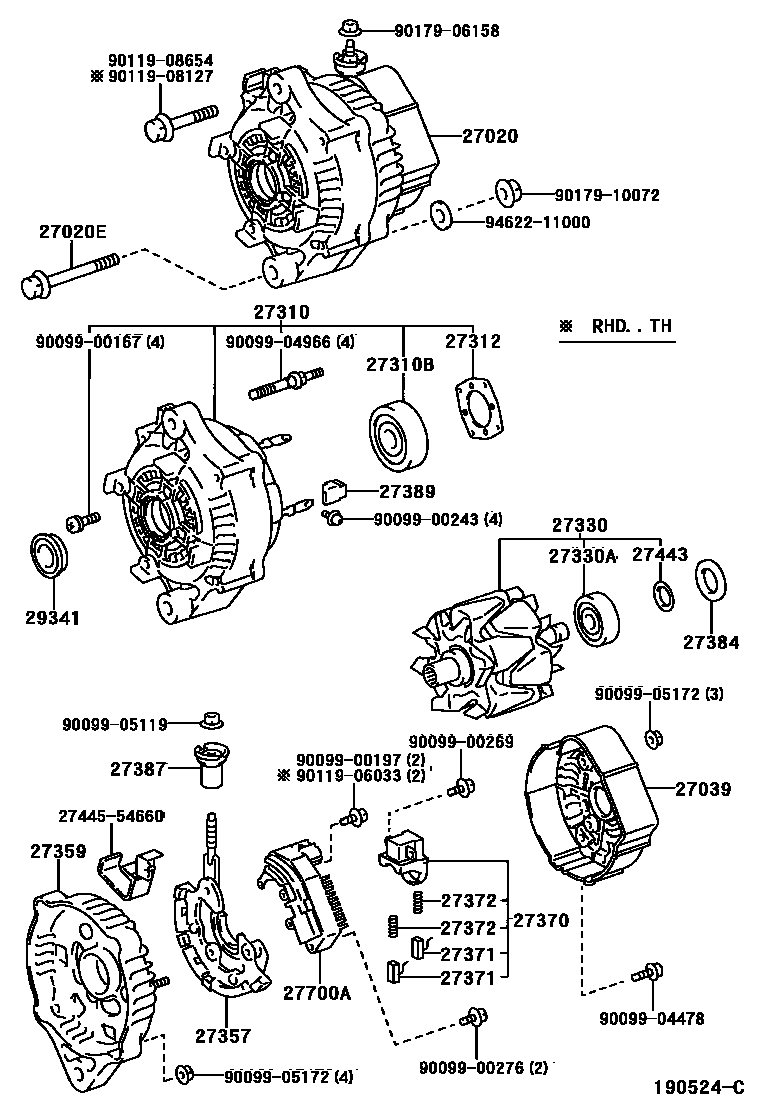

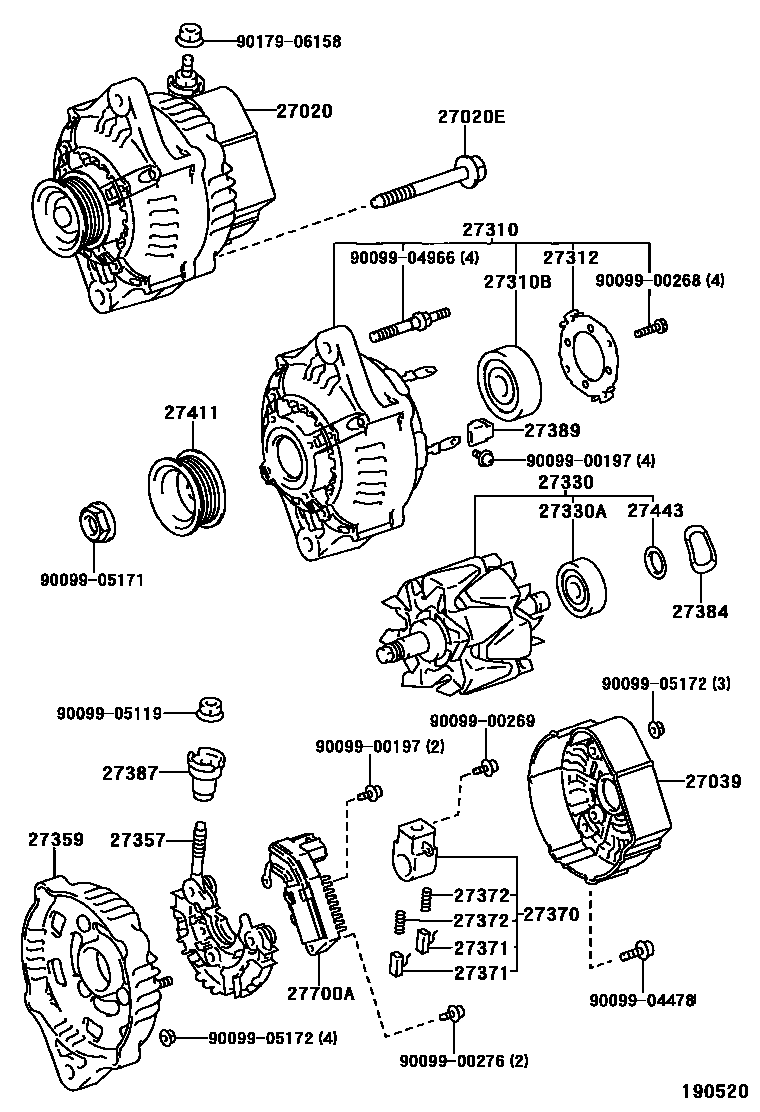

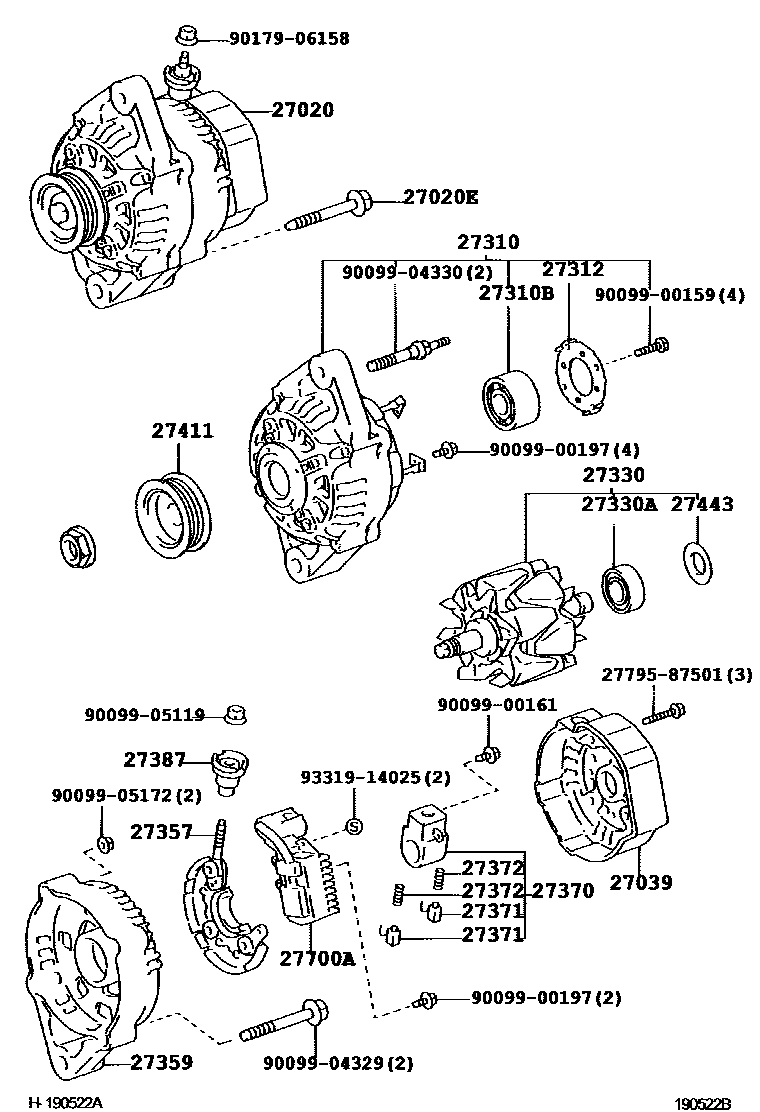

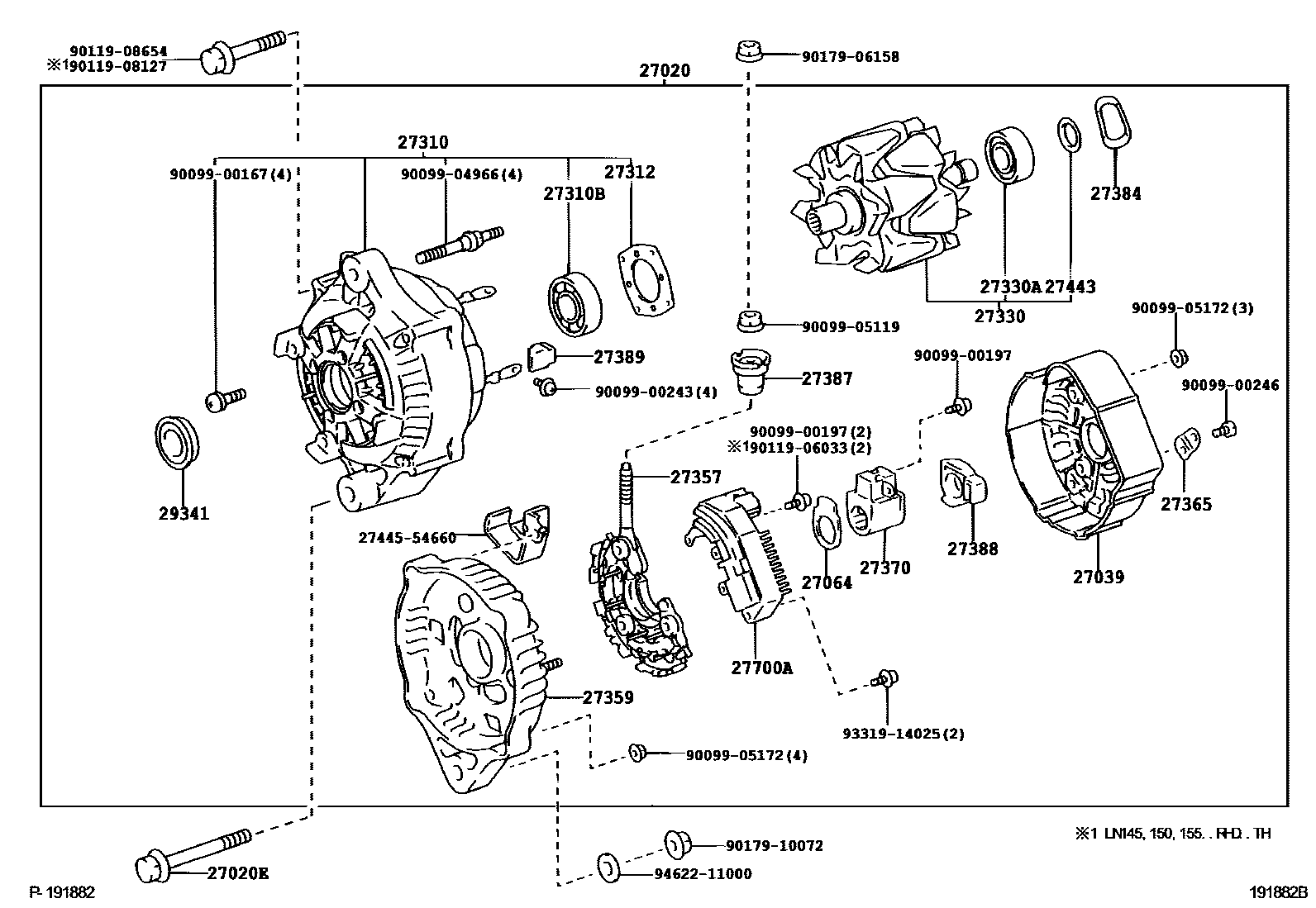

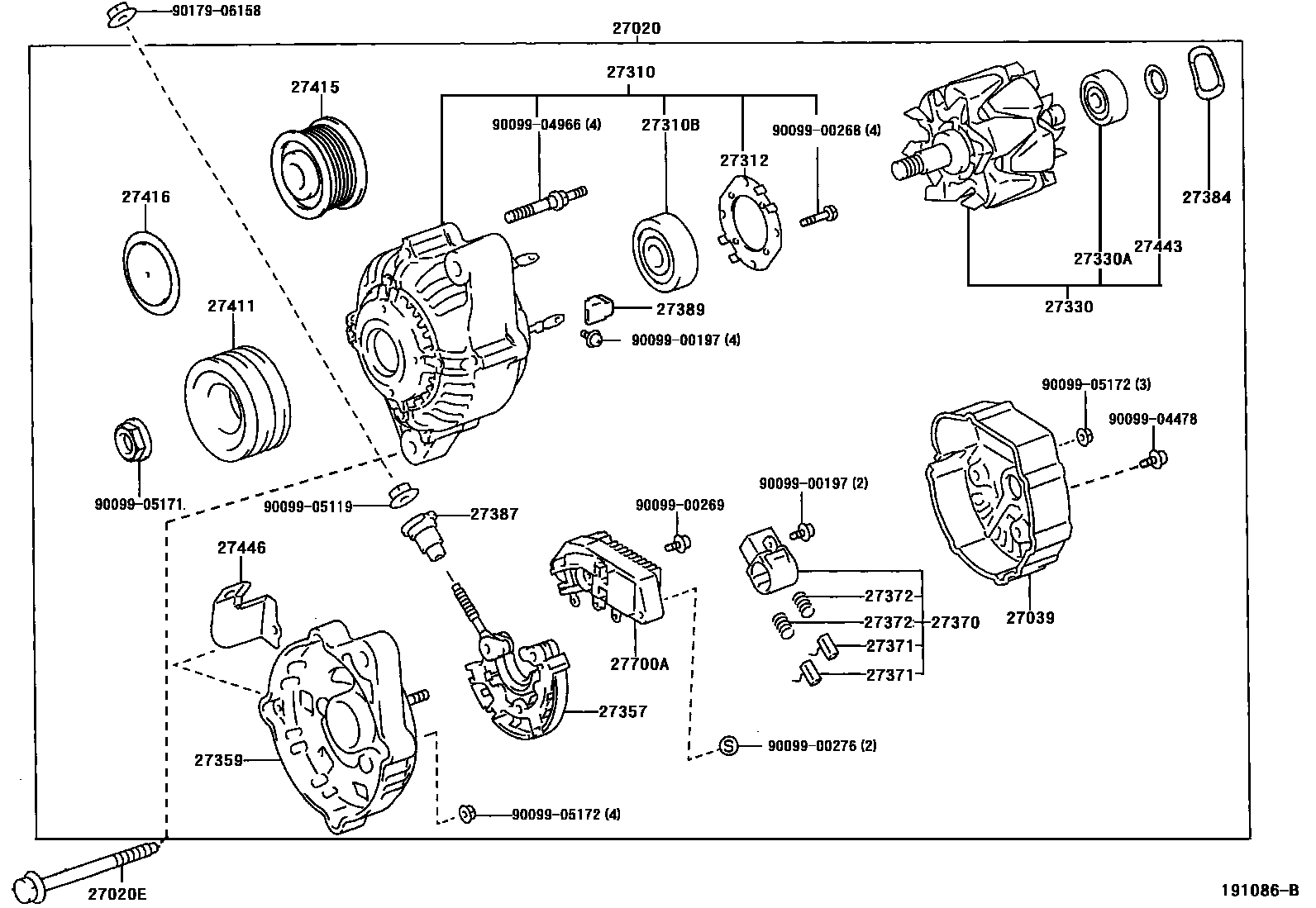

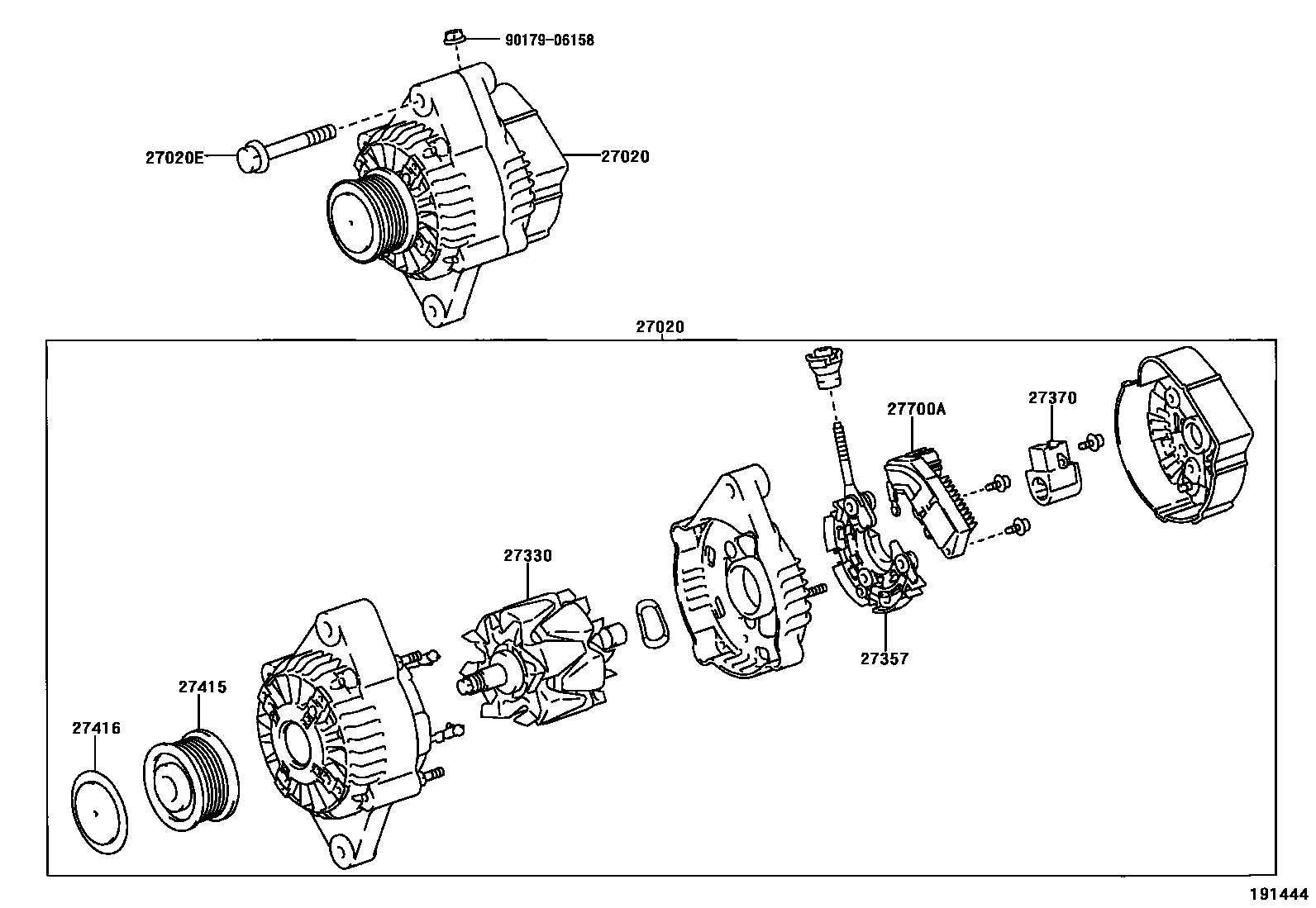

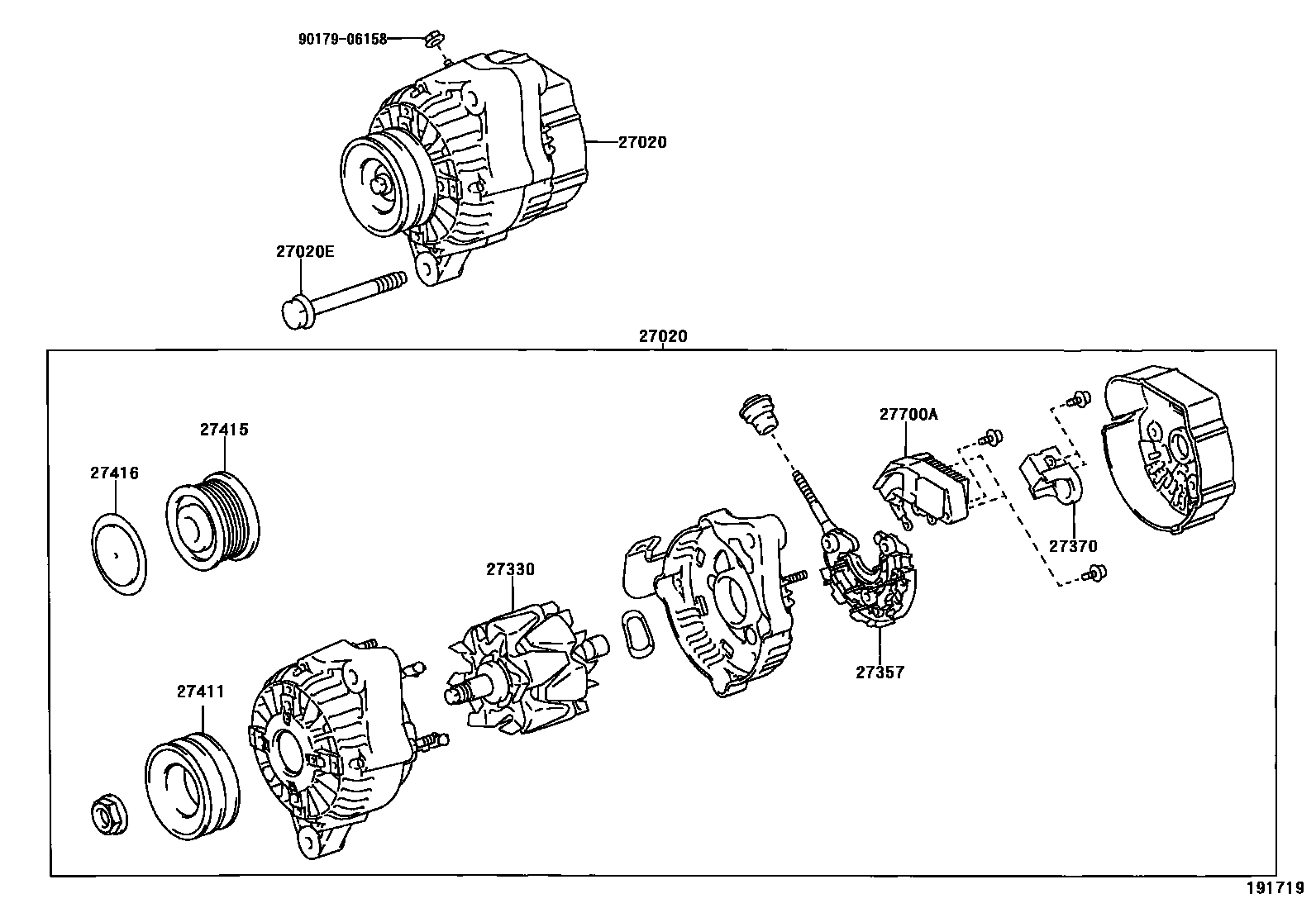

Toyota HILUX Alternator — Figure 1903
Toyota HILUX EPC diagram 1903, Alternator, with 12 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-72030 · 27060-30020 · 27060-54280 · 27060-54290 · 27060-54410 · 27060-54440 · 27060-62190 · 27060-67110 · 27060-67170 · 27060-75150 · 27060-75180 · 27060-75190 |
| 27020E | Bolts (for generator) | 90101-10156 · 90101-10231 · 90105-10092 · 90105-10101 · 90105-10221 · 90105-10239 · 90105-10287 |
| 27039 | Alternator Rear End Cover | 27039-11190 · 27039-16380 · 27039-67100 · 27039-70470 |
| 27064 | Generator sealing plate | 27064-42010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-54440 · 27310-54630 · 27310-54880 · 27310-67020 · 27310-67100 · 27310-72030 · 27310-75020 · 27310-75040 · 27310-75160 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10142 · 90099-10165 · 90099-10178 · 90099-10198 · 90099-10199 |
| 27312 | Retainer Plate | 27312-64130 · 27312-70200 · 27312-72100 · 27312-72120 |
| 27330 | Alternator Rotor Assembly | 27330-11160 · 27330-11250 · 27330-26050 · 27330-54860 · 27330-64130 · 27330-64190 · 27330-67100 |
| 27330A | Bearings (for generator rotor) | 90099-10116 · 90099-10140 · 90099-10154 · 90099-10216 |
| 27330B | Snap ring (for generator rotor) | 90099-07048 |
| 27350B | generator capacitor | 90099-52034 · 90099-52065 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-38051 |
| 27357 | Generator rectifier frame | 27357-11160 · 27357-13360 · 27357-16380 · 27357-23040 · 27357-67100 |
| 27359 | Generator rectifier end frame | 27359-16182 · 27359-54420 · 27359-67022 · 27359-67100 · 27359-72030 · 27359-72150 · 27359-75160 |
| 27362 | Rectifier assembly with brushes | 27362-18011 |
| 27365 | terminal board | 27365-55080 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-58320 · 27370-75060 |
| 27371 | Generator brushes | 27371-31011 · 27371-70300 |
| 27372 | Generator brush spring | 27372-31011 · 27372-87501 |
| 27378 | Generator No. 1 insulation pad | 27378-15030 |
| 27384 | Washer | 27384-16380 · 27384-50030 |
| 27387 | Terminal Insulator | 27387-10081 · 27387-42021 · 27387-45022 · 27387-70171 |
| 27387B | Generator terminal insulation pad | 27387-45110 |
| 27388 | Generator brush cover | 27388-42010 |
| 27389 | Terminal Insulator | 27389-42010 · 27389-63020 |
| 27410 | Generator stator assembly | 27410-38120 |
| 27411 | Alternator Pulley | 27411-16150 · 27411-67020 · 27411-70200 · 27411-72040 · 27411-72120 |
| 27412 | Isolator collar (for generator pulley) | 27412-15100 |
| 27412A | Isolation collar (for generator drive end cover) | 27412-16040 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-30020 |
| 27416 | Generator pulley cover | 27416-30010 |
| 27441 | generator fan | 27441-34030 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446 | Generator clamp | 27446-46230 |
| 27447 | Generator clamp | 27447-72040 |
| 27700A | Generator voltage regulator assembly | 27700-13120 · 27700-30070 · 27700-50030 · 27700-62030 · 27700-72030 · 27700-75020 |
| 29341 | Generator oil seal | 29341-64130 |
