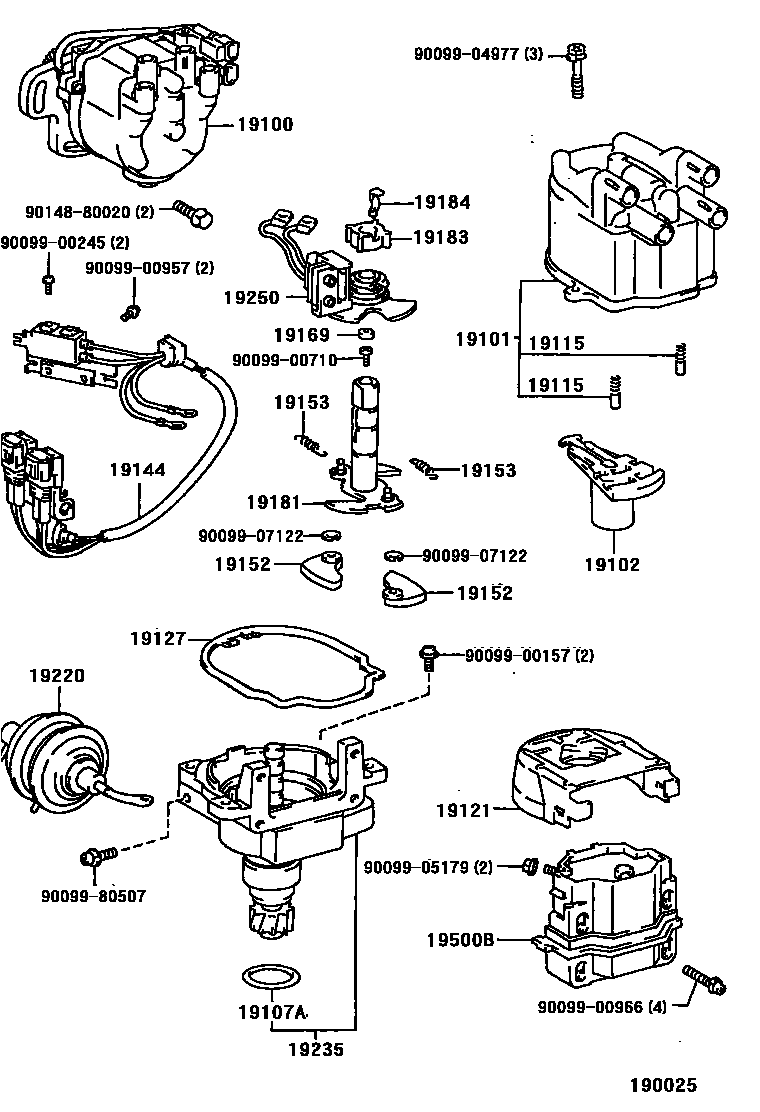

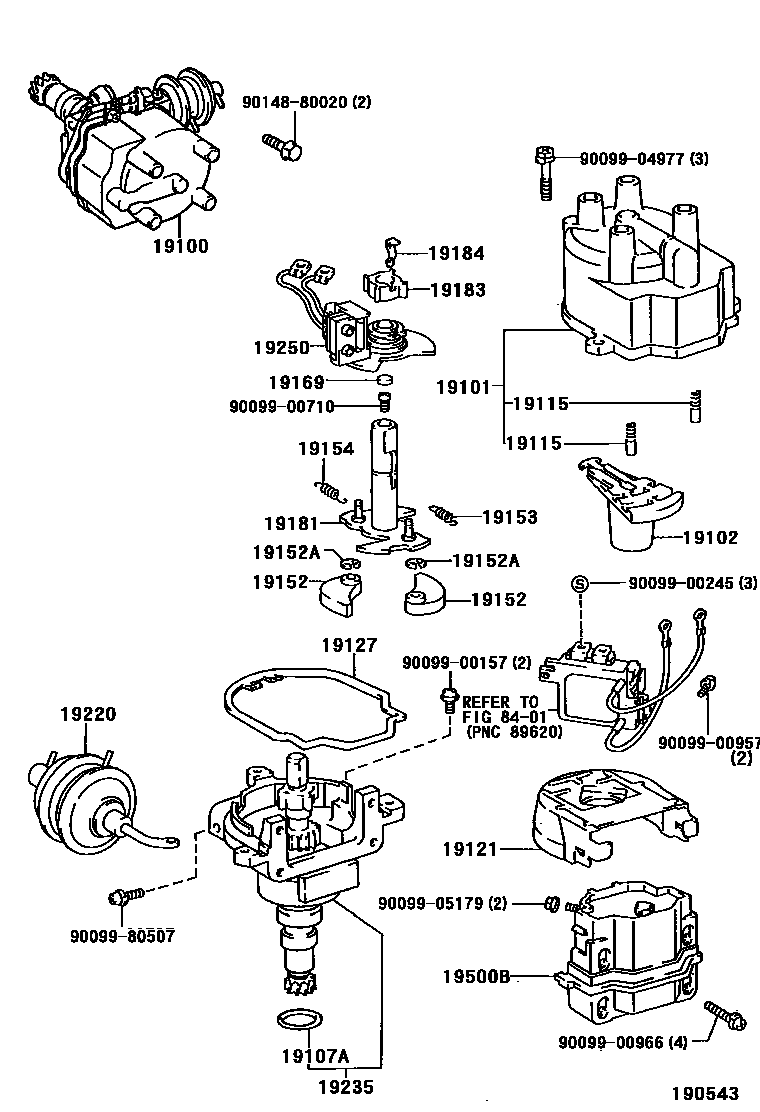

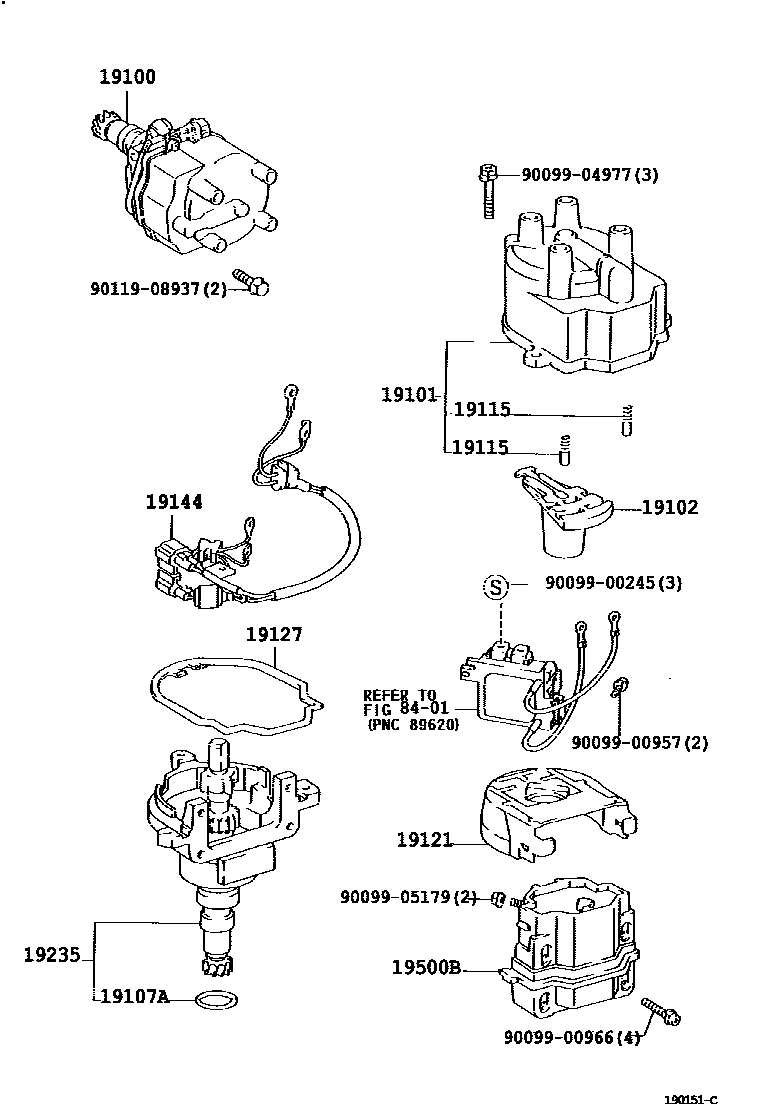

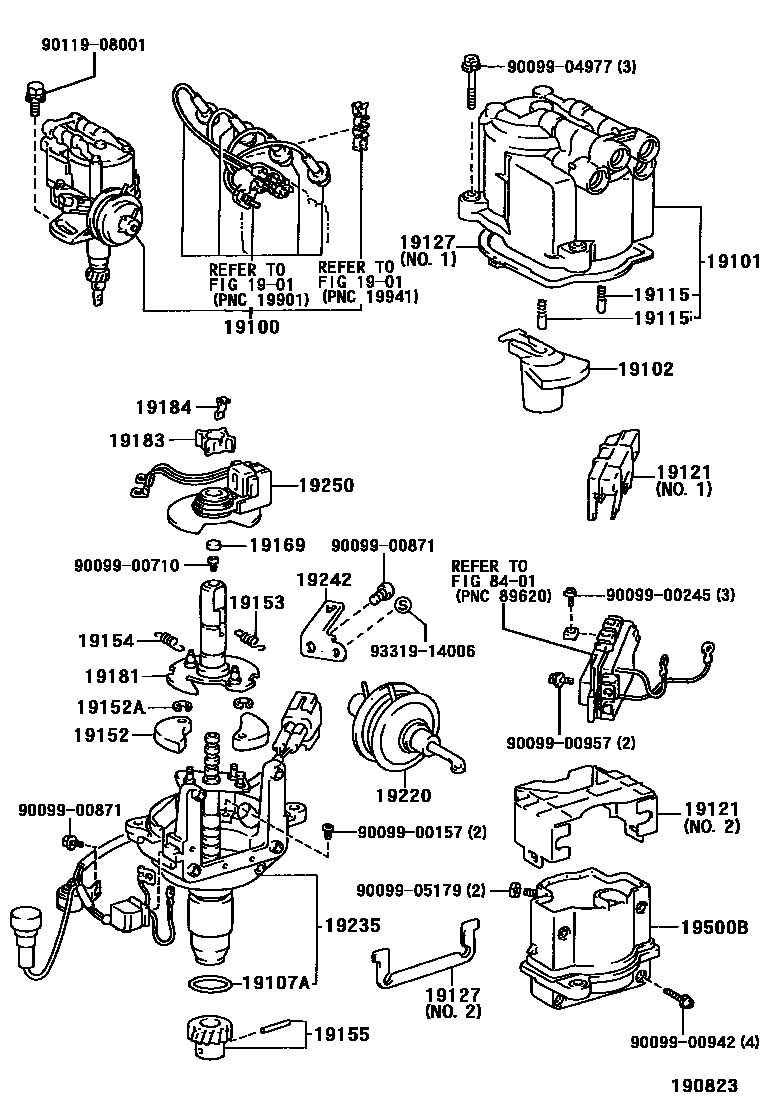

Toyota HILUX 分电器 — Figure 1902
Toyota HILUX EPC diagram 1902, 分电器, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-75031 · 19020-75080 · 19020-75081 · 19030-72090 · 19050-75031 · 19050-75060 |
| 19101 | Distributor cover sub-assembly | 19101-71010 · 19101-75010 · 19101-75020 |
| 19102 | Distributor flame head sub-assembly | 19102-11031 · 19102-11370 · 19102-16010 · 19102-16040 |
| 19107A | Distributor housing O-ring | 90099-14090 · 90099-14091 · 90099-14127 |
| 19115 | Distributor cover center piece | 19115-63010 |
| 19121 | dust cover | 19121-11080 · 19121-63010 · 19121-63040 |
| 19127 | Dust seal | 19127-15120 · 19127-63010 · 19127-63020 |
| 19144 | Distributor breaker lead | 19144-75030 · 19144-75040 |
| 19152 | Speed regulator weight | 19152-15160 · 19152-63010 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-72060 · 19153-75020 · 19153-75060 |
| 19154 | B governor spring | 19153-72060 · 19154-75020 |
| 19155 | Distributor spiral gear | 19195-72090 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-72011 · 19181-75010 · 19181-75060 |
| 19183 | Signal splitter | 19183-15010 · 19183-63010 · 19183-63030 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19220 | Distributor vacuum advance device assembly | 19220-72050 · 19220-75090 · 19220-75100 |
| 19235 | Distributor housing | 19235-72011 · 19235-75030 · 19235-75040 · 19235-75050 |
| 19242 | Cable clip | 19242-72030 |
| 19250 | Signal generator assembly | 19251-16100 · 19251-63011 |
| 19500B | Ignition coil assembly | 90919-02139 · 90919-02163 · 90919-02164 |
