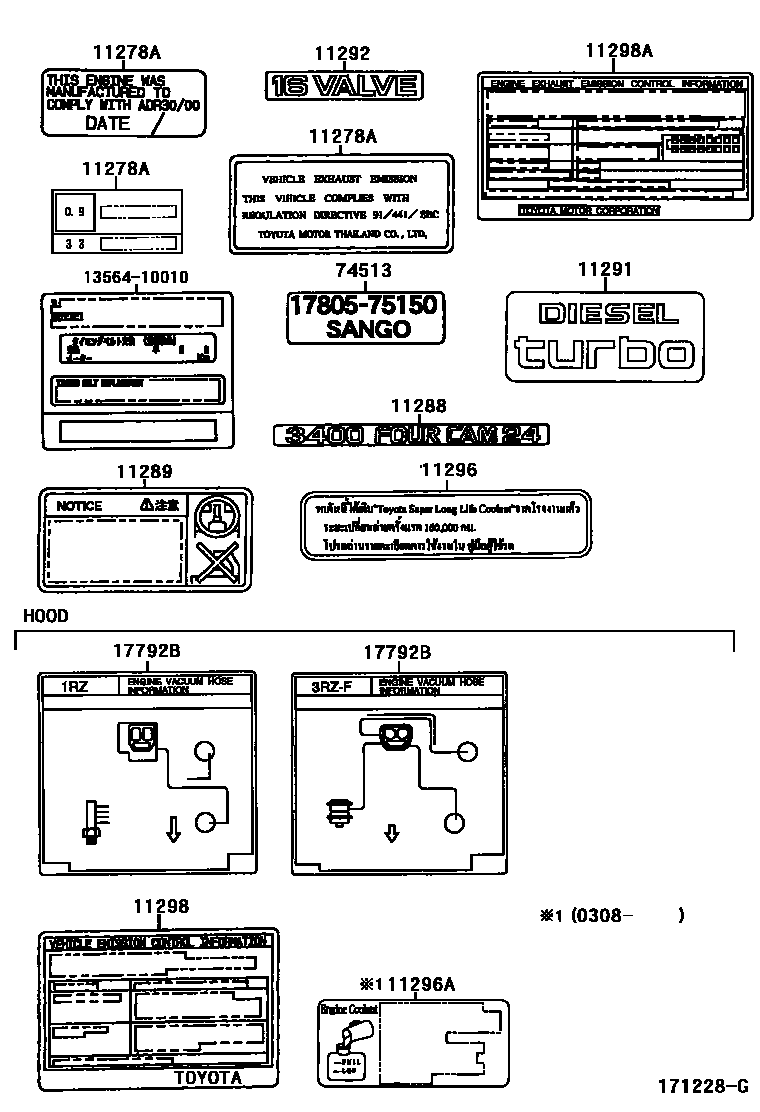

Toyota HILUX 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota HILUX EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278A | Engine emission standard information label | 11278-15020 · 11278-54020 · 74567-26250 · 74567-27111 |
| 11288 | Engine system nameplate | 11288-62010 |
| 11289 | Spark plug warning nameplate | 11289-62020 |
| 11291 | Engine name plate | 11291-67010 |
| 11292 | Engine No. 2 name plate | 11292-74130 |
| 11296 | Timing belt warning plate | 11296-0L010 |
| 11296A | Engine maintenance information label | 11296-27020 |
| 11298 | Emission control information plate | 11298-54210 · 11298-54220 |
| 11298A | Emission Control Information Label | 11298-75330 · 11298-75340 |
| 17792B | Engine vacuum hose information label | 17792-75221 · 17792-75231 · 17792-75260 · 17792-75270 · 17792-75280 |
| 74513 | Identification number information label | 74513-35230 |
