Toyota HILUX vacuum tube — Figure 1708

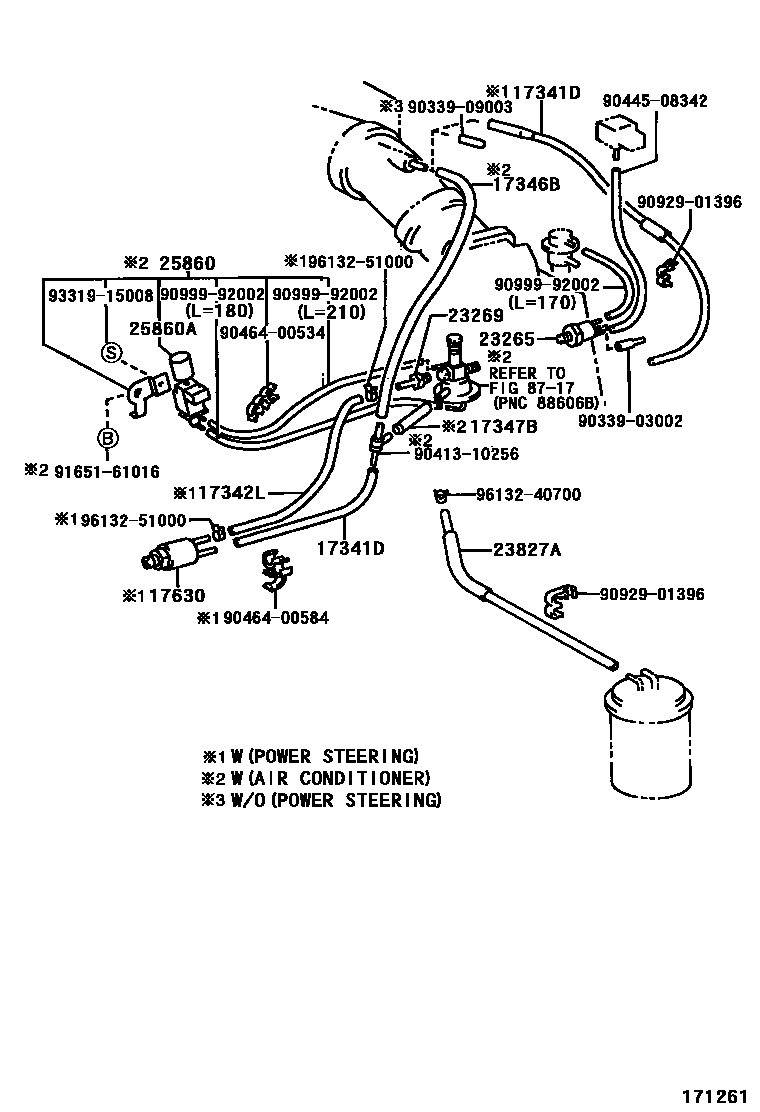

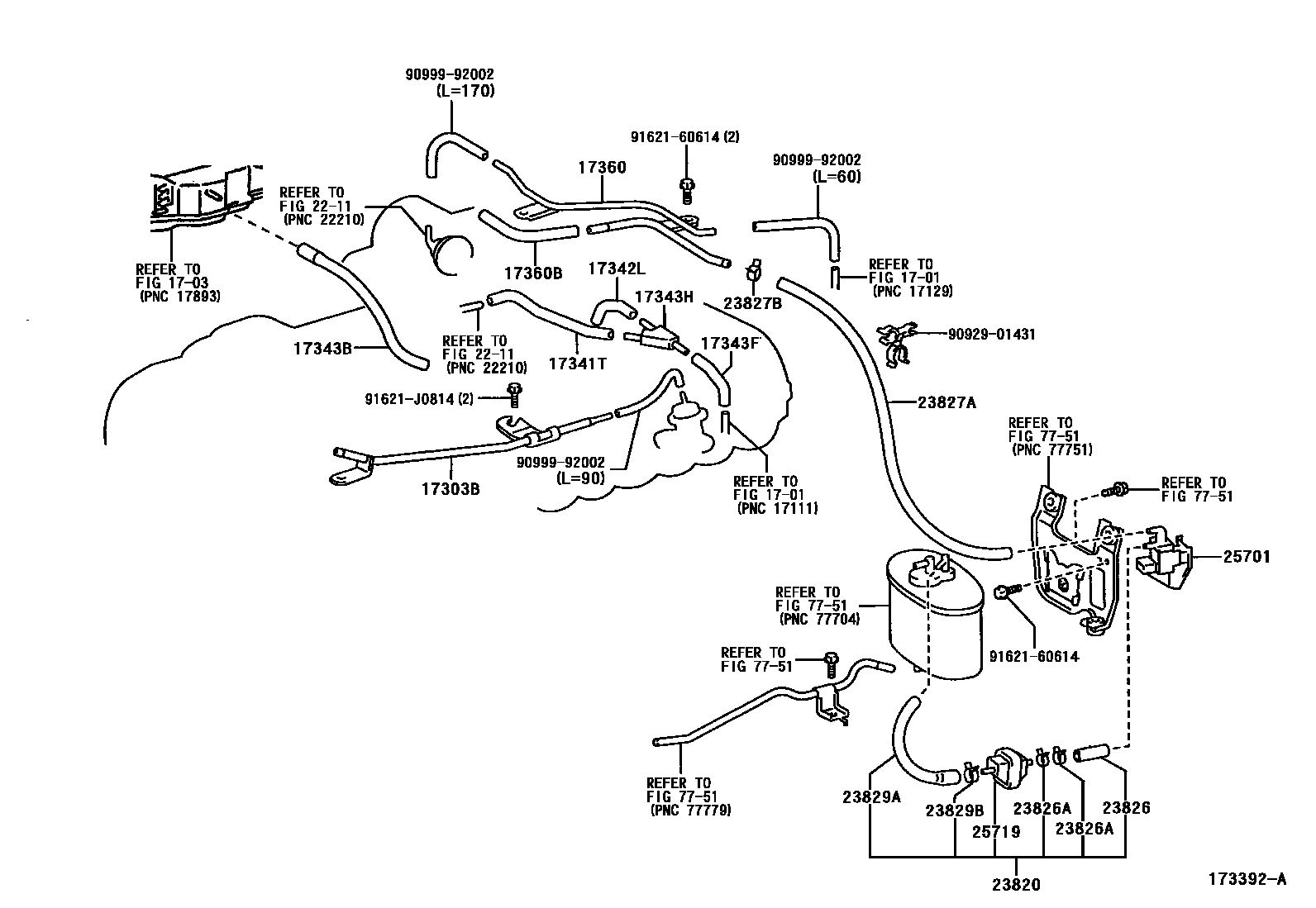

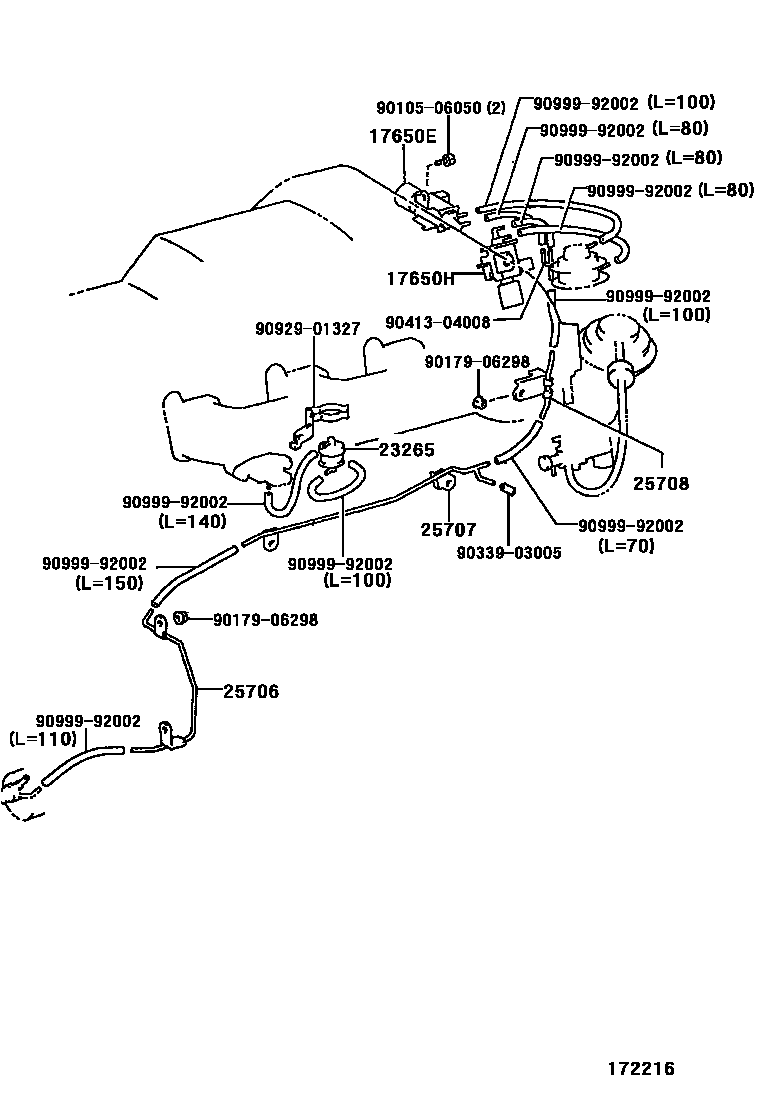

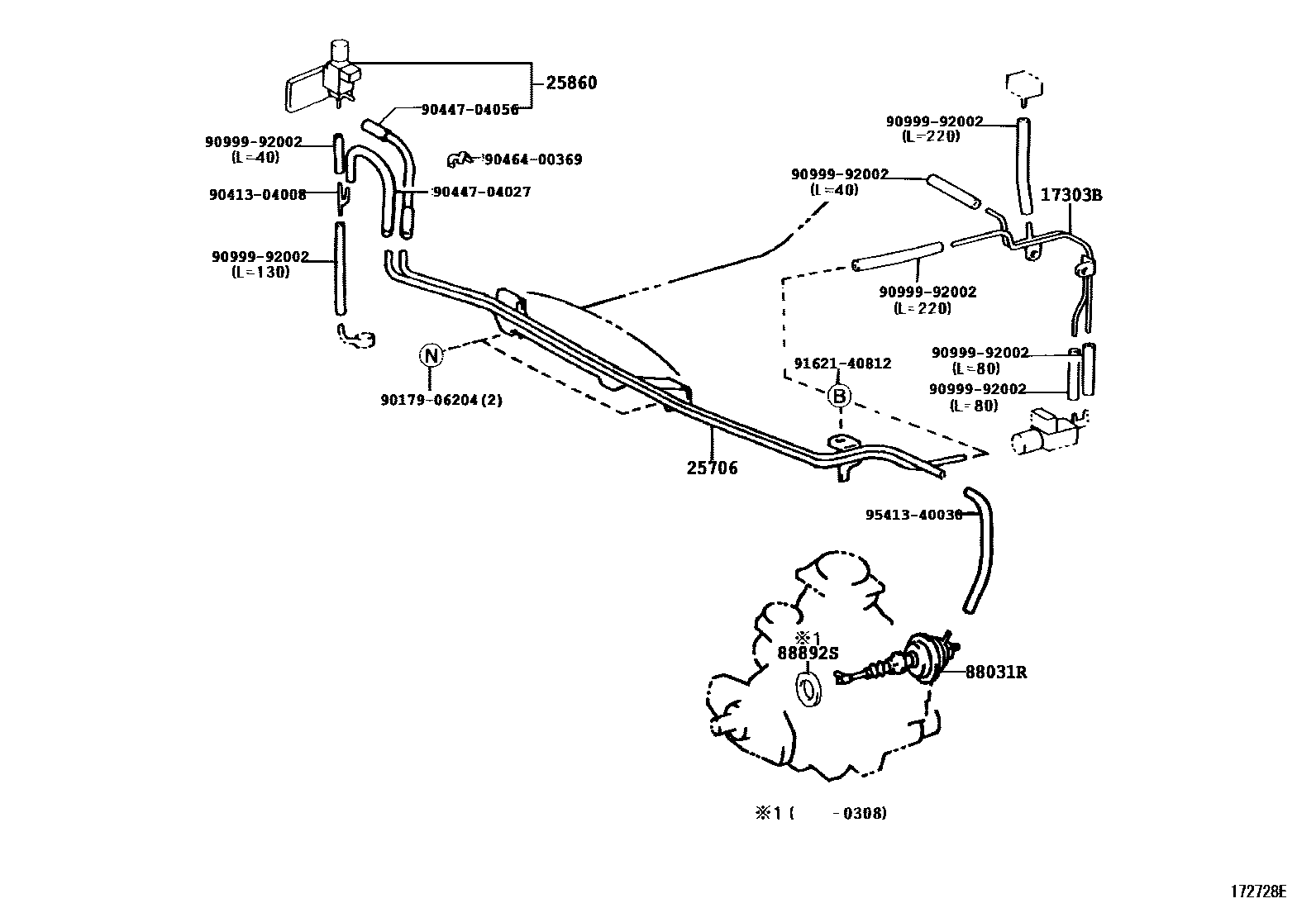

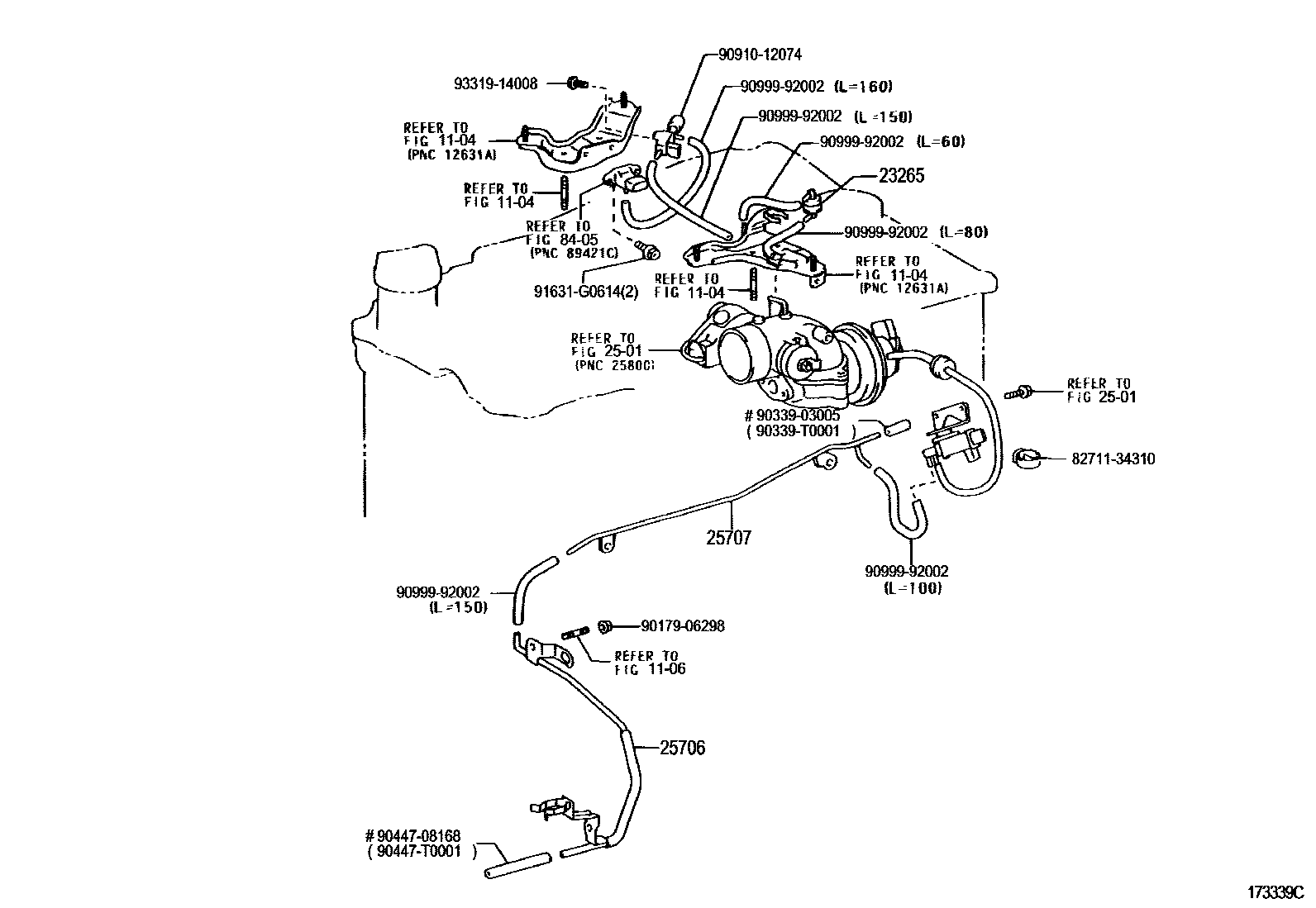

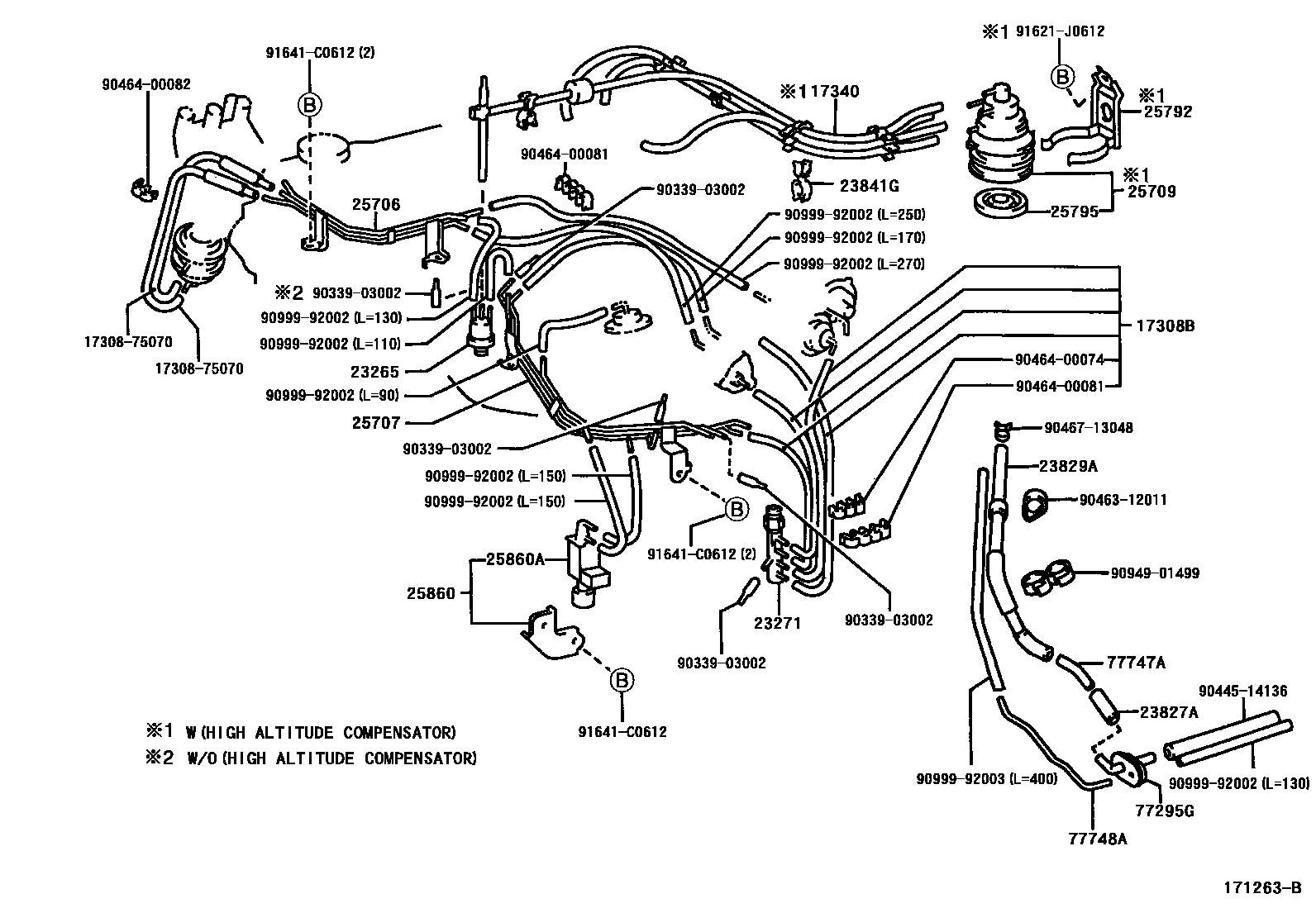

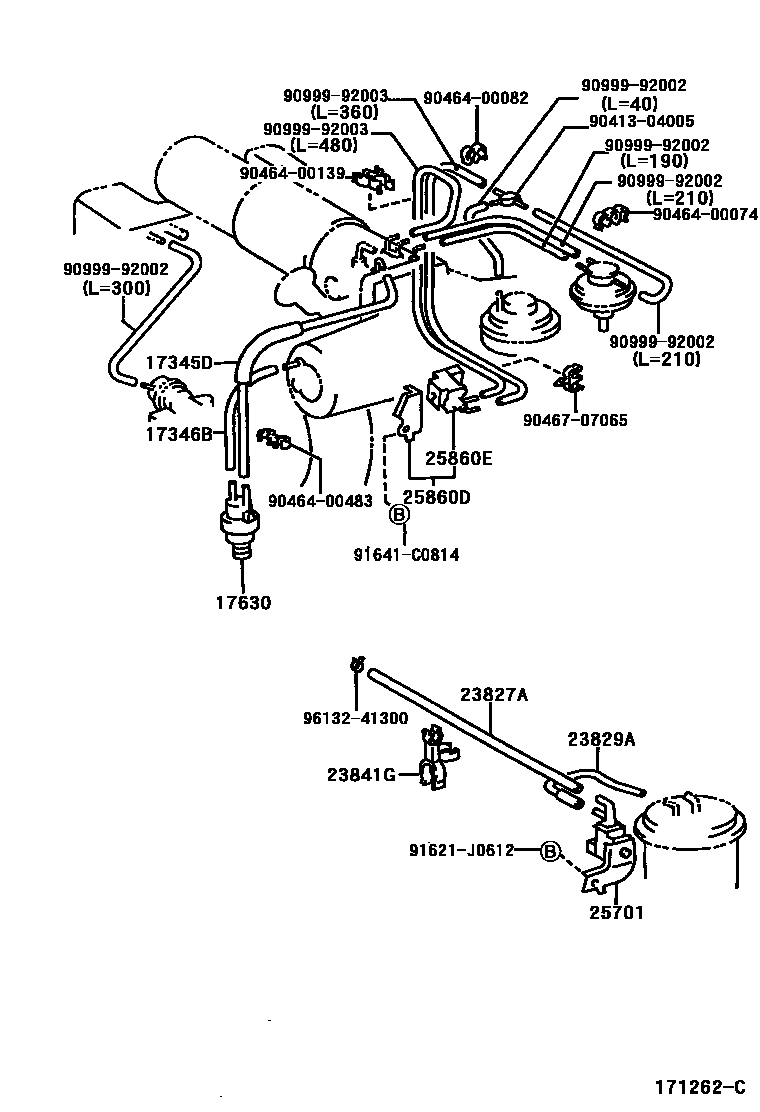

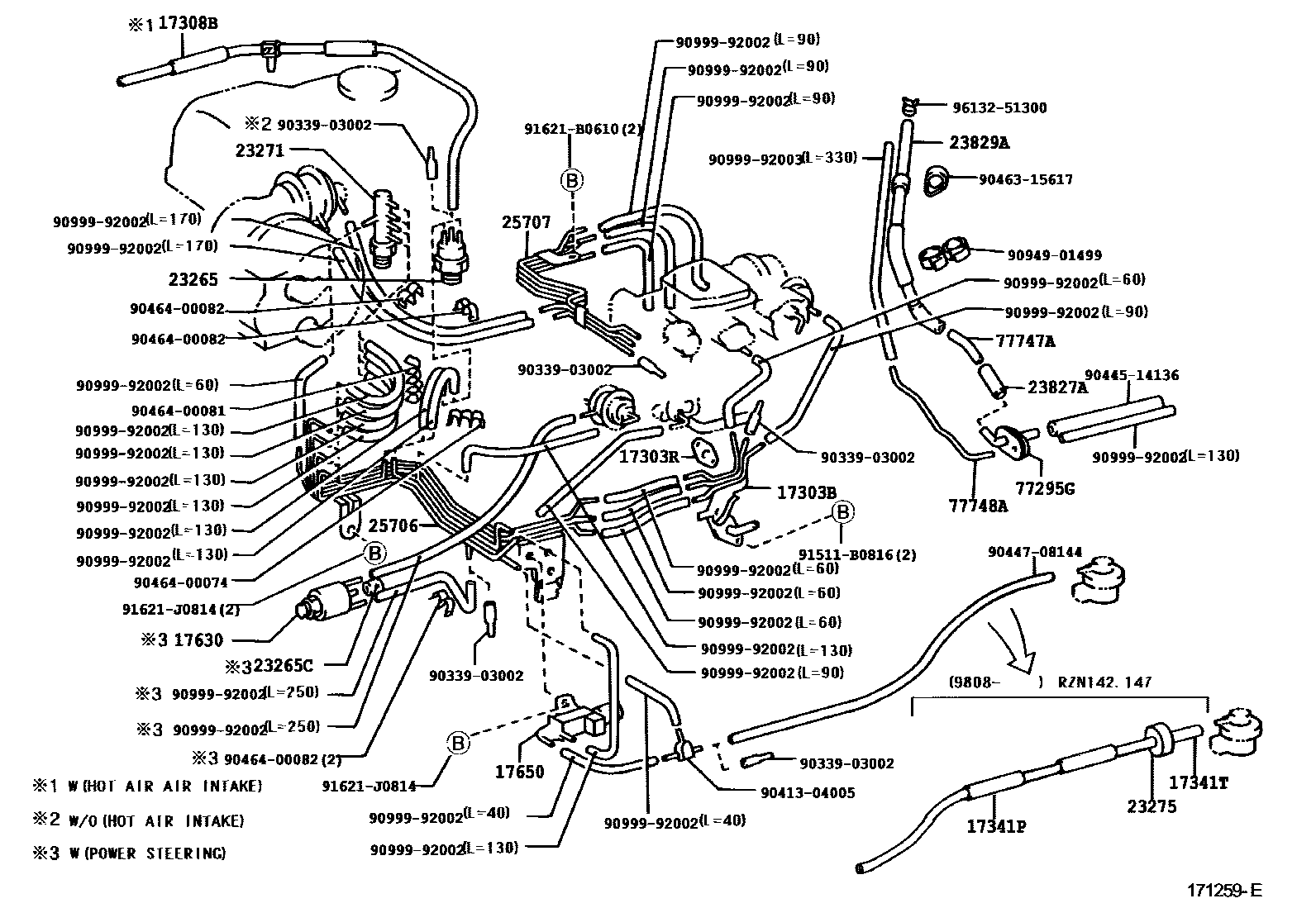

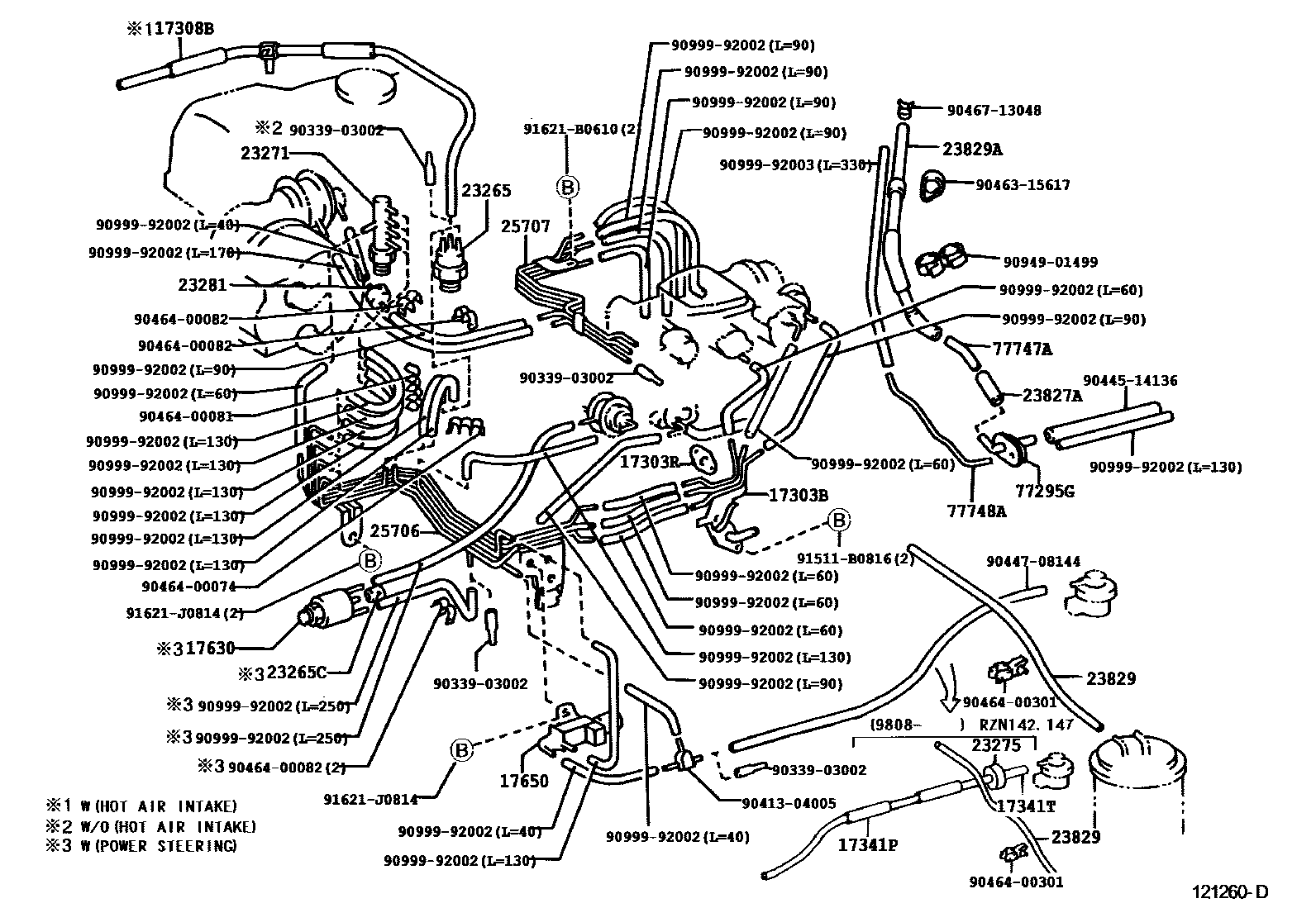

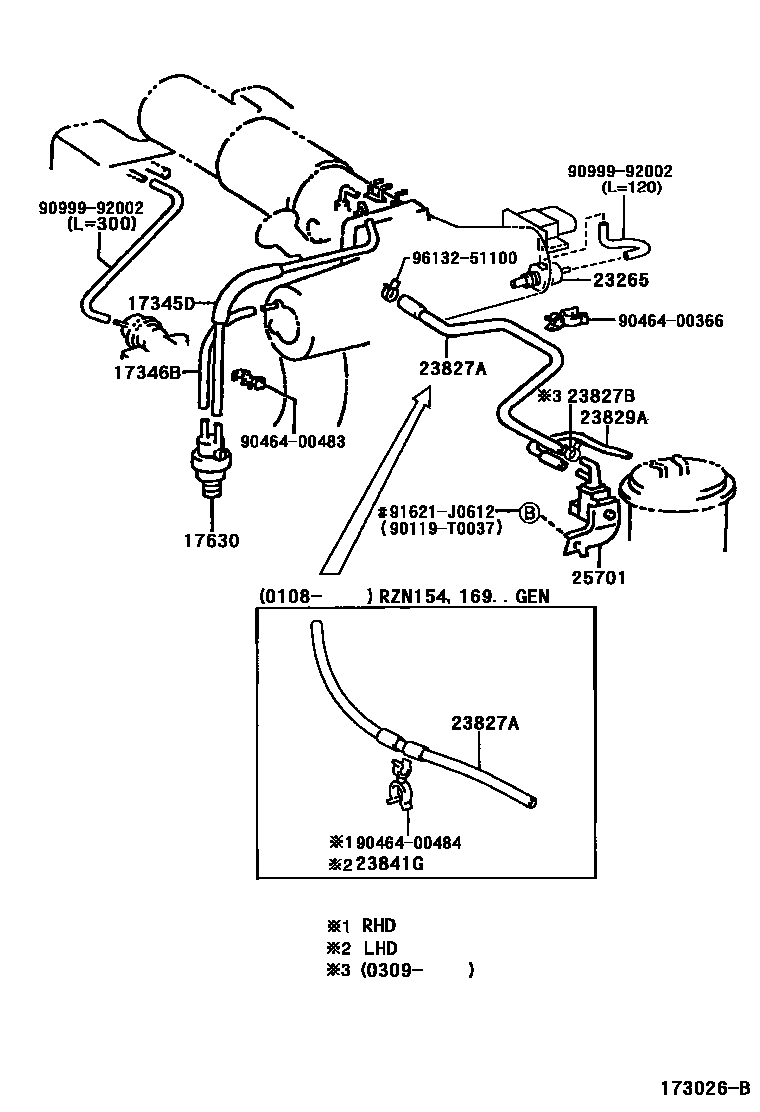

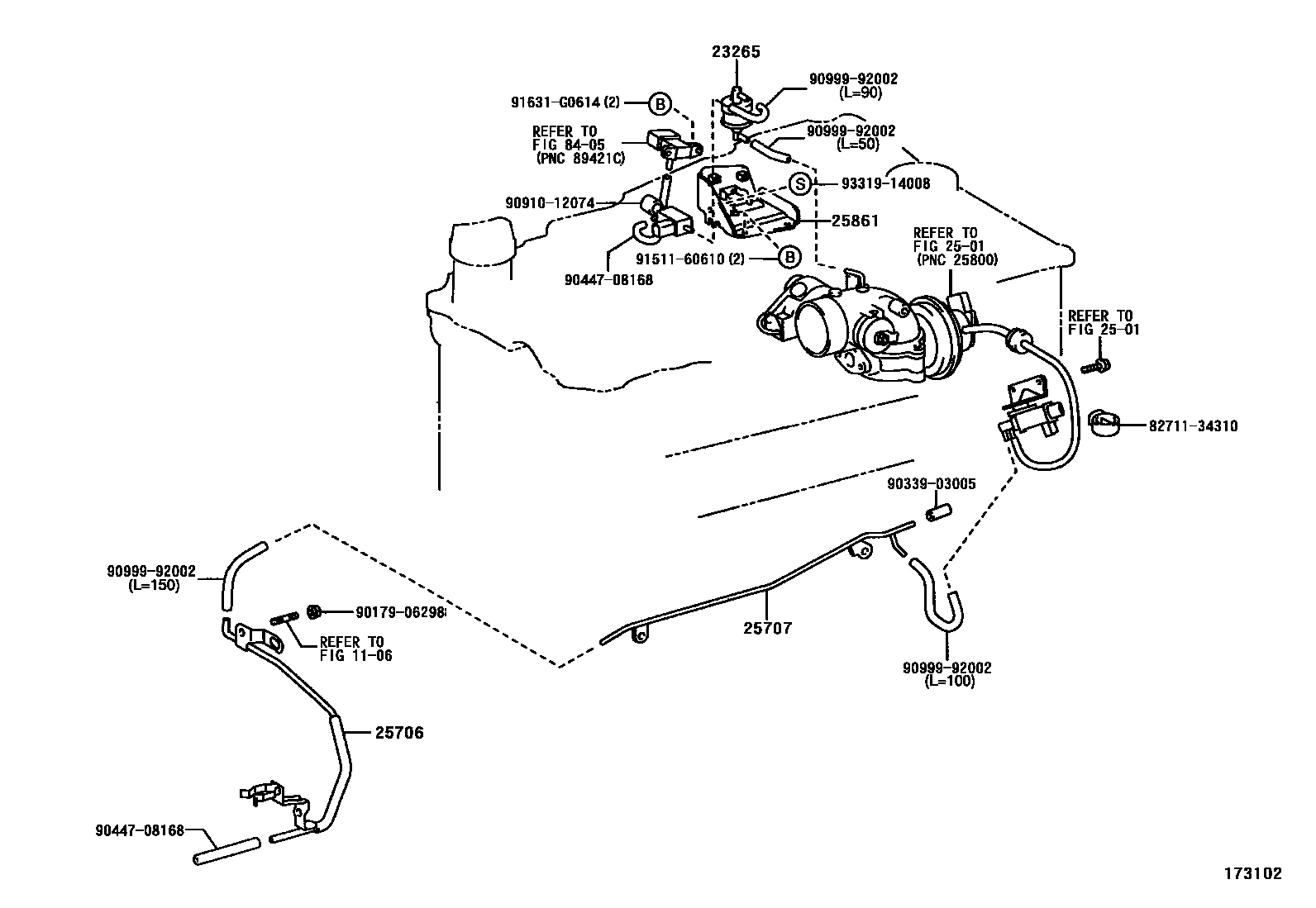

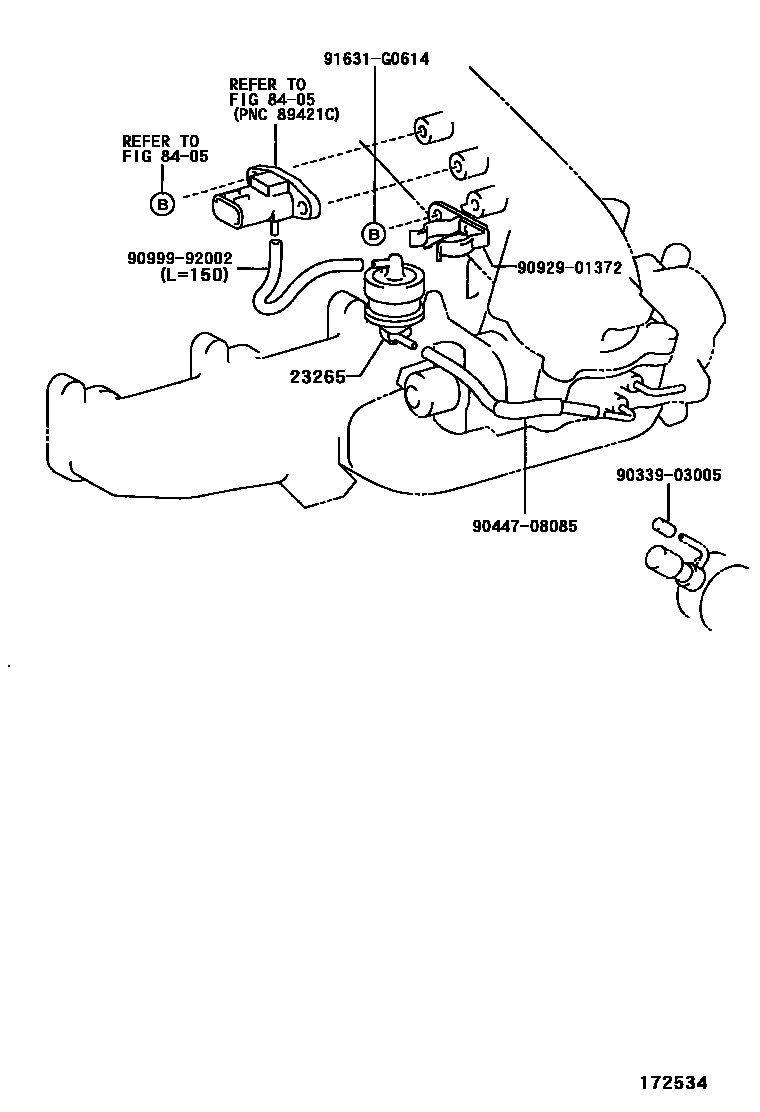

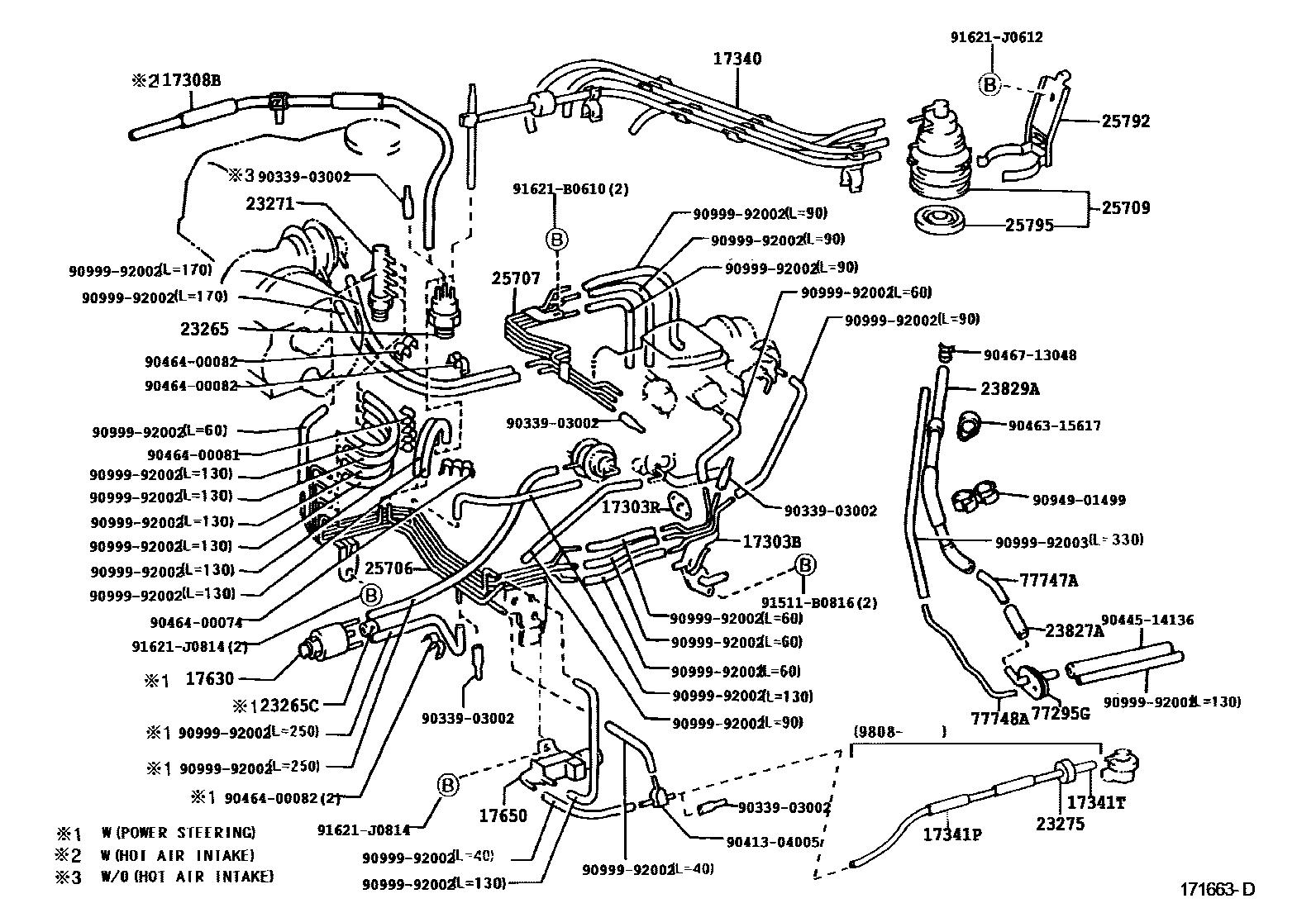

Toyota HILUX EPC diagram 1708, vacuum tube, with 23 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-54060 · 17303-54090 · 17303-54091 · 17303-62020 · 17303-75030 |
| 17303R | Gasket (for air tube) | 17376-75010 |
| 17308B | Vacuum hose sub-assembly | 17308-75030 · 17308-75040 · 17308-75050 |
| 17340 | Vacuum switch valve hose assembly | 17340-72010 · 17340-75030 · 17340-75040 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-73040 |
| 17341D | No. 1 hose (for idle boost) | 17341-75090 |
| 17341P | air hose | 17341-75100 |
| 17341T | Air hose No. 1 | 17341-62060 · 90999-92002 |
| 17342B | No. 2 hose (for idle boost) | 17342-73030 |
| 17342L | Air hose No. 2 | 17342-62080 · 17342-75030 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-62110 |
| 17343F | No. 3 air hose | 17343-62080 |
| 17343H | Tee (for air hose) | 90904-13015 |
| 17345D | No. 5 air hose | 17345-75010 |
| 17346B | No. 6 air hose | 17346-75010 · 17346-75030 |
| 17347B | No. 7 air hose | 17347-75020 |
| 17360 | air pipe assembly | 17360-62011 |
| 17360B | Hoses (for air pipes) | 90445-12284 |
| 17630 | Air control valve assembly | 17300-73020 · 17630-15090 · 17630-28020 · 17630-70020 · 17630-74010 |
| 17650 | Vacuum switch valve assembly | 25860-75170 · 90910-12038 |
| 17650E | Vacuum switch valve | 90910-12126 |
| 17650H | Vacuum switch valve | 90910-12146 |
| 21381 | thermostat bimetal | 21381-71050 |
| 23265 | No. 1 gas filter | 90917-11027 · 90917-11036 · 90917-11037 · 90917-11041 · 90917-11044 |
| 23265C | gas filter | 90925-06007 |
| 23269 | Connector (for gas filter) | 90404-51026 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02082 |
| 23275 | Vacuum control valve No. 1 | 90925-04006 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01021 |
| 23281A | Vacuum Transfer Valve No. 2 | 90925-01084 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23820 | Fuel vapor supply hose assembly | 23820-62060 |
| 23826 | No. 1 fuel vapor supply hose | 95328-07004 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23827-75090 · 23827-75100 · 23827-75110 · 23827-75140 · 23827-75170 · 23827-75230 · 90445-14182 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-41000 · 96132-51300 |
| 23829 | No. 3 fuel vapor supply hose | 23829-75220 · 23829-75230 · 23829-75340 |
| 23829A | Fuel vapor supply hose | 23829-62050 · 23829-72090 · 23829-75170 · 23829-75180 · 23829-75210 · 23829-75250 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51100 |
| 23841G | fuel hose clamp | 23841-75010 |
| 25701 | Emission control valve assembly | 25701-62050 · 25701-75030 · 25701-75040 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-05010 · 25706-0L010 · 25706-30020 · 25706-54040 · 25706-54041 · 25706-54050 · 25706-54051 · 25706-67020 · 25706-75012 · 25706-75030 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-0L010 · 25707-67011 · 25707-75011 · 25707-75020 |
| 25708 | No. 3 vacuum transfer tube sub-assembly | 25708-67010 |
| 25709 | High altitude compensator valve sub-assembly | 25709-38010 |
| 25719 | Vacuum pressure tank | 25719-62060 |
| 25760 | Vacuum transfer hose assembly | 25760-54380 |
| 25792 | Altitude compensator valve bracket | 25792-75030 |
| 25795 | Altitude compensator filter element | 25795-38010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-54150 · 25860-54180 · 25860-75040 · 25860-75041 · 25860-75130 |
| 25860A | No. 1 vacuum switch valve | 25860-62010 · 90910-12089 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-75060 |
| 25860E | No. 2 vacuum switch valve | 90910-12065 |
| 25861 | Vacuum switch valve bracket | 25862-30020 |
| 77295G | fuel hose retainer | 77295-35190 · 77295-35200 |
| 77747A | No. 1 carbon canister tube | 77747-35020 · 77747-35030 |
| 77748A | No. 2 carbon canister tube | 77748-35020 · 77748-35030 |
| 88031R | Idle speed lift actuator assembly | 88031-35110 · 88031-35111 · 88031-35130 · 88031-35131 |
| 88892S | Cooler gasket (for idle lift actuator) | 88892-35070 · 88892-35080 |
