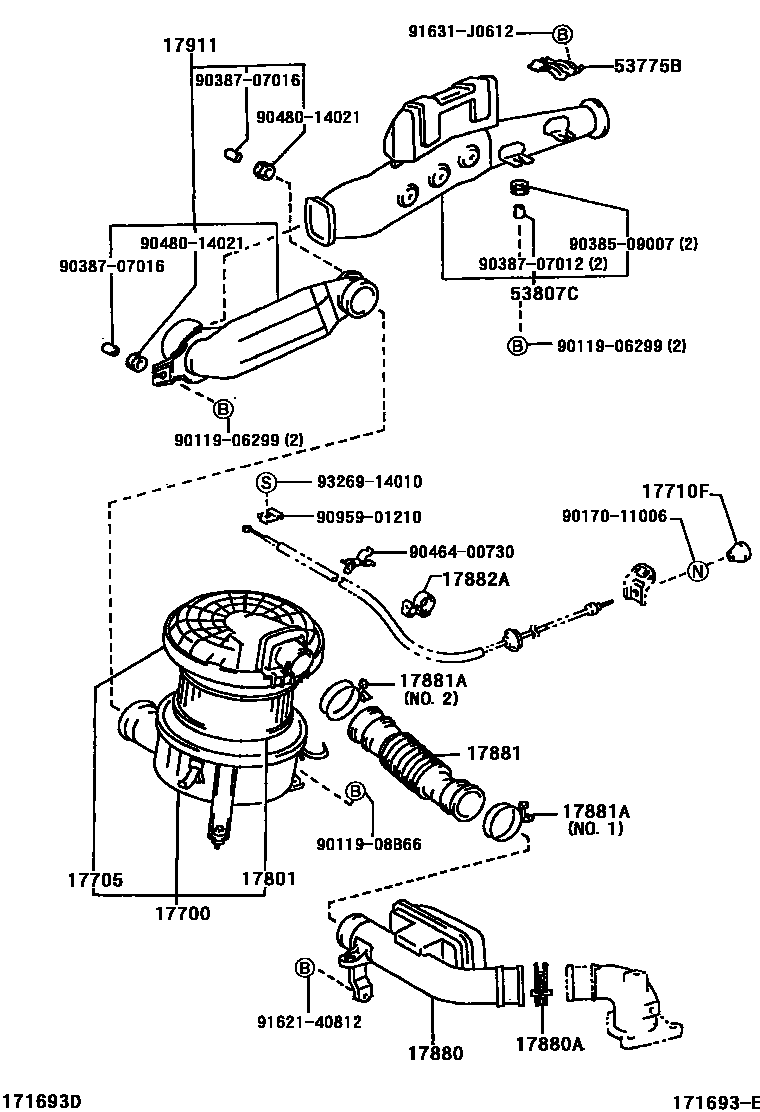

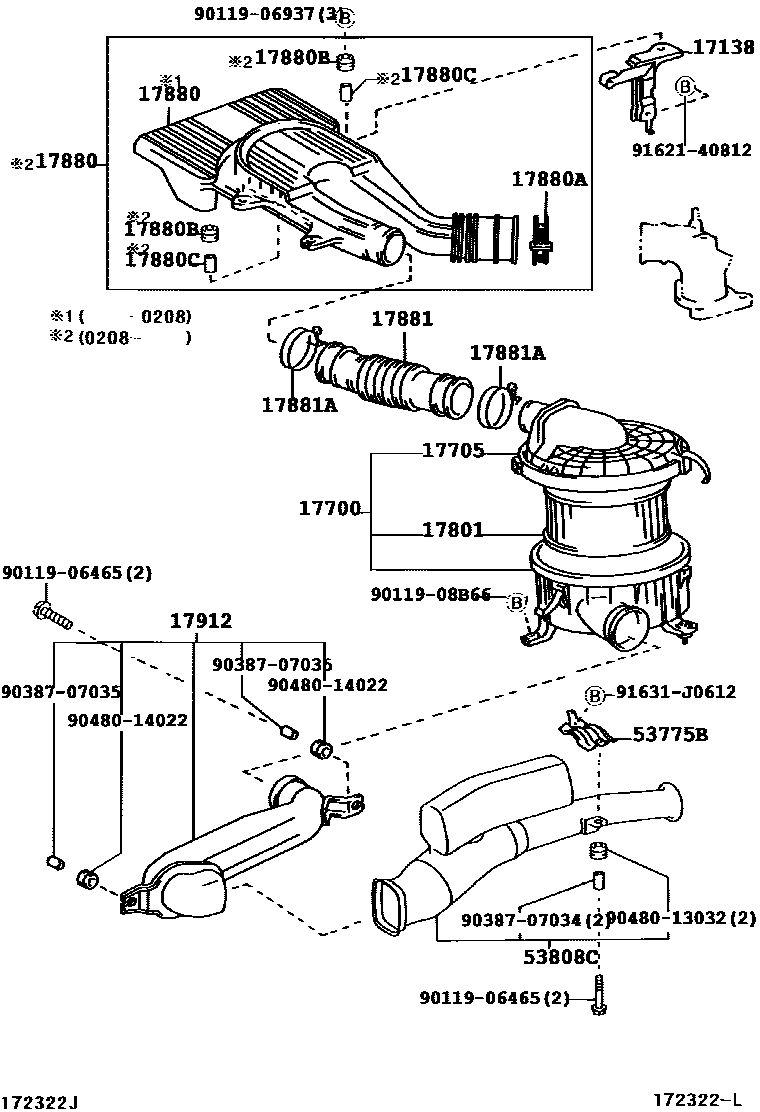

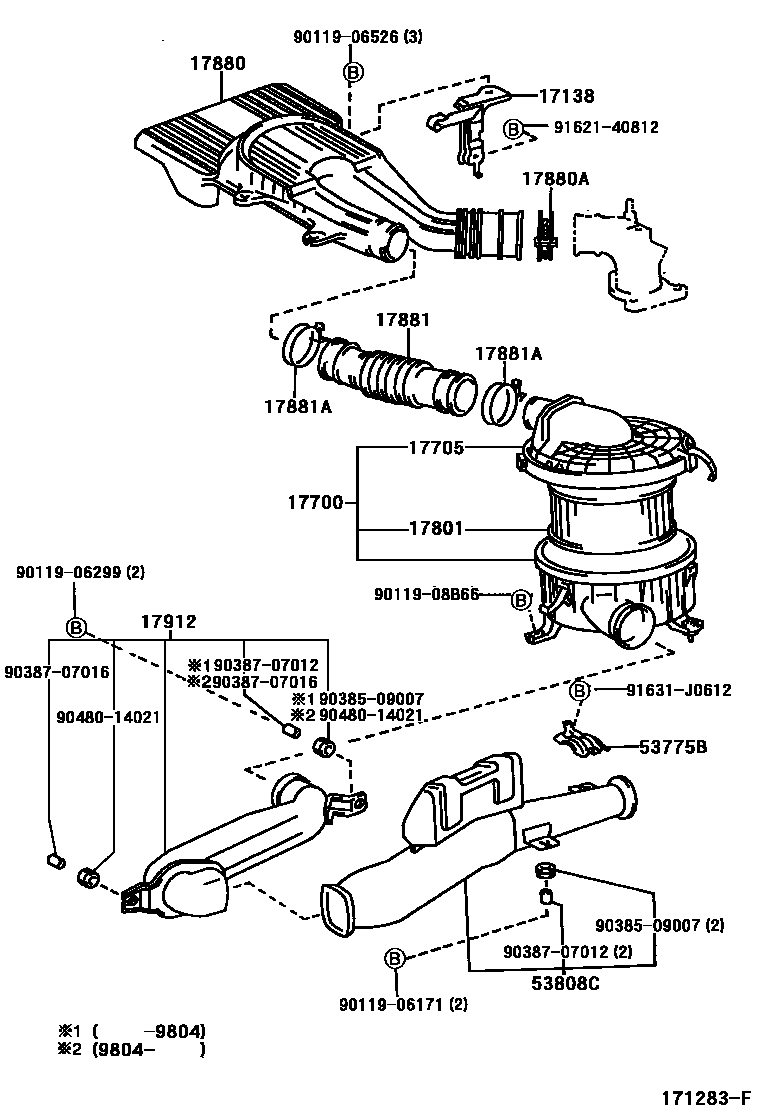

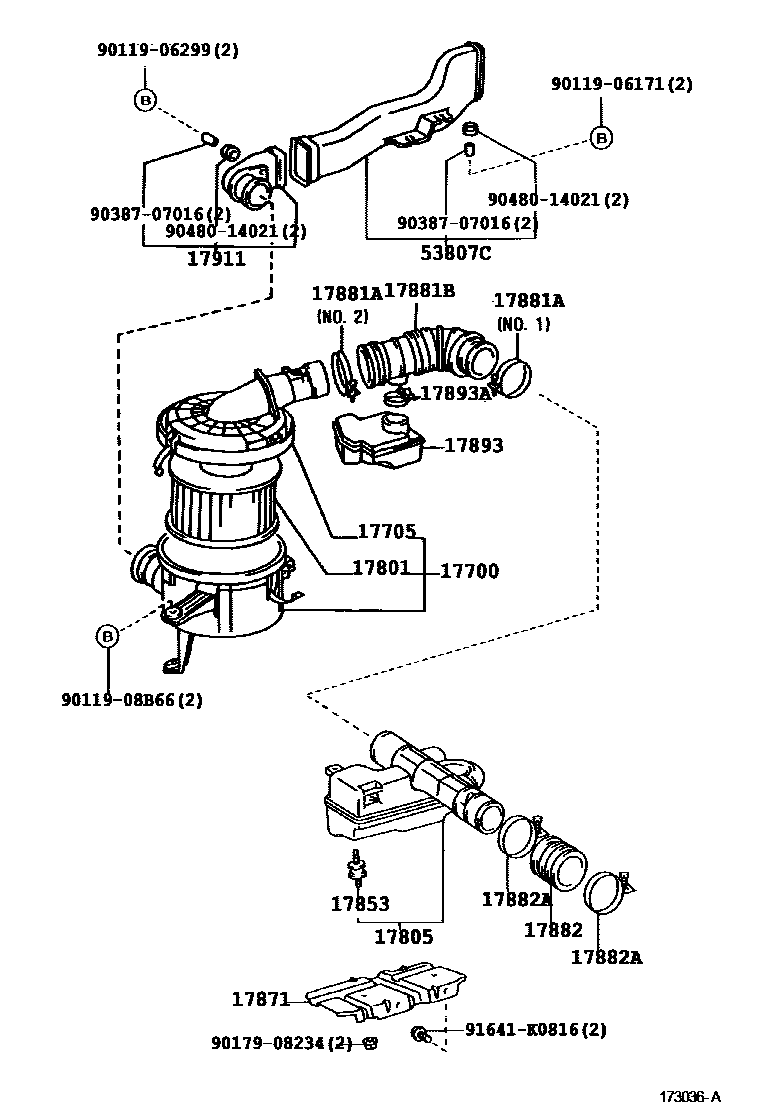

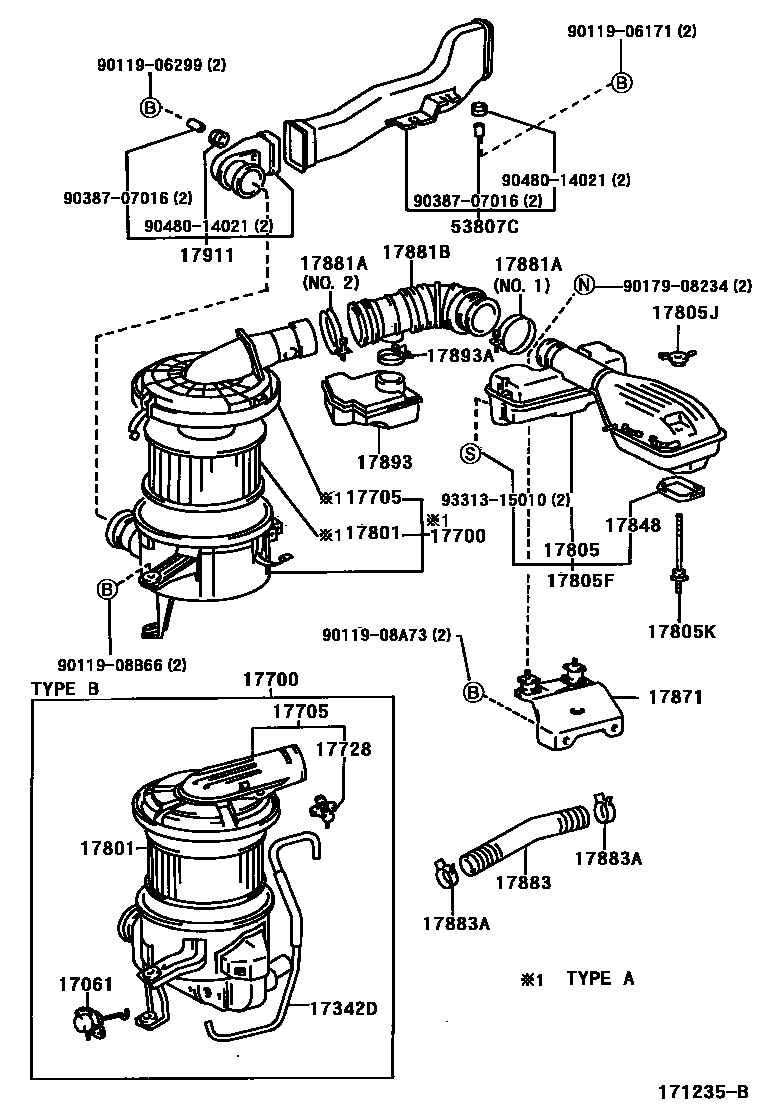

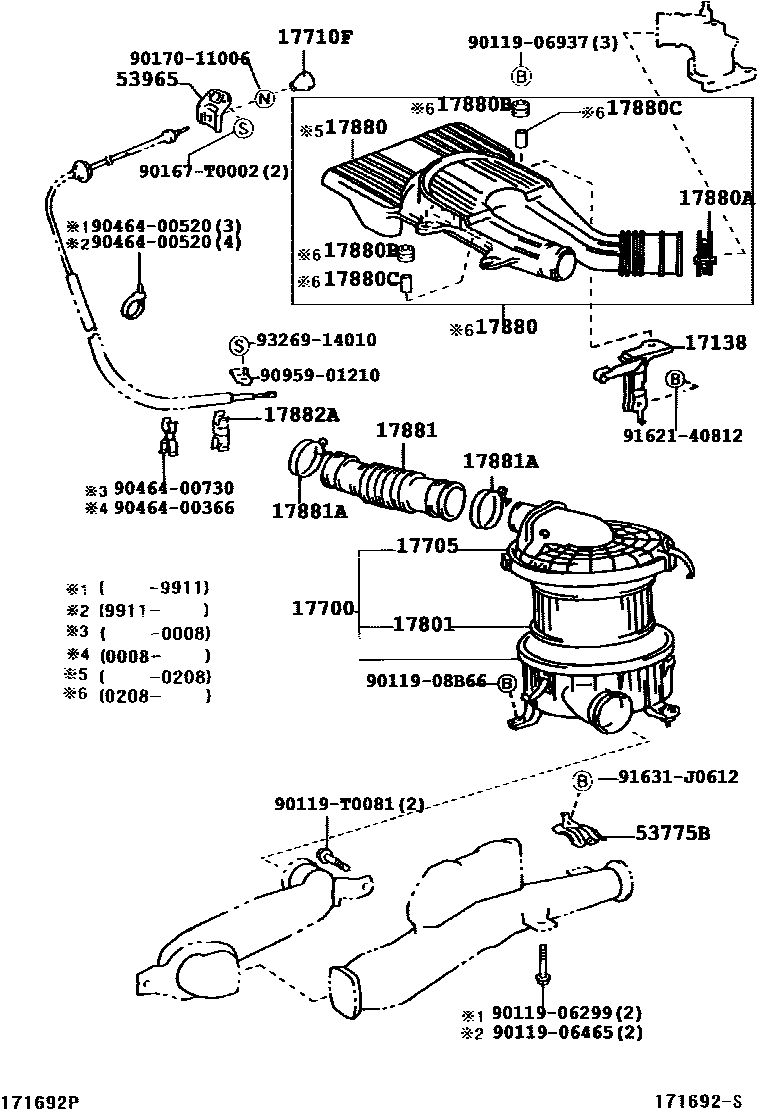

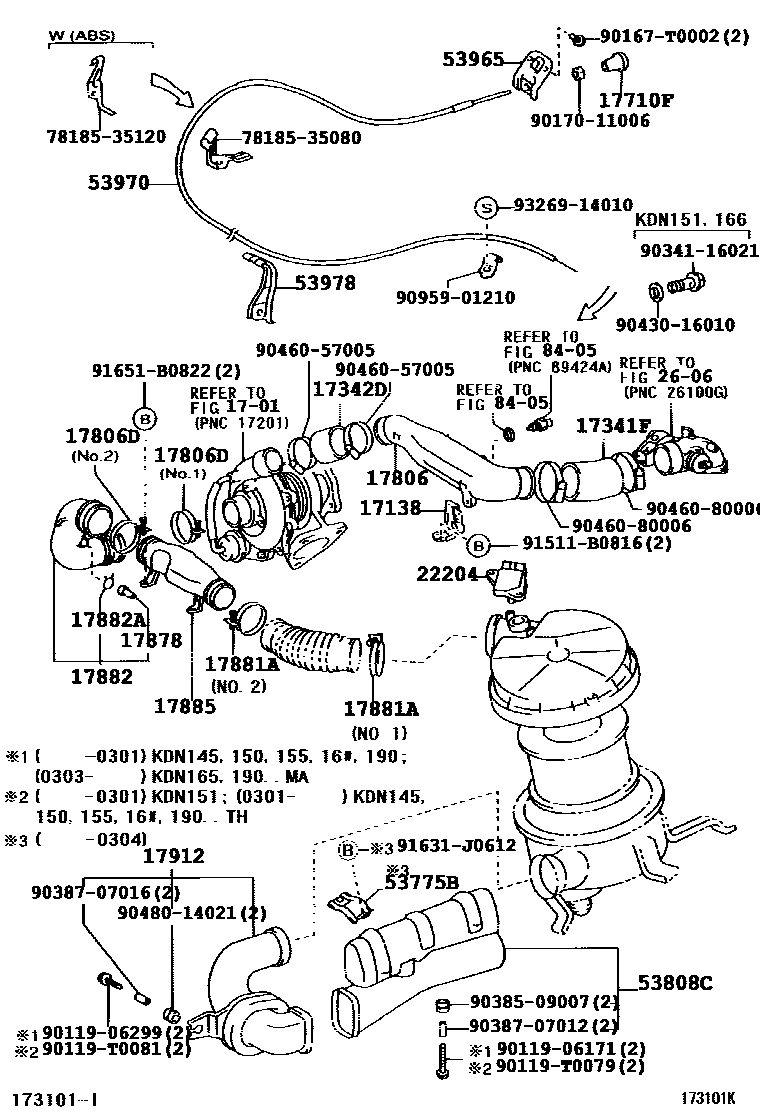

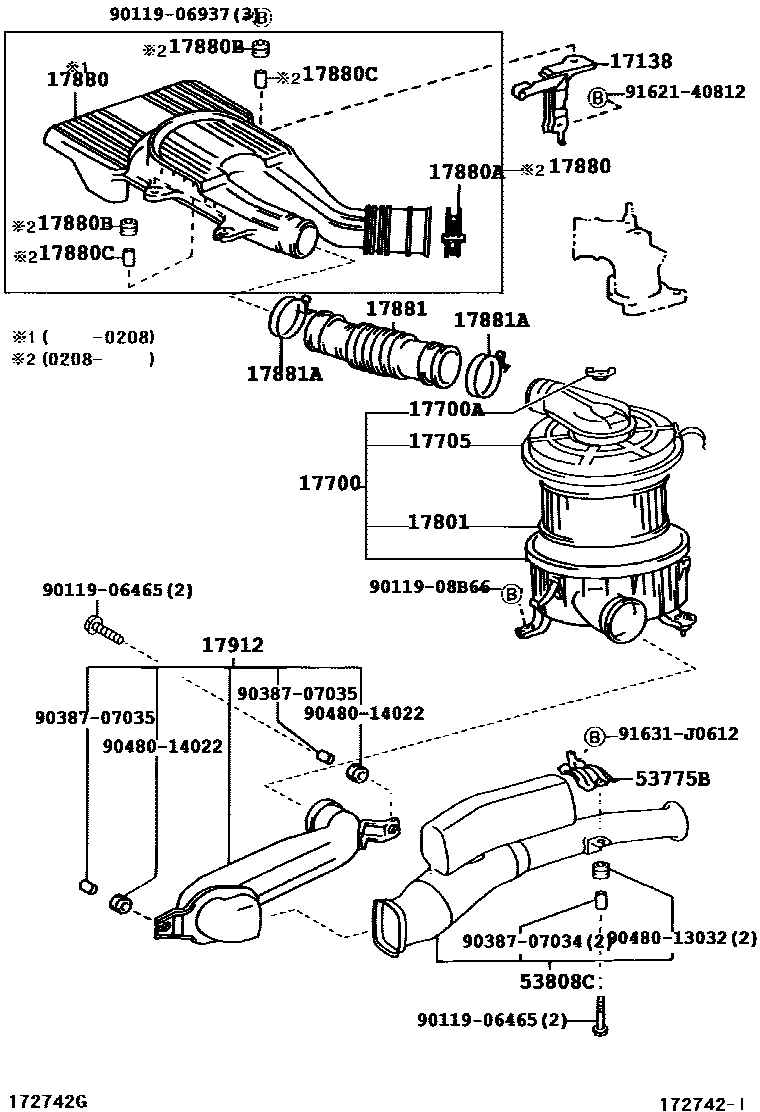

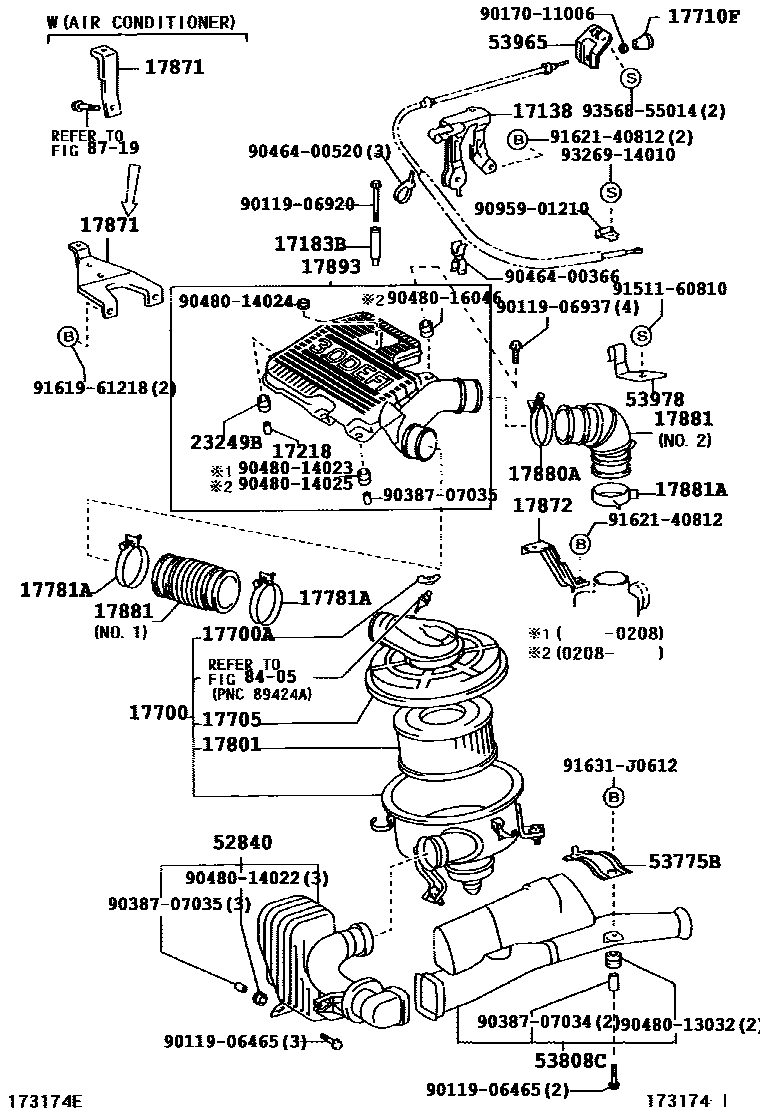

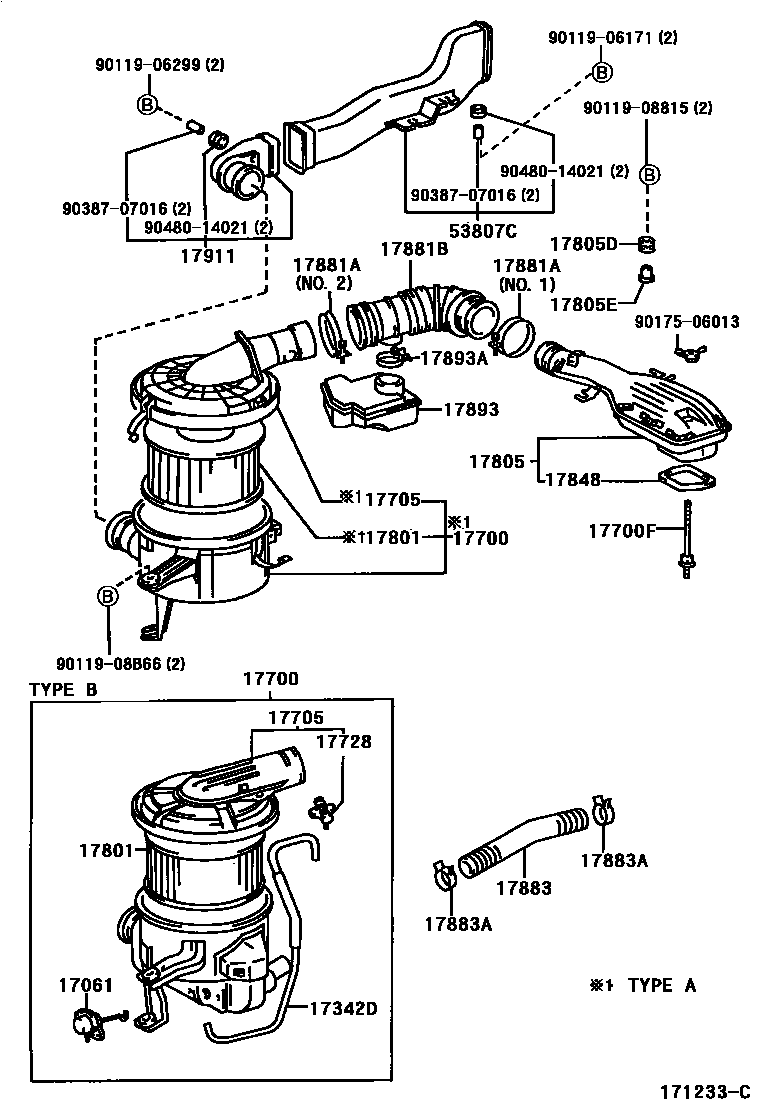

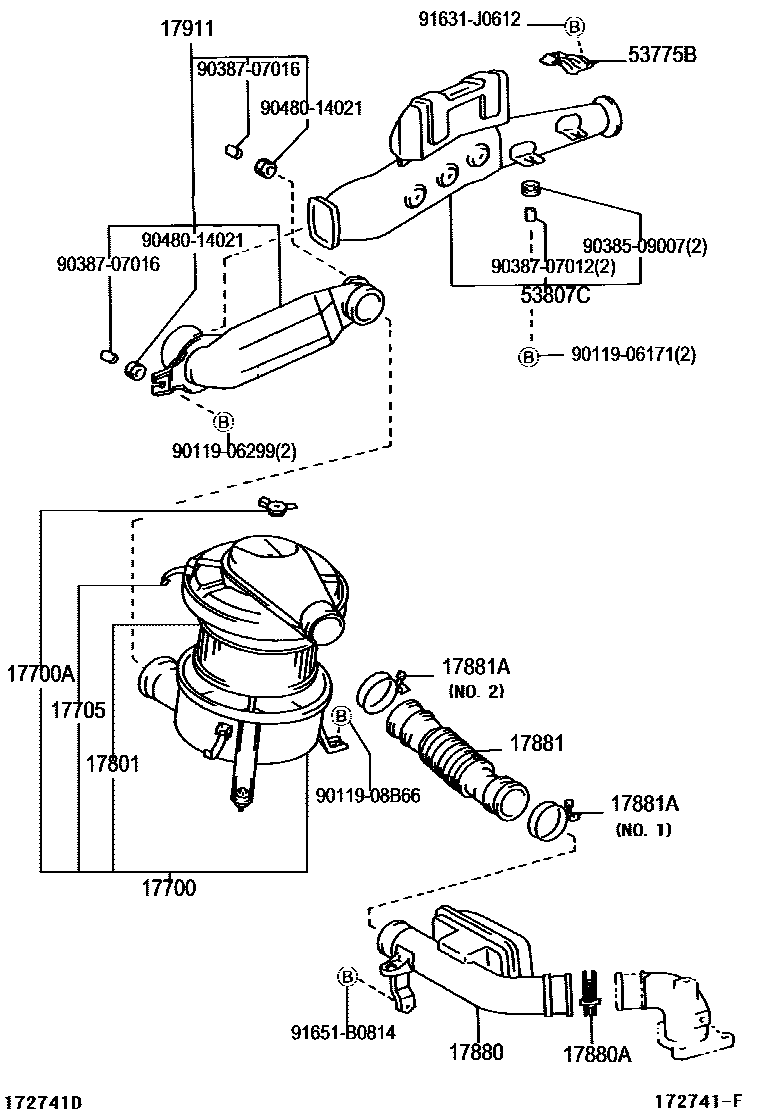

Toyota HILUX Air Cleaner — Figure 1703

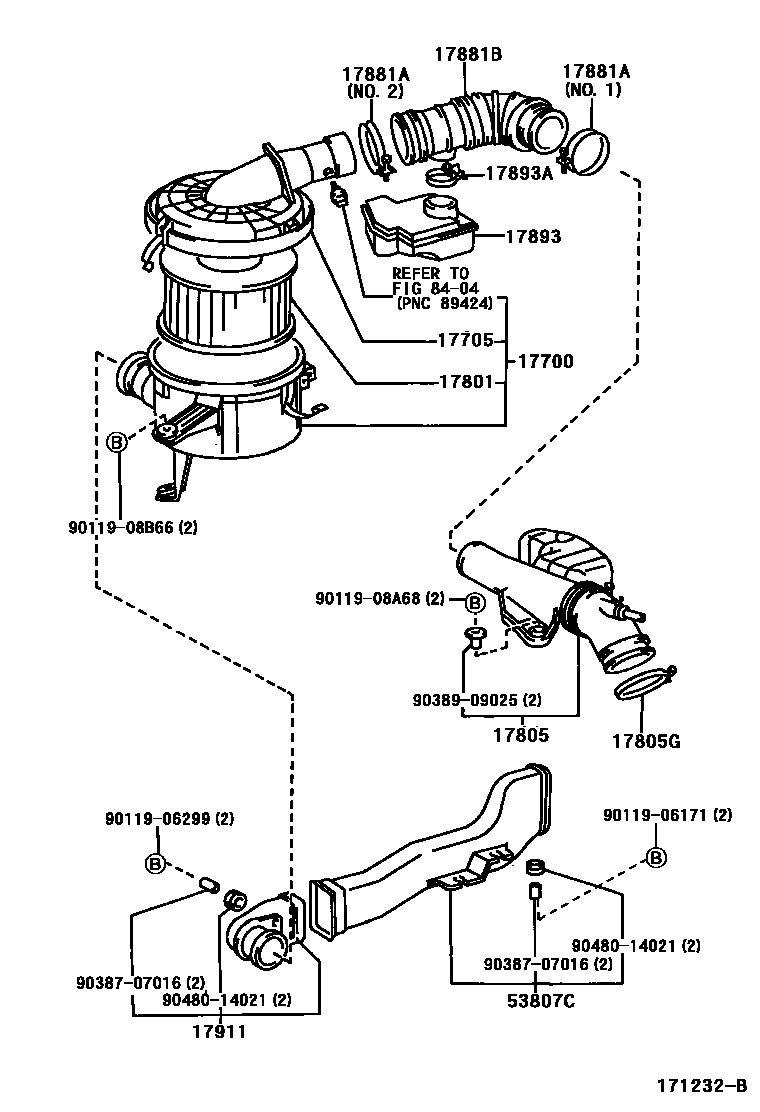

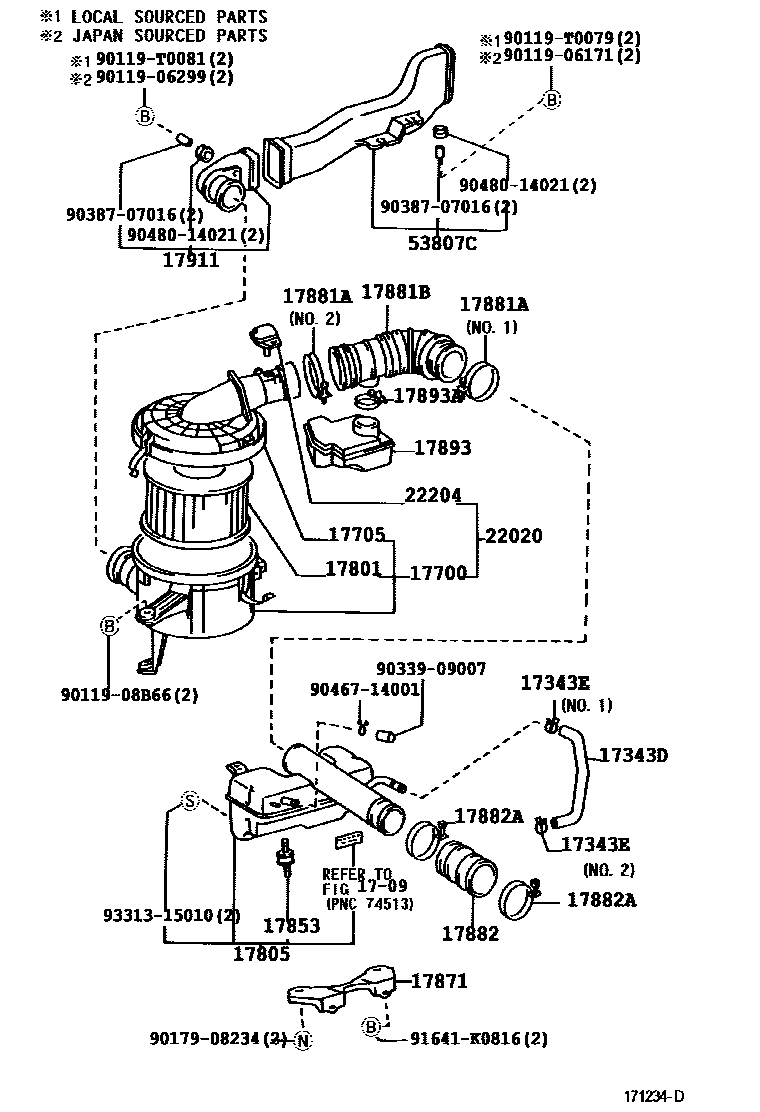

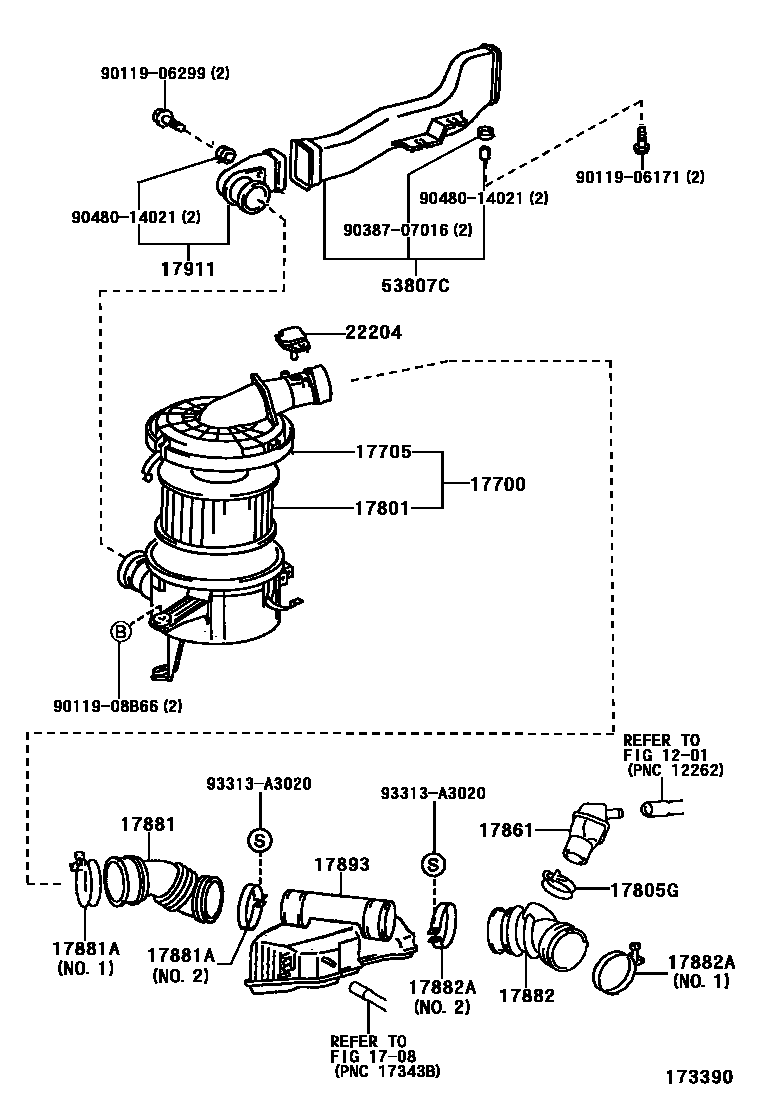

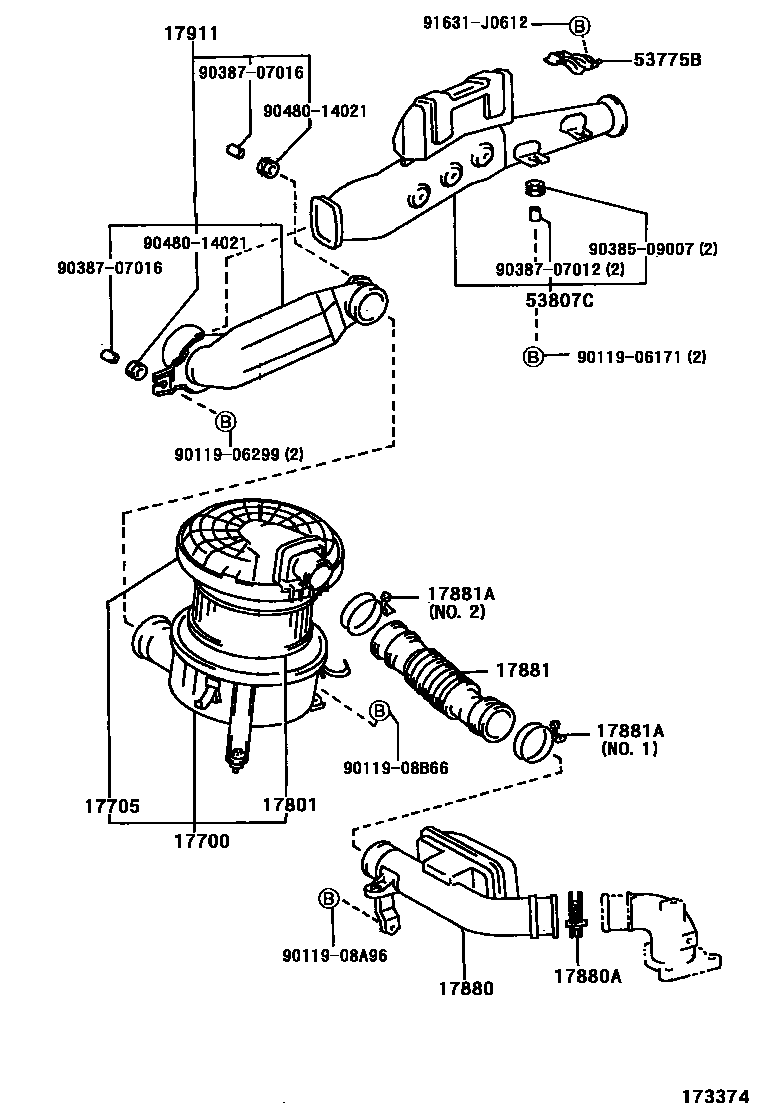

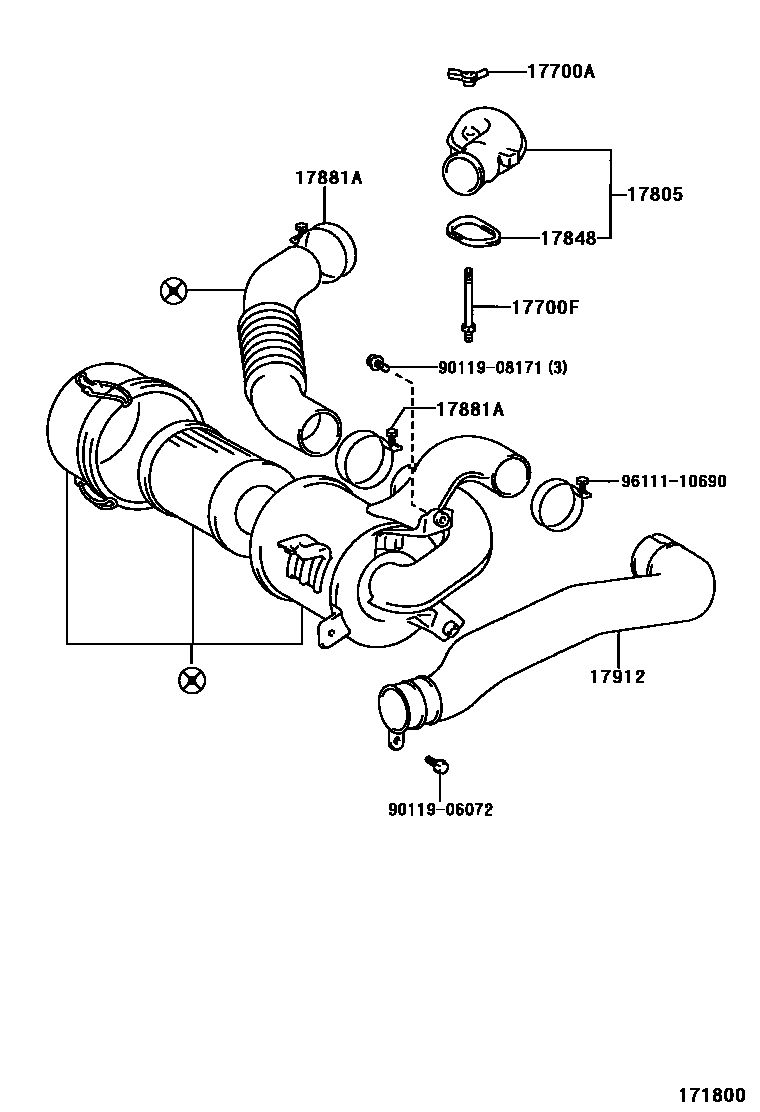

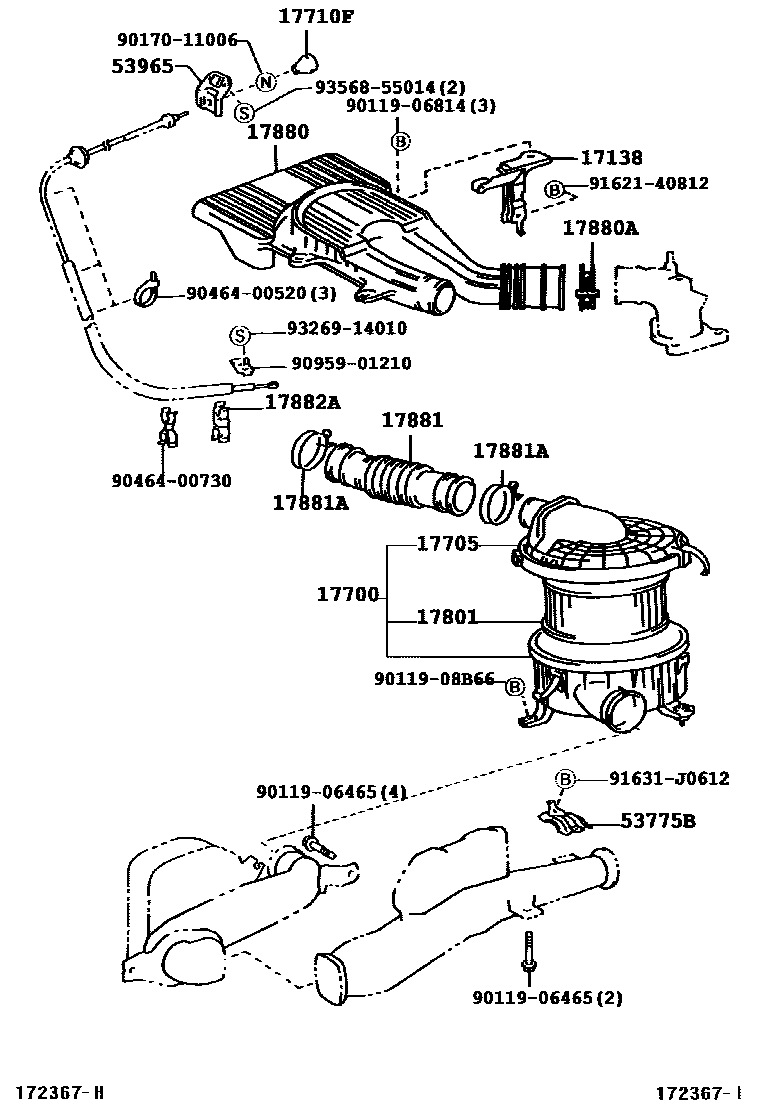

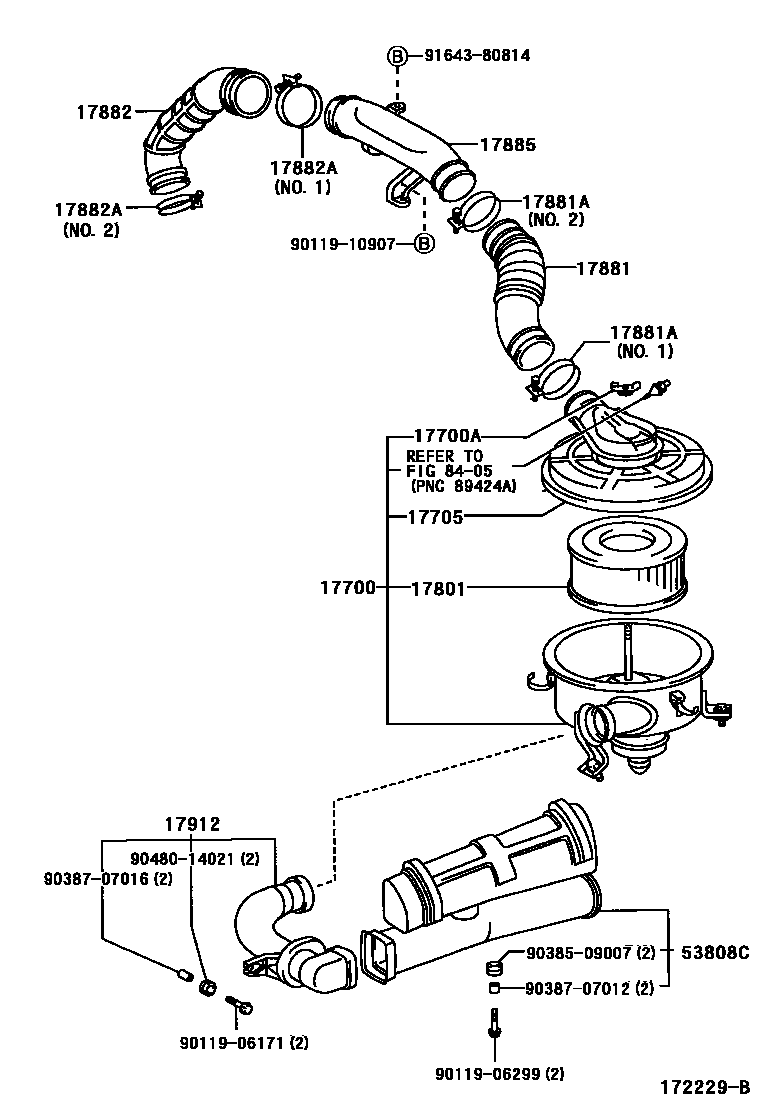

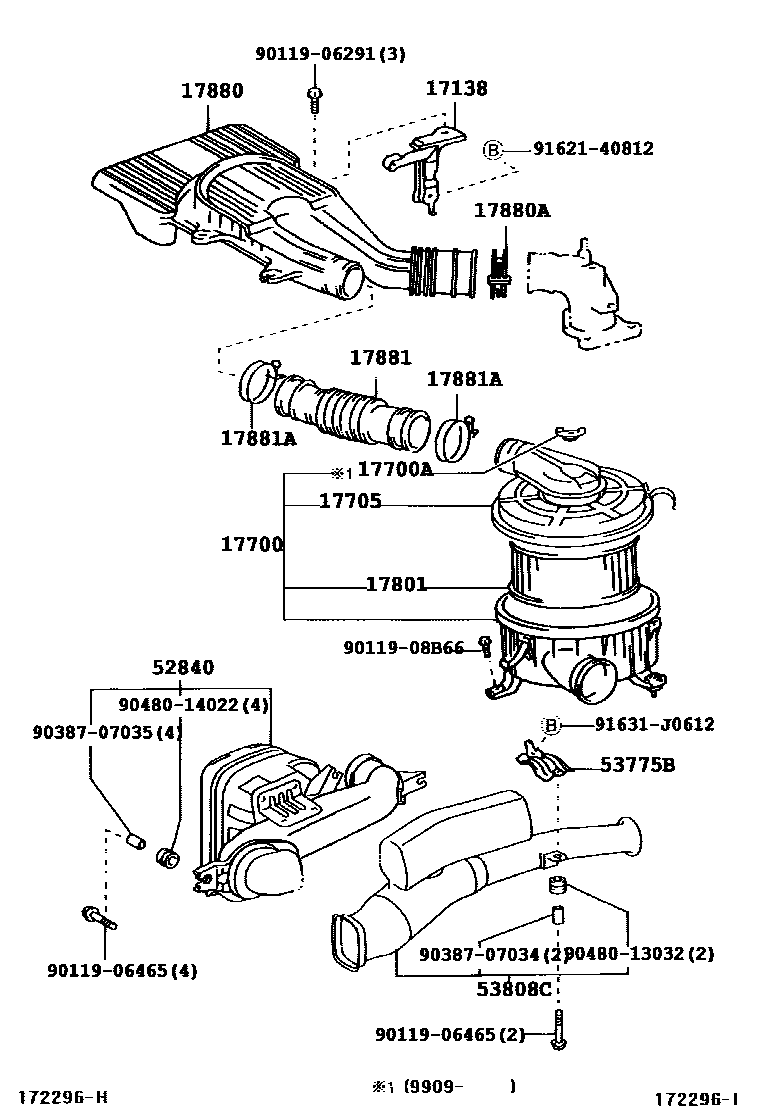

Toyota HILUX EPC diagram 1703, Air Cleaner, with 19 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-35020 · 17061-61040 |
| 17138 | Air intake pipe or air intake hose stay | 17138-30030 · 17138-30031 · 17138-54010 · 17138-54011 · 17138-54020 · 17138-54030 |
| 17183B | Manifold collar | 17183-54010 |
| 17218 | Thrust collar | 17218-54030 |
| 17341F | Air hose No. 1 | 17341-30030 · 17341-30040 |
| 17342D | Air hose No. 2 | 17342-30030 · 17342-30050 · 17342-75020 |
| 17343D | No. 3 air hose | 17343-75010 |
| 17343E | Hose clamp (for size 3 air hose) | 90467-21010 · 90467-22004 · 96134-42100 |
| 17700 | air filter assembly | 17700-5B050 · 17700-5B051 · 17700-5B070 · 17700-5B071 · 17700-5B100 · 17700-5B101 · 17700-5B160 · 17700-5B170 · 17700-5B190 · 17700-62130 · 17700-67180 · 17700-75240 · 17700-75250 · 17700-75260 · 17700-75270 · 17700-75390 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-08008 |
| 17700F | Stud bolt (for securing air filter) | 90116-06024 |
| 17705 | Air filter cover sub-assembly | 17705-54390 · 17705-54391 · 17705-54410 · 17705-54411 · 17705-54440 · 17705-54450 · 17705-54451 · 17705-54460 · 17705-54480 · 17705-62100 · 17705-67140 · 17705-75170 · 17705-75180 · 17705-75200 · 17705-75210 · 17705-75270 |
| 17710F | Control lever handle sub-assembly | 55905-89111 |
| 17728 | thermostat valve | 17728-35020 · 17728-63040 |
| 17781A | hose clamp | 96111-10830 |
| 17801 | Air filter element sub-assembly | 17801-54170 · 17801-54180 · 17801-58010 · 17801-62010 · 17801-67070 |
| 17805 | Intake connecting pipe sub-assembly | 17805-73100 · 17805-75130 · 17805-75150 · 17805-75160 · 17805-75171 · 17860-75050 |
| 17805D | Gasket (for air intake connection pipe) | 90540-12009 |
| 17805E | Collar (for intake connecting pipe) | 90389-09016 |
| 17805F | Intake resonator sub-assembly | 17805-75140 |
| 17805G | Hose clamp (for air connector) | 96111-10500 · 96111-10780 |
| 17805J | Wing nut (for air connector) | 90175-06013 |
| 17805K | Studs (for air connectors) | 90116-06024 |
| 17806 | No. 2 air filter pipe assembly | 17113-0L010 · 17113-30010 · 17113-30011 |
| 17806D | Clamp (for air cleaner tube) | 96111-10650 · 96111-10730 |
| 17848 | Gasket from air cleaner to carburetor | 17848-35010 |
| 17853 | Air filter bracket vibration isolation pad | 17853-75010 · 17853-75020 |
| 17861 | Intake connecting pipe | 17659-62010 |
| 17871 | Air intake connecting pipe stay | 17871-54030 · 17871-54040 · 17871-54041 · 17871-75011 · 17871-75020 · 17871-75030 |
| 17872 | Air intake connecting pipe bracket | 17872-54040 · 17872-54070 |
| 17878 | No. 3 air intake connecting pipe | 17878-30010 · 17878-30020 |
| 17880 | Air cleaner hose assembly | 17880-05030 · 17880-05031 · 17880-54240 · 17880-54241 · 17880-54250 |
| 17880A | hose clamp | 96111-10710 · 96111-10730 · 96111-10780 |
| 17880B | Collar (for air cleaner hose) | 90387-07016 |
| 17880C | Gasket (for air cleaner hose) | 90480-14024 |
| 17881 | No. 1 air cleaner hose | 17881-54640 · 17881-54650 · 17881-54740 · 17881-54750 · 17881-54780 · 17881-54820 · 17881-62190 · 17881-67100 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73002 · 90467-63002 · 96111-10730 · 96111-10750 · 96111-10780 · 96111-10830 · 96111-10850 · 96111-10900 |
| 17881B | No. 1 air cleaner hose | 17881-75110 |
| 17882 | No. 2 air cleaner hose | 17882-0C010 · 17882-30040 · 17882-30050 · 17882-62020 · 17882-67020 · 17882-75040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 78186-35120 · 78186-35130 · 90460-73002 · 90467-31110 · 96111-10730 · 96111-10800 · 96111-10830 · 96111-10880 |
| 17883 | No. 3 air cleaner hose | 17883-75040 · 17883-75050 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90467-38003 |
| 17885 | air cleaner tube | 17885-30020 · 17885-67011 |
| 17893 | Intake resonator | 17893-54230 · 17893-54231 · 17893-62080 · 17893-75050 |
| 17893A | hose clamp | 96111-10480 |
| 17911 | No. 1 cold air intake pipe | 52810-04010 · 52810-35010 · 52810-35020 · 52810-35021 |
| 17912 | No. 2 cold air intake pipe | 52820-04020 · 52820-35020 · 52820-35021 · 52820-35022 · 52820-35030 · 52820-35040 · 52820-35060 |
| 22020 | Air flow meter assembly with air filter | 22020-75020 |
| 22204 | Intake air flow meter assembly | 22204-21010 · 22204-30010 · 22204-75020 |
| 23249B | Rubber pad | 23249-54010 · 90480-16045 · 90480-16047 |
| 52840 | Cold air intake resonator assembly | 52840-04010 · 52840-35020 |
| 53775B | Cold air intake pipe mounting bracket | 53775-35010 |
| 53807C | Right front fender air duct sub-assembly | 53807-35050 · 53807-35060 |
| 53808C | Left front fender air duct sub-assembly | 53808-04020 · 53808-04030 · 53808-35030 · 53808-35060 · 53808-35070 |
| 53965 | Air cleaner air inlet damper control cable bracket | 53965-35010 |
| 53970 | Air filter air inlet damper control cable assembly | 53970-04050 |
| 53978 | Air cleaner damper bracket | 53978-35010 · 53978-35020 |
