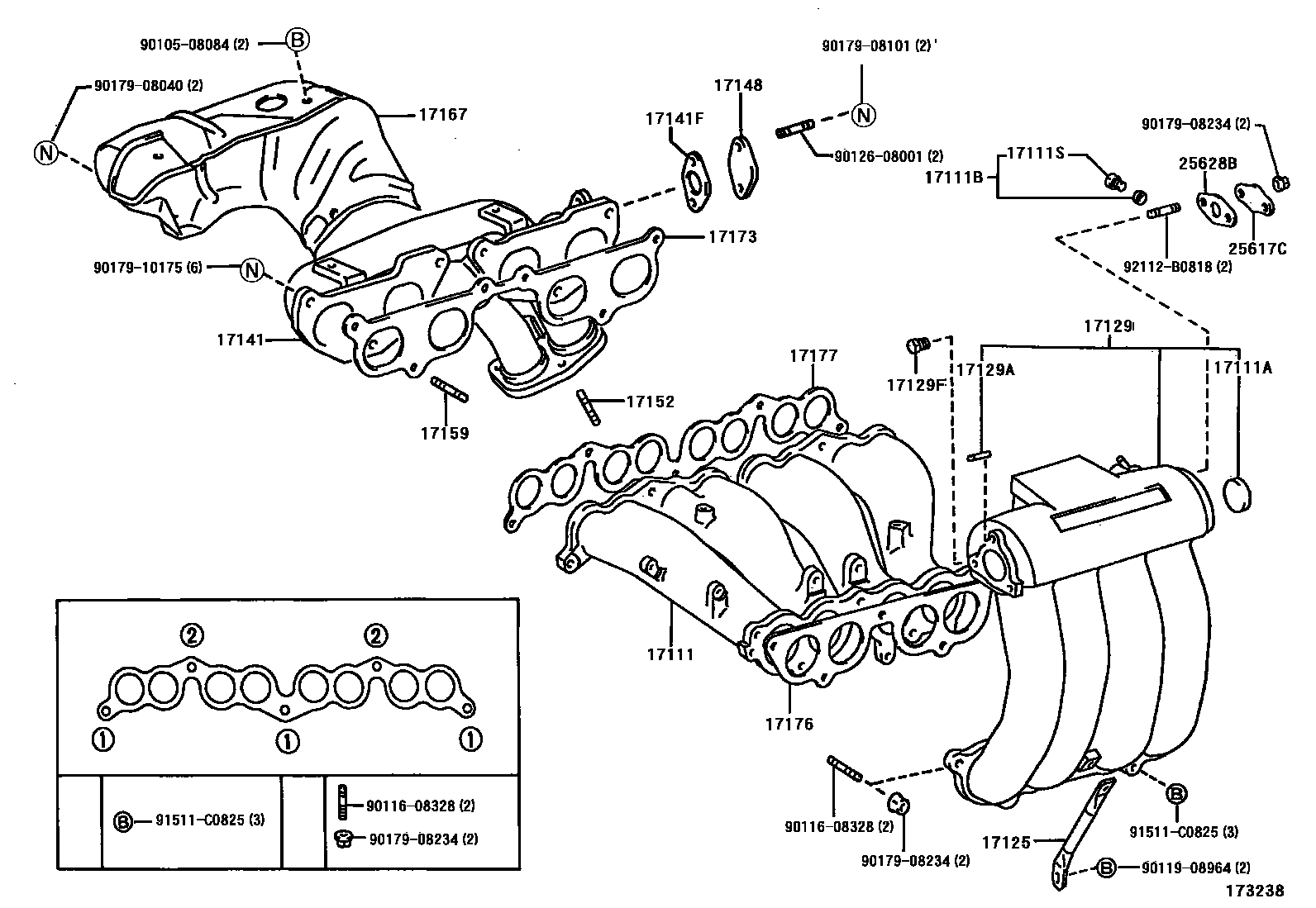

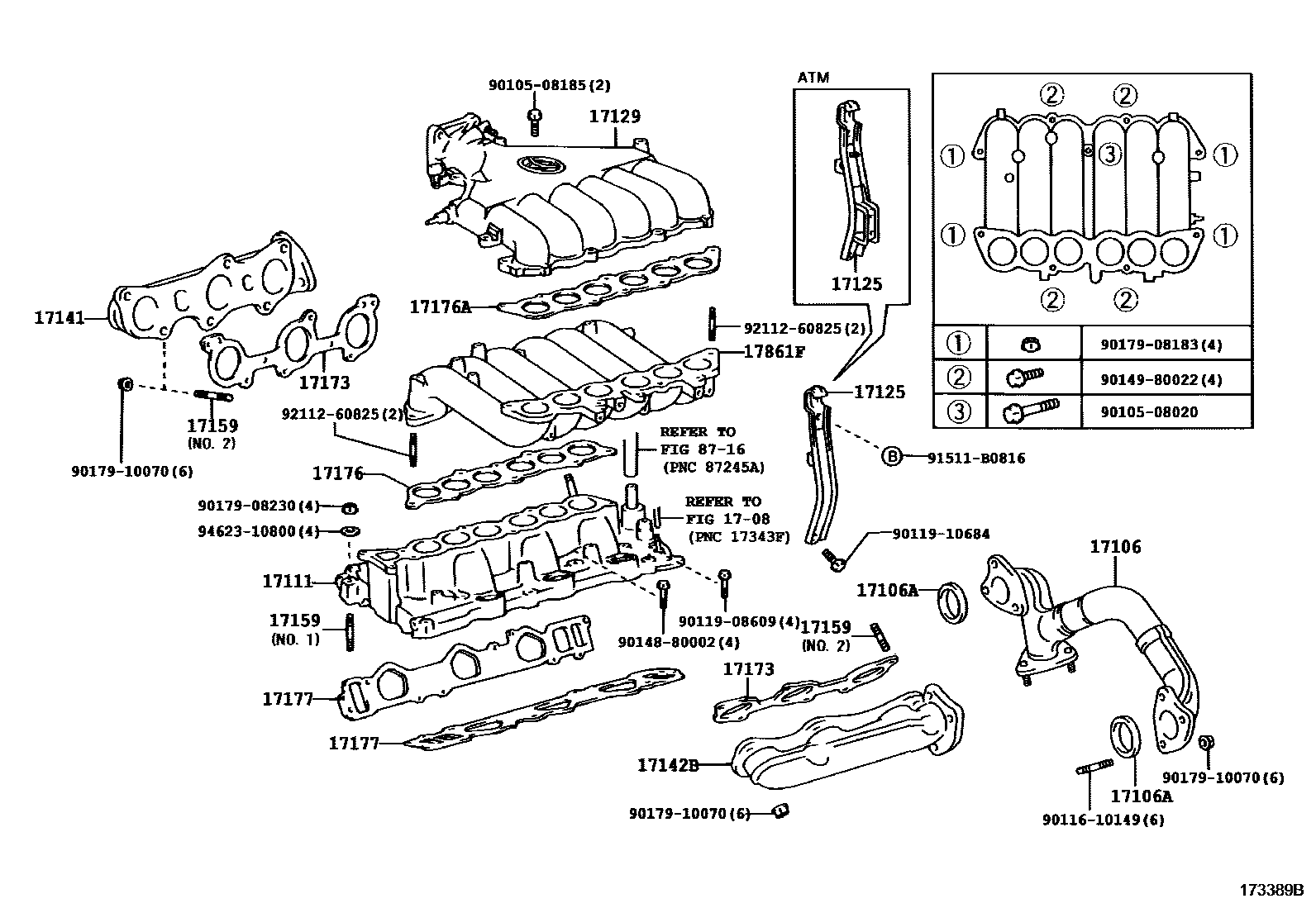

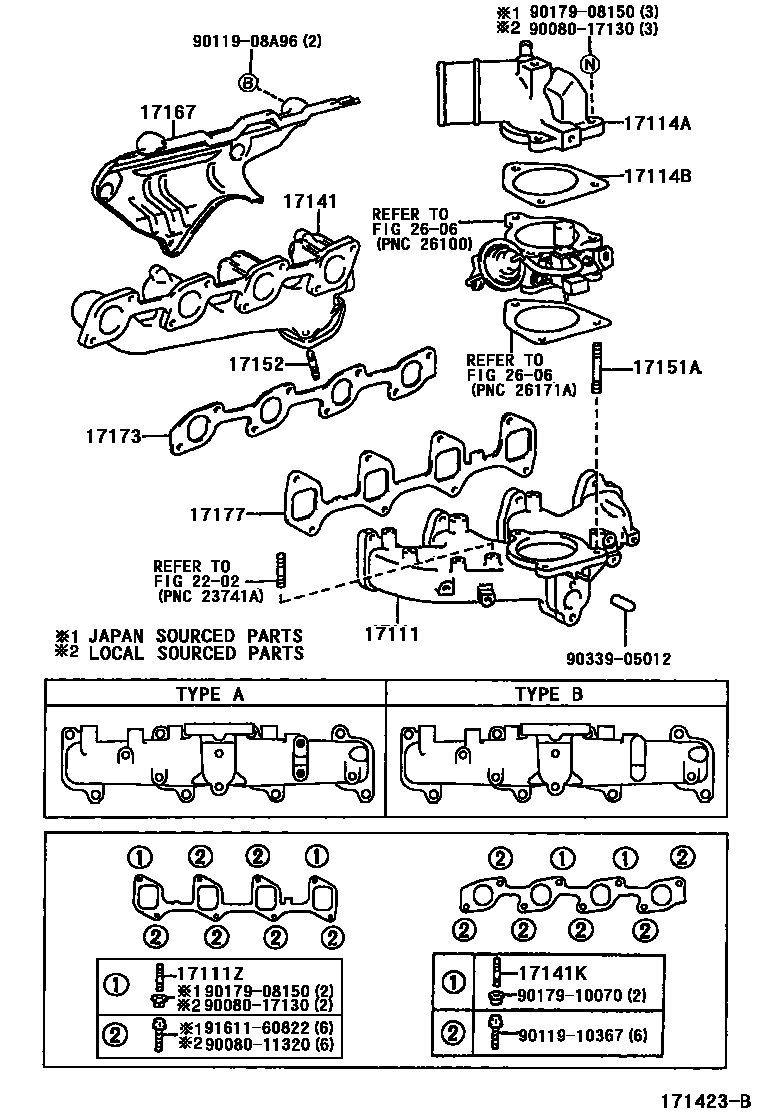

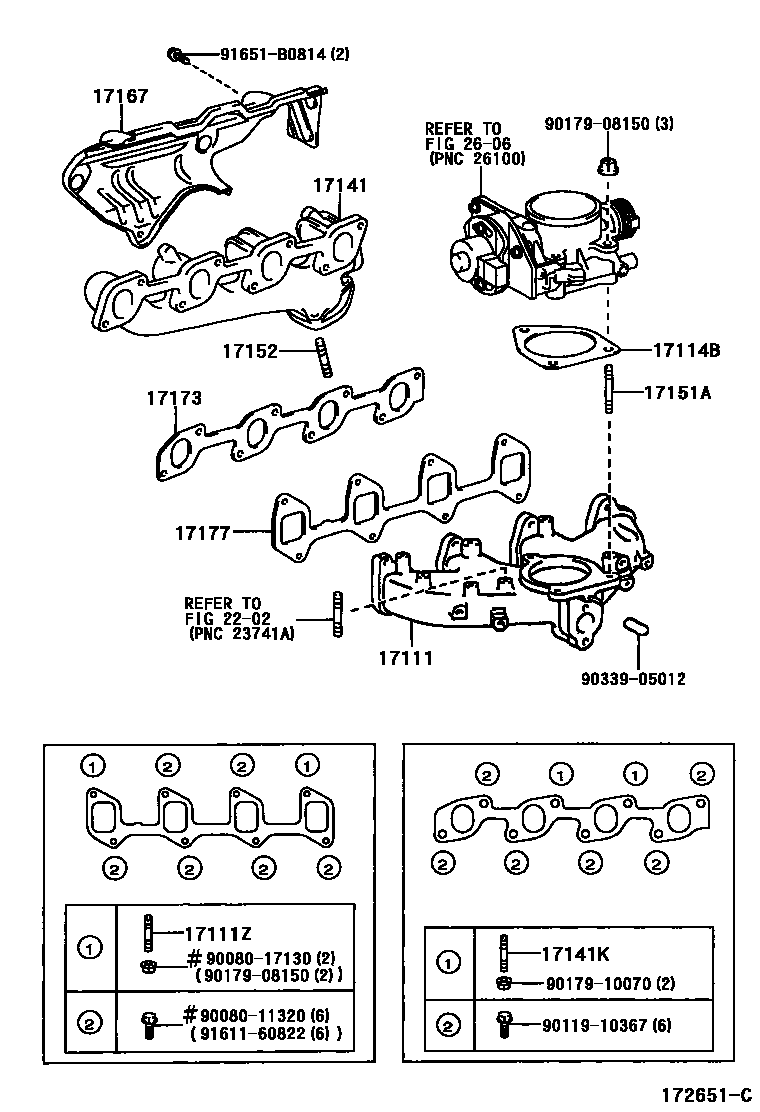

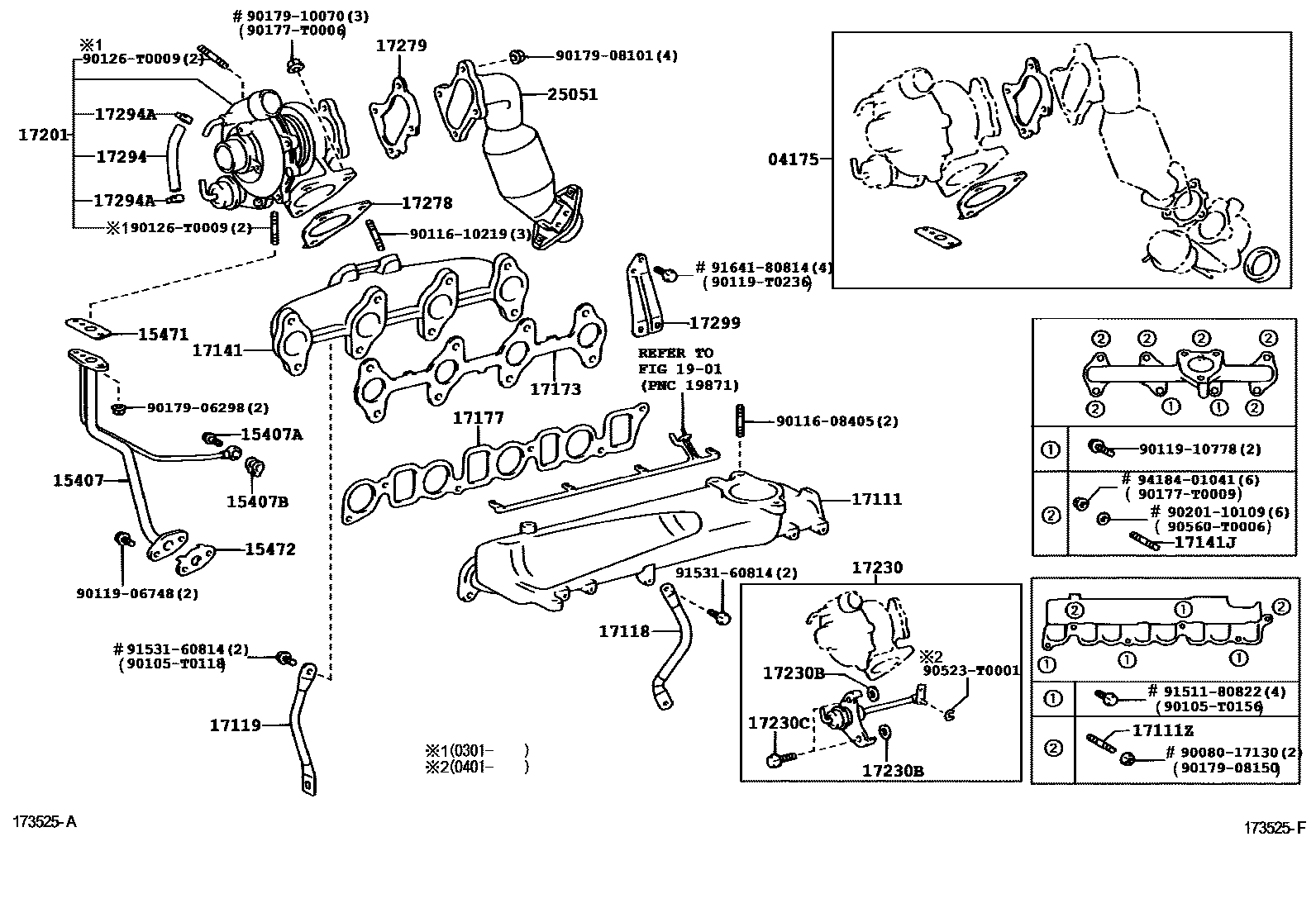

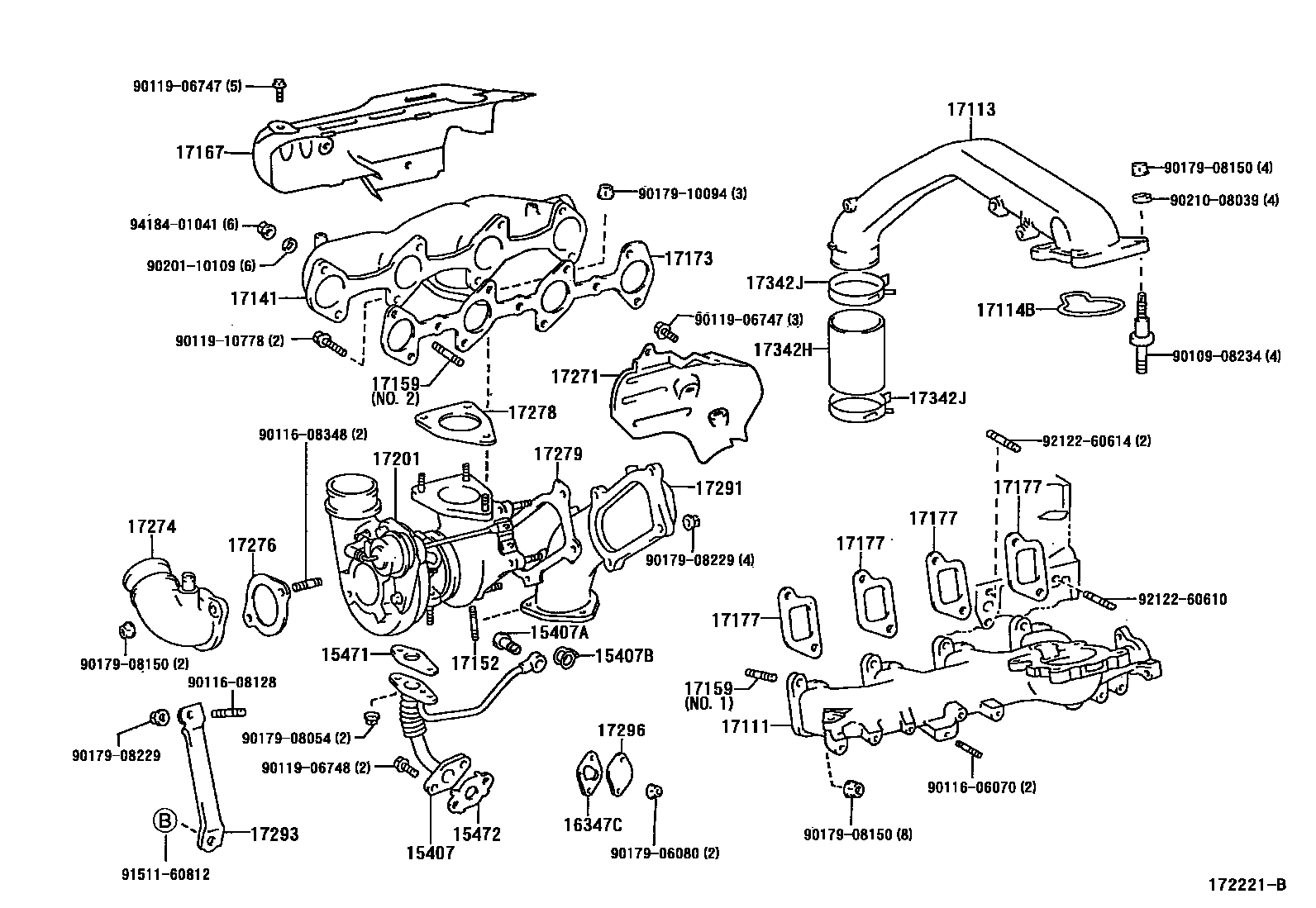

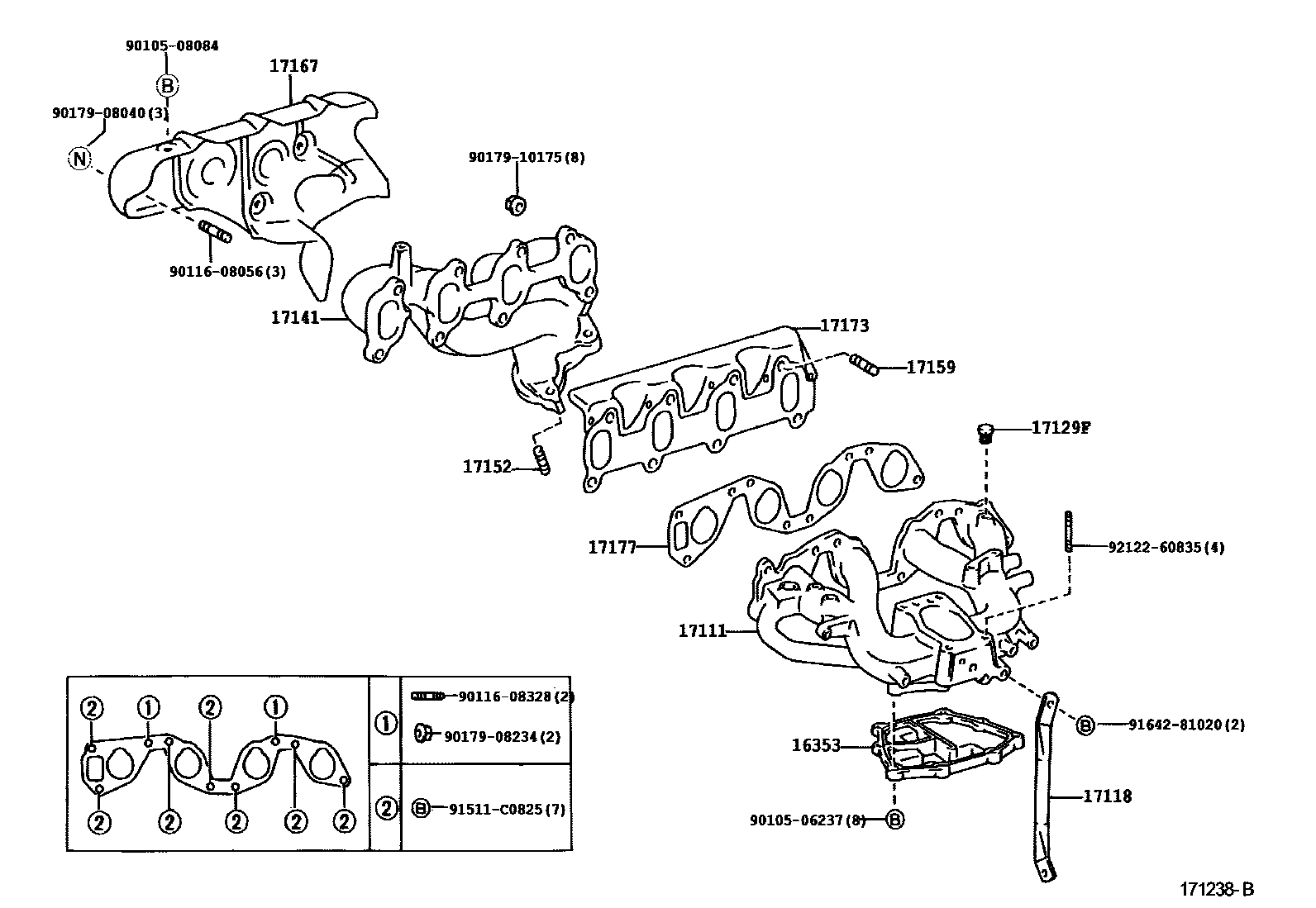

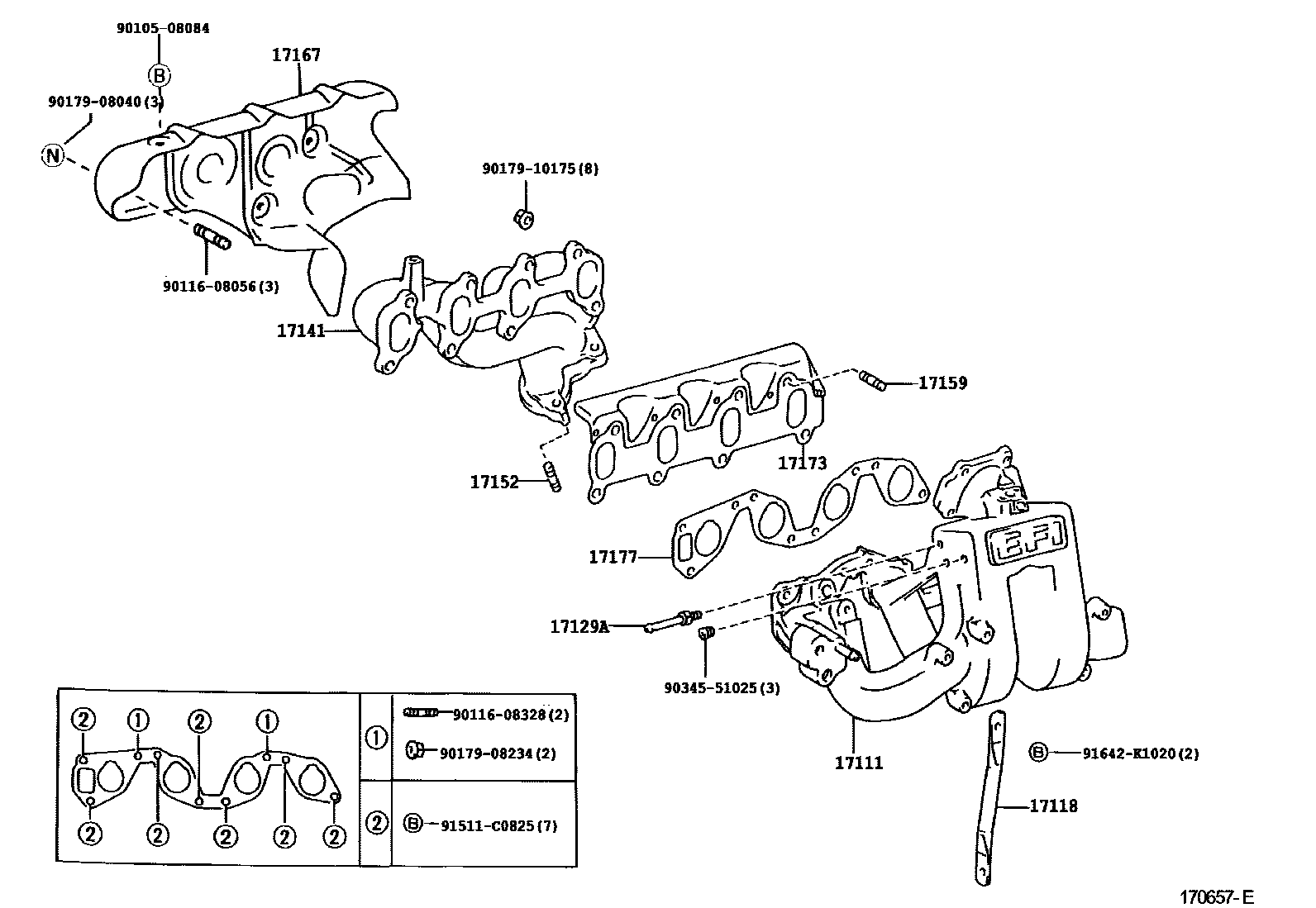

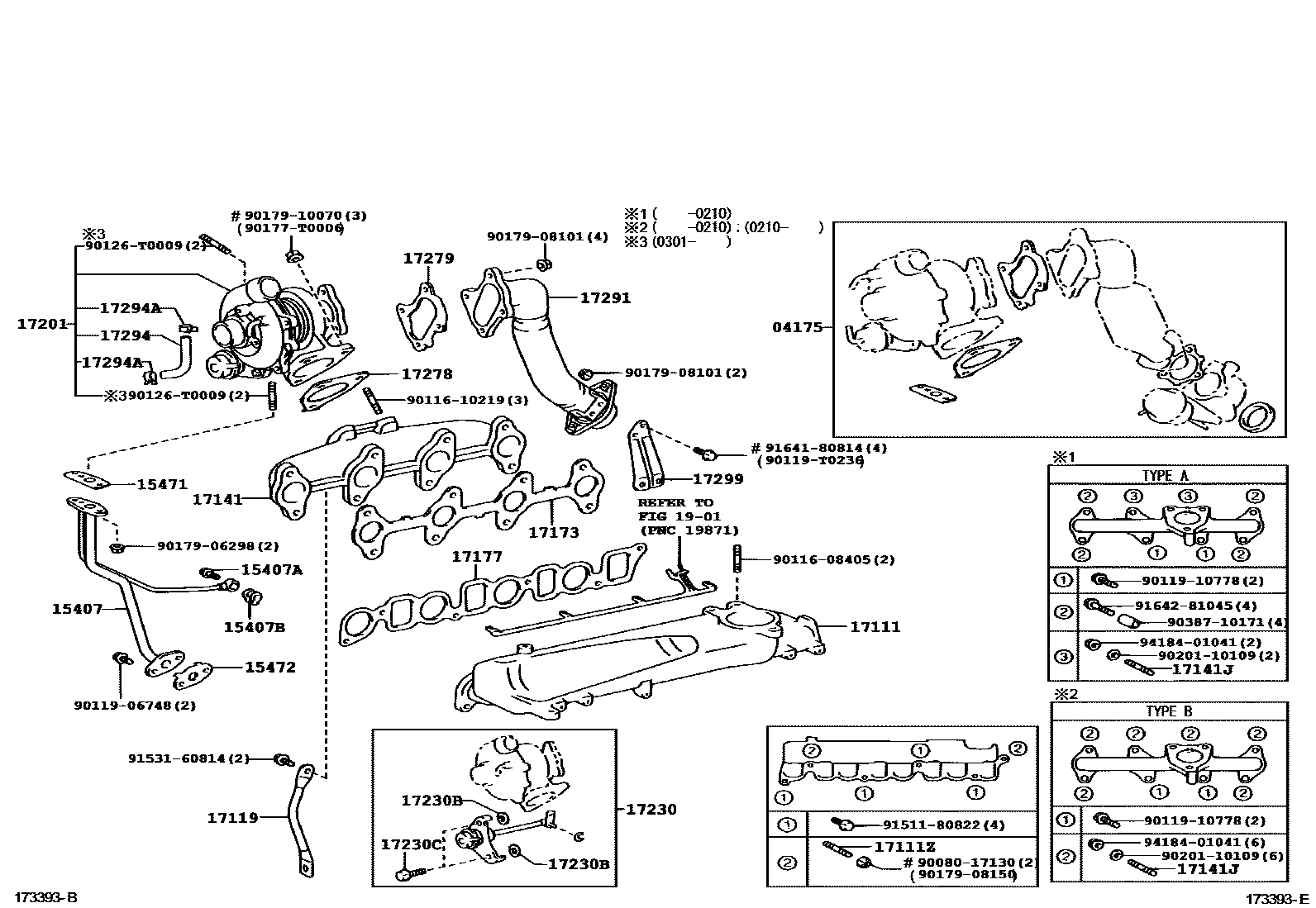

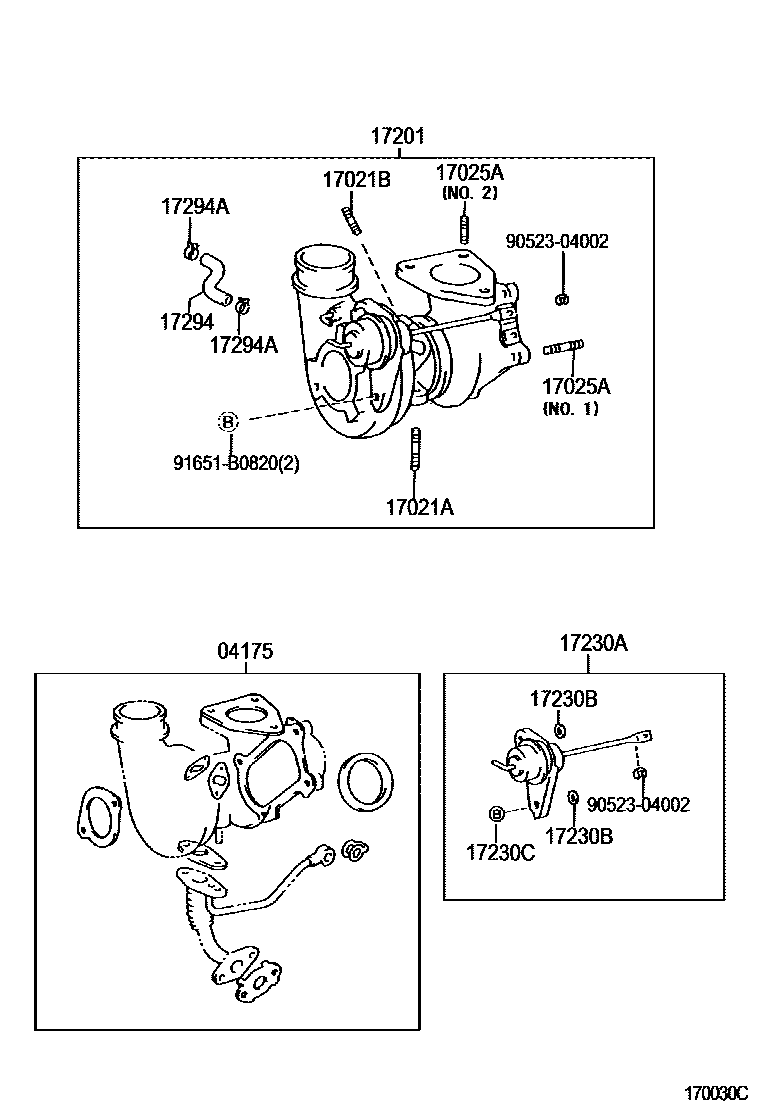

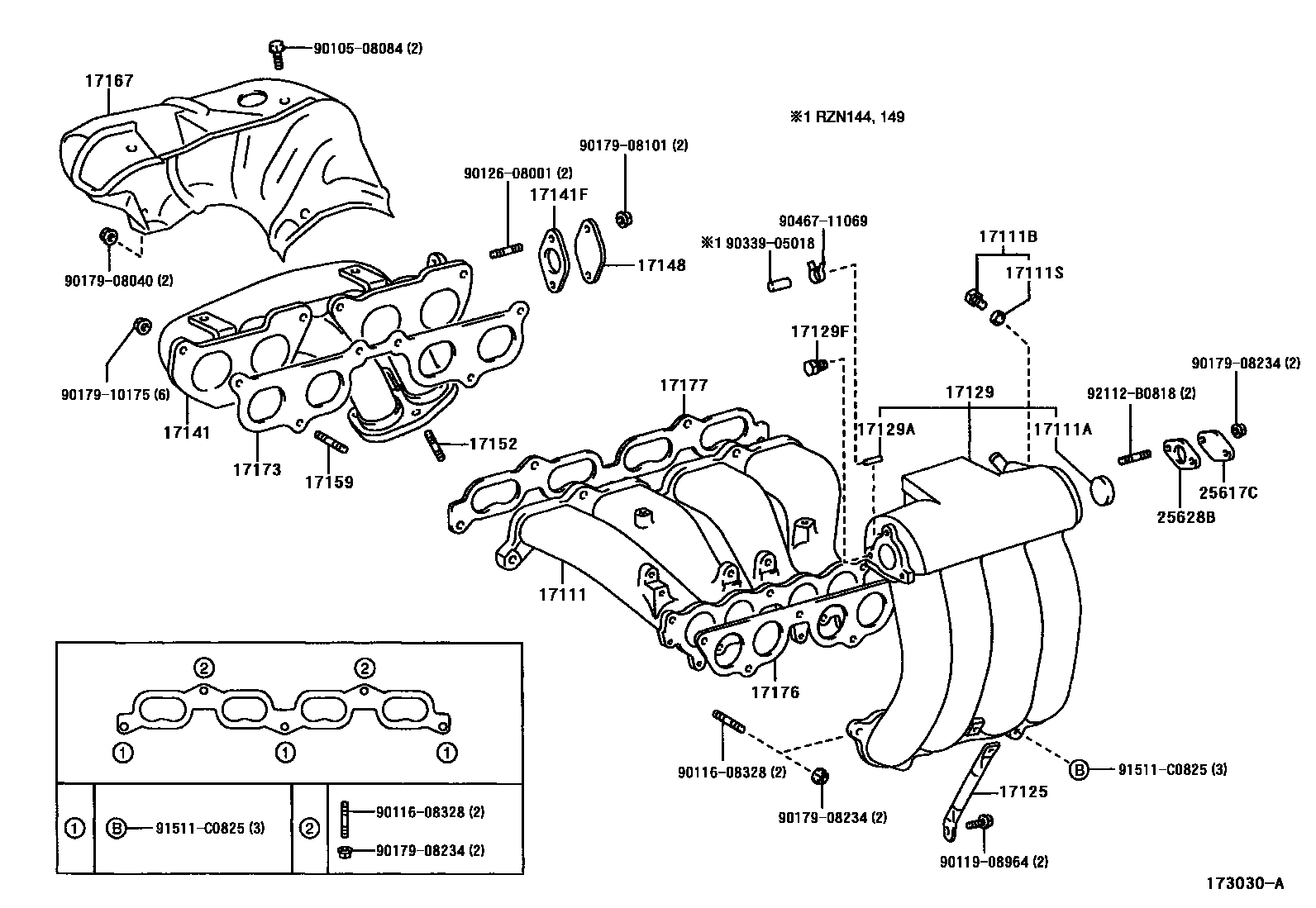

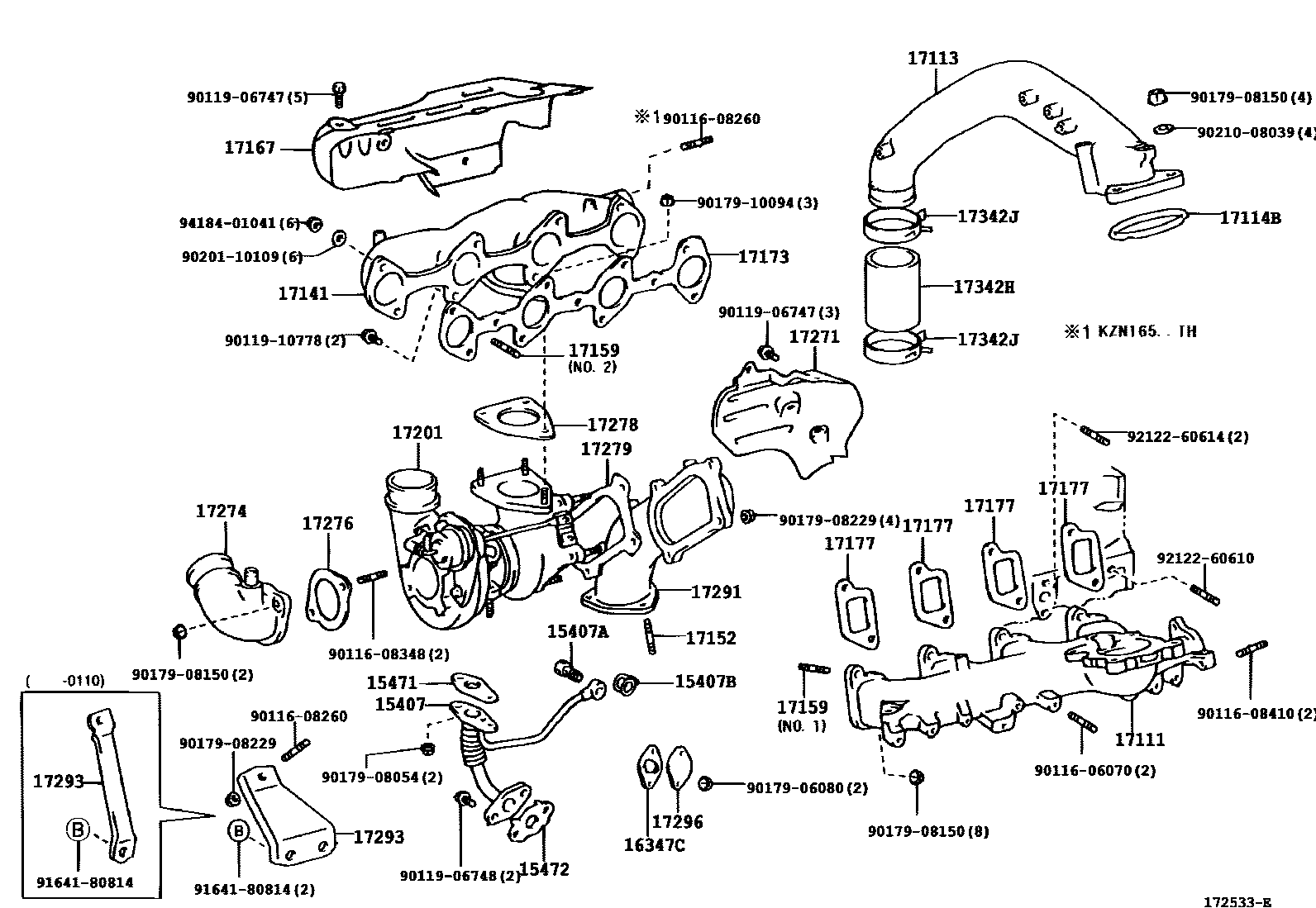

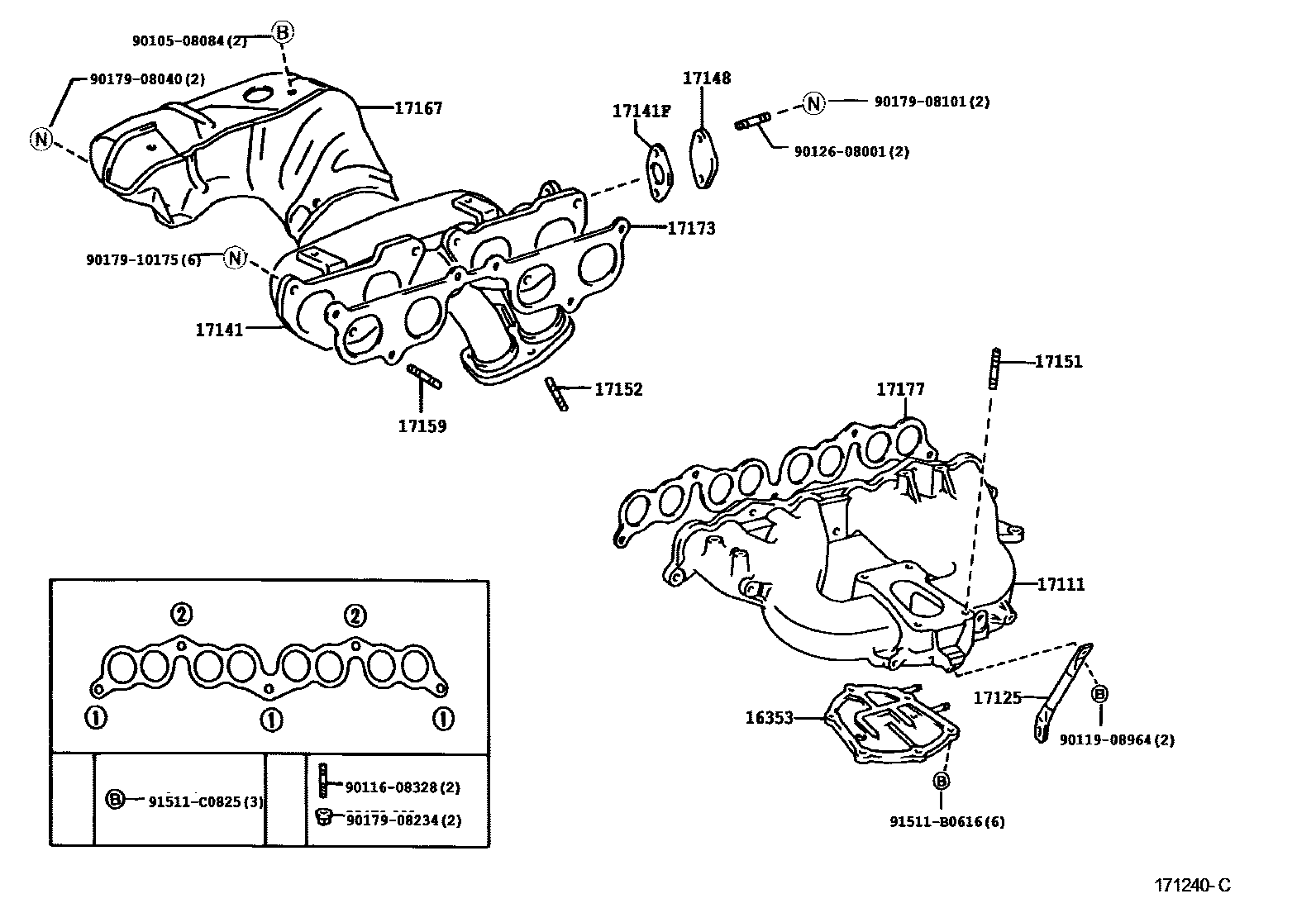

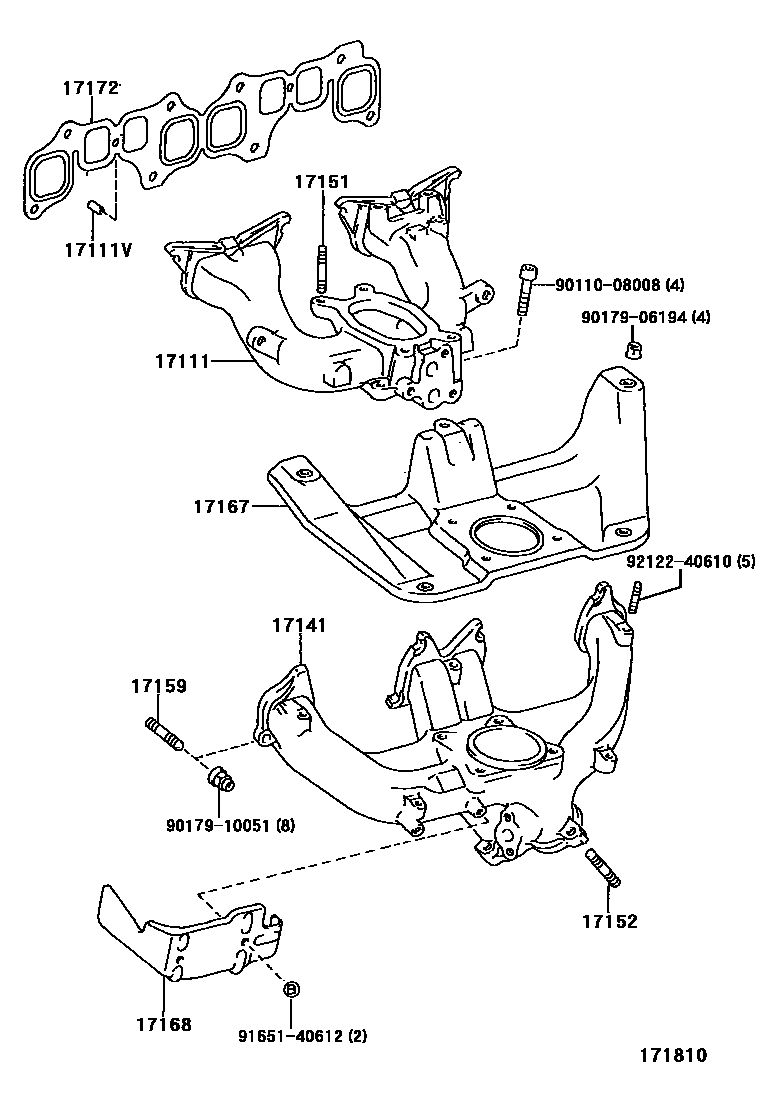

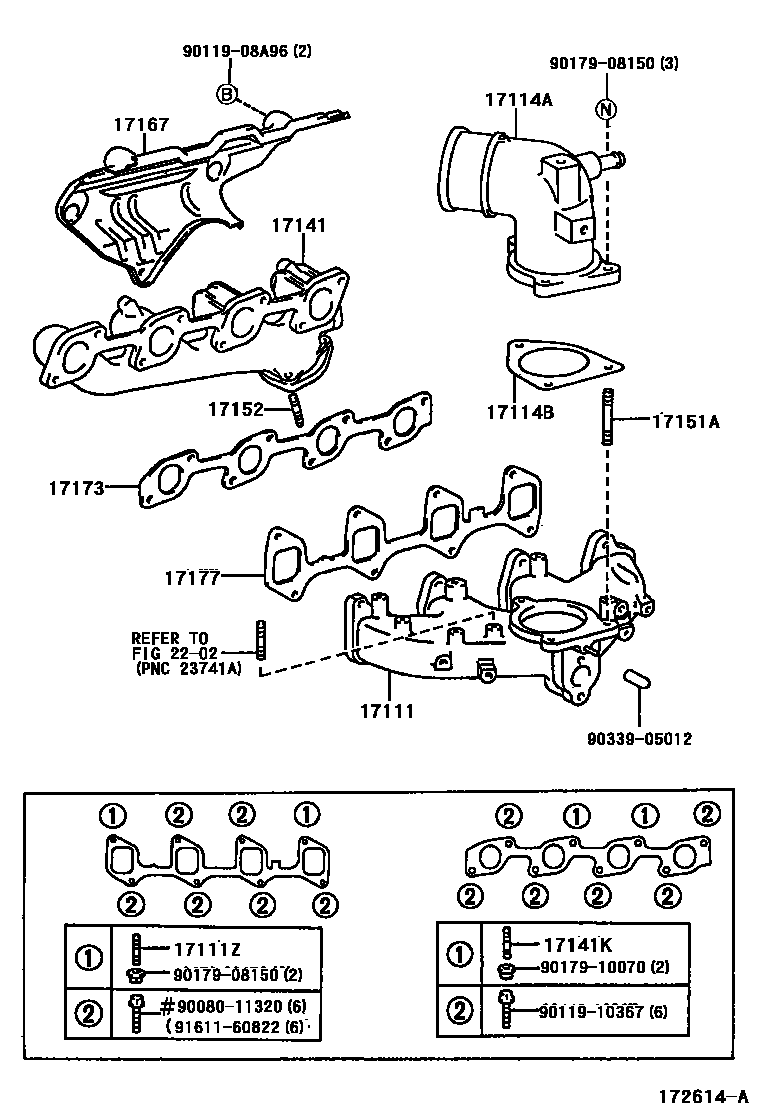

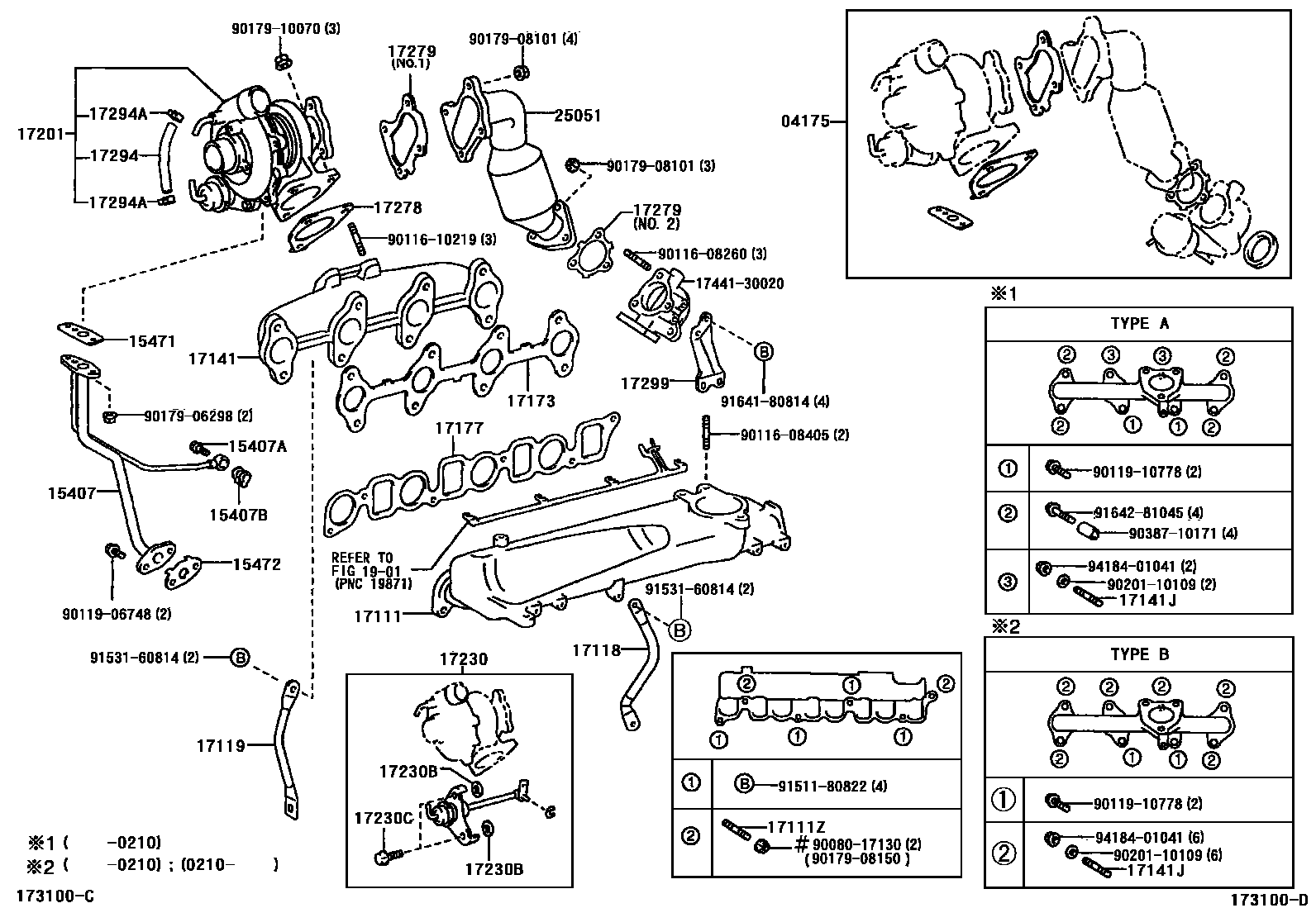

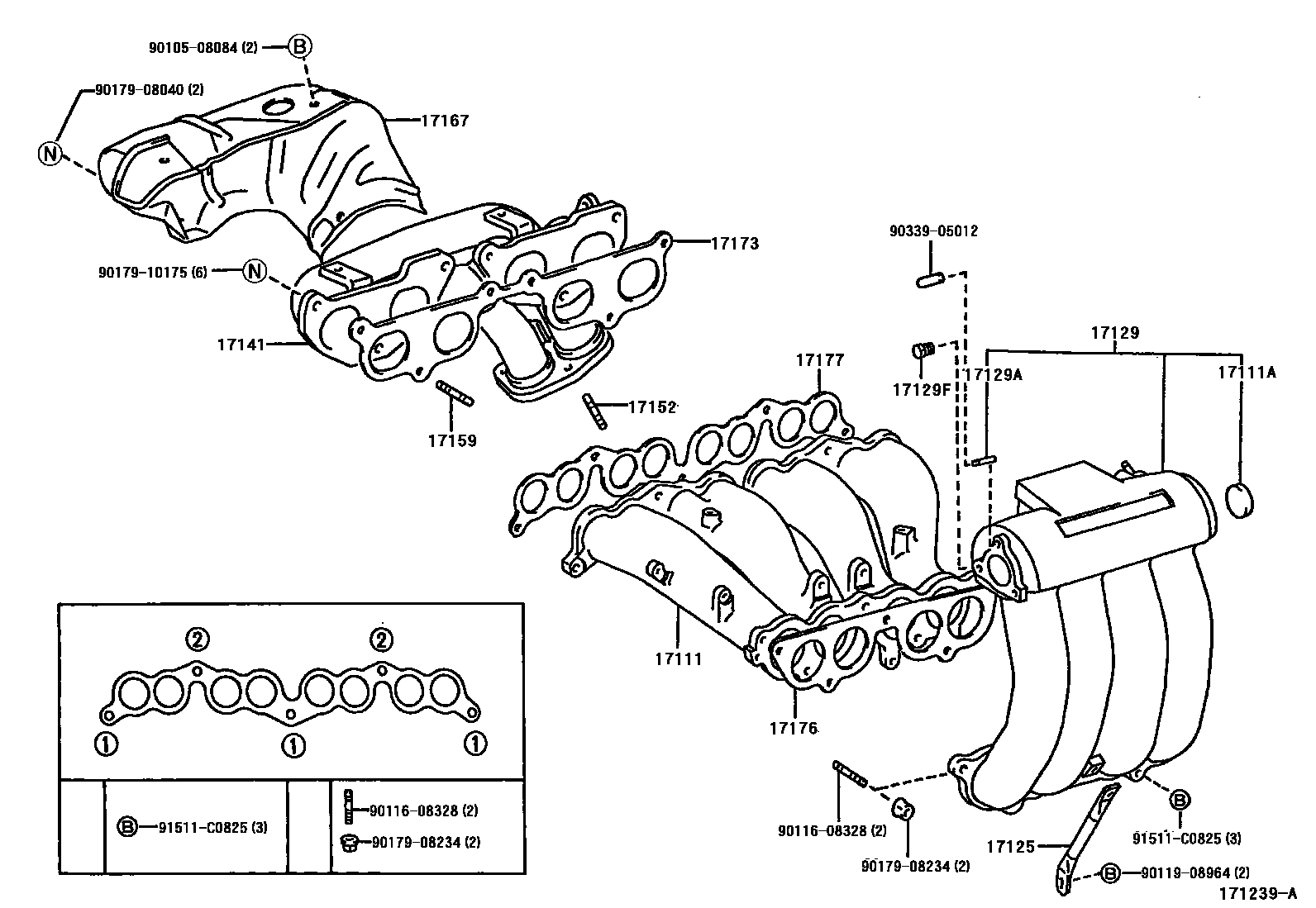

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 17 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-0L050 · 04175-0L100 · 04175-30030 · 04175-67011 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-0L010 · 15407-30030 · 15407-30031 · 15407-67010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-12097 · 90401-T0004 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-T0006 · 90904-30004 |
| 15471 | Turbine oil inlet pipe gasket | 15471-0L010 · 15471-30010 · 15471-58010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-0L010 · 15472-67010 |
| 16347C | Gasket (for turbocharger water pipe) | 16347-67010 |
| 16353 | water bypass flange | 16353-75010 · 16353-75021 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17021B | Stud bolt | 90116-06048 |
| 17025A | Stud bolts (for turbine housing) | 90116-10175 · 90126-08009 |
| 17106 | Exhaust crossover pipe assembly | 17106-62040 · 17106-62041 |
| 17106A | Exhaust pipe gasket | 90917-06083 |
| 17111 | Intake Manifold | 17101-54092 · 17101-54101 · 17101-62020 · 17101-67021 · 17101-67041 · 17101-75020 · 17101-75021 · 17111-05030 · 17111-05050 · 17111-0L010 · 17111-0L011 · 17111-30070 · 17111-30071 · 17111-54112 · 17111-54113 · 17111-54140 · 17111-67071 · 17111-71020 · 17111-75010 · 17111-75031 · 17111-75040 · 17111-75070 |
| 17111A | No. 1 screw plug | 96411-43500 |
| 17111B | No. 2 screw plug | 90341-10009 |
| 17111S | Gasket (for manifold plug) | 90430-09005 |
| 17111V | Direct pin (for fixing the intake manifold) | 90250-08120 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-08220 · 90116-T0003 · 90116-T0011 · 92122-80822 |
| 17113 | intake pipe | 17113-67011 · 17113-67030 |
| 17114A | Intake flange | 17114-54050 · 17114-54120 |
| 17114B | Intake flange gasket | 17116-54021 · 17116-54030 · 17116-67010 · 17116-67030 |
| 17118 | Manifold stays | 17118-0L020 · 17118-30030 · 17118-75020 · 17118-75040 |
| 17119 | No. 2 manifold stay | 17118-0L010 · 17118-30020 |
| 17125 | No. 1 pressure tank stay | 17125-62041 · 17125-62060 · 17125-75020 · 17125-75030 |
| 17129 | Intake pressure tank | 17109-62090 · 17109-75013 · 17109-75030 |
| 17129A | Connector No. 1 | 90404-51319 · 90406-06001 · 90406-06002 |
| 17129F | Intake manifold intake hole plug | 90345-51025 |
| 17141 | exhaust manifold | 17104-67010 · 17104-67020 · 17141-0L010 · 17141-30030 · 17141-30031 · 17141-54111 · 17141-54121 · 17141-62110 · 17141-71020 · 17141-75020 · 17141-75070 · 17141-75080 |
| 17141F | Gasket (for exhaust manifold plate) | 25634-75010 · 89466-20020 |
| 17141J | Studs (for right exhaust manifold) | 90126-10017 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90116-10141 · 90126-T0004 |
| 17142B | Left exhaust manifold | 17142-62110 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-41010 |
| 17151 | Studs (for manifold to carburetor) | 90116-08388 · 92122-40835 |
| 17151A | Studs (for manifold to venturi) | 90116-08292 · 90116-08293 · 92122-60855 |
| 17152 | Studs (for manifold to exhaust) | 90116-10088 · 90116-10146 · 90116-10149 · 90116-T0001 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10063 · 90116-10150 · 90116-10163 · 90126-10017 · 90126-10037 · 92122-80822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-05020 · 17167-54110 · 17167-67040 · 17167-71020 · 17167-75060 · 17167-75070 · 17167-75080 · 17167-75090 · 17167-75100 · 17167-75120 |
| 17168 | Exhaust manifold No.2 insulation pad | 12521-72010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-71011 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-05010 · 17173-0L010 · 17173-30010 · 17173-30020 · 17173-54030 · 17173-62060 · 17173-67030 · 17173-75010 · 17173-75020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62040 · 17176-75010 |
| 17176A | No. 2 gasket (intake surge tank to intake manifold) | 17176-62040 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-05010 · 17177-05011 · 17177-0L010 · 17177-30010 · 17177-54021 · 17177-62060 · 17177-67011 · 17177-75011 · 17177-75020 · 17177-75030 |
| 17201 | Turbocharger sub-assembly | 17201-0L010 · 17201-0L020 · 17201-30040 · 17201-30050 · 17201-67010 · 17201-67040 |
| 17230 | Actuator assembly with bracket | 17230-09010 · 17230-09020 · 17230-39025 · 17230-39035 |
| 17230A | Compensation actuator assembly with bracket | 17230-69015 · 17230-69145 |
| 17230B | Flat Washer (for compensating actuator assembly) | 90201-06042 · 90201-06043 · 90201-06044 · 90201-06045 · 90201-08081 · 90201-08082 · 90201-08086 · 90201-08087 |
| 17230C | Bolt with washer (for compensating actuator assembly) | 91621-60620 · 91621-60822 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-67021 |
| 17274 | Compressor oil inlet elbow pipe | 17274-67011 |
| 17276 | Compressor oil inlet gasket | 17276-67010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-67010 |
| 17279 | Turbine outlet elbow gasket | 17279-0L020 · 17279-30020 · 17279-30030 · 17279-67010 |
| 17291 | Turbine oil outlet elbow | 17291-30020 · 17291-67030 |
| 17293 | Turbocharger stay | 17293-67010 · 17293-67011 |
| 17294 | Actuator hose | 90445-12151 · 90445-12265 · 90445-T0001 · 90445-T0010 |
| 17294A | Clamp (for actuator hose) | 90466-T0001 · 90466-T0008 · 96132-51100 |
| 17296 | Bearing shell side plate | 17296-28010 |
| 17299 | Turbine oil outlet elbow brace | 17299-0L010 · 17299-30020 |
| 17342H | Air hose No. 2 (for turbocharger) | 17342-67030 |
| 17342J | Hose clip (for air intake pipe) | 90467-53002 |
| 17861F | Intake connecting pipe | 17861-62012 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0L010 · 25051-0L020 · 25051-30020 |
| 25617C | EGR hole cover plate | 25617-74020 |
| 25628B | EGR air intake gasket | 25628-75010 |
