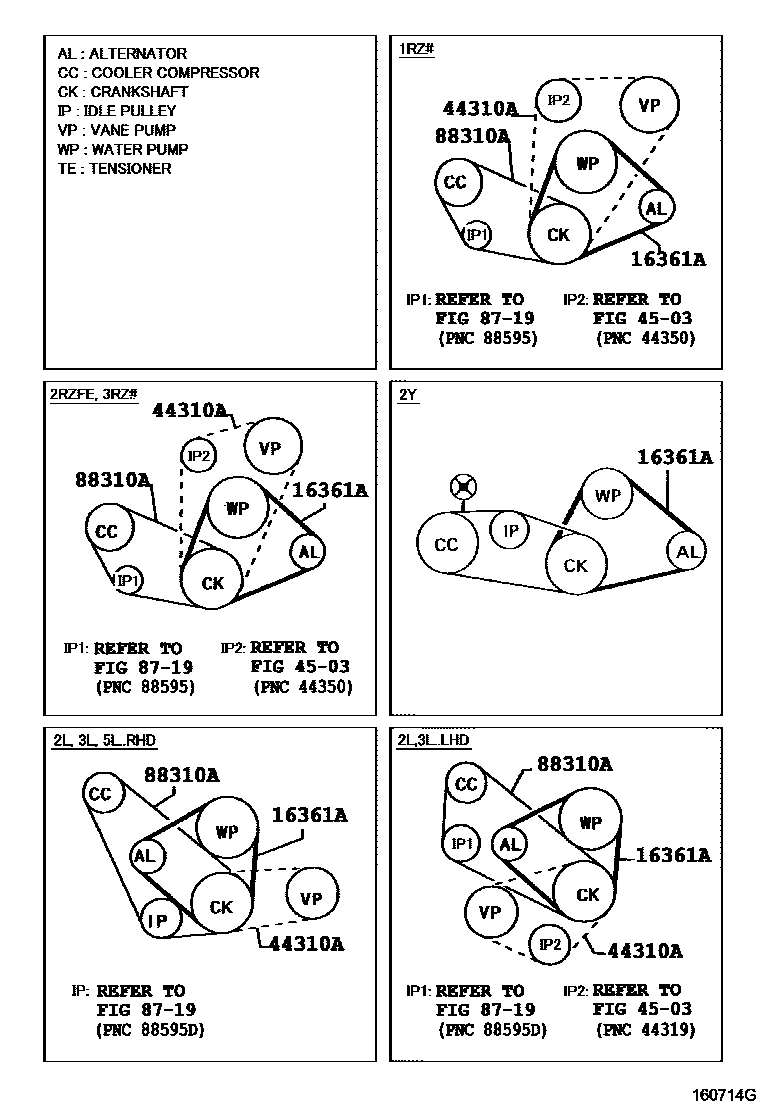

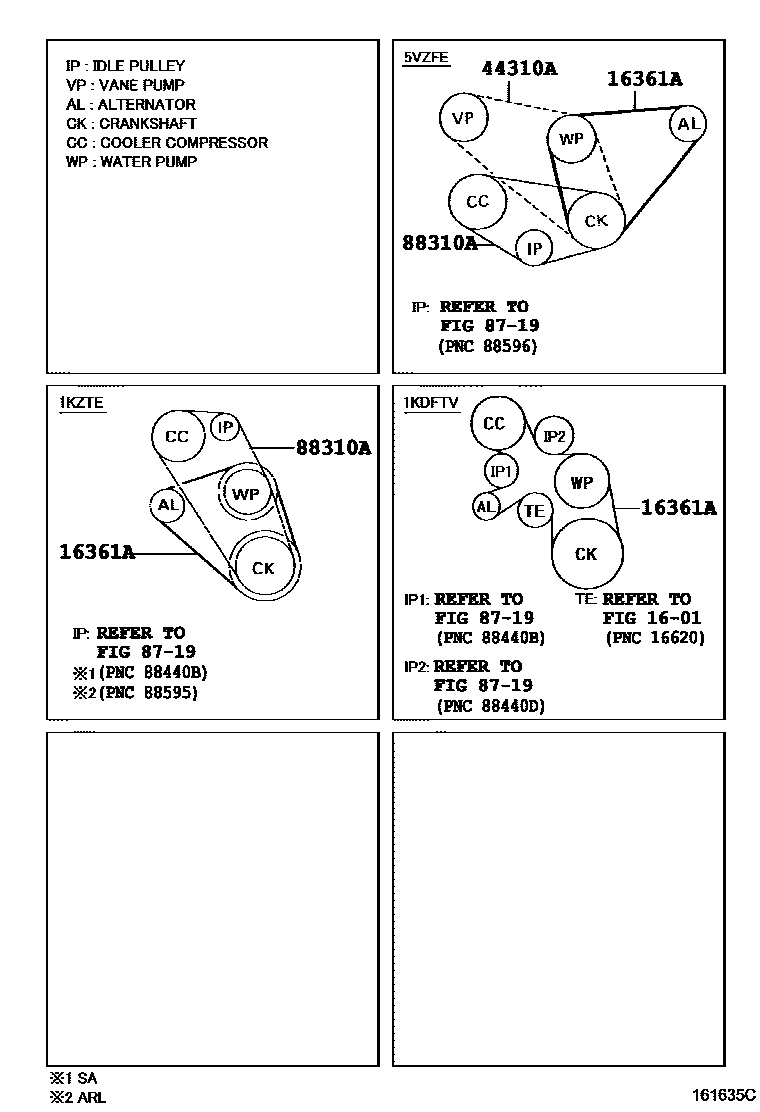

Toyota HILUX V-Belt — Figure 1605
Toyota HILUX EPC diagram 1605, V-Belt, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90080-91090 · 90080-91206 · 90080-92016 · 90080-92017 · 90916-02211 · 90916-02336 · 90916-02385 · 90916-02524 · 99364-80830 |
| 44310A | V-belt (for vane pump) | 99332-00825 · 99332-01120 · 99332-10865 · 99364-31110 · 99364-71100 · 99364-81070 · 99364-81100 · 99364-91080 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90080-92019 · 90080-92020 · 90916-02397 · 99332-11205 · 99332-11265 · 99332-11275 · 99364-30860 · 99364-30940 · 99364-90930 |
