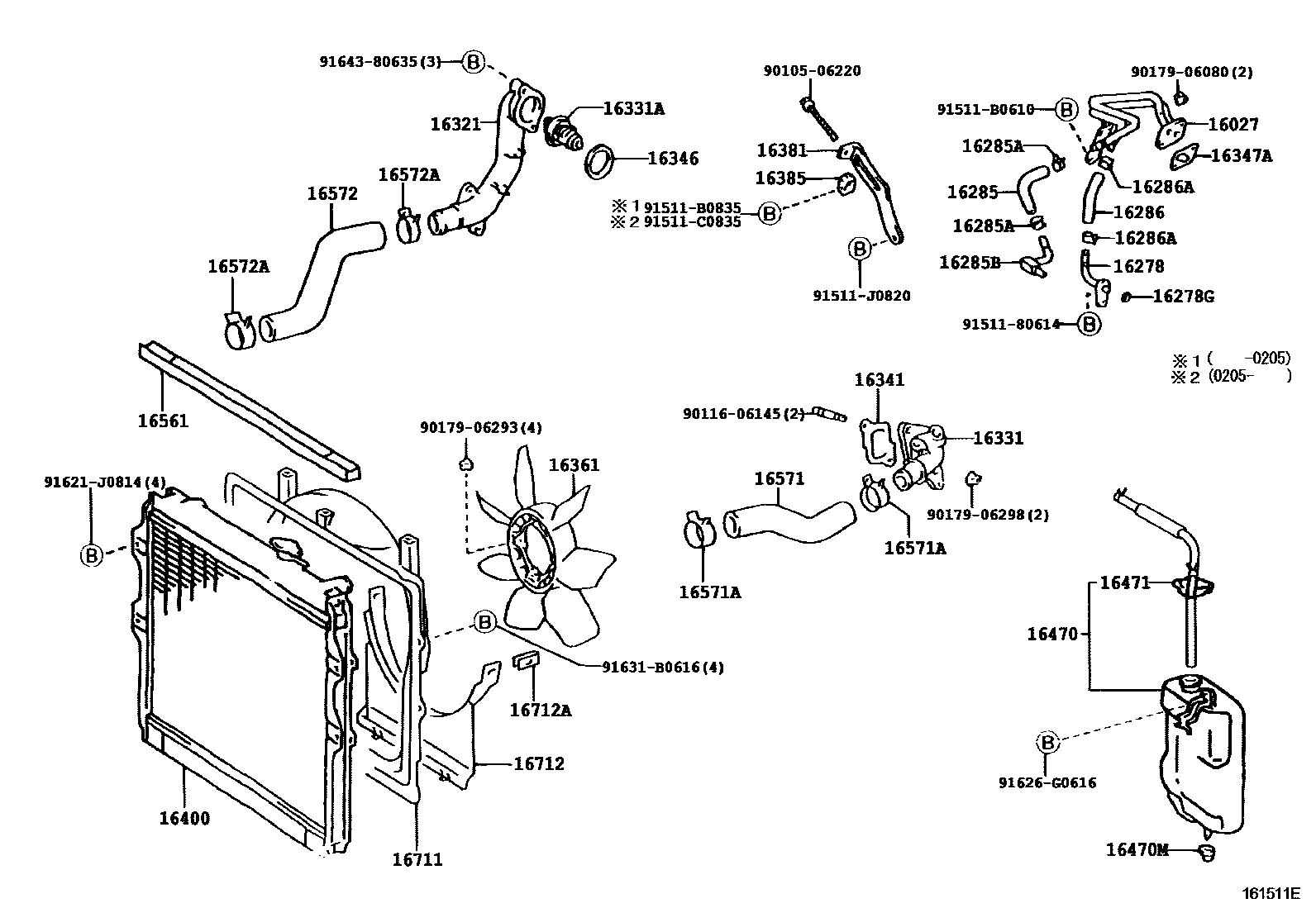

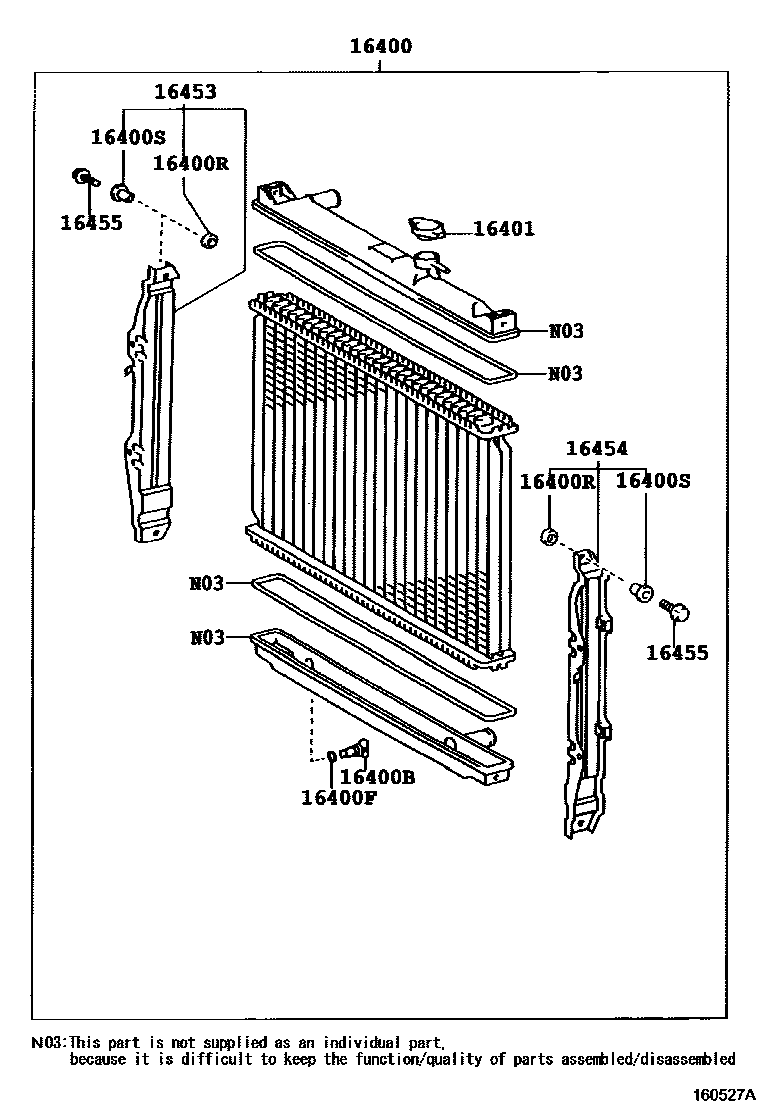

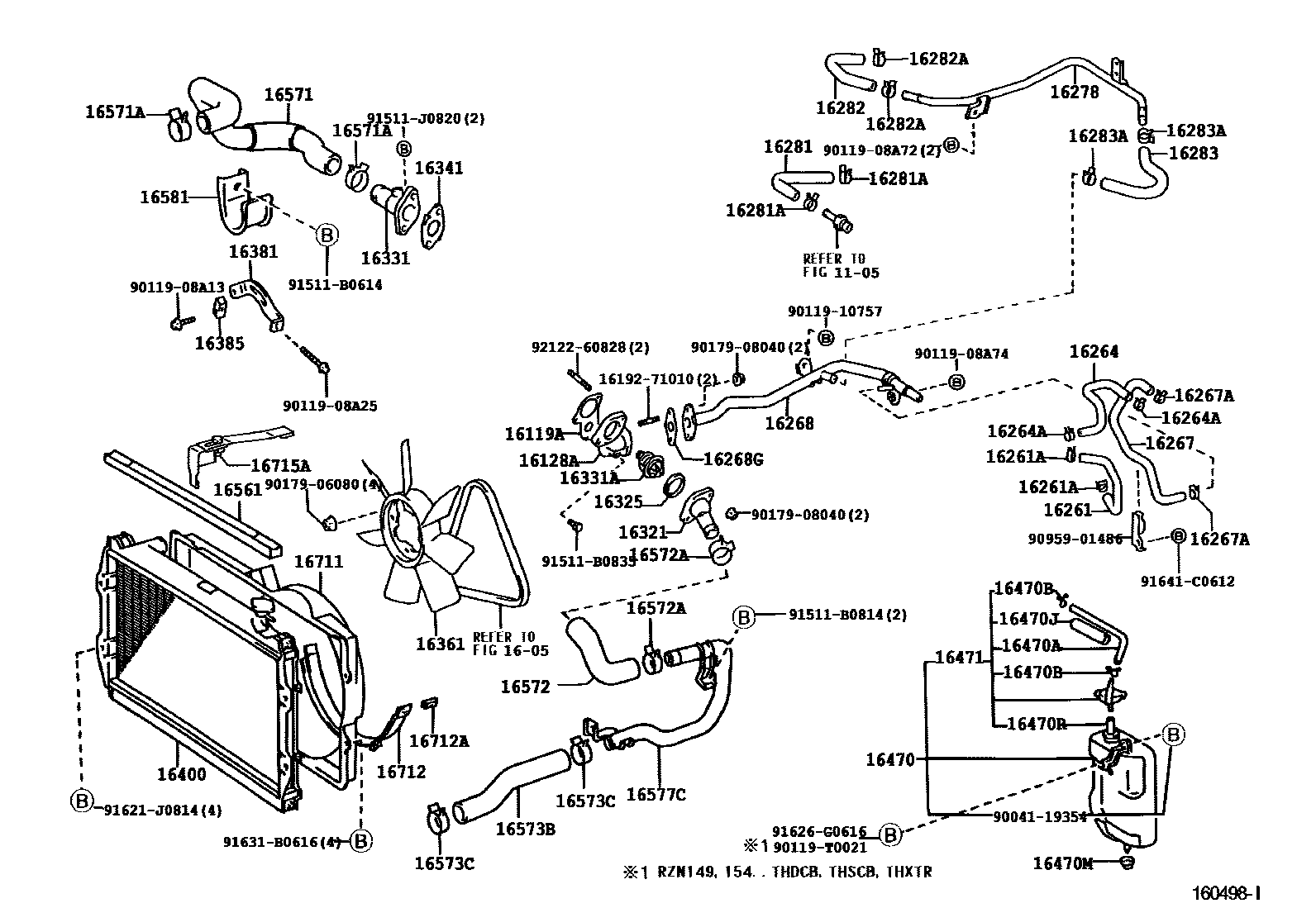

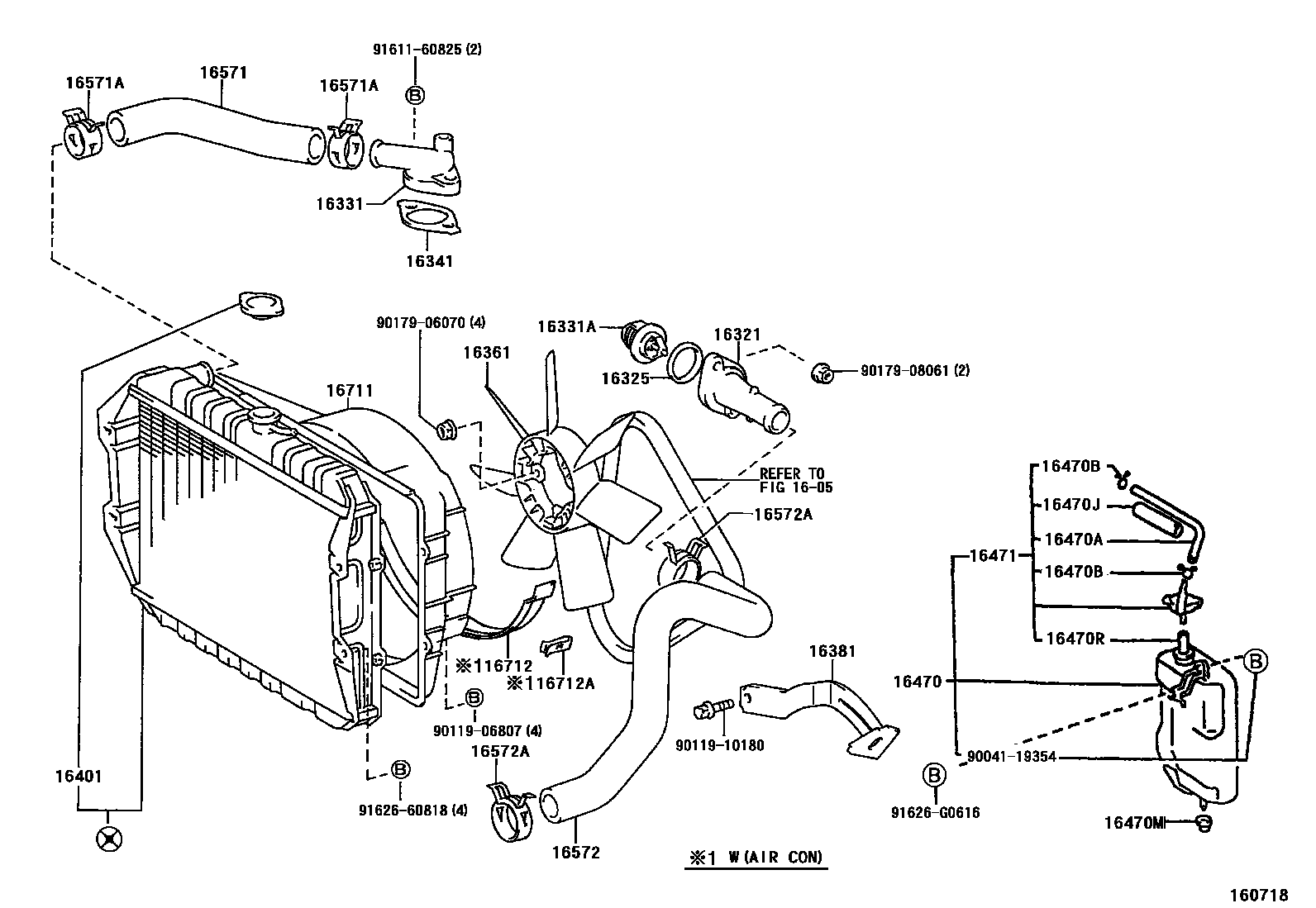

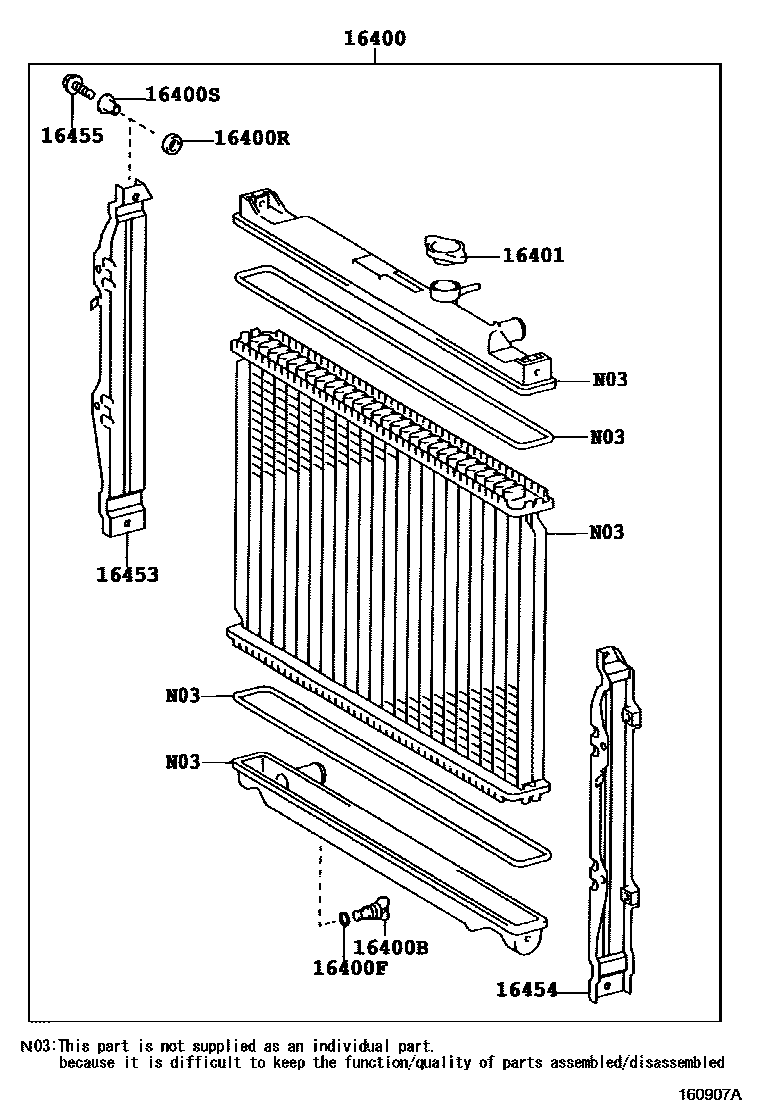

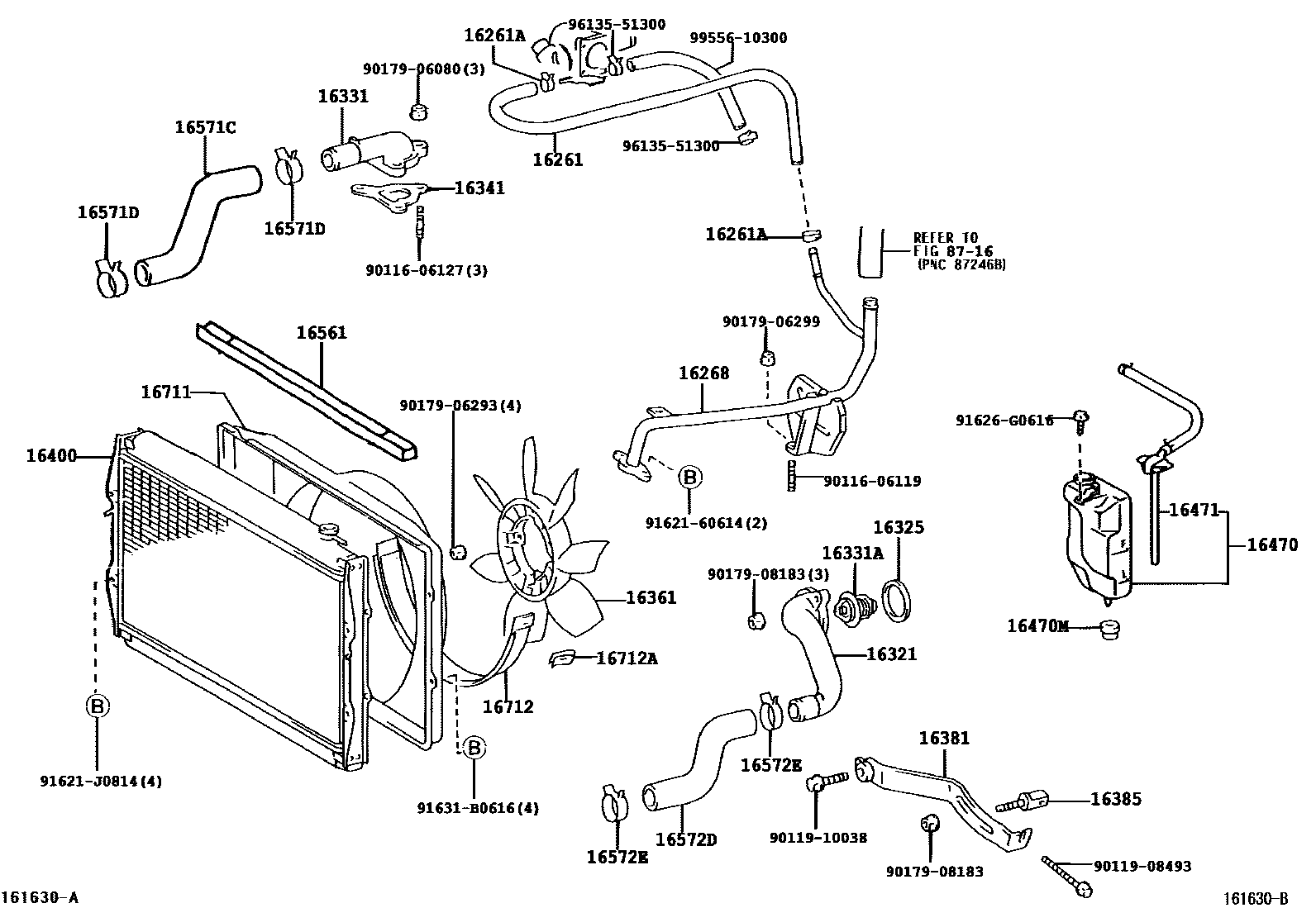

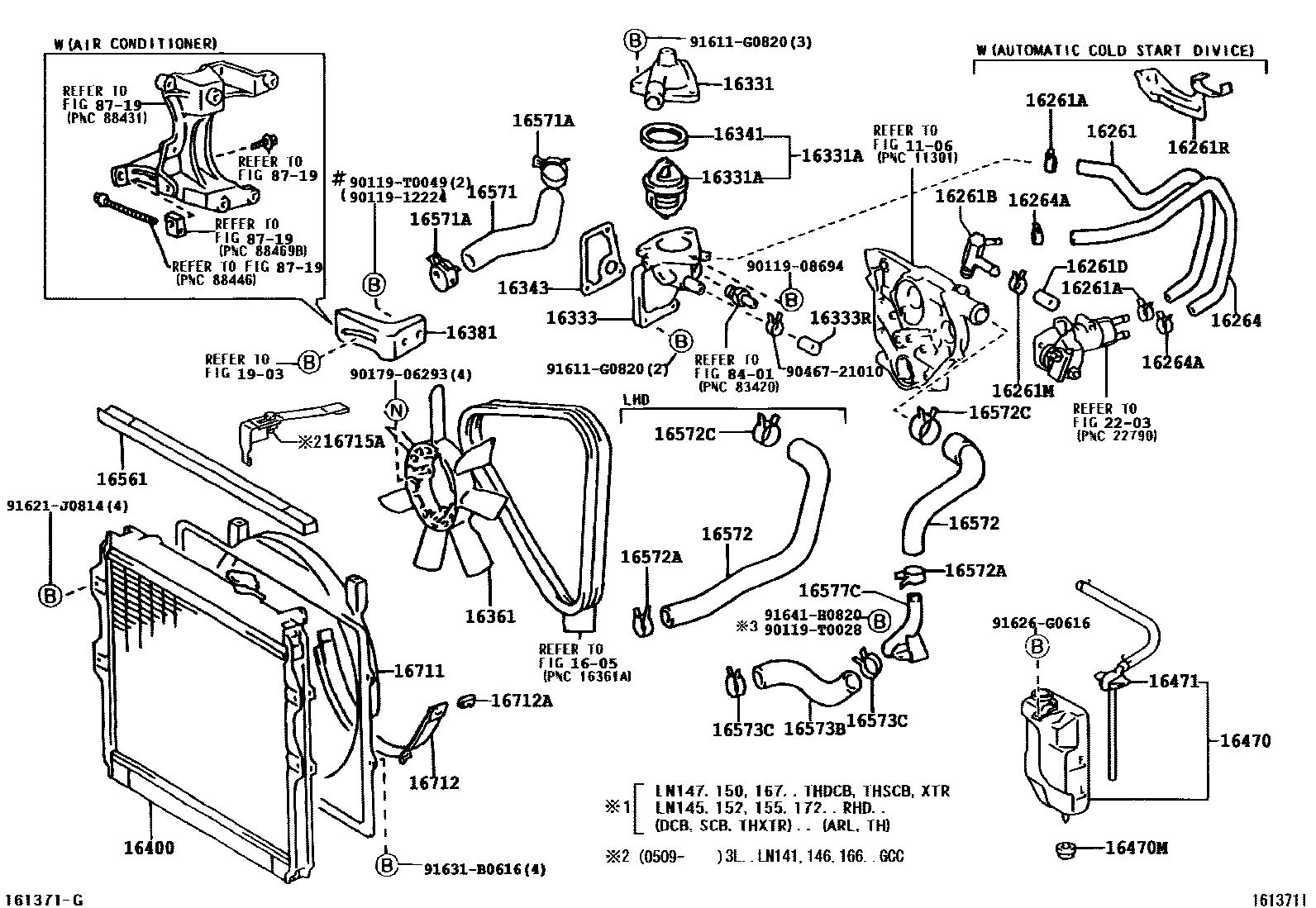

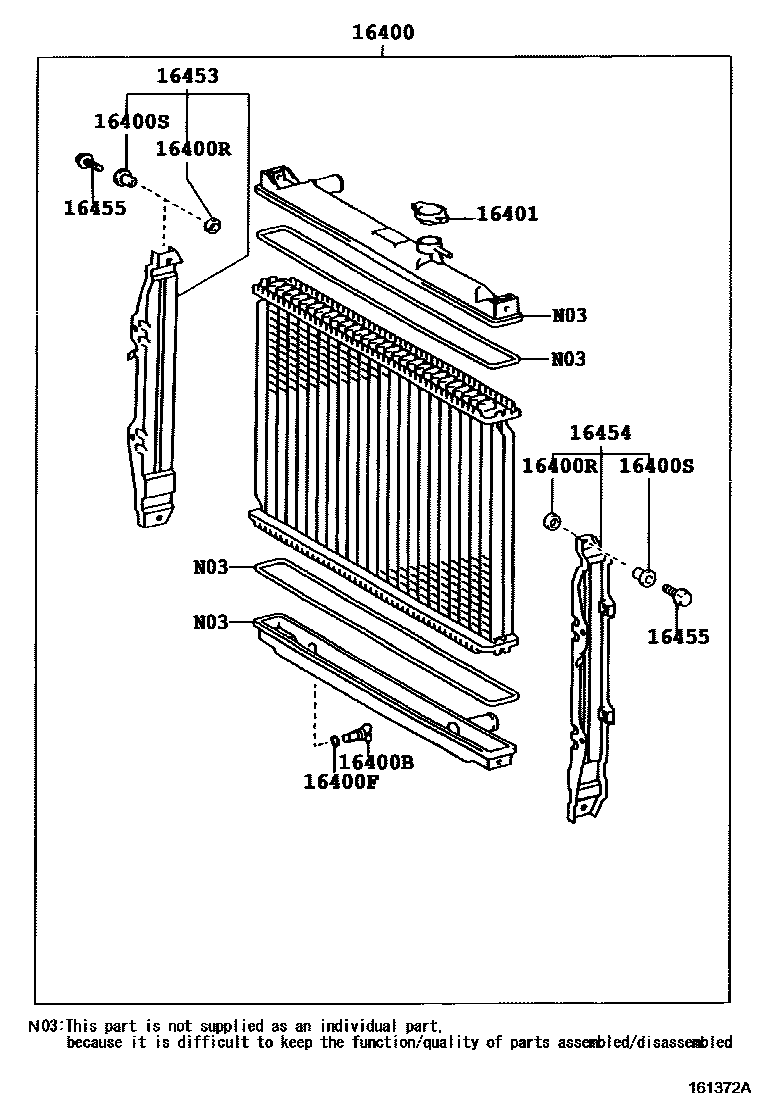

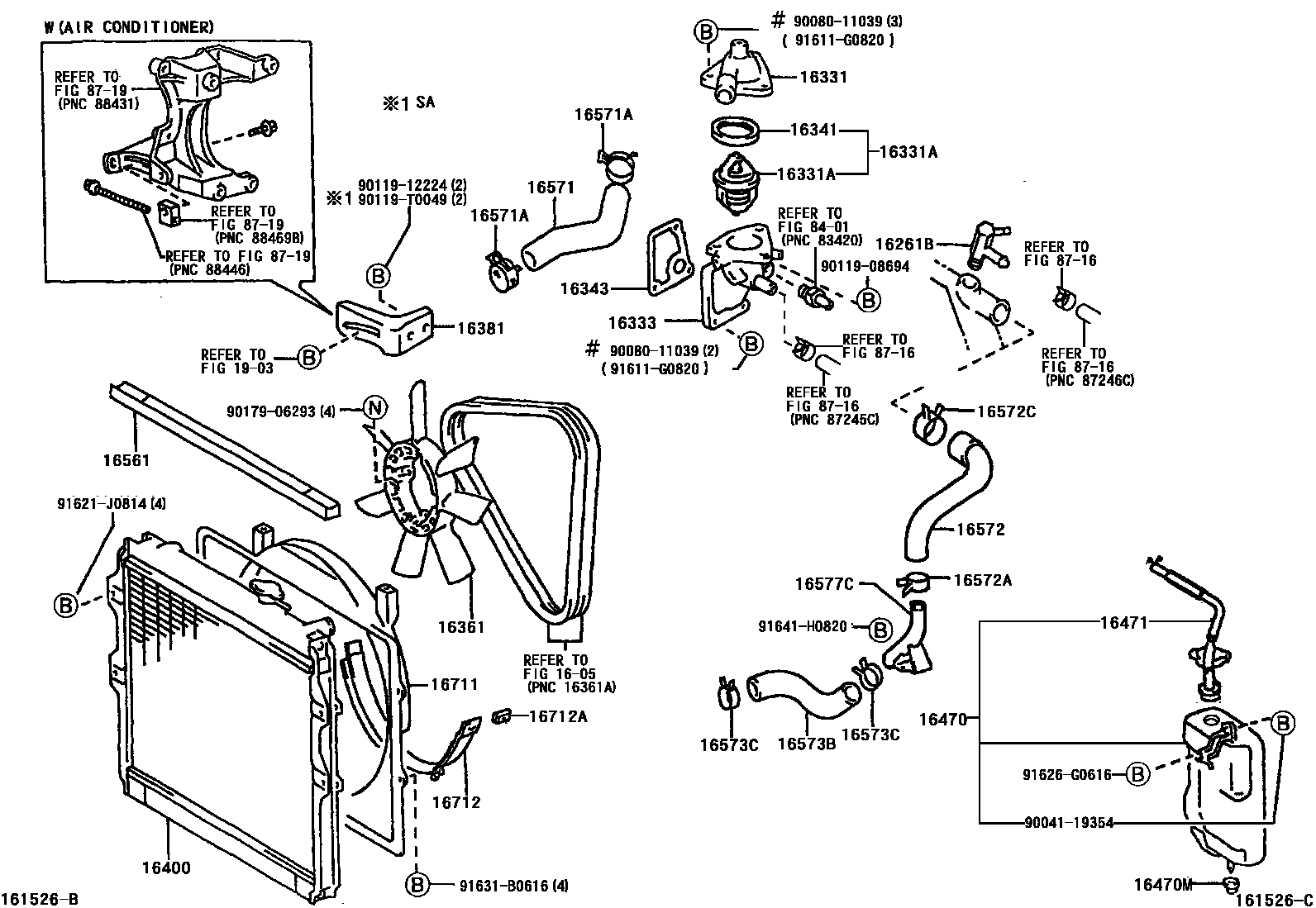

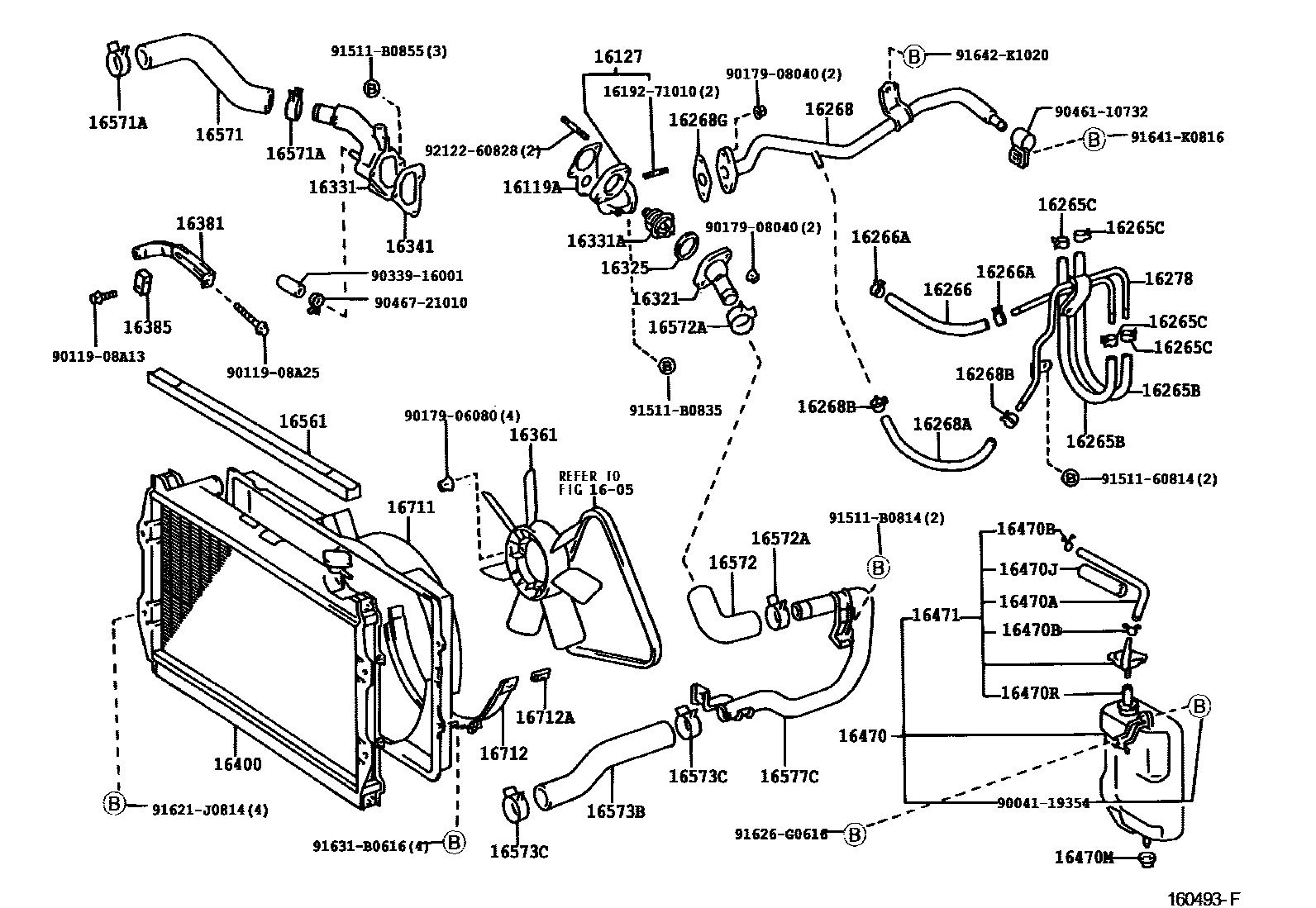

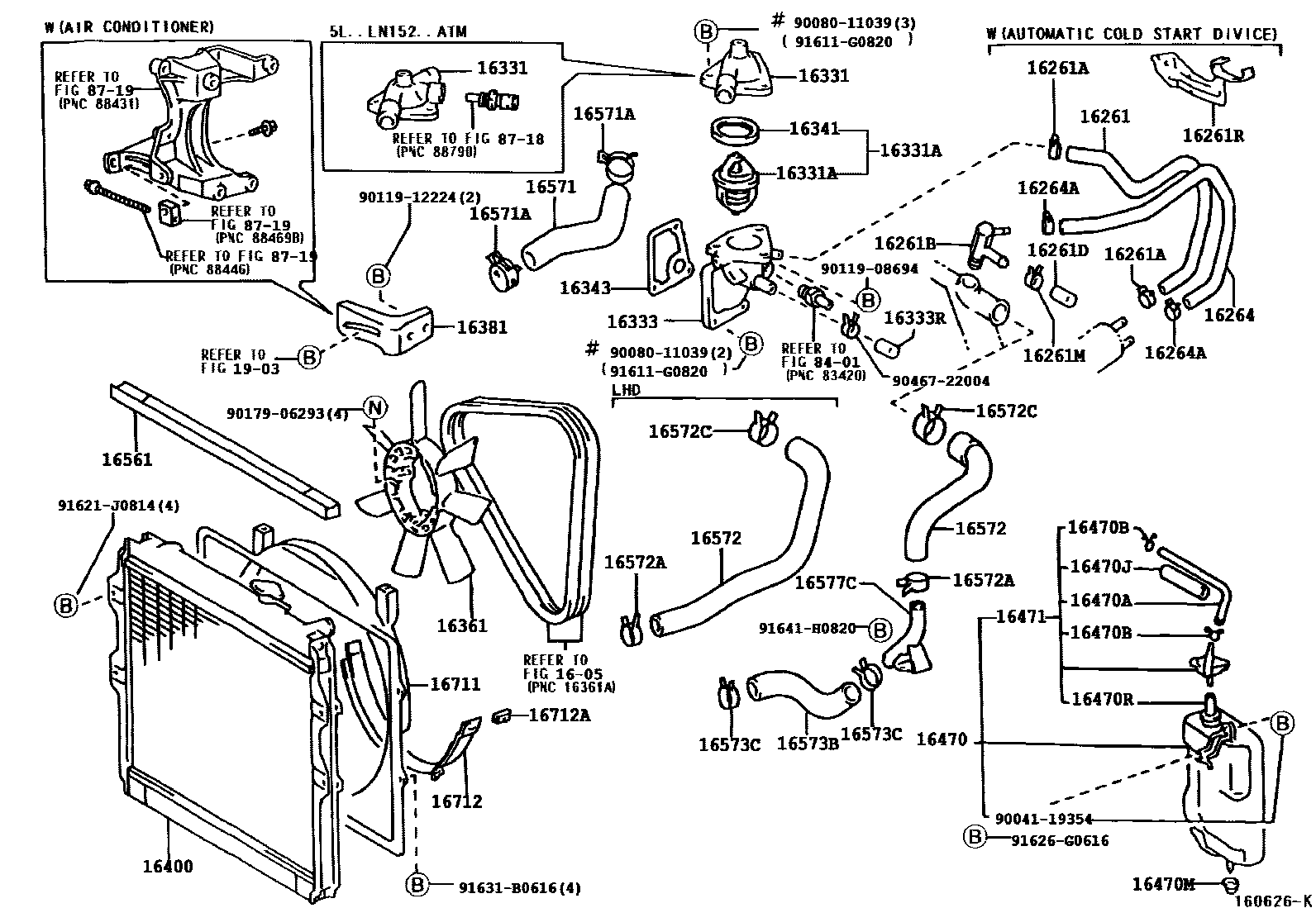

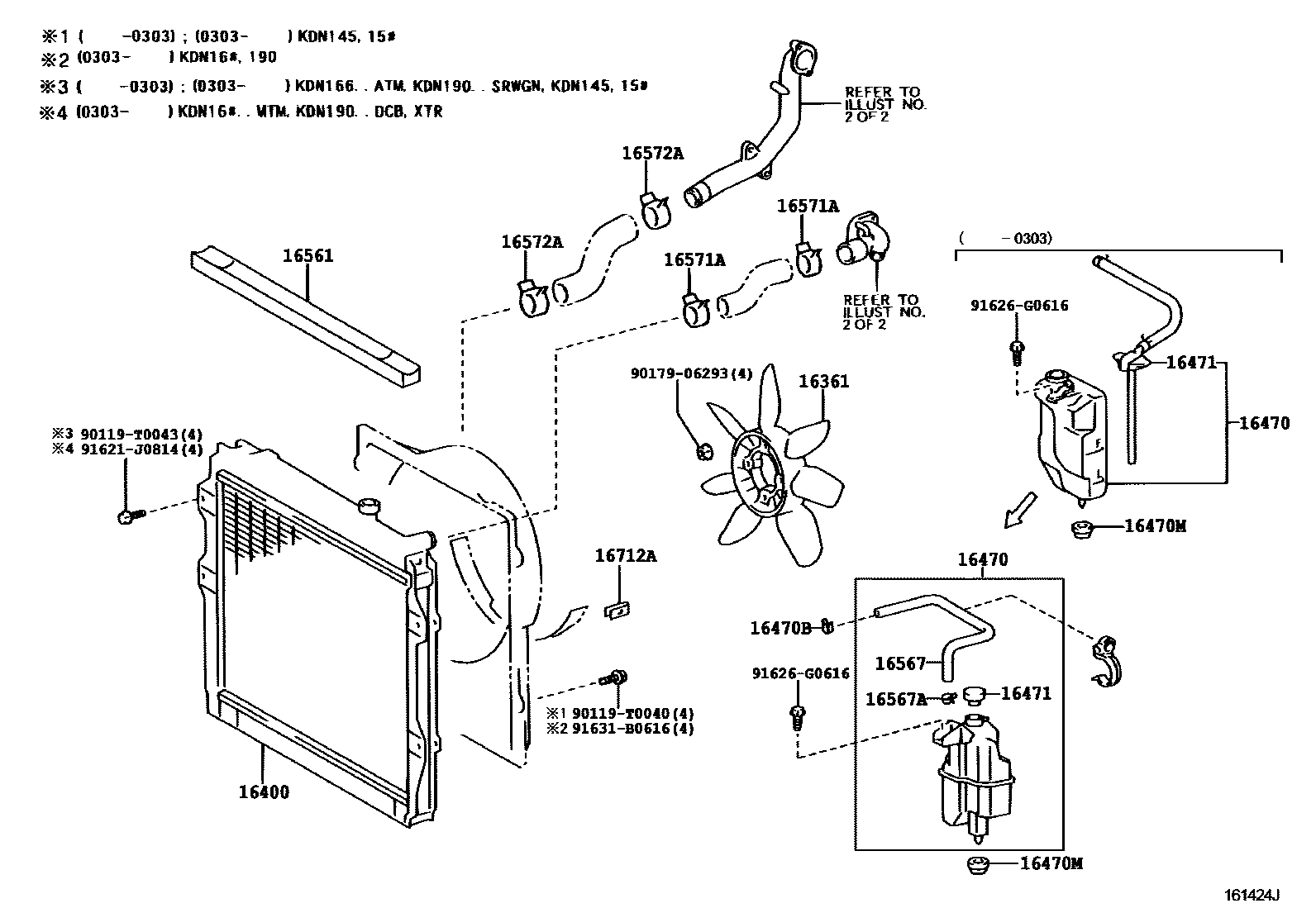

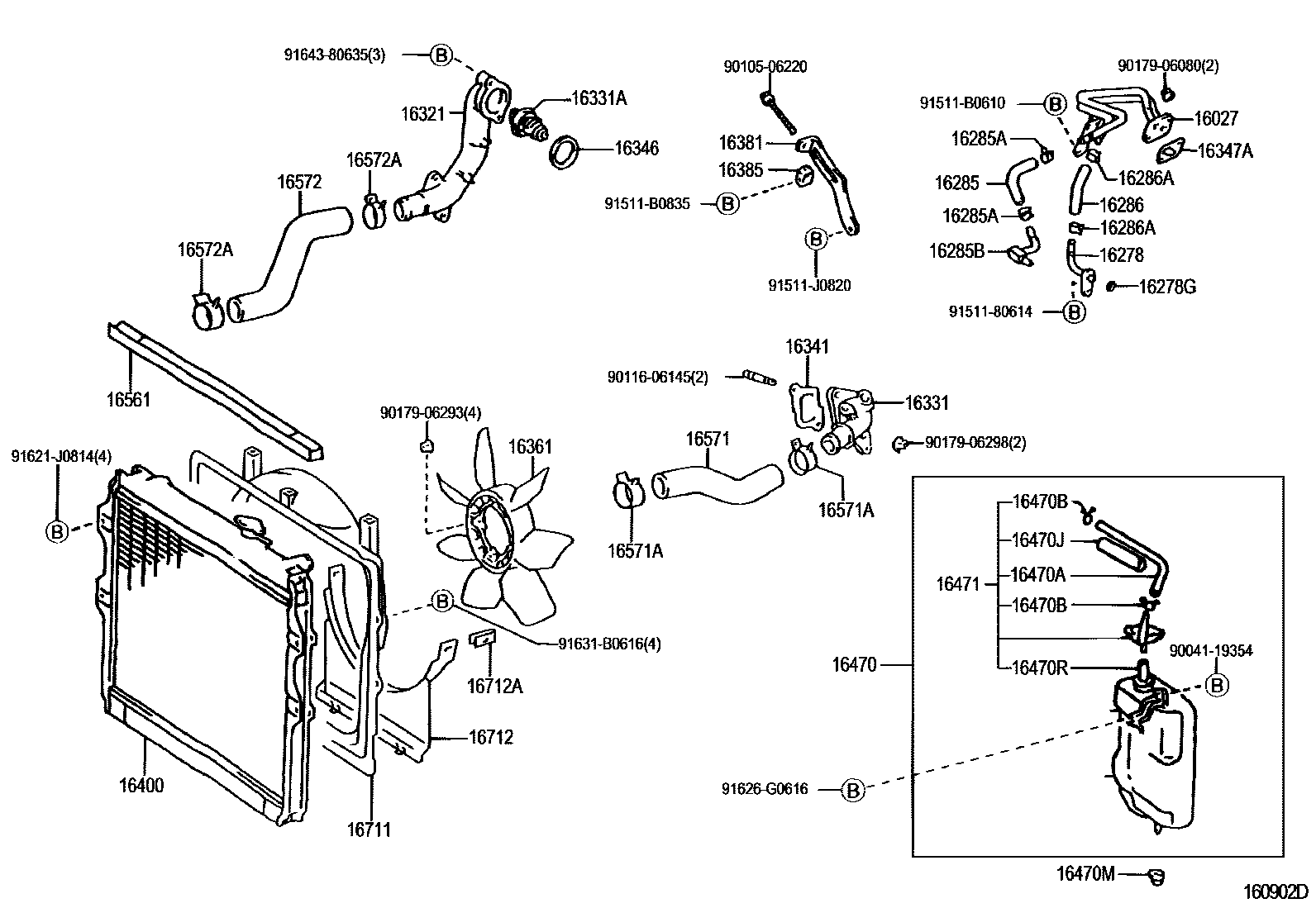

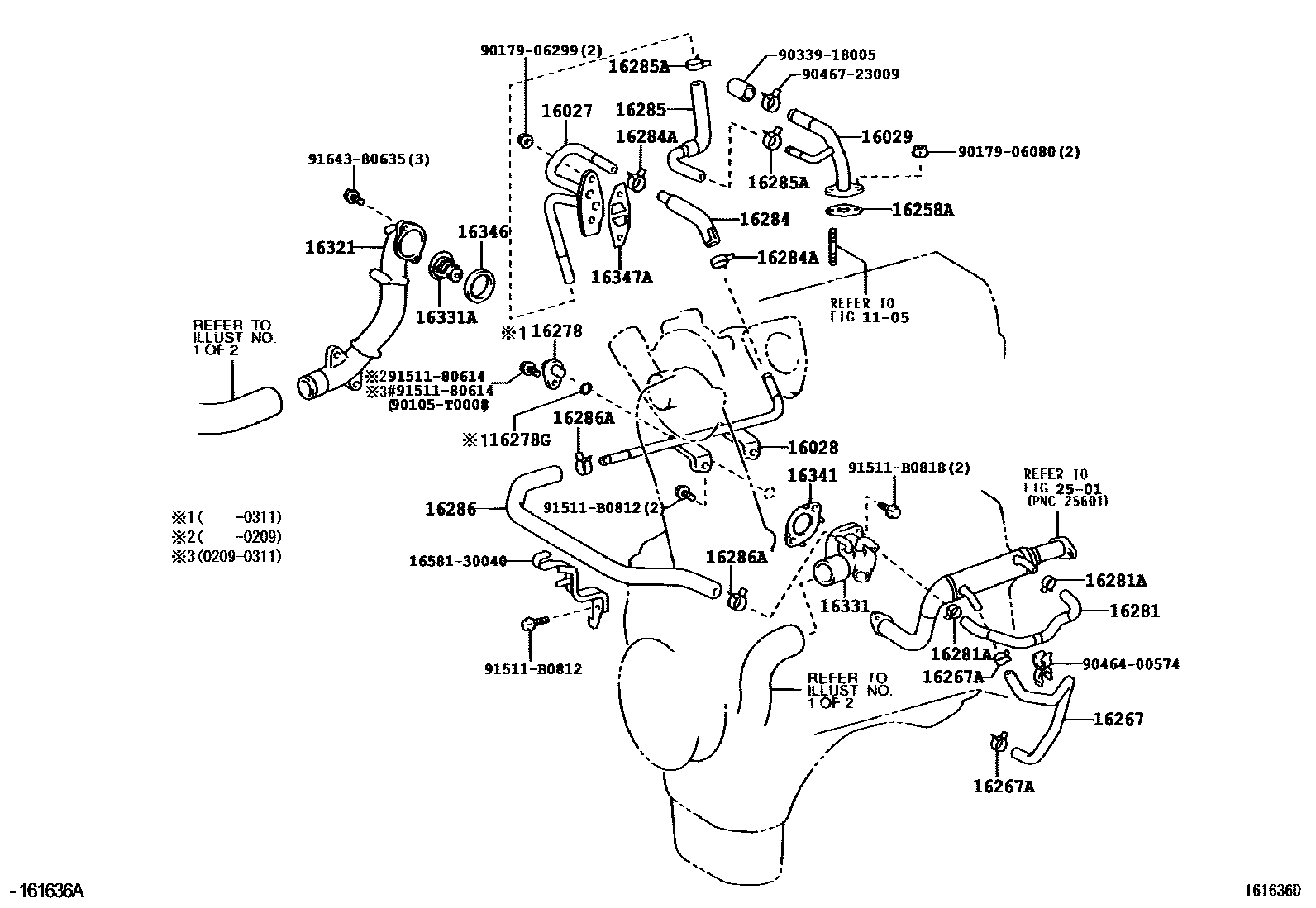

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

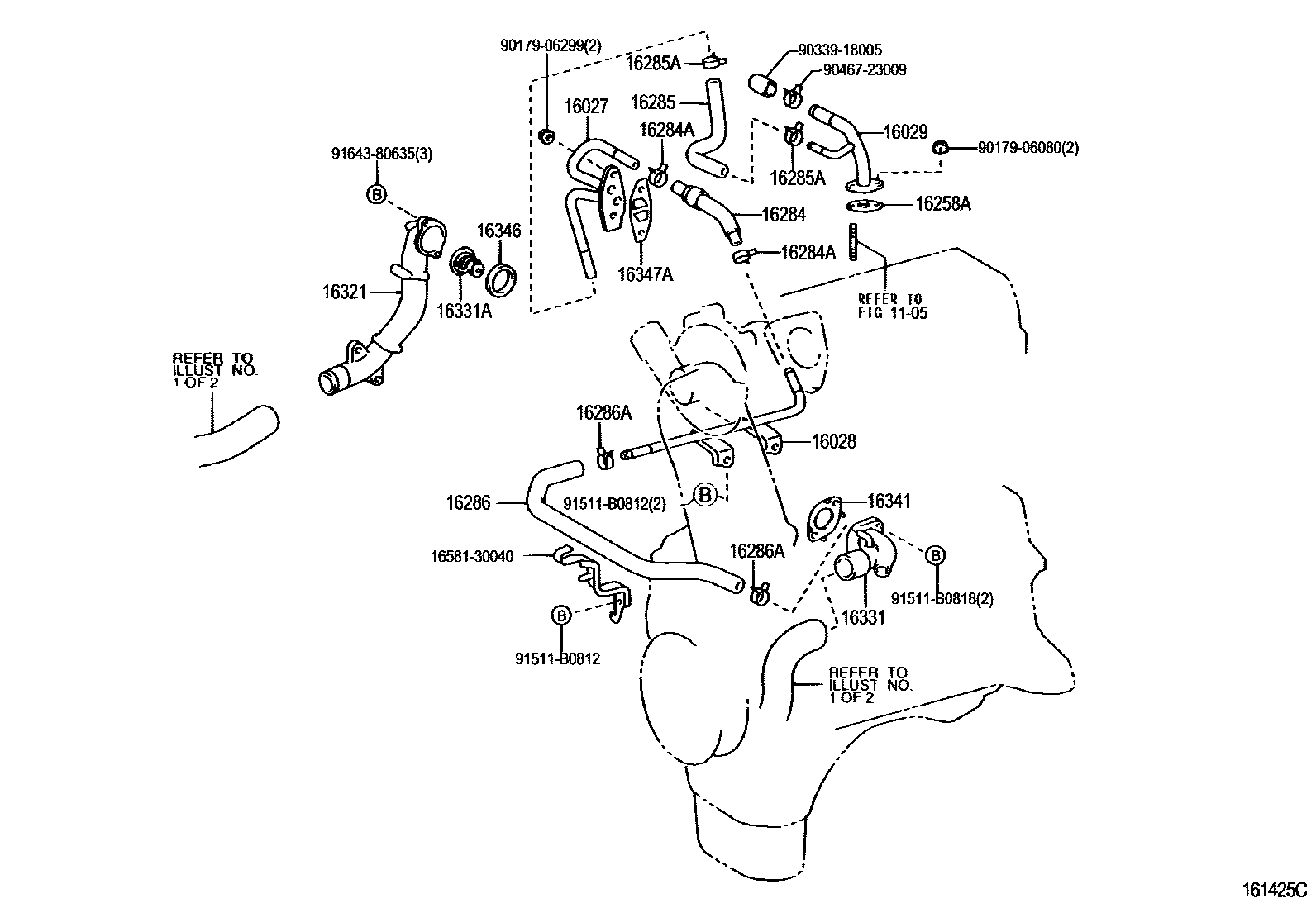

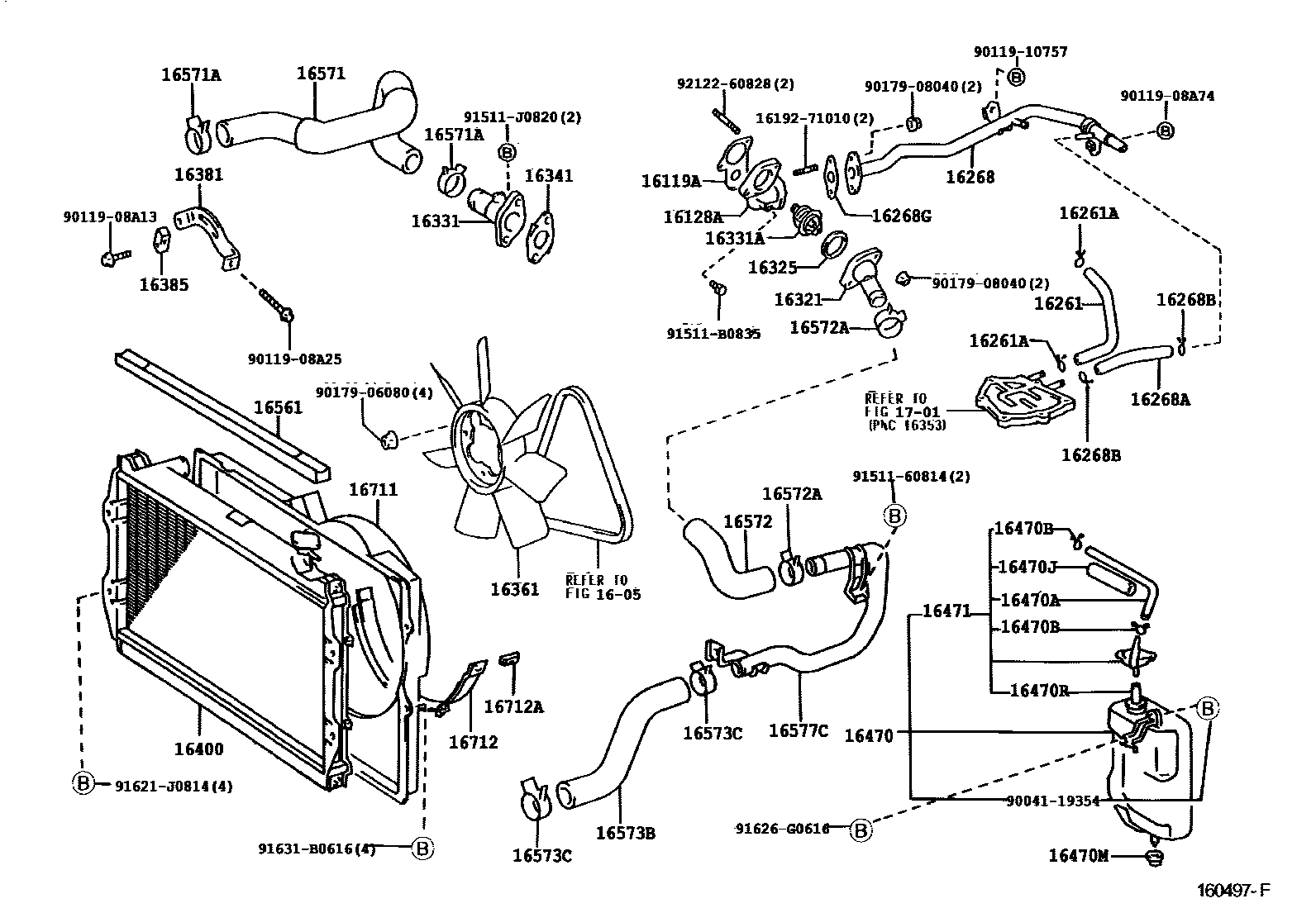

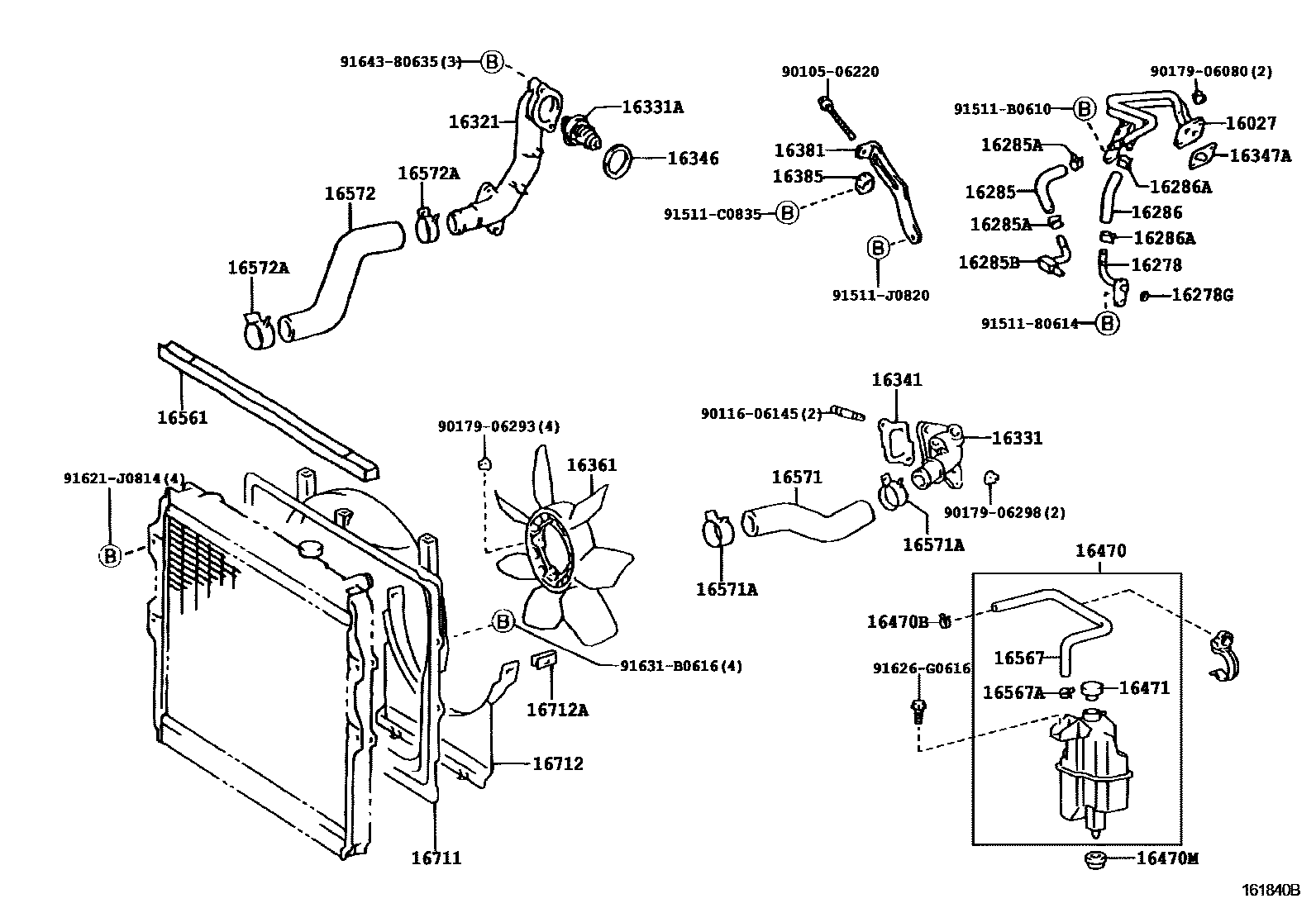

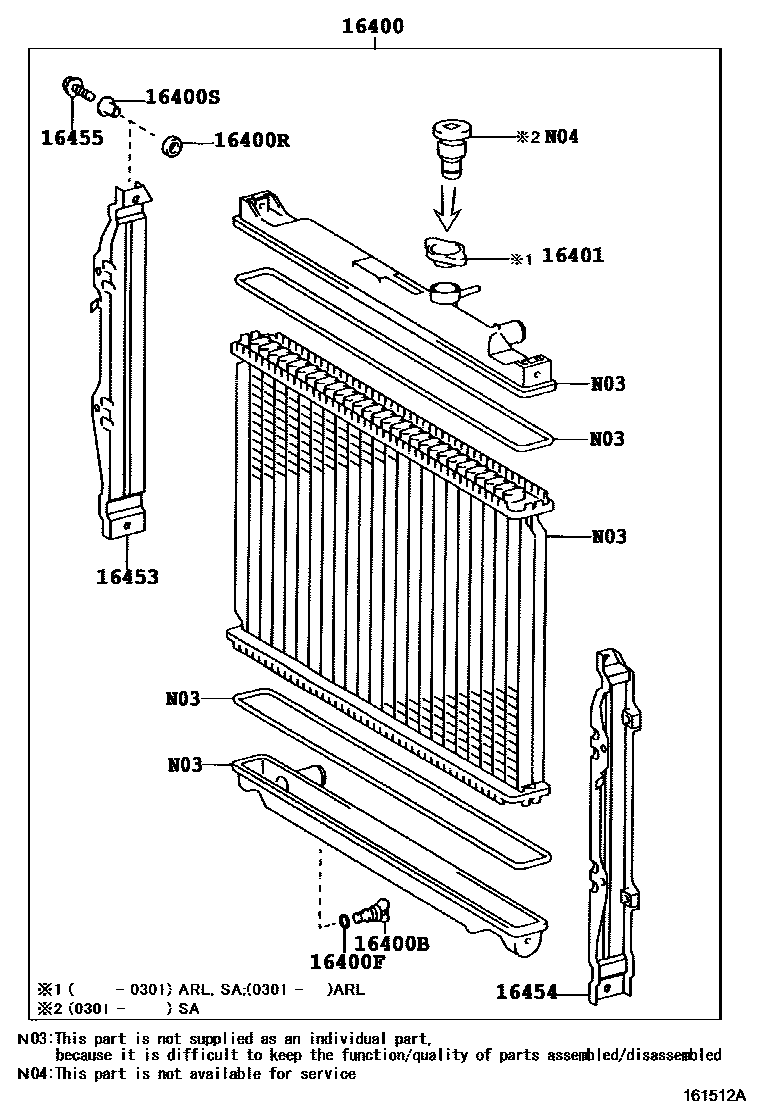

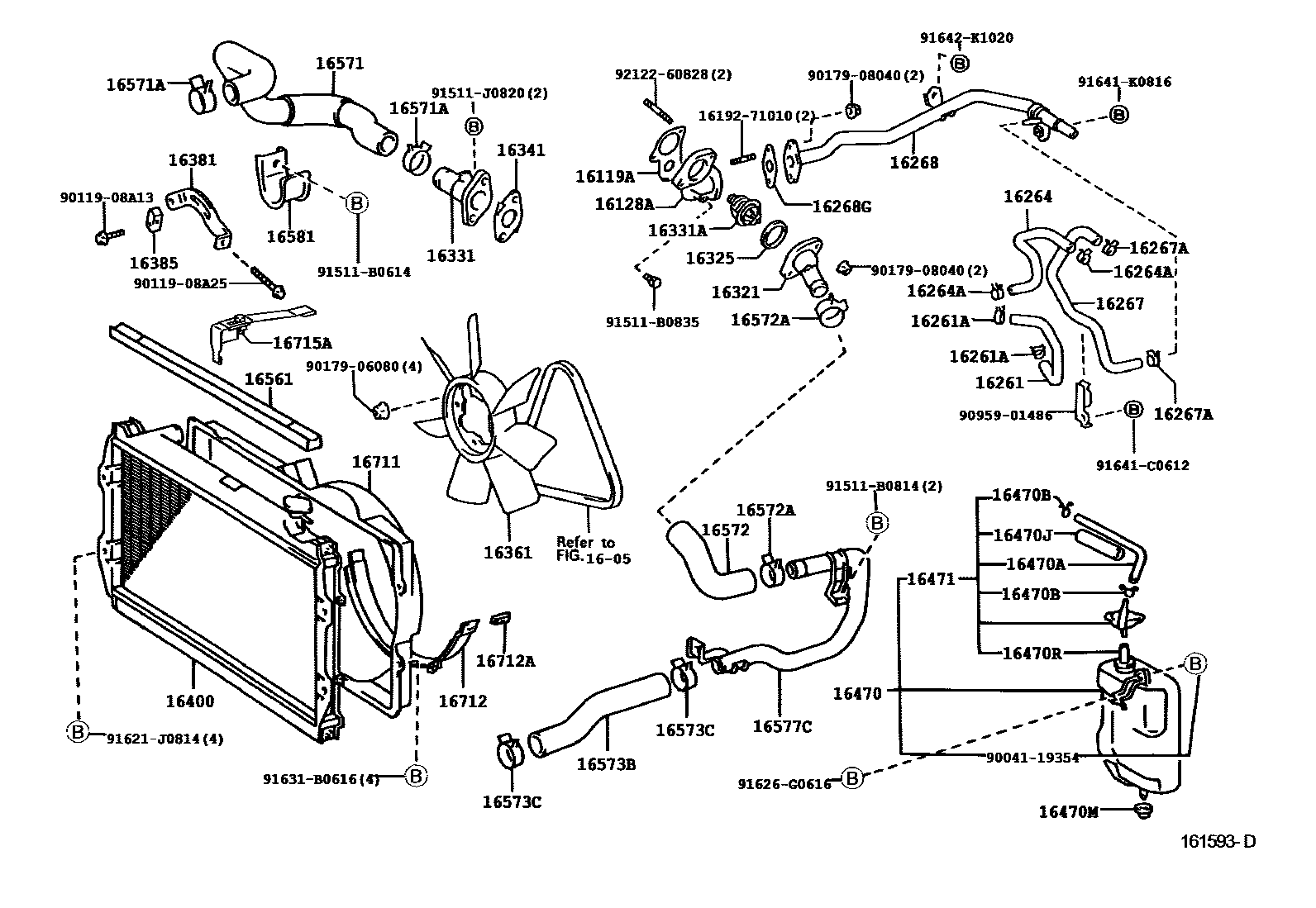

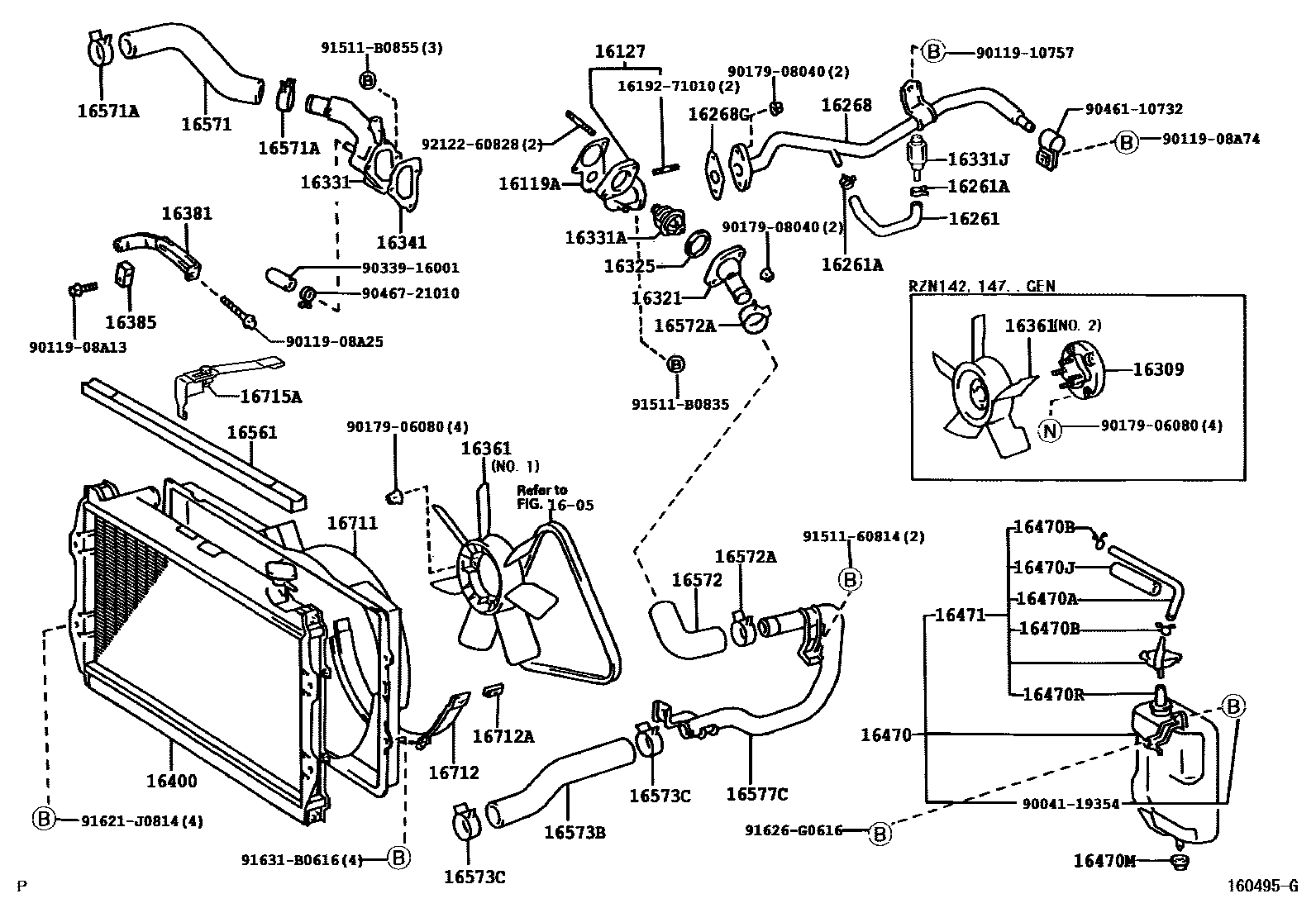

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 23 images and 87 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbocharger water pipe sub-assembly | 16027-30030 · 16027-67011 |
| 16028 | No. 2 turbocharger water pipe sub-assembly | 16028-30010 |
| 16029 | No. 3 turbocharger water pipe sub-assembly | 16029-30010 |
| 16119A | thermostat duct gasket | 16119-75020 |
| 16127 | water pump thermostat guide plate | 16127-75020 |
| 16128A | water pump thermostat guide plate | 16128-75020 |
| 16258A | Pad (for heater return) | 16258-0L010 · 16258-67010 |
| 16261 | HOSE, WATER BY-PASS | 16261-54080 · 16261-54120 · 16261-54121 · 16261-62060 · 16261-75010 · 16261-75040 · 16261-75050 · 16261-75100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15022 · 96135-41300 · 96135-51300 |
| 16261B | Connector (for water bypass hose) | 87251-89113 · 90080-34003 · 90404-54037 |
| 16261D | Screw plug without heater | 90339-16001 |
| 16261M | Clamp without heater plug | 90467-21010 · 90467-22004 · 90467-22008 · 90467-22011 |
| 16261R | Clip or clip (for water bypass hose) | 90929-01219 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-54070 · 16264-54121 · 16264-75020 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96135-41300 · 96135-51300 |
| 16265C | Clamp or clip (for intake manifold water hose No. 1) | 96135-41300 · 96135-51300 |
| 16266A | Clip or clip (for No. 2 intake manifold water hose) | 96135-41300 · 96135-51300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-30020 · 16267-75010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-19022 · 96135-41300 · 96135-51300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-62060 · 16268-75010 · 16268-75020 · 16268-75030 · 16268-75080 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 96135-41300 · 96135-51300 |
| 16268G | Gasket (for water bypass pipe) | 17175-75010 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-30010 · 16278-67010 · 16278-75011 · 16278-75020 |
| 16278G | O-ring (for No. 2 water bypass pipe) | 96761-24010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-30020 · 16281-75010 · 16281-75011 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-19022 · 90467-20005 · 96134-41900 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-75011 · 16282-75012 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-20005 · 96134-41900 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-75010 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90467-20005 · 96134-41900 |
| 16284 | No. 1 turbocharger water hose | 16284-30040 · 16284-30060 |
| 16284A | Clamp (for No. 1 turbocharger water hose) | 90466-T0014 · 90467-13073 |
| 16285 | No. 2 turbocharger water hose | 16285-30040 · 16285-30050 · 16285-67010 |
| 16285A | Clamp (for No. 2 turbocharger water hose) | 90466-T0014 · 90467-13073 · 90467-15022 |
| 16285B | Connector (for No. 2 turbocharger water hose) | 90405-10044 |
| 16286 | No. 3 turbocharger water hose | 16284-67020 · 16286-0L010 · 16286-30030 |
| 16286A | Clamp (for No. 3 turbocharger water hose) | 90466-T0014 · 90467-13073 · 90467-15022 |
| 16309 | Fan drive shaft sub-assembly | 16309-75010 |
| 16321 | water inlet | 16321-0K010 · 16321-0L010 · 16321-0W010 · 16321-62020 · 16321-67011 · 16321-71010 · 16321-75010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 · 16325-63011 · 16325-76010 |
| 16331 | Water outlet | 16304-75010 · 16331-05030 · 16331-0L010 · 16331-0L020 · 16331-0W010 · 16331-30050 · 16331-54150 · 16331-54210 · 16331-62040 · 16331-67020 · 16331-71010 |
| 16331A | thermostat | 16340-54010 · 16340-54040 · 90916-03046 · 90916-03075 · 90916-03101 · 90916-03106 · 90916-03118 · 90916-03119 · 90916-03120 · 90916-03121 |
| 16331J | manifold thermostat | 90916-03087 |
| 16333 | Water outlet shell | 16333-05011 · 16333-05040 · 16333-54113 · 16333-54123 |
| 16333R | Screw plug (for outlet housing) | 90339-16001 |
| 16341 | GASKET, WATER OUTLET | 16341-05020 · 16341-0L010 · 16341-30020 · 16341-35010 · 16341-62040 · 16341-67020 · 16341-71011 · 16341-75010 · 16341-75020 |
| 16343 | Outlet shell gasket | 16343-05010 · 16343-54040 |
| 16346 | thermostat gasket | 16346-0K010 · 16346-67010 |
| 16347A | Gasket (for turbocharger water pipe) | 16347-27010 · 16347-67010 |
| 16361 | Fan | 16361-0L010 · 16361-0L020 · 16361-38010 · 16361-44032 · 16361-54040 · 16361-54070 · 16361-54111 · 16361-54131 · 16361-62010 · 16361-67020 · 16361-67040 · 16361-75020 |
| 16381 | Fan belt adjustment lever | 16381-05010 · 16381-54060 · 16381-54061 · 16381-54120 · 16381-54121 · 16381-62041 · 16381-67020 · 16381-71010 · 16381-75040 · 16381-75050 |
| 16385 | Fan belt adjustment slider | 16385-62020 · 16385-67010 · 16385-75030 |

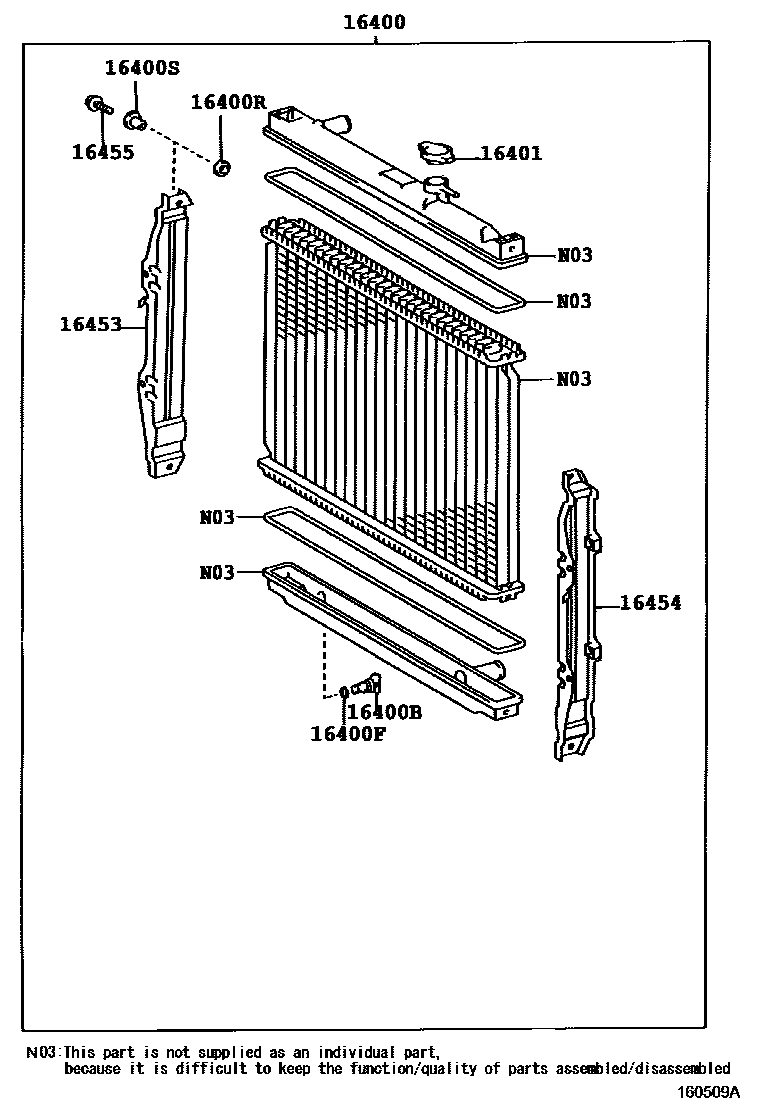

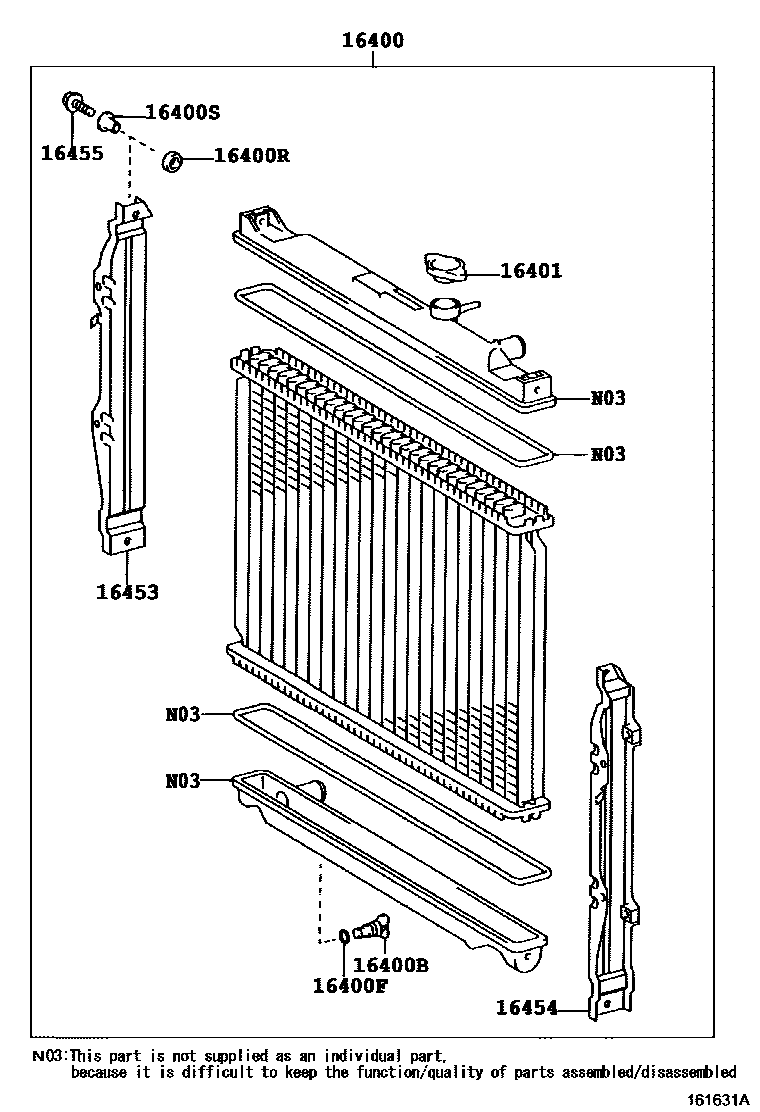

| 16400 | Radiator assembly | 16400-05150 · 16400-0C150 · 16400-5B590 · 16400-5B600 · 16400-5B640 · 16400-5B670 · 16400-5B680 · 16400-5B810 · 16400-5B820 · 16400-62210 · 16400-62220 · 16400-67190 · 16400-67220 · 16400-75250 · 16400-75260 · 16400-75270 · 16400-75280 · 16410-0L020 · 16410-0L030 · 16410-0L040 · 16410-0L060 · 16410-0L070 · 16410-0L080 · 16410-67180 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 96711-19007 |
| 16400R | Bushing (for radiator) | 16444-75180 |
| 16400S | Collar (for radiator) | 16445-75180 |
| 16401 | Radiator cover sub-assembly | 16401-5B630 · 16401-62100 · 16401-63010 · 16401-72090 |
| 16453 | Radiator side panel | 16453-5B640 · 16453-67190 · 16453-75230 · 16453-75280 |
| 16454 | Radiator side panel | 16454-5B640 · 16454-67190 · 16454-75230 · 16454-75280 |
| 16455 | Radiator side support plate bolts | 91651-B0820 · 91652-B0820 |
| 16470 | Radiator reservoir assembly | 16470-05030 · 16470-05040 · 16470-30020 · 16470-54350 · 16470-75060 · 16470-75070 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12067 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 · 96135-51300 |
| 16470J | No. 3 hose (for radiator reservoir) | 16472-70070 · 16477-11110 · 16478-46020 |
| 16470M | gasket | 90480-25025 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-53010 · 16405-05010 · 16405-05020 · 16405-54330 · 16405-75050 · 16405-75070 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-54010 · 16561-54050 |
| 16567 | Hoses (for radiator reservoir) | 16567-67010 |
| 16567A | Clamp (for radiator reservoir hose) | 96135-51300 |
| 16571 | Radiator water inlet hose | 16571-05060 · 16571-54490 · 16571-67100 · 16571-71030 · 16571-75090 · 16571-75100 · 16571-75110 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-41008 · 90467-37005 · 90467-41007 |
| 16571C | Radiator hose No. 1 | 16571-62080 |
| 16571D | No. 1 radiator hose clip | 90467-37005 |
| 16572 | Radiator outlet hose | 16572-54570 · 16572-54590 · 16572-54600 · 16572-67100 · 16572-71031 · 16572-75120 · 16572-75130 · 16572-YE010 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-41008 · 90467-37005 · 90467-41007 |
| 16572C | Hose clamp or clip (for radiator outlet No. 2) | 90466-41008 · 90467-41006 |
| 16572D | Radiator hose No. 2 | 16572-62100 |
| 16572E | No. 2 radiator hose clip | 90467-37005 |
| 16573B | Radiator hose No. 3 | 16573-54120 · 16573-54160 · 16573-54180 · 16573-75020 · 16573-75030 · 16573-YE010 · 16573-YE030 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-37005 |
| 16577C | radiator pipe | 16577-05010 · 16577-54200 · 16577-54210 · 16577-75020 · 16577-YE010 · 16577-YE021 |
| 16581 | Hose clamp (for water hose) | 16581-75010 |
| 16711 | fan cover | 16711-54630 · 16711-54640 · 16711-54660 · 16711-54680 · 16711-62070 · 16711-67090 · 16711-71030 · 16711-75080 · 16711-75090 · 16711-75100 |
| 16712 | No. 2 fan cover | 16712-54050 · 16712-54380 · 16712-54390 · 16712-62050 · 16712-67060 · 16712-75050 · 16712-75060 |
| 16712A | clip | 90468-06092 |
| 16715A | No. 2 fan cover bracket | 16705-54010 |
