Toyota HILUX Engine Oil Cooler — Figure 1503

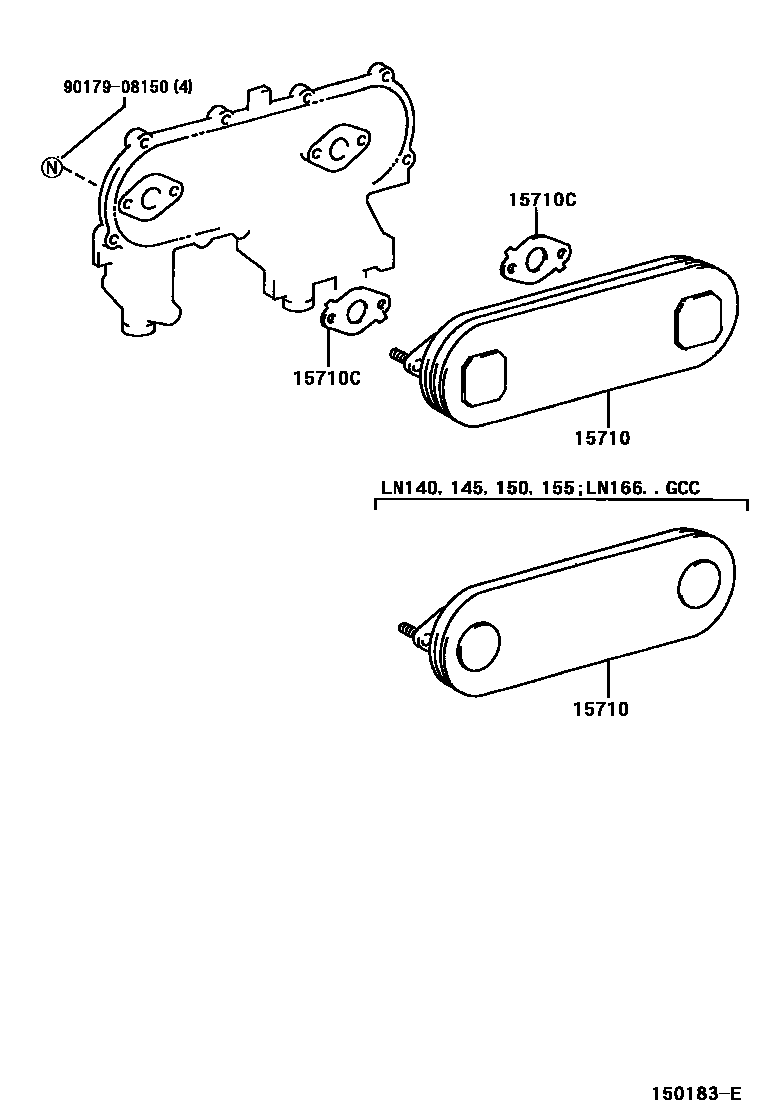

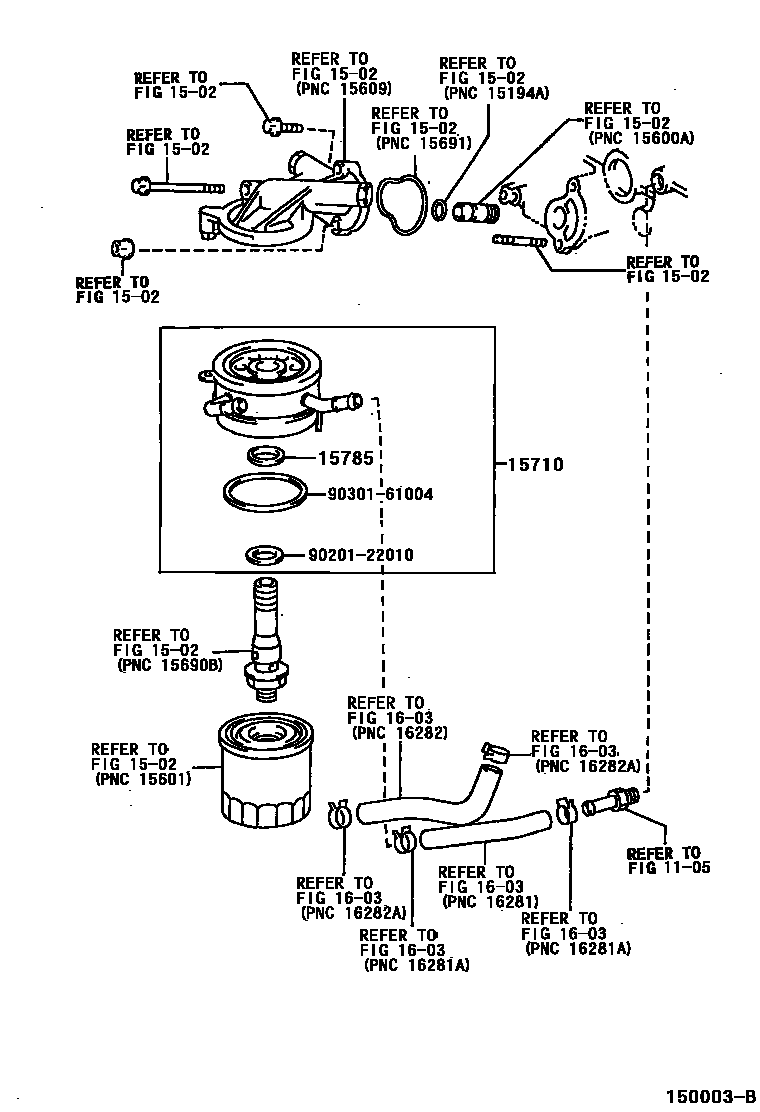

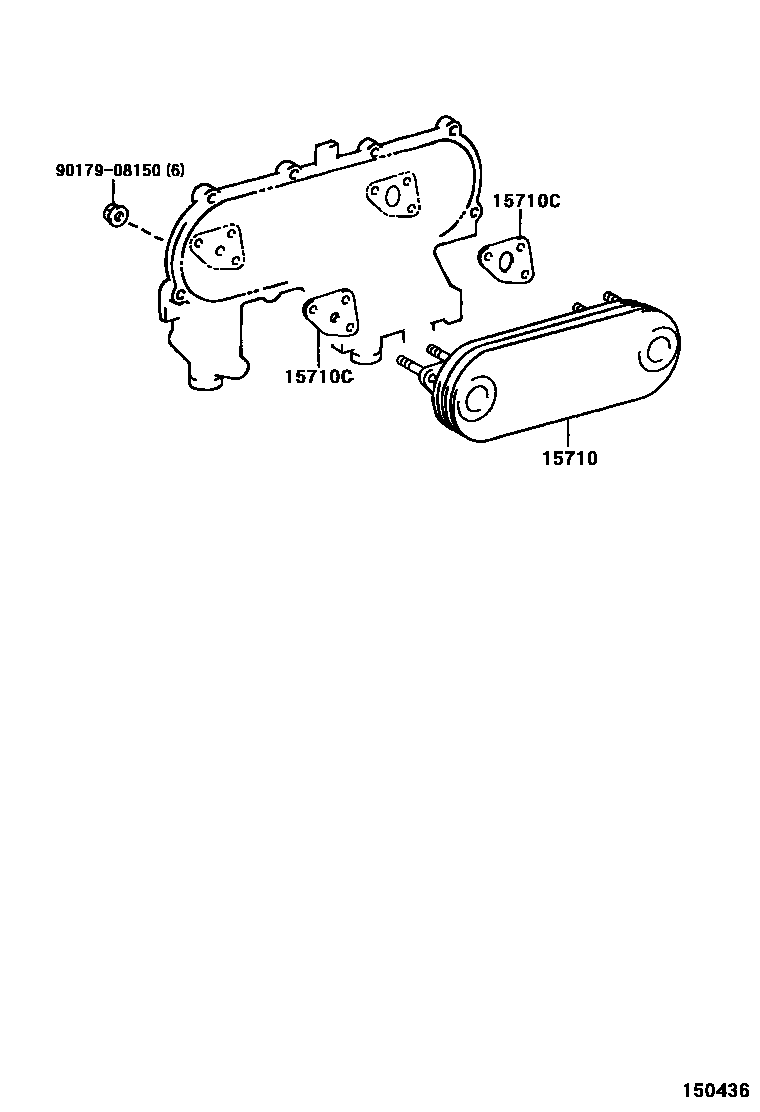

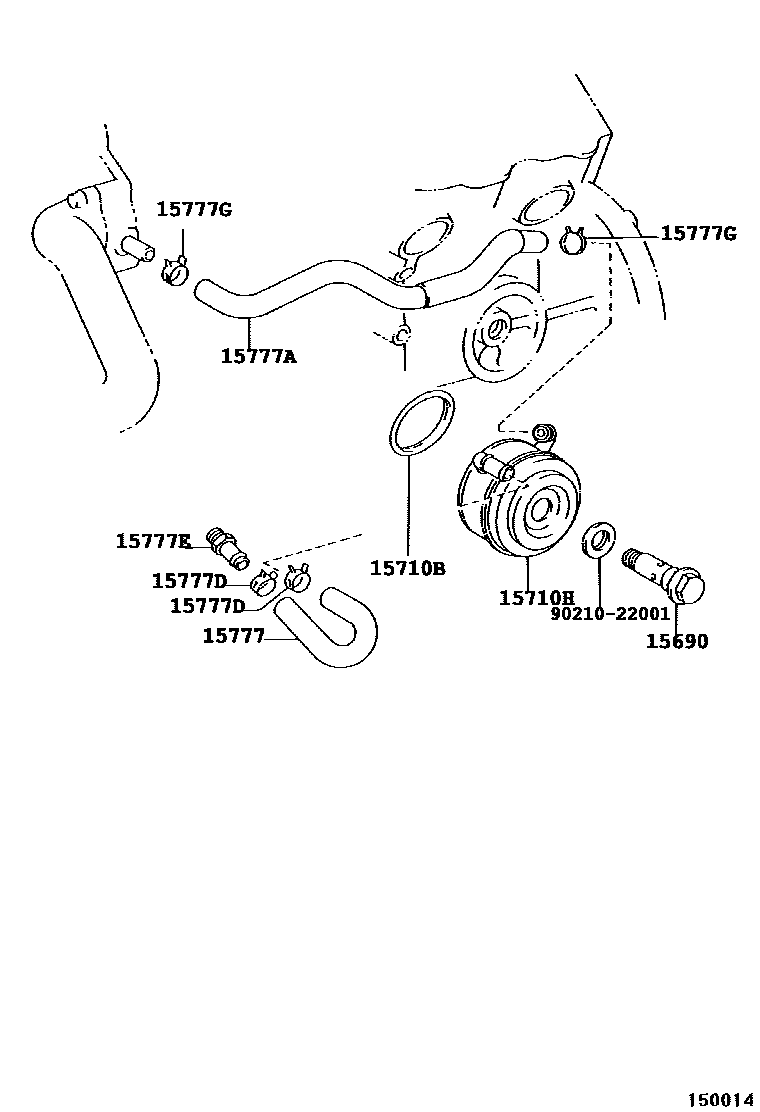

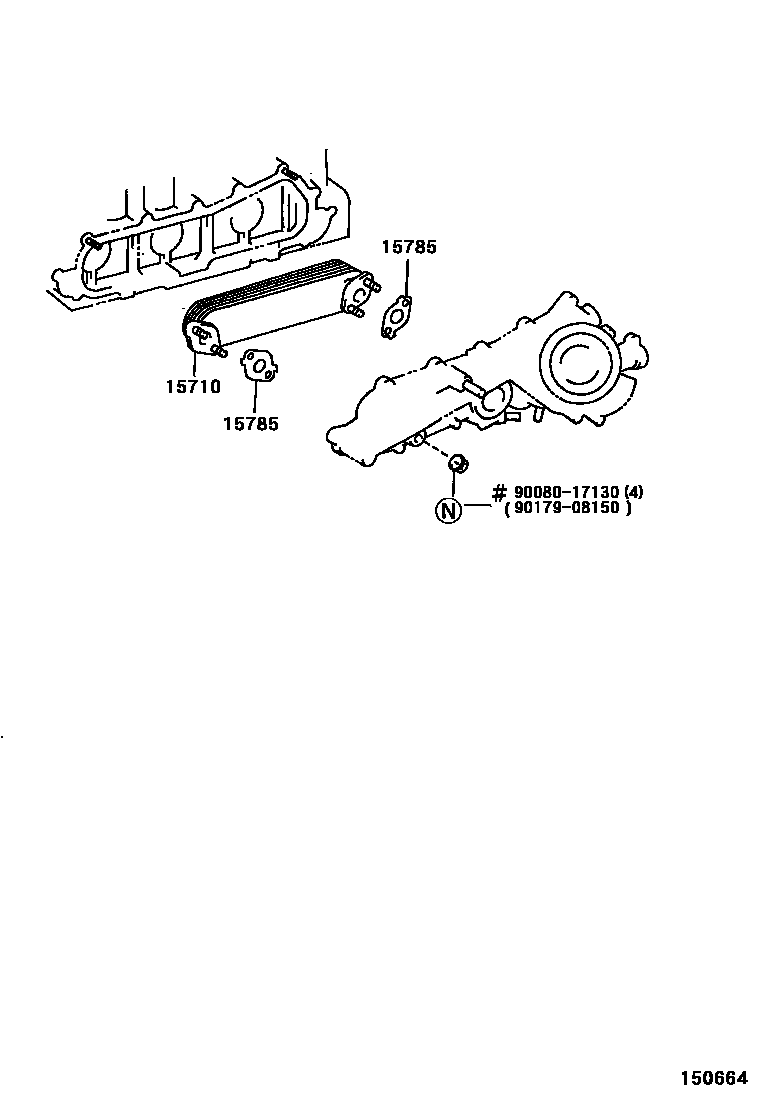

Toyota HILUX EPC diagram 1503, Engine Oil Cooler, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15695-62010 |
| 15710 | Oil cooler assembly | 15710-0L010 · 15710-0L020 · 15710-30010 · 15710-30030 · 15710-54050 · 15710-54100 · 15710-54110 · 15710-67040 · 15710-75011 |
| 15710B | O-ring (for transmission oil cooler) | 90301-67004 |
| 15710C | Gasket (for transmission oil cooler) | 15785-05010 · 15785-54010 · 15785-54030 |
| 15710H | No. 2 oil cooler assembly | 15710-62040 |
| 15777 | oil cooler hose | 15777-62020 |
| 15777A | oil cooler hose | 15778-62030 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 96134-41900 |
| 15777E | Connector | 90404-53070 |
| 15777G | Hose clips or clips | 96134-41900 |
| 15785 | oil cooler gasket | 15785-0L010 · 15785-30010 · 15785-35010 · 15785-66010 |
