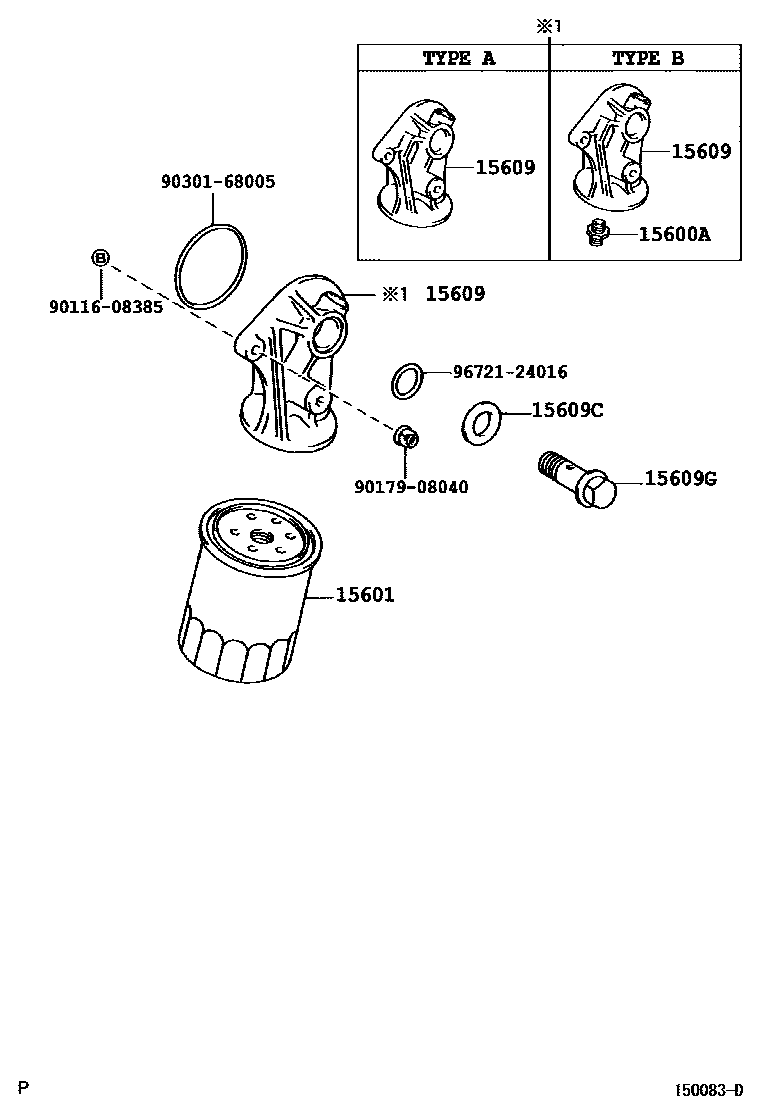

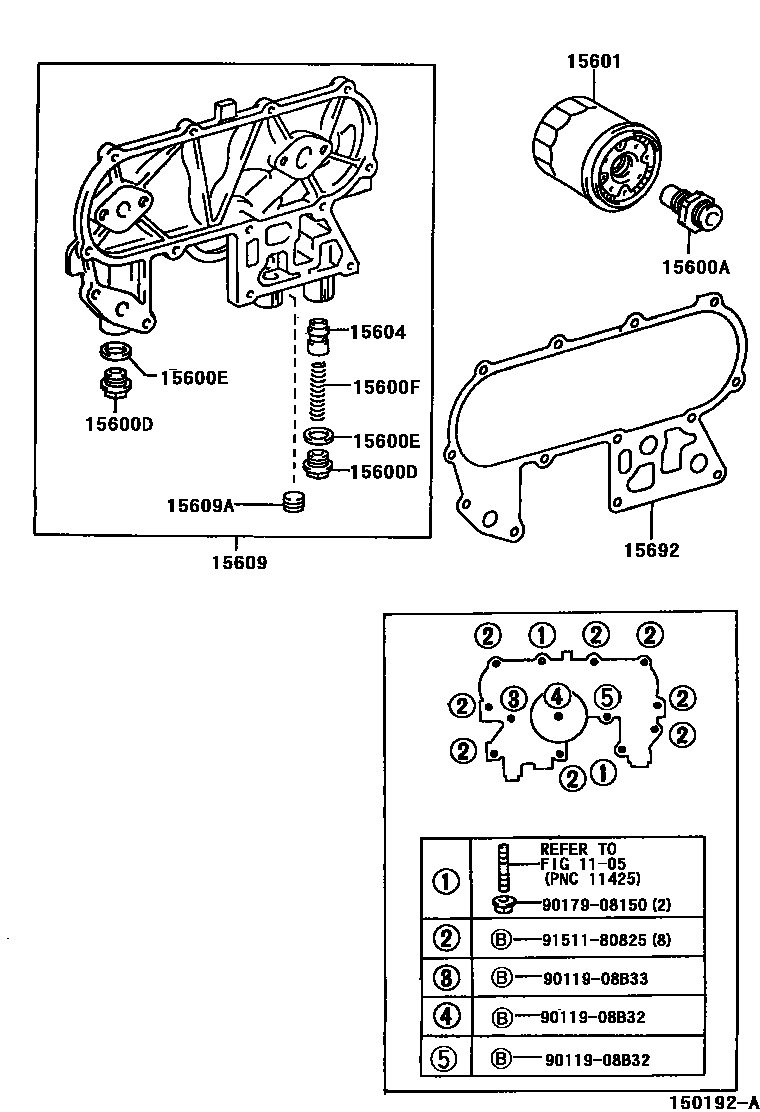

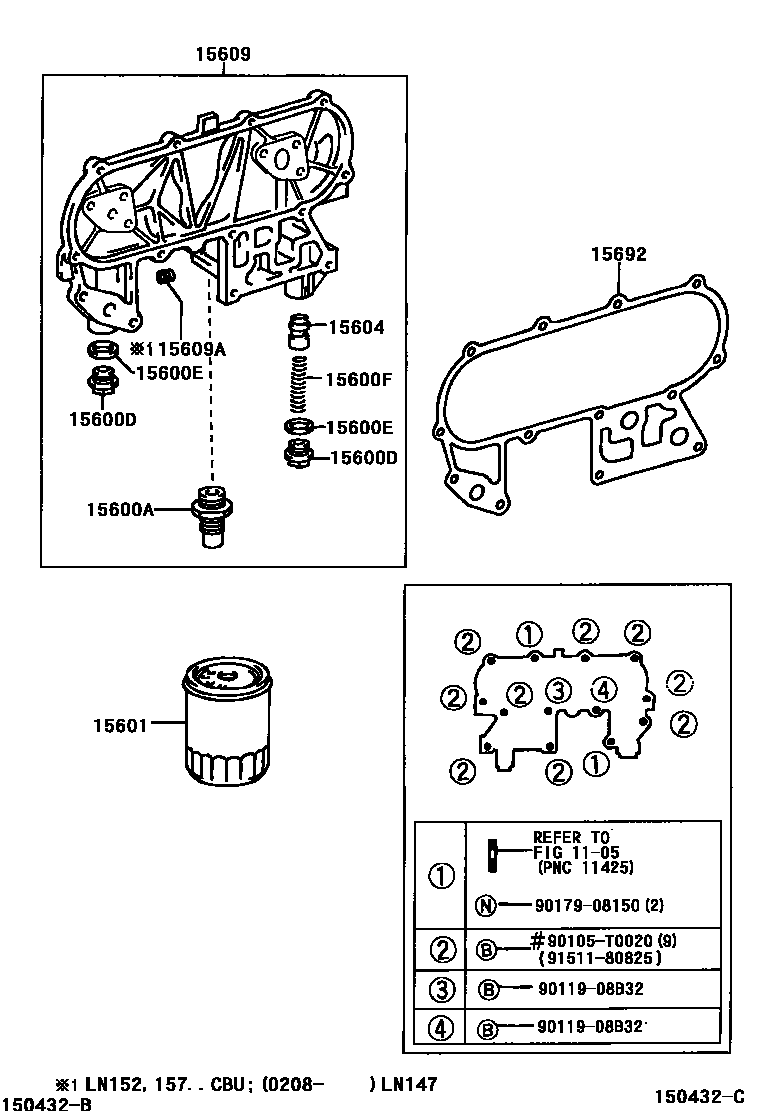

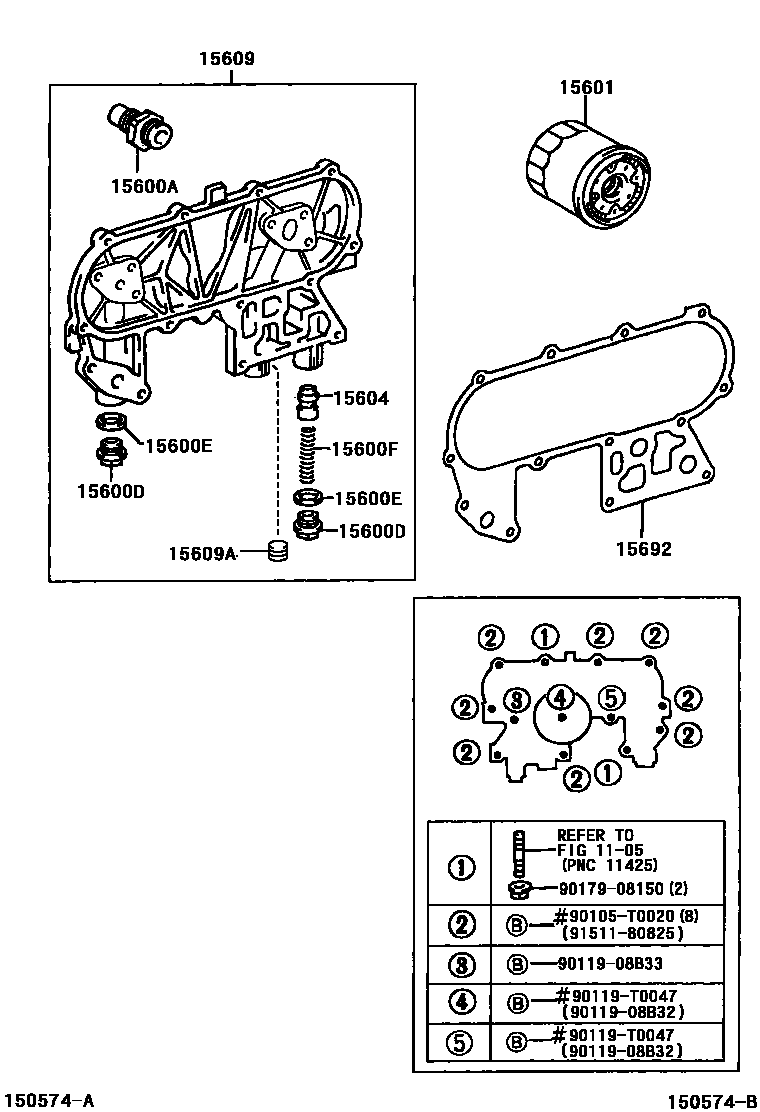

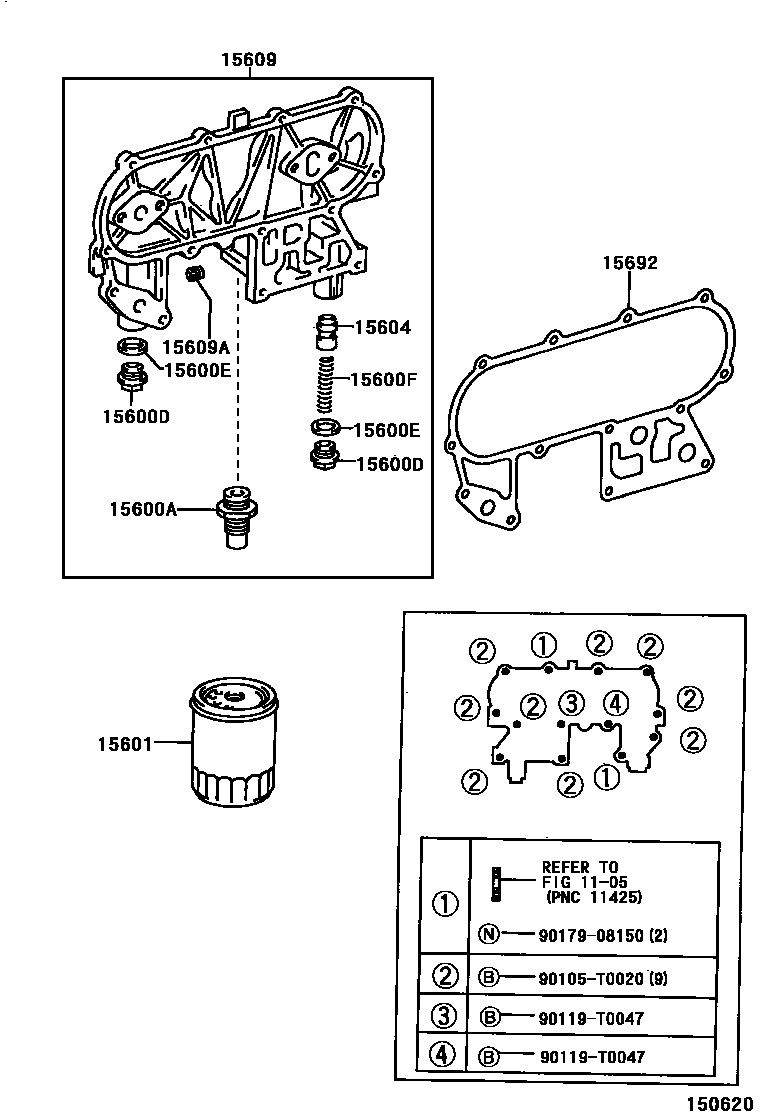

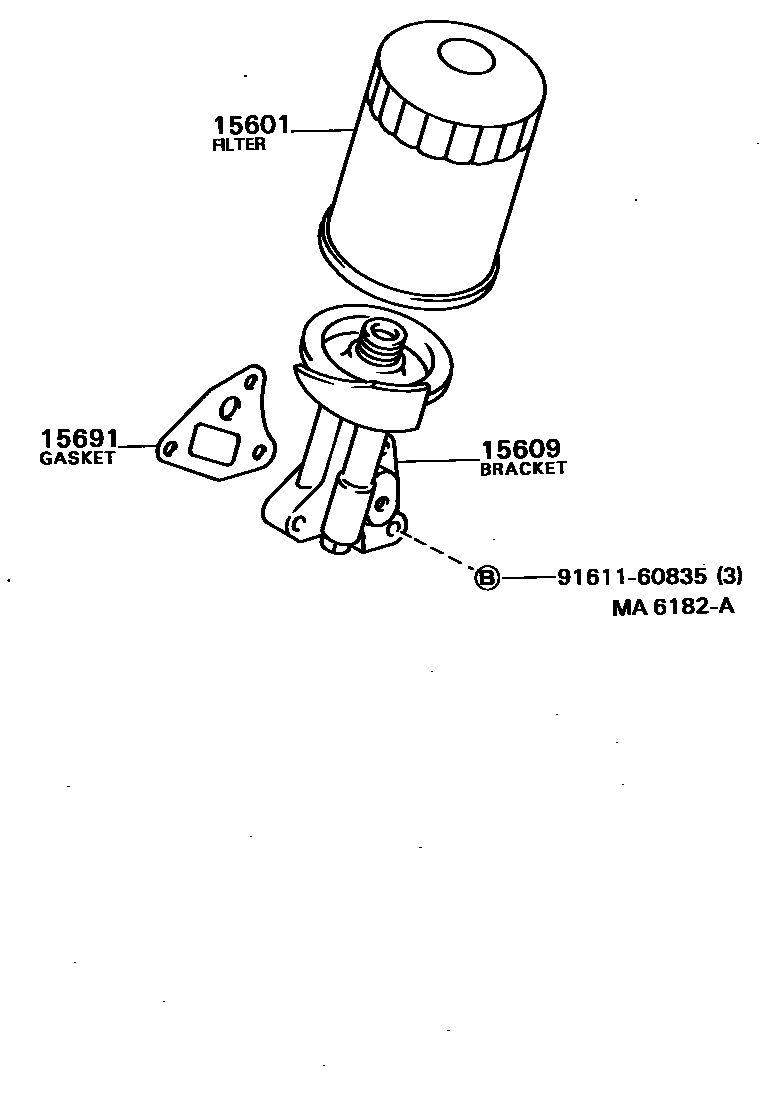

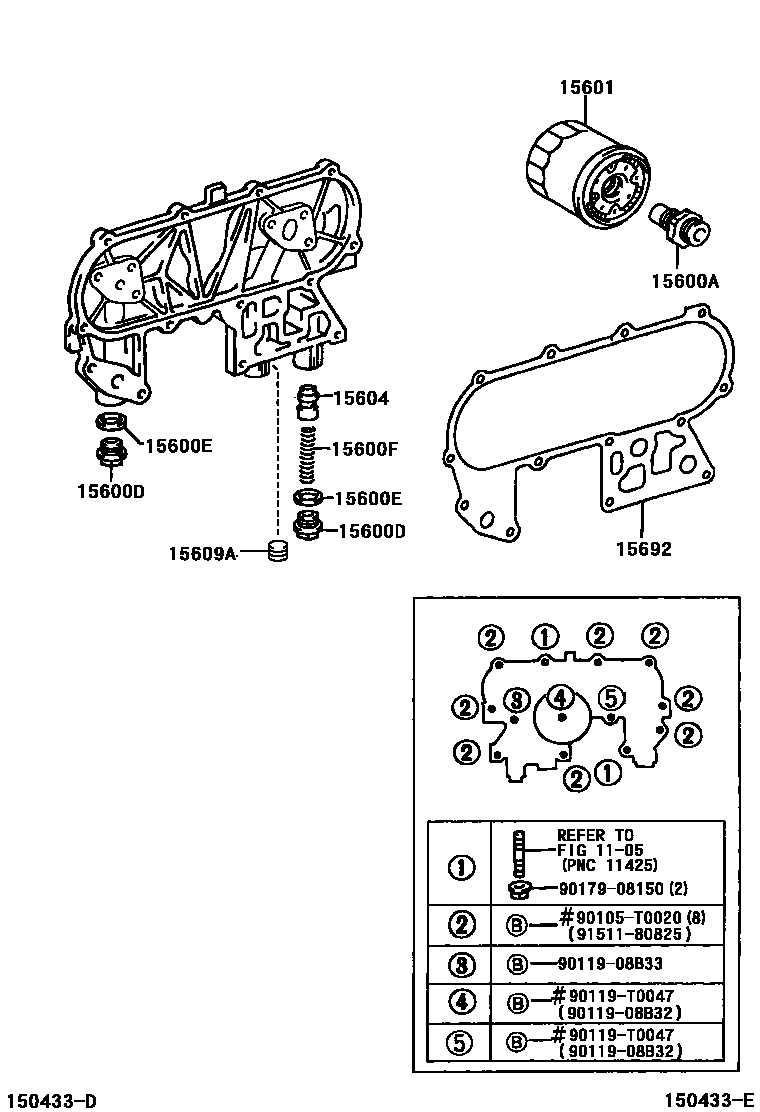

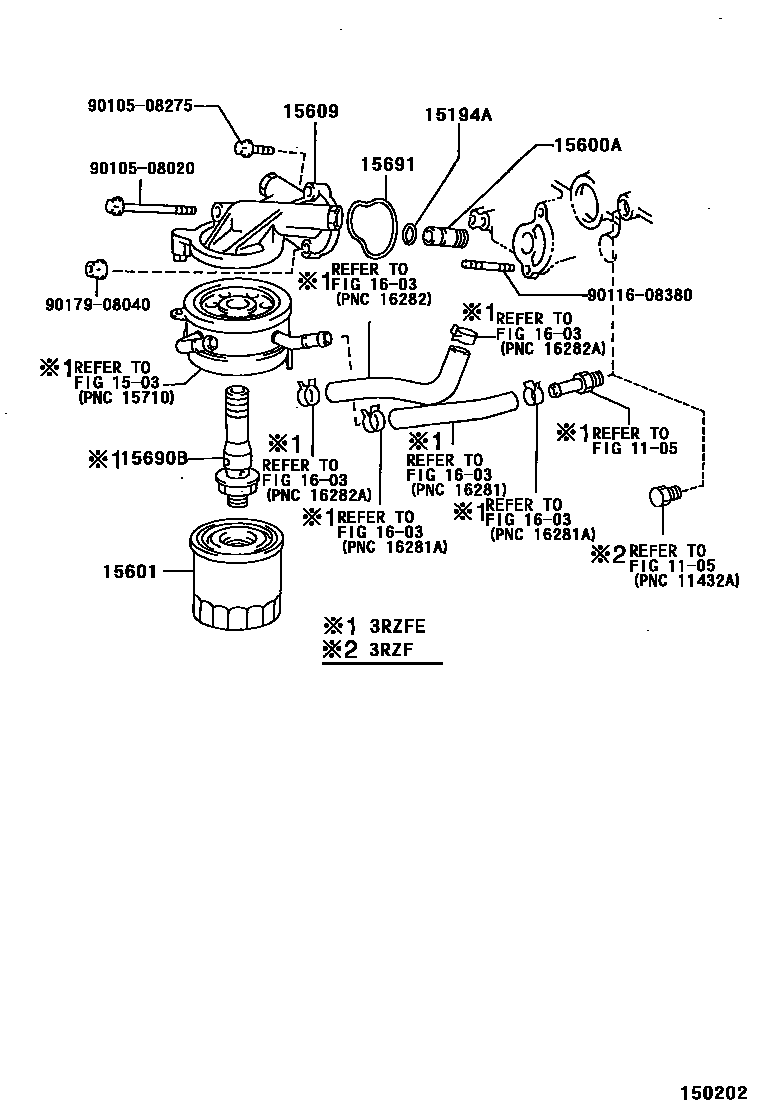

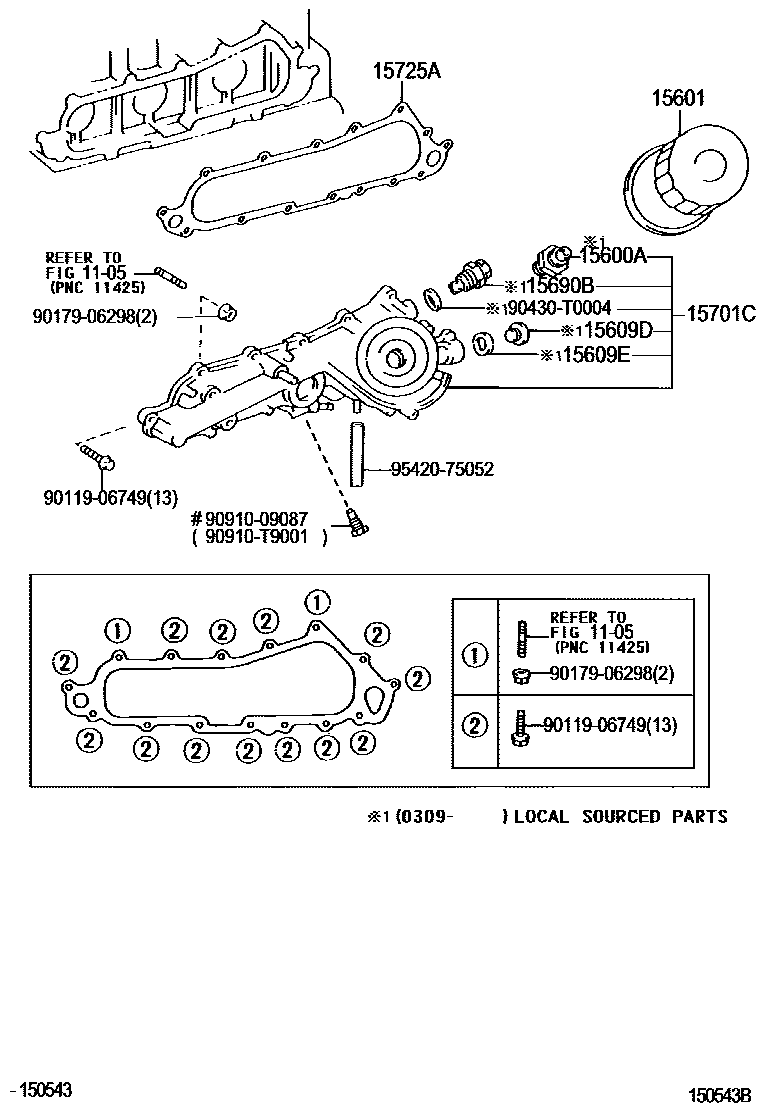

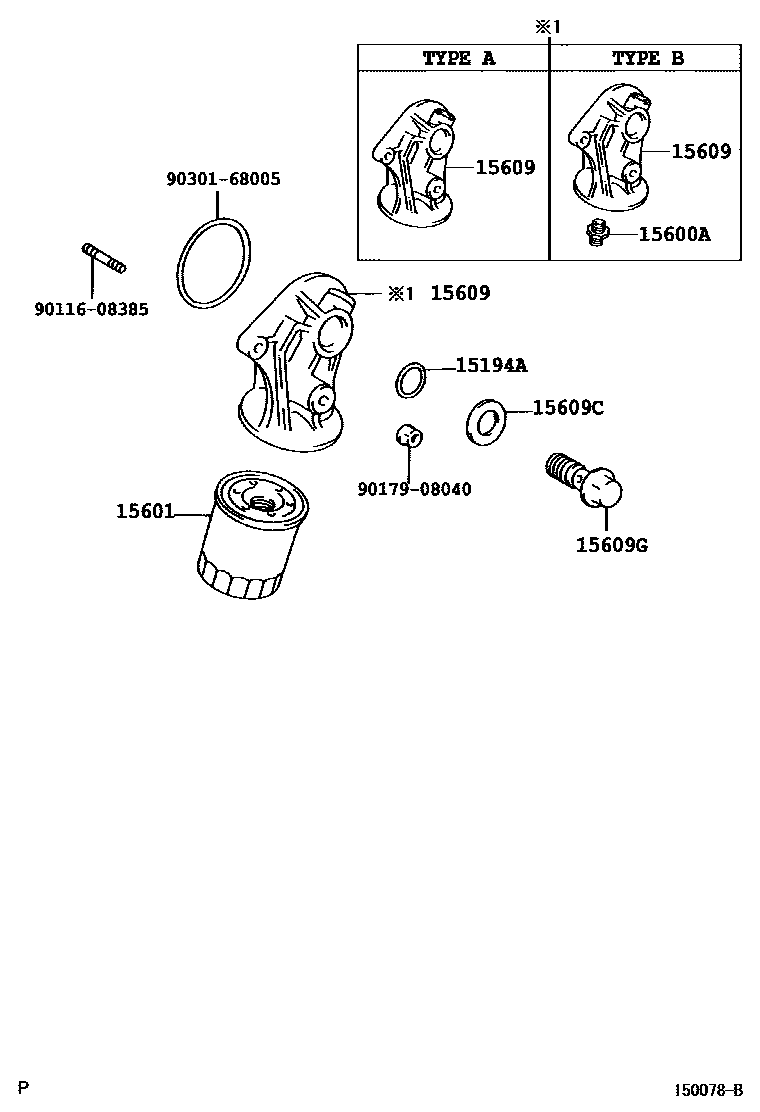

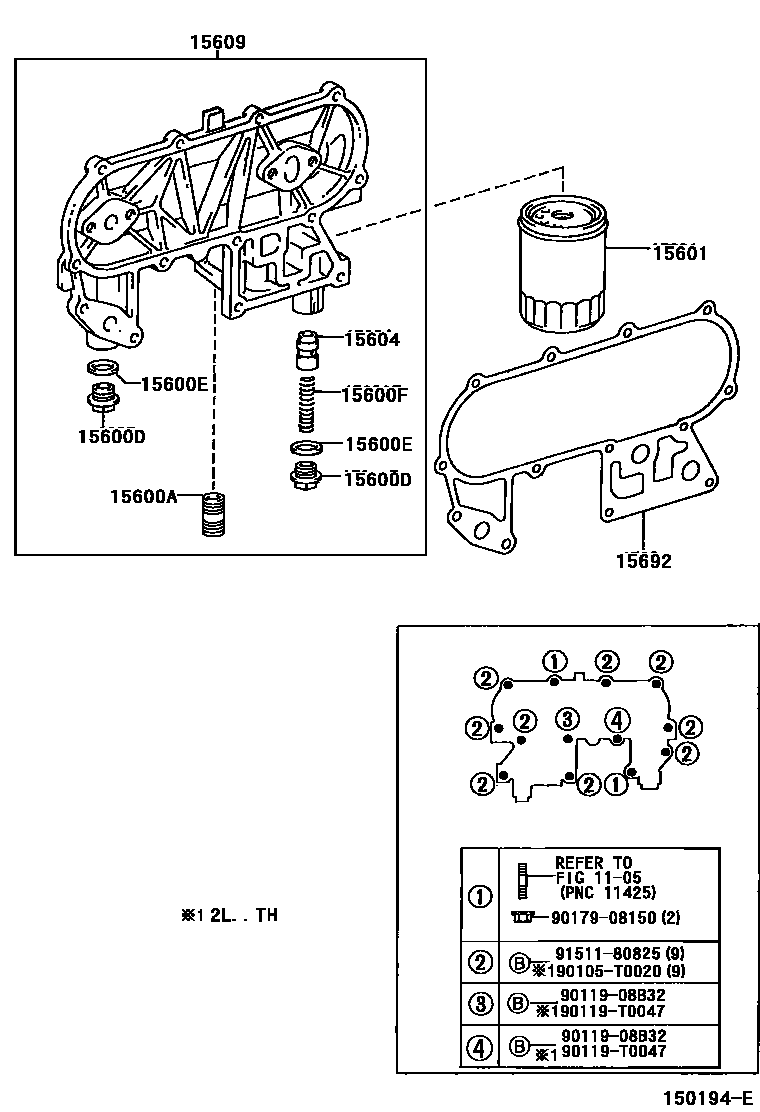

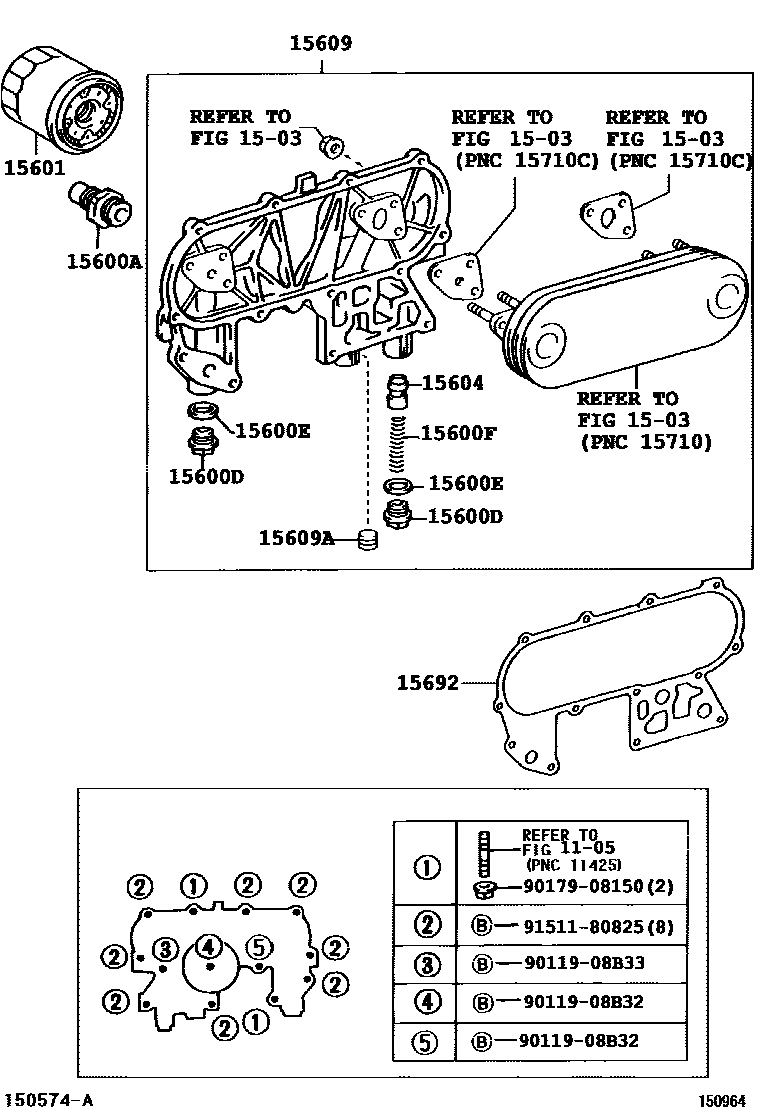

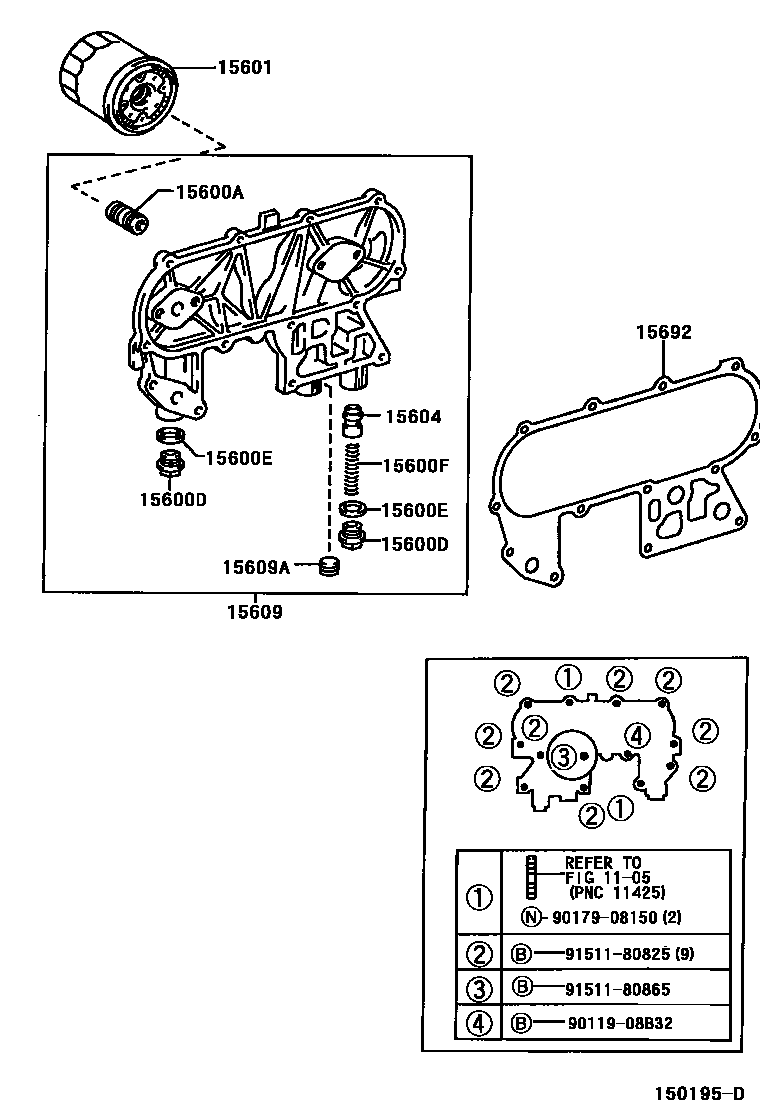

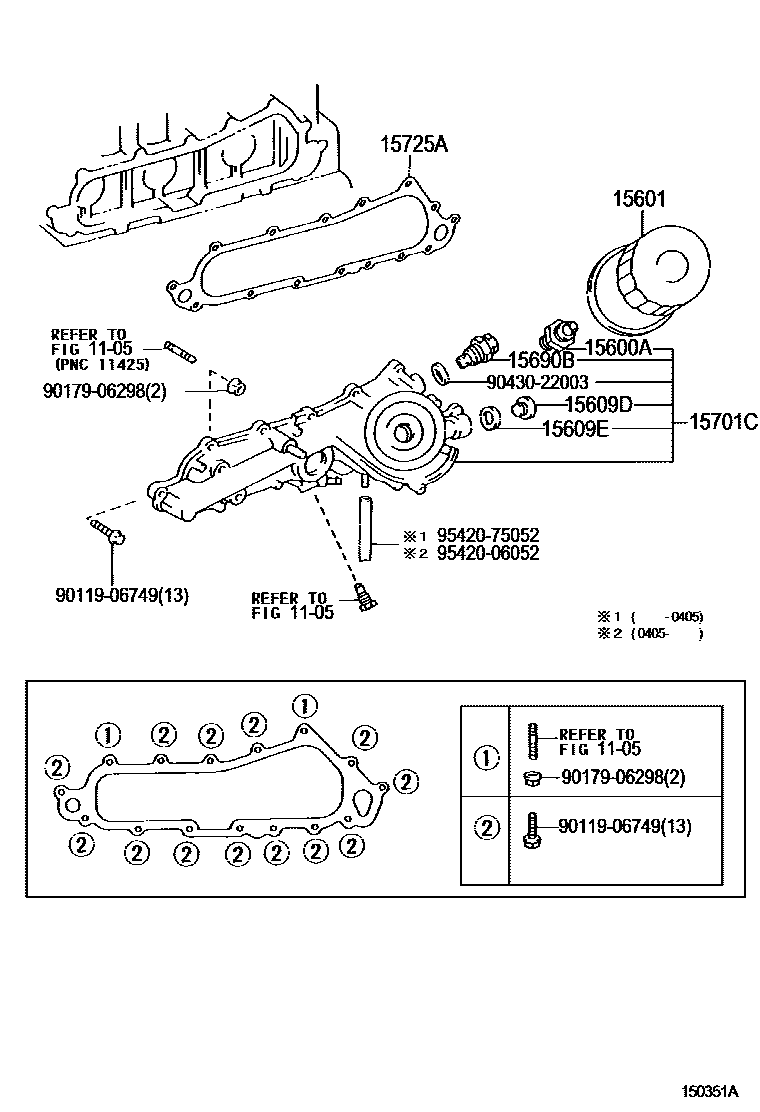

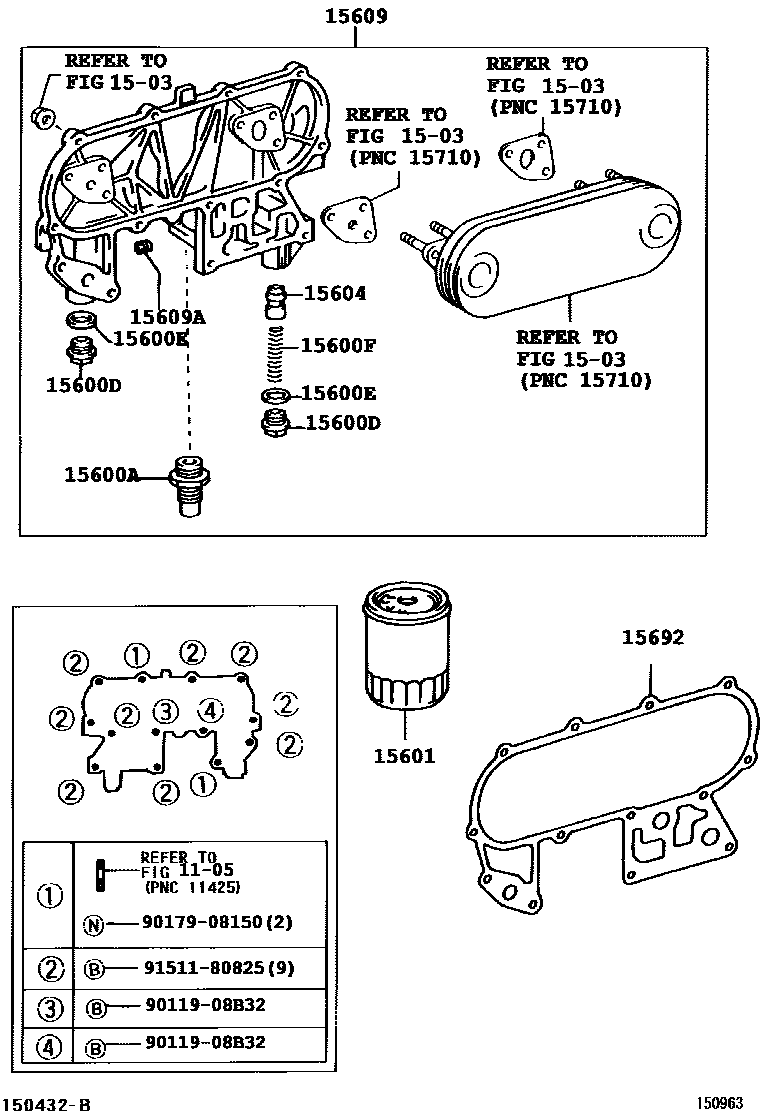

Toyota HILUX Oil Filter — Figure 1502
Toyota HILUX EPC diagram 1502, Oil Filter, with 16 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15194A | O-ring | 96721-24016 · 96721-24018 |
| 15600A | Connector (for oil filter) | 15116-54021 · 15116-54040 · 90404-19011 · 90404-19013 · 90404-19015 · 90404-19017 · 90404-T0001 |
| 15600D | Screw plug (for oil filter) | 90341-18015 |
| 15600E | Gasket (for oil filter) | 90430-18029 |
| 15600F | Compression spring (for oil filter) | 90501-16026 |
| 15601 | Oil filter sub-assembly | 15600-41010 · 15601-33021 · 90080-91158 · 90915-20001 · 90915-20003 · 90915-30002 · 90915-TB001 · 90915-TD001 |
| 15604 | Oil safety valve sub-assembly | 15131-54010 |
| 15609 | Oil filter bracket sub-assembly | 15609-05010 · 15609-05050 · 15609-05060 · 15609-54014 · 15609-54043 · 15609-54072 · 15609-54082 · 15609-71011 · 15609-75010 · 15609-75020 · 15609-75030 · 15609-75050 · 15670-54010 · 15670-54020 |
| 15609A | Tapered thread plug (for oil filter holder) | 90344-51005 · 90344-54004 |
| 15609C | Gasket (for oil filter holder connector) | 90430-28004 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 |
| 15609E | Headed straight thread plug liner | 15134-67020 · 90430-T0005 |
| 15609G | Connector bolt (for oil filter bracket) | 90401-19005 |
| 15690B | Oil cooler pressure reducing valve assembly | 15690-50010 · 15690-64010 |
| 15691 | oil filter gasket | 15691-71011 · 15692-75010 · 15692-75011 |
| 15692 | Oil filter holder gasket | 15692-05011 · 15692-05020 · 15692-54050 |
| 15701C | Oil cooler cover sub-assembly | 15701-0L010 · 15701-0L020 · 15701-30030 · 15701-30040 · 15701-67030 · 15701-67031 |
| 15725A | Oil cooler cover gasket | 15725-0L010 · 15725-67010 |
