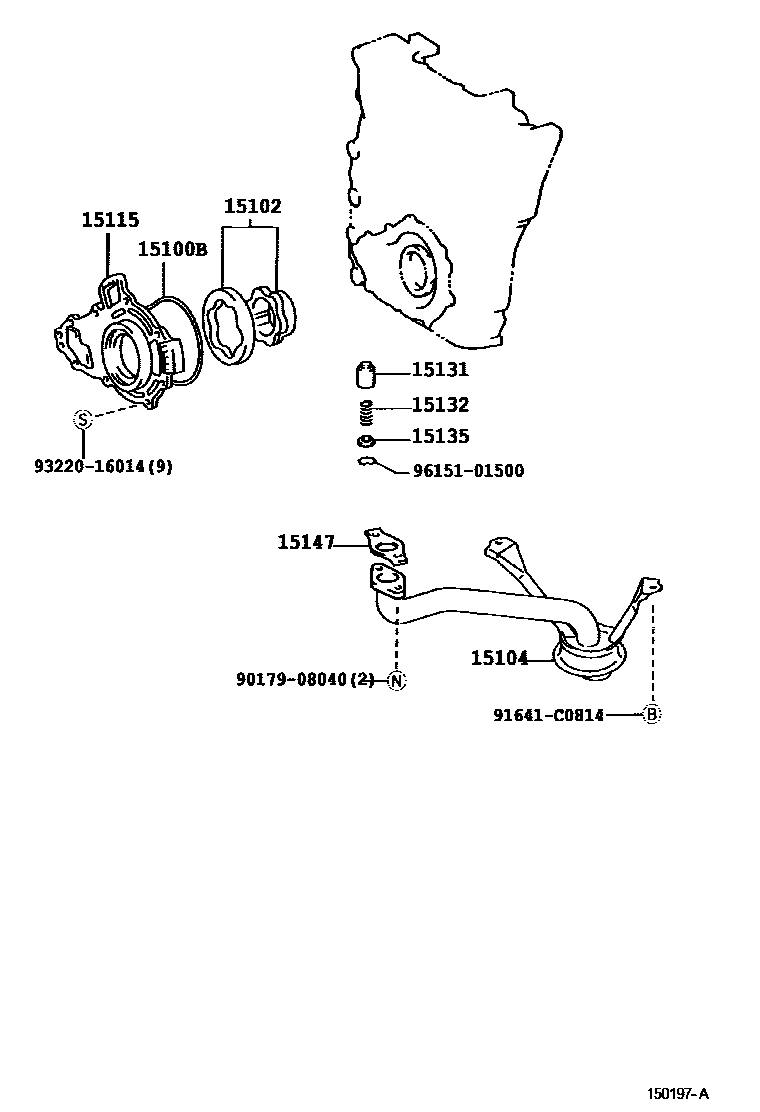

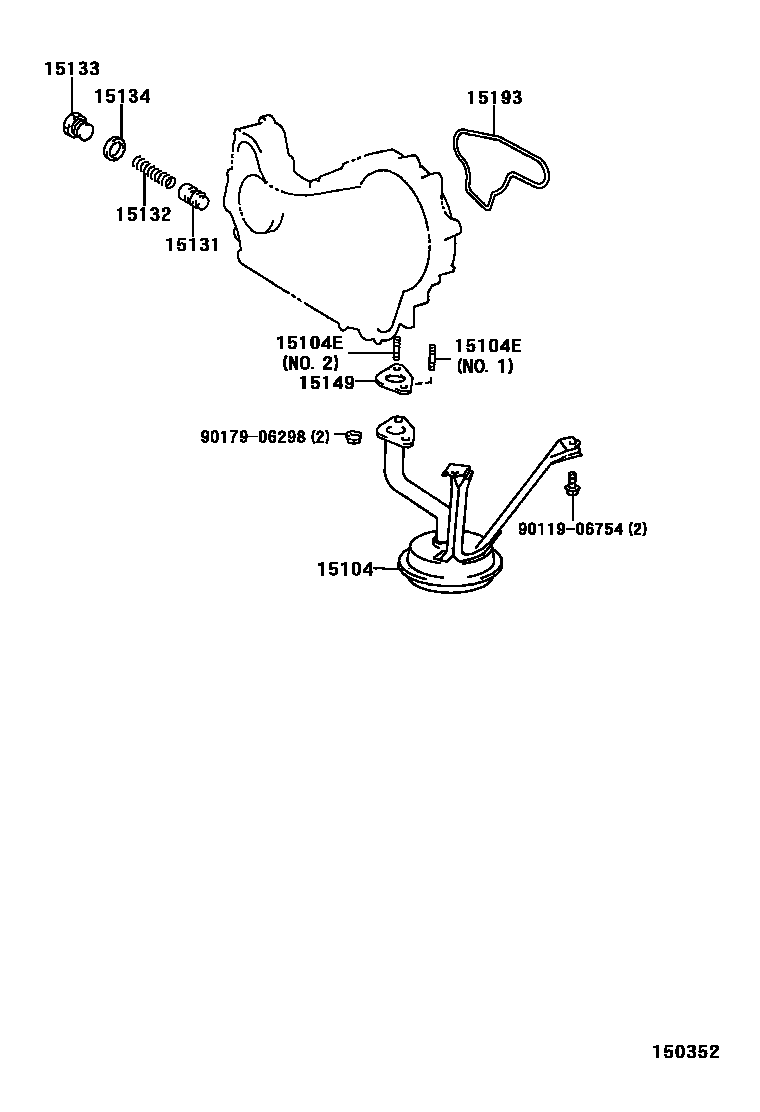

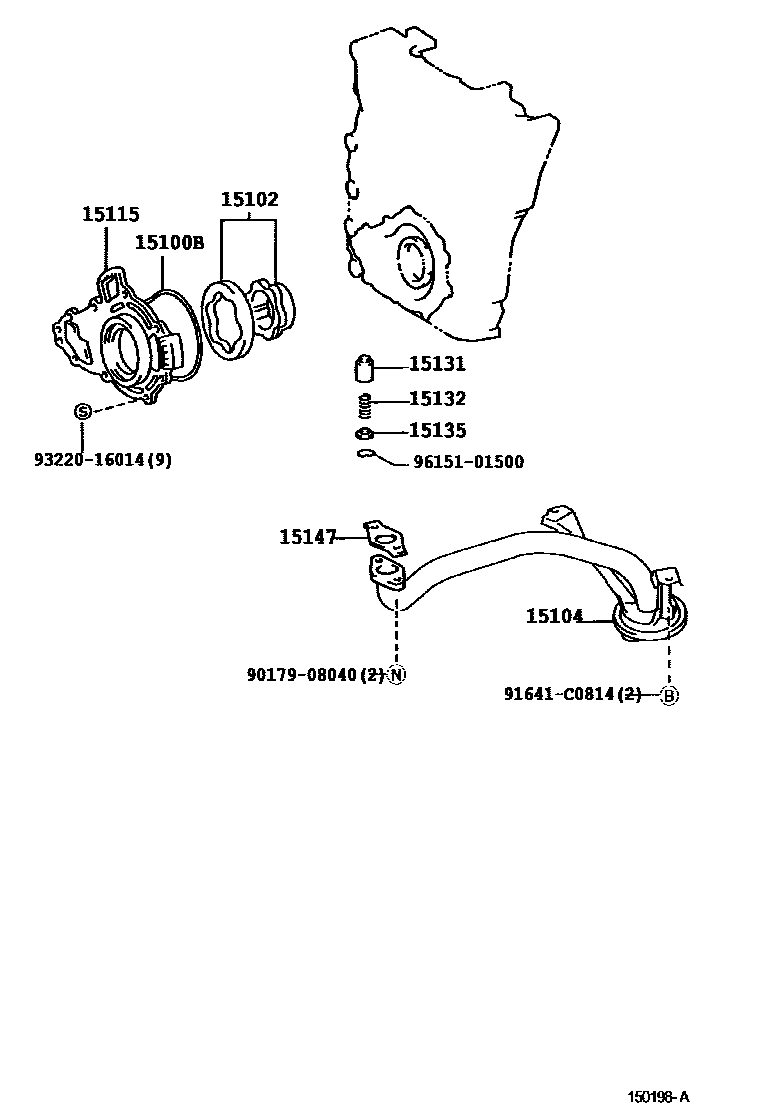

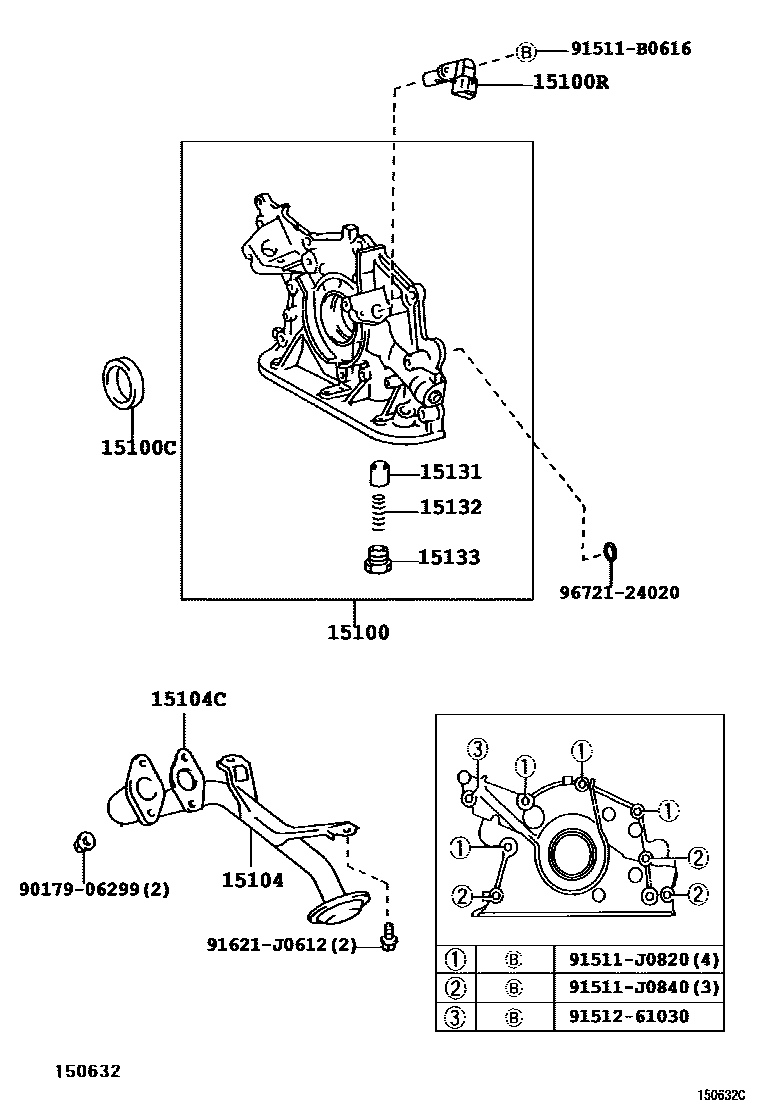

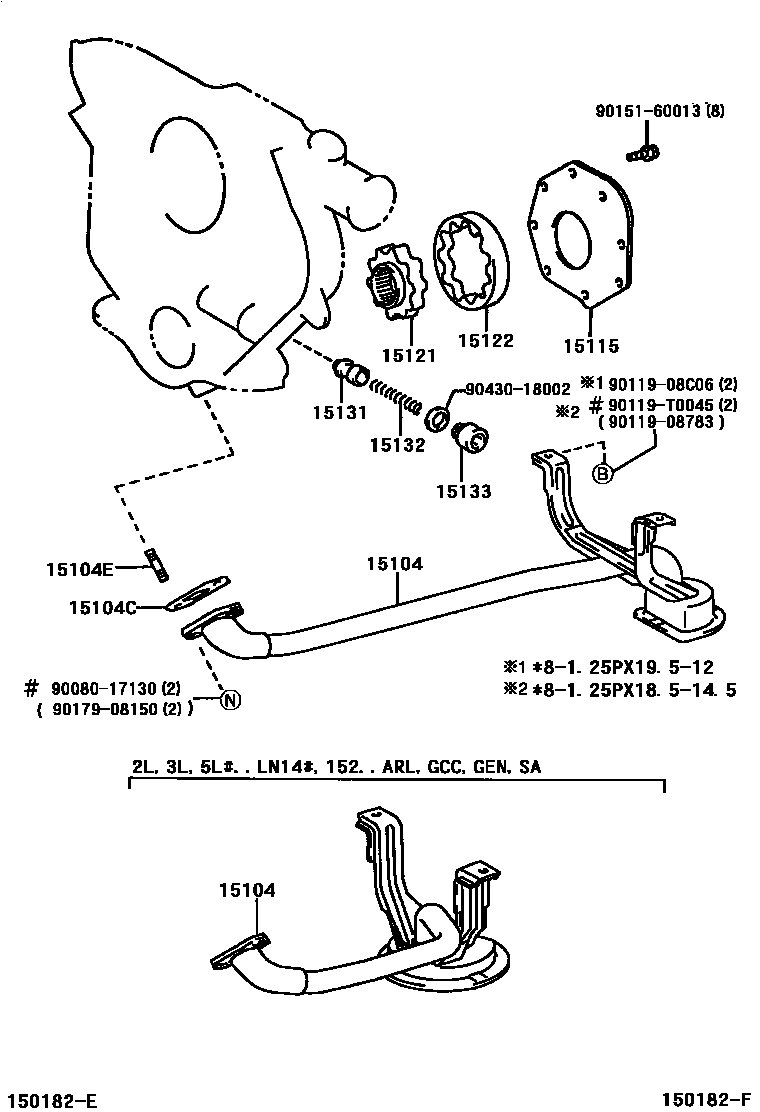

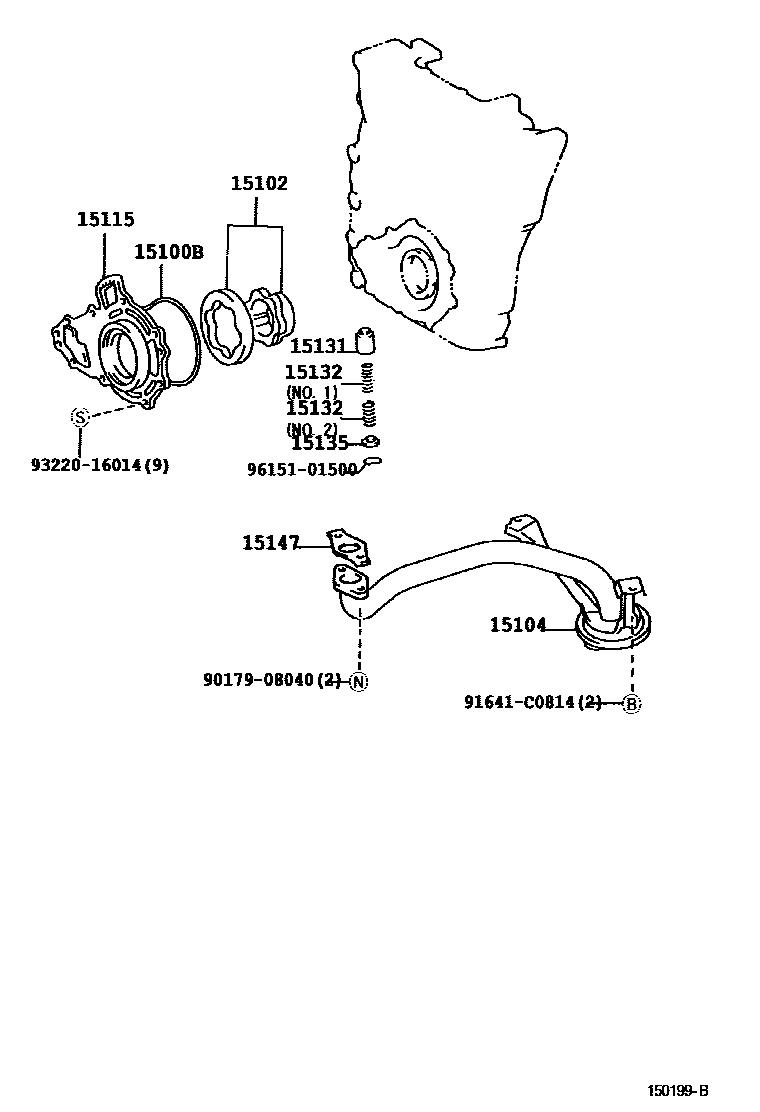

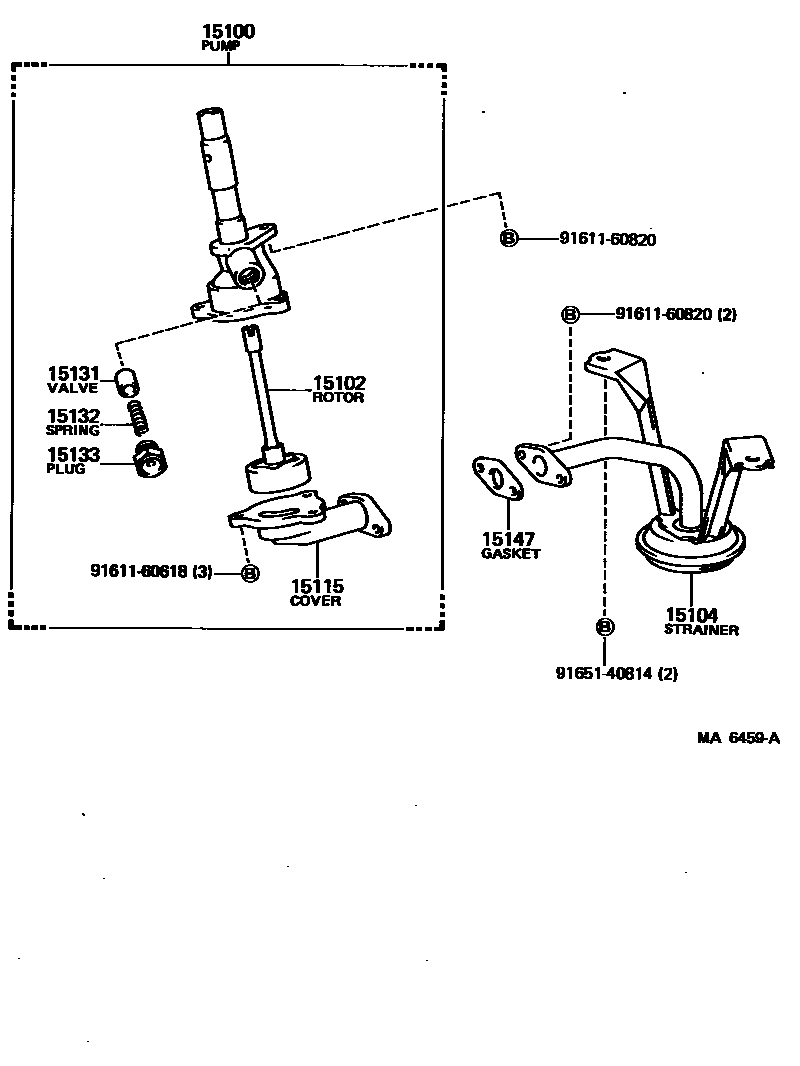

Toyota HILUX Engine Oil Pump — Figure 1501
Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-62040 · 15110-71010 |
| 15100B | O-ring (for oil pump) | 15188-75020 · 15188-75021 |
| 15100C | Seals (for oil pump) | 90311-40022 |
| 15100R | crankshaft position sensor | 90919-05020 |
| 15102 | Oil pump rotor assembly | 15102-71010 · 15103-75010 · 15103-75020 |
| 15104 | Oil filter sub-assembly | 15104-05040 · 15104-05050 · 15104-30020 · 15104-54170 · 15104-54220 · 15104-62070 · 15104-67050 · 15104-71010 · 15104-75080 · 15104-75090 |
| 15104C | Gasket (for oil filter) | 15147-62020 · 15149-05020 · 15149-54012 · 15149-54030 |
| 15104E | Stud bolts (for oil filter) | 90116-06140 · 90116-T0019 · 90116-T0020 · 92122-40816 · 92122-60650 · 92122-80816 |
| 15115 | oil pump cover | 15115-54022 · 15115-71015 · 15115-75020 · 15115-75051 |
| 15121 | Oil pump driving gear | 15121-54020 |
| 15122 | Oil pump driven gear | 15122-54020 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 · 15131-46040 · 15131-54010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-17010 · 15132-20020 · 15132-40010 · 15132-54010 · 15132-75010 · 15132-75020 · 15132-75021 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-17010 · 15133-24010 · 15133-54010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67020 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-15010 · 15135-75040 |
| 15147 | Oil filter gasket | 15147-38020 · 15147-75020 |
| 15149 | Oil filter flange gasket | 15149-0L010 · 15149-67010 |
| 15193 | oil pump gasket | 15193-0L010 · 15193-67011 |
