Toyota HILUX Engine Mounting — Figure 1107

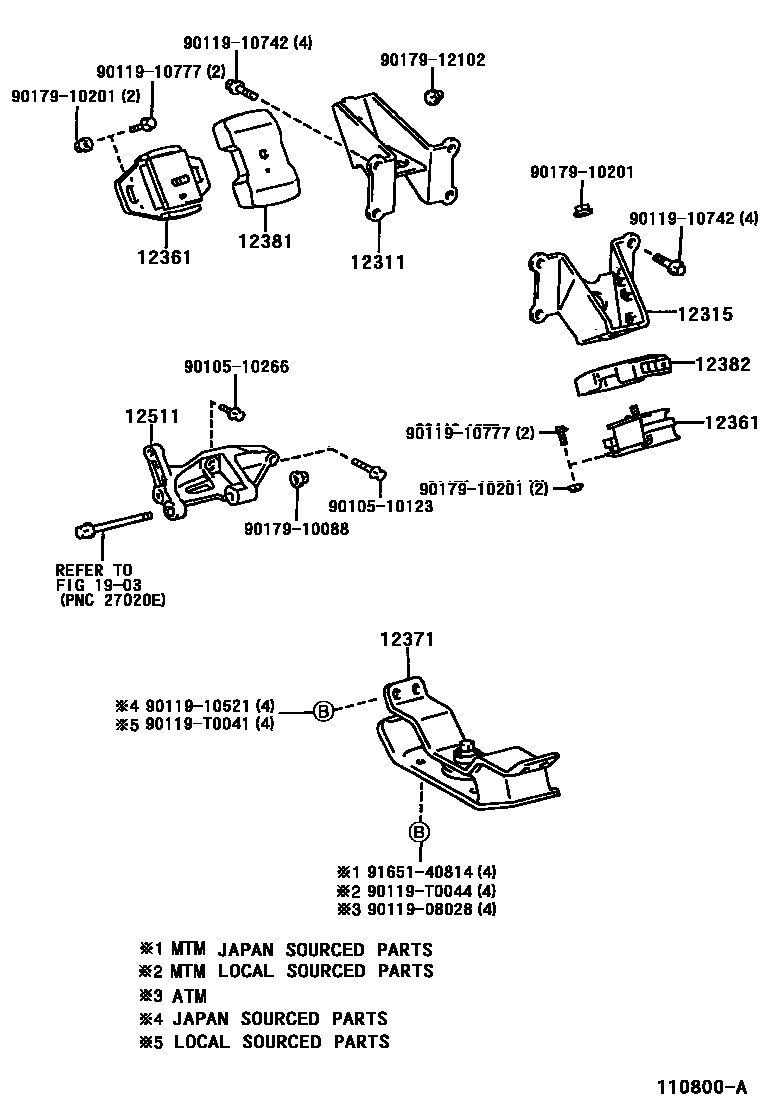

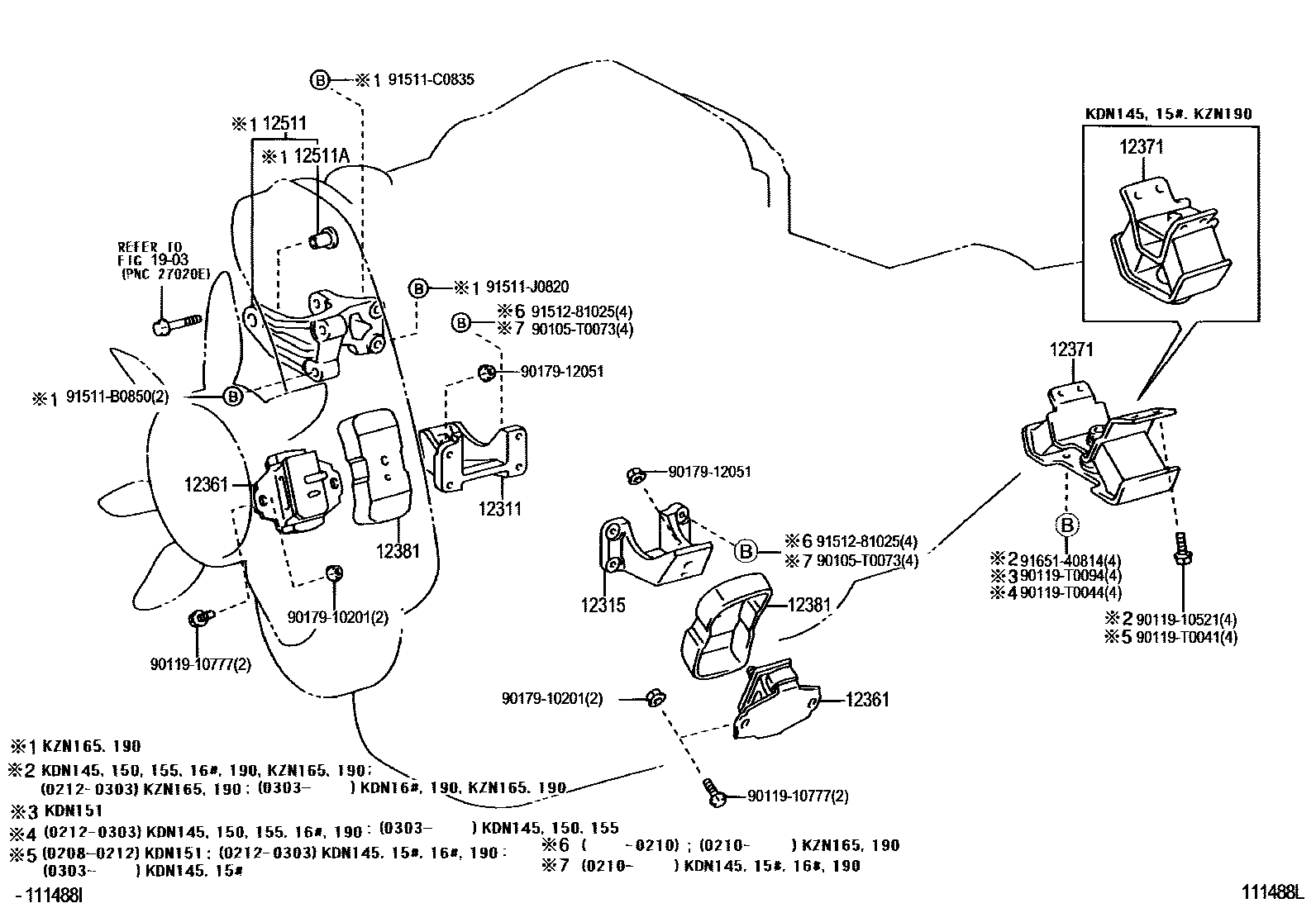

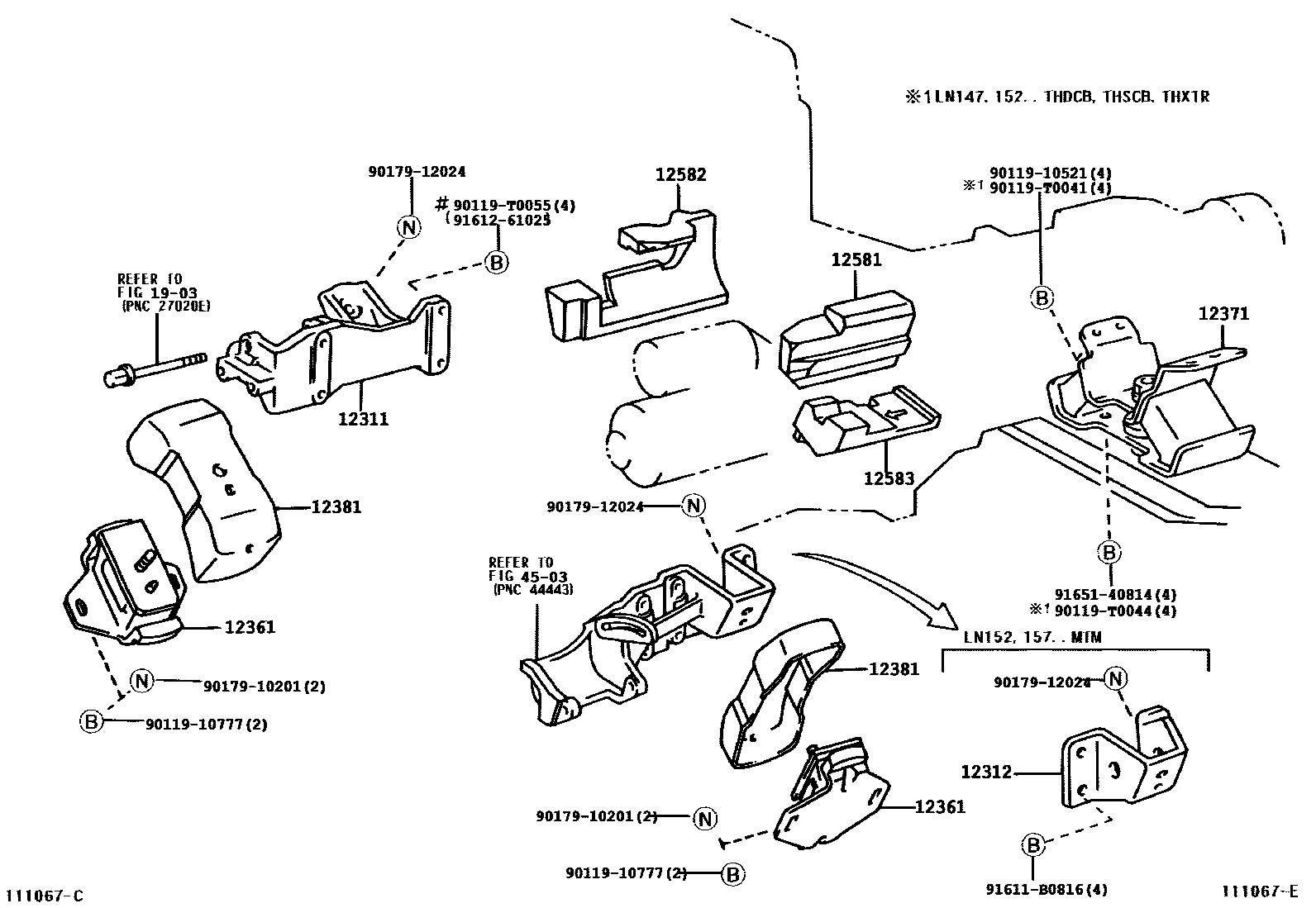

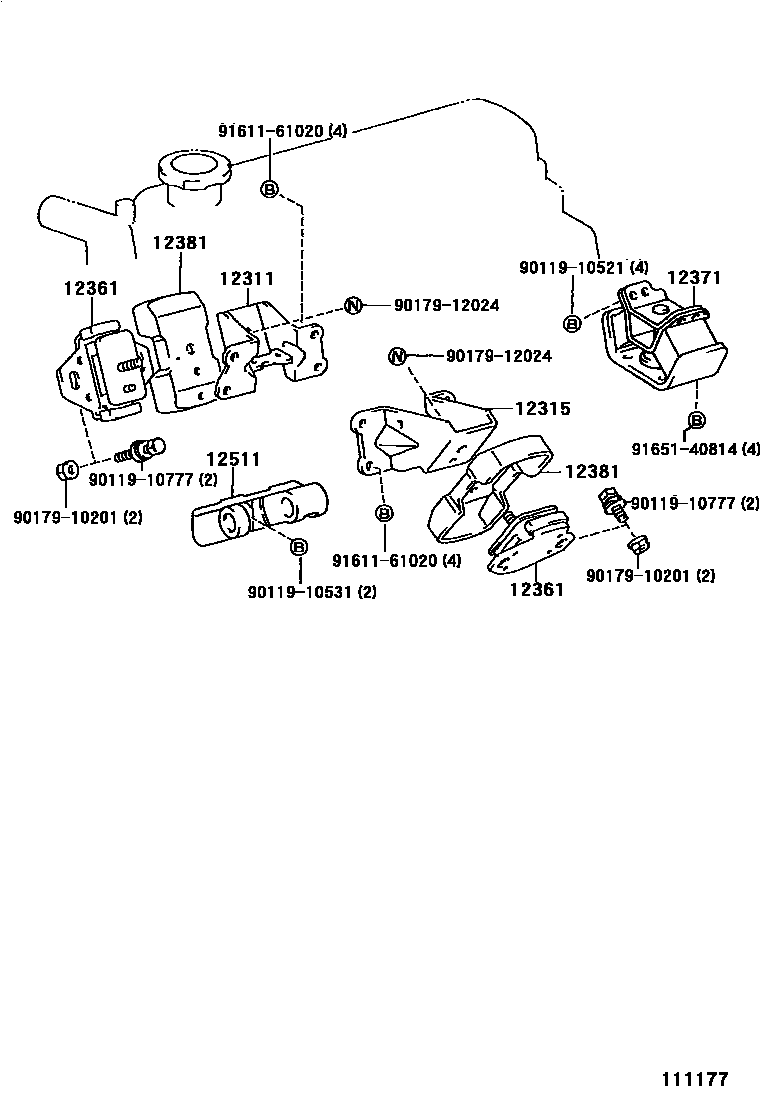

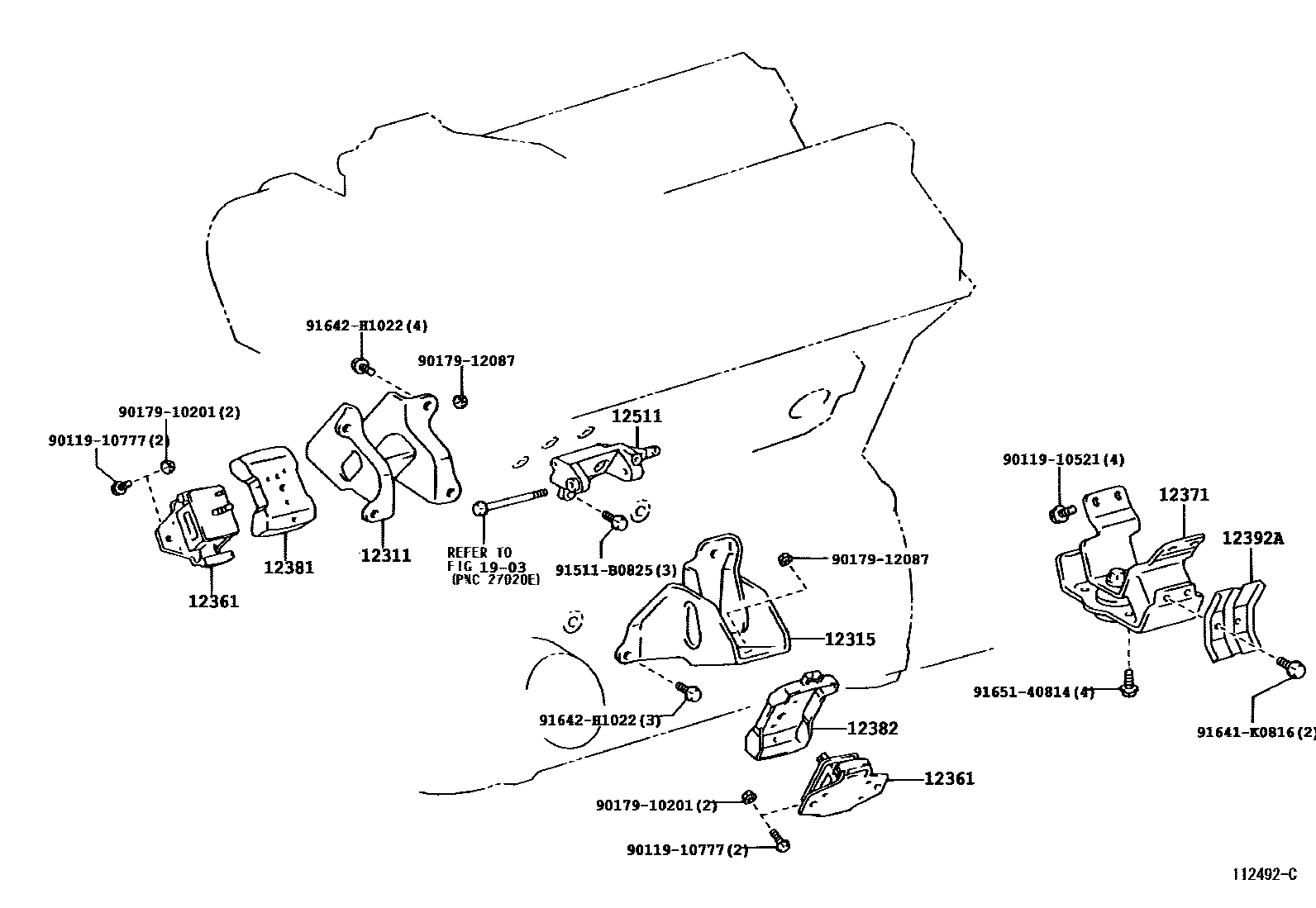

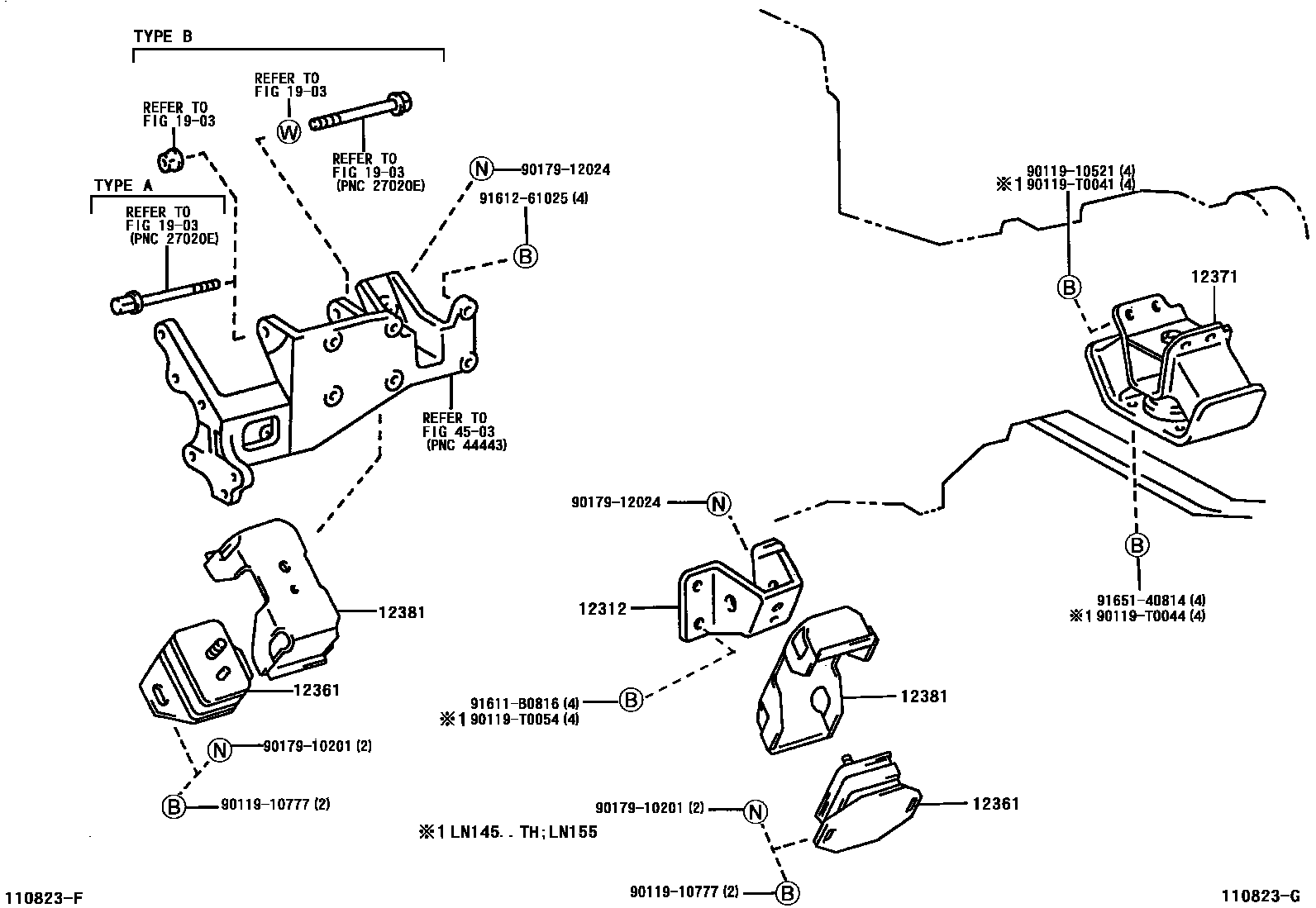

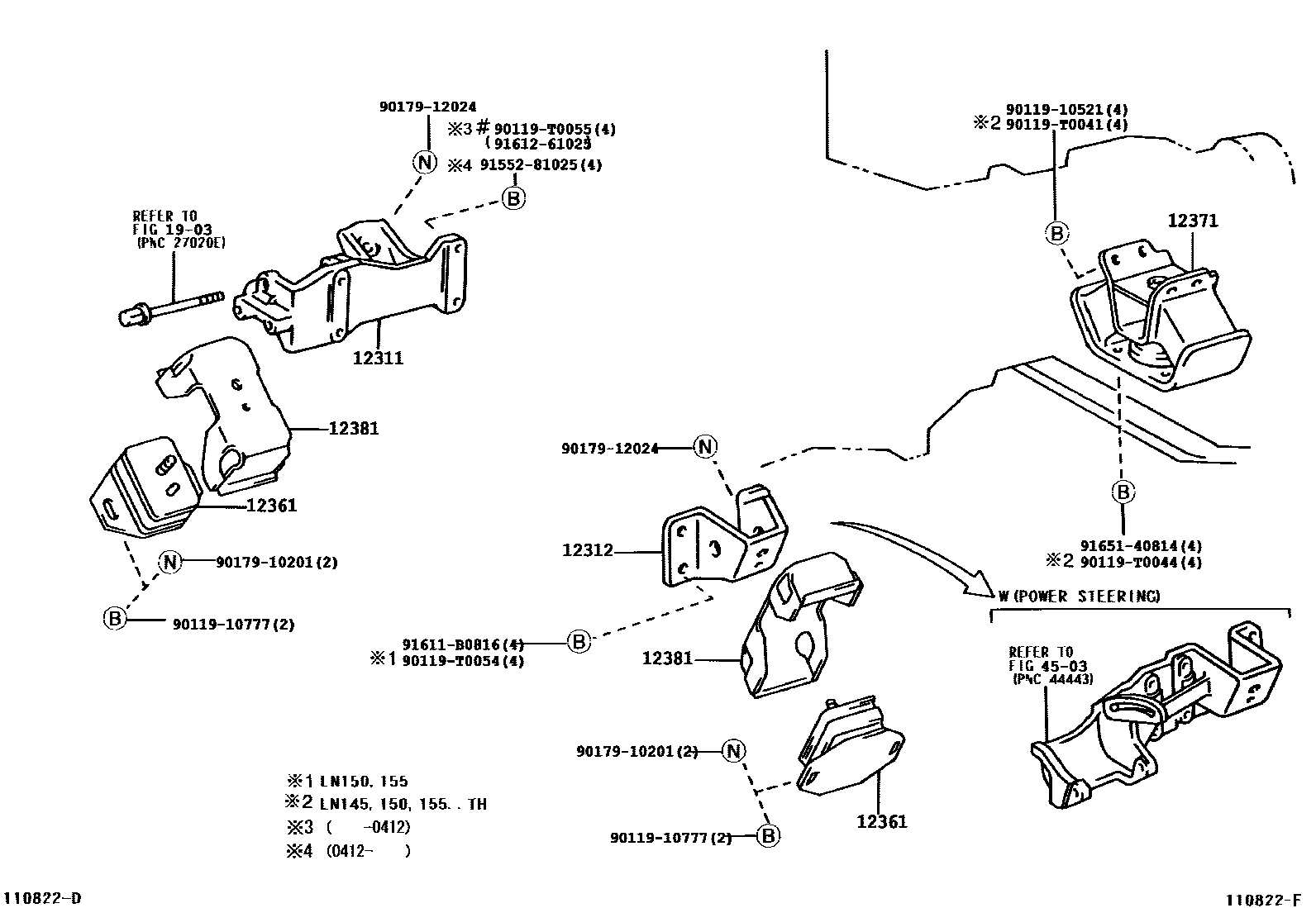

Toyota HILUX EPC diagram 1107, Engine Mounting, with 7 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-05010 · 12311-0L010 · 12311-0L020 · 12311-30030 · 12311-54091 · 12311-54181 · 12311-62070 · 12311-67020 · 12311-67021 · 12311-71010 · 12311-75080 |
| 12312 | Engine No. 2 front suspension bracket | 12312-54021 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-0L010 · 12315-0L020 · 12315-30030 · 12315-62080 · 12315-67010 · 12315-67011 · 12315-71010 · 12315-75070 |
| 12361 | Engine front mounting vibration isolation pad | 12361-30030 · 12361-35050 · 12361-35090 · 12361-54111 · 12361-54121 · 12361-62150 · 12361-67020 · 12361-67030 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-05010 · 12371-05030 · 12371-0C050 · 12371-0C060 · 12371-34030 · 12371-35070 · 12371-54060 · 12371-54180 · 12371-54190 · 12371-62190 · 12371-62200 · 12371-65010 · 12371-75050 · 12371-75060 · 12371-75070 · 12371-75080 |
| 12381 | engine mount stabilizer bar | 12381-54010 · 12381-54020 · 12381-54060 · 12381-62020 · 12381-67010 · 12381-73010 · 12381-75020 |
| 12382 | Engine left mounting stabilizer bar | 12382-62010 · 12382-75020 |
| 12392A | Engine rear mounting heat insulation pad | 12392-62040 |
| 12511 | No. 1 generator bracket | 12511-62010 · 12511-67020 · 12511-71010 · 12511-75041 |
| 12511A | Generator bracket bushing | 90389-10039 |
| 12581 | No. 1 cylinder block vibration isolation pad | 12581-54010 |
| 12582 | No. 2 cylinder block vibration isolation pad | 12582-54021 |
| 12583 | No. 3 cylinder block vibration isolation pad | 12583-54030 |
