Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 52 images and 2 PNC and OE references.

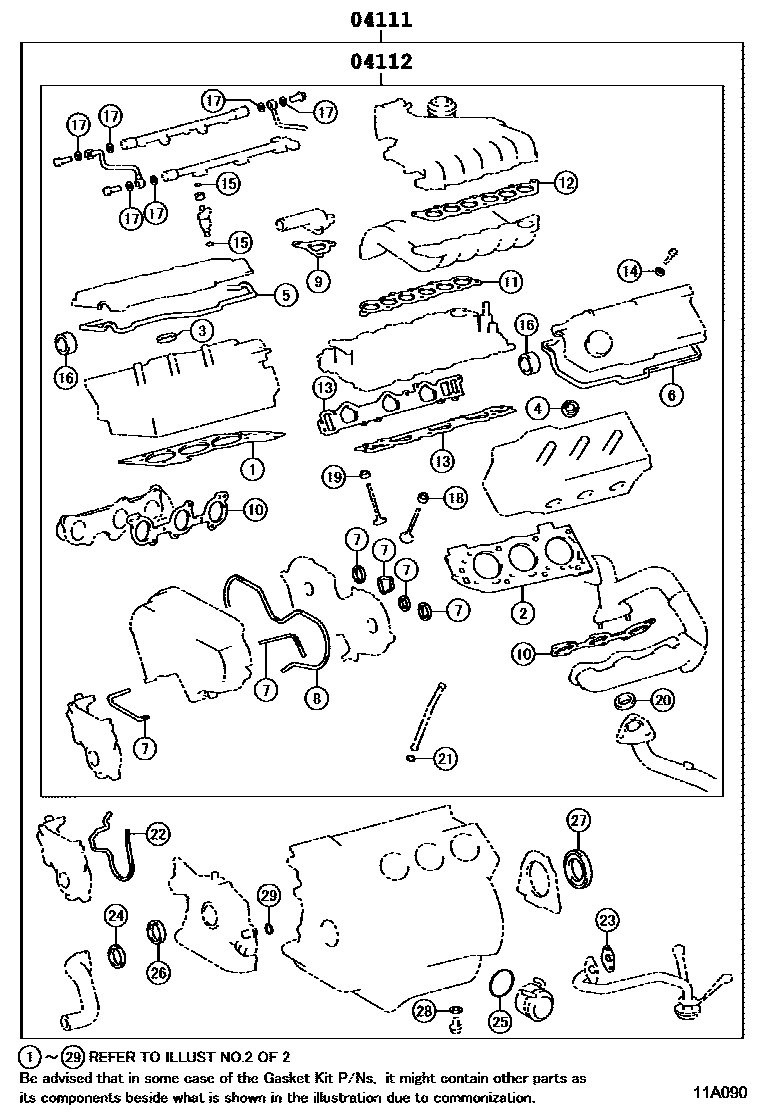

Engine Overhaul Gasket Kit — 11A090 (200208 – 200502)

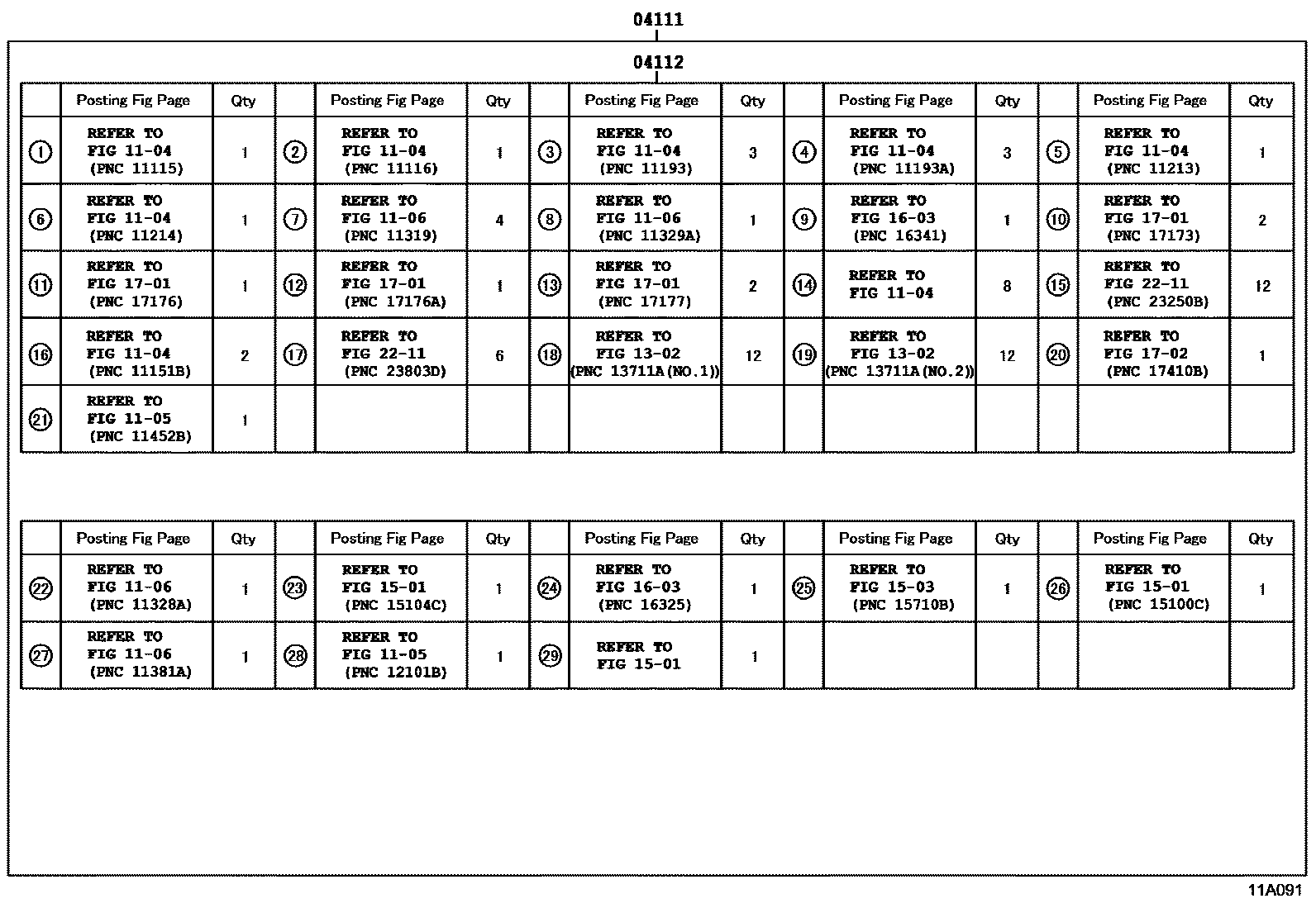

Engine Overhaul Gasket Kit — 11A091 (200208 – 200502)

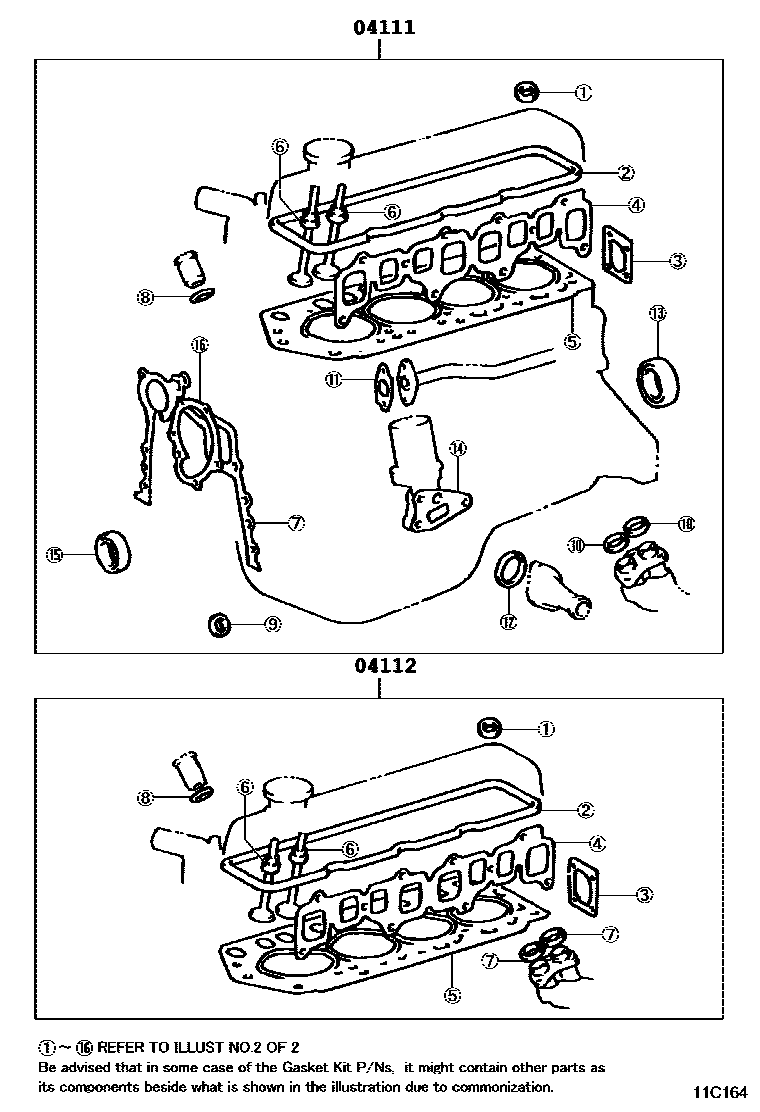

Engine Overhaul Gasket Kit — 11C164 (199808 – 200010)

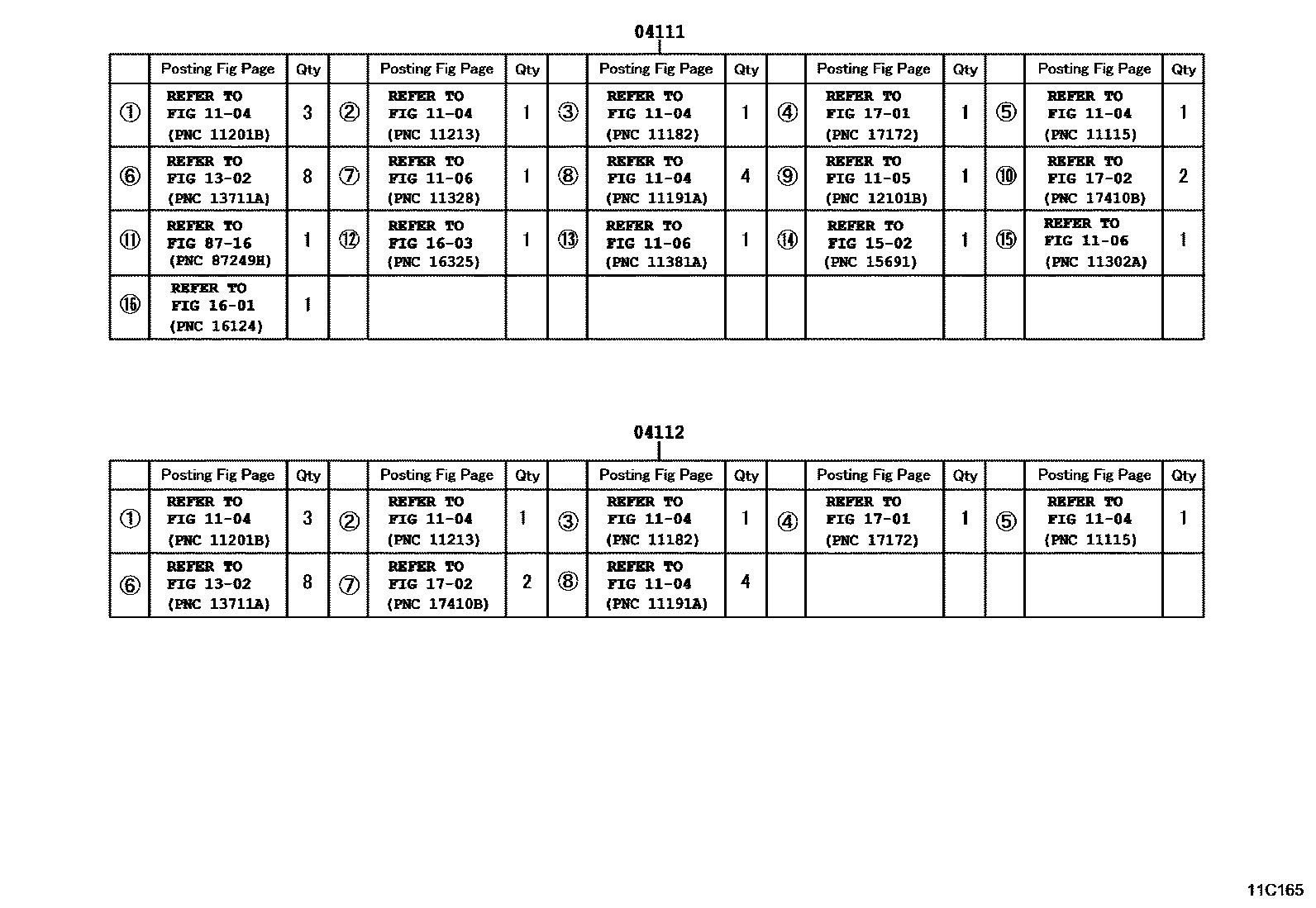

Engine Overhaul Gasket Kit — 11C165 (199808 – 200010)

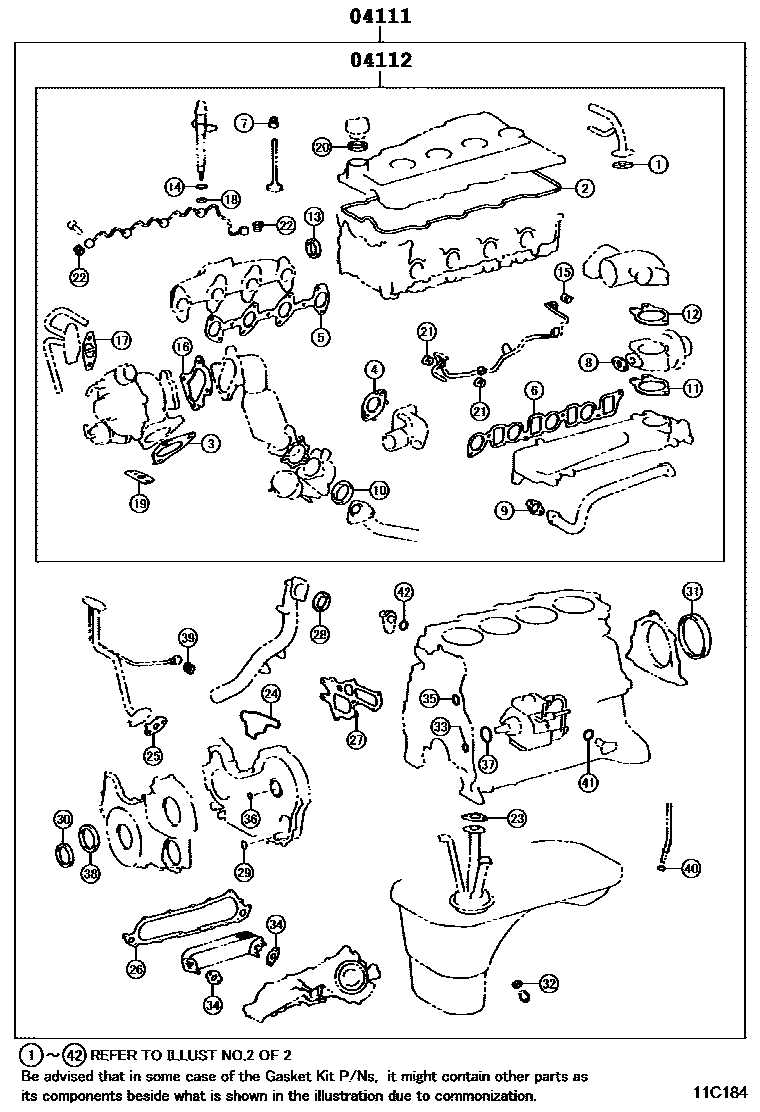

Engine Overhaul Gasket Kit — 11C184 (200208 – 200411)

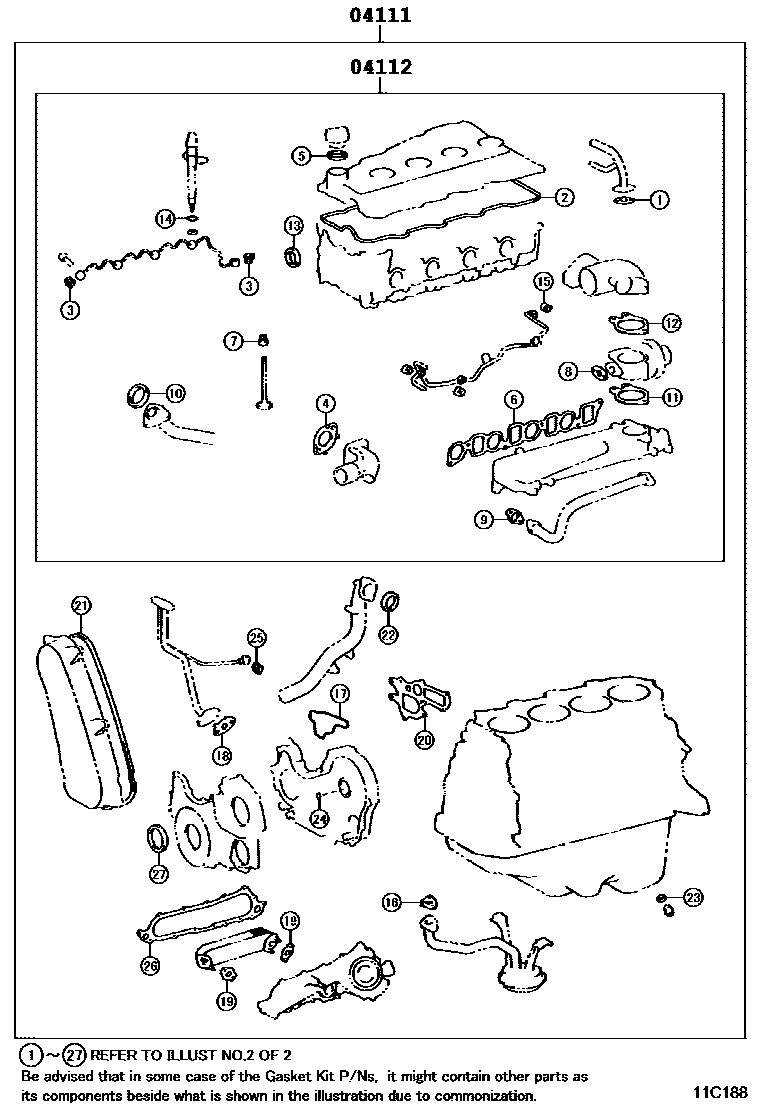

Engine Overhaul Gasket Kit — 11C188 (200408 – 200503)

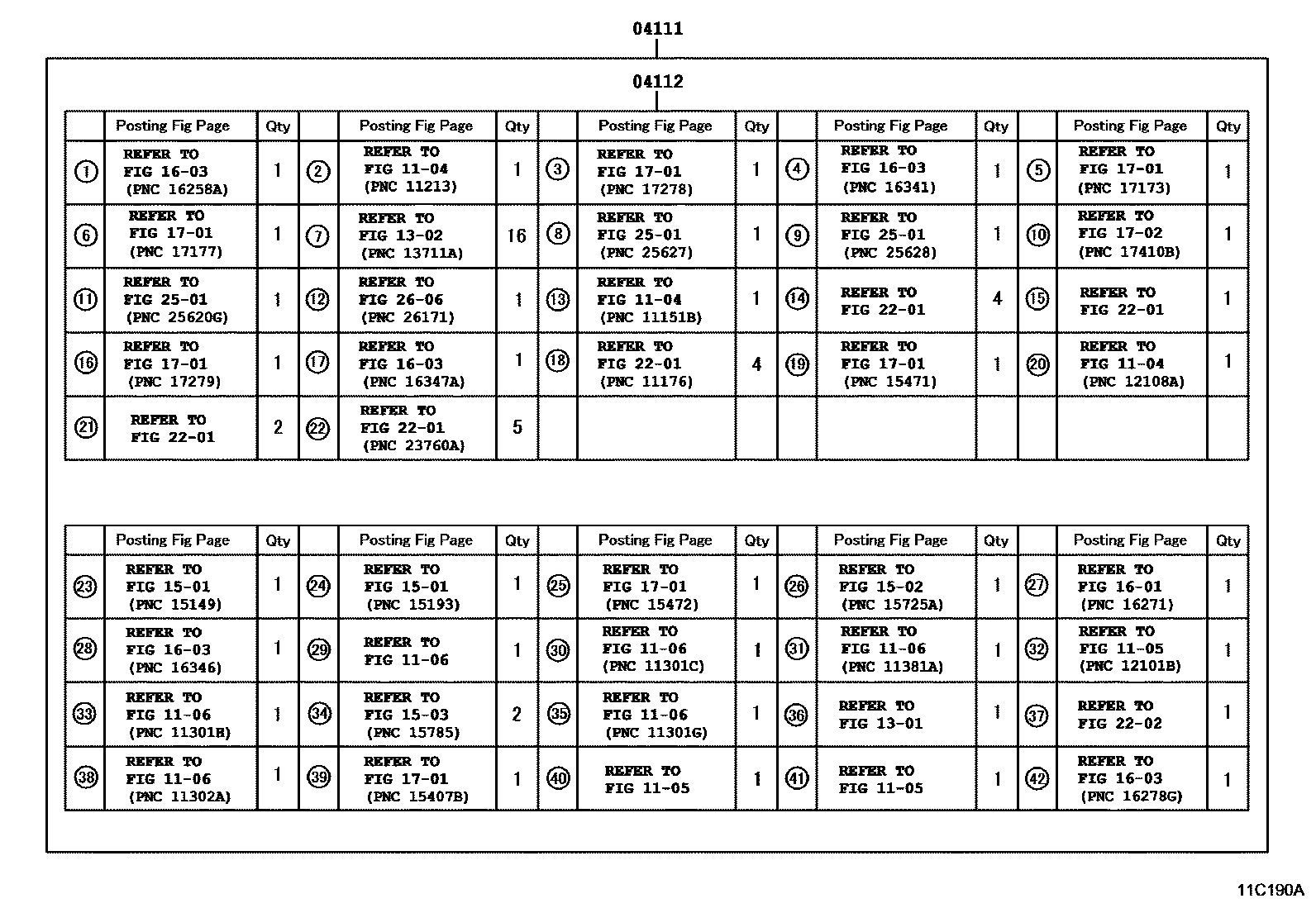

Engine Overhaul Gasket Kit — 11C190A (200208 – 200411)

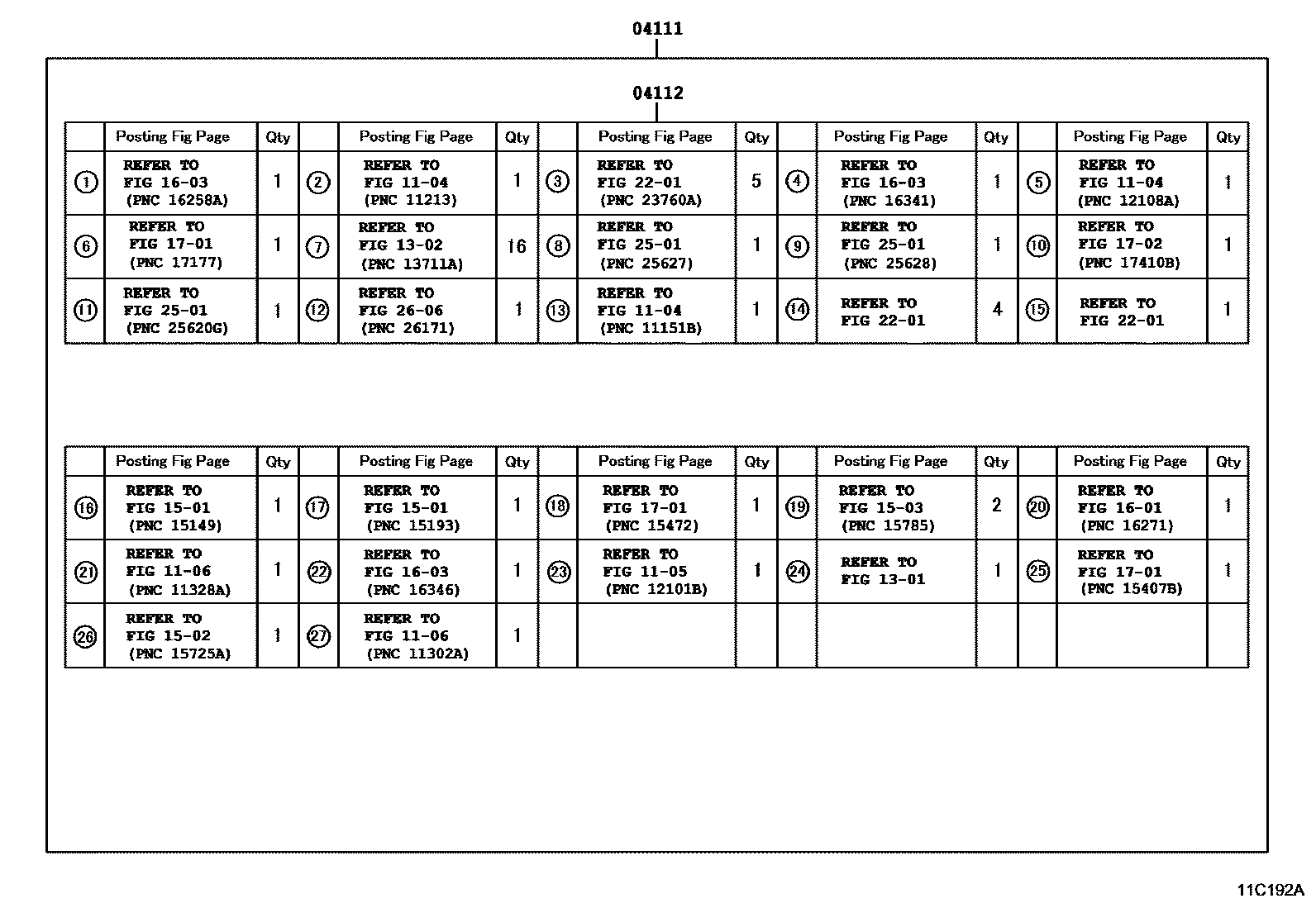

Engine Overhaul Gasket Kit — 11C192A (200408 – 200503)

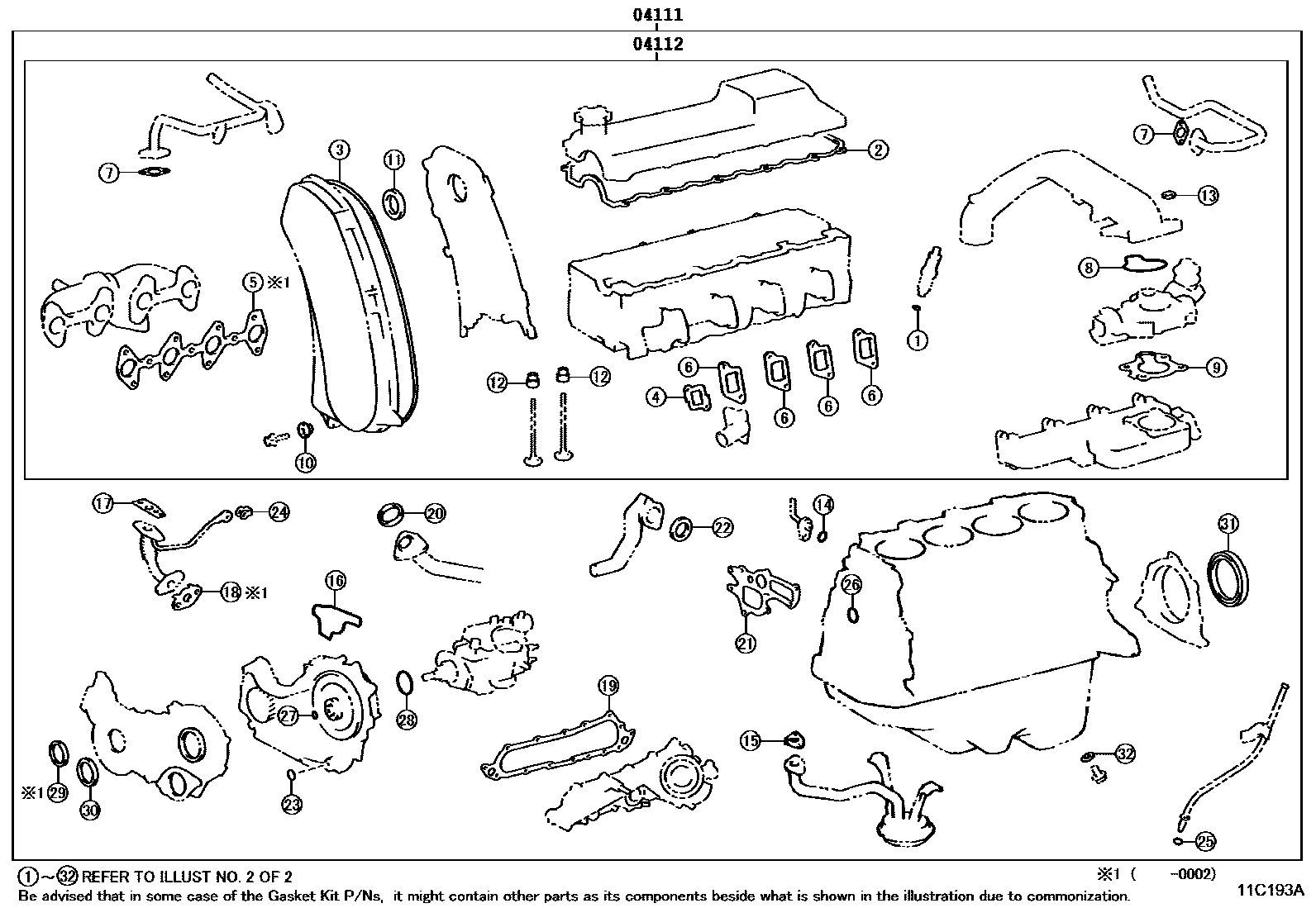

Engine Overhaul Gasket Kit — 11C193A (199909 – 200009)

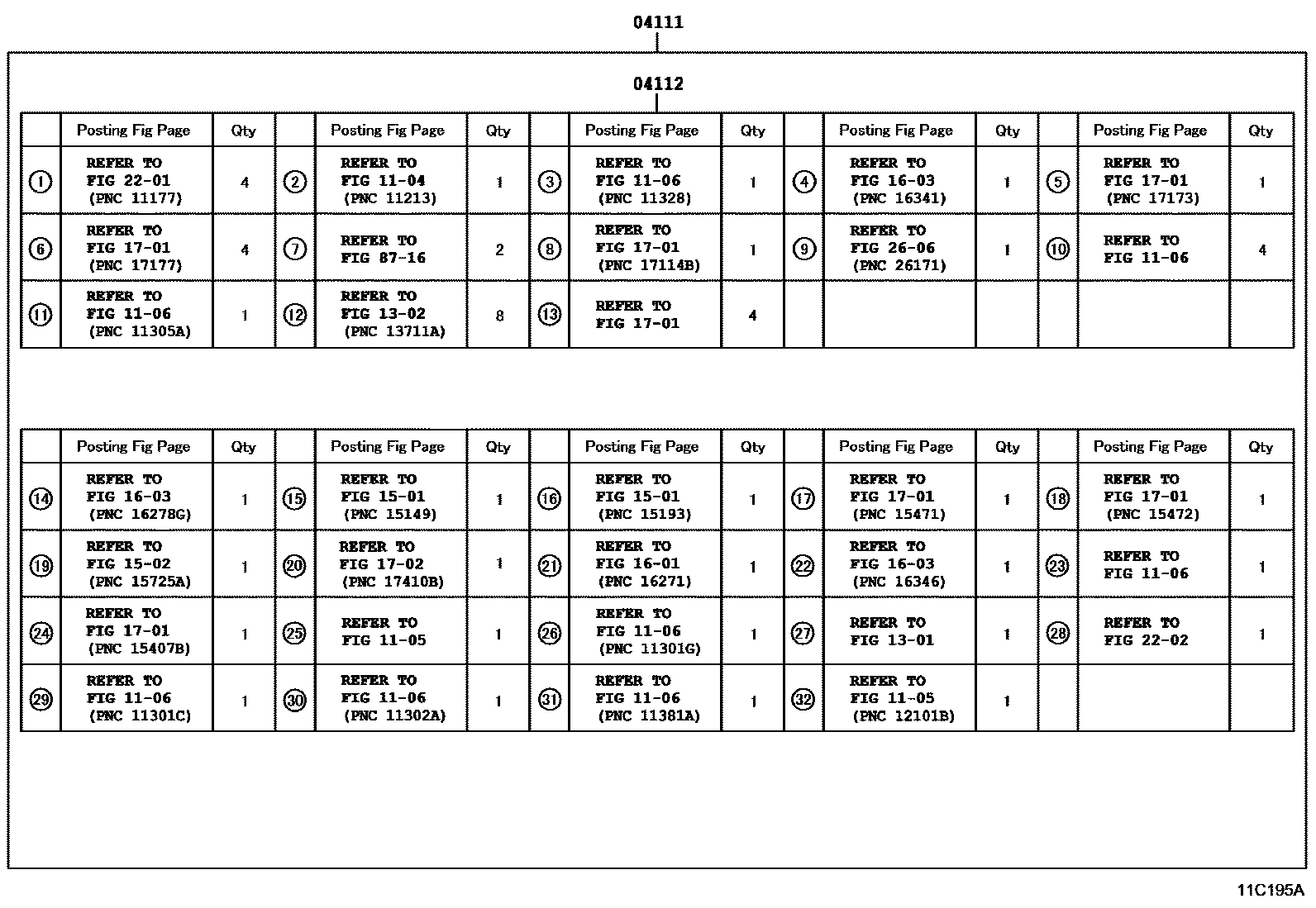

Engine Overhaul Gasket Kit — 11C195A (199909 – 200009)

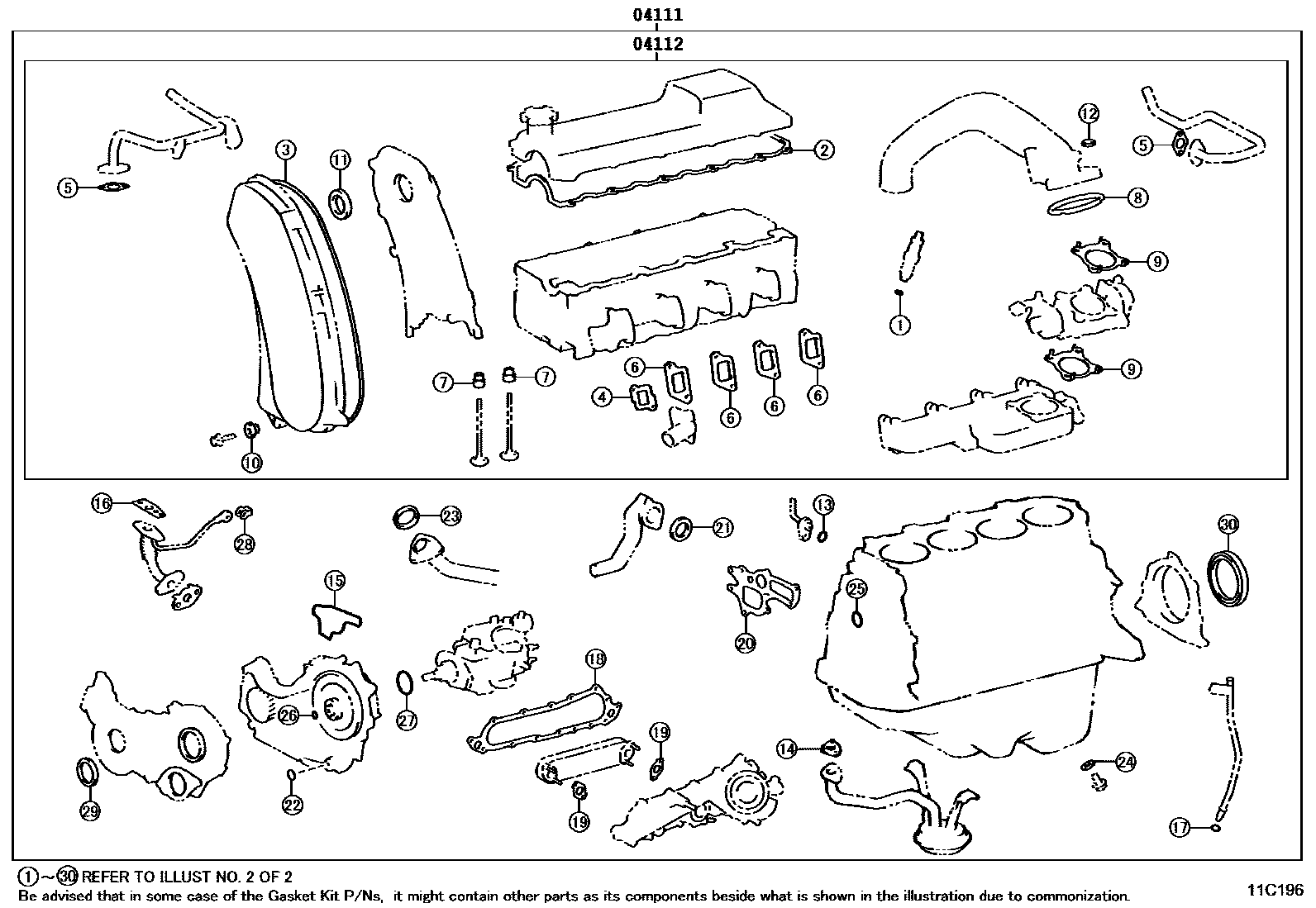

Engine Overhaul Gasket Kit — 11C196 (200002 – 200009)

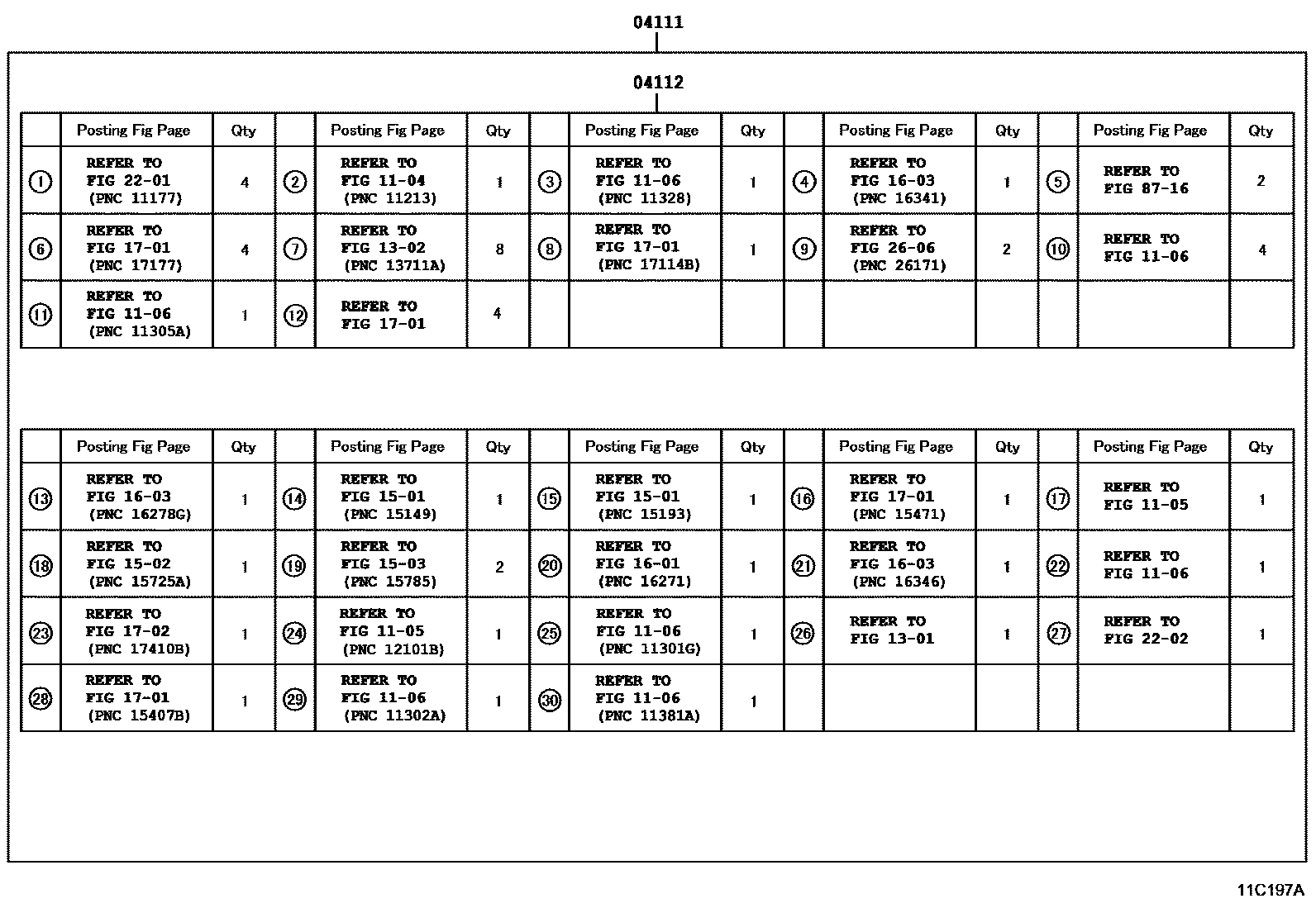

Engine Overhaul Gasket Kit — 11C197A (200002 – 200009)

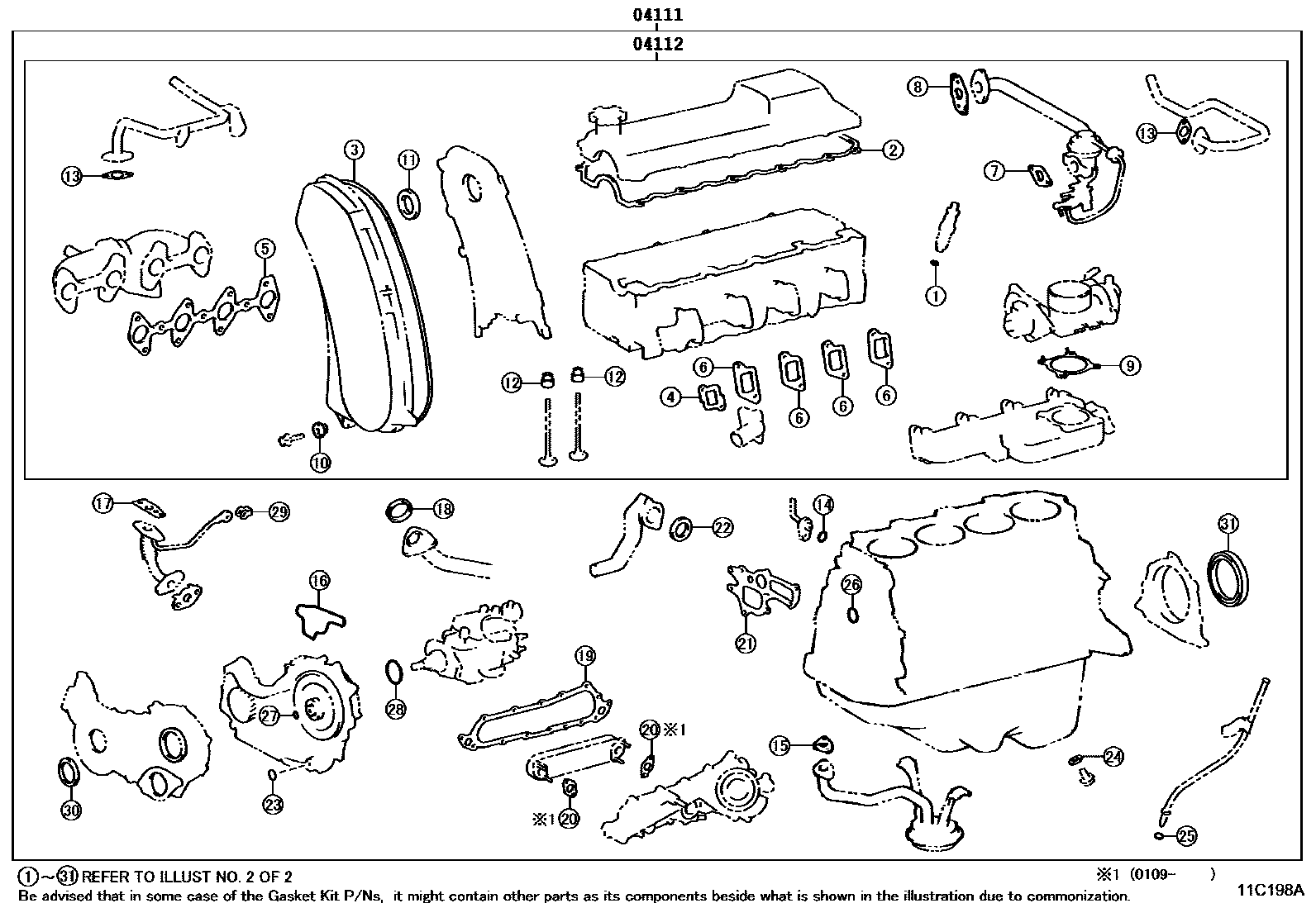

Engine Overhaul Gasket Kit — 11C198A (200009 – 200405)

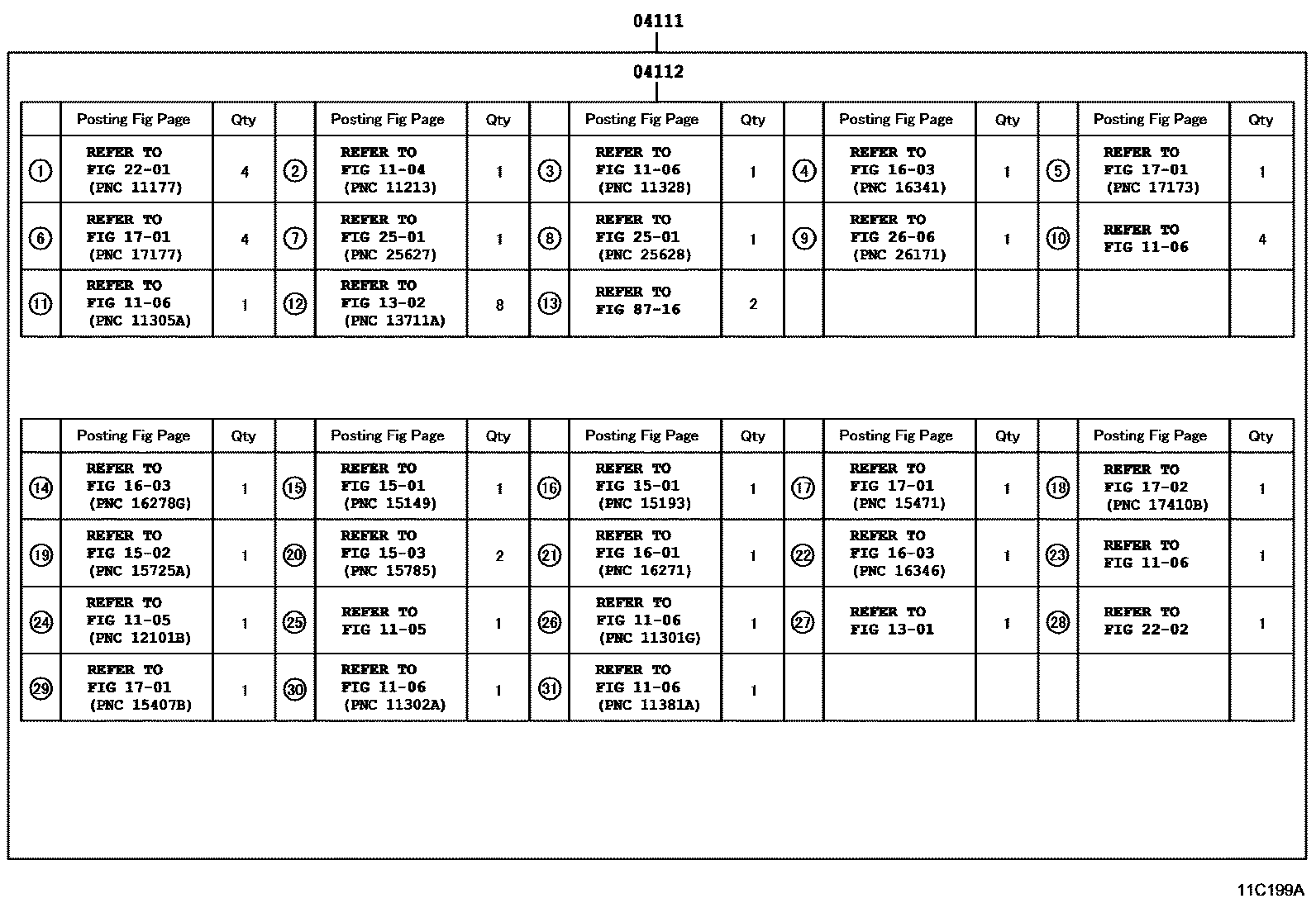

Engine Overhaul Gasket Kit — 11C199A (200009 – 200405)

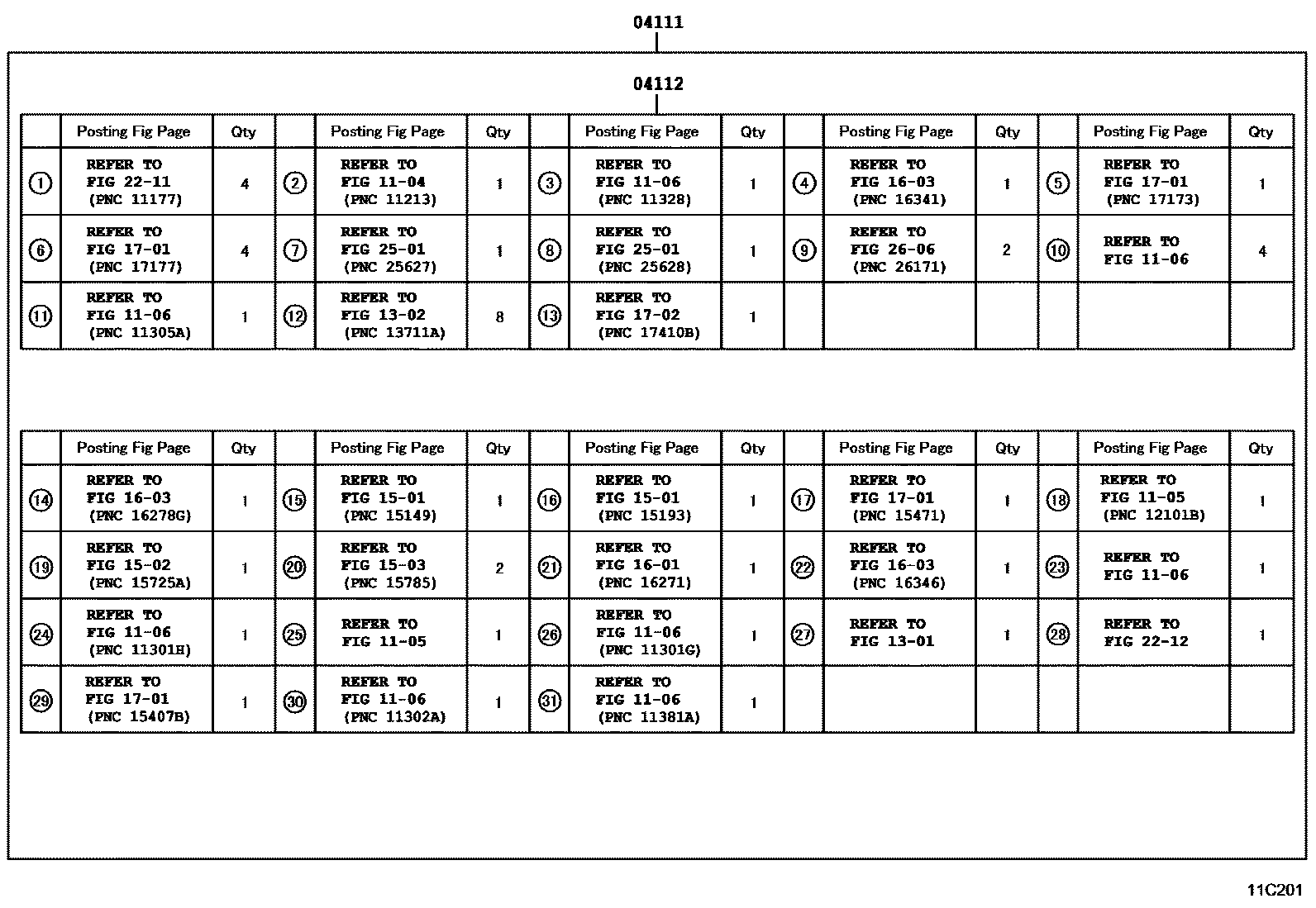

Engine Overhaul Gasket Kit — 11C201 (200405 – 200504)

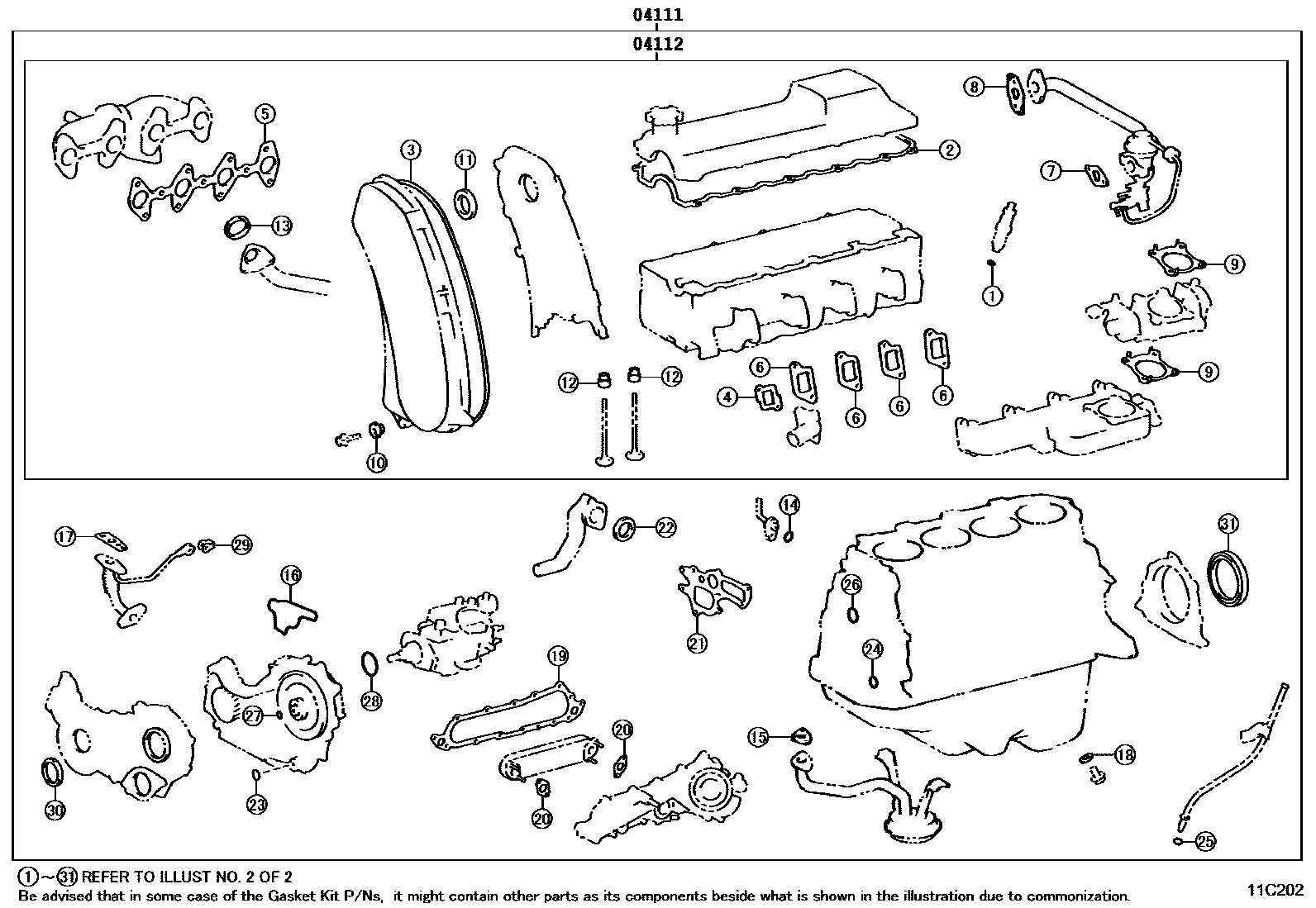

Engine Overhaul Gasket Kit — 11C202 (200405 – 200504)

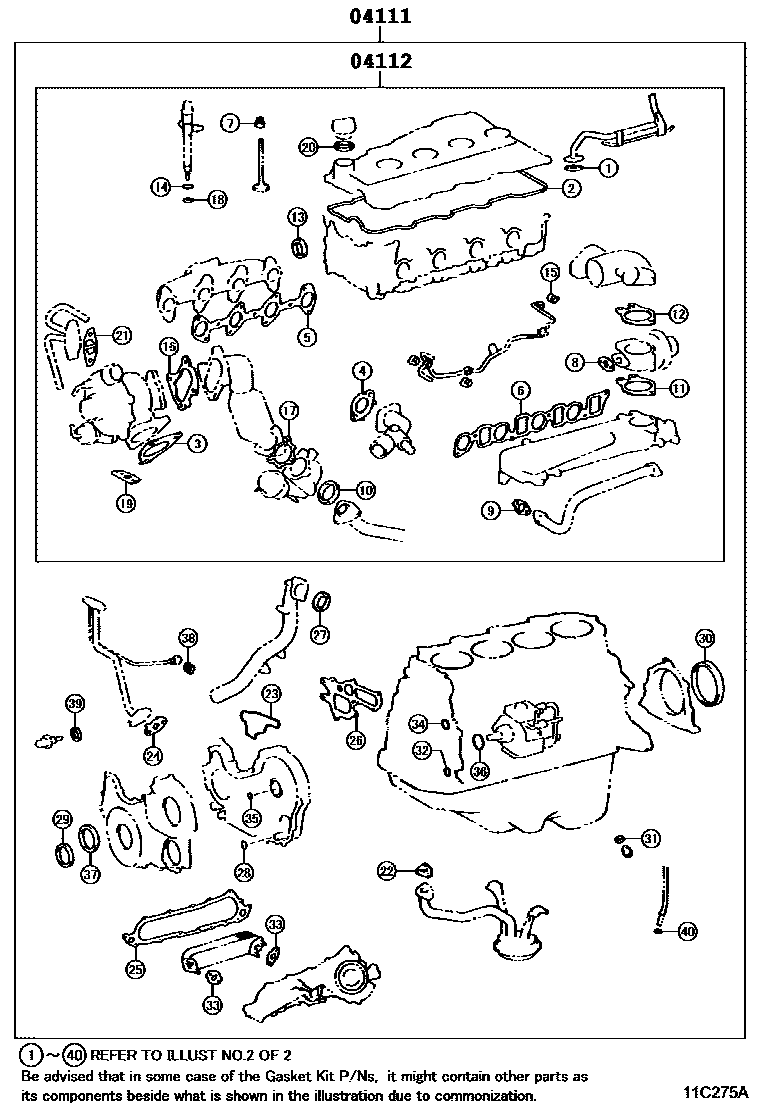

Engine Overhaul Gasket Kit — 11C275A (200110 – 200411)

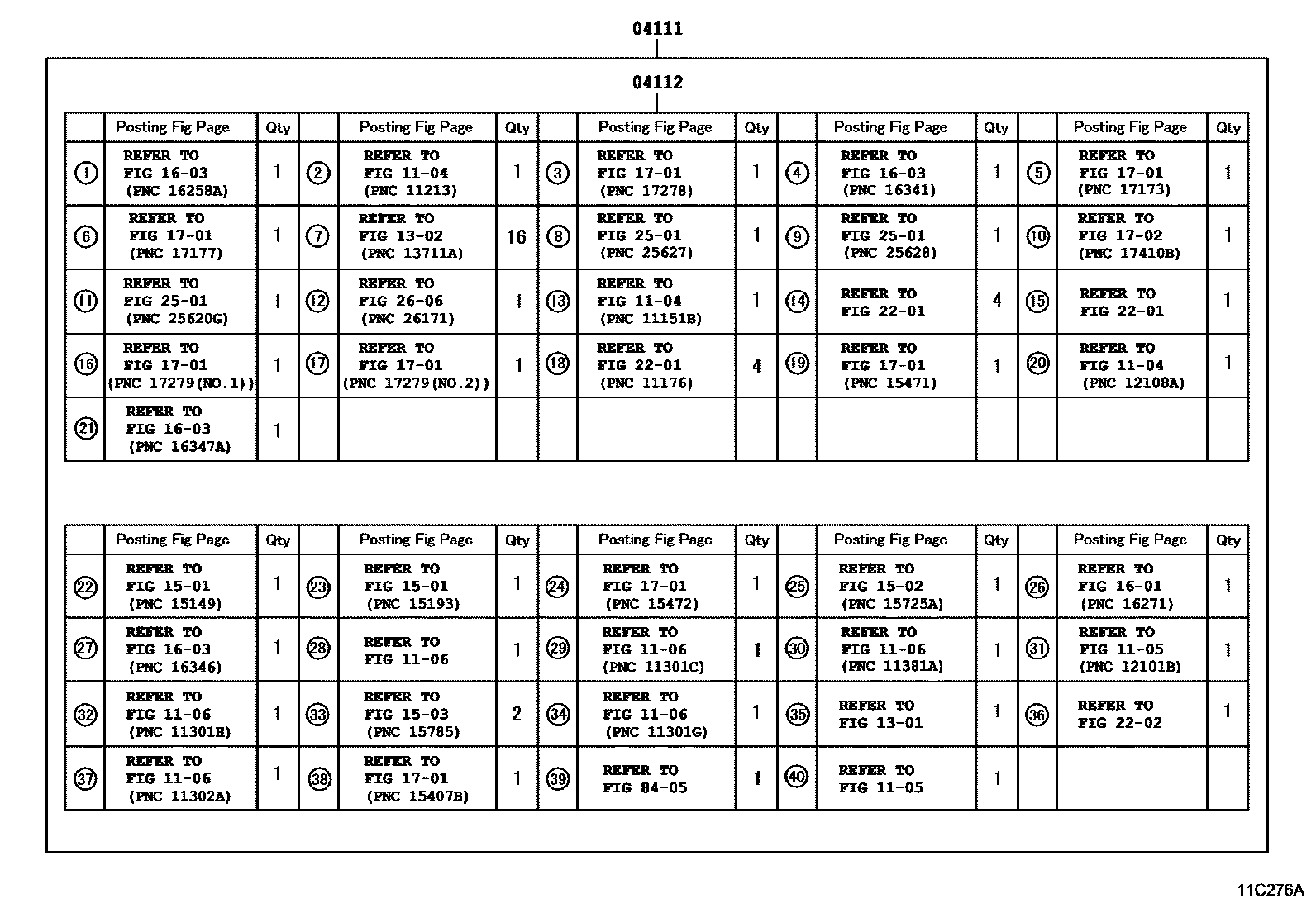

Engine Overhaul Gasket Kit — 11C276A (200110 – 200411)

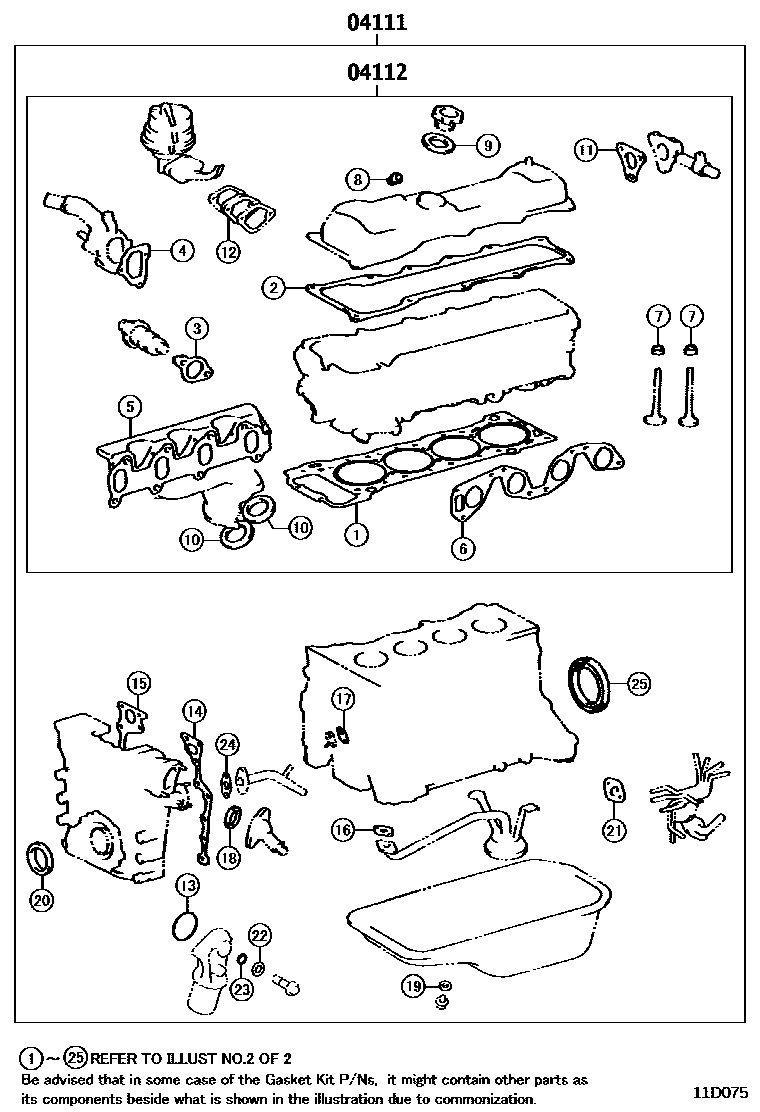

Engine Overhaul Gasket Kit — 11D075 (199708 – 200506)

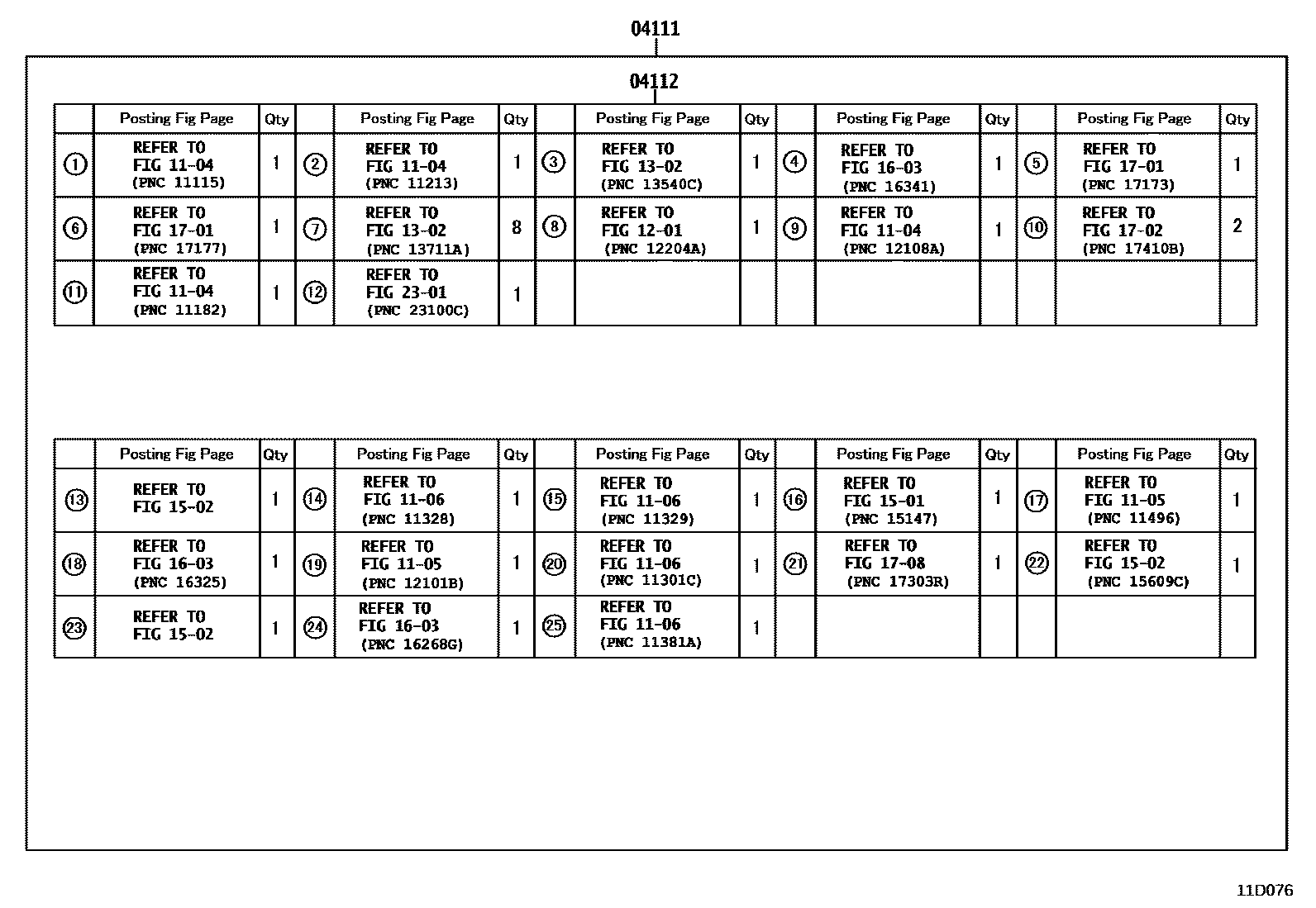

Engine Overhaul Gasket Kit — 11D076 (199708 – 200506)

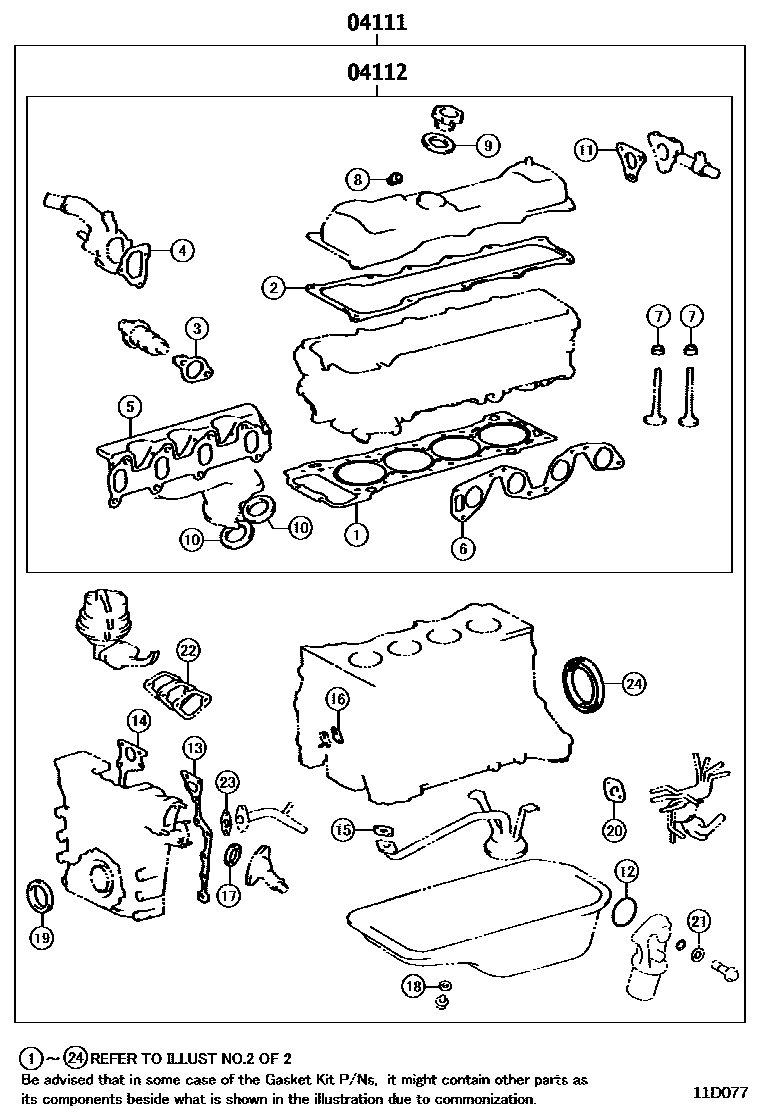

Engine Overhaul Gasket Kit — 11D077 (200401 – 999999)

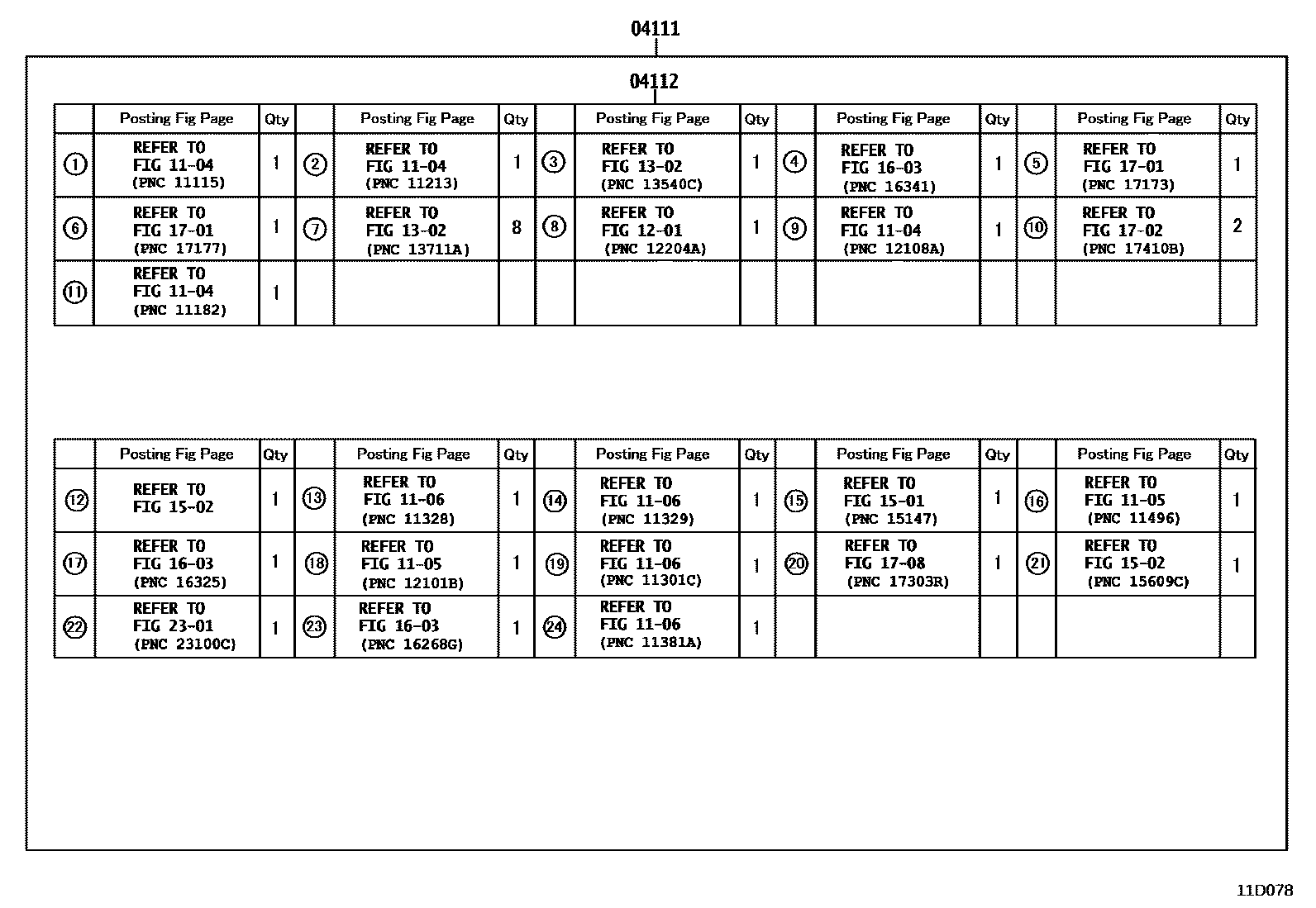

Engine Overhaul Gasket Kit — 11D078 (200401 – 999999)

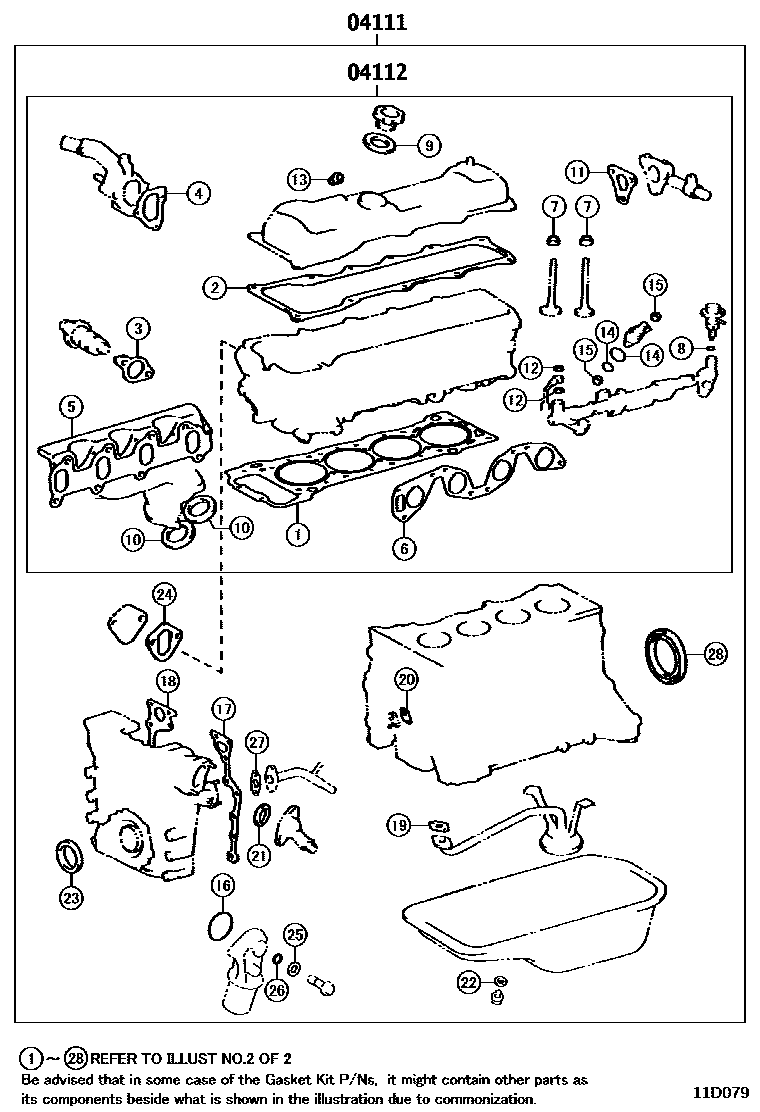

Engine Overhaul Gasket Kit — 11D079 (199708 – 200208)

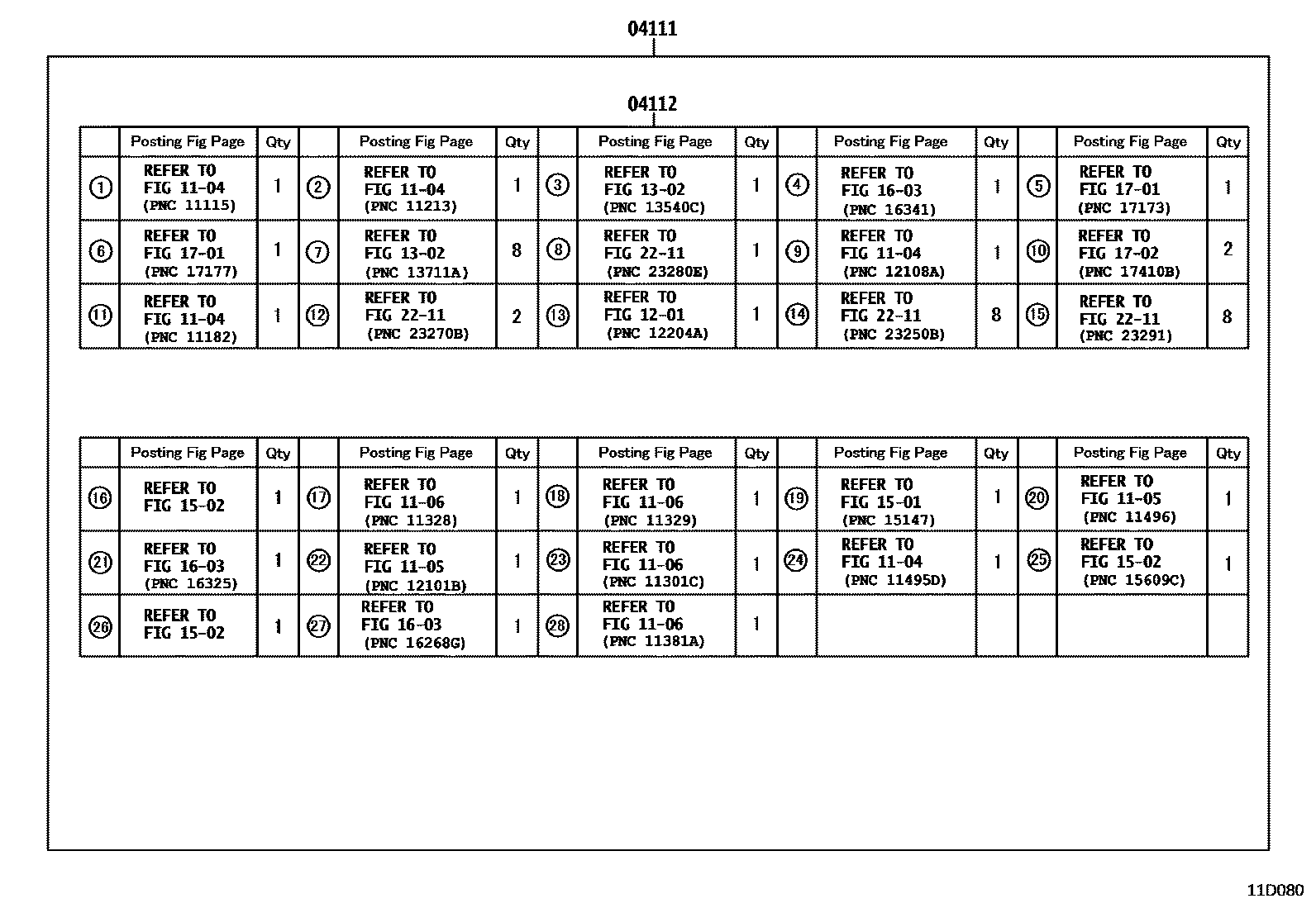

Engine Overhaul Gasket Kit — 11D080 (199708 – 200208)

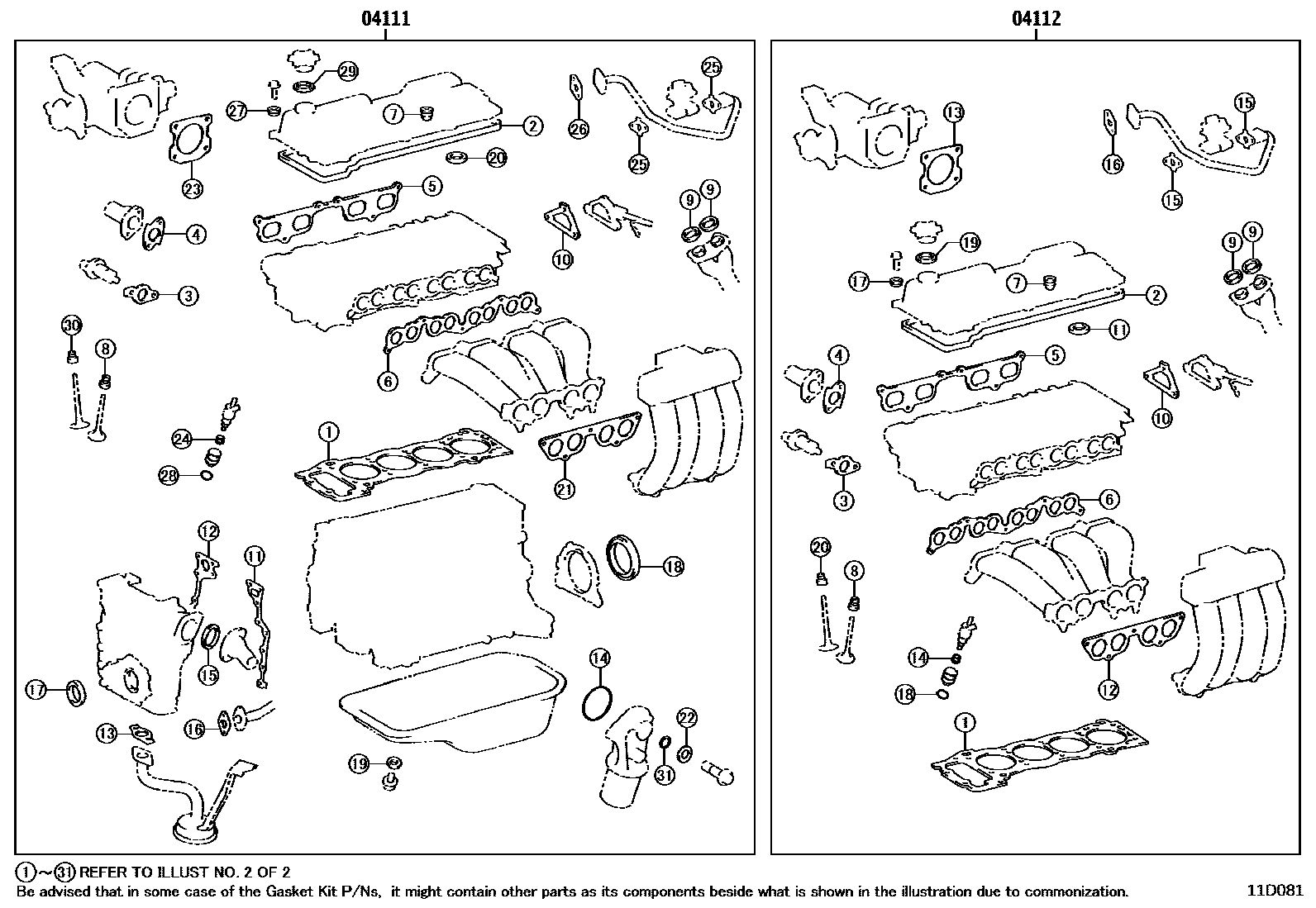

Engine Overhaul Gasket Kit — 11D081 (199708 – 199903)

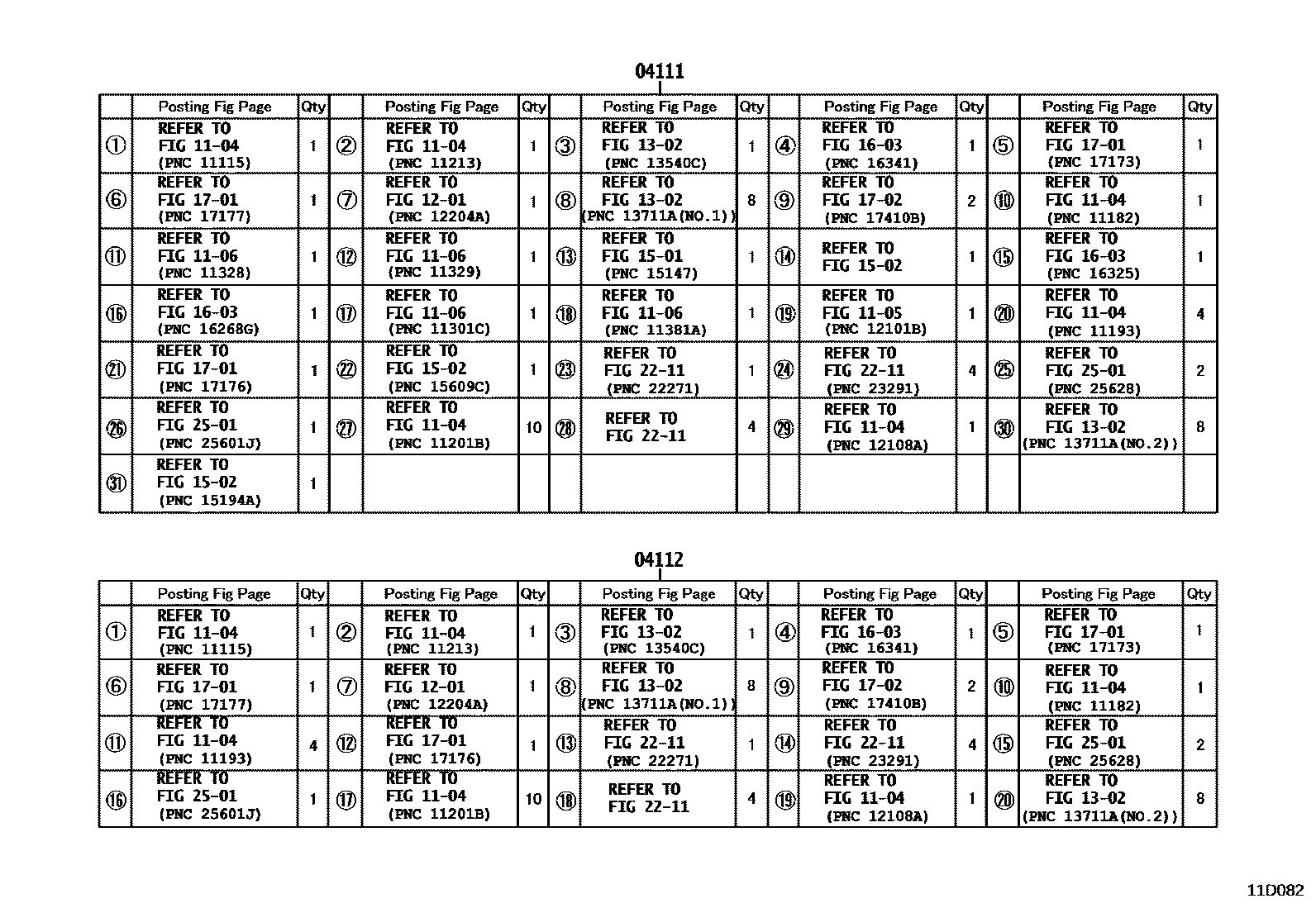

Engine Overhaul Gasket Kit — 11D082 (199708 – 199903)

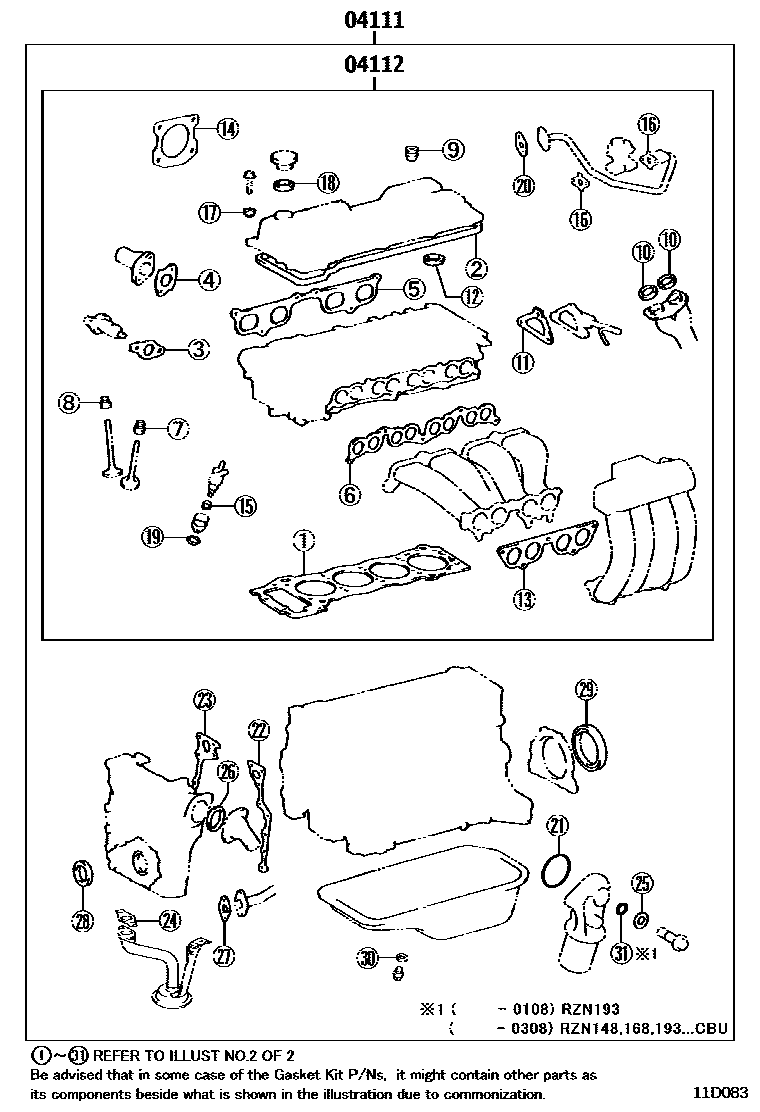

Engine Overhaul Gasket Kit — 11D083 (199903 – 200506)

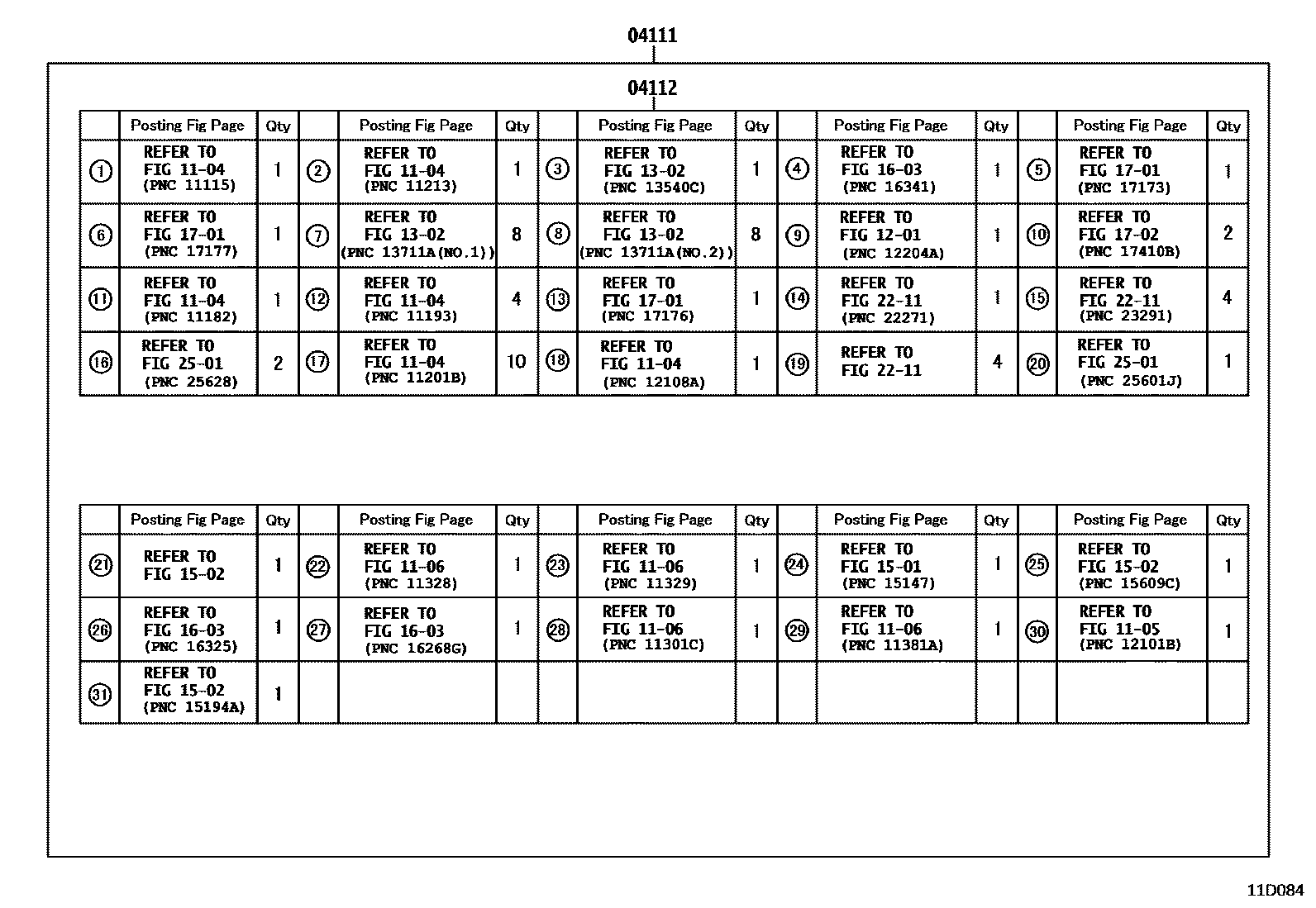

Engine Overhaul Gasket Kit — 11D084 (199903 – 200506)

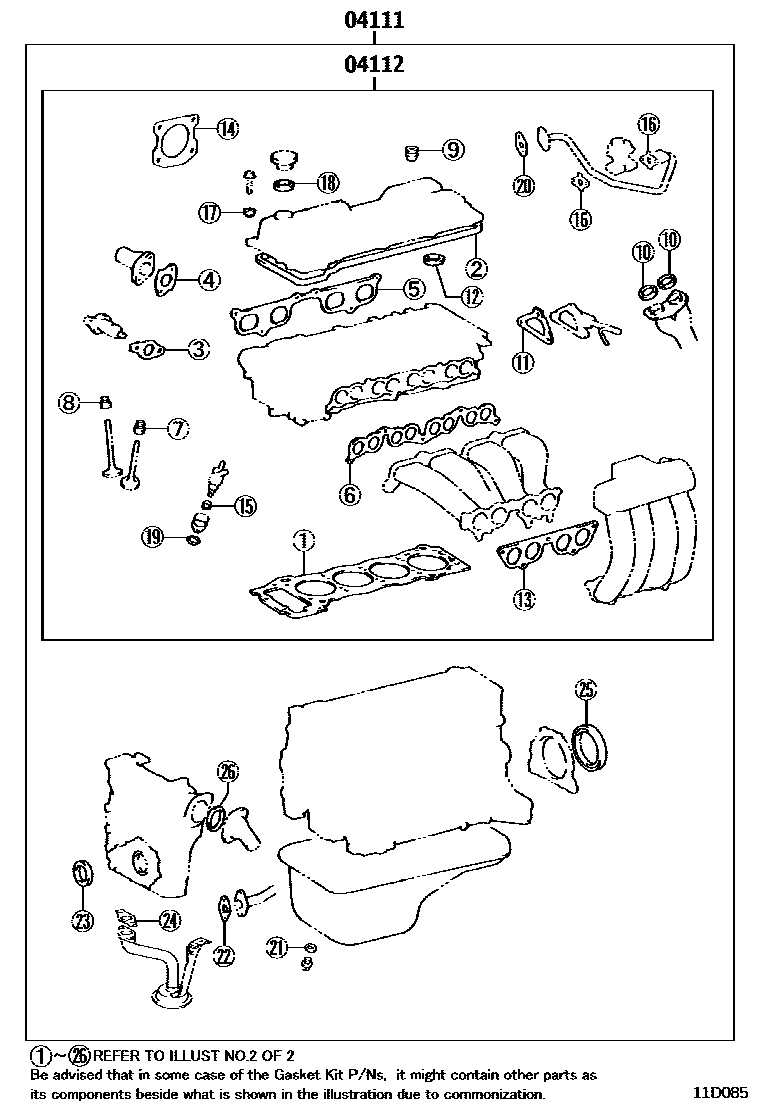

Engine Overhaul Gasket Kit — 11D085 (200108 – 200401)

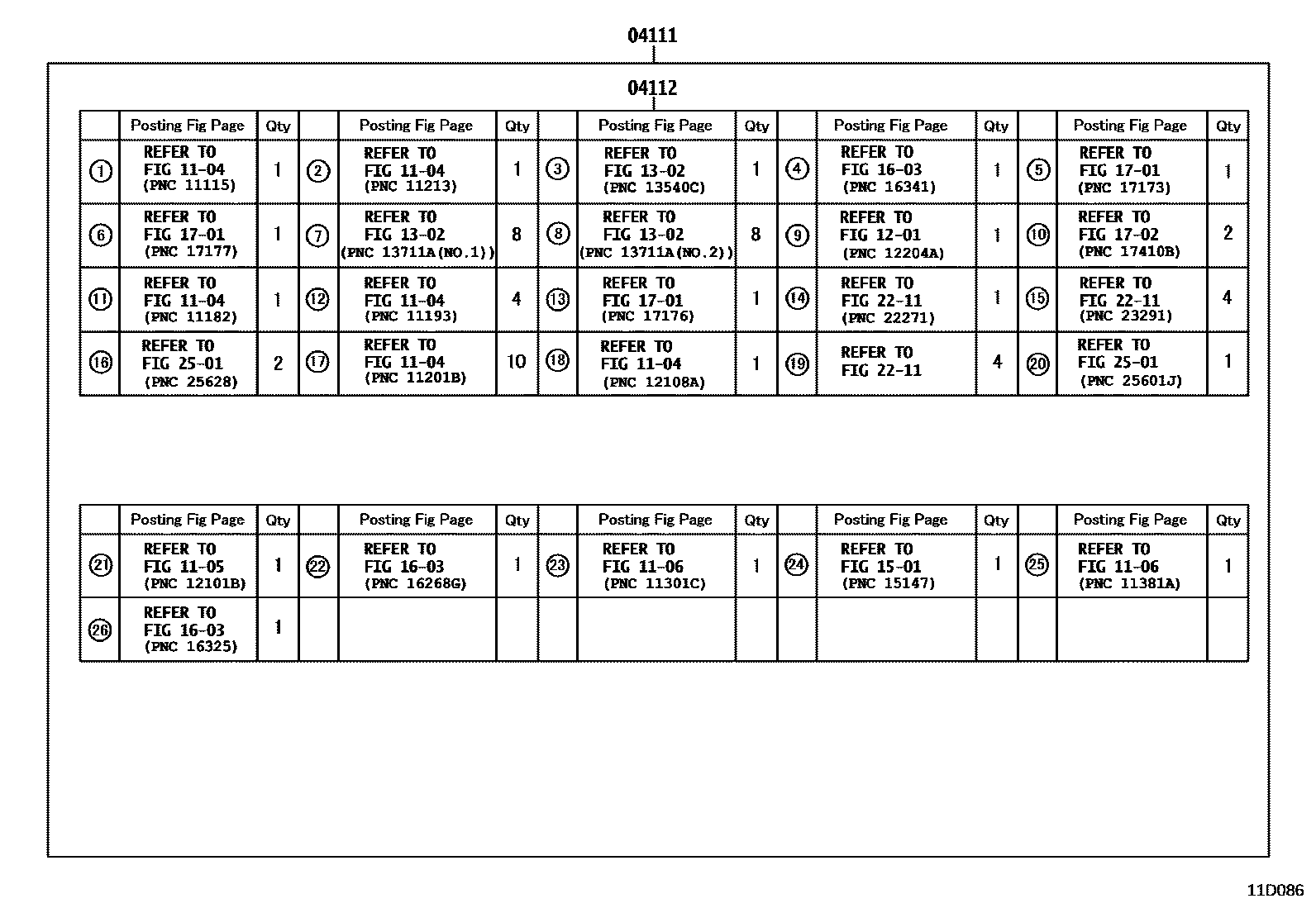

Engine Overhaul Gasket Kit — 11D086 (200108 – 200401)

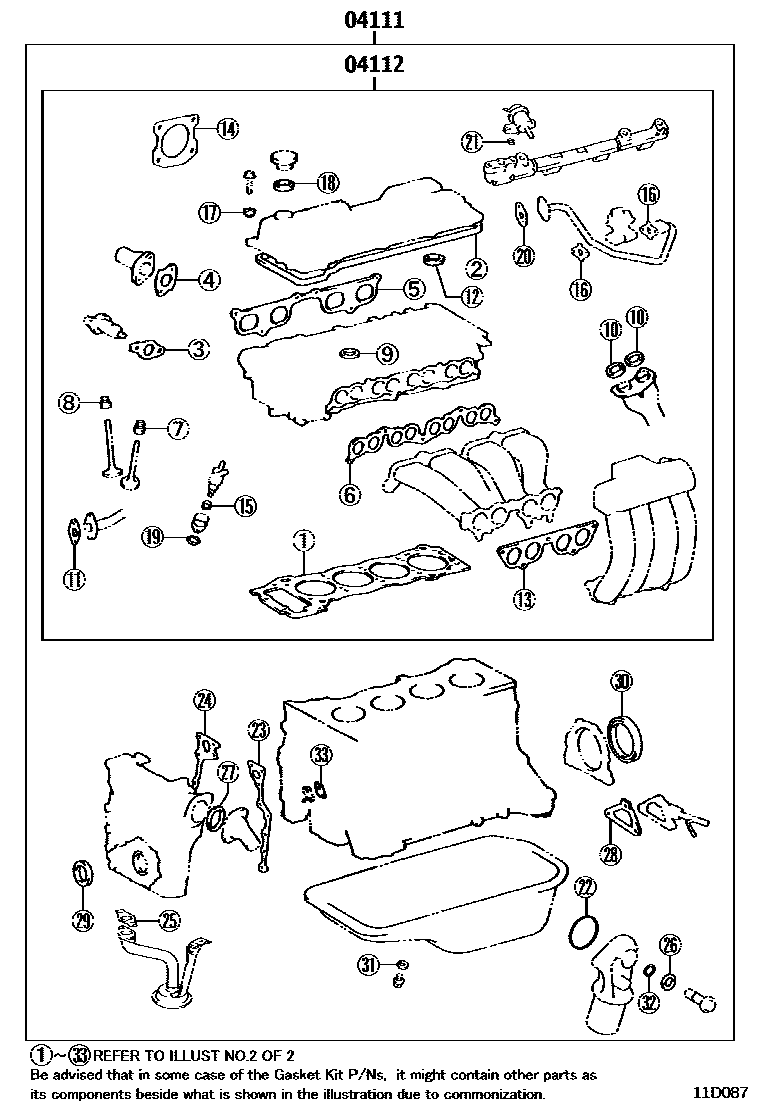

Engine Overhaul Gasket Kit — 11D087 (200401 – 200404)
Engine Overhaul Gasket Kit — 11D088 (200401 – 200404)

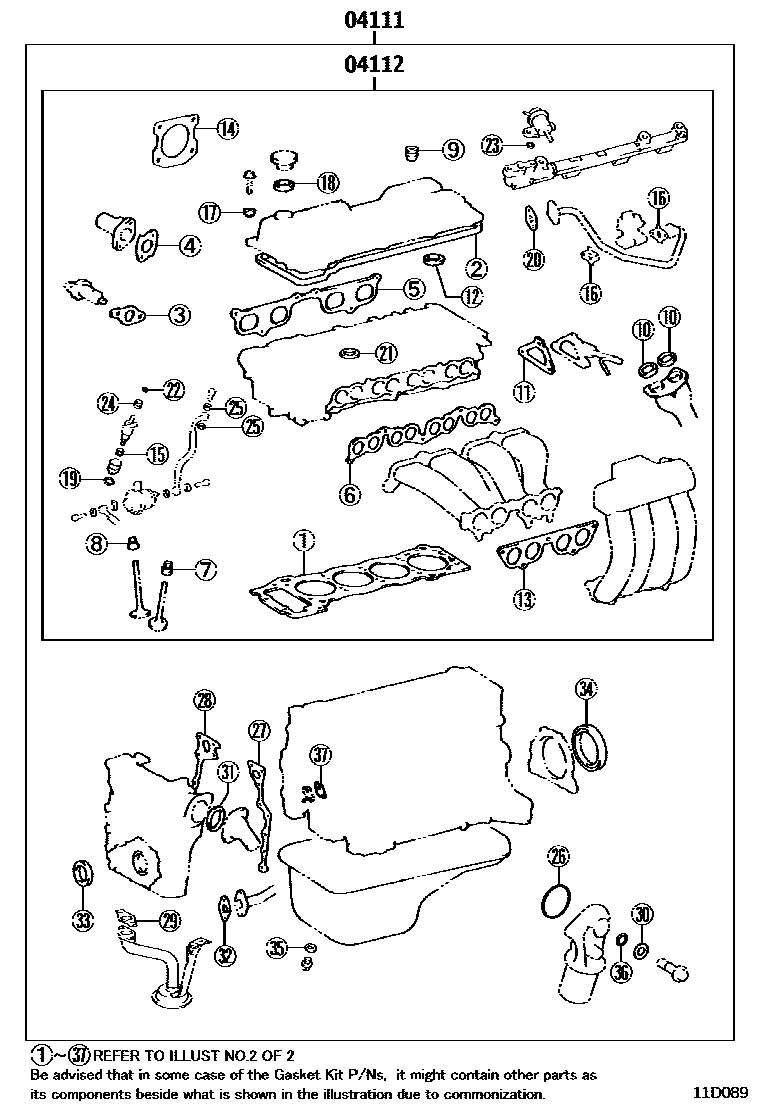

Engine Overhaul Gasket Kit — 11D089 (200404 – 999999)

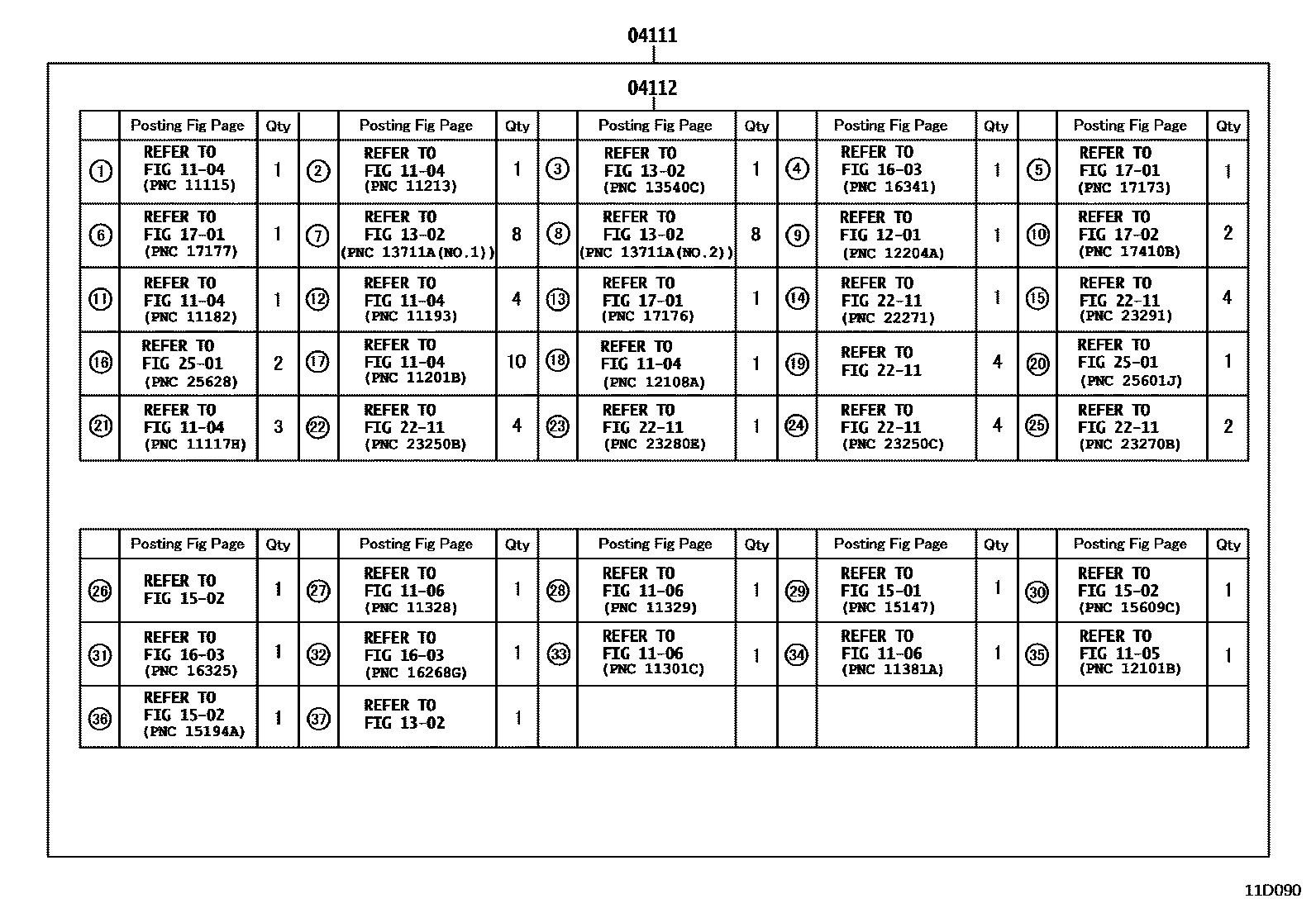

Engine Overhaul Gasket Kit — 11D090 (200404 – 999999)

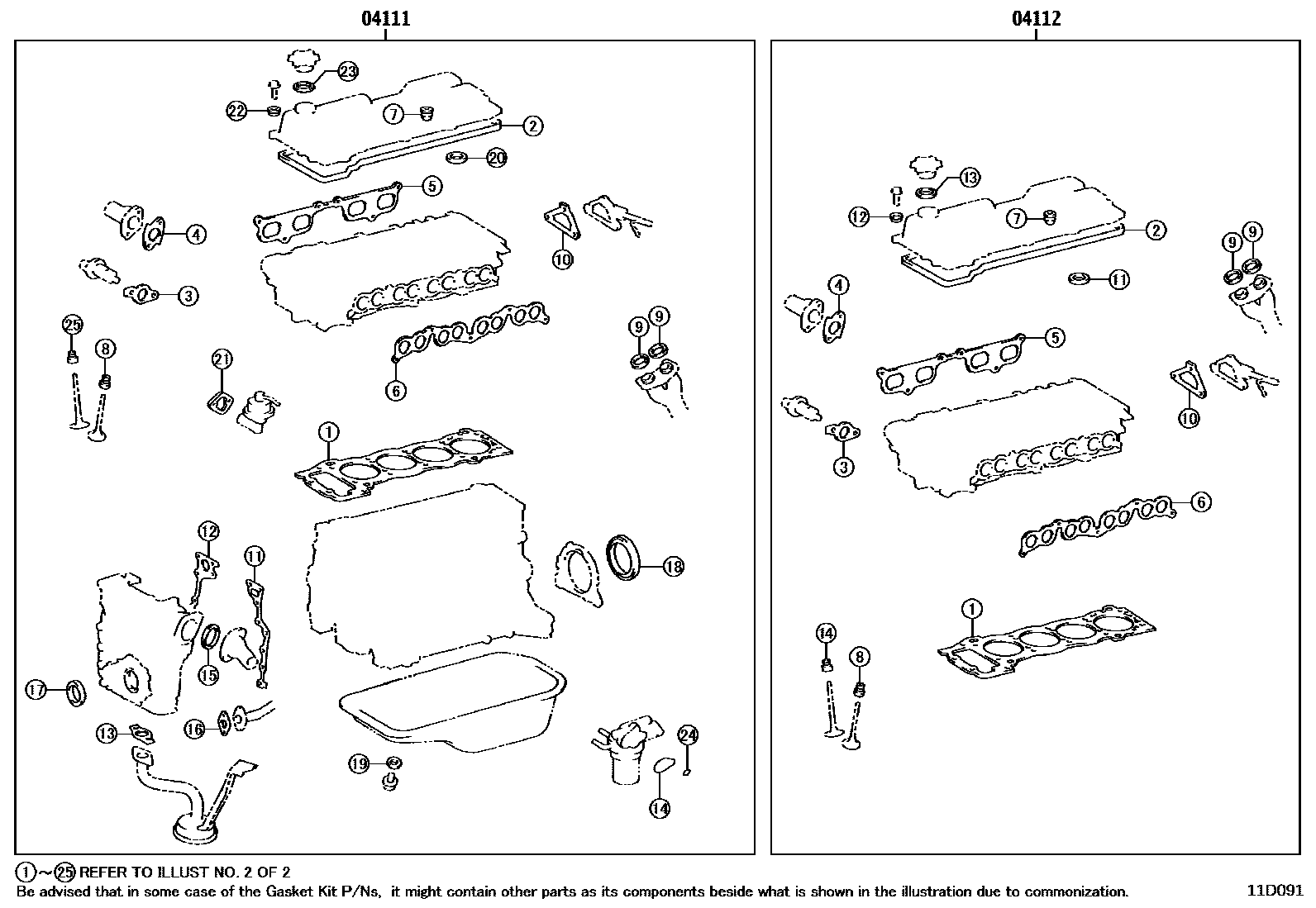

Engine Overhaul Gasket Kit — 11D091 (199708 – 199903)

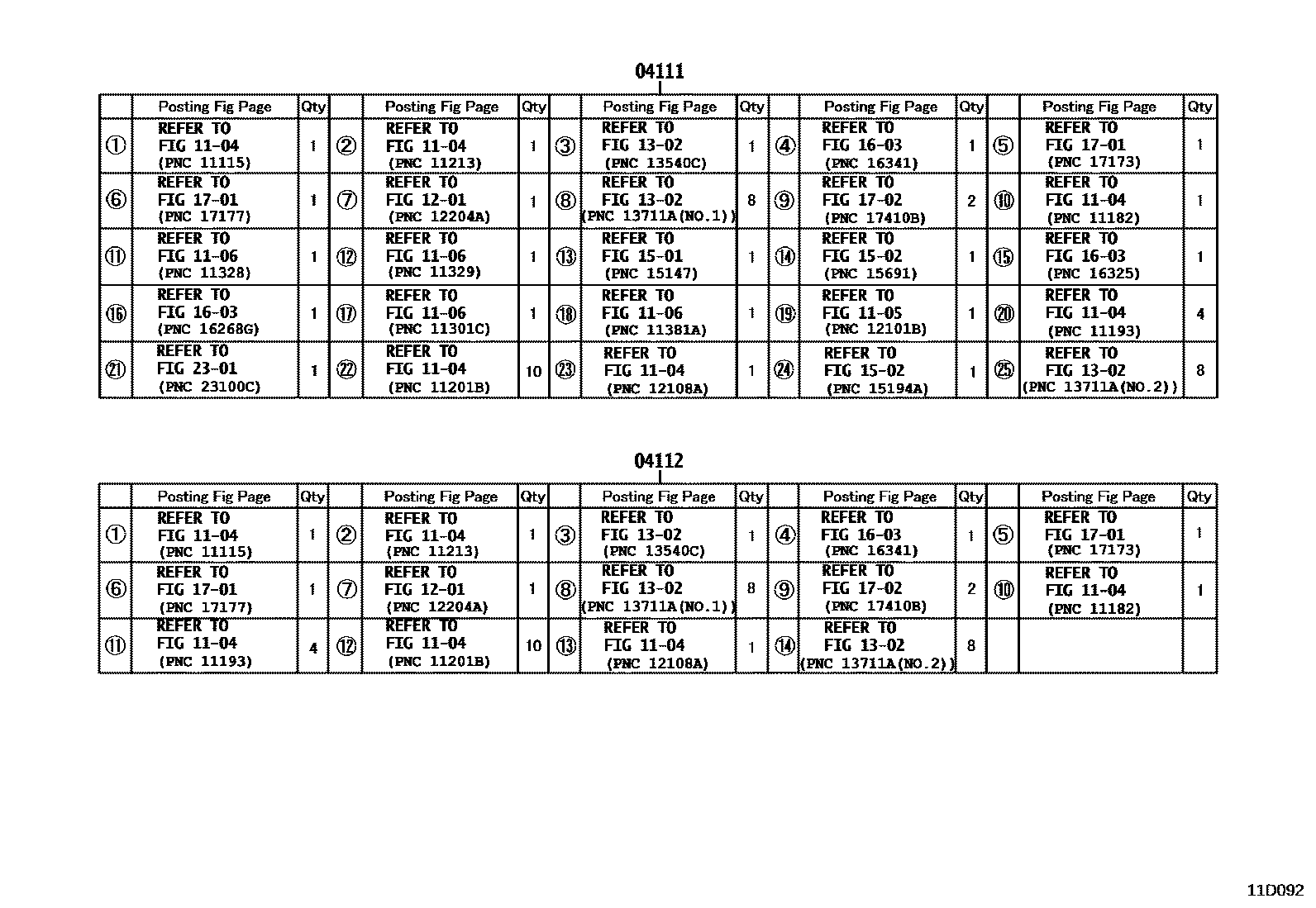

Engine Overhaul Gasket Kit — 11D092 (199708 – 199903)

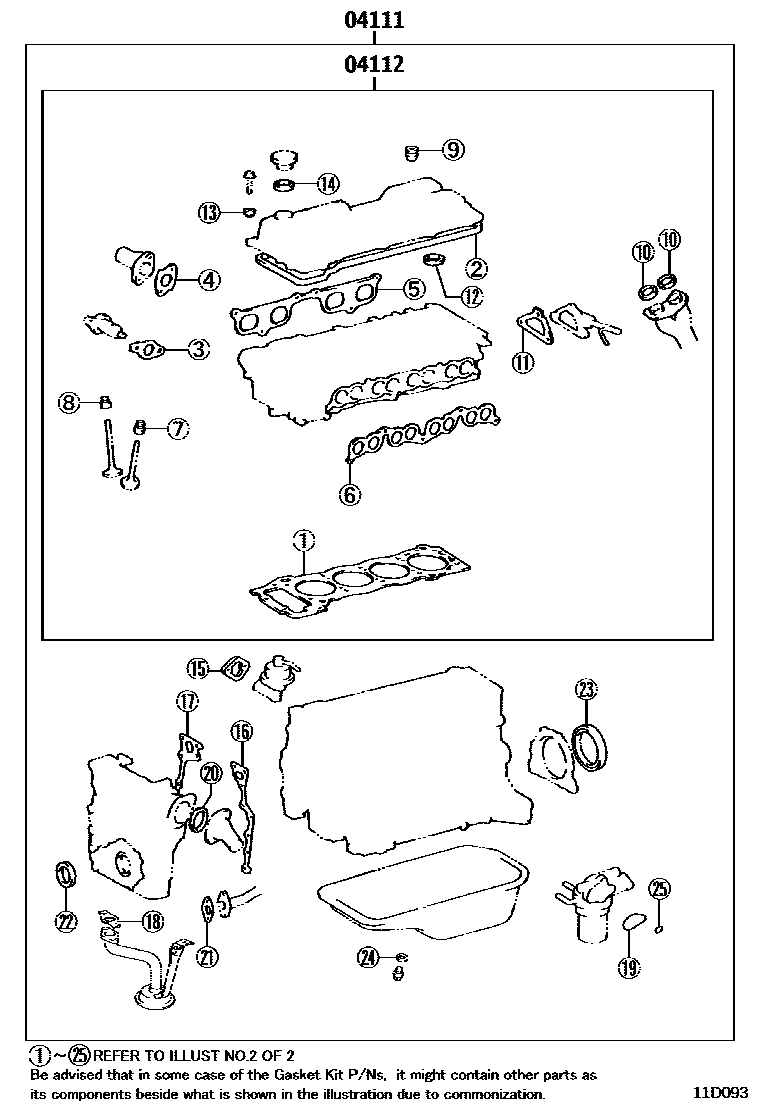

Engine Overhaul Gasket Kit — 11D093 (199903 – 200108)

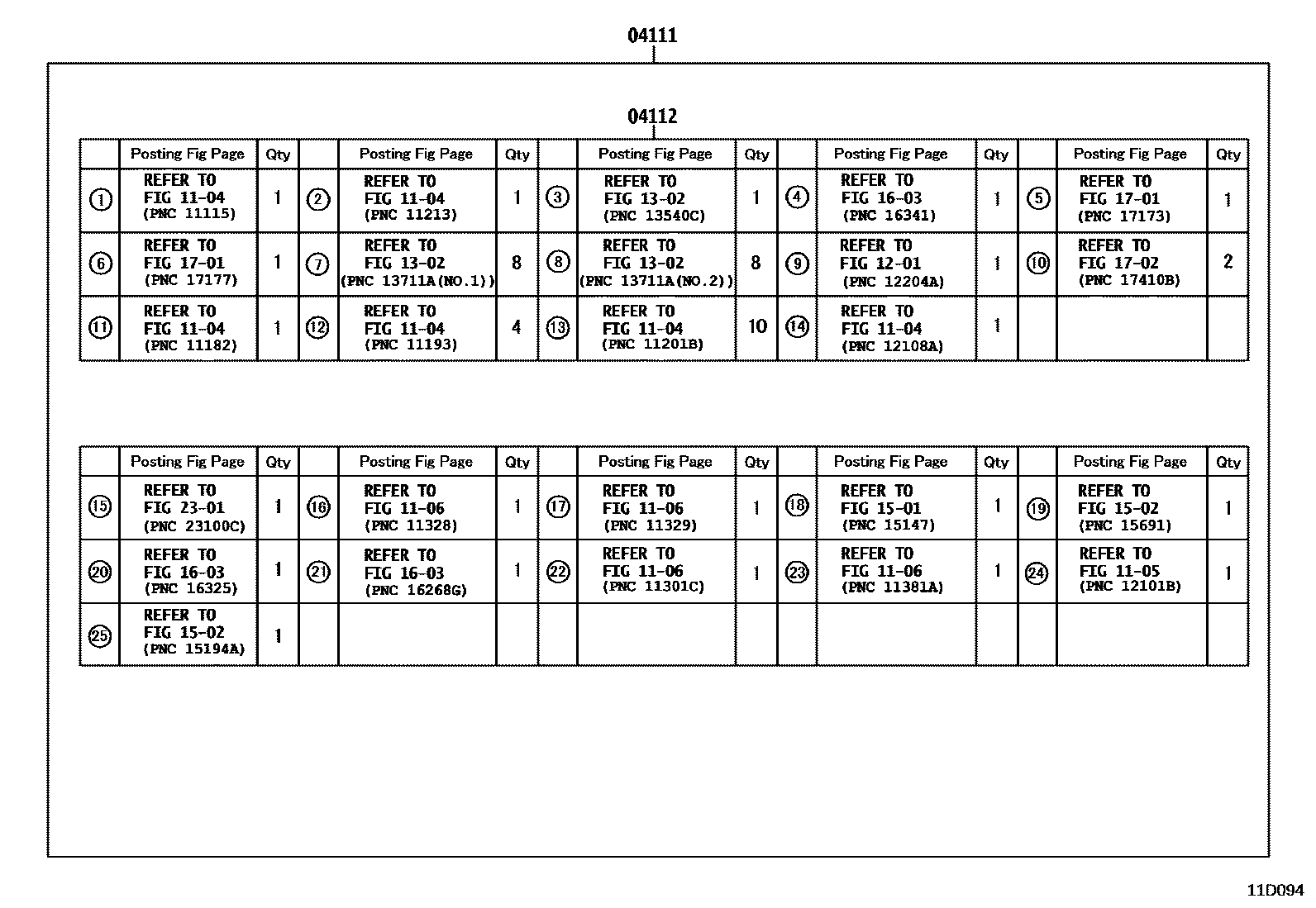

Engine Overhaul Gasket Kit — 11D094 (199903 – 200108)

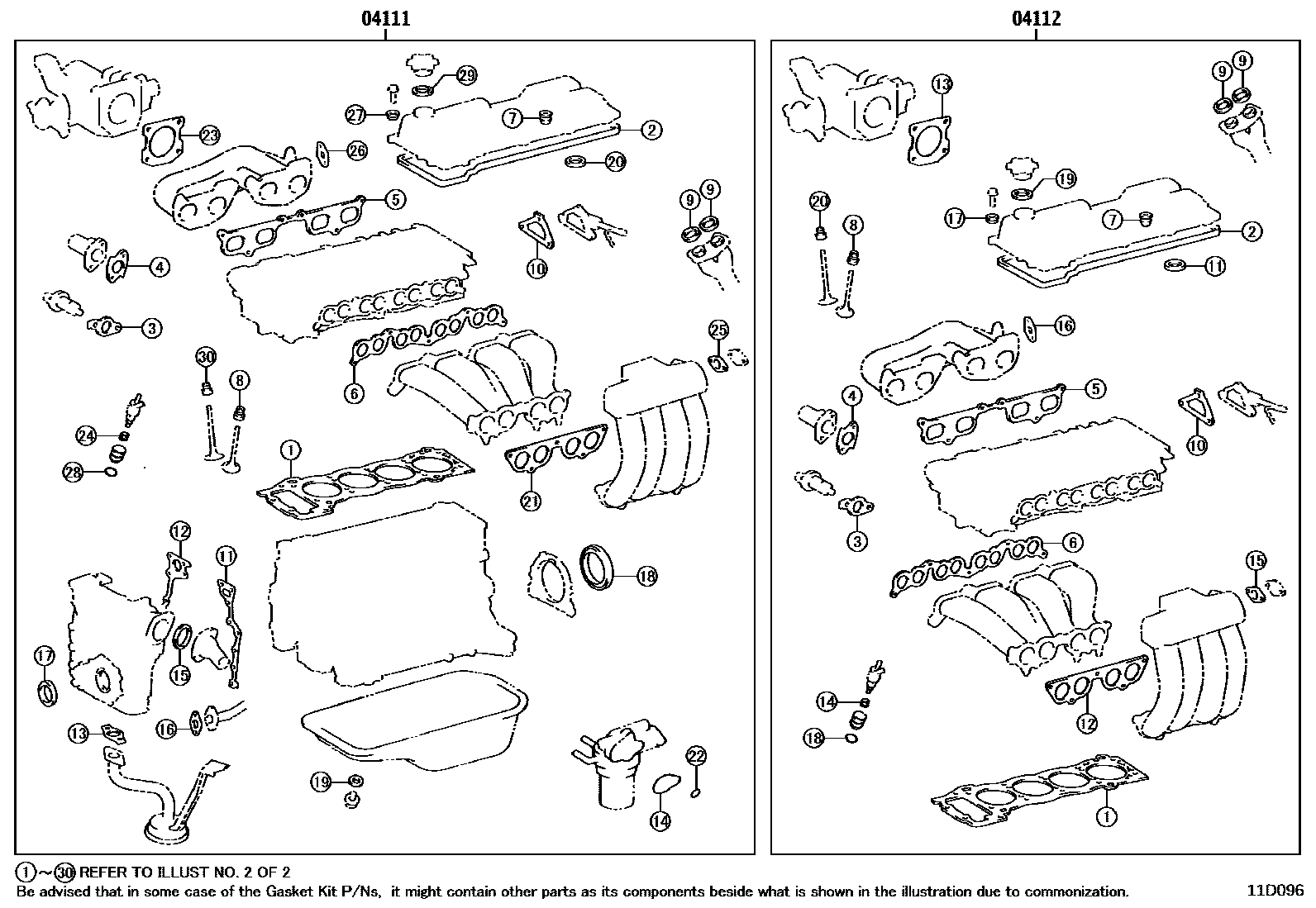

Engine Overhaul Gasket Kit — 11D096 (199708 – 199903)

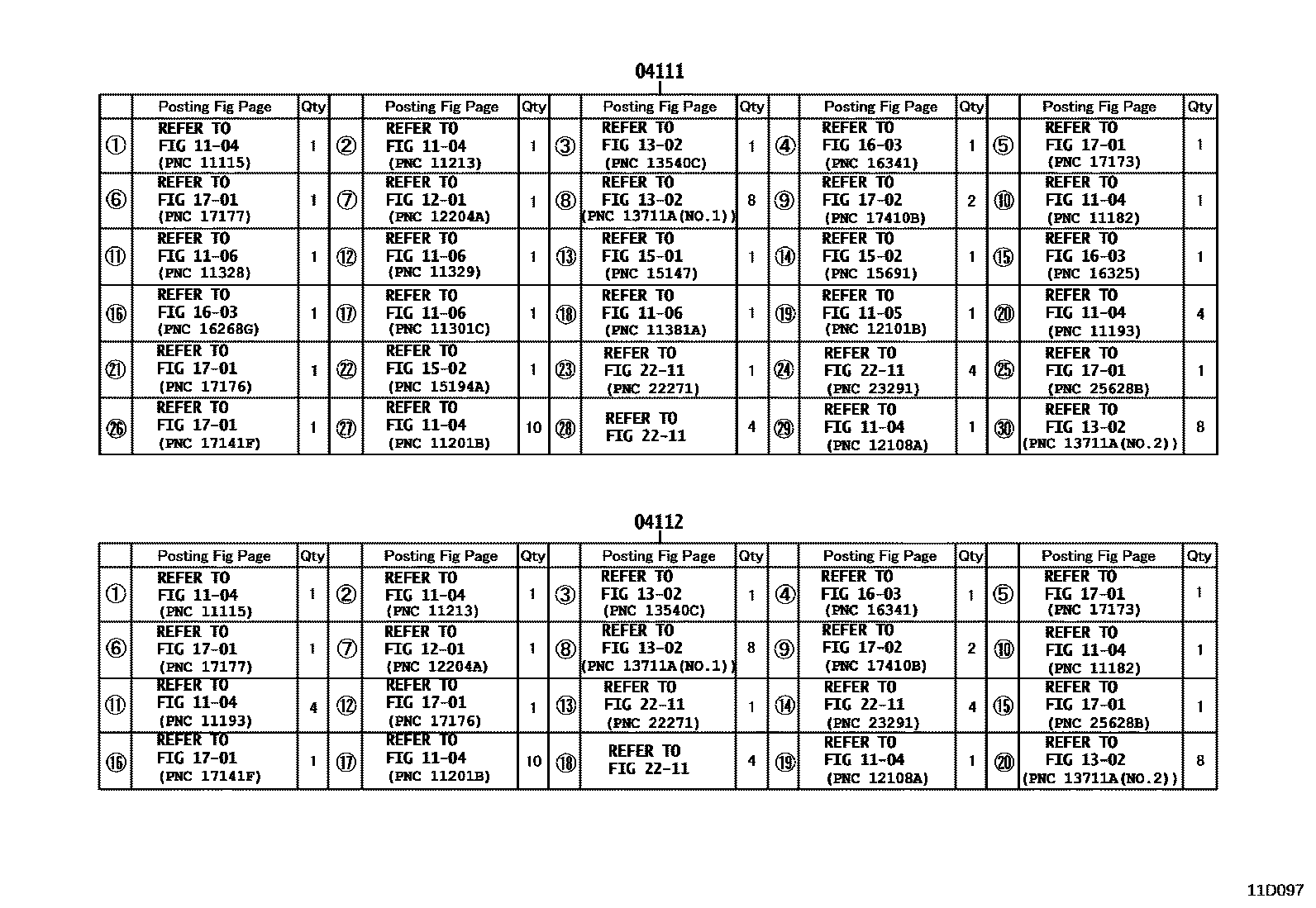

Engine Overhaul Gasket Kit — 11D097 (199708 – 199903)

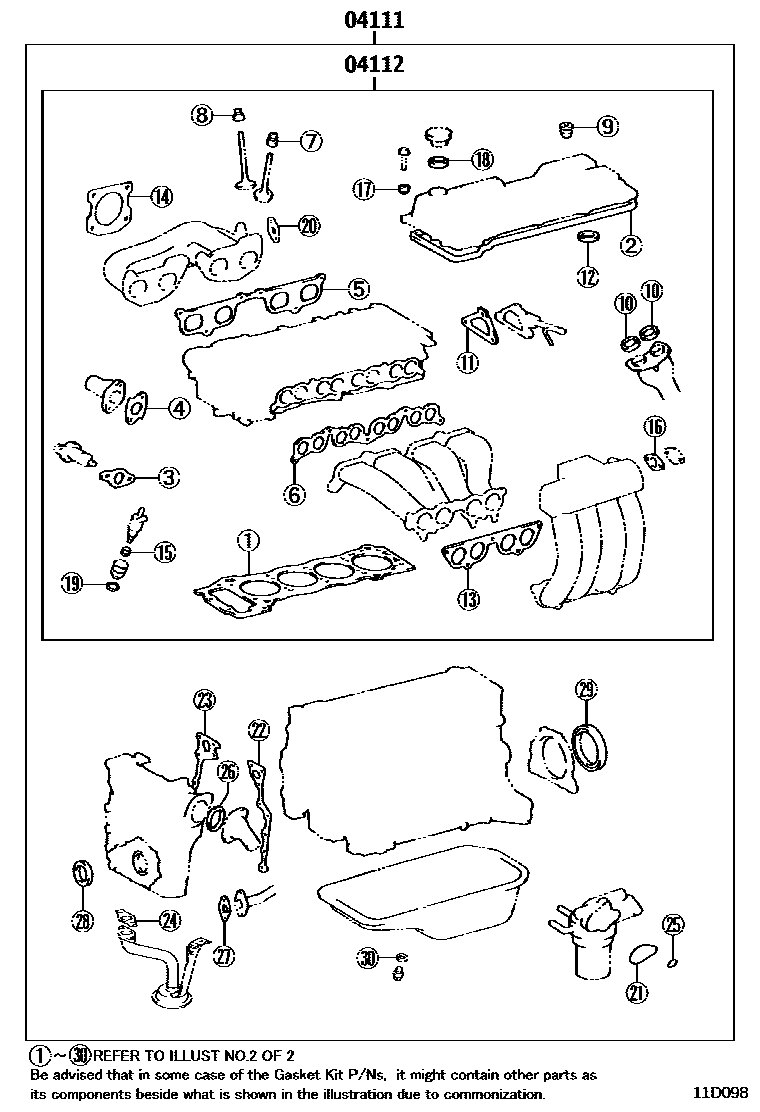

Engine Overhaul Gasket Kit — 11D098 (199903 – 200506)

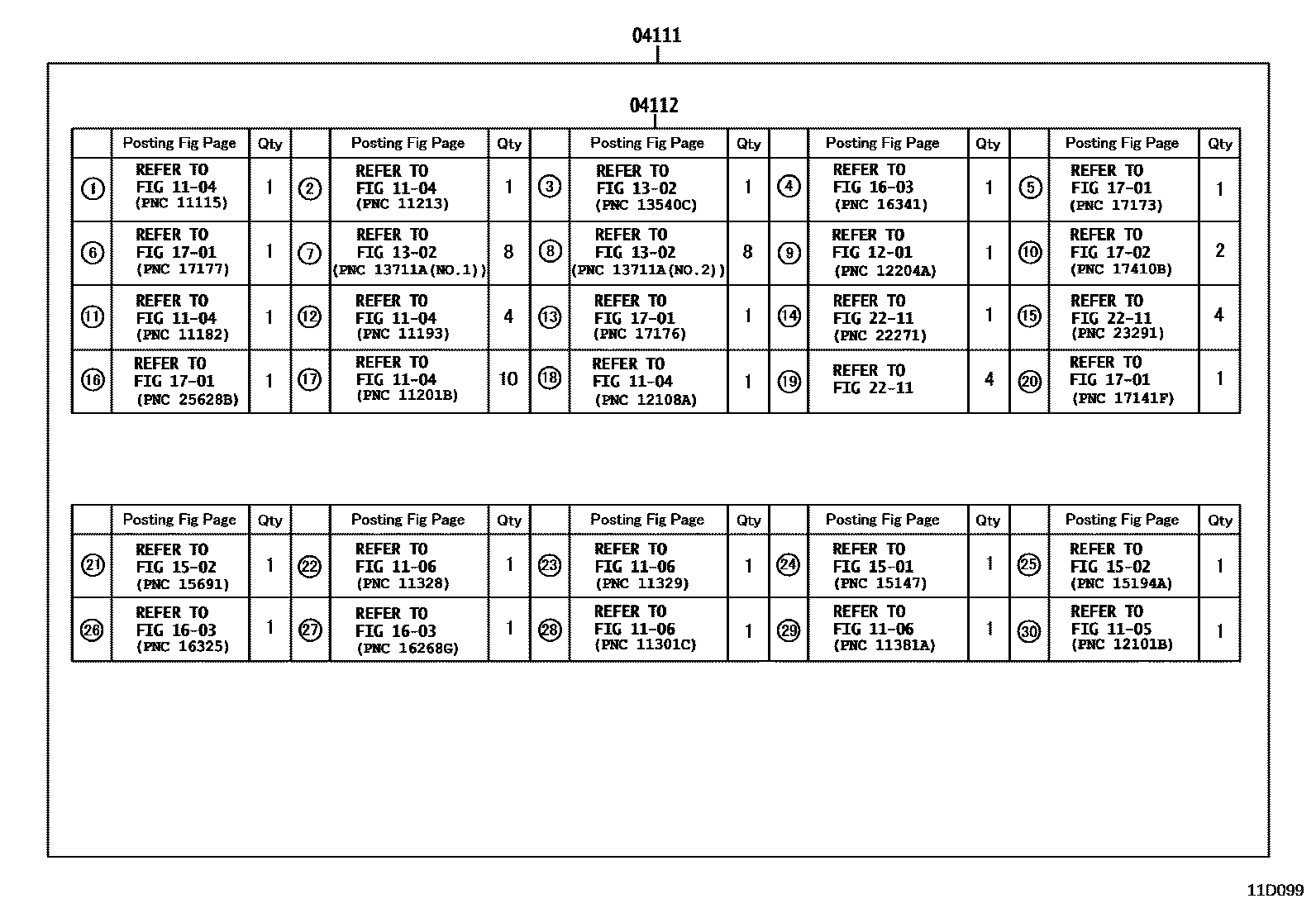

Engine Overhaul Gasket Kit — 11D099 (199903 – 200506)

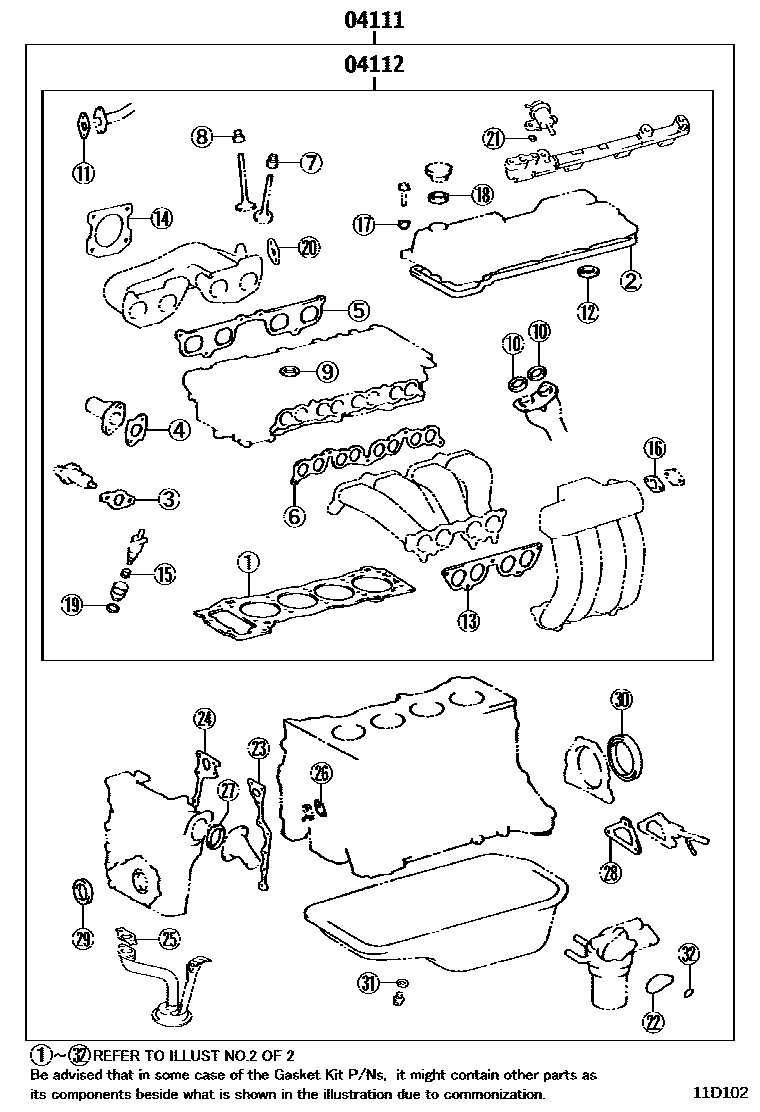

Engine Overhaul Gasket Kit — 11D102 (200401 – 200404)

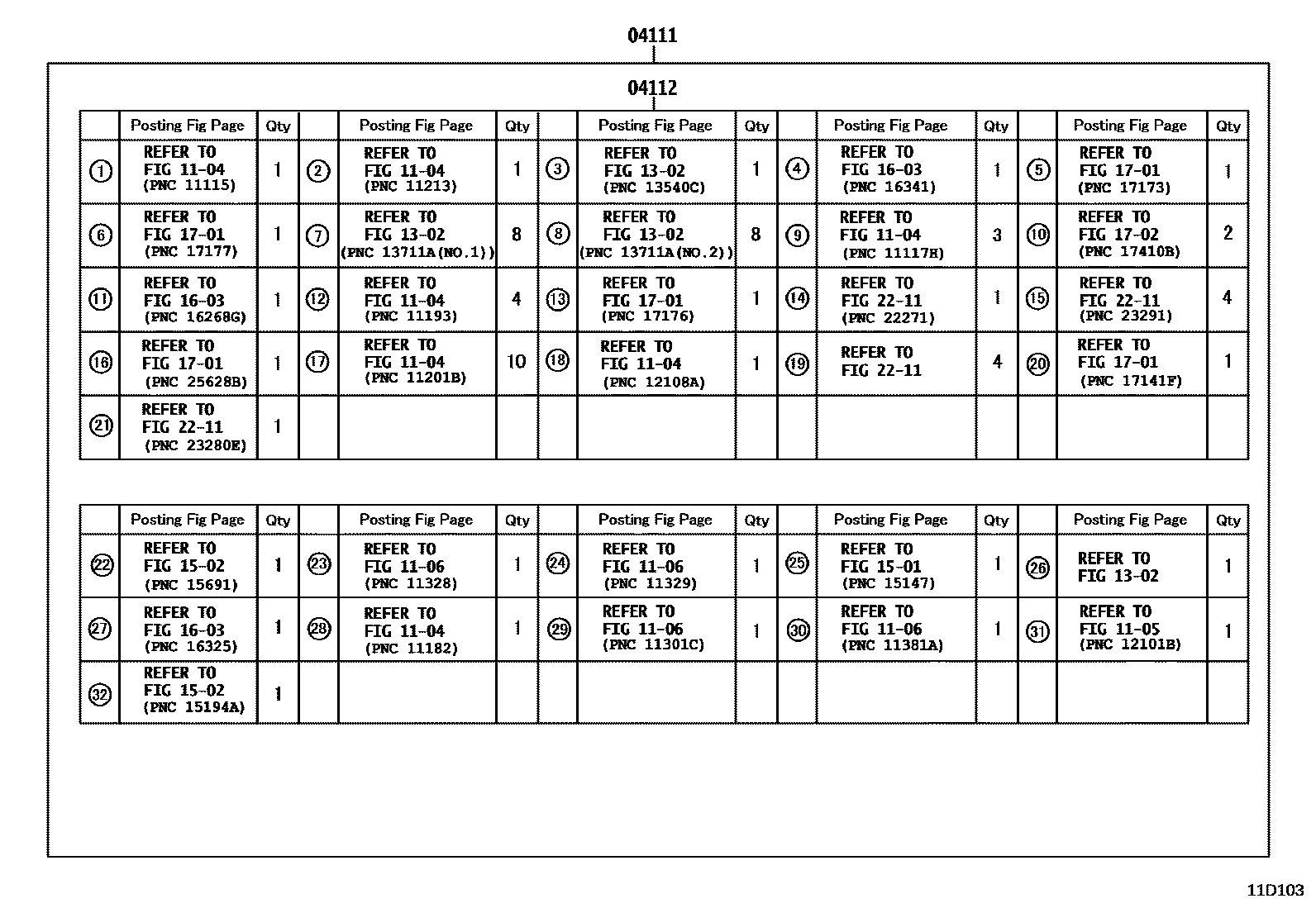

Engine Overhaul Gasket Kit — 11D103 (200401 – 200404)

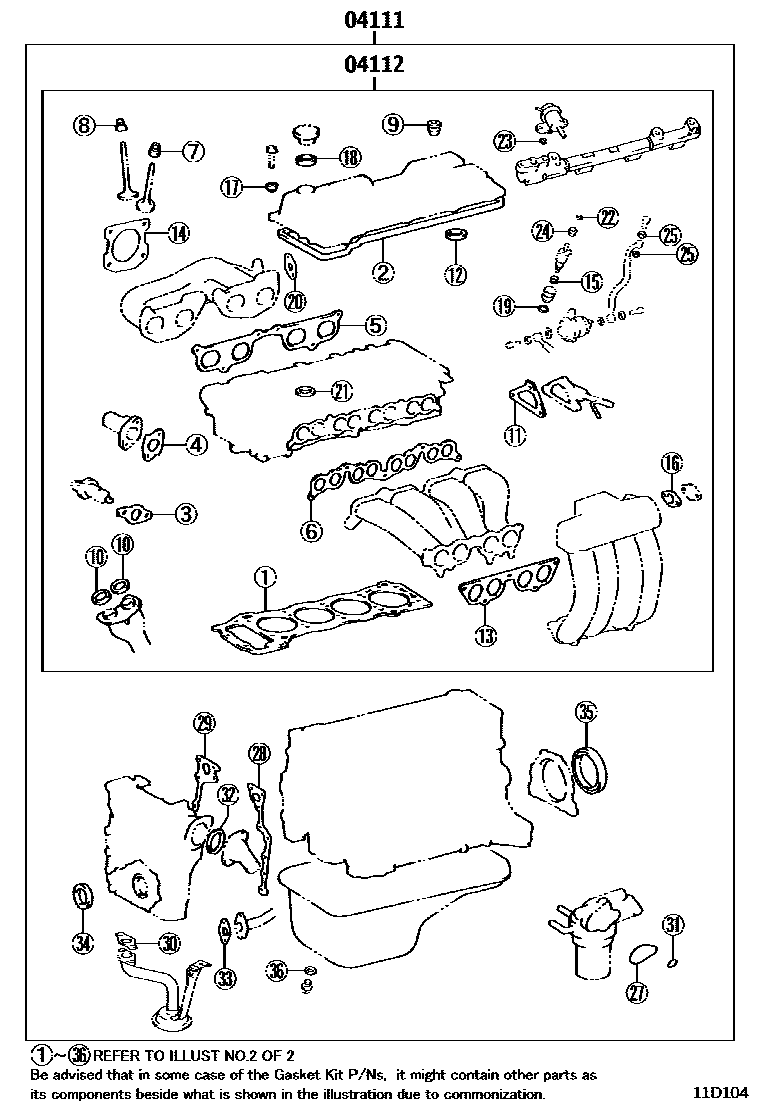

Engine Overhaul Gasket Kit — 11D104 (200404 – 999999)

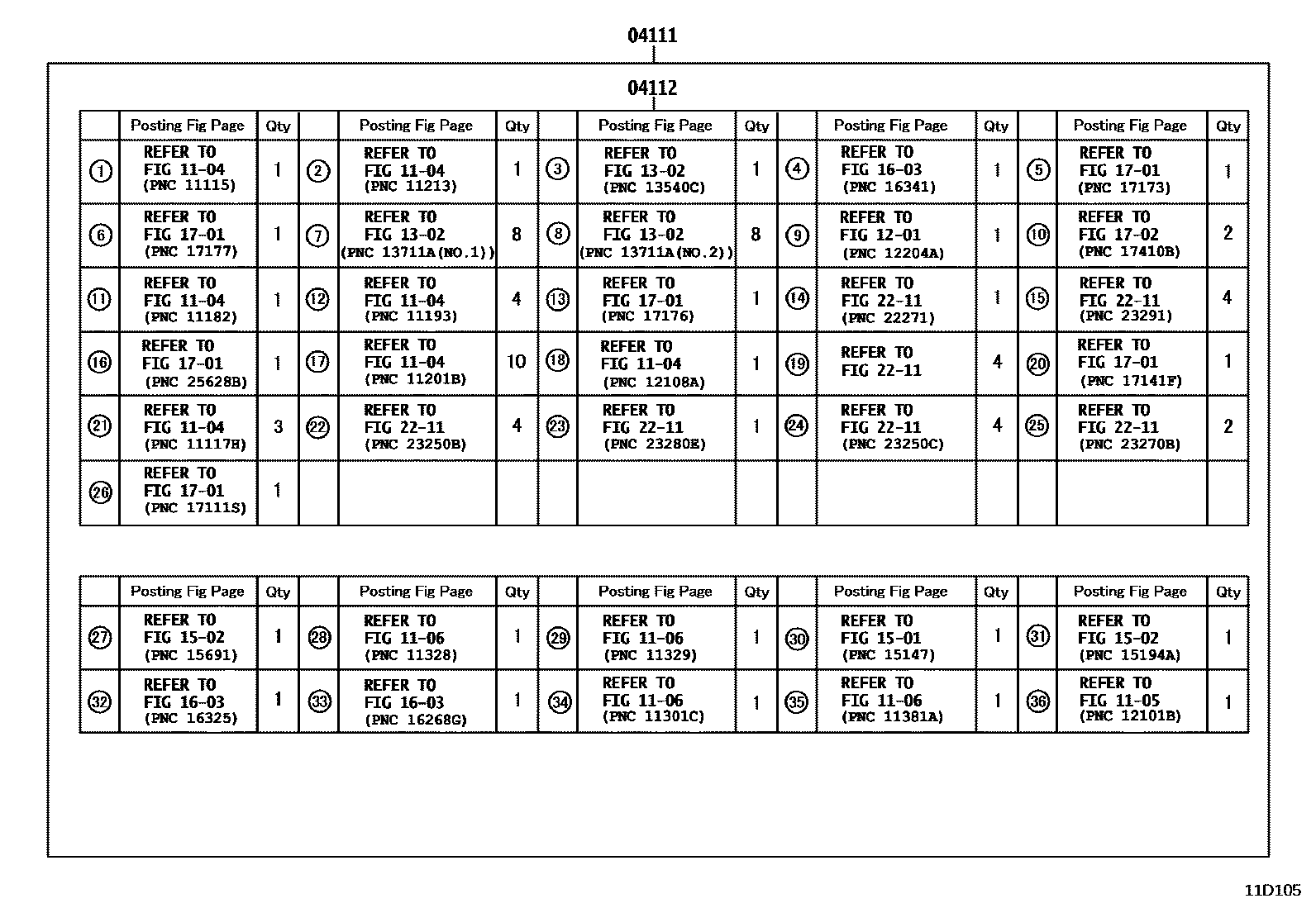

Engine Overhaul Gasket Kit — 11D105 (200404 – 999999)

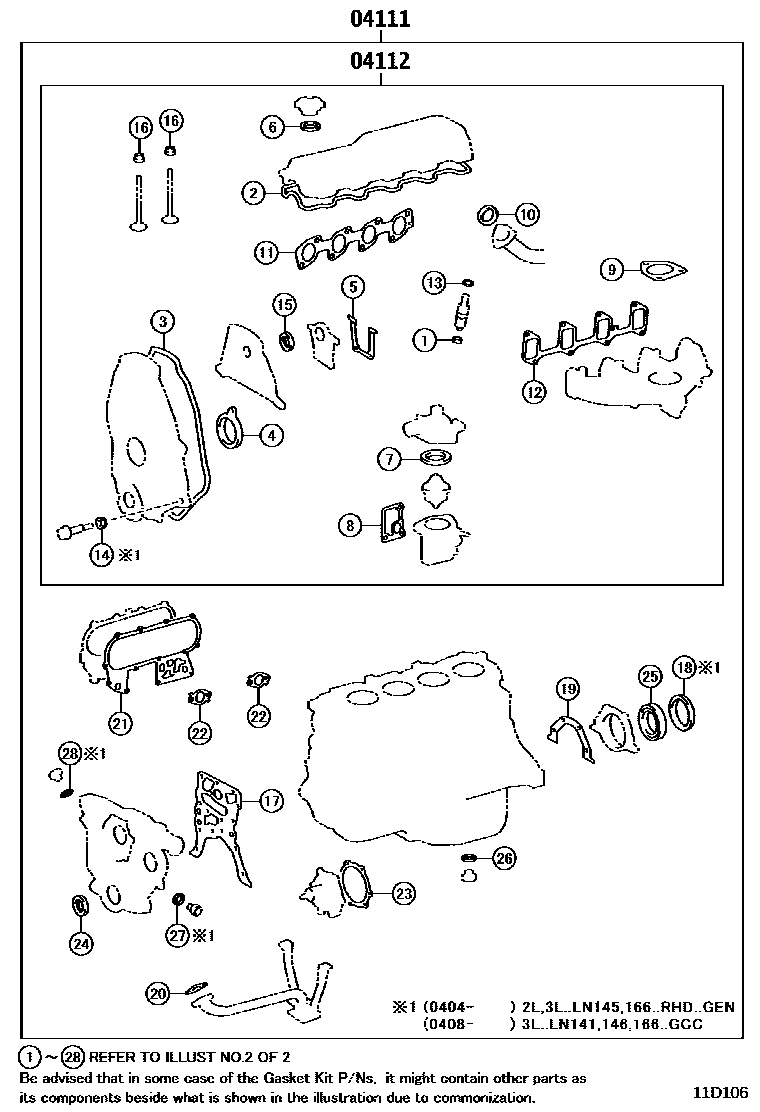

Engine Overhaul Gasket Kit — 11D106 (199708 – 999999)

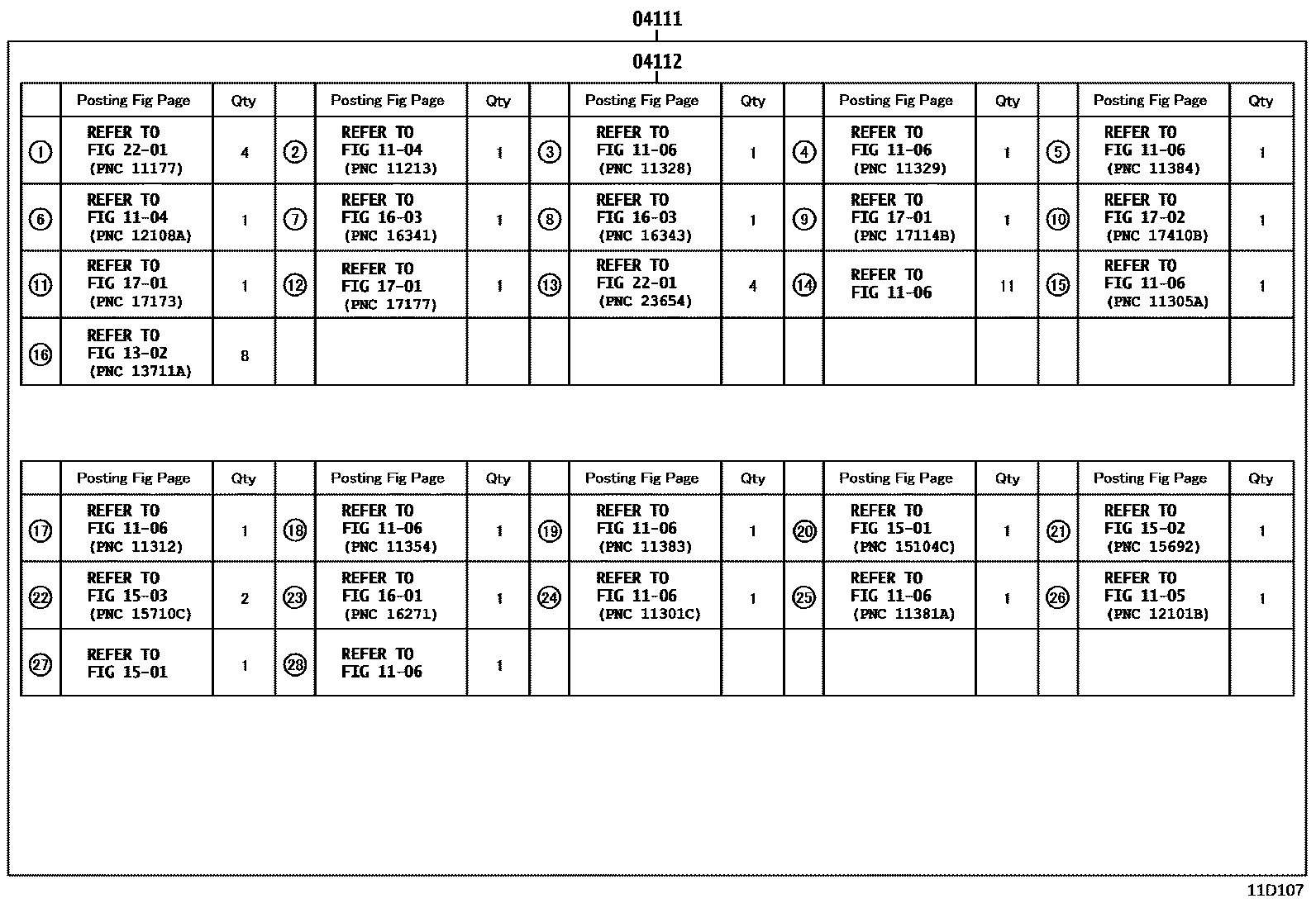

Engine Overhaul Gasket Kit — 11D107 (199708 – 999999)

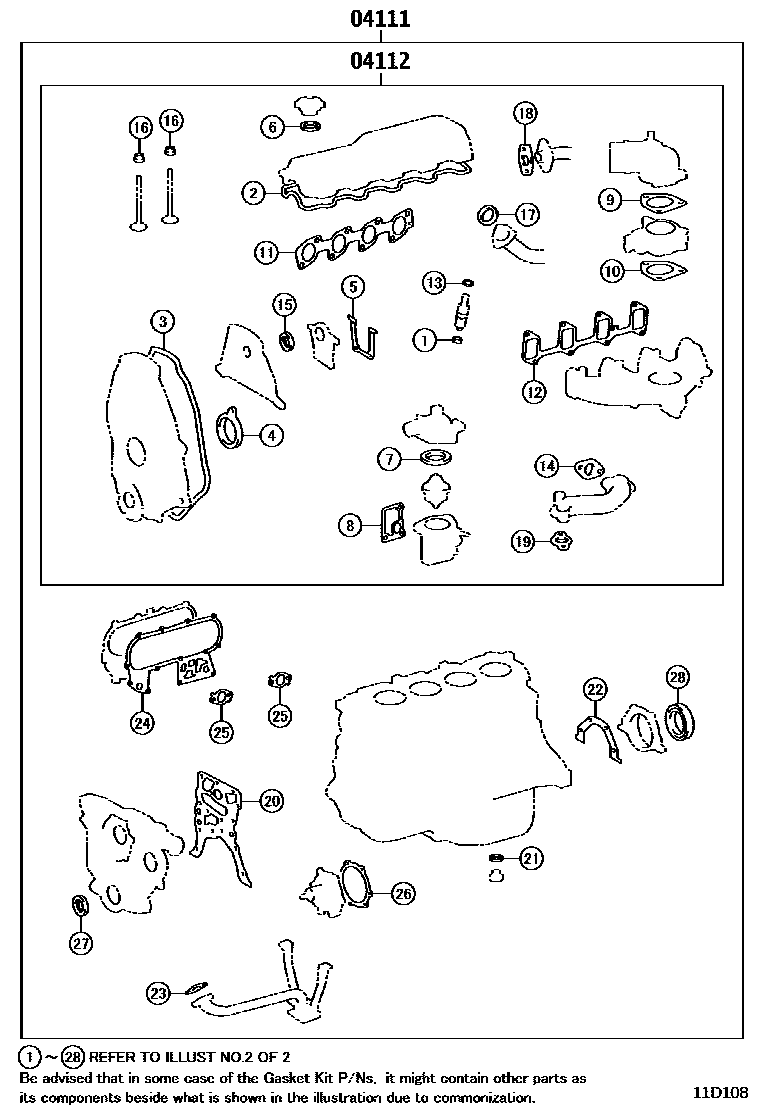

Engine Overhaul Gasket Kit — 11D108 (199708 – 200010)

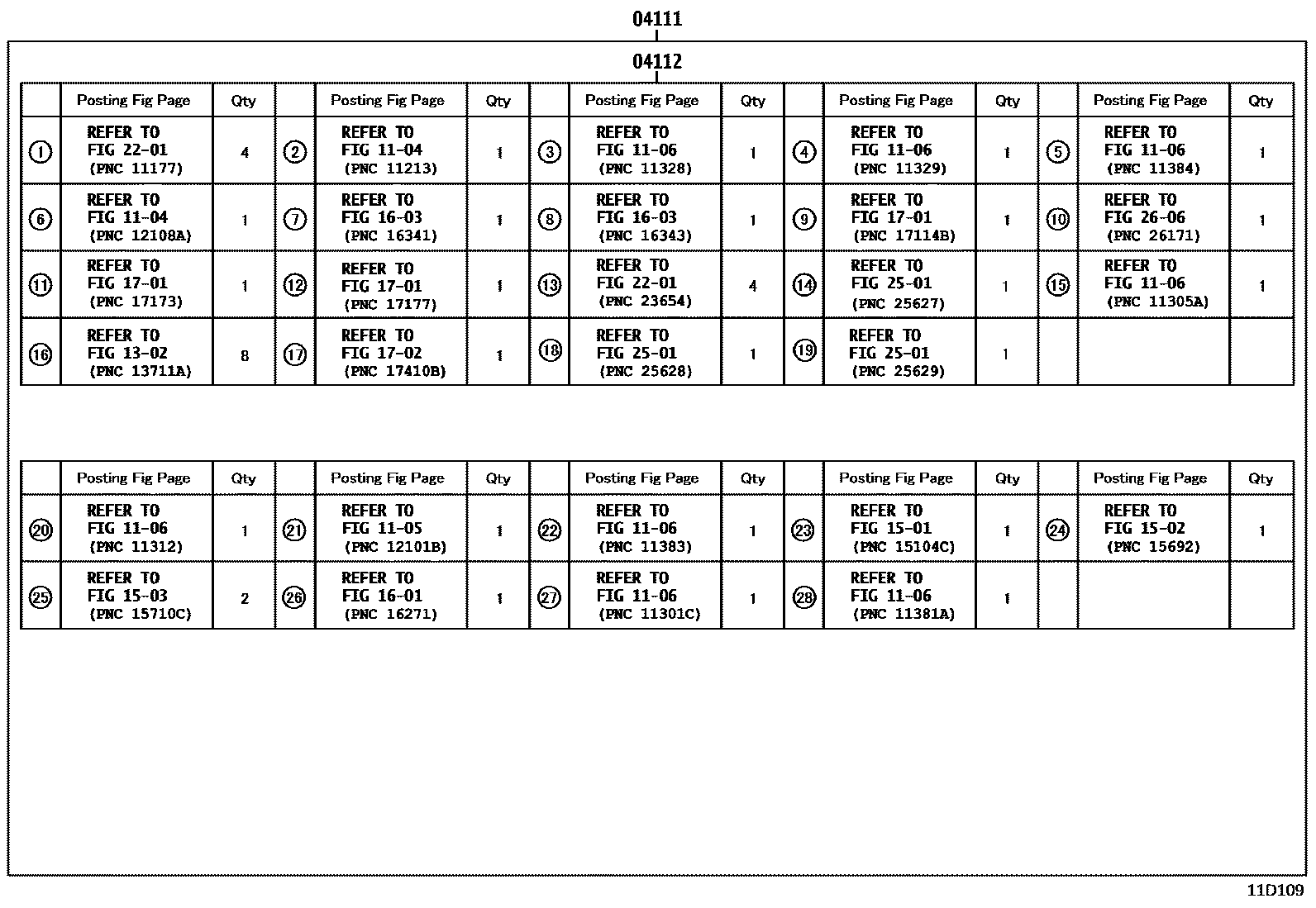

Engine Overhaul Gasket Kit — 11D109 (199708 – 200010)

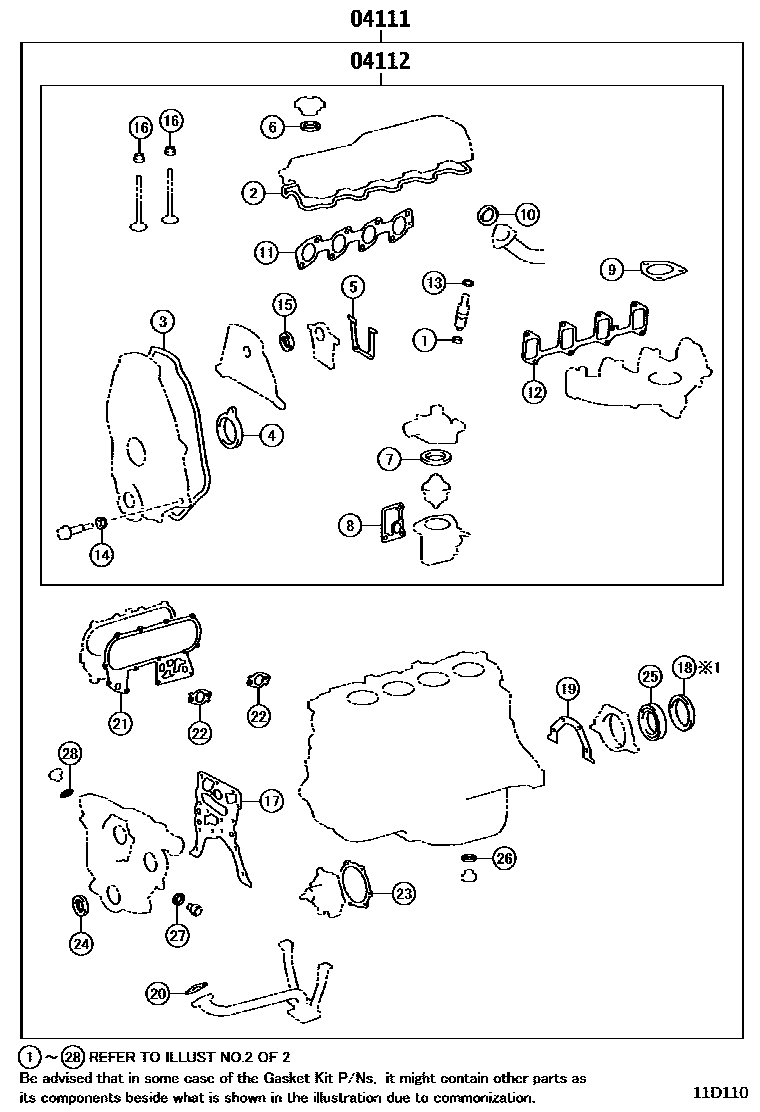

Engine Overhaul Gasket Kit — 11D110 (200009 – 200504)
Engine Overhaul Gasket Kit — 11D111 (200009 – 200504)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-05020 · 04111-05030 · 04111-0L010 · 04111-0L120 · 04111-30030 · 04111-54190 · 04111-54191 · 04111-54220 · 04111-54221 · 04111-54450 · 04111-62190 · 04111-67024 · 04111-67025 · 04111-67041 · 04111-67150 · 04111-72040 · 04111-72041 · 04111-72042 · 04111-75060 · 04111-75061 · 04111-75062 · 04111-75090 · 04111-75091 · 04111-75092 · 04111-75093 · 04111-75100 · 04111-75101 · 04111-75102 · 04111-75140 · 04111-75141 · 04111-75142 · 04111-75150 · 04111-75151 · 04111-75330 · 04111-75400 · 04111-75420 · 04111-75920 · 04111-75930 |
| 04112 | Engine valve grinding pad assembly | 04112-05020 · 04112-05030 · 04112-0L010 · 04112-0L120 · 04112-30030 · 04112-54150 · 04112-54151 · 04112-54160 · 04112-54161 · 04112-54390 · 04112-62160 · 04112-67021 · 04112-67022 · 04112-67041 · 04112-67150 · 04112-72040 · 04112-75060 · 04112-75061 · 04112-75090 · 04112-75091 · 04112-75100 · 04112-75101 · 04112-75140 · 04112-75150 · 04112-75320 · 04112-75390 · 04112-75410 · 04112-75820 |
