Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717

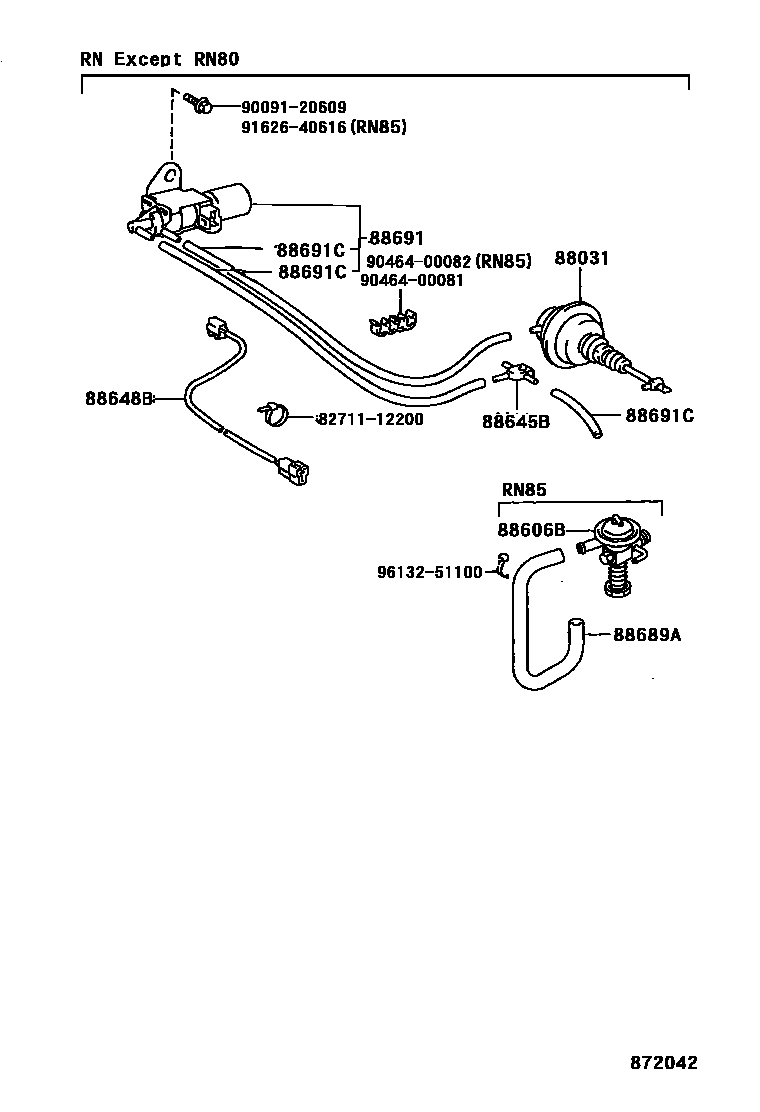

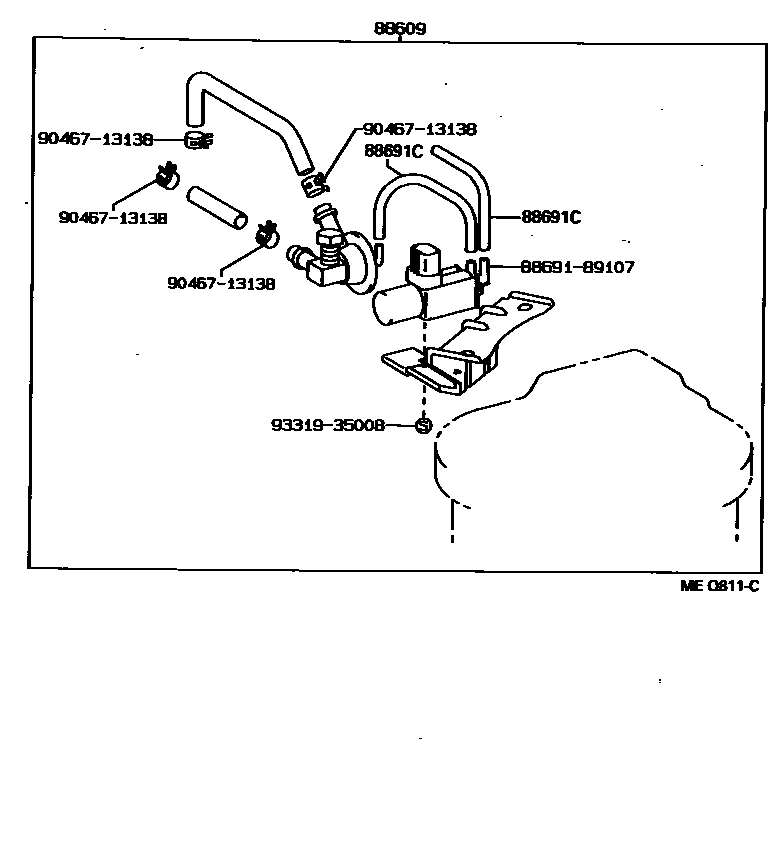

Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 21099-71030 · 88031-30060 · 88031-35040 · 88031-35090 · 88031-36012 |
| 88606B | Cooler diaphragm sub-assembly | 88606-35020 |
| 88609 | Idle speed lifting device sub-assembly | 88609-35010 |
| 88645A | Connector (for idle lift device) | 90404-51093 · 90405-09127 · 90405-09149 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04001 |
| 88648B | No. 1 cooler wiring harness | 88648-35010 · 88648-35100 · 88648-35110 · 88648-89134 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-35030 · 88690-89128 · 88690-89129 · 88690-89131 · 88690-89132 · 88691-89104 · 88691-89106 |
