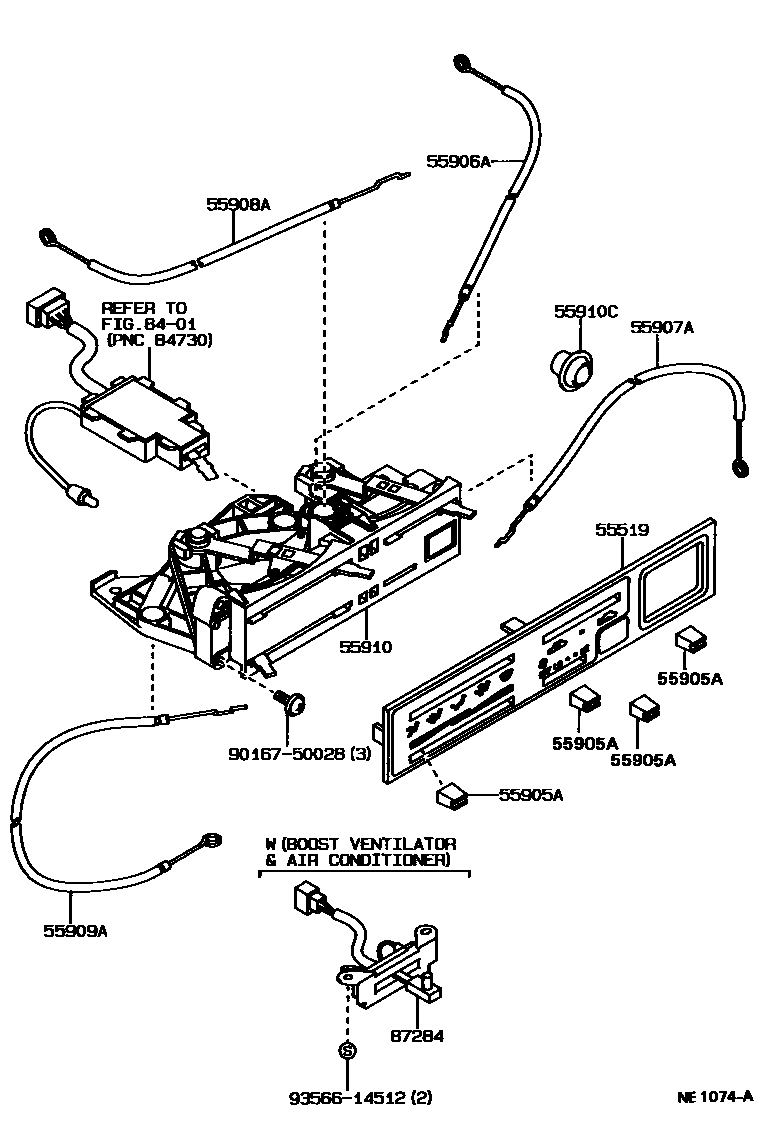

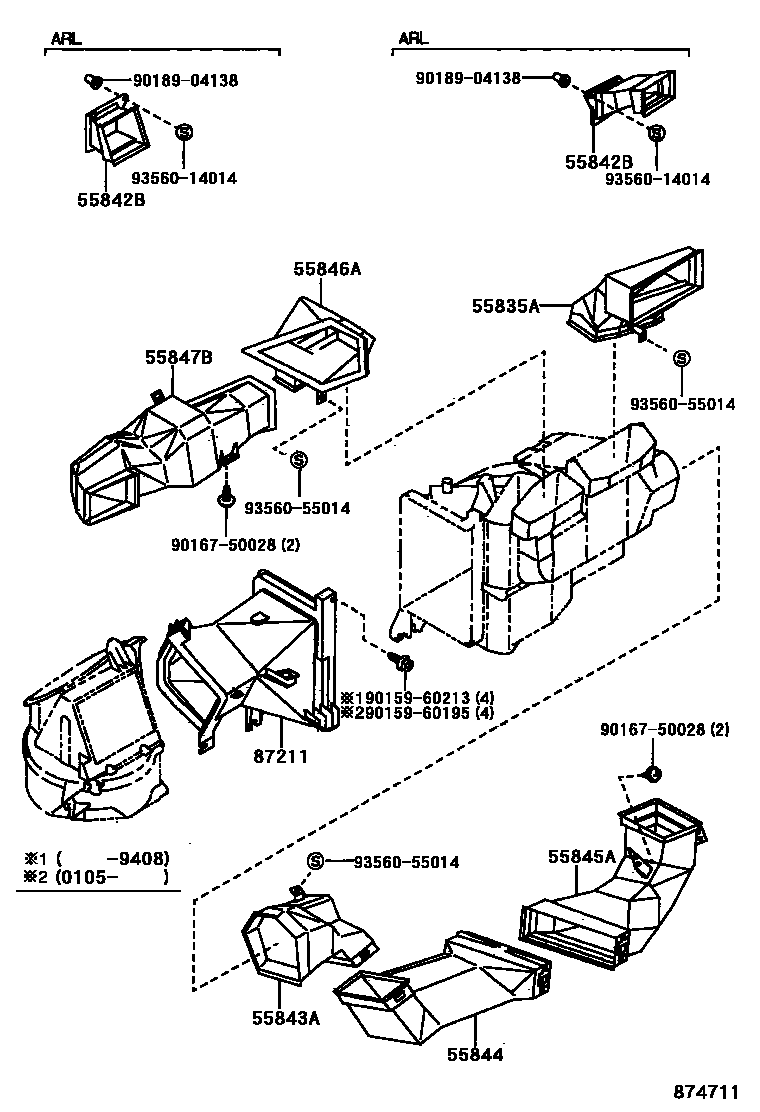

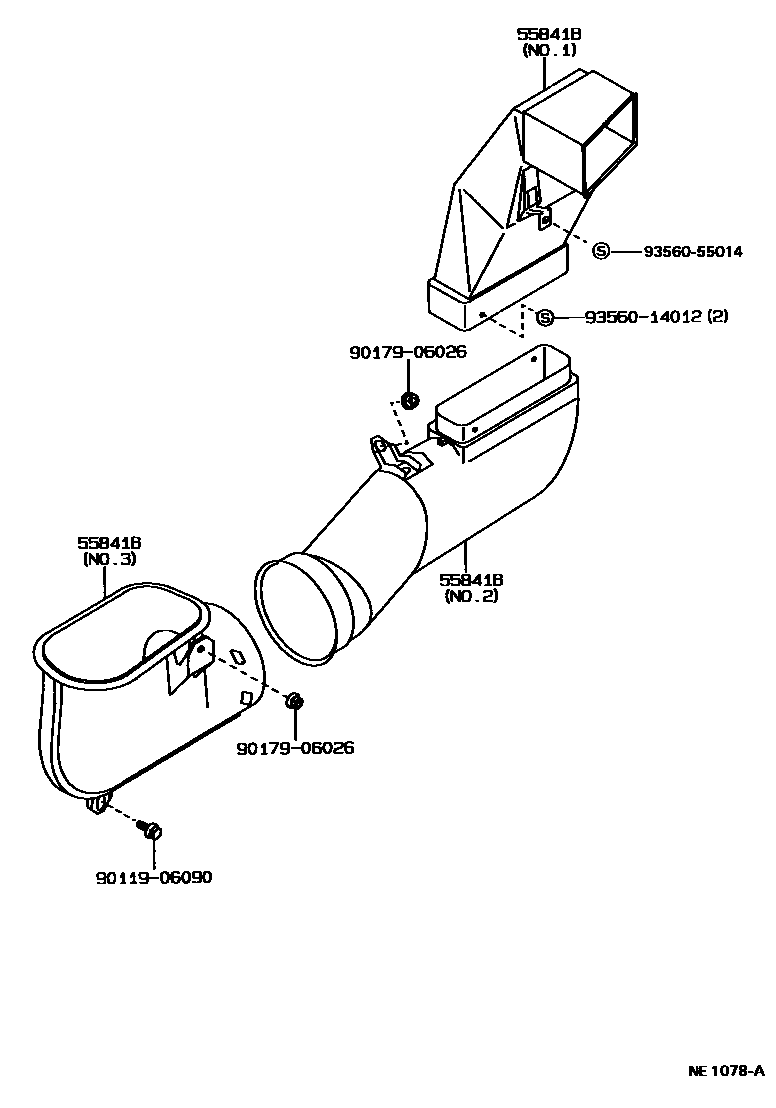

Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-35020 · 55519-35040 · 55519-35150 · 55519-89148 · 55519-89150 · 55519-89151 · 55519-89154 · 55519-89155 · 55519-89156 · 55519-89157 · 55519-89158 · 55519-89159 · 55519-89160 · 55519-89161 · 55519-89165 · 55519-89167 · 55519-89168 |
| 55835A | Central air duct from heater to air register | 55835-89109 · 55835-89110 |
| 55841B | From the front wall to the air register No. 1 air duct | 55841-89111 · 55841-89112 · 55841-89113 · 55841-89114 · 55841-89115 · 55841-89116 |
| 55842B | From the front wall to the air register No. 2 air duct | 55841-89110 · 55842-89106 |
| 55843A | Air duct No. 1 from heater to air register | 55843-89114 · 55843-89115 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-89111 · 55844-89112 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-89107 · 55845-89108 |
| 55846A | Air duct No. 4 from heater to air register | 55846-89108 · 55846-89109 |
| 55847B | Air duct No. 5 from heater to air regulator | 55847-89114 · 55847-89115 · 55847-89116 |
| 55905A | Heater control button | 55905-89115 |
| 55906A | Defroster damper control cable sub-assembly | 55906-35010 · 55906-35040 · 55906-89111 |
| 55907A | Water valve control cable sub-assembly | 55907-35010 · 55907-35020 · 55907-35050 · 55907-35100 · 55907-89117 · 55907-89118 |
| 55908A | Intake air valve control cable sub-assembly | 55908-35010 · 55908-35030 · 55908-89106 |
| 55909A | Air mix damper control cable sub-assembly | 55909-35010 · 55909-35020 · 55909-35030 · 55909-35050 · 55909-89111 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-35020 · 55910-35030 · 55910-35040 · 55910-35050 · 55910-35080 · 55910-35090 · 55910-35100 · 55910-35110 · 55910-89126 · 55910-89127 · 55910-89128 · 55910-89129 |
| 55910C | Gasket (for heater control cable) | 90480-13024 · 90480-15001 |
| 87211 | No. 1 air duct | 87211-89113 · 87211-89114 · 87211-89118 |
| 87284 | Variable resistor sub-assembly | 88622-89104 |
