Toyota HILUX antenna — Figure 8604

Toyota HILUX EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

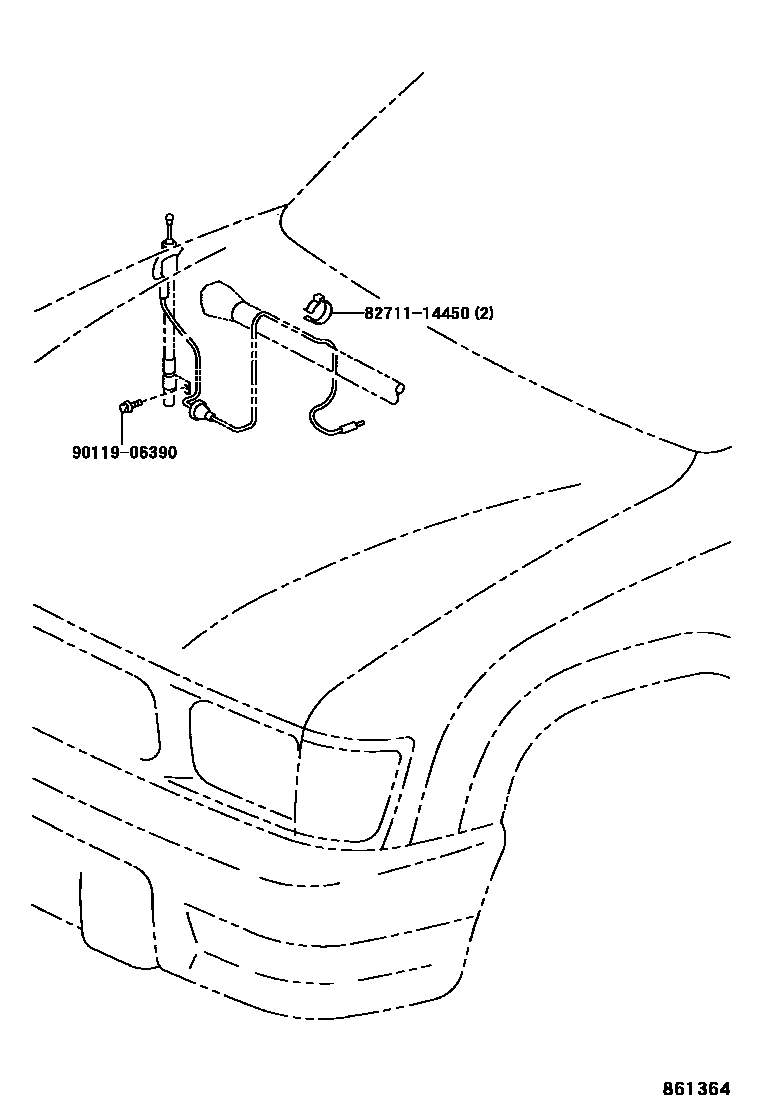

Toyota HILUX antenna EPC diagram — 861364
antenna — 861364 (200106 – 999999)

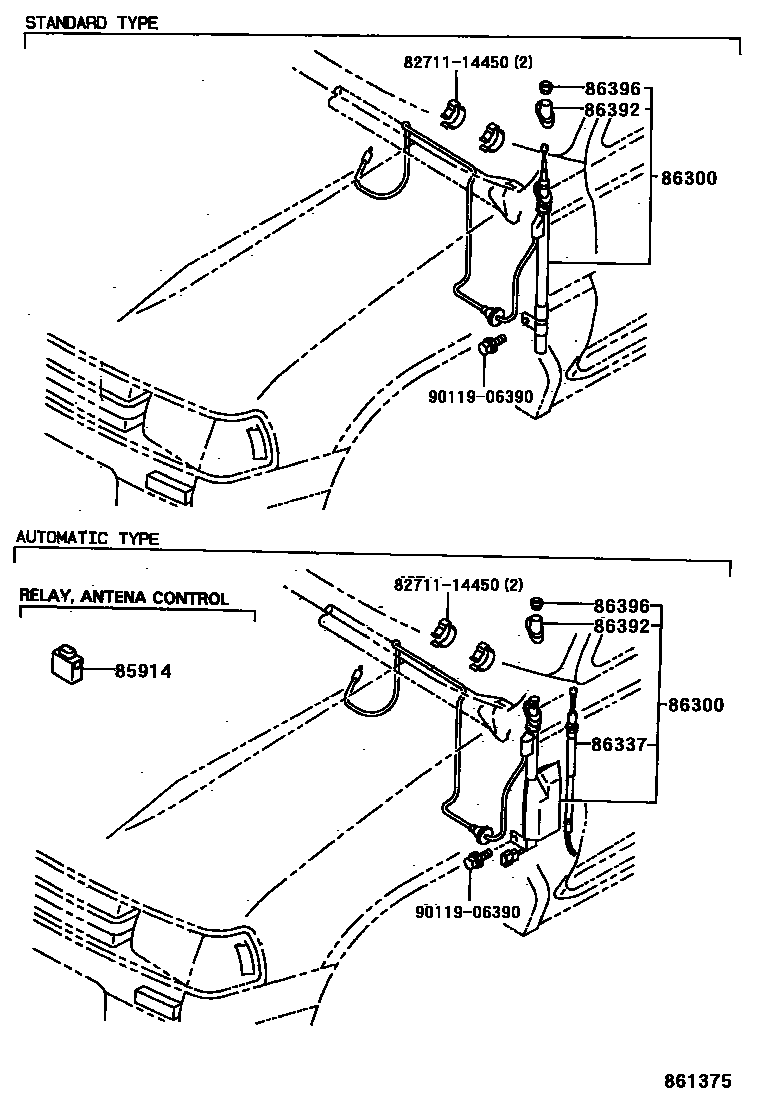

Toyota HILUX antenna EPC diagram — 861375
antenna — 861375 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
85914Electric antenna control relay85914-33010 · 85914-33020 · 85914-35030
86300Antenna assembly with fixing parts86300-35040 · 86300-35060 · 86300-89123 · 86300-89125
86337Sealing rods and sealing tubes with cables86337-35060 · 86337-89125
86392Antenna decorative parts86392-89105 · 86392-89107
86396Antenna nut86396-16020 · 86396-89102
