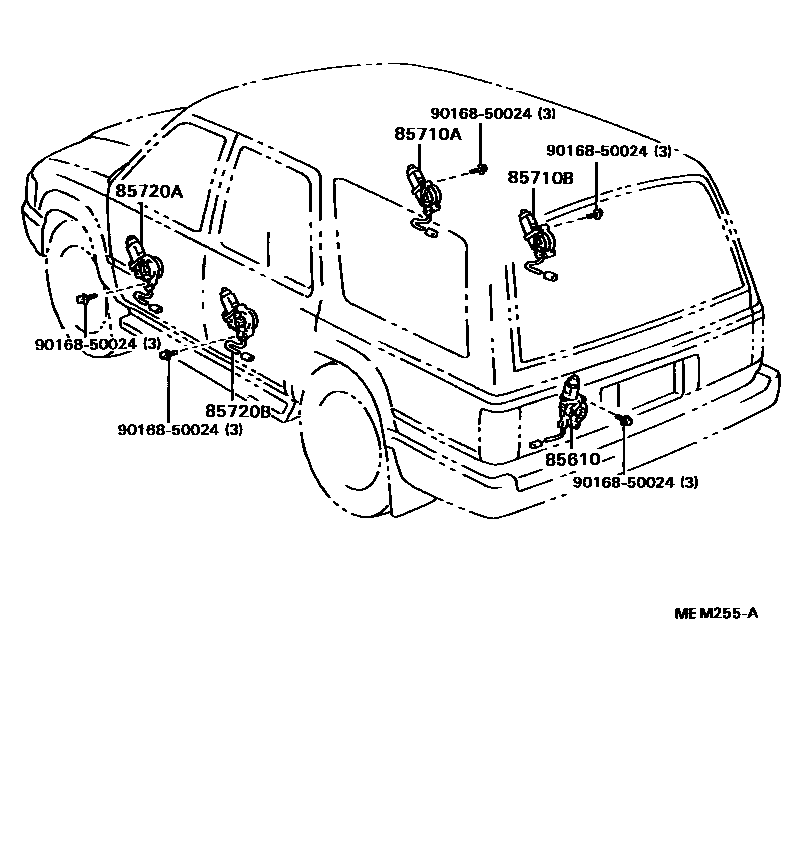

Toyota HILUX 车门电机和车门电磁阀 — Figure 8511
Toyota HILUX EPC diagram 8511, 车门电机和车门电磁阀, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85610 | Back door lifter motor assembly | 85710-35050 · 85710-89105 |
| 85710A | Right front electric window lift motor assembly | 85710-35010 · 85710-35070 |
| 85710B | Right rear electric window lift motor assembly | 85710-35030 · 85710-35031 |
| 85720A | Left front electric window lift motor assembly | 85720-35010 · 85720-35070 |
| 85720B | Left rear electric window lift motor assembly | 85720-35030 · 85720-35031 |
