Toyota HILUX 挡风玻璃清洗器 — Figure 8503

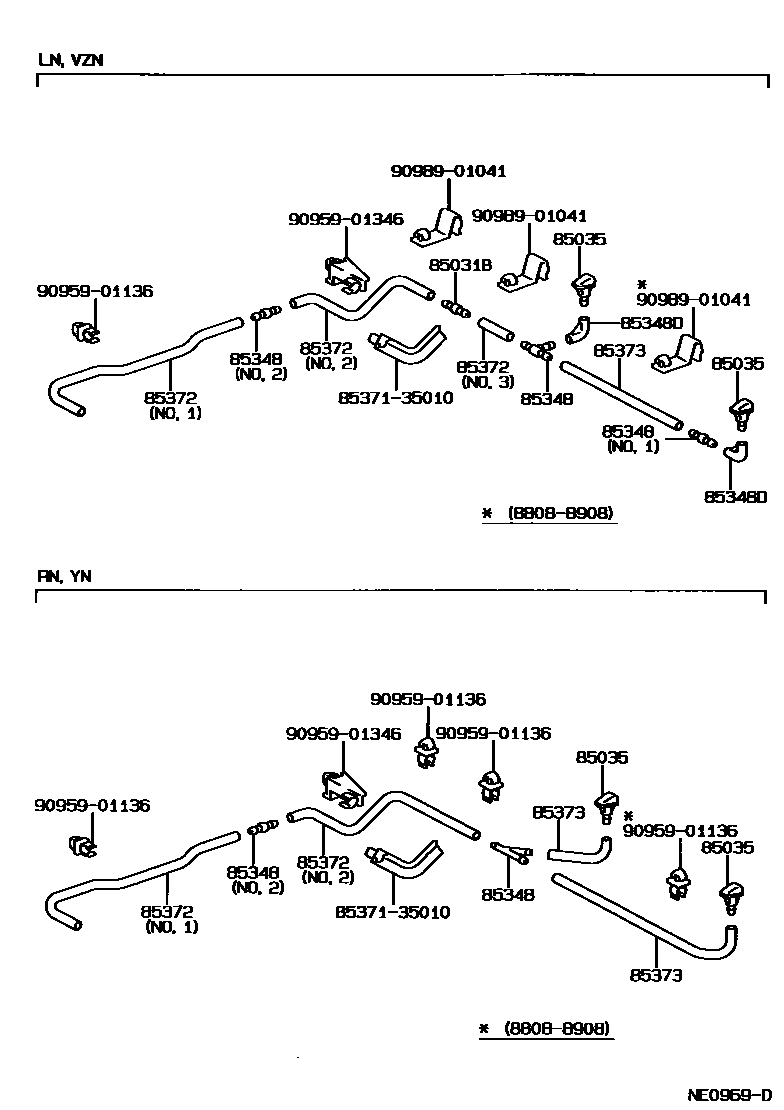

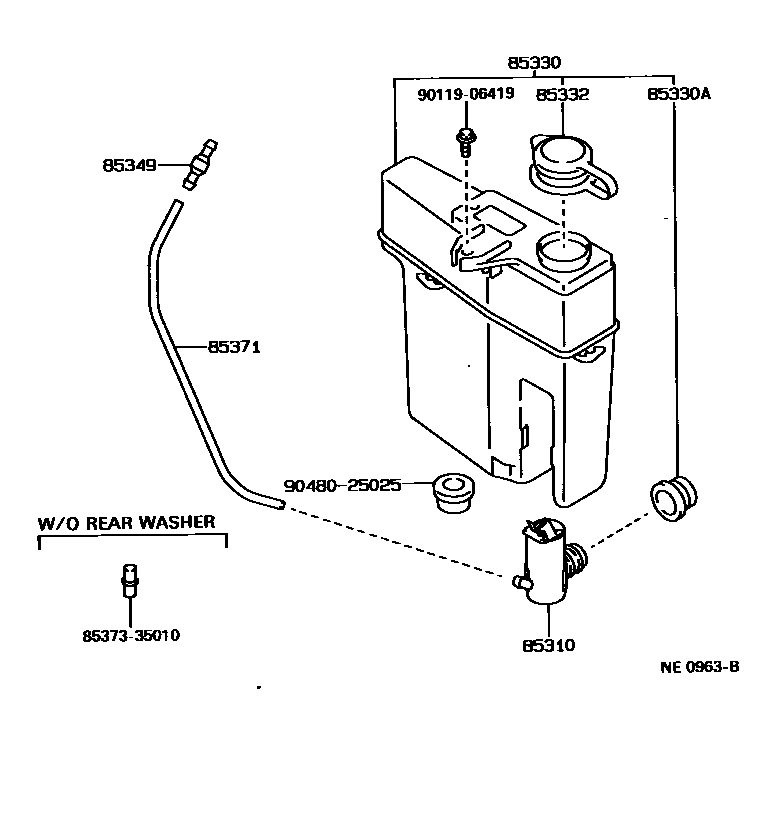

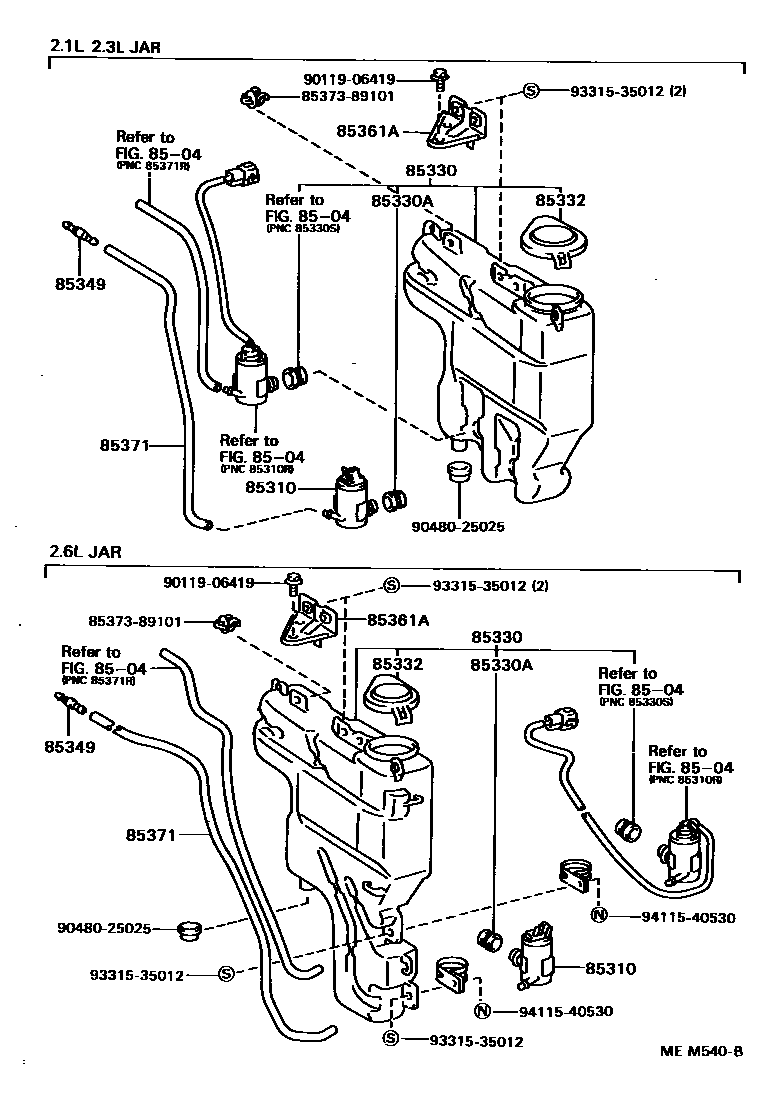

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-12250 |
| 85035 | Cleaner nozzle sub-assembly | 85035-89114 · 85035-89115 · 85381-35060 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 · 85330-35040 · 85330-35060 |
| 85330 | Windshield washer fluid tank assembly | 85315-35110 · 85331-89136 · 85331-89142 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-12650 · 85332-89133 · 85332-89134 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85348-89118 · 85349-89118 · 85349-89122 · 85375-89141 · 85376-89141 · 85377-32220 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85349 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85361A | Windshield washer bracket No. 1 | 85361-89135 · 85361-89137 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33656 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33354 |
