Toyota HILUX 开关和继电器和ECU — Figure 8401

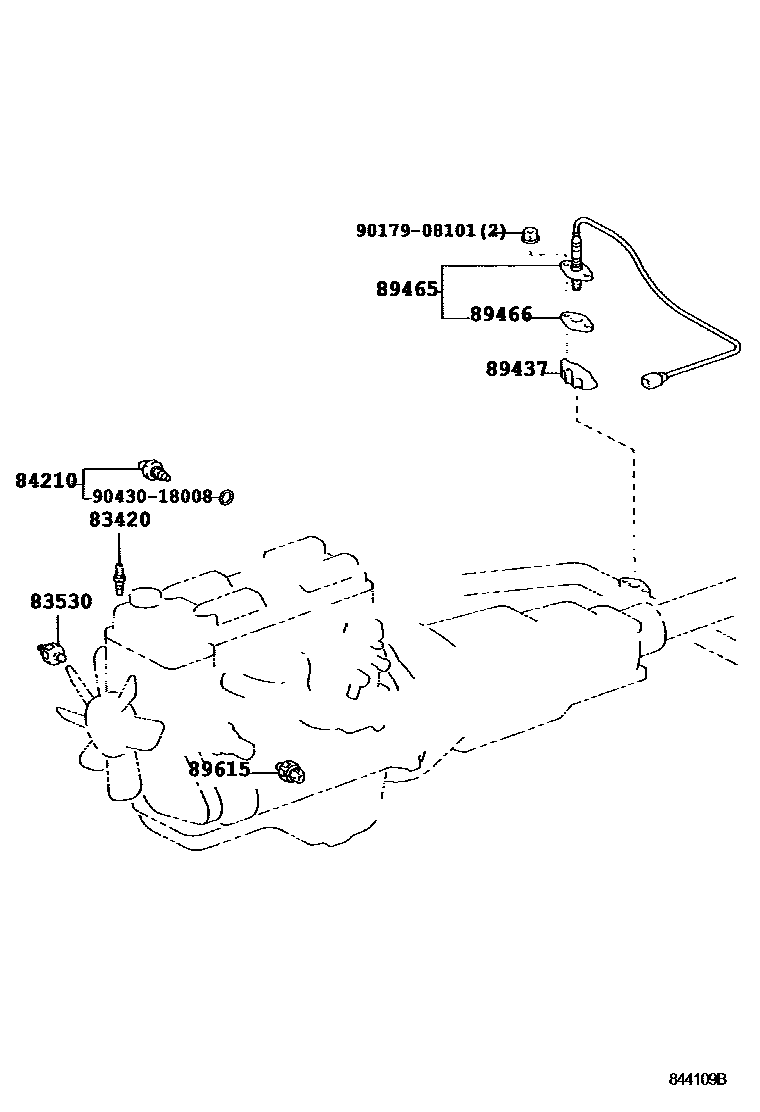

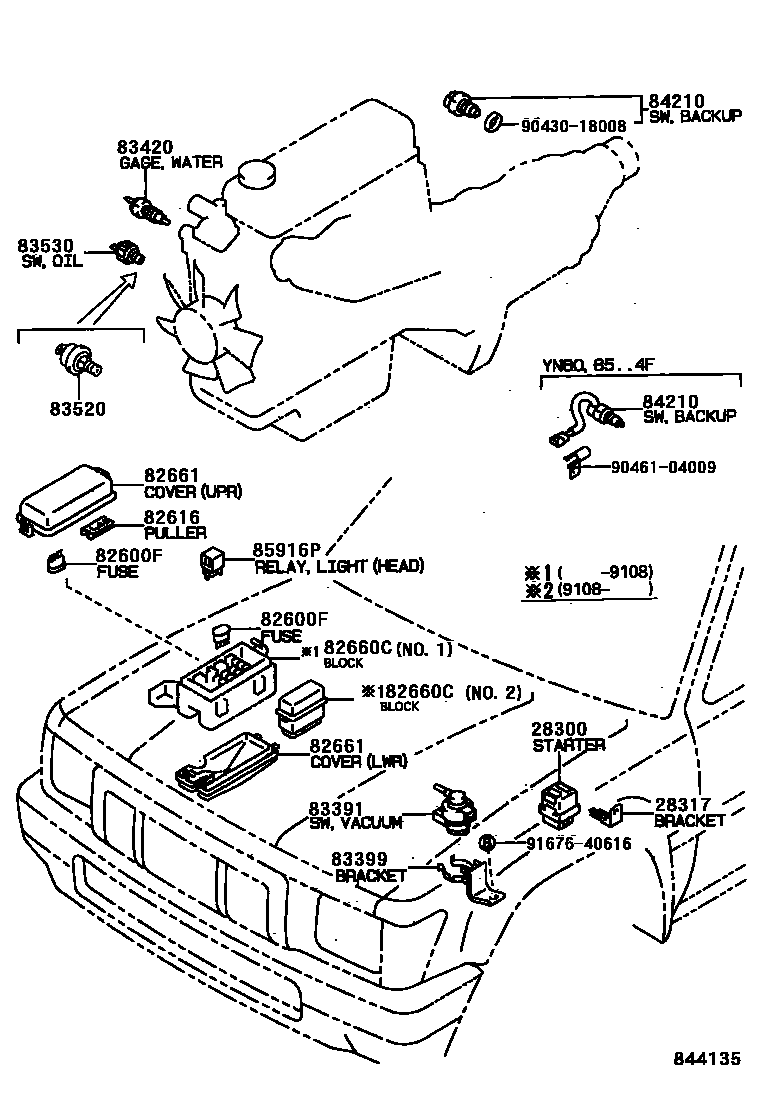

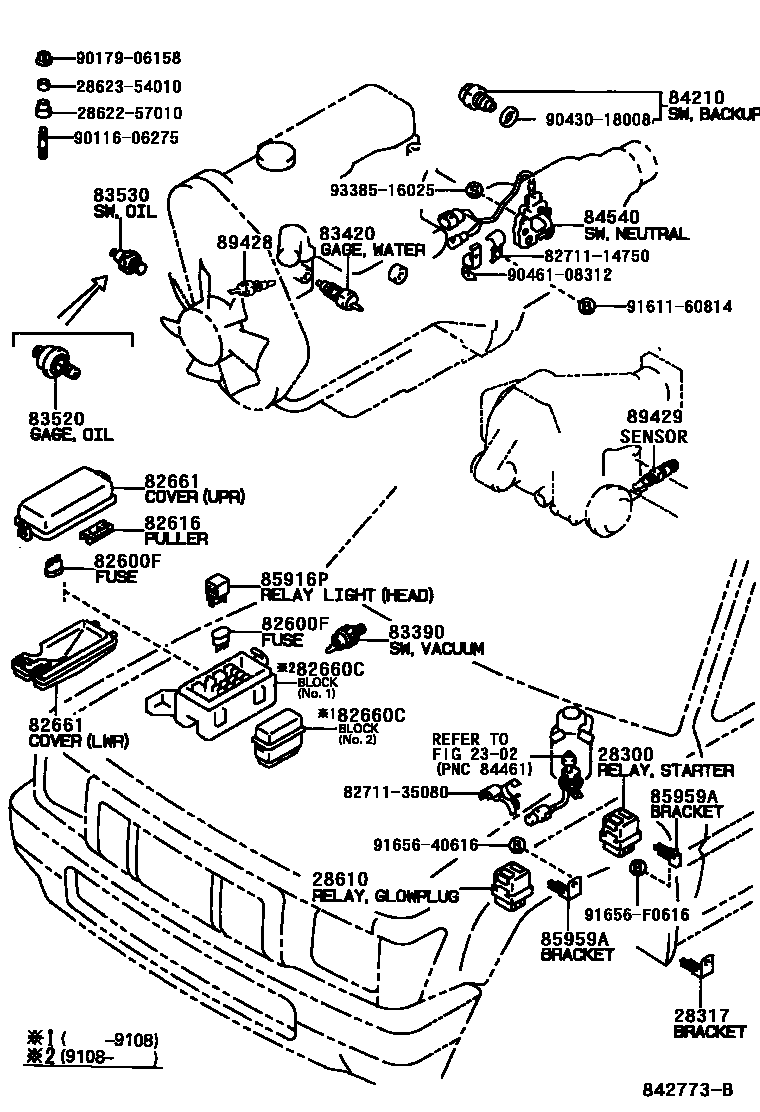

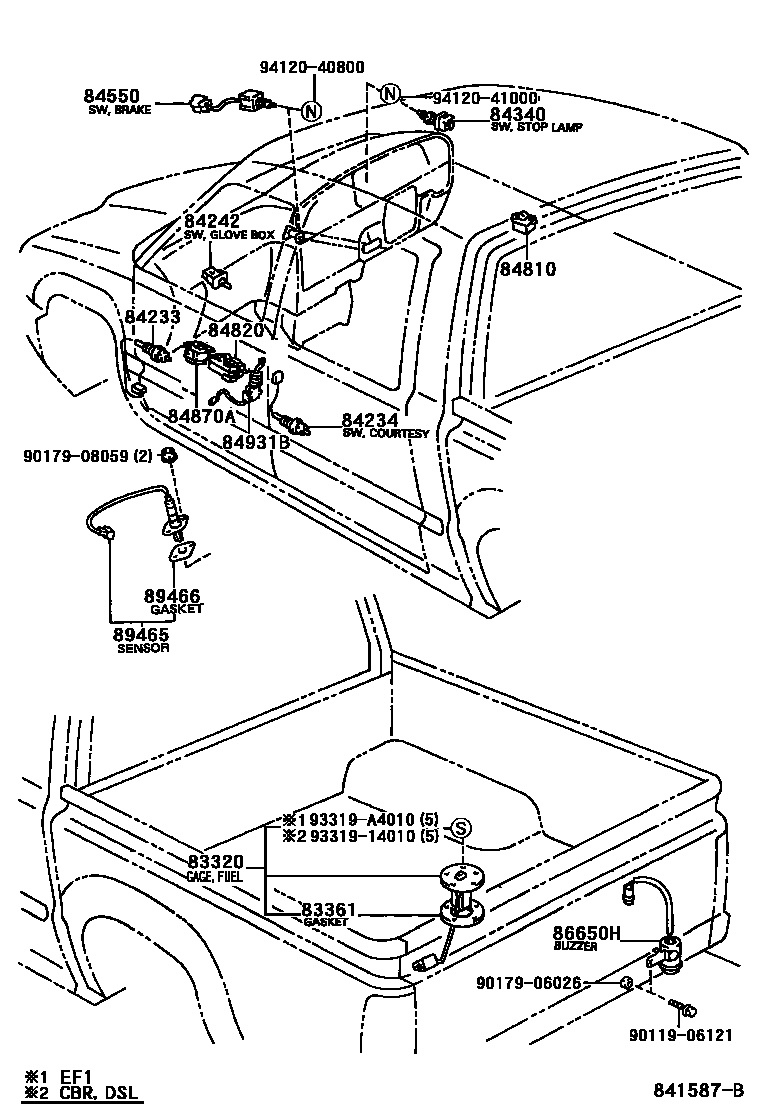

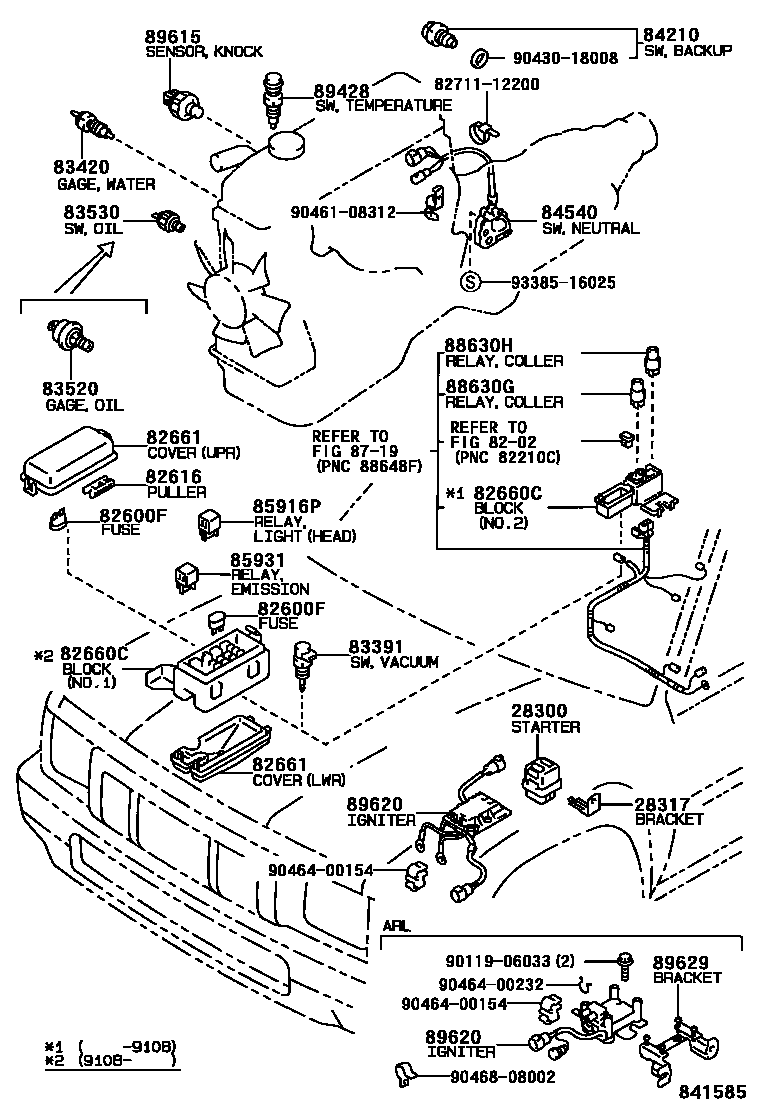

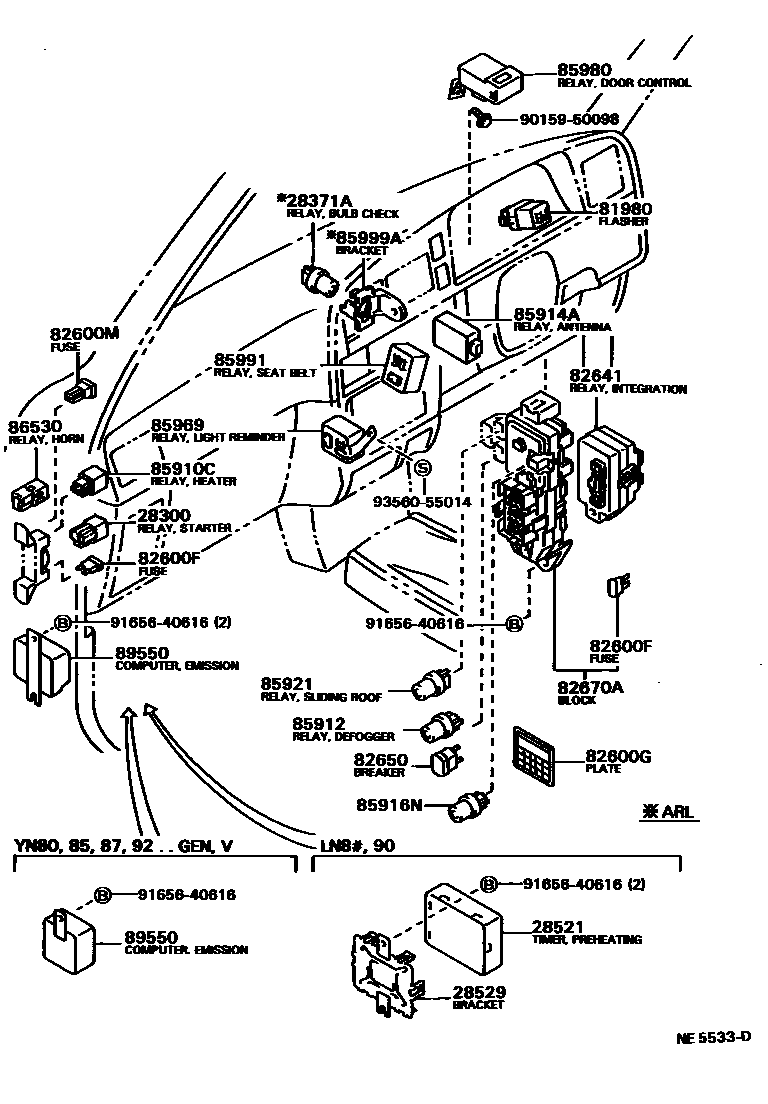

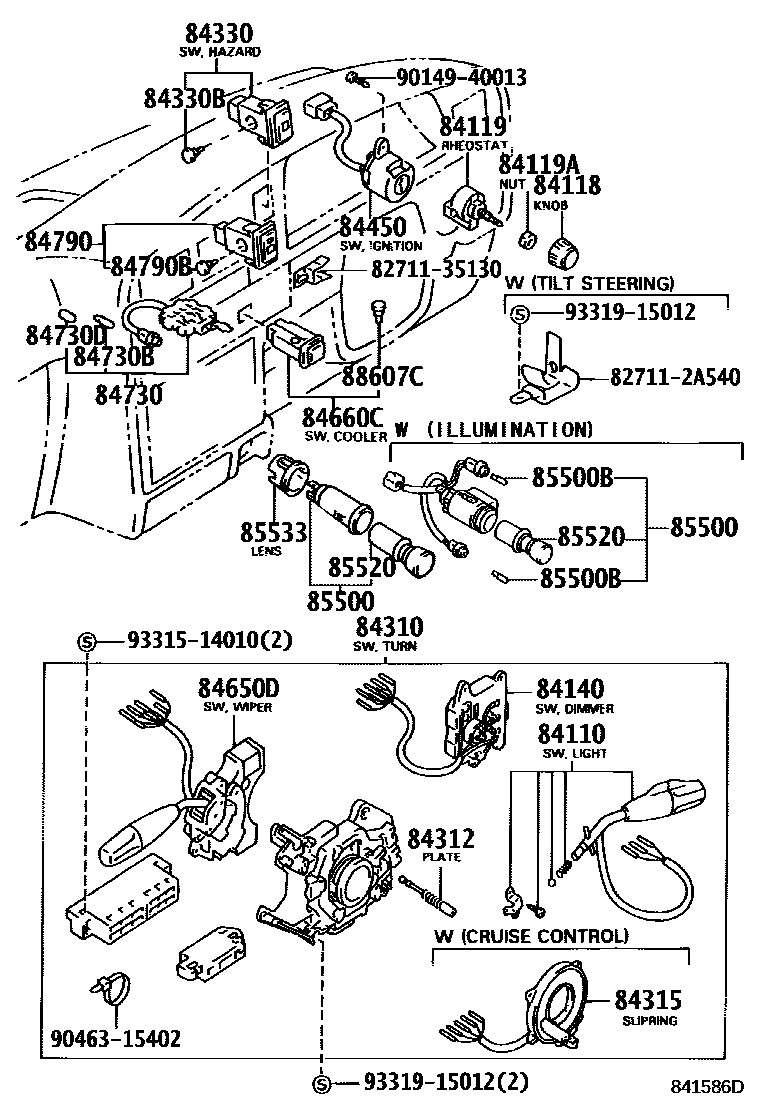

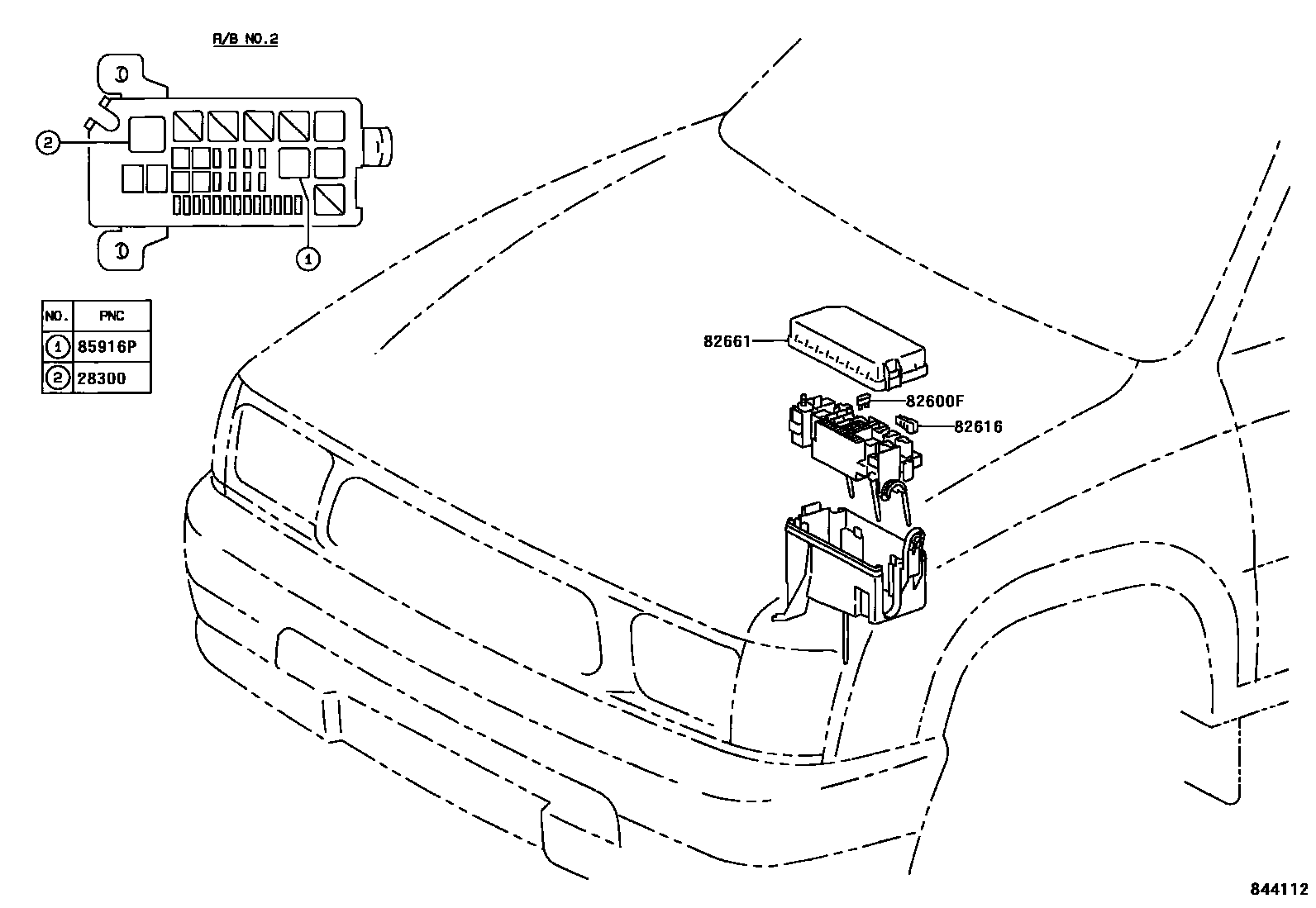

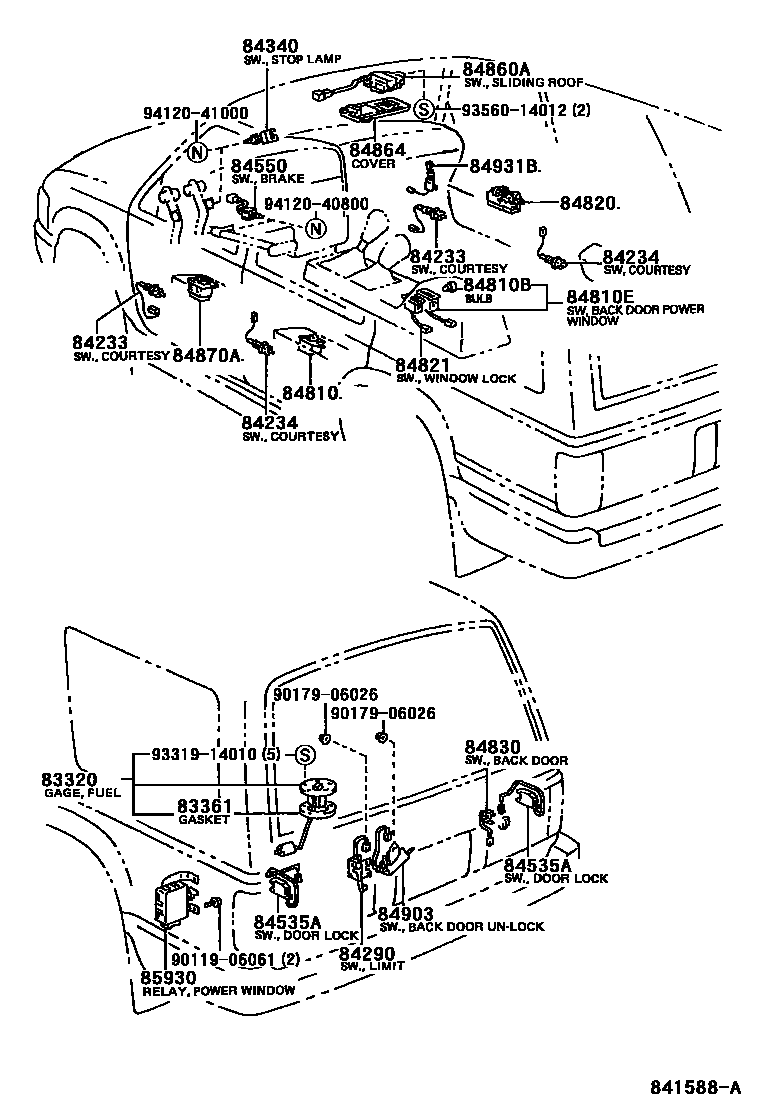

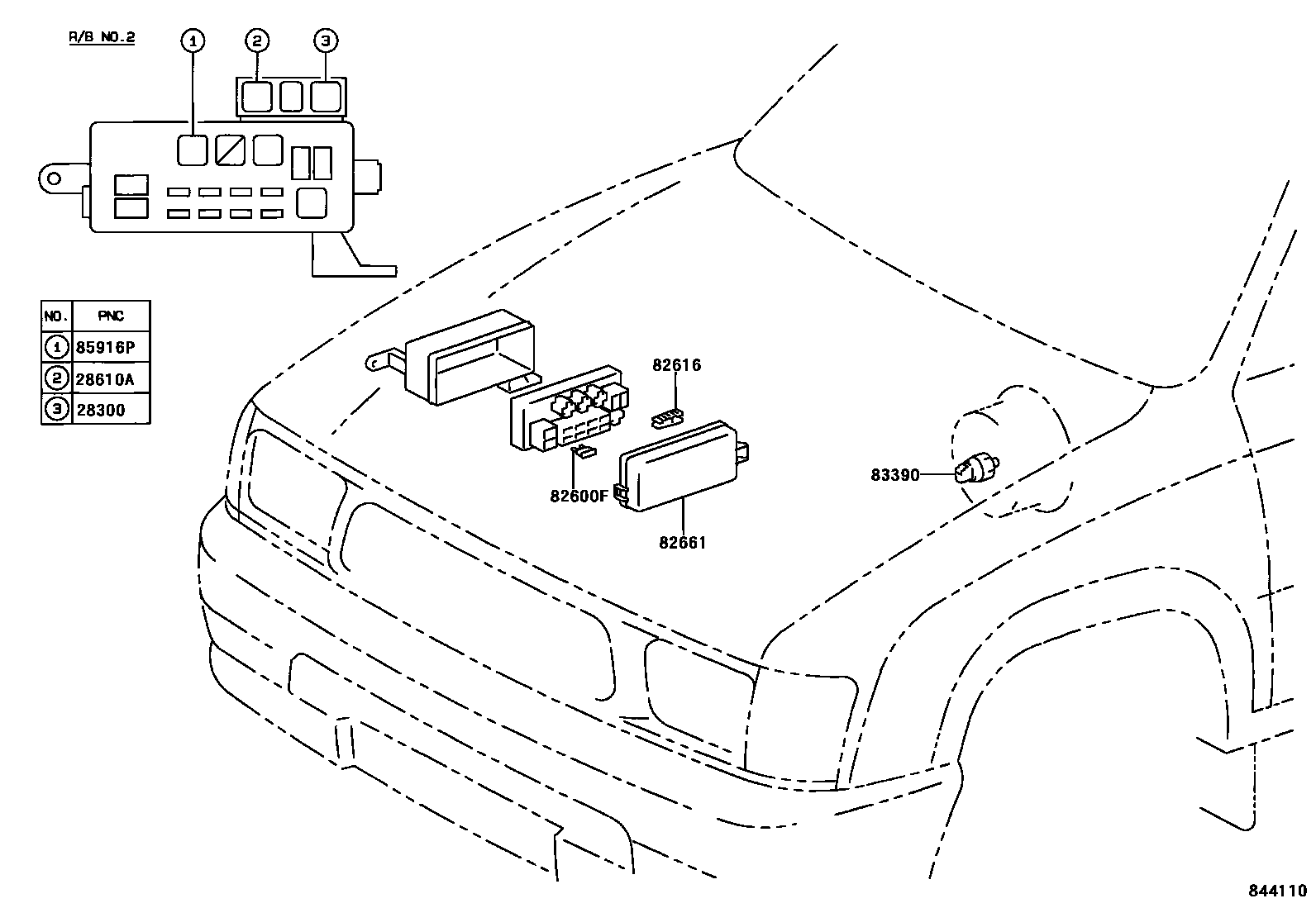

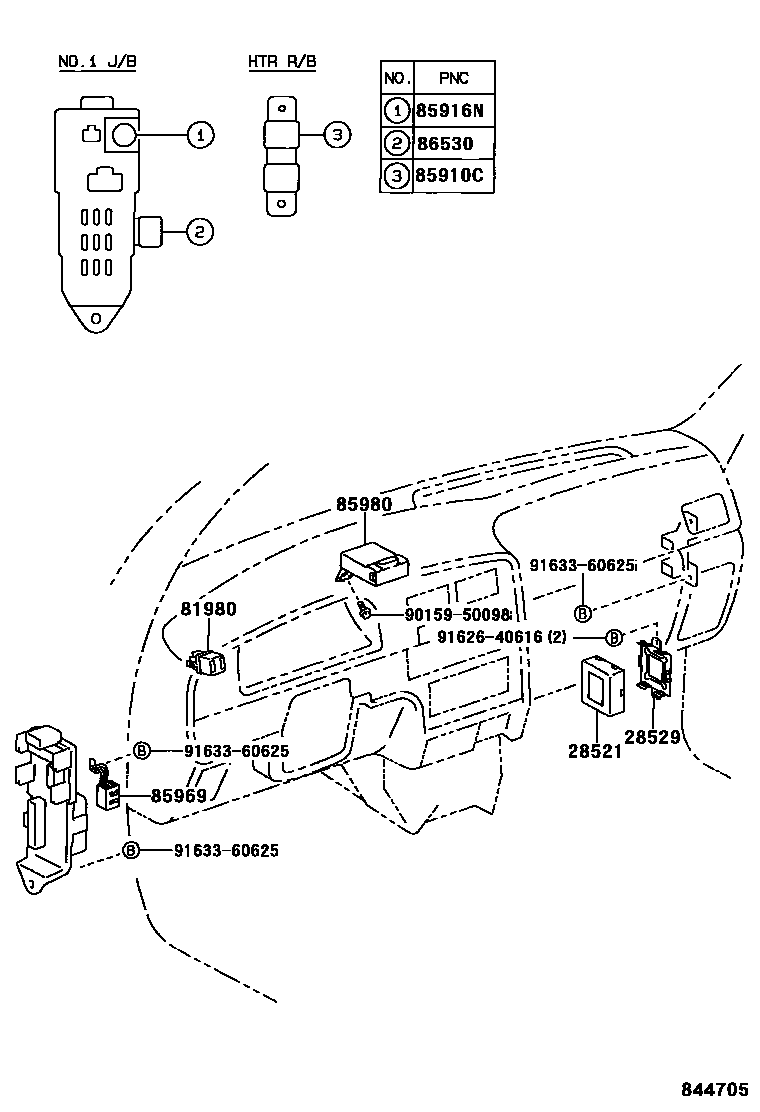

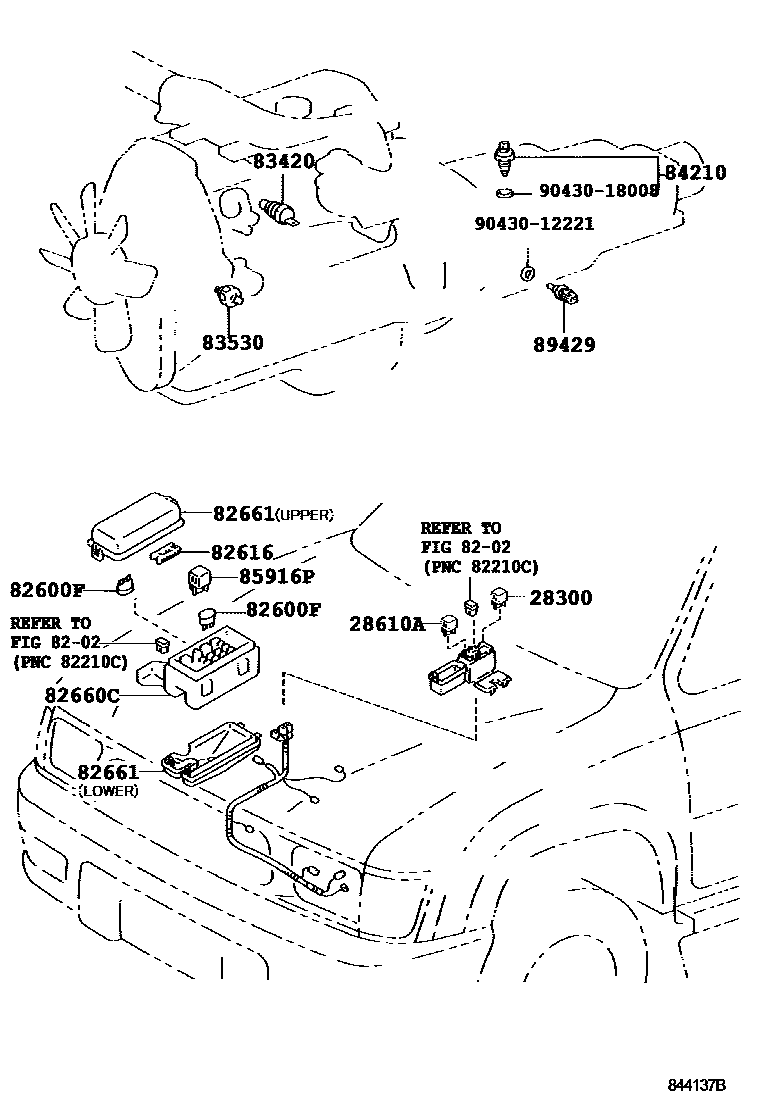

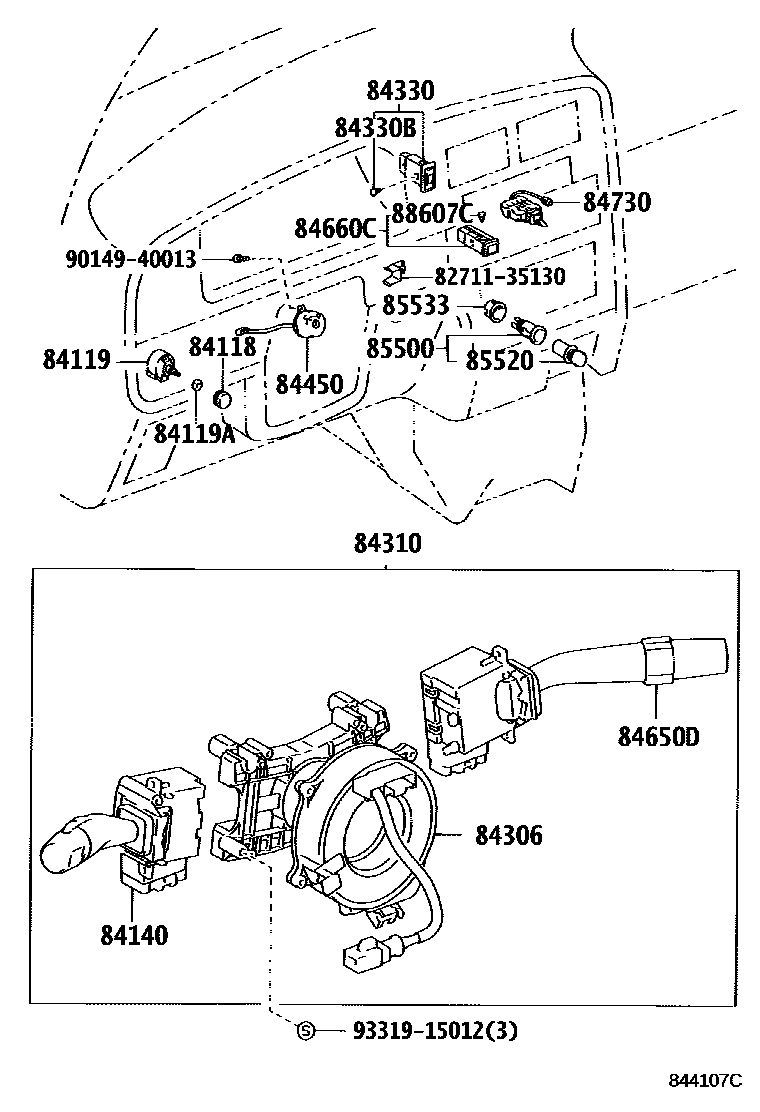

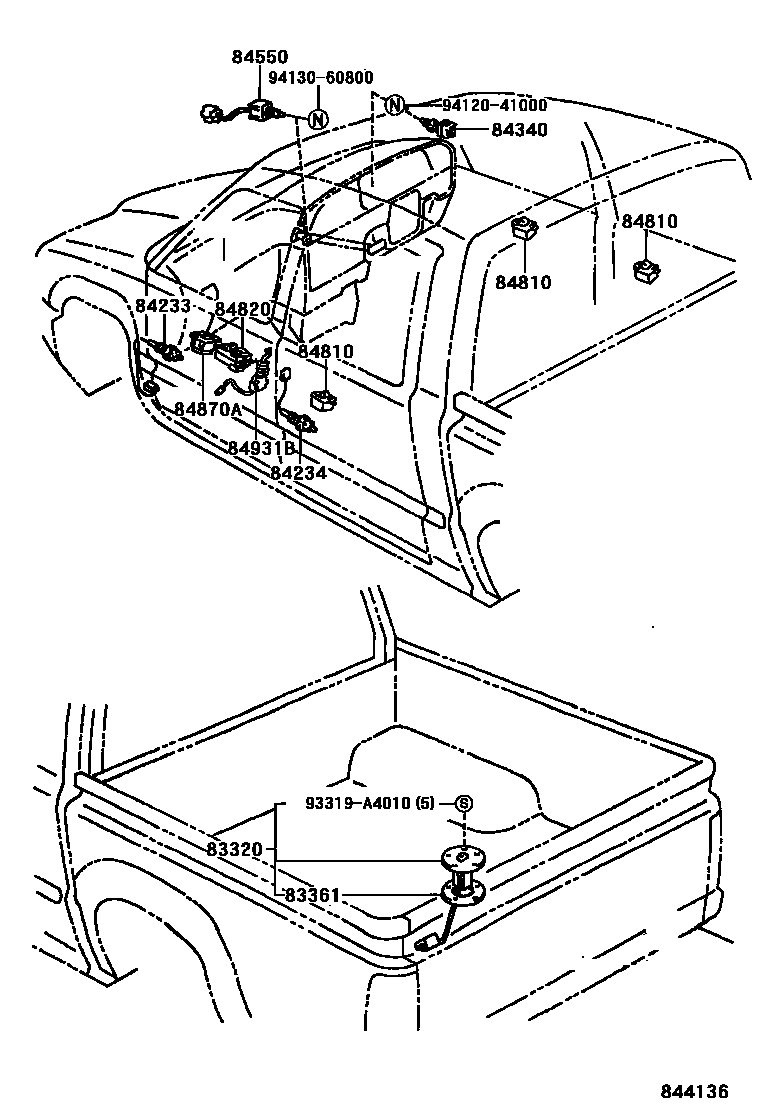

Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 14 images and 95 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 · 28300-46010 · 28300-54070 · 28300-54110 · 28341-11010 · 28341-11040 · 90987-02009 |
| 28317 | Starter relay bracket | 85959-35020 |
| 28371A | Bulb check relay | 90987-02004 |
| 28521 | Preheat timer | 28521-54370 · 28521-54420 · 28521-54450 · 28521-54590 · 28521-54591 · 28521-54600 |
| 28529 | Preheat timer bracket No. 1 | 28529-54170 · 28529-54380 |
| 28610 | Intake air heater or glow plug relay assembly | 28610-54300 · 28610-64110 · 28610-67010 |
| 28610A | Sub glow plug relay assembly | 28610-54360 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 · 81980-32010 |
| 82600F | Spare fuse | 90080-82012 · 90080-82013 · 90080-82015 · 90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 · 90982-09009 · 90982-09010 |
| 82600G | Warning nameplate (for fuses) | 82683-35020 · 82683-35021 · 82683-89104 · 82683-89105 · 82683-89108 · 82683-89114 · 82683-89115 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82616 | fuse puller | 82616-20010 · 82616-89102 |
| 82641 | Integrated relay No. 1 | 82641-35090 · 82641-89103 · 82641-89104 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 · 82650-20020 |
| 82660C | Relay assembly | 82660-35030 · 82660-35100 · 82660-89131 · 82660-89136 |
| 82661 | No. 1 relay box cover | 82662-35010 · 82662-35020 · 82662-35180 · 82662-35370 · 82662-35380 · 82662-35381 · 82662-35390 · 82662-35391 · 82662-35400 · 82662-3D030 · 82662-3D050 · 82662-3D070 · 82662-89102 · 82663-35010 · 82663-89101 |
| 82670A | No. 1 junction box assembly | 82670-89110 · 82670-89111 |
| 83320 | Fuel gauge sensor assembly | 83320-80115 · 83320-80118 · 83320-80119 · 83320-80120 · 83320-80132 · 83320-80134 · 83320-80175 · 83320-80177 · 83320-80303 · 83320-80424 |
| 83361 | fuel gauge sensor gasket | 83361-20030 |
| 83390 | Vacuum warning switch assembly | 83390-30020 · 83390-30100 |
| 83391 | Vacuum switch | 83391-20050 · 83391-27060 |
| 83399 | Vacuum switch bracket | 83399-35020 |
| 83420 | Water temperature sensor assembly | 83420-16040 · 83420-20020 · 83420-20040 |
| 83520 | Oil pressure gauge sensor assembly | 83520-14023 · 83520-34010 · 83520-35030 · 83520-55011 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14030 · 83530-14070 · 83530-28010 · 83530-28020 · 83530-30060 · 83530-30090 · 83530-60030 |
| 84110 | No. 1 light control switch assembly | 84112-09030 · 84112-39615 · 84112-39625 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-20082 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09002 |
| 84140 | Headlight dimmer switch assembly | 84140-04010 · 84140-35090 · 84140-35100 · 84140-44010 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-26030 |
| 84233 | Door control light switch assembly (for front door) | 84230-12120 |
| 84234 | Door control light switch assembly (for rear door) | 84230-12120 |
| 84242 | Glove box light switch | 84242-20030 |
| 84290 | Limit switch assembly | 84290-35010 · 84290-89102 |
| 84306 | Spiral cable sub-assembly | 84306-12070 · 84306-35020 |
| 84310 | Turn signal switch assembly | 84310-04010 · 84310-04020 · 84310-35260 · 84310-35270 · 84310-35280 · 84310-35290 · 84310-35300 · 84310-35320 · 84310-35380 · 84310-35390 · 84310-35410 · 84310-35420 · 84310-35470 · 84310-35490 · 84310-35500 · 84310-35530 · 84310-35540 · 84310-35560 · 84310-35570 · 84310-35730 |
| 84312 | Speaker contact piece | 84312-03010 · 84312-12040 |
| 84315 | Speaker contact slip ring | 84315-35010 |
| 84330 | Hazard warning signal switch assembly | 84332-04010 · 84332-89110 · 84332-89115 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 |
| 84340 | brake light switch assembly | 84340-30030 · 84340-30050 · 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-35090 · 84450-35110 · 84450-35130 |
| 84535A | door lock switch | 84535-35010 · 84535-89103 · 84535-89104 |
| 84540 | Neutral start switch assembly | 84540-28020 · 84540-28021 · 84540-30290 · 84540-30300 · 84540-35010 |
| 84550 | Parking brake switch assembly | 84550-35010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-04010 · 84652-04020 · 84652-1A630 · 84652-35160 · 84652-35170 · 84652-35180 · 84652-35190 · 84652-35200 · 84652-35220 · 84652-35280 · 84652-35290 · 84652-35310 · 84652-35320 · 84652-35370 · 84652-35390 · 84652-35400 |
| 84660C | Cooler switch | 84660-35010 · 84660-89105 |
| 84730 | Heater blower switch assembly | 84732-35030 · 84732-89113 · 84732-89115 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84730D | Heater blower switch bulb cover | 84998-10050 |
| 84790 | Rear window defogger switch assembly | 84790-89101 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10320 |
| 84810 | Electric window lift switch assembly | 84810-32070 |
| 84810B | Bulb (for power window lift switch) | 84999-10170 |
| 84810E | Rear door electric window lift switch assembly | 84810-35010 · 84810-89104 |
| 84820 | Electric window lift main switch assembly | 84820-10050 · 84820-16060 · 84820-22320 · 84820-35010 · 84820-89105 |
| 84821 | Power window lock switch | 84821-35010 · 84821-89103 |
| 84830 | Back door control switch assembly | 84830-35020 · 84830-89103 |
| 84860A | Sliding sunroof switch assembly | 84860-35010 · 84860-89101 |
| 84864 | Sliding sunroof motor switch cover | 84864-89101 |
| 84870A | Exterior rearview mirror switch assembly | 84870-89101 |
| 84903 | Door unlock switch sub-assembly | 84903-35010 · 84903-89102 |
| 84931B | door control switch | 84931-35010 · 84931-35040 · 84931-35060 · 84931-35080 |
| 85500 | Cigarette lighter assembly | 85500-12250 · 85500-35030 · 85500-35040 · 85500-89105 · 85500-89106 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-20080 · 85520-89101 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-10010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90987-02004 · 90987-02009 |
| 85914A | Electric antenna control relay | 85914-30010 |
| 85916N | Tail light relay | 90987-01003 |
| 85916P | headlight relay | 90987-02006 |
| 85921 | Sliding sunroof control relay | 90987-02004 · 90987-02009 |
| 85930 | Electric window relay assembly | 85930-89102 · 85930-89103 · 85930-89104 · 85930-89105 |
| 85931 | Emission control relay | 90987-02006 |
| 85959A | Relay mounting parts | 85959-35020 |
| 85969 | car light reminder relay | 85969-35020 · 85969-89102 · 85969-89103 |
| 85980 | Door control relay assembly | 85980-35010 · 85980-35040 |
| 85991 | Seat belt warning relay | 85991-12040 · 85991-17030 |
| 85999A | No. 2 relay bracket | 85999-12050 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 86650H | Reversing buzzer assembly | 86650-89106 |
| 88607C | Indicator light sub-assembly | 88607-16010 |
| 88630G | Cooler relay assembly | 90987-02004 · 90987-02009 |
| 88630H | Cooler relay assembly | 90987-03001 · 90987-03003 |
| 89428 | No. 2 temperature detection switch | 88790-22060 · 89428-20050 |
| 89429 | oil temperature sensor | 89422-20010 |
| 89437 | sensor cover | 89437-42010 |
| 89465 | oxygen sensor | 89465-39445 · 89465-80050 |
| 89466 | Oxygen sensor pad | 89466-20020 |
| 89550 | Emission control ECU assembly | 89550-27040 · 89550-35320 · 89550-35380 · 89550-35390 · 89550-35430 · 89550-35450 · 89550-35470 · 89550-35500 · 89550-35510 · 89550-36100 |
| 89615 | knock control sensor | 89615-22030 · 89615-22040 · 89615-50010 |
| 89620 | Ignition assembly | 89620-35200 · 89620-35240 · 89620-35260 · 89620-35270 · 89620-35290 · 89620-35300 · 89620-35310 |
| 89629 | Ignition bracket assembly | 89629-35020 |
