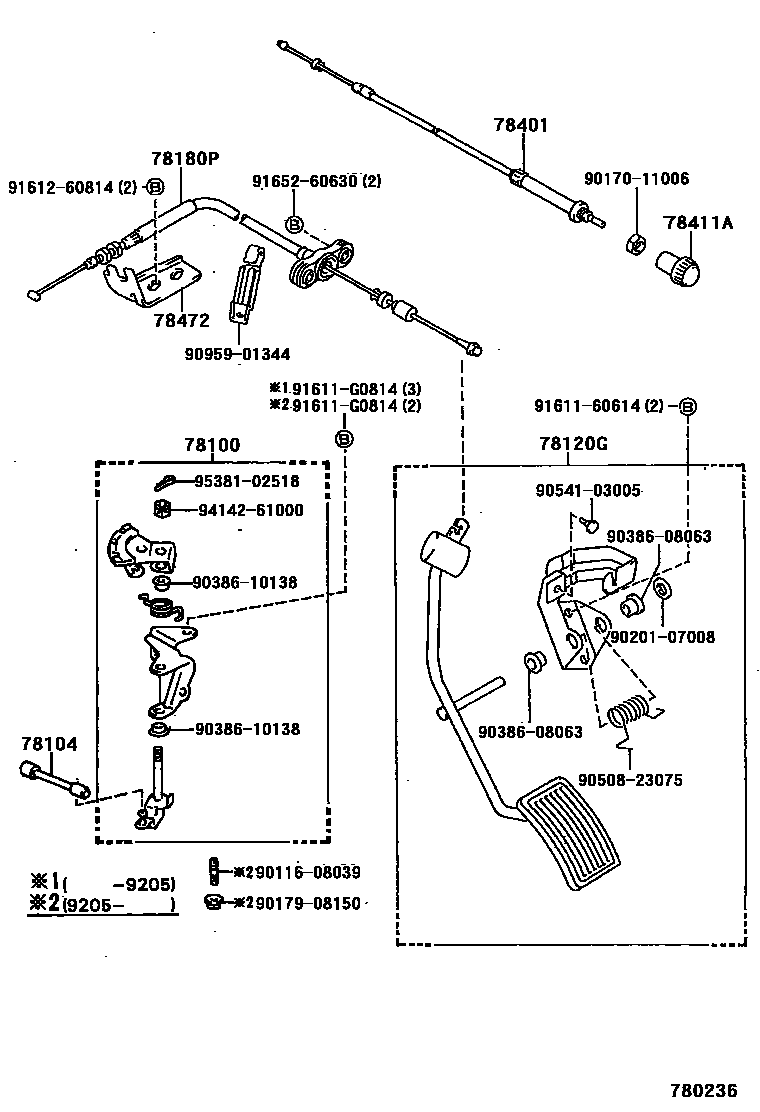

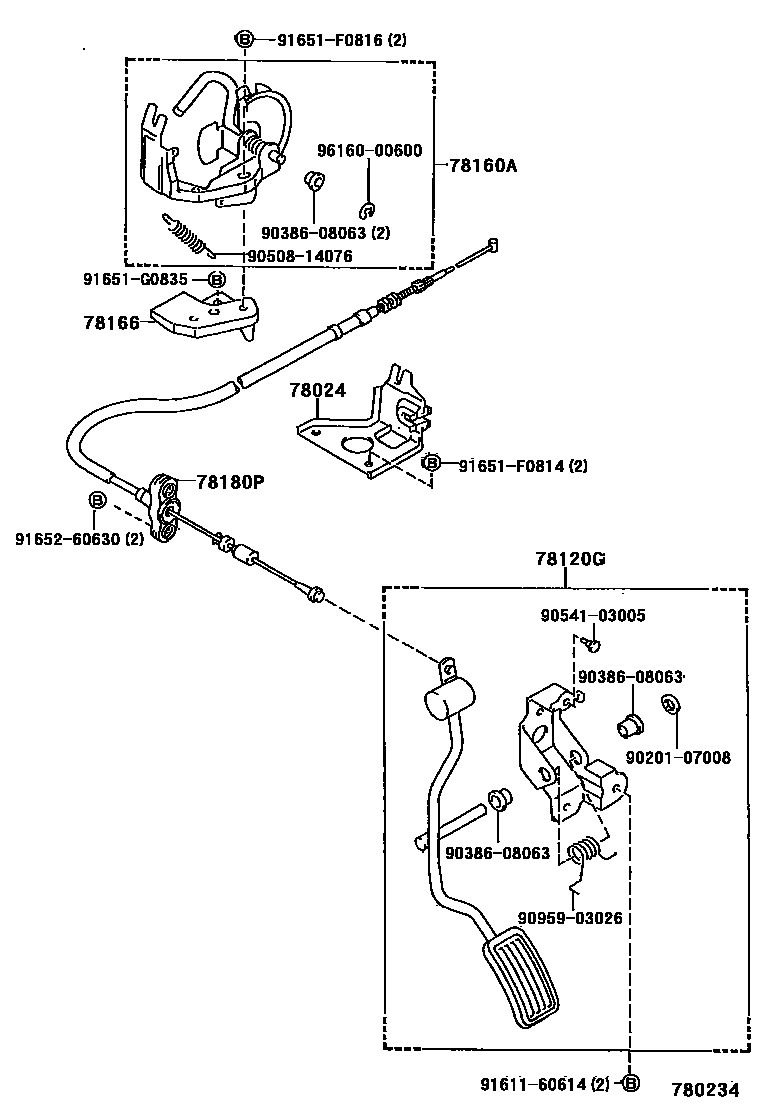

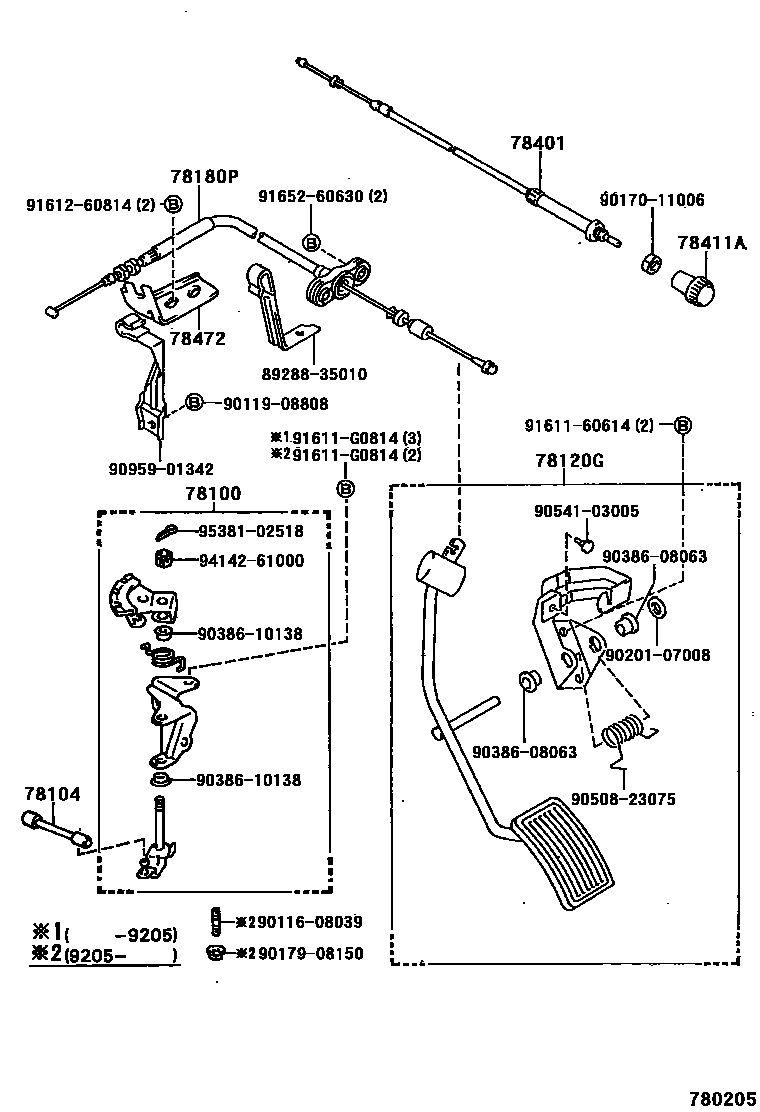

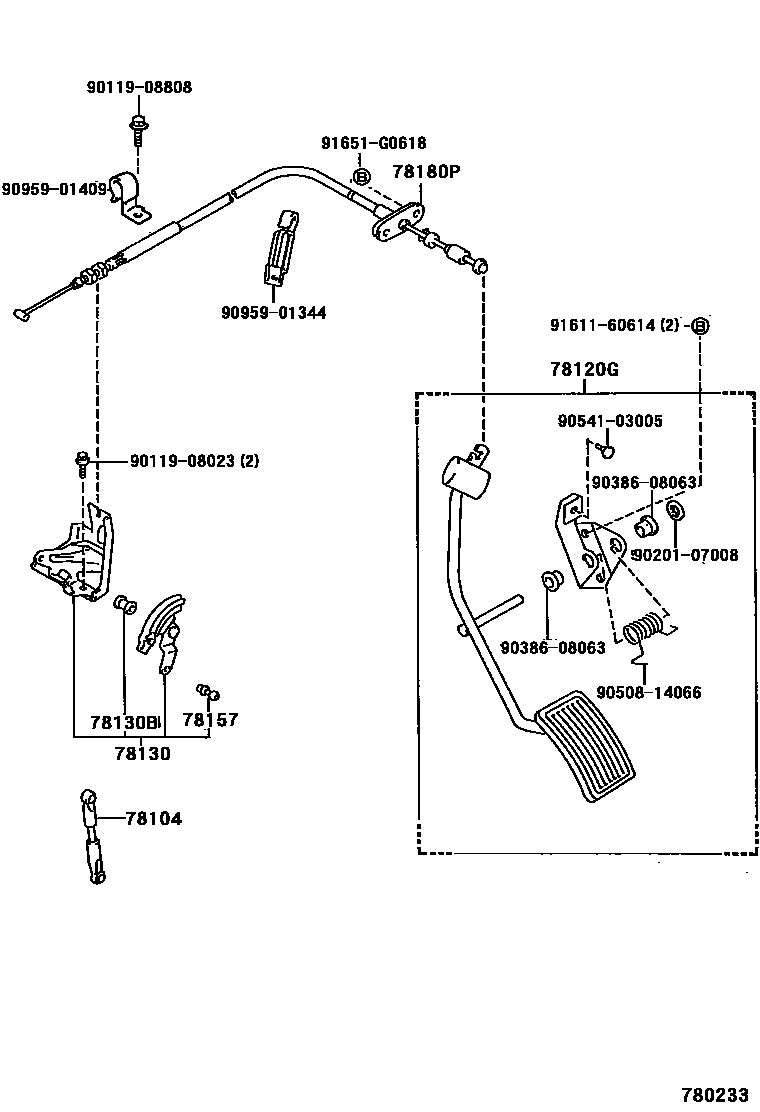

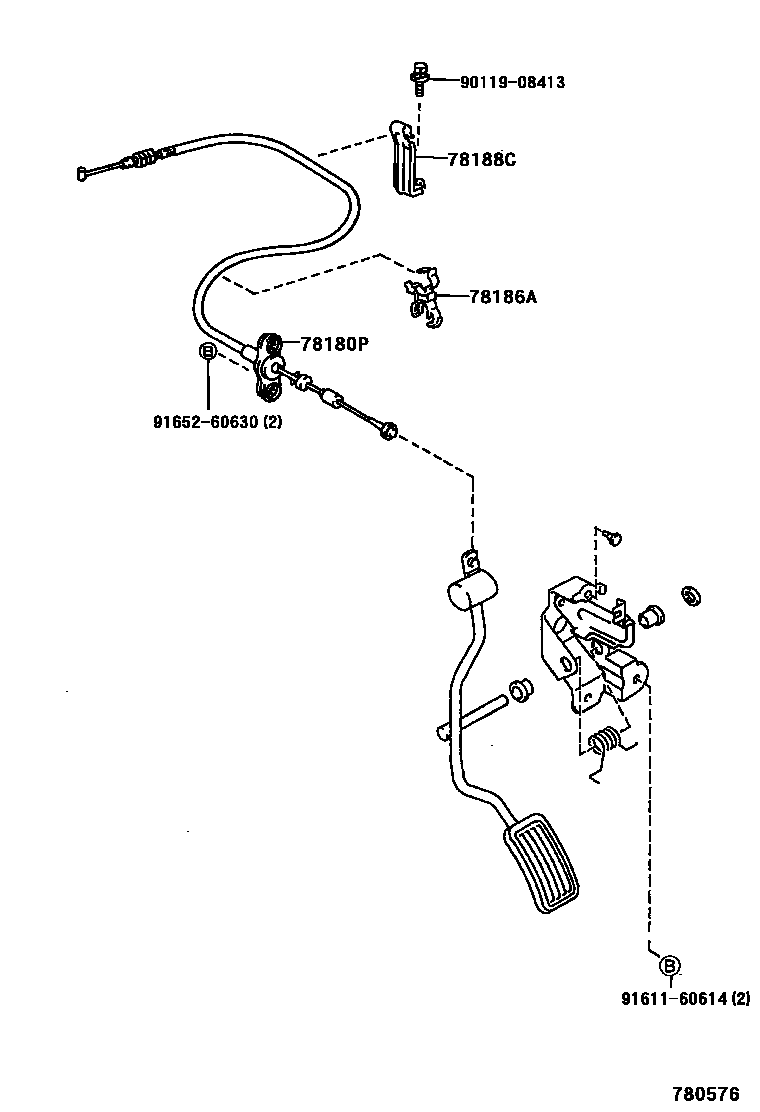

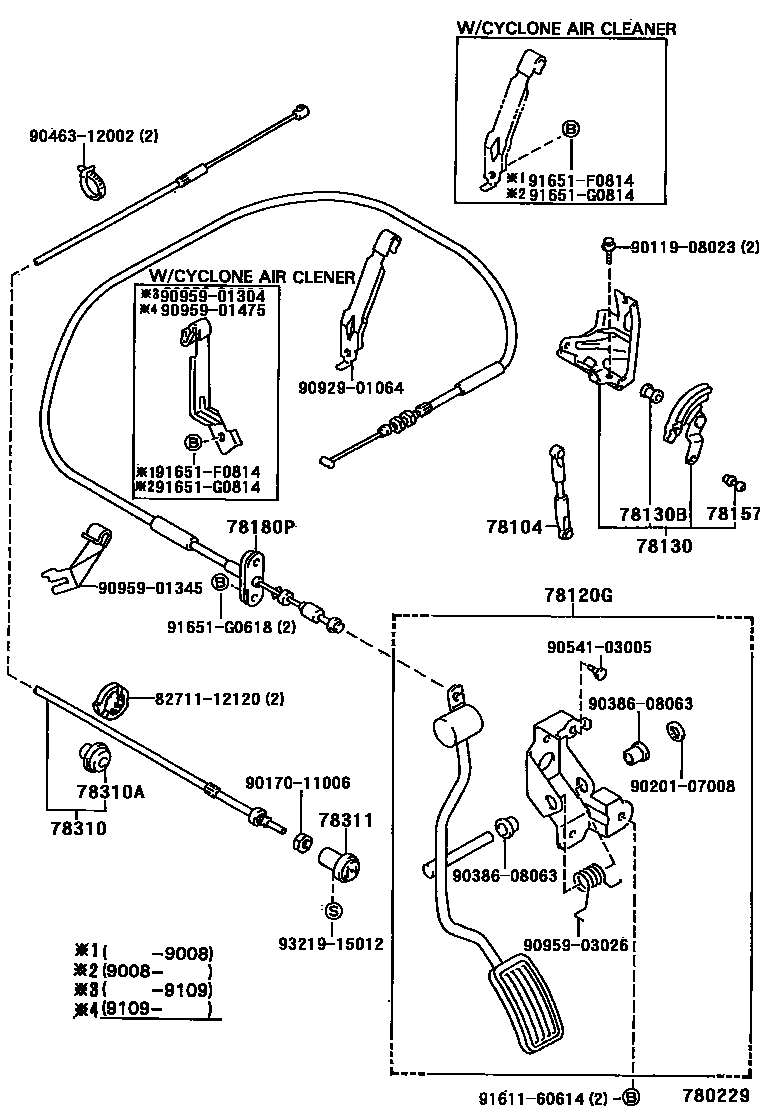

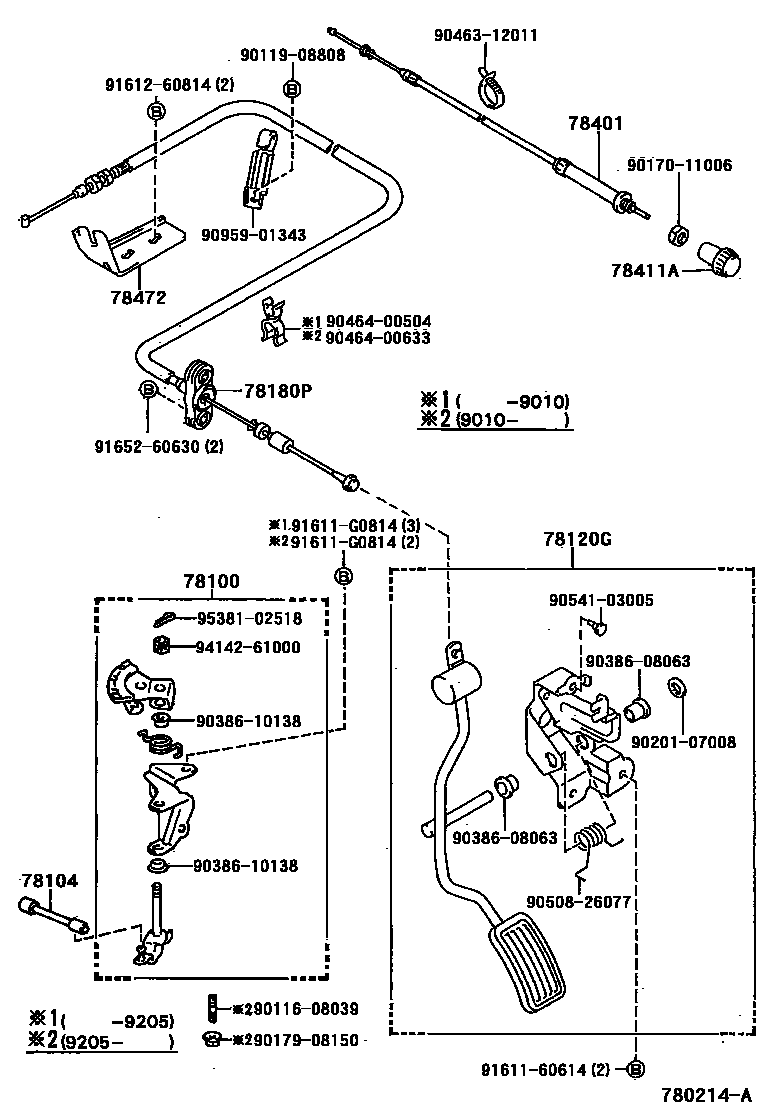

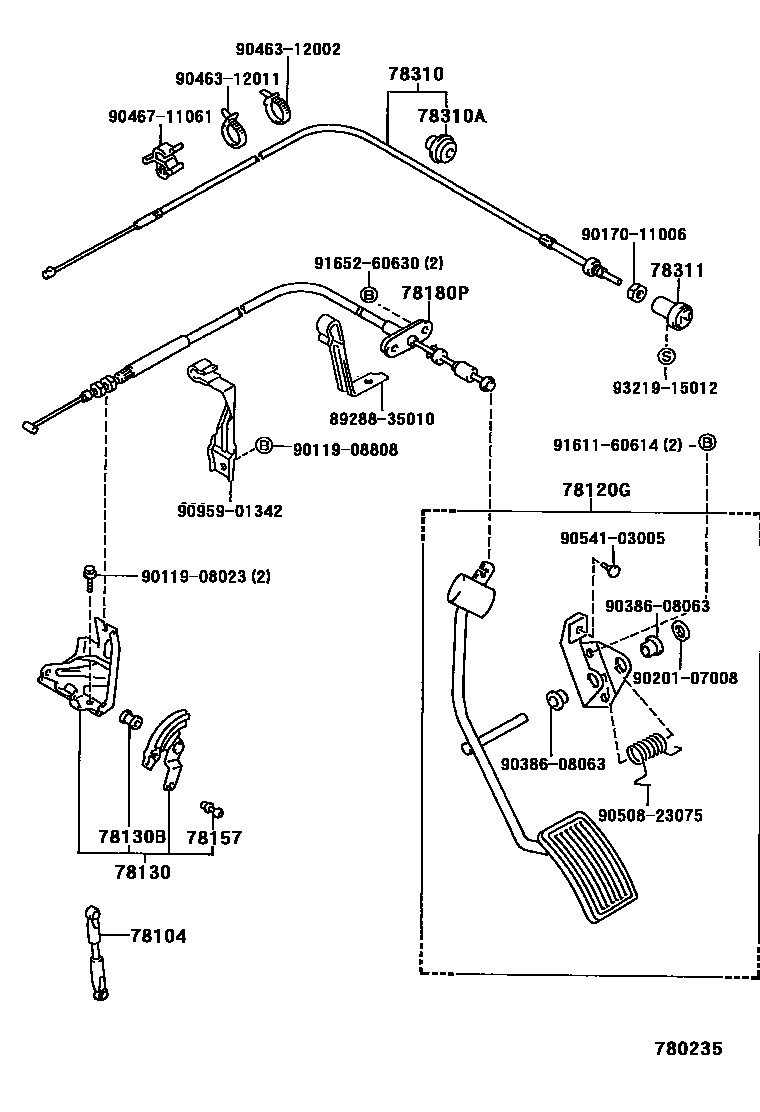

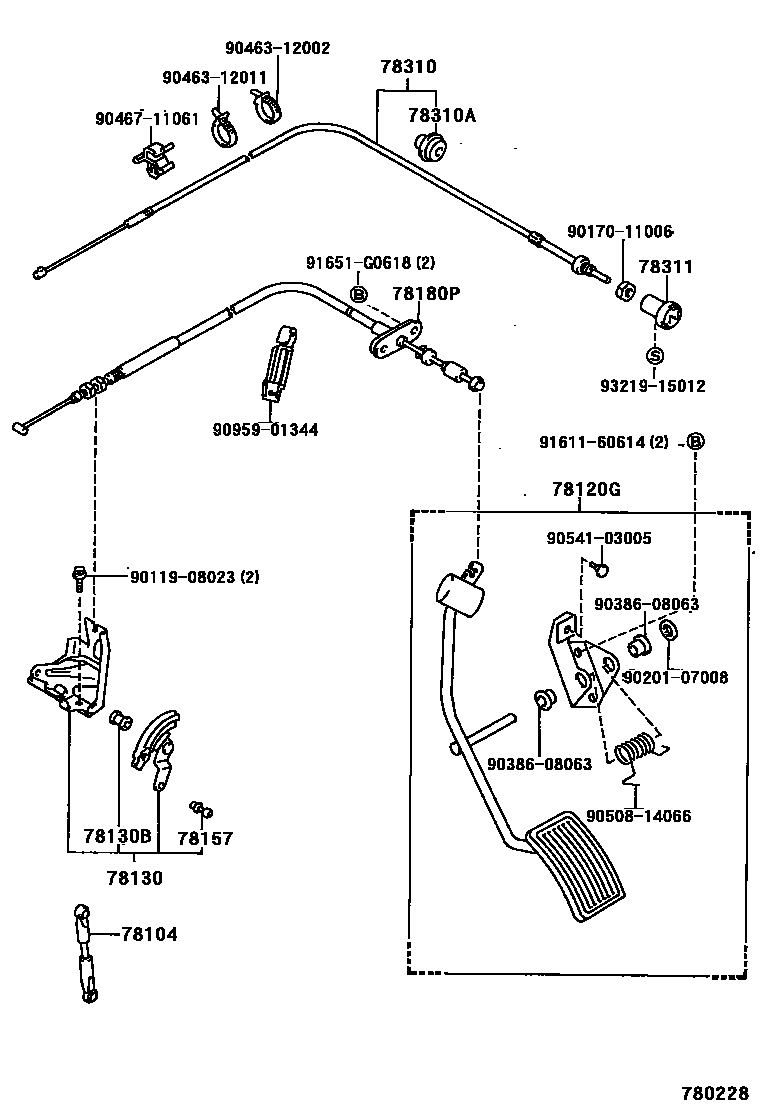

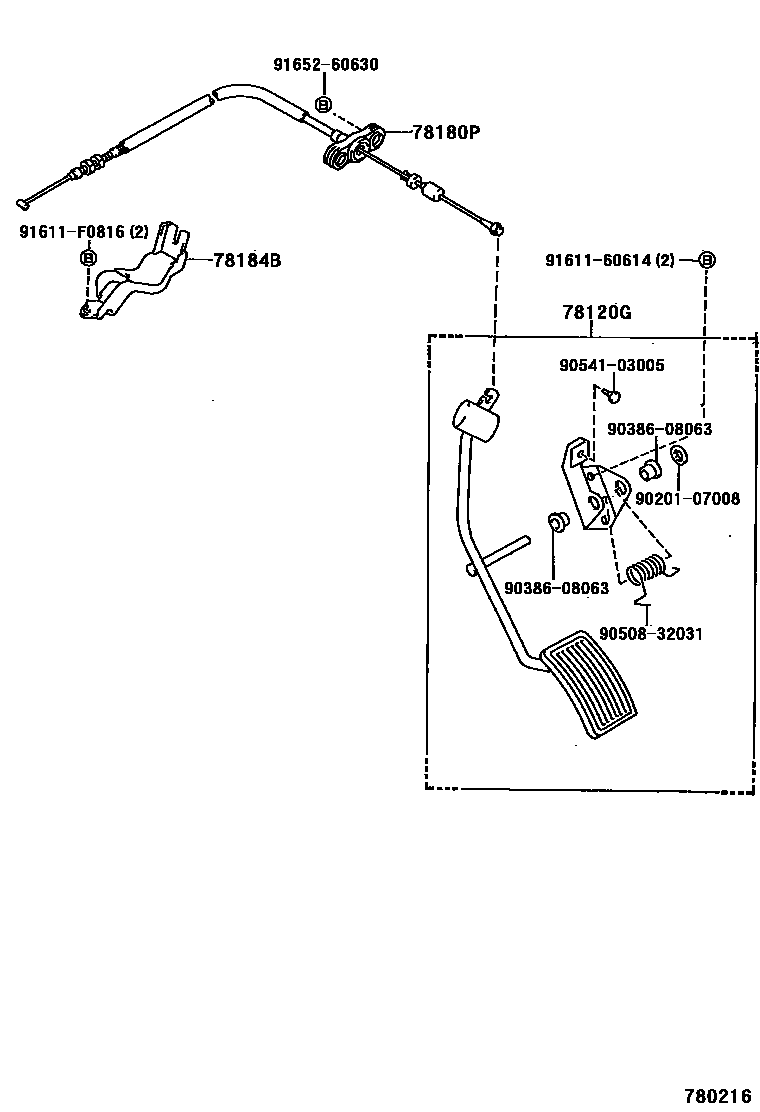

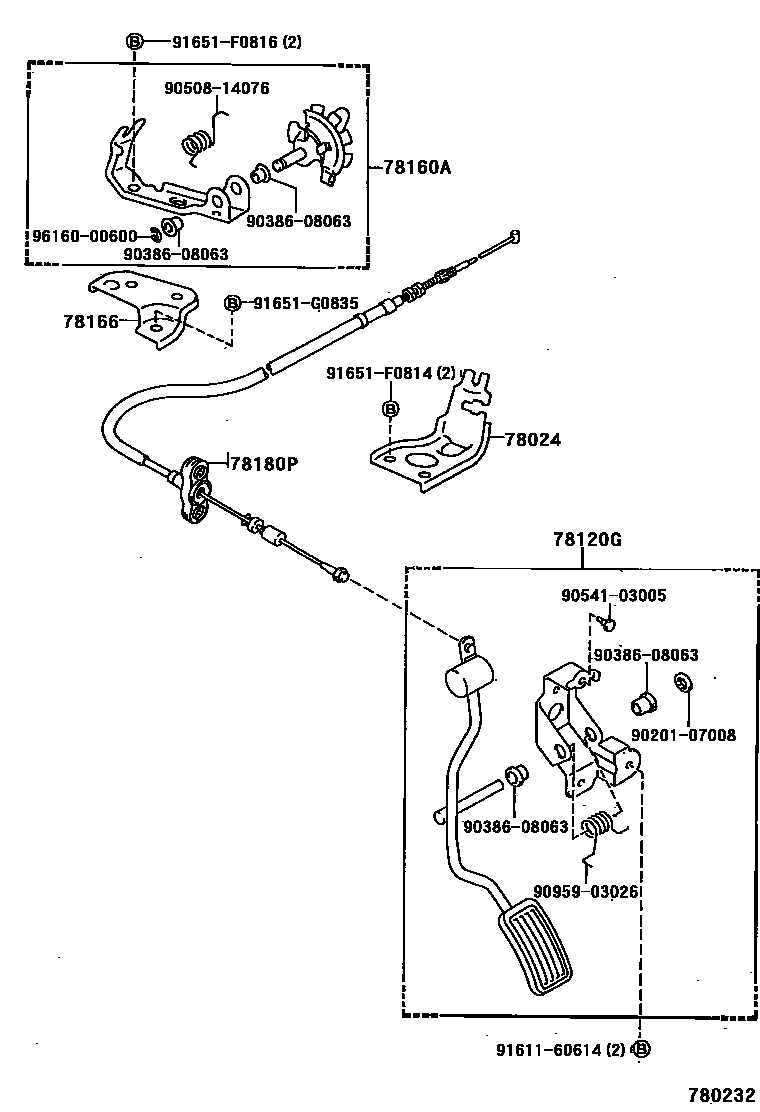

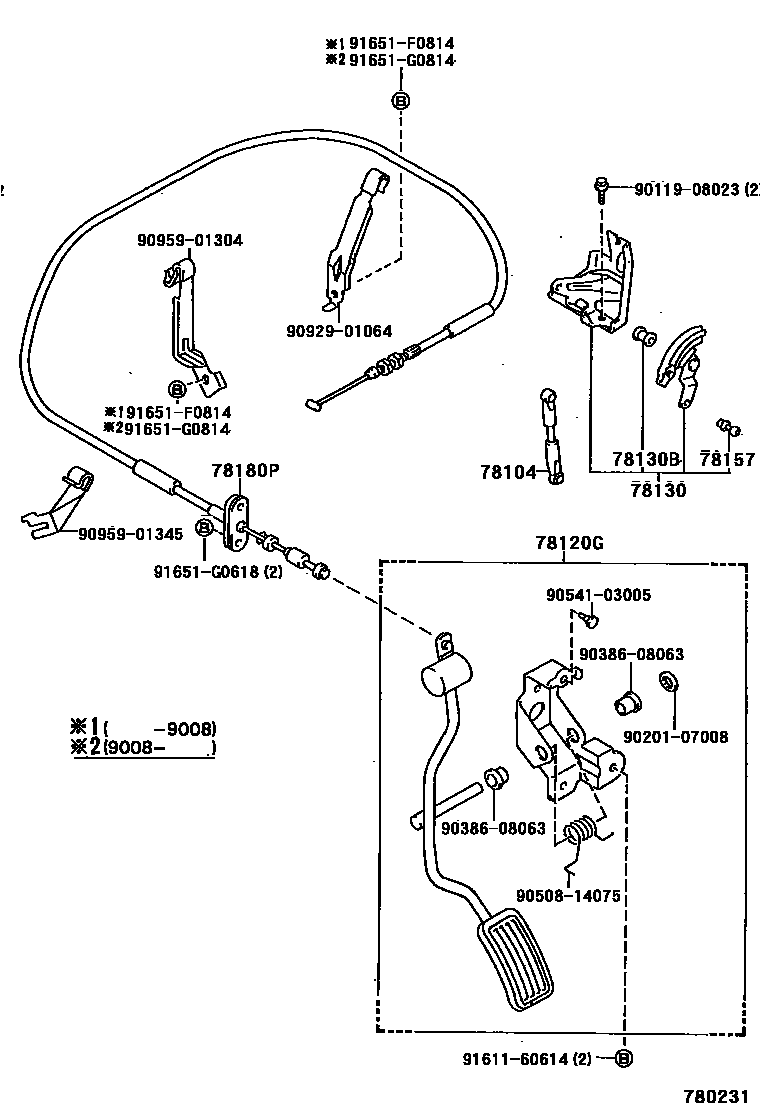

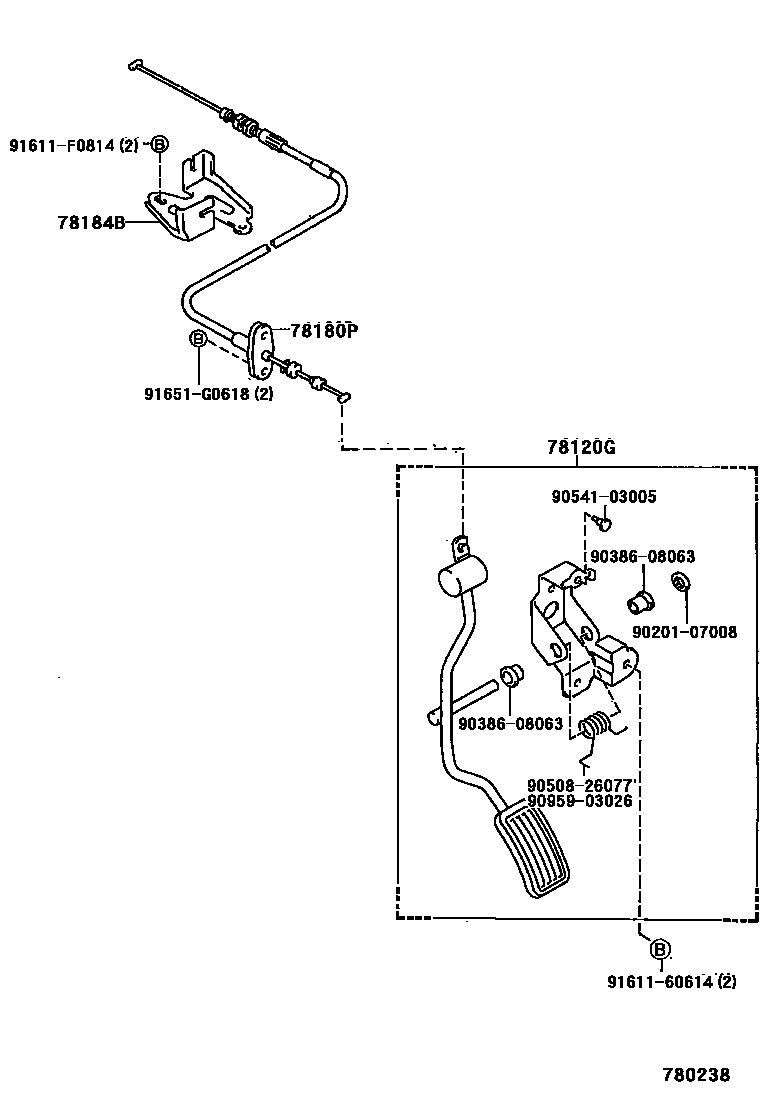

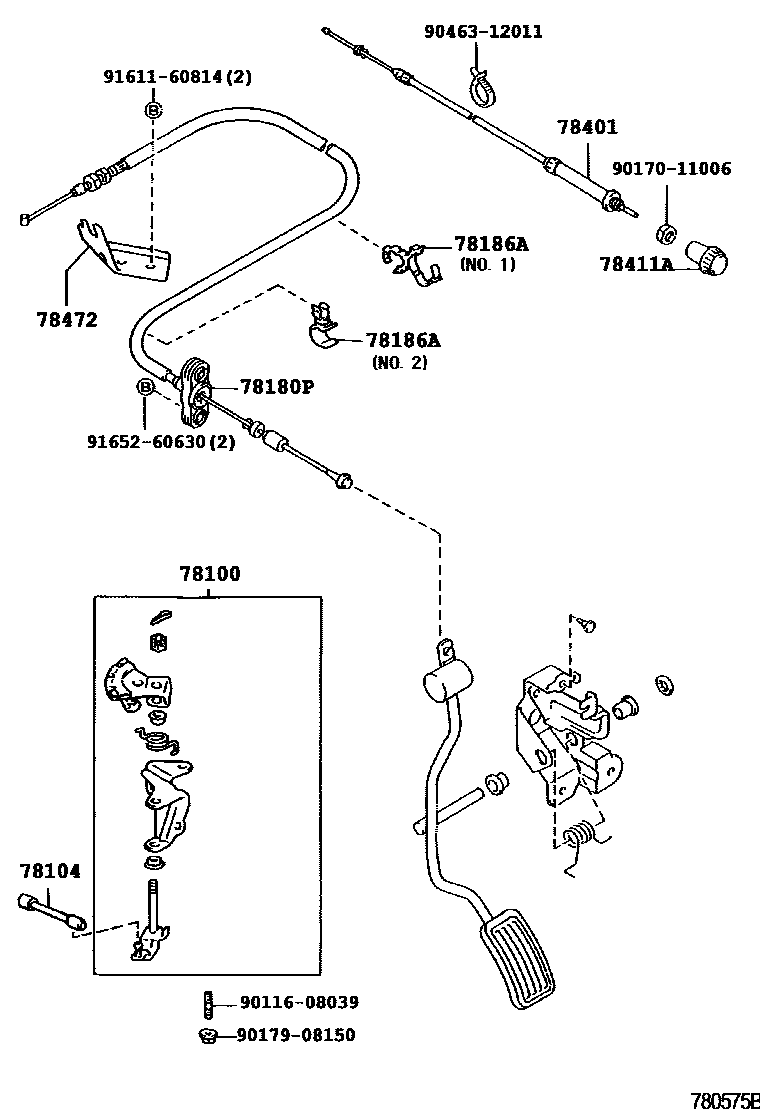

Toyota HILUX accelerator pedal connecting rod — Figure 7851
Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 14 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-22060 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-22100 · 78100-22101 · 78100-35070 · 78100-35071 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-22140 · 78104-89106 |
| 78120G | Accelerator pedal lever assembly | 78120-89138 · 78120-89139 · 78120-89142 · 78120-89143 · 78120-89145 · 78120-89146 · 78120-89149 · 78120-89152 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-35020 · 78130-35030 |
| 78130B | Throttle pedal right angle lever bushing | 90386-08003 |
| 78157 | accelerator pedal ball joint | 78157-10010 |
| 78160A | Accelerator pedal control right-angle lever assembly with bracket | 78160-89101 |
| 78166 | No. 2 asked again about the pedal control right-angle lever bracket | 78166-35010 |
| 78180P | Accelerator pedal control cable assembly | 78180-35040 · 78180-35050 · 78180-35052 · 78180-35080 · 78180-35090 · 78180-35140 · 78180-35150 · 78180-35190 · 78180-35480 · 78180-35490 · 78180-89151 · 78180-89152 · 78180-89155 · 78180-89156 · 78180-89157 |
| 78184B | Throttle pedal control cable bracket | 78184-35030 · 78184-35040 |
| 78186A | No. 3 accelerator pedal control cable clip | 78186-35070 · 78186-35080 · 78186-35100 |
| 78188C | No. 5 accelerator pedal control cable clip | 78188-35010 |
| 78310 | Choke door cable assembly | 78310-89115 · 78310-89116 |
| 78310A | Choke cable retaining ring | 90480-21005 |
| 78311 | Choke control cable button | 78311-89103 |
| 78401 | Throttle valve control cable sub-assembly | 78401-89110 · 78401-89111 · 78401-89112 · 78401-89113 |
| 78411A | Throttle control cable button | 78411-89102 · 78411-89105 |
| 78472 | Throttle control cable bracket | 78472-35010 |
