Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 4 images and 5 PNC and OE references.

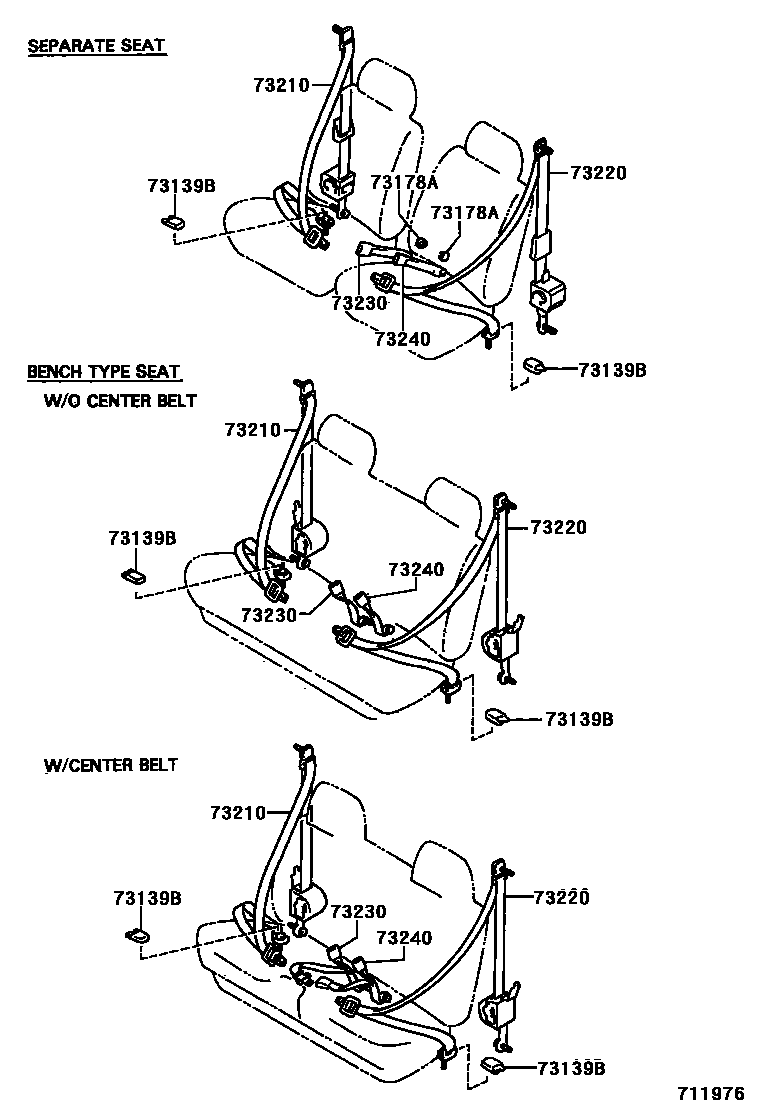

Toyota HILUX seat belt EPC diagram — 711976
seat belt — 711976 (198808 – 999999)

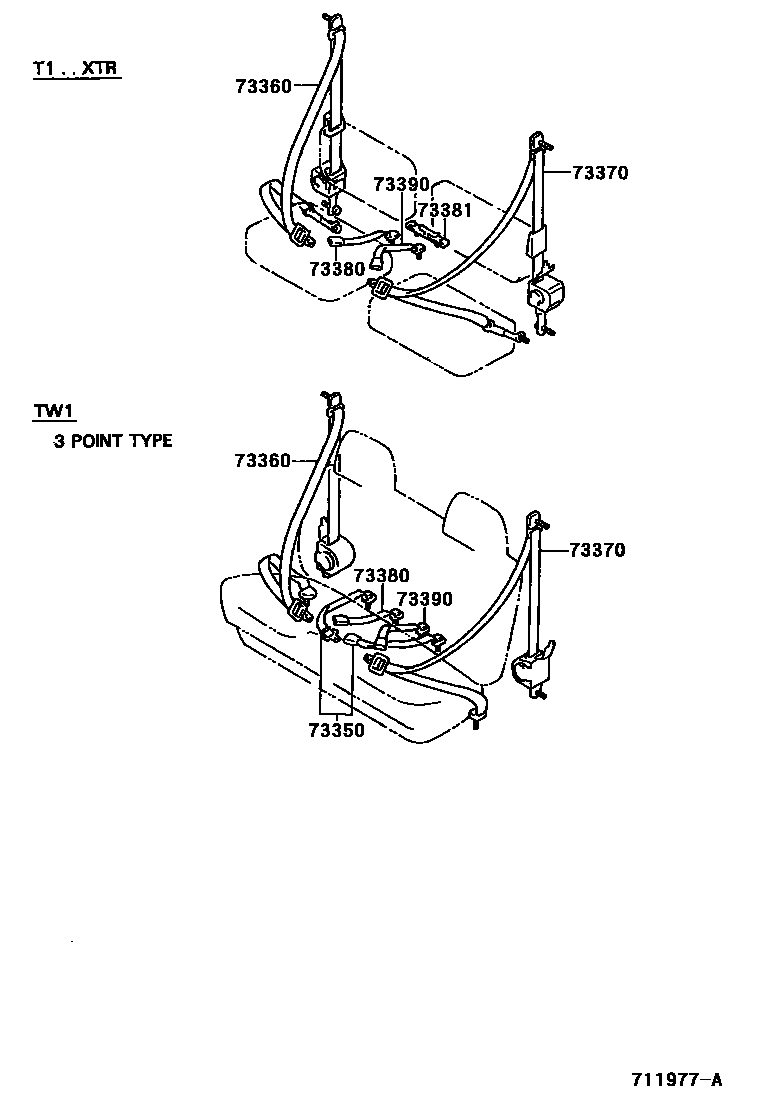

Toyota HILUX seat belt EPC diagram — 711977A
seat belt — 711977A (198808 – 999999)

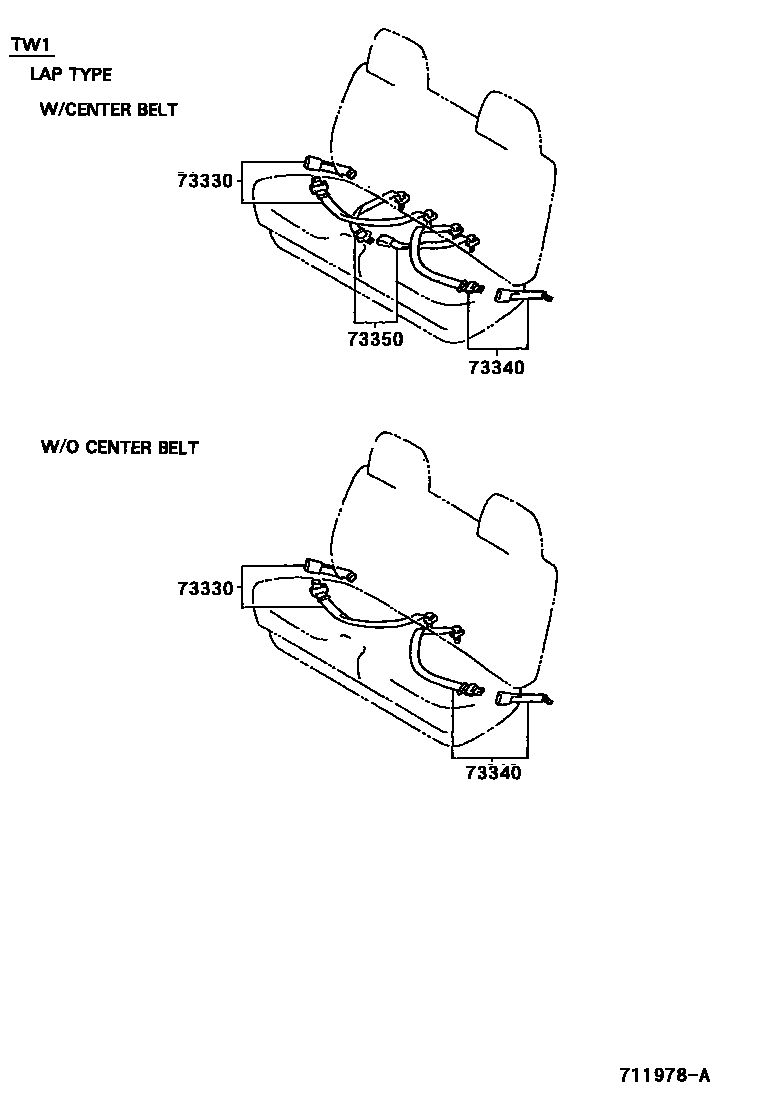

Toyota HILUX seat belt EPC diagram — 711978A
seat belt — 711978A (198808 – 200108)

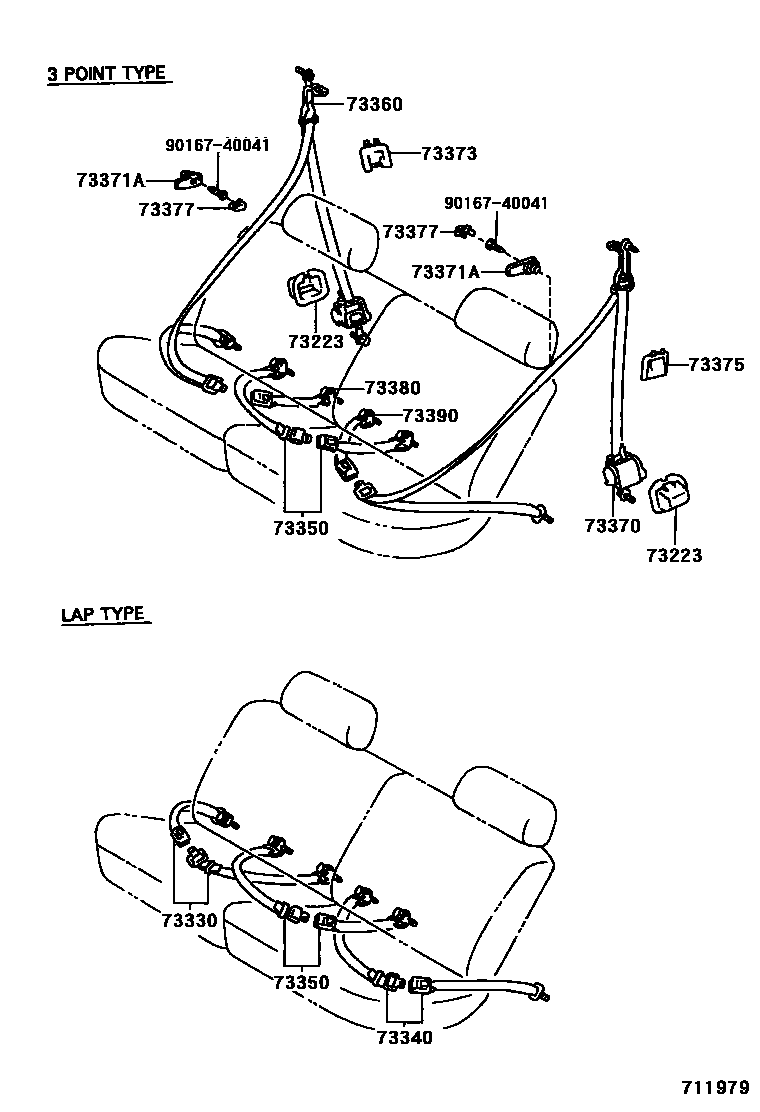

Toyota HILUX seat belt EPC diagram — 711979
seat belt — 711979 (198907 – 999999)

PNC and OE references

PNCPart nameOE numbers
73210Front right seat outer seat belt assembly73210-35311
73220Front left seat outer seat belt assembly73220-35231
73223seat belt retractor cover73223-35010 · 73223-89101
73230Front right seat inner seat belt assembly73230-35210
73240Front left seat inner seat belt assembly73230-35210
