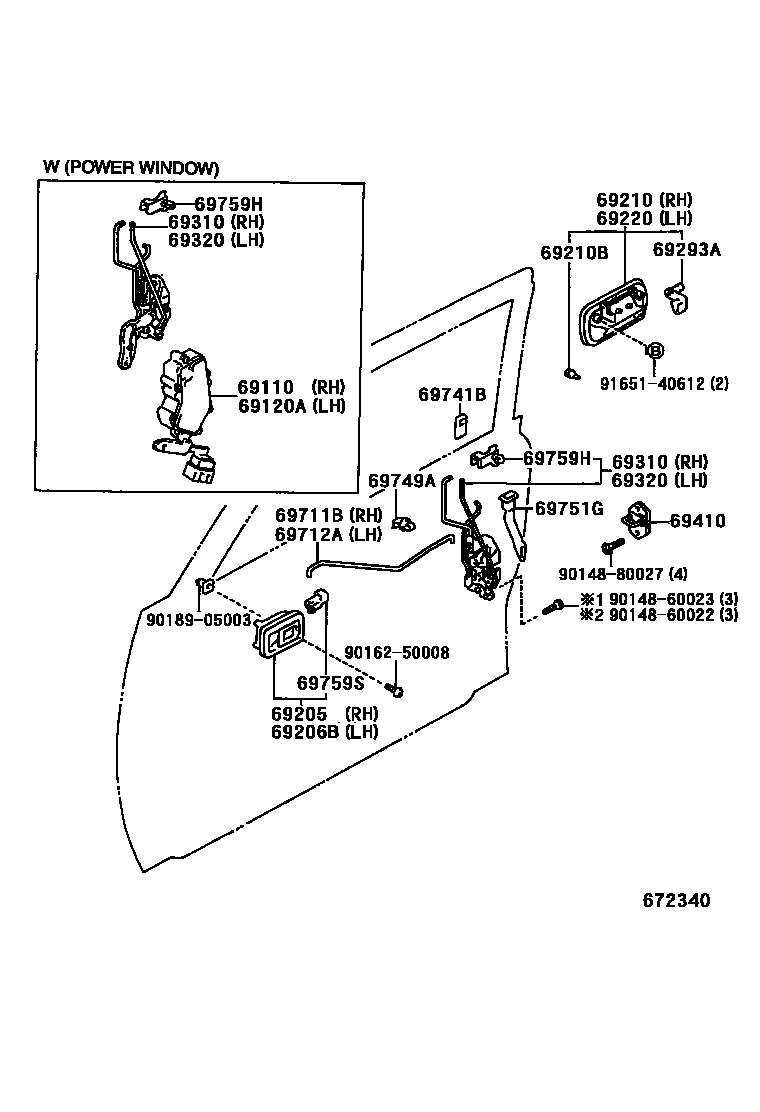

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-35010 · 69110-35020 · 69110-35030 |
| 69120A | Left front door lock actuator assembly | 69120-35010 · 69120-35030 |
| 69210 | Right front door outer handle assembly | 69210-89110 · 69210-89111 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 |
| 69220 | Left front door outer handle assembly | 69220-89110 · 69220-89111 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-35050 · 69310-35080 · 69310-35100 · 69310-35110 · 69310-35170 · 69310-35180 · 69310-35260 · 69310-89118 · 69310-89120 · 69310-89131 |
| 69320 | Left front door lock assembly | 69320-35070 · 69320-35090 · 69320-35100 · 69320-35150 · 69320-35170 · 69320-35260 · 69320-89117 · 69320-89119 · 69320-89128 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-89104 · 69711-89105 |
| 69712A | Left front door lock remote control lever | 69712-89104 · 69712-89105 |
| 69749A | Front door lock No. 1 link clamp | 69749-89101 |
| 69751G | Front door lock control button fastener | 69751-89103 · 69751-89106 · 69752-89102 · 69752-89103 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-20040 · 69759-20050 · 69759-20100 · 69759-20110 · 69759-24010 · 69759-24020 |
| 69759S | Front door inner handle buckle | 69759-20060 · 69759-20070 |
