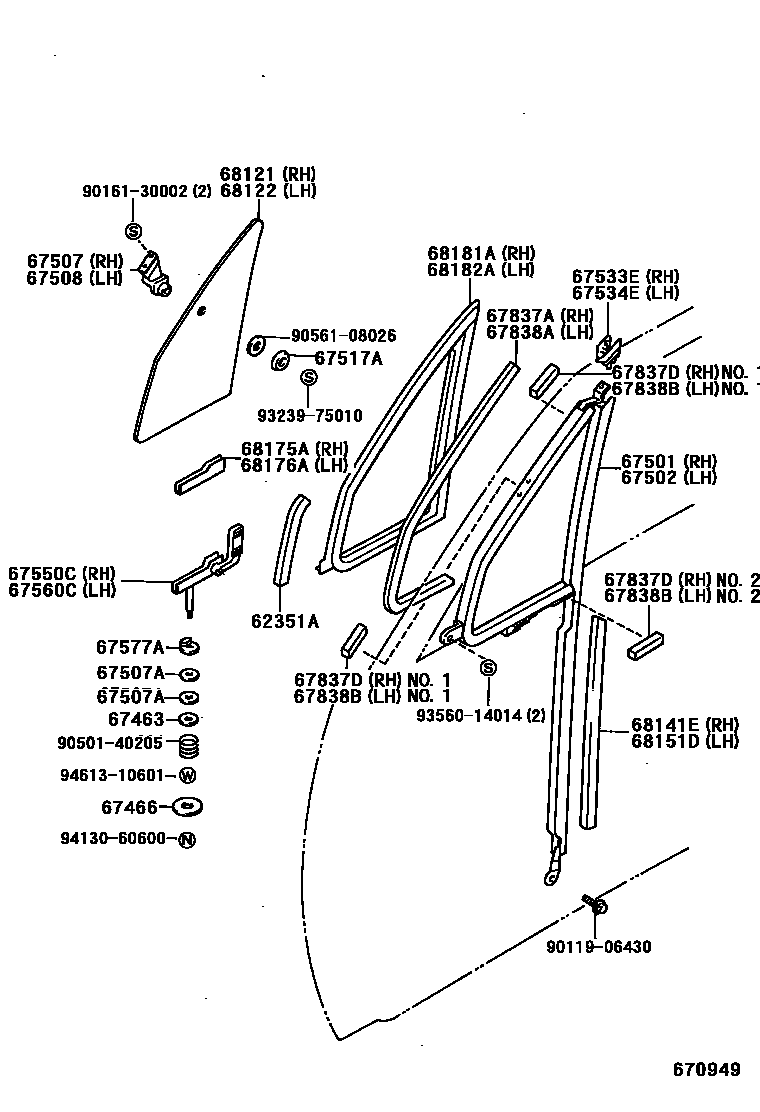

Toyota HILUX 前门通风车窗 — Figure 6752
Toyota HILUX EPC diagram 6752, 前门通风车窗, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62351A | Front door window waterproof seal | 62351-89101 |
| 67463 | Front door ventilation triangle window lower pivot gasket | 67463-20011 |
| 67466 | Locking washers (for ventilation triangular glazing frames) | 67466-89101 |
| 67501 | Right ventilated triangular window glass frame sub-assembly | 67501-89106 · 67501-89107 |
| 67502 | Left ventilated triangular window glass frame sub-assembly | 67502-89106 · 67502-89107 |
| 67507 | Right ventilation triangular window upper pivot sub-assembly | 67507-89104 |
| 67507A | No. 1 Ventilation Triangular Window Pivot Upper Pad | 90202-08003 |
| 67508 | Left ventilation triangle window upper pivot sub-assembly | 67508-89104 |
| 67517A | Ventilation triangular window upper pivot hinge fixings | 67517-89101 |
| 67533E | Right front door divider seal | 67533-89106 · 67533-89107 |
| 67534E | Left front door divider seal | 67534-89102 · 67534-89103 |
| 67550C | Right front door ventilation triangle window frame assembly | 67550-89104 · 67550-89105 |
| 67560C | Left front door ventilation triangle window frame assembly | 67560-89104 · 67560-89105 |
| 67577A | Right front door ventilation triangle window opening stop | 67577-89101 |
| 67837A | Right front door ventilator seal | 67837-89103 · 67837-89104 |
| 67837D | Right front door ventilator seal | 67837-35010 · 67837-35020 |
| 67838A | Left front door ventilator seal | 67837-89103 · 67837-89104 |
| 67838B | Left front door ventilator seal | 67837-35010 · 67837-35020 |
| 68121 | Right ventilation triangular window glass | 68121-89112 · 68121-89113 · 68121-89115 · 68121-89116 |
| 68122 | Ventilation triangle window left | 68122-89110 · 68122-89111 · 68122-89113 · 68122-89114 |
| 68141E | Right front door glass lift channel | 68141-89111 · 68141-89114 |
| 68151D | Left front door glass lift channel | 68141-89111 · 68151-89103 · 68151-89106 |
| 68175A | Right front door ventilation triangle window glass seal strip | 68175-89110 · 68175-89111 |
| 68176A | Left door ventilation triangle window glass seal strip | 68176-89103 · 68176-89104 |
| 68181A | Right front door ventilation triangle window seal strip | 68181-89106 · 68181-89107 · 68181-89108 |
| 68182A | Left door ventilation triangle window seal strip | 68182-89106 · 68182-89107 · 68182-89108 |
