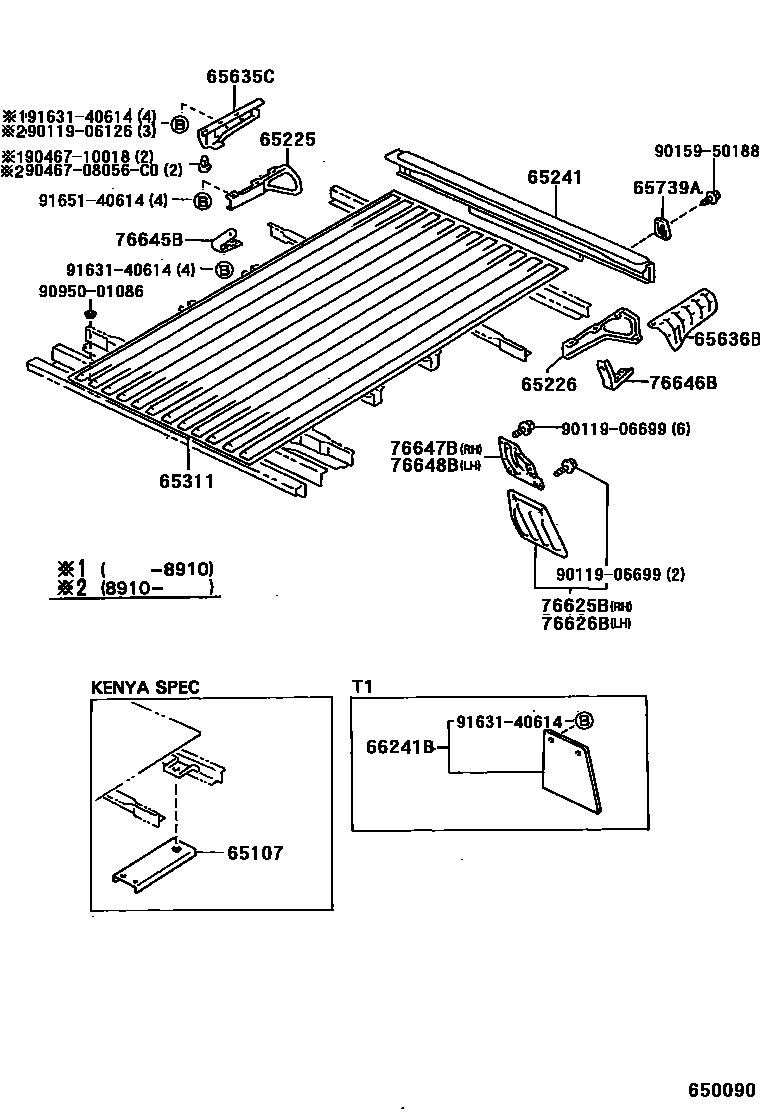

Toyota HILUX 后车身地板和翼子板 — Figure 6552
Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65107 | No. 4 mounting bracket sub-assembly | 65107-89101 |
| 65225 | Rear floor right reinforcement | 65225-89102 · 65225-89103 |
| 65226 | Rear floor left reinforcement | 65226-89101 · 65226-89102 |
| 65241 | rear cross member | 65240-89130 |
| 65311 | central floor | 65311-89127 · 65311-89128 · 65311-89129 |
| 65635C | Right rear wheel housing rear panel | 65635-89111 · 65635-89112 |
| 65636B | Left rear wheel housing rear panel | 65636-89110 · 65636-89111 |
| 65739A | Back door buffer block | 65739-89101 · 65739-89103 |
| 66241B | Rubber baffle | 66241-39016 · 66241-39025 |
| 76625B | Right rear body fender | 76625-39085 · 76625-39225 |
| 76626B | Left rear body fender | 76626-39085 · 76626-39225 |
| 76645B | Right rear body fender bracket | 76645-89101 |
| 76646B | Left rear body fender bracket | 76646-89101 |
| 76647B | Right rear body fender bracket | 76647-89105 · 76647-89106 · 76647-89107 |
| 76648B | Left rear body fender bracket | 76648-89105 · 76648-89106 · 76648-89107 |
